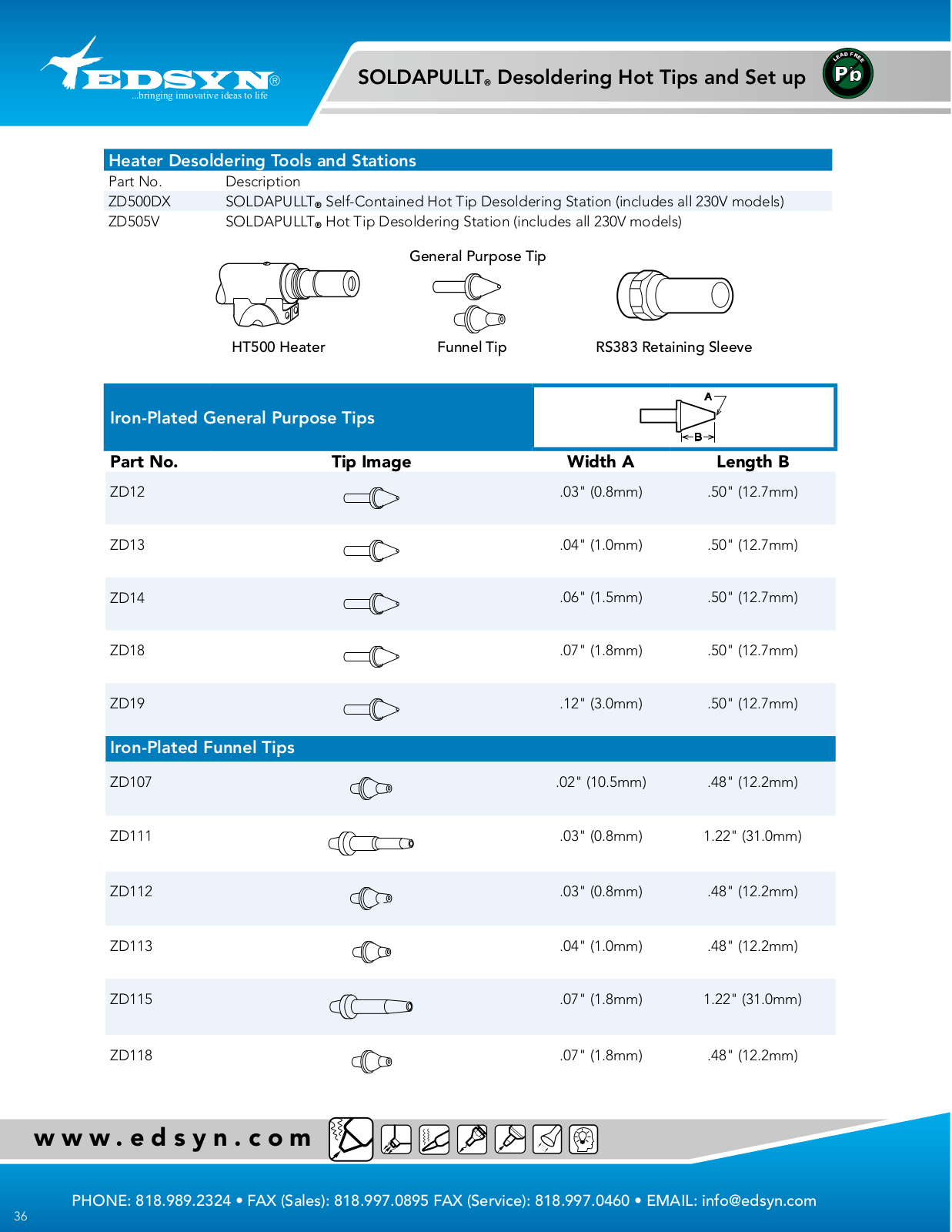

SOLDAPULLT® Desoldering Hot Tips and Set up

Heater Desoldering Tools and Stations

Part No. Description
ZD500DX SOLDAPULLT
ZD505V

SOLDAPULLT

Self-Contained Hot Tip Desoldering Station (includes all 230V models)

®

Hot Tip Desoldering Station (includes all 230V models)

®

General Purpose Tip

HT500 Heater Funnel Tip

RS383 Retaining Sleeve

Iron-Plated General Purpose Tips

Part No. Tip Image Width A Length B

ZD12

ZD13

ZD14

ZD18

ZD19

.03" (0.8mm) .50" (12.7mm)

.04" (1.0mm) .50" (12.7mm)

.06" (1.5mm) .50" (12.7mm)

.07" (1.8mm) .50" (12.7mm)

.12" (3.0mm) .50" (12.7mm)

Iron-Plated Funnel Tips

ZD107

.02" (10.5mm) .48" (12.2mm)

ZD111

ZD112

ZD113

ZD115

ZD118

www.edsyn.com

36

PHONE: [phone] • FAX (Sales): 818.997.0895 FAX (Service): 818.997.0460 • EMAIL: [e-mail]

.03" (0.8mm) 1.22" (31.0mm)

.03" (0.8mm) .48" (12.2mm)

.04" (1.0mm) .48" (12.2mm)

.07" (1.8mm) 1.22" (31.0mm)

.07" (1.8mm) .48" (12.2mm)
