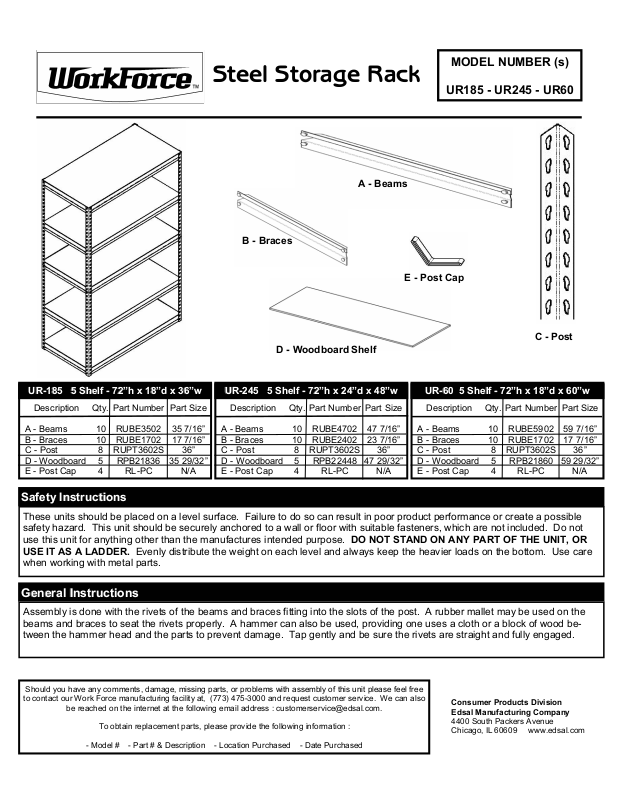

Edsal UR185 User Manual
Steel Storage Rack
A - Beams
B - Braces
E - Post Cap
D - Woodboard Shelf
MODEL NUMBER (s)
UR185 - UR245 - UR60
C - Post
UR
-
185 5 Shelf
UR
-
185 5 Shelf
UR
-
185 5 Shelf
Description
A - Beams
B - Braces
C - Post
D - Woodboard
E - Post Cap
Safety Instructions
Safety Instructions
Safety Instructions
-
72”h x 18”d x 36”w
-
72”h x 18”d x 36”w
-
72”h x 18”d x 36”w
Qty.
Part Number
10
RUBE3502
10
RUBE1702
8
RUPT3602S
5
RPB21836
4
RL-PC
Part Size
35 7/16”
17 7/16”
36”
35 29/32”
N/A
UR
UR
UR
Description
A - Beams
B - Braces
C - Post
D - Woodboard
E - Post Cap
-
245 5 Shelf
-
245 5 Shelf
-
245 5 Shelf
-
72”h x 24”d x 48”w
-
72”h x 24”d x 48”w
-
72”h x 24”d x 48”w
Qty.
Part Number
10
10
8
5
4
RUBE4702
RUBE2402
RUPT3602S
RPB22448
RL-PC
Part Size
47 7/16”
23 7/16”
36”
47 29/32”
N/A
UR
UR
UR
Description
A - Beams
B - Braces
C - Post
D - Woodboard
E - Post Cap
-
60 5 Shelf
-
60 5 Shelf
-
60 5 Shelf
-
72”h x 18”d x 60”w
-
72”h x 18”d x 60”w
-
72”h x 18”d x 60”w
Qty.
Part Number
10
10
8
5
4
RUBE5902
RUBE1702
RUPT3602S
RPB21860
RL-PC
Part Size
59 7/16”
17 7/16”
36”
59 29/32”
N/A
These units should be placed on a level surface. Failure to do so can result in poor product performance or create a possible
safety hazard. This unit should be securely anchored to a wall or floor with suitable fasteners, which are not included. Do not
use this unit for anything other than the manufactures intended purpose. DO NOT STAND ON ANY PART OF THE UNIT, OR
USE IT AS A LADDER. Evenly distribute the weight on each level and always keep the heavier loads on the bottom. Use care
when working with metal parts.
General Instructions
General Instructions
General Instructions
Assembly is done with the rivets of the beams and braces fitting into the slots of the post. A rubber mallet may be used on the
beams and braces to seat the rivets properly. A hammer can also be used, providing one uses a cloth or a block of wood between the hammer head and the parts to prevent damage. Tap gently and be sure the rivets are straight and fully engaged.
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel free
to contact our Work Force manufacturing facility at, (773) 475-3000 and request customer service. We can also
be reached on the internet at the following email address : customerservice@edsal.com.
To obtain replacement parts, please provide the following information :
- Model # - Part # & Description - Location Purchased - Date Purchased
Consumer Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609 www.edsal.com
Assembly Instructions for UR
Assembly Instructions for UR
Assembly Instructions for UR
-
185, UR
-
185, UR
-
185, UR
-
245, & UR
-
245, & UR
-
245, & UR
-
-
-
60
60
60
Step
1
Figure A
Post
Brace
Assemble two (2) post with one (1) brace. Skipping one slot
from the bottom of the post (see figure A), place the rivets
into post with the slot pointing down, and with the shelf ledge
of the brace facing up (see figure B). Tap lightly to seat rivets. Repeat with two (2) post and one (1) brace. Assemble
the two (2) post units with two (2) beams (see figure C). Skip
one hole from the bottom of post, tap lightly to seat rivets.
Figure B
Note:
Post are
directional.
The slot
must point
down.
Figure C
Figure C
Tap Lightly
Shelf Ledge
Post Slot Points Down
Beam
Step
2
Woodboard Shelf
Start by adding a woodboard shelf to the level previously
built, then continue working by adding the second level
using two (2) beams and two (2) braces in the post slots
of your desired location. Again place the rivets of the
beams and braces into the post slots with the shelf
ledge facing up and tap lightly to seat the rivets.
IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots.
IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots.
IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots.
Step
Note:
Post are directional. The slot
must point down.
3
Top
Figure D
Tap Lightly
Bottom
Post
Add a woodboard shelf to the previously built level, then
assemble the top post to the bottom post by using two (2)
beams and two (2) braces. One (1) rivet from each beam
and brace must be placed in the top hole of the bottom
post, and the bottom hole of the top post (see figure D).
After all beams and braces are in place, tap lightly to
properly seat the rivets.
Post
Slot
Down
Woodboard Shelf
Step
Figure F
Press Down
4
Figure E
Top Of Unit
Add a woodboard shelf to the previously built level, then continue
by adding the fourth and fifth level to the unit using two (2) beams
and two (2) braces per level. Tap lightly to properly seat the rivets
and add the final woodboard shelves to the unit. Install all four
(4) end caps to the top of the unit after assembly has been completed (see figure E). Install end caps to post by pressing down
on end cap at the three points illustrated above (see figure F).
