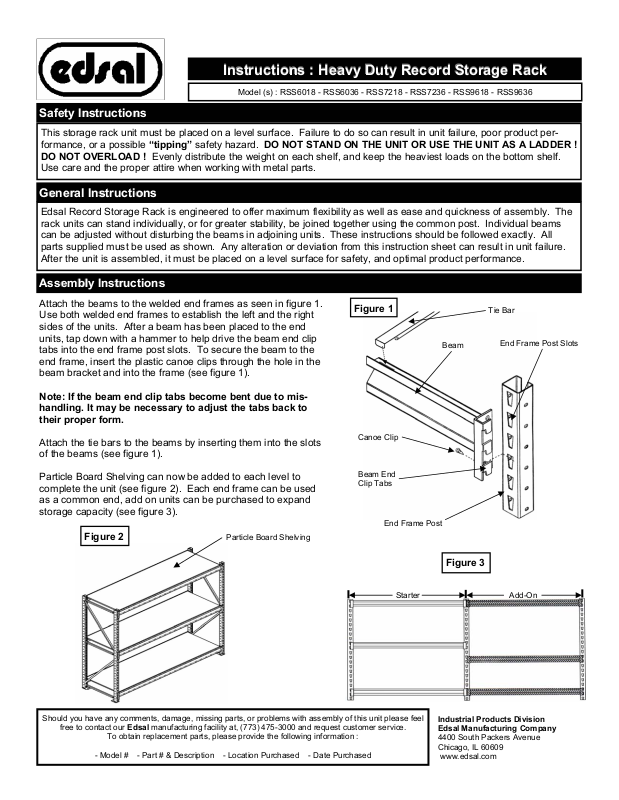

Instructions : Heavy Duty Record Storage Rack

Instructions : Heavy Duty Record Storage Rack

Instructions : Heavy Duty Record Storage Rack

Model (s) : RSS6018 - RSS6036 - RSS7218 - RSS7236 - RSS9618 - RSS9636

Safety Instructions

Safety Instructions

Safety Instructions

This storage rack unit must be placed on a level surface. Failure to do so can result in unit failure, poor product per­formance, or a possible “tipping” safety hazard. DO NOT STAND ON THE UNIT OR USE THE UNIT AS A LADDER !
DO NOT OVERLOAD ! Evenly distribute the weight on each shelf, and keep the heaviest loads on the bottom shelf.
Use care and the proper attire when working with metal parts.

General Instructions

General Instructions

General Instructions

Edsal Record Storage Rack is engineered to offer maximum flexibility as well as ease and quickness of assembly. The
rack units can stand individually, or for greater stability, be joined together using the common post. Individual beams
can be adjusted without disturbing the beams in adjoining units. These instructions should be followed exactly. All
parts supplied must be used as shown. Any alteration or deviation from this instruction sheet can result in unit failure.
After the unit is assembled, it must be placed on a level surface for safety, and optimal product performance.

Assembly Instructions

Assembly Instructions

Assembly Instructions

Attach the beams to the welded end frames as seen in figure 1.
Use both welded end frames to establish the left and the right
sides of the units. After a beam has been placed to the end
units, tap down with a hammer to help drive the beam end clip
tabs into the end frame post slots. To secure the beam to the
end frame, insert the plastic canoe clips through the hole in the
beam bracket and into the frame (see figure 1).

Note: If the beam end clip tabs become bent due to mis­handling. It may be necessary to adjust the tabs back to
their proper form.

Attach the tie bars to the beams by inserting them into the slots
of the beams (see figure 1).

Particle Board Shelving can now be added to each level to
complete the unit (see figure 2). Each end frame can be used
as a common end, add on units can be purchased to expand
storage capacity (see figure 3).

Figure 2

Figure 1

Beam

Canoe Clip

Beam End
Clip Tabs

End Frame Post

Particle Board Shelving

Tie Bar

End Frame Post Slots

Starter Add-On

Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel

free to contact our Edsal manufacturing facility at, [phone] and request customer service.

To obtain replacement parts, please provide the following information :

- Model # - Part # & Description - Location Purchased - Date Purchased

Figure 3
