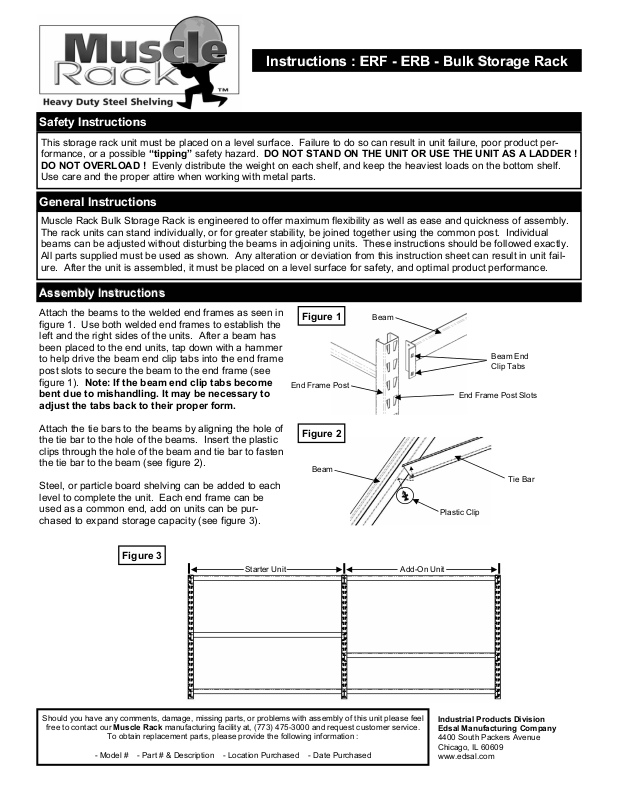

Edsal ERB User Manual
Instructions : ERF
Instructions : ERF
Instructions : ERF
-
ERB
-
ERB
-
ERB
-
Bulk Storage Rack
-
Bulk Storage Rack
-
Bulk Storage Rack
Safety Instructions
Safety Instructions
Safety Instructions
This storage rack unit must be placed on a level surface. Failure to do so can result in unit failure, poor product performance, or a possible “tipping” safety hazard. DO NOT STAND ON THE UNIT OR USE THE UNIT AS A LADDER !
DO NOT OVERLOAD ! Evenly distribute the weight on each shelf, and keep the heaviest loads on the bottom shelf.
Use care and the proper attire when working with metal parts.
General Instructions
General Instructions
General Instructions
Muscle Rack Bulk Storage Rack is engineered to offer maximum flexibility as well as ease and quickness of assembly.
The rack units can stand individually, or for greater stability, be joined together using the common post. Individual
beams can be adjusted without disturbing the beams in adjoining units. These instructions should be followed exactly.
All parts supplied must be used as shown. Any alteration or deviation from this instruction sheet can result in unit failure. After the unit is assembled, it must be placed on a level surface for safety, and optimal product performance.
Assembly Instructions
Assembly Instructions
Assembly Instructions
Attach the beams to the welded end frames as seen in
figure 1. Use both welded end frames to establish the
left and the right sides of the units. After a beam has
been placed to the end units, tap down with a hammer
to help drive the beam end clip tabs into the end frame
post slots to secure the beam to the end frame (see
figure 1). Note: If the beam end clip tabs become
bent due to mishandling. It may be necessary to
adjust the tabs back to their proper form.
Attach the tie bars to the beams by aligning the hole of
the tie bar to the hole of the beams. Insert the plastic
clips through the hole of the beam and tie bar to fasten
the tie bar to the beam (see figure 2).
Steel, or particle board shelving can be added to each
level to complete the unit. Each end frame can be
used as a common end, add on units can be purchased to expand storage capacity (see figure 3).
Figure 1
End Frame Post
Figure 2
Beam
Beam
Beam End
Clip Tabs
End Frame Post Slots
Tie Bar
Plastic Clip
Figure 3
Starter Unit Add-On Unit
Should you have any comments, damage, missing parts, or problems with assembly of this unit please feel
free to contact our Muscle Rack manufacturing facility at, (773) 475-3000 and request customer service.
To obtain replacement parts, please provide the following information :
- Model # - Part # & Description - Location Purchased - Date Purchased
Industrial Products Division
Edsal Manufacturing Company
4400 South Packers Avenue
Chicago, IL 60609
www.edsal.com
