Page 1

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

magicolor 7450

Reference Guide

4039-9564-02A

1800807-001C

Page 2

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The digitally encoded software and publication included with your printer are Copyrighted © 2005 by KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights Reserved.

This software may not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in whole or in part, without the express written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of KONICA MINOLTA. The information contained in this guide is intended for use with the KONICA MINOLTA magicolor 7450 printers only.

About the GPL (General Public License)

This driver is written for Linux, which is written and distributed under the GNU GPL. The printing system CUPS adopted to run on the Linux is published by ESP (Easy Software Products) under the GPL. All source codes that we write must be available to the general public.

Trademarks

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered trademarks of KONICA MINOLTA HOLDINGS, INC.

magicolor and PageScope are trademarks or registered trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

All other trademarks and registered trademarks are the property of their respective owners.

Notice

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make changes to this guide and to the equipment described herein without notice. Considerable effort has been made to ensure that this manual is free of inaccuracies and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. makes no warranty of any kind including, but not limited to, any implied warranties of merchantability and fitness for a particular purpose with regard to this manual. KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for, or liability for, errors contained in this manual or for incidental, special, or consequential damages arising out of the furnishing of this manual, or the use of this manual in operating the equipment, or in connection with the performance of the equipment when so operated.

Page 3

SOFTWARE LICENSE AGREEMENT

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

This package contains the following materials provided by Konica Minolta Business Technologies, Inc. (KMBT): software included as part of the printing system, the digitally-encoded machine-readable outline data encoded in the special format and in the encrypted form (“Font Programs”), other software which runs on a computer system for use in conjunction with the Printing Software (“Host Software”), and related explanatory written materials (“Documentation”). The term “Software” shall be used to describe Printing Software, Font Programs and/or Host Software and also include any upgrades, modified versions, additions, and copies of the Software. The Software is being licensed to you under the terms of this Agreement. KMBT grants to you a non-exclusive sublicense to use the Software and Documentation, provided that you agree to the following:

1. You may use the Printing Software and accompanying Font Programs for imaging to the licensed output device(s), solely for your own internal business purposes.

2. In addition to the license for Font Programs set forth in Section 1 (“Printing Software”) above, you may use Roman Font Programs to reproduce weights, styles, and versions of letters, numerals, characters and symbols (“Typefaces”) on the display or monitor for your own internal business purposes.

3. You may make one backup copy of the Host Software, provided your backup copy is not installed or used on any computer. Notwithstanding the above restrictions, you may install the Host Software on any number of computers solely for use with one or more printing systems running the Printing Software.

4. You may assign its rights under this Agreement to an assignee of all of Licensee’s right and interest to such Software and Documentation (“Assignee”) provided you transfer to Assignee all copies of such Software and Documentation Assignee agrees to be bound by all of the terms and conditions of this Agreement.

5. You agree not to modify, adapt or translate the Software and Documentation.

6. You agree that you will not attempt to alter, disassemble, decrypt, reverse engineer or decompile the Software.

7. Title to and ownership of the Software and Documentation and any reproductions thereof shall remain with KMBT and its Licensor.

8. Trademarks shall be used in accordance with accepted trademark practice, including identification of the trademark owner’s name. Trademarks can only be used to identify printed output produced by the Software. Such use of any trademark does not give you any rights of ownership in that trademark.

9. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software that the Licensee does not use, or Software contained on any unused media, except as part of the permanent transfer of all Software and Documentation as described above.

10. In no event will KMBT or its licensor be liable to you for any consequential, incidental INDIRECT, PUNITIVE or special damages, including any lost profits or lost saving, even if KMBT has been advised of the possibility of such damages, or for any claim by any third party. KMBT or its licensor disclaims all warranties with regard to the software, express or implied, including, without limitation implied warranties of merchantability, fitness for a particular purpose, title and non-infringement of third party rights. Some states or jurisdictions do not allow the exclusion or limitation of incidental, consequential or special damages, so the above limitations may not apply to you.

Page 4

11. Notice to Government End Users: The Software is a “commercial item,” as that term is

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

defined at 48 C.F.R.2.101, consisting of “commercial computer software” and “commercial computer software documentation,” as such terms are used in 48 C.F.R. 12.212. Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4, all U.S. Government End Users acquire the Software with only those rights set forth herein.

12. You agree that you will not export the Software in any form in violation of any applicable laws and regulations regarding export control of any countries.

About Adobe Color Profile

ADOBE SYSTEMS INCORPORATED COLOR PROFILE LICENSE AGREEMENT

NOTICE TO USER: PLEASE READ THIS CONTRACT CAREFULLY. BY USING ALL OR ANY PORTION OF THE SOFTWARE YOU ACCEPT ALL THE TERMS AND CONDITIONS OF THIS SOFTWARE YOU ACCEPT ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE WITH THE TERMS OF THIS AGREEMENT, DO NOT USE THE SOFTWARE.

1. DEFINITIONS In this Agreement, “Adobe” means Adobe Systems Incorporated, a Delaware corporation, located at 345 Park Avenue, San Jose, California 95110. “Software” means the software and related items with which this Agreement is provided.

2. LICENSE Subject to the terms of this Agreement, Adobe hereby grants you the worldwide, non-exclusive, nontransferable, royalty-free license to use, reproduce and publicly display the Software. Adobe also grants you the rights to distribute the Software only (a) as embedded within digital image files and (b) on a standalone basis. No other distribution of the Software is allowed; including, without limitation, distribution of the Software when incorporated into or bundled with any application software. All individual profiles must be referenced by their ICC Profile description string. You may not modify the Software. Adobe is under no obligation to provide any support under this Agreement, including upgrades or future versions of the Software or other items. No title to the intellectual property in the Software is transferred to you under the terms of this Agreement. You do not acquire any rights to the Software except as expressly set forth in this Agreement.

3. DISTRIBUTION If you choose to distribute the Software, you do so with the understanding that you agree to defend, indemnify and hold harmless Adobe against any losses, damages or costs arising from any claims, lawsuits or other legal actions arising out of such distribution, including without limitation, your failure to comply with this Section 3. If you distribute the Software on a standalone basis, you will do so under the terms of this Agreement or your own license agreement which (a) complies with the terms and conditions of this Agreement; (b) effectively disclaims all warranties and conditions, express or implied, on behalf of Adobe; (c) effectively excludes all liability for damages on behalf of Adobe; (d) states that any provisions that differ from this Agreement are offered by you alone and not Adobe and (e) states that the Software is available from you or Adobe and informs licensees how to obtain it in a reasonable manner on or through a medium customarily used for software exchange. Any distributed Software will include the Adobe copyright notices as included in the Software provided to you by Adobe.

Page 5

4. DISCLAIMER OF WARRANTY Adobe licenses the Software to you on an “AS IS” basis.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Adobe makes no representation as to the adequacy of the Software for any particular purpose or to produce any particular result. Adobe shall not be liable for loss or damage arising out of this Agreement or from the distribution or use of the Software or any other materials. ADOBE AND ITS SUPPLIERS DO NOT AND CANNOT WARRANT THE PERFORMANCE OR RESULTS YOU MAY OBTAIN BY USING THE SOFTWARE, EXCEPT FOR ANY WARRANTY, CONDITION, REPRESENTATION OR TERM TO THE EXTENT TO WHICH THE SAME CANNOT OR MAY NOT BE EXCLUDED OR LIMITED BY LAW APPLICABLE TO YOU IN YOUR JURISDICTION, ADOBE AND ITS SUPPLIERS MAKE NO WARRANTIES, CONDITIONS, REPRESENTATIONS OR TERMS, EXPRESS OR IMPLIED, WHETHER BY STATUTE, COMMON LAW, CUSTOM, USAGE OR OTHERWISE AS TO ANY OTHER MATTERS, INCLUDING BUT NOT LIMITED TO NONINFRINGEMENT OF THIRD PARTY RIGHTS, INTEGRATION, SATISFACTORY QUALITY OR FITNESS FOR ANY PARTICULAR PURPOSE. YOU MAY HAVE ADDITIONAL RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. The provisions of Sections 4, 5 and 6 shall survive the termination of this Agreement, howsoever caused, but this shall not imply or create any continued right to use the Software after termination of this Agreement.

5. LIMITATION OF LIABILITY IN NO EVENT WILL ADOBE OR ITS SUPPLIERS BE LIABLE TO YOU FOR ANY DAMAGES, CLAIMS OR COSTS WHATSOEVER OR ANY CONSEQUENTIAL, INDIRECT, INCIDENTAL DAMAGES, OR ANY LOST PROFITS OR LOST SAVINGS, EVEN IF AN ADOBE REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSS, DAMAGES, CLAIMS OR COSTS OR FOR ANY CLAIM BY ANY THIRD PARTY. THE FOREGOING LIMITATIONS AND EXCLUSIONS APPLY TO THE EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION. ADOBE'S AGGREGATE LIABILITY AND THAT OF ITS SUPPLIERS UNDER OR IN CONNECTION WITH THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT PAID FOR THE SOFTWARE. Nothing contained in this Agreement limits Adobe’s liability to you in the event of death or personal injury resulting from Adobe’s negligence or for the tort of deceit (fraud). Adobe is acting on behalf of its suppliers for the purpose of disclaiming, excluding and/or limiting obligations, warranties and liability as provided in this Agreement, but in no other respects and for no other purpose.

6. TRADEMARKS Adobe and the Adobe logo are the registered trademarks or trademarks of Adobe in the United States and other countries. With the exception of referential use, you will not use such trademarks or any other Adobe trademark or logo without separate prior written permission granted by Adobe.

7. TERM This Agreement is effective until terminated. Adobe has the right to terminate this Agreement immediately if you fail to comply with any term hereof. Upon any such termination, you must return to Adobe all full and partial copies of the Software in your possession or control.

8. GOVERNMENT REGULATIONS If any part of the Software is identified as an export controlled item under the United States Export Administration Act or any other export law, restriction or regulation (the “Export Laws”), you represent and warrant that you are not a citizen, or otherwise located within, an embargoed nation (including without limitation Iran, Iraq, Syria, Sudan, Libya, Cuba, North Korea, and Serbia) and that you are not otherwise prohibited under the Export Laws from receiving the Software. All rights to use the Software are granted on condition that such rights are forfeited if you fail to comply with the terms of this Agreement.

Page 6

9. GOVERNING LAW This Agreement will be governed by and construed in accordance with

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

the substantive laws in force in the State of California as such laws are applied to agreements entered into and to be performed entirely within California between California residents. This Agreement will not be governed by the conflict of law rules of any jurisdiction or the United Nations Convention on Contracts for the International Sale of Goods, the application of which is expressly excluded. All disputes arising out of, under or related to this Agreement will be brought exclusively in the state Santa Clara County, California, USA.

10. GENERAL You may not assign your rights or obligations granted under this Agreement without the prior written consent of Adobe. None of the provisions of this Agreement shall be deemed to have been waived by any act or acquiescence on the part of Adobe, its agents, or employees, but only by an instrument in writing signed by an authorized signatory of Adobe. When conflicting language exists between this Agreement and any other agreement included in the Software, the terms of such included agreement shall apply. If either you or Adobe employs attorneys to enforce any rights arising out of or relating to this Agreement, the prevailing party shall be entitled to recover reasonable attorneys’ fees. You acknowledge that you have read this Agreement, understand it, and that it is the complete and exclusive statement of your agreement with Adobe which supersedes any prior agreement, oral or written, between Adobe and you with respect to the licensing to you of the Software. No variation of the terms of this Agreement will be enforceable against Adobe unless Adobe gives its express consent, in writing, signed by an authorized signatory of Adobe.

ICC Profile for TOYO INK Standard Color on Coated paper

(TOYO Offset Coated 2.1)

This ICC Profile (TOYO Offset Coated 2.1) characterizes Japanese offset press on Coated paper and is fully compatible with ICC profile format.

About “TOYO INK Standard Color on Coated paper”

This is the standard for color reproduction of sheet-fed offset press on Coated paper made by TOYO INK MFG.CO., LTD. (“TOYO INK”). This standard is made from printing test with using TOYO INK’s sheet-fed offset printing inks and TOYO INK’s own printing conditions. “TOYO INK Standard Color on Coated paper” is compatible with “JAPAN COLOR”.

Agreement

1. The reproduction of images on a printer or a monitor using this ICC Profile do not completely match the TOYO INK Standard Color on Coated paper.

2. Any and all copyrights of this ICC Profile shall remain in TOYO INK; therefore you shall not transfer, provide, rent, distribute, disclose, or grant any rights in this ICC Profile to any third party without the prior written consent of TOYO INK.

3. In no event will TOYO INK its directors, officers, employees or agents be liable to you for any consequential or incidential, either direct or indirect, damages (including damages for loss of business profits, business interruption, loss of business information, and the like) arising out of the use or inability to use this ICC Profile.

4. TOYO INK shall not be responsible for answering any question related to this ICC Profile.

Page 7

5. All company names and product names used in this document is the trademarks or regis-

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

tered trademarks of their respective holder.

This ICC Profile made by GretagMacbeth ProfileMaker and granted TOYO INK certain license to distribute by GretagMacbeth AG.

TOYO Offset Coated 2.1 © TOYO INK MFG. CO., LTD. 2004

OpenSSL Statement

OpenSSL License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment:

“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment:

“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Page 8

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

product includes software written by Tim Hudson (tjh@cryptsoft.com).

Original SSLeay License

This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).

Copyright remains Eric Young’s, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

“This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)”

The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-).

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:

“This product includes software written by Tim Hudson (tjh@cryptsoft.com)”

Page 9

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

NetSNMP License

Part 1: CMU/UCD copyright notice: (BSD like)

Copyright 1989, 1991, 1992 by Carnegie Mellon University Derivative Work - 1996, 1998-2000 Copyright 1996, 1998-2000 The Regents of the University of California All Rights Reserved Permission to use, copy, modify and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission.

CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Part 2: Networks Associates Technology, Inc copyright notice (BSD)

Copyright ©2001-2003, Networks Associates Technology, Inc All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

 Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

 Redistributions in binary form must reproduce the above copyright notice, this list

of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Page 10

 Neither the name of the Networks Associates Technology, Inc nor the names of

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Part 3: Cambridge Broadband Ltd. copyright notice (BSD)

Portions of this code are copyright ©2001-2003, Cambridge Broadband Ltd. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

 Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

 Redistributions in binary form must reproduce the above copyright notice, this list

of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

 The name of Cambridge Broadband Ltd. may not be used to endorse or promote

products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER "AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Part 4: Sun Microsystems, Inc. copyright notice (BSD)

Copyright ©2003 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All rights reserved. Use is subject to license terms below. This distribution may include materials developed by third parties.

Page 11

Sun, Sun Microsystems, the Sun logo and Solaris are trademarks or registered trademarks of

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Sun Microsystems, Inc. in the U.S. and other countries. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

 Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

 Redistributions in binary form must reproduce the above copyright notice, this list

of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

 Neither the name of the Sun Microsystems, Inc. nor the names of its contributors

may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ''AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Part 5: Sparta, Inc copyright notice (BSD)

 Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

 Redistributions in binary form must reproduce the above copyright notice, this list

of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

 Neither the name of Sparta, Inc nor the names of its contributors may be used to

endorse or promote products derived from this software without specific prior written permission.

Page 12

OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABIL-

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

ITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Part 6: Cisco/BUPTNIC copyright notice (BSD)

Copyright ©2004, Cisco, Inc and Information Network Center of Beijing University of Posts and Telecommunications. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

 Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

 Redistributions in binary form must reproduce the above copyright notice, this list

of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

 Neither the name of Cisco, Inc, Beijing University of Posts and Telecommunica-

tions, nor the names of their contributors may be used to endorse or promote products derived from this software without specific prior written permission.

Page 13

Contents

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

1 Operation on Mac OS X .................................................................................... 1

System Requirements for the Printer Driver 2 Installing the Printer Driver 3

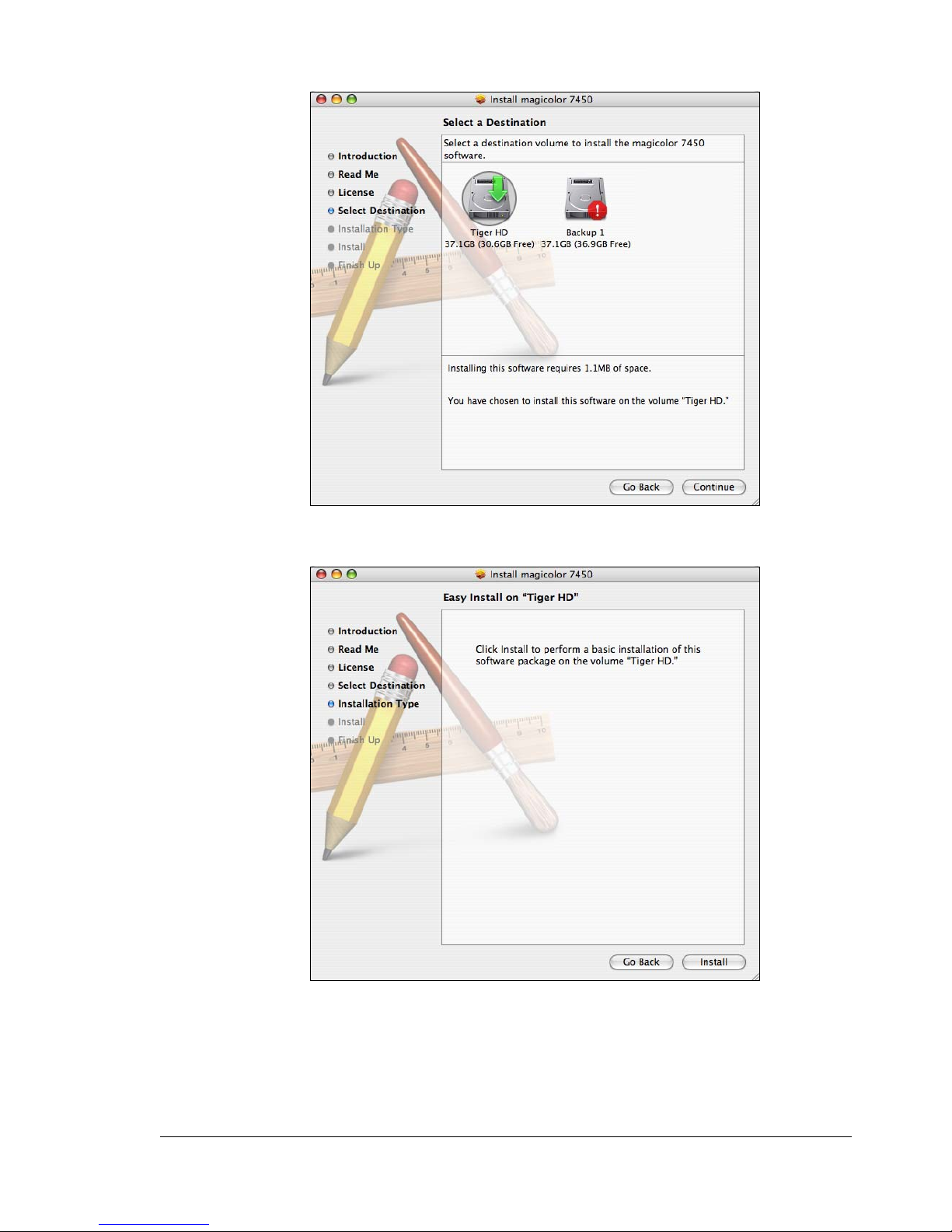

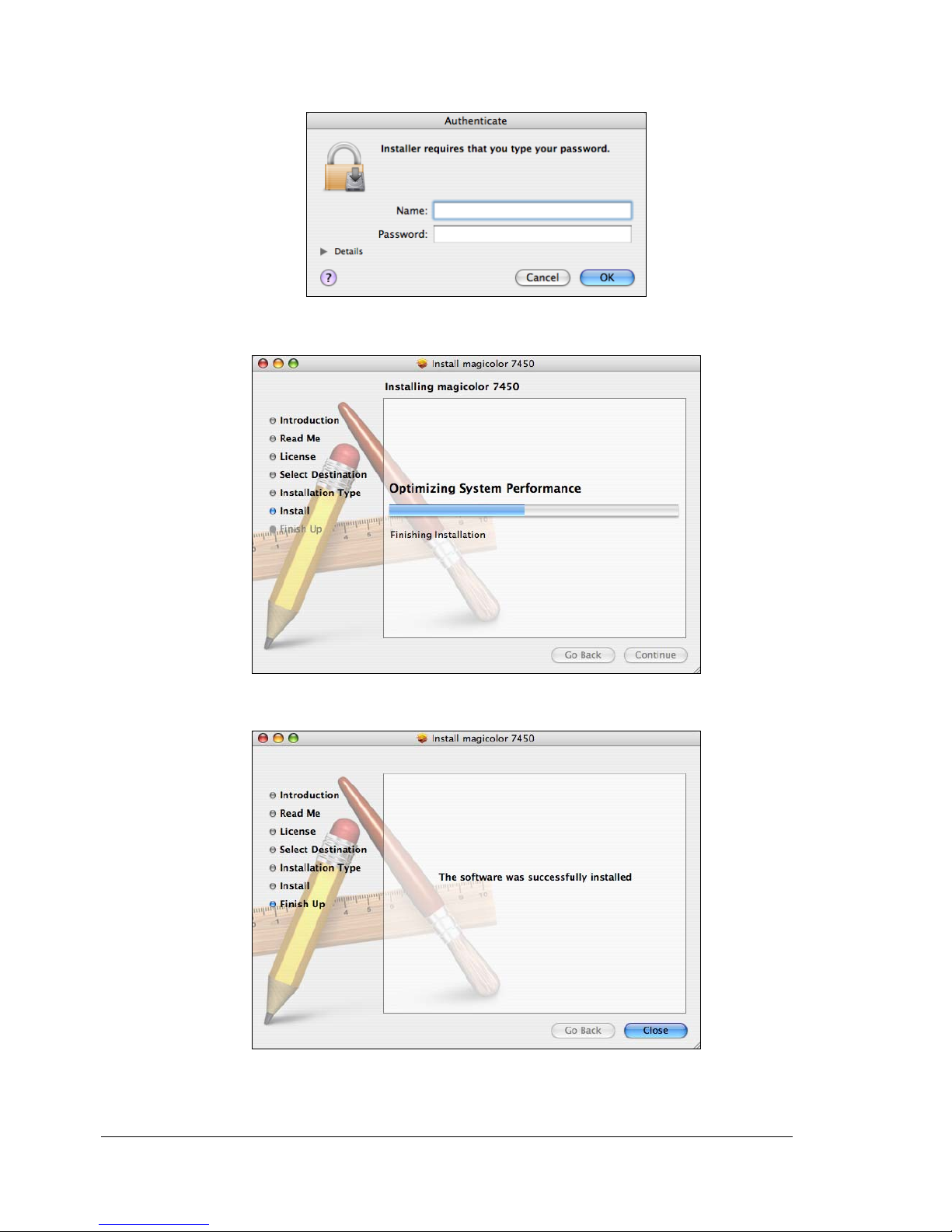

Installing the magicolor 7450 Printer Driver 3

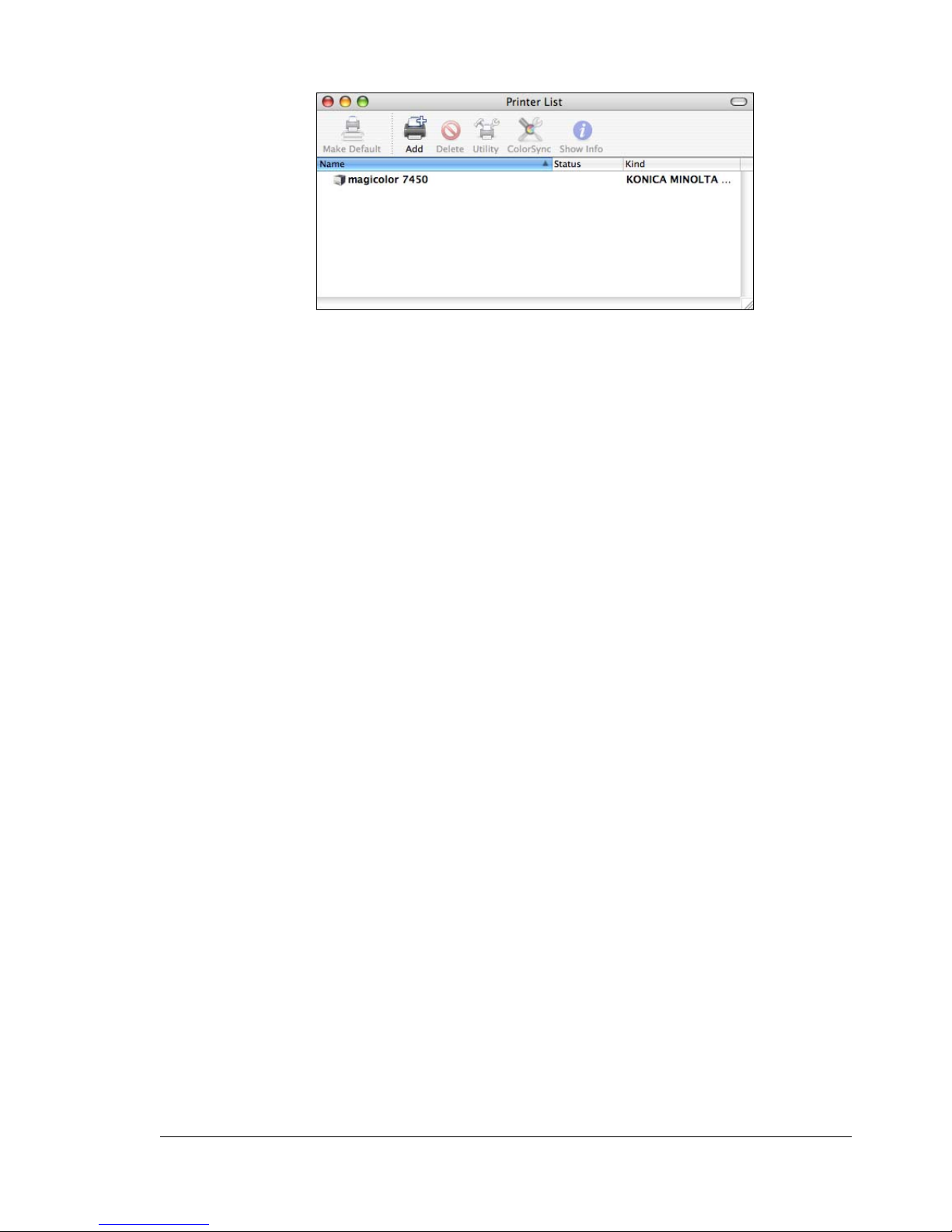

Printer Setup Utility Settings 7

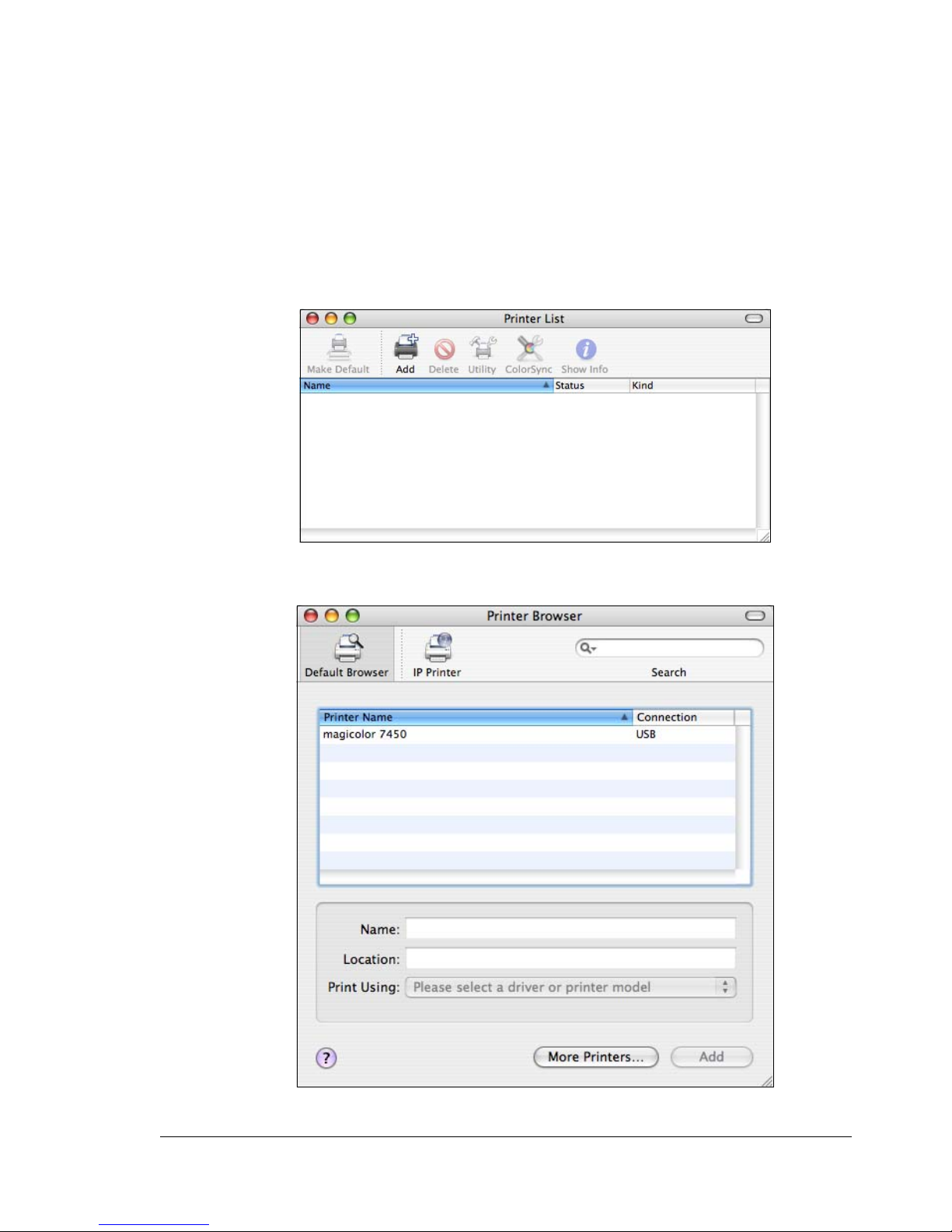

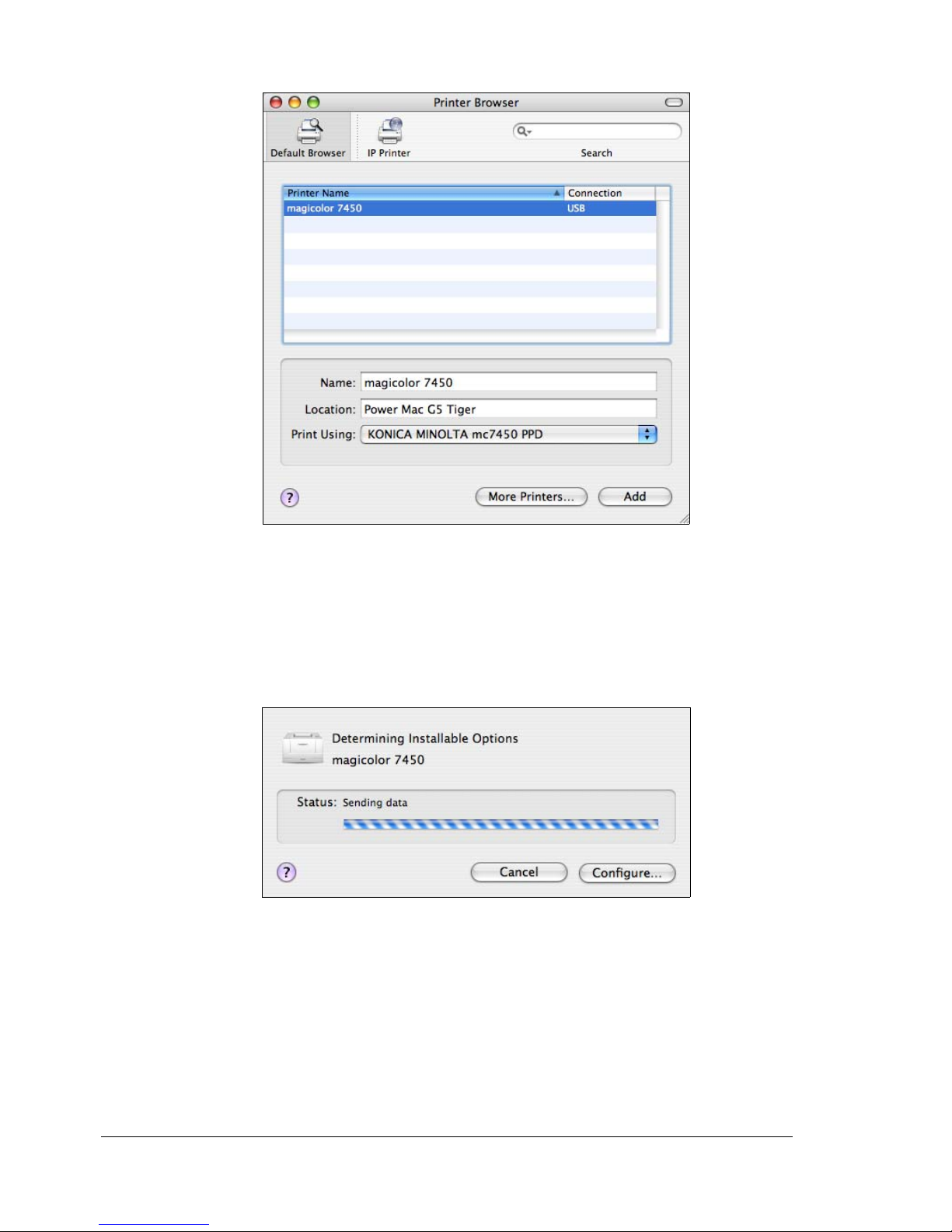

When Using a USB Connection 7 When Using a Network Connection 10

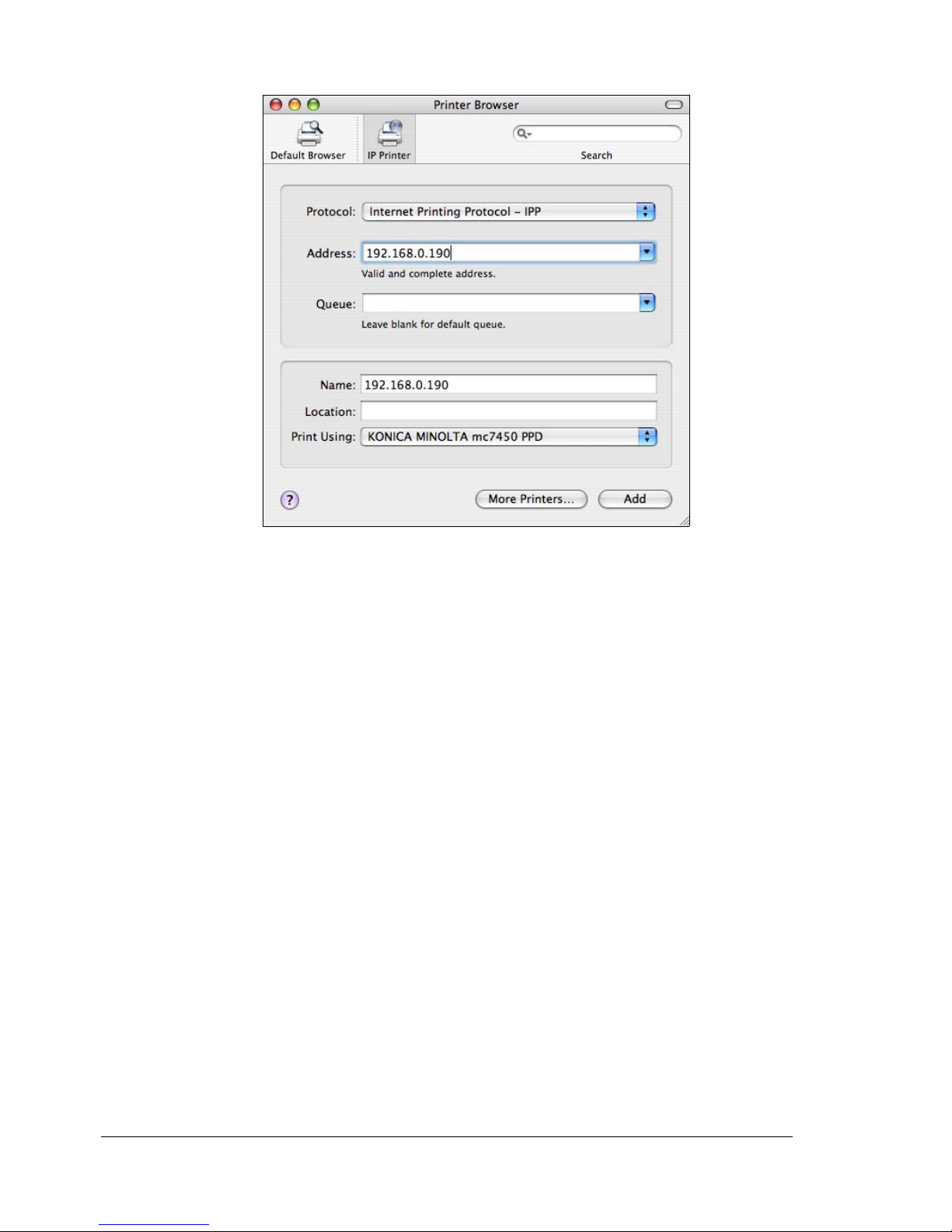

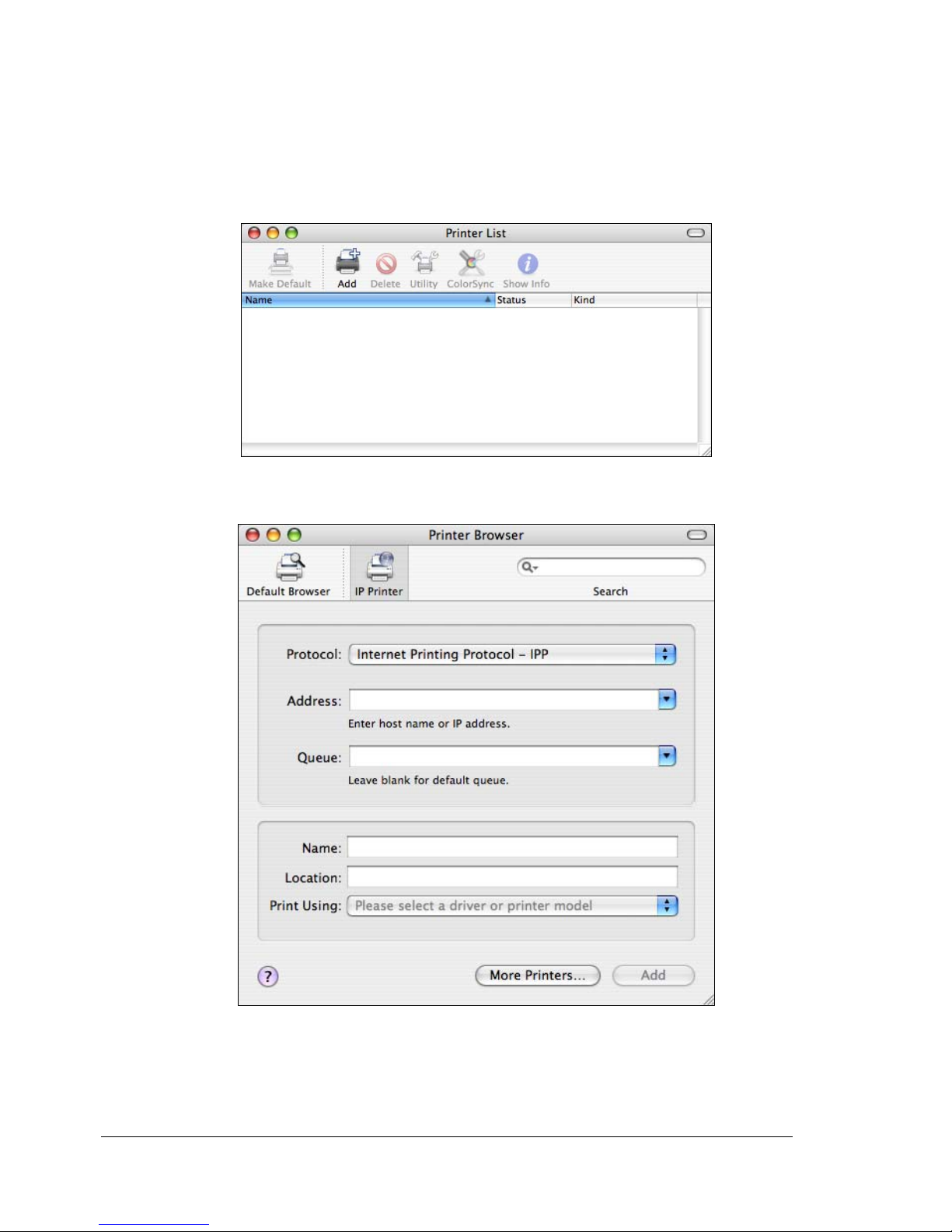

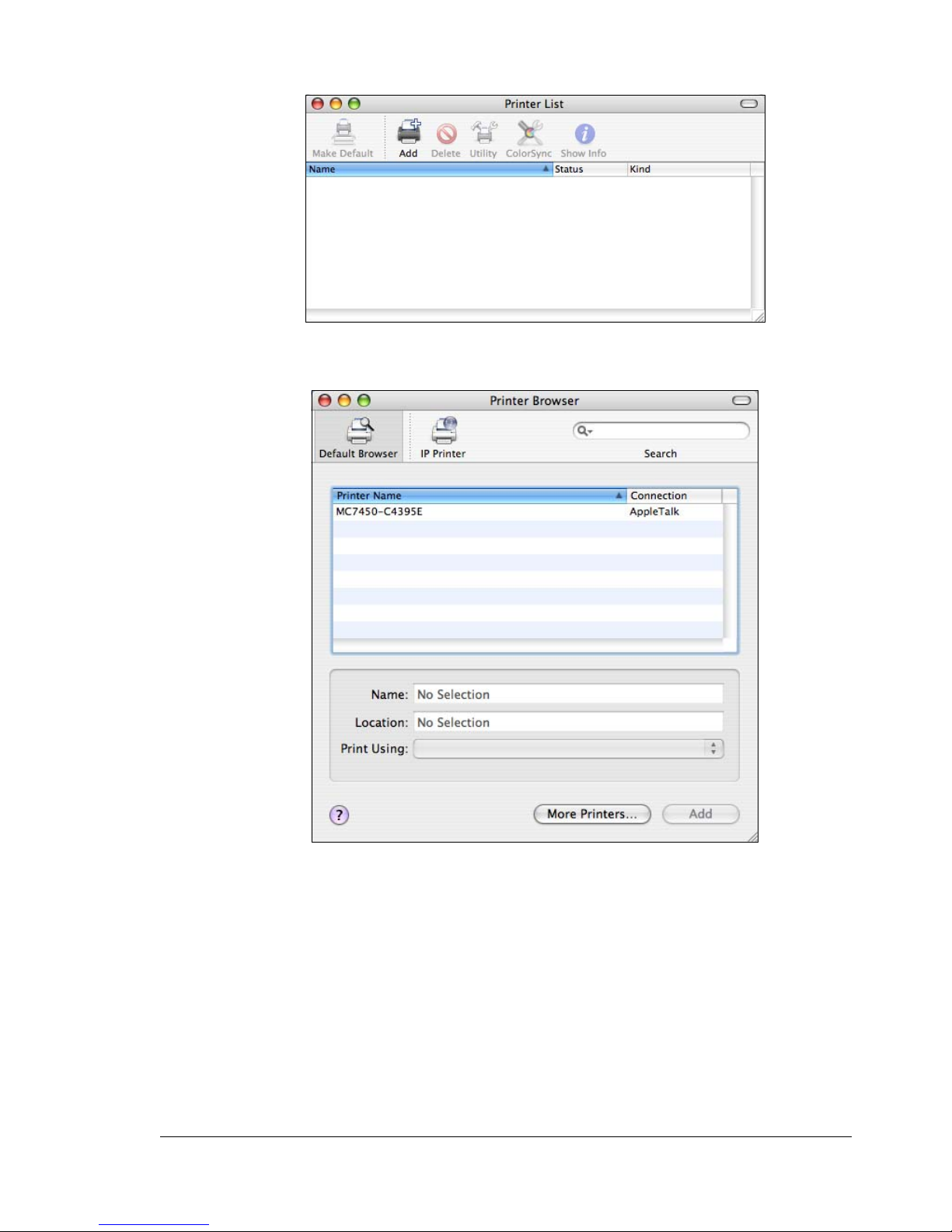

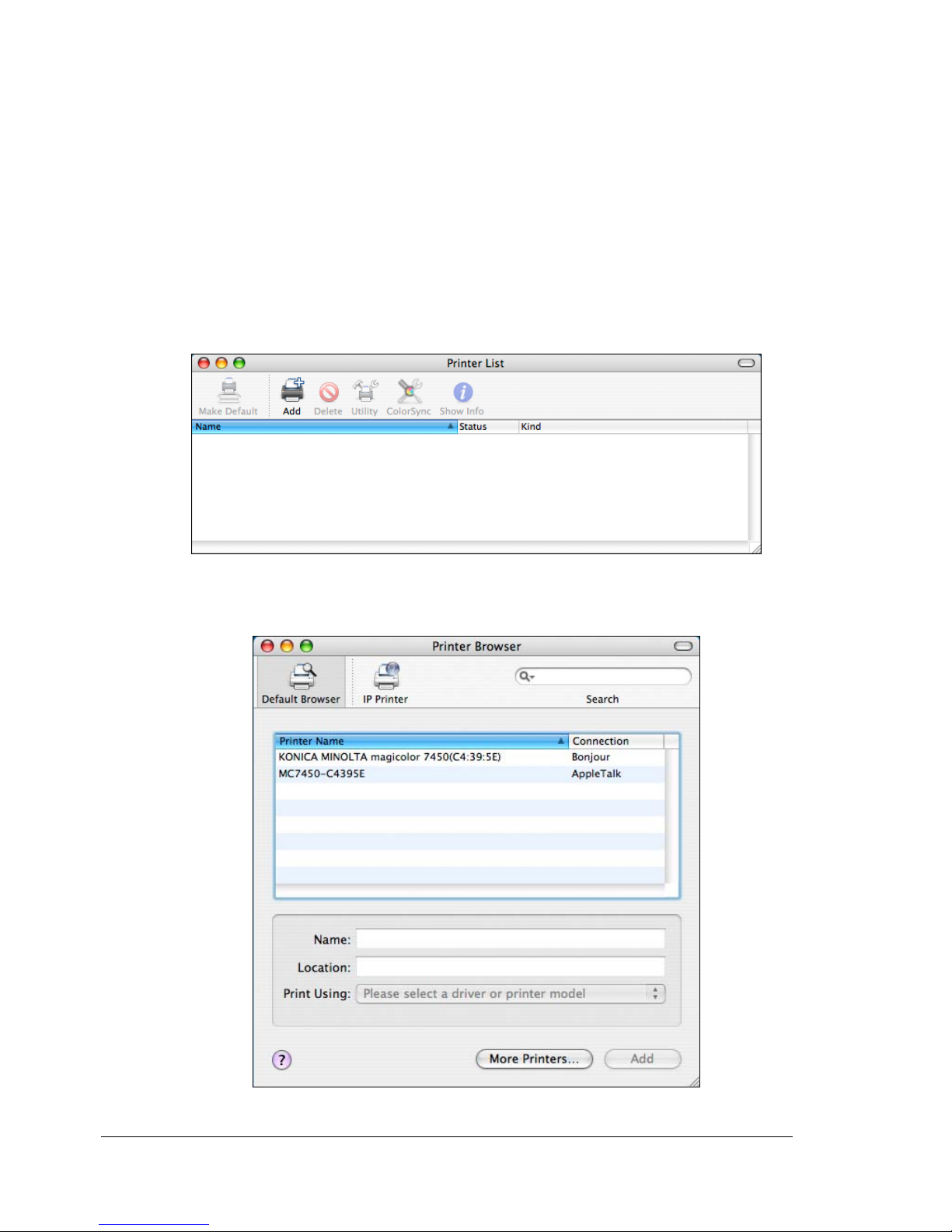

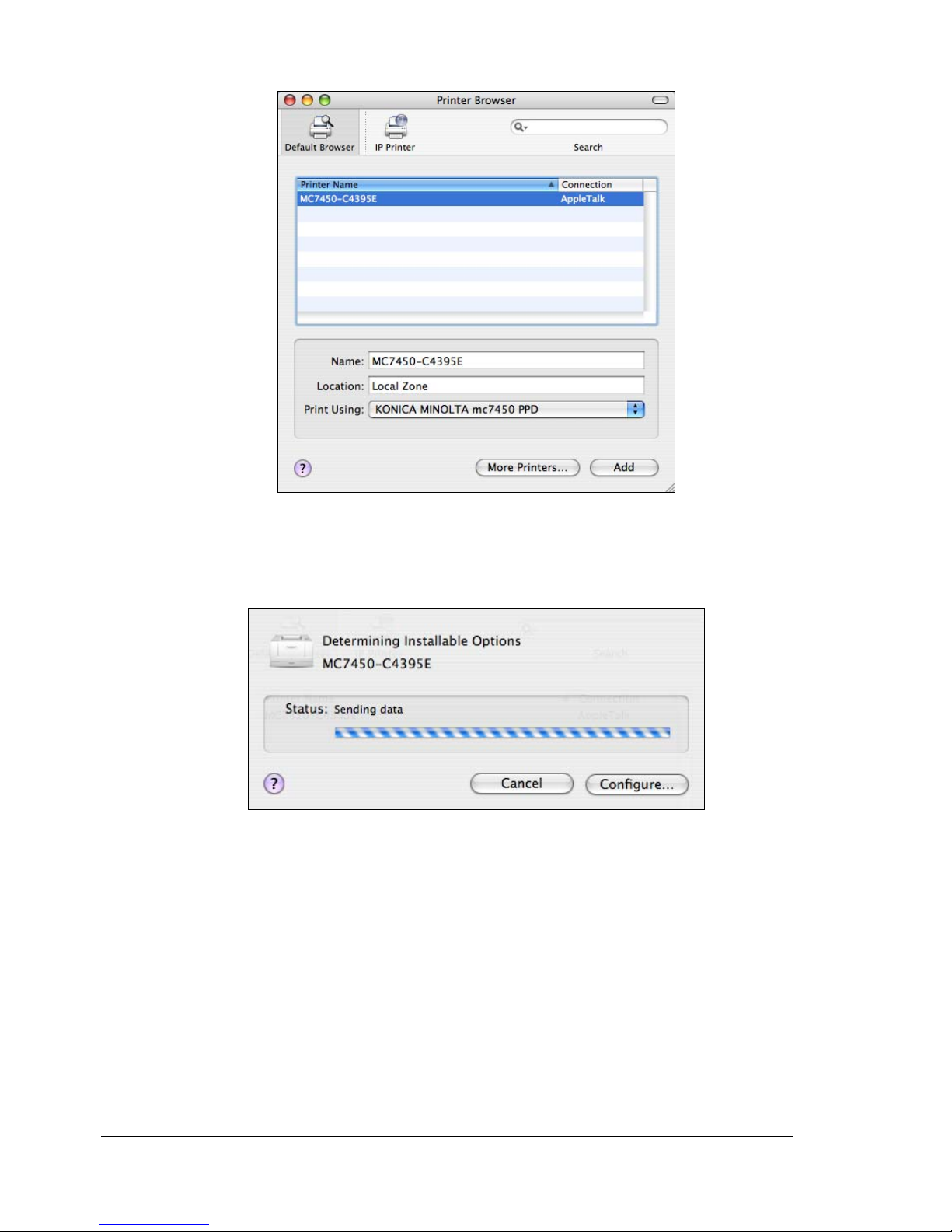

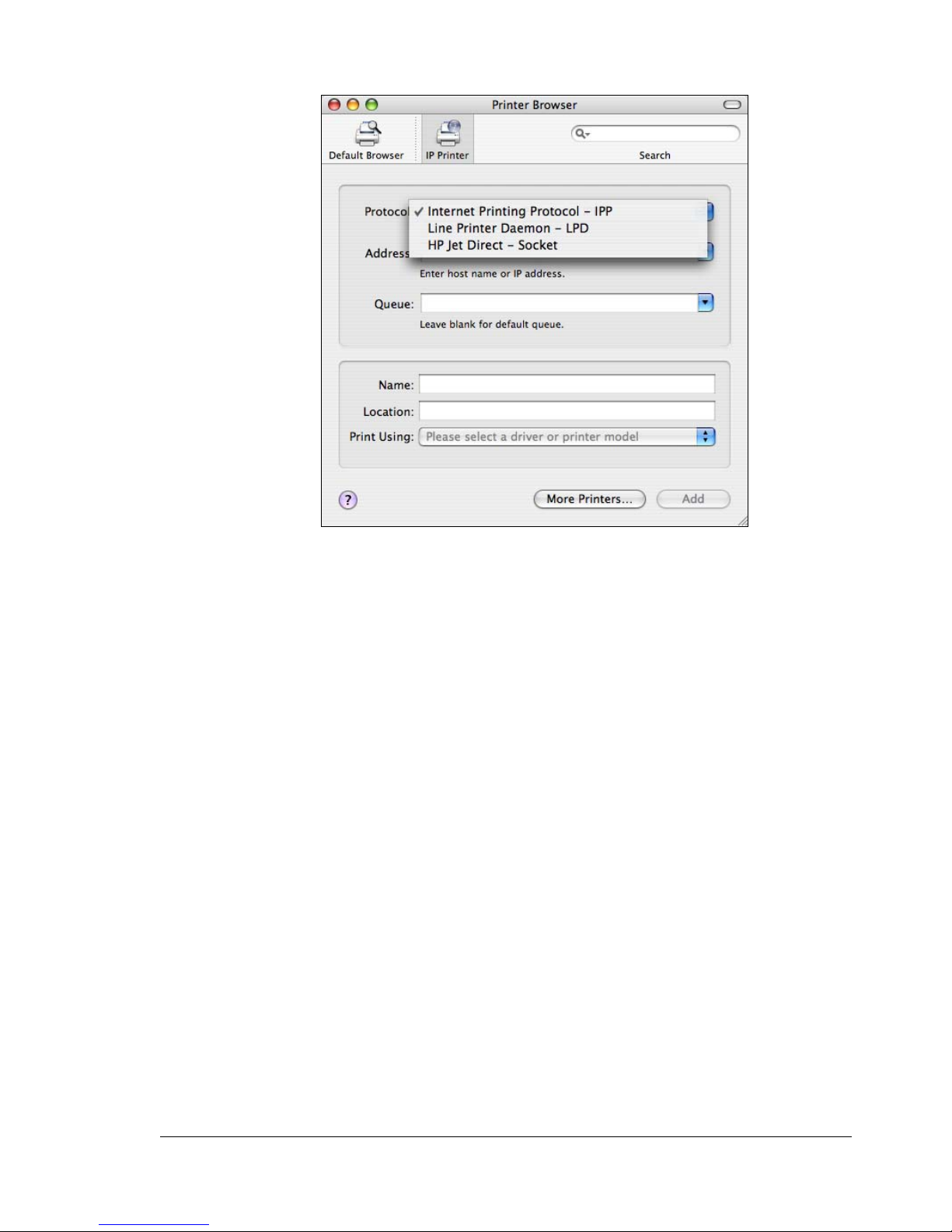

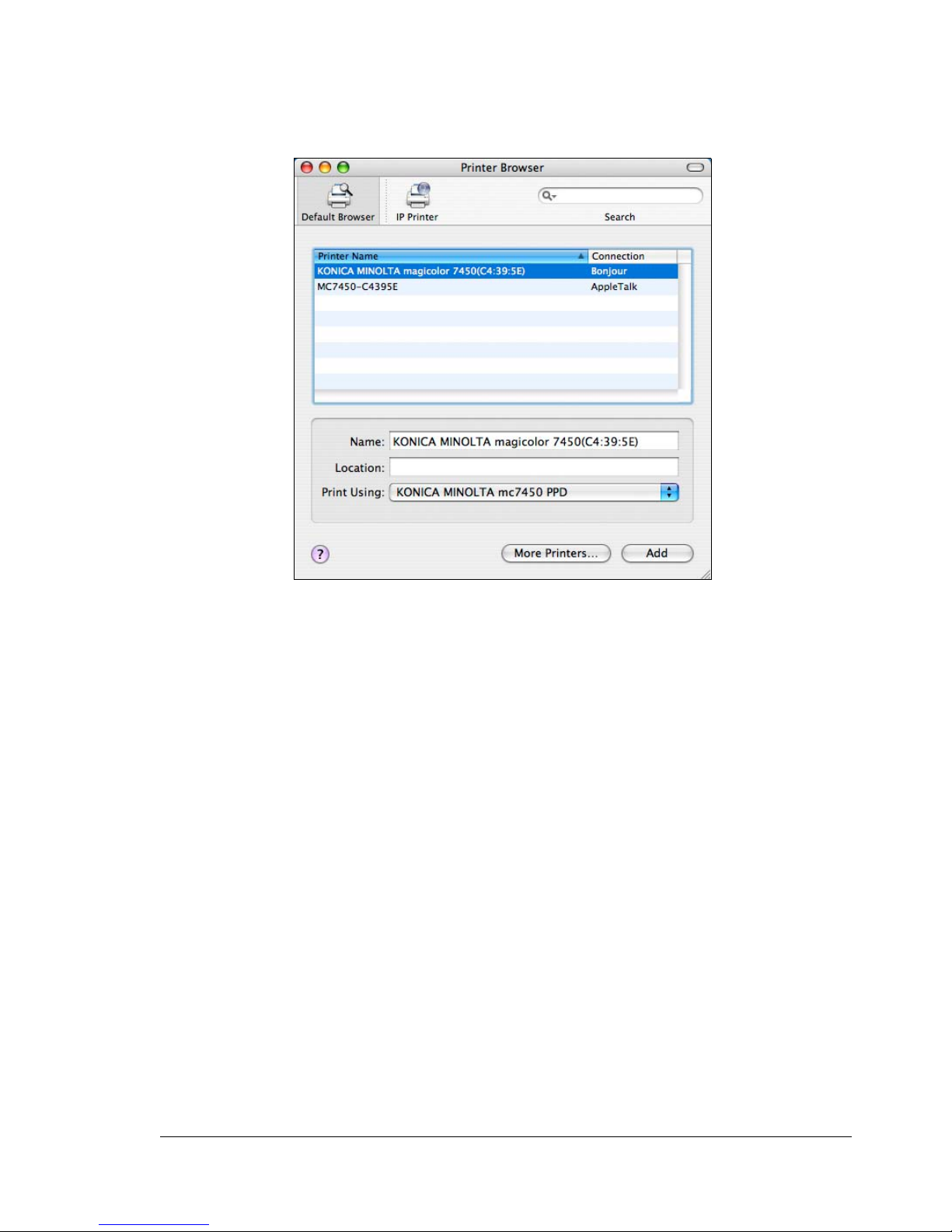

Bonjour Setting 10 AppleTalk Setting 12 IP Printing Setting 16

Selecting Print Options 20 Specifying Page Setup Settings 22

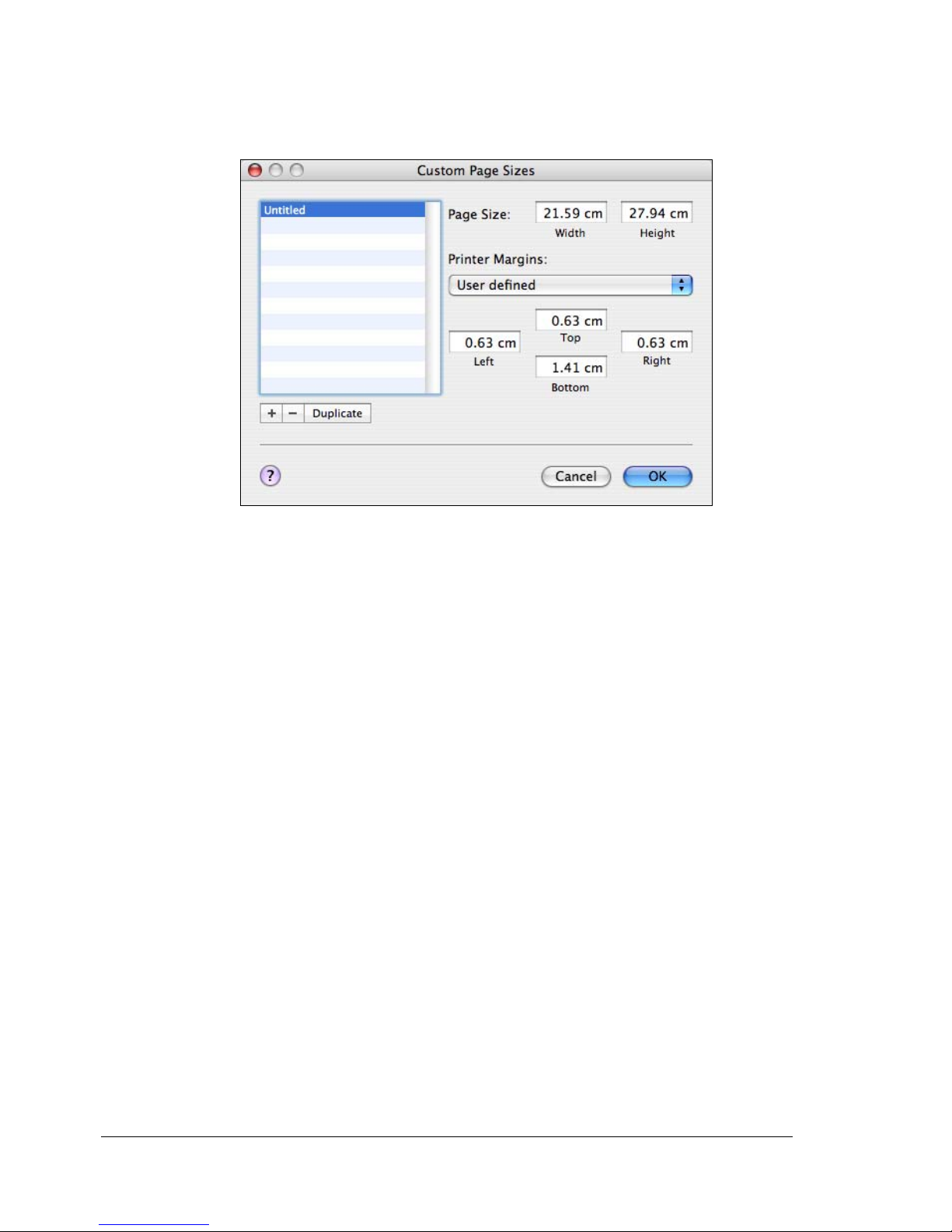

Page Attributes Options 23 Custom Paper Size Options 24

Specifying Print Settings 25

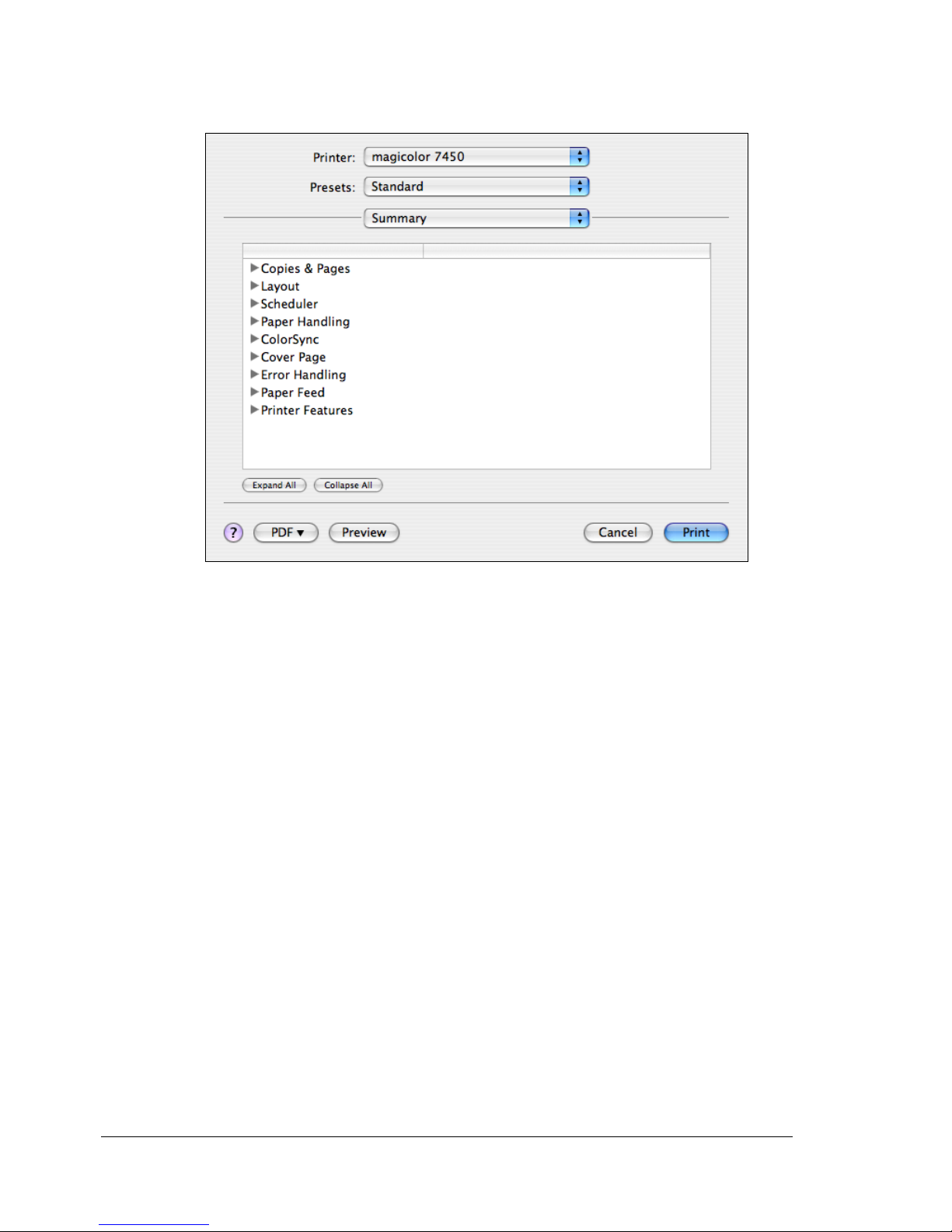

Print Dialog Box 26

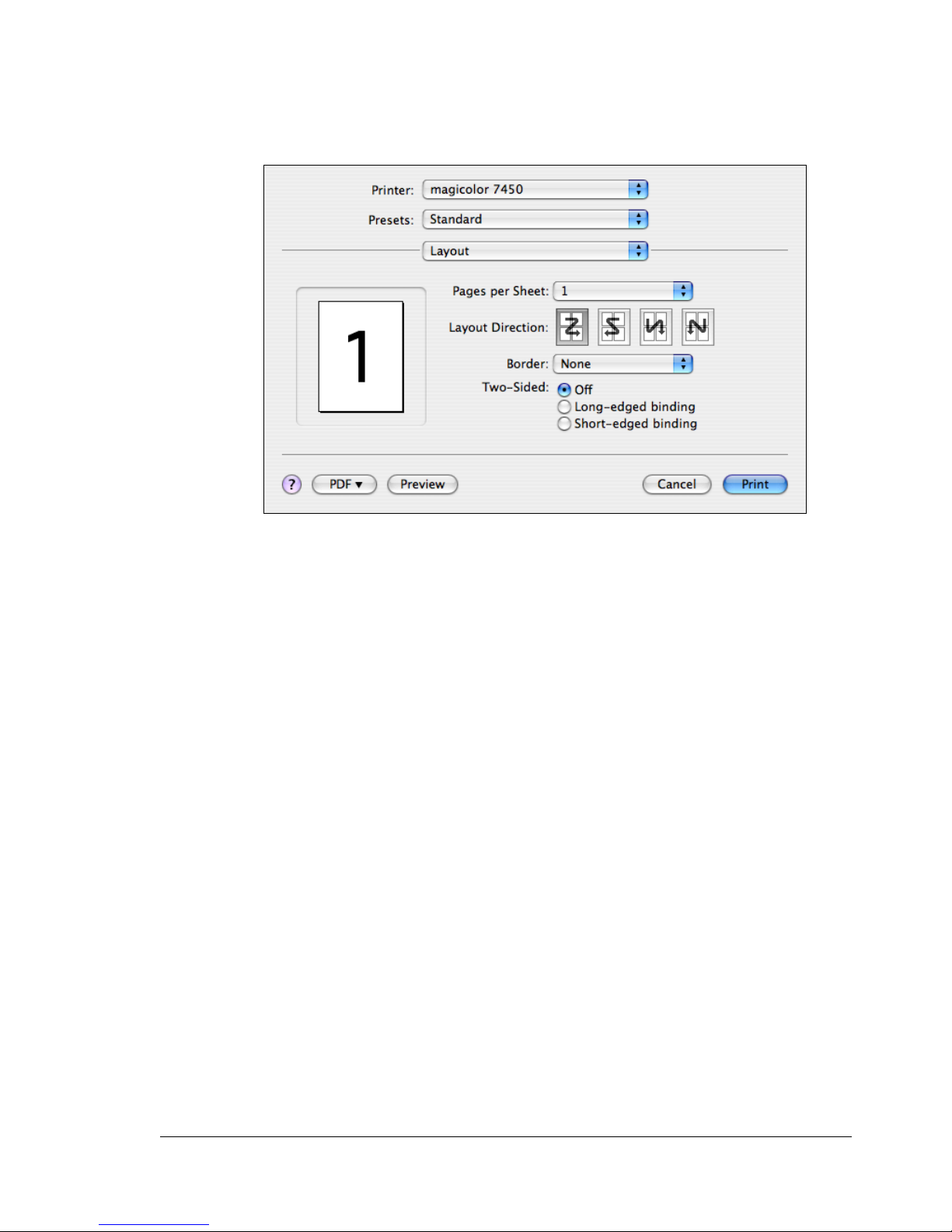

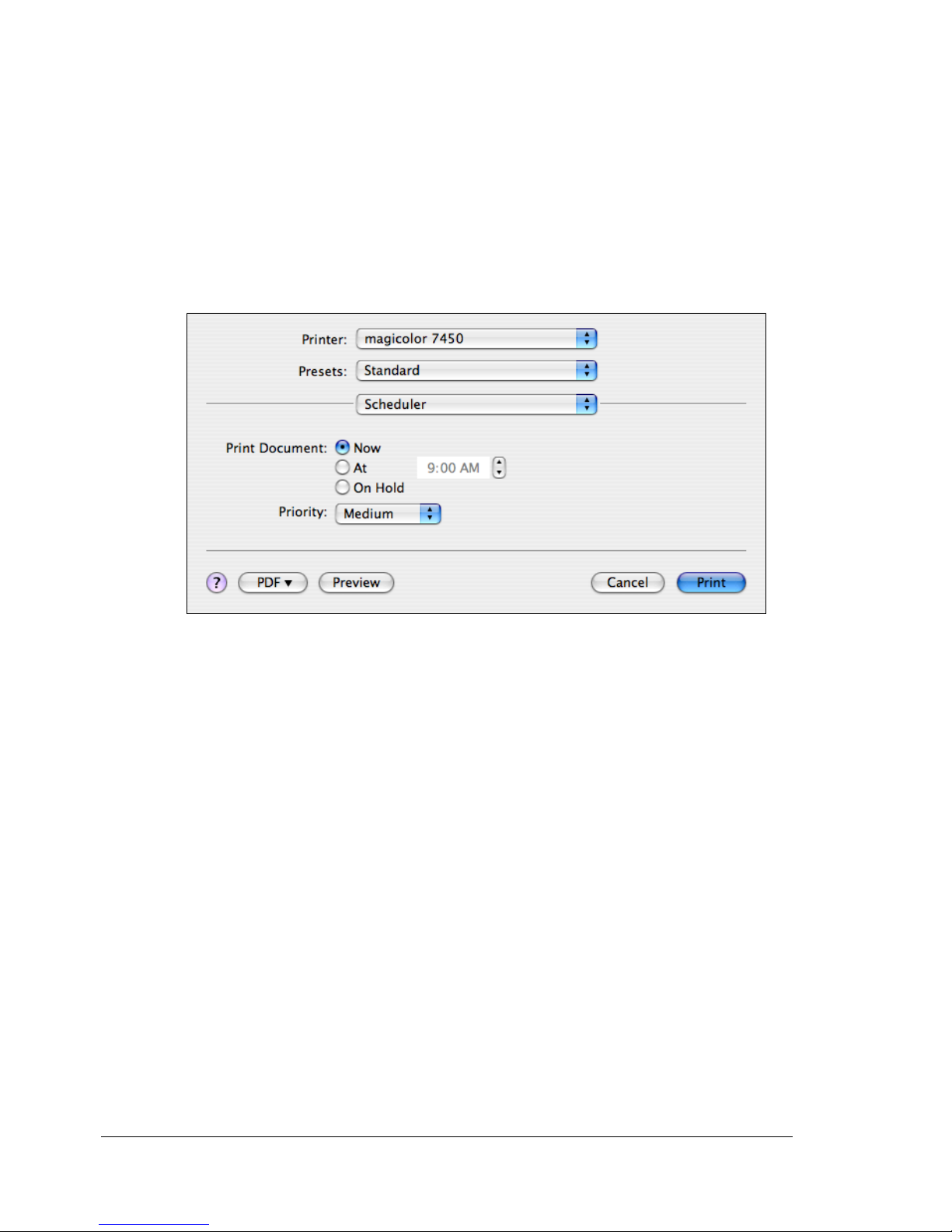

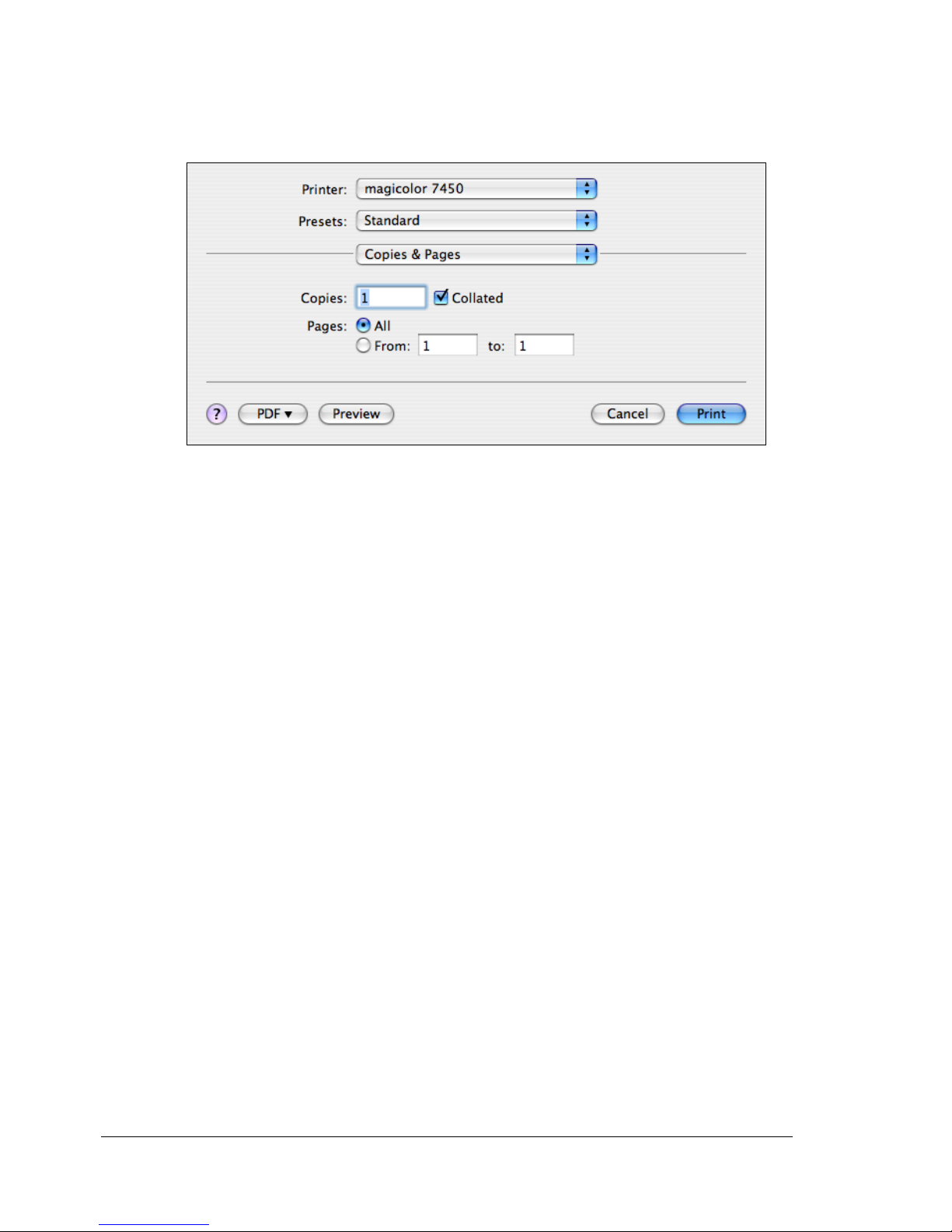

Common buttons 27 Copies & Pages 28 Layout 29 Scheduler 30

Contents

Page 14

Paper Handling 31

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

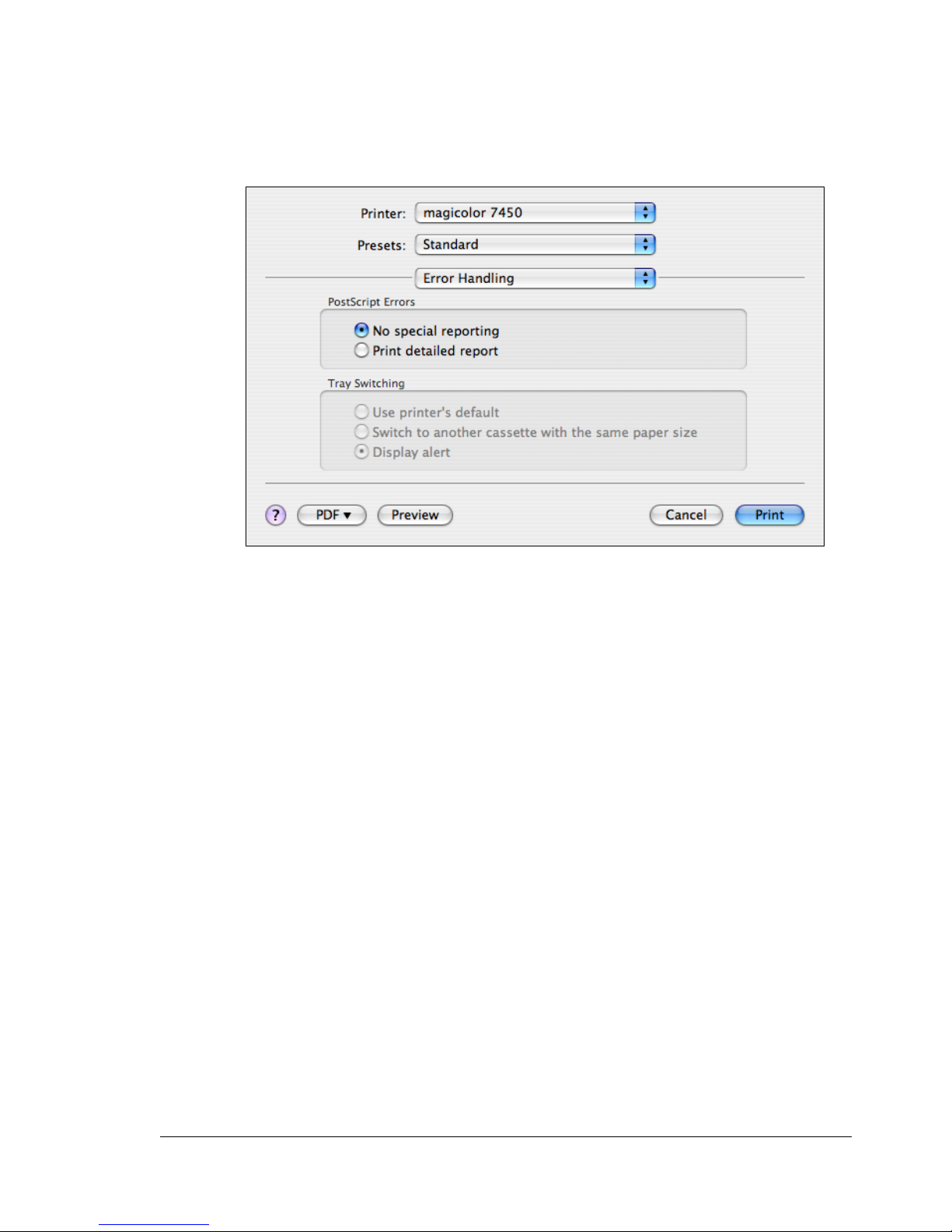

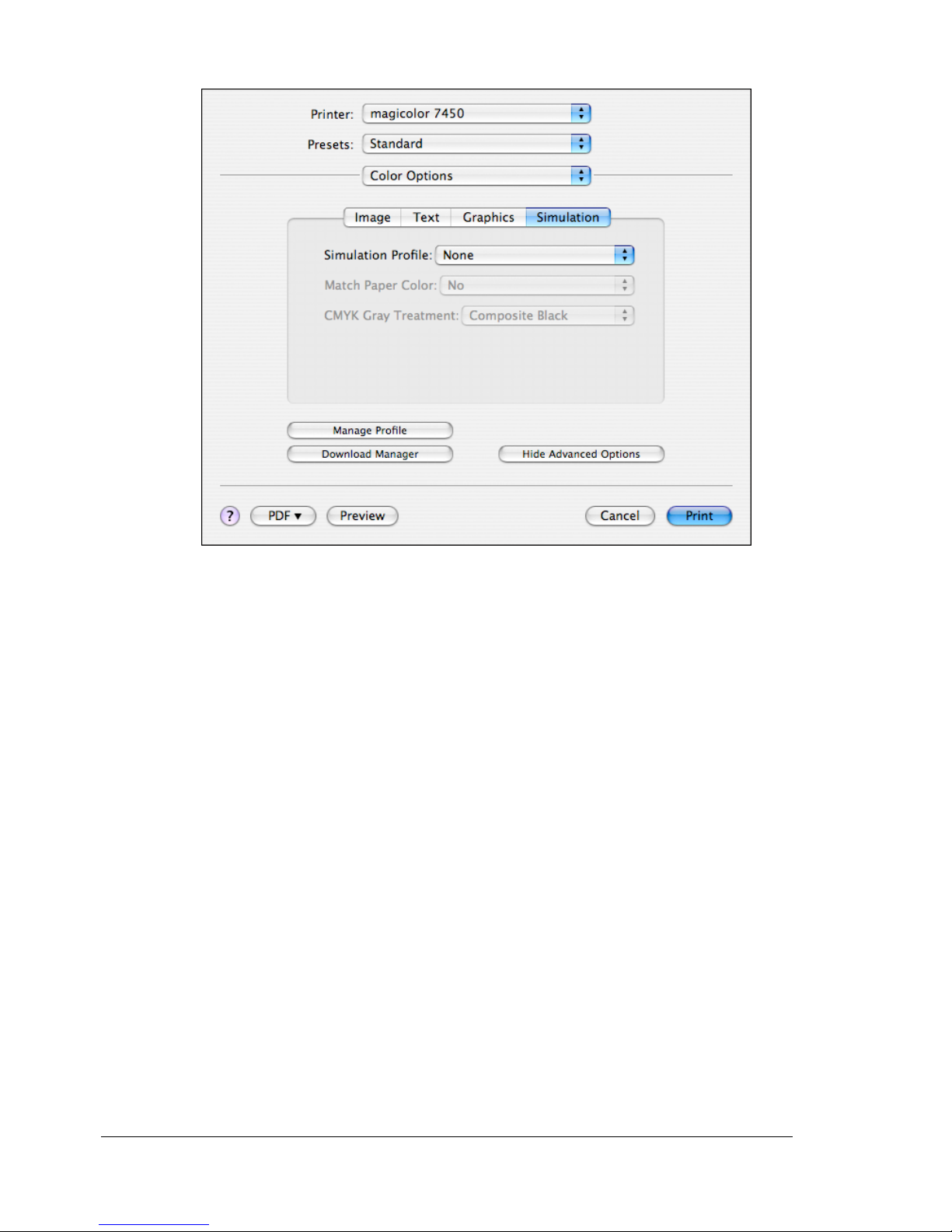

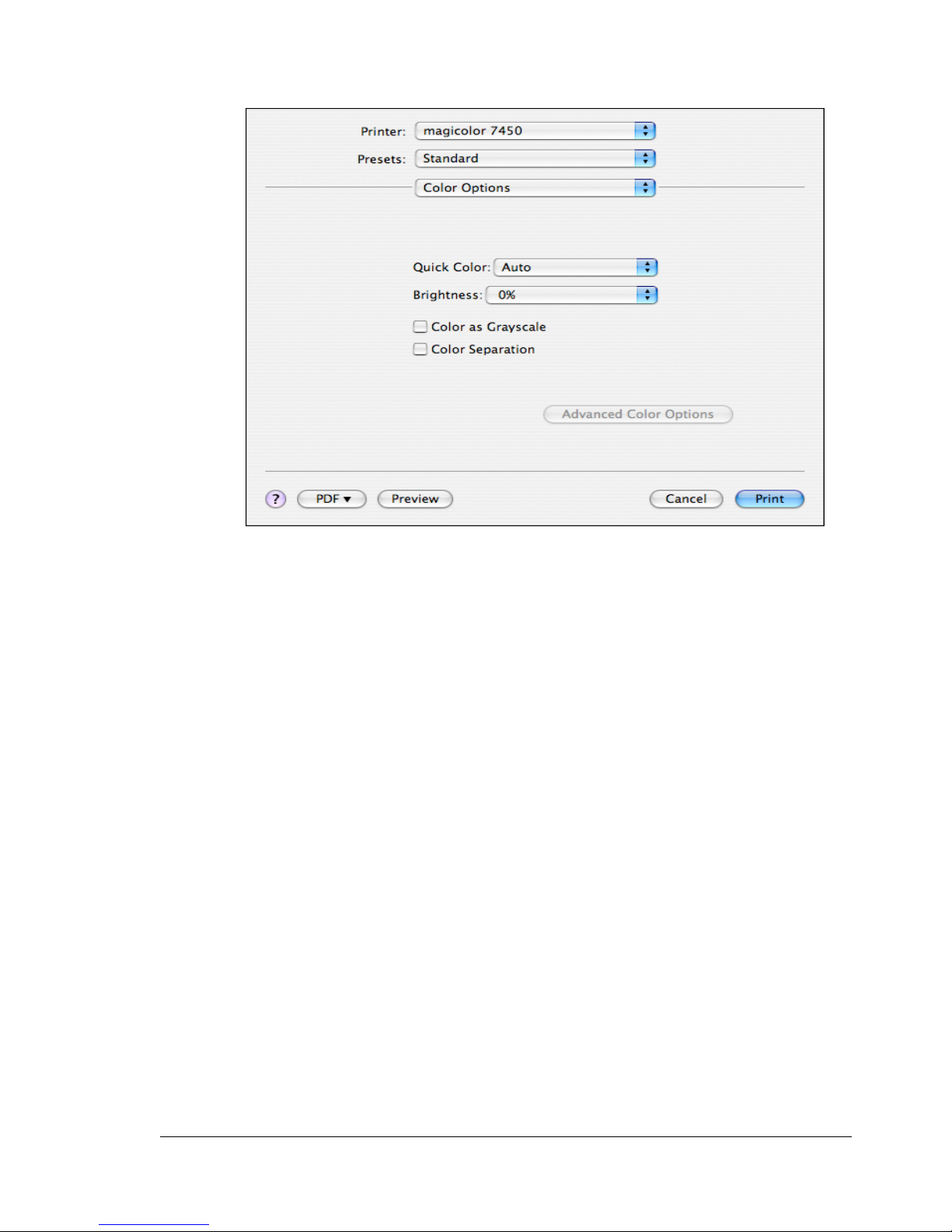

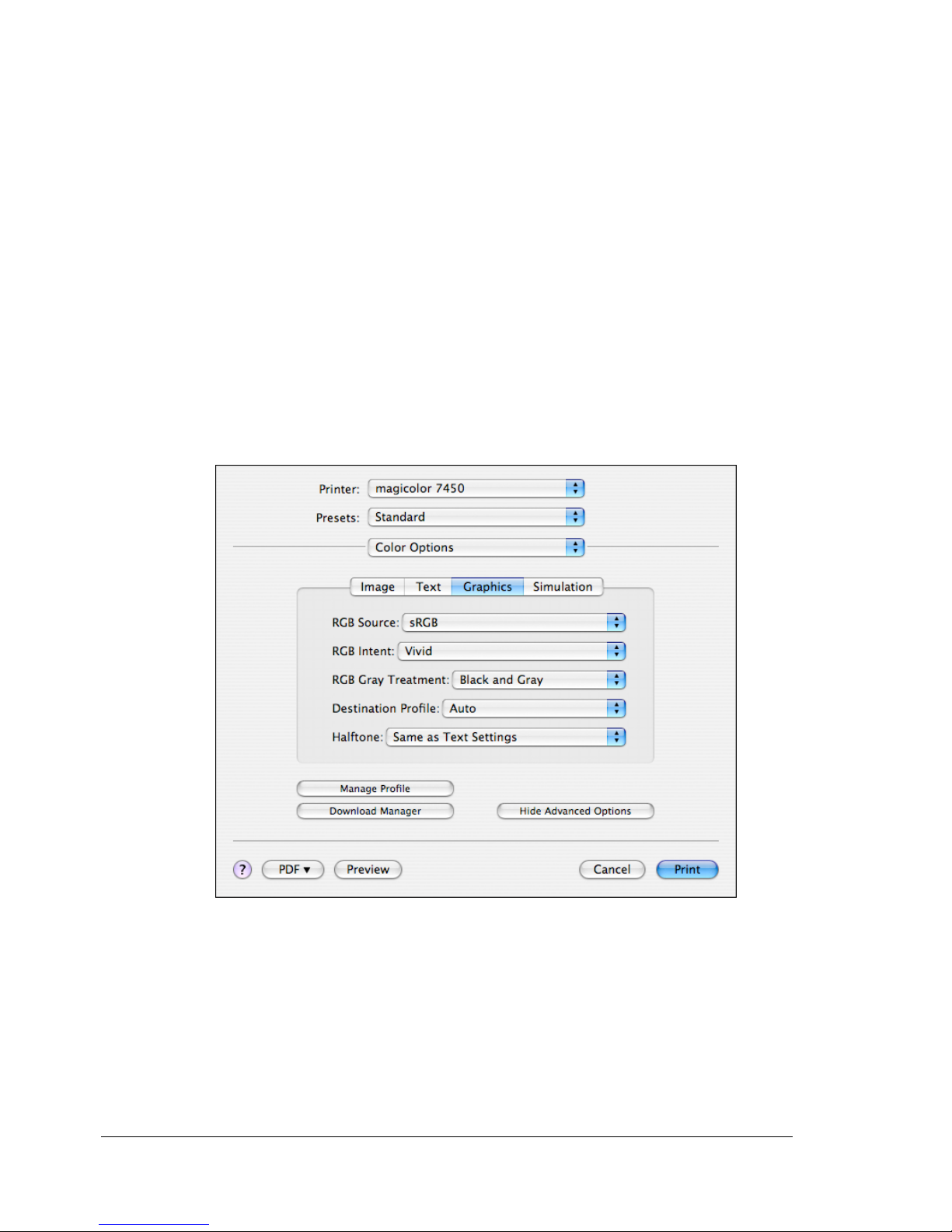

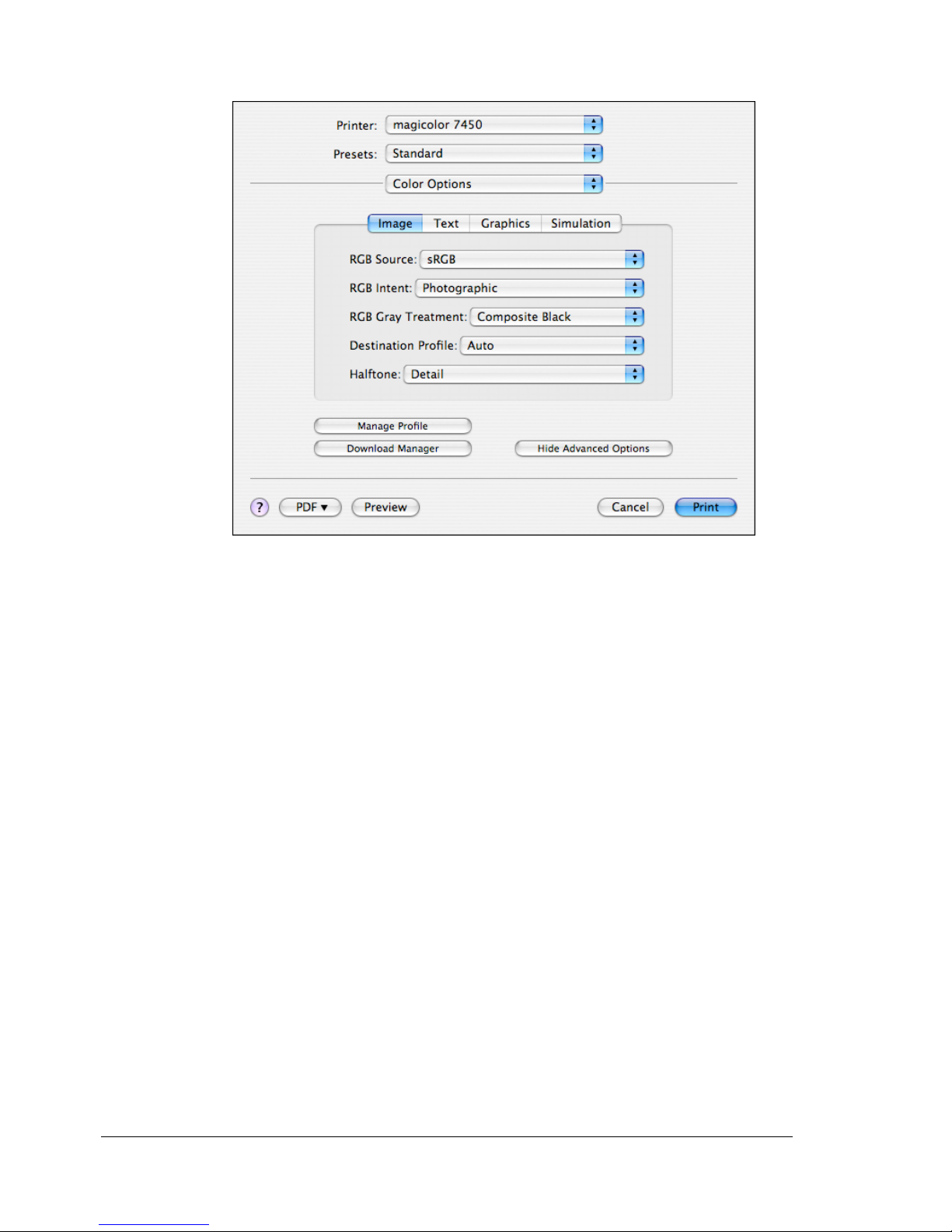

ColorSync 32 Cover Page 32 Error Handling 33 Paper Feed 34 Color Options 35 Advanced Color Options/Image 36 Advanced Color Options/Text 37 Advanced Color Options/Graphics 38 Advanced Color Options/Simulation 40 Printer Features 41 Summary 42

Troubleshooting 43

2 Operation on Mac OS 9 ...................................................................................45

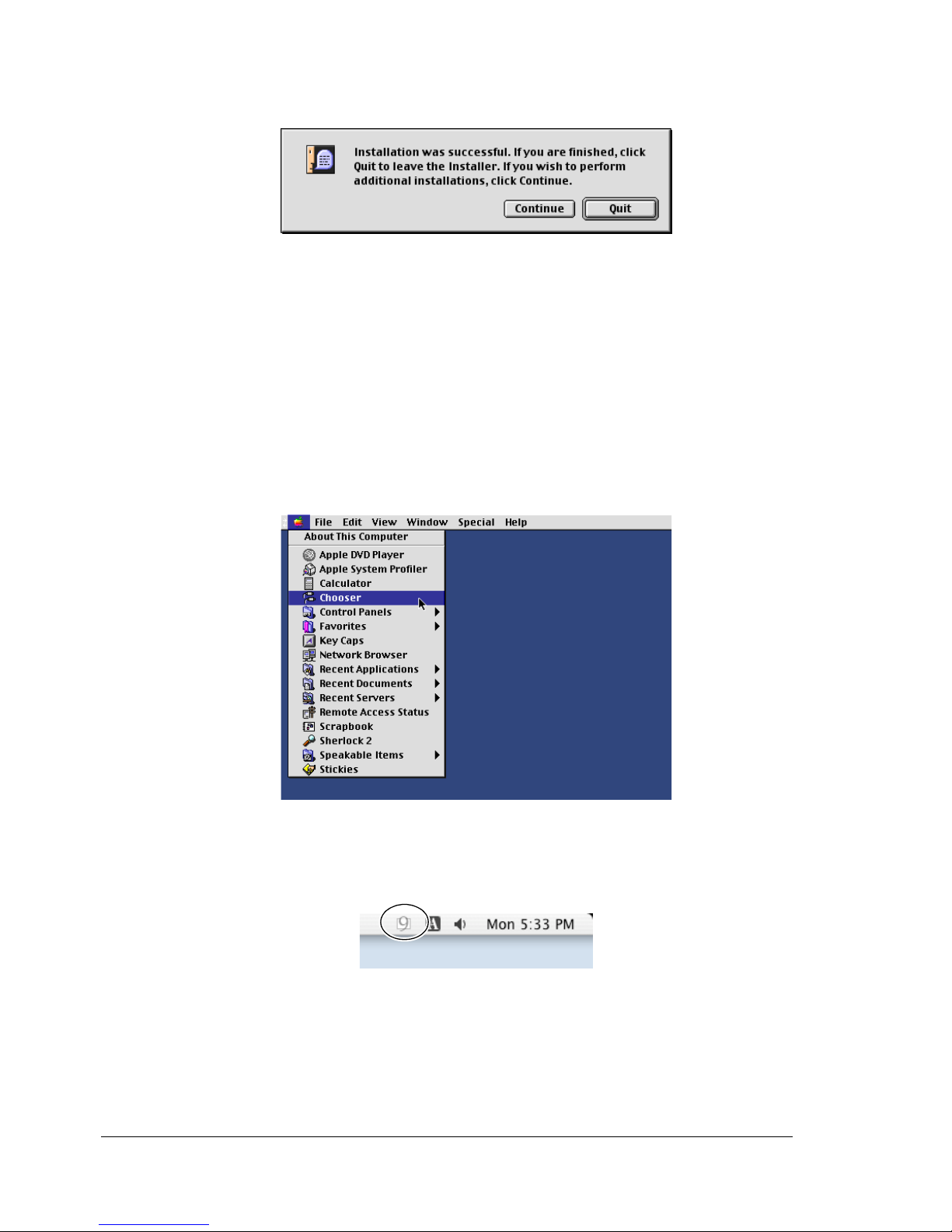

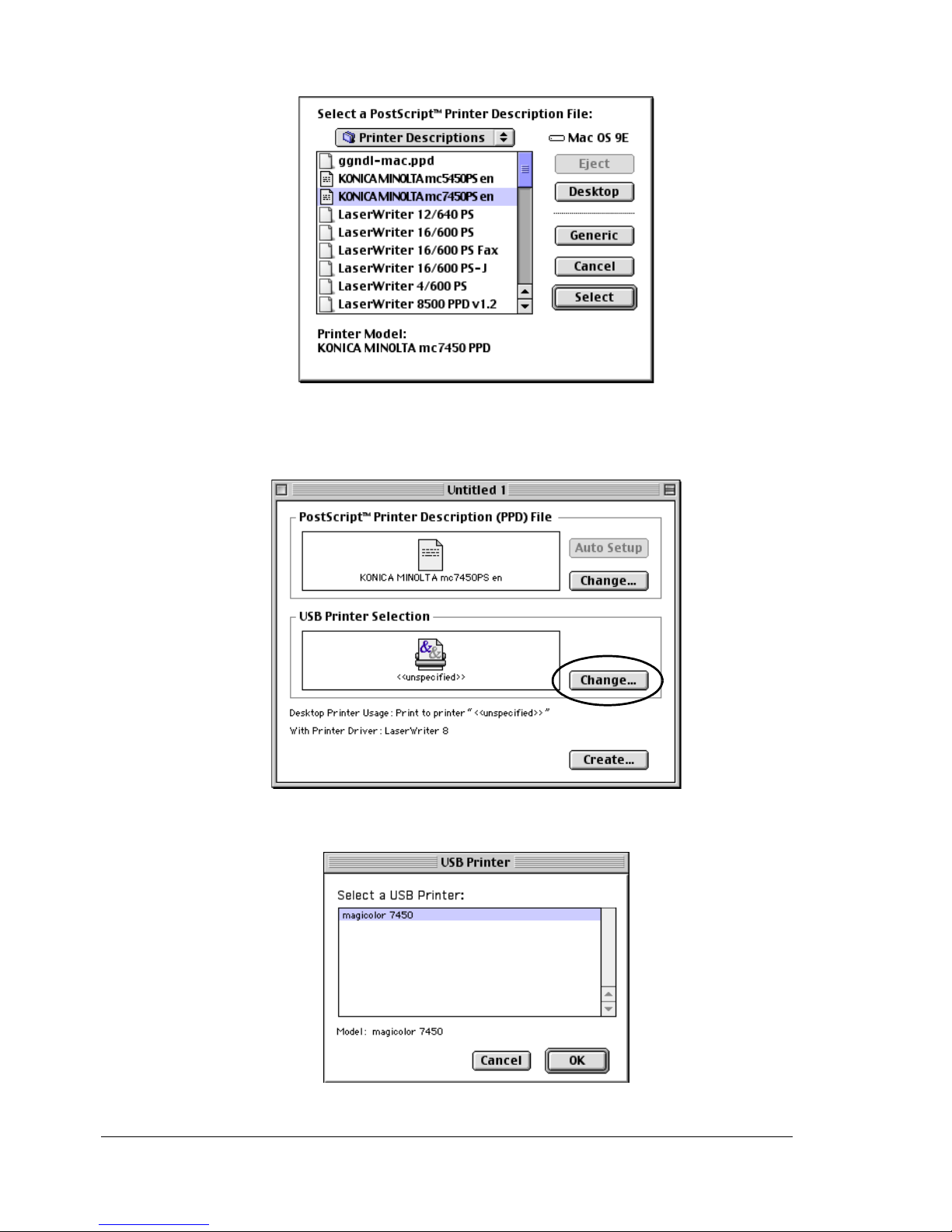

System Requirements for the Printer Driver 46 Installing the Printer Driver 47 Selecting the Printer in the Chooser 48 Selecting the Printer in the Desktop Printer Utility 51 Specifying Page Setup Settings 54

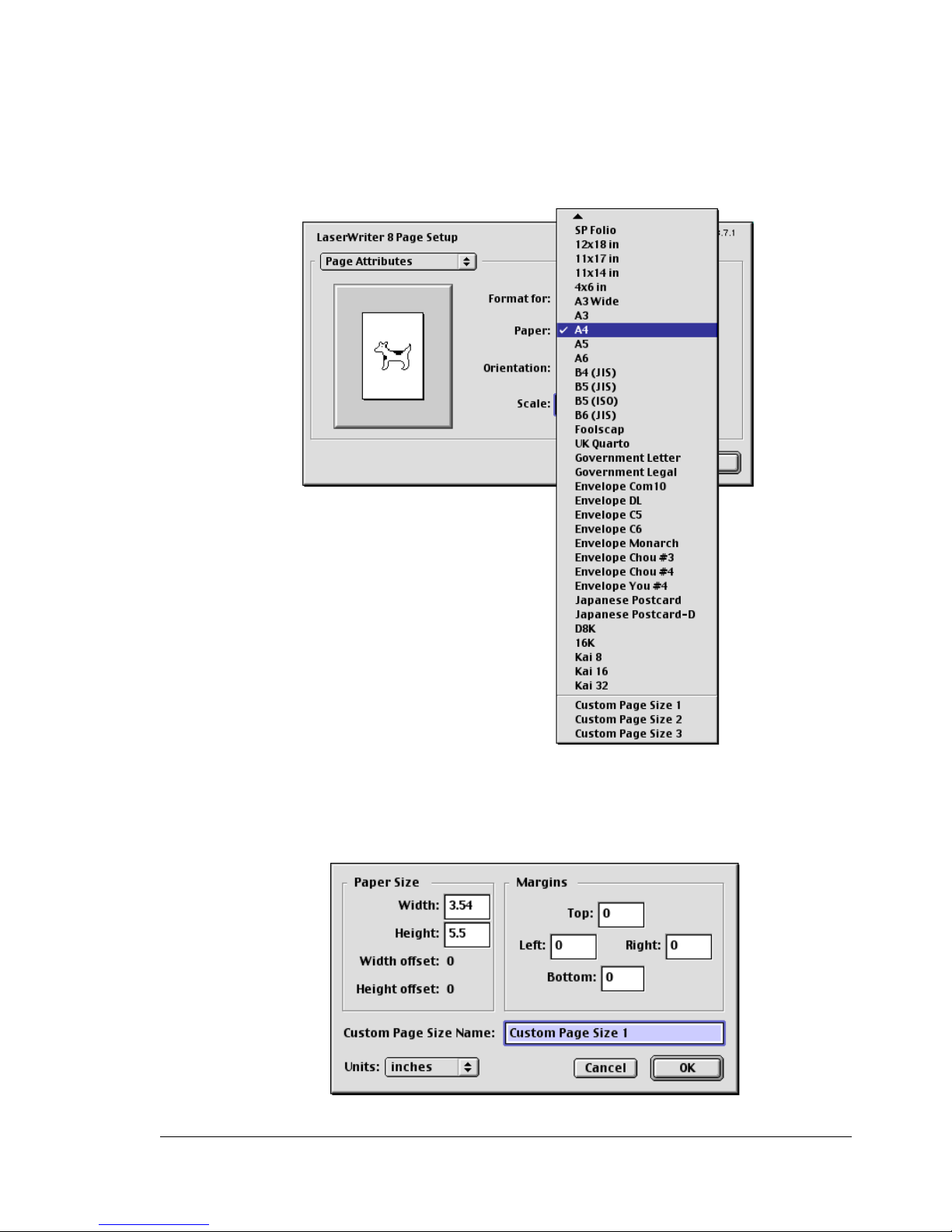

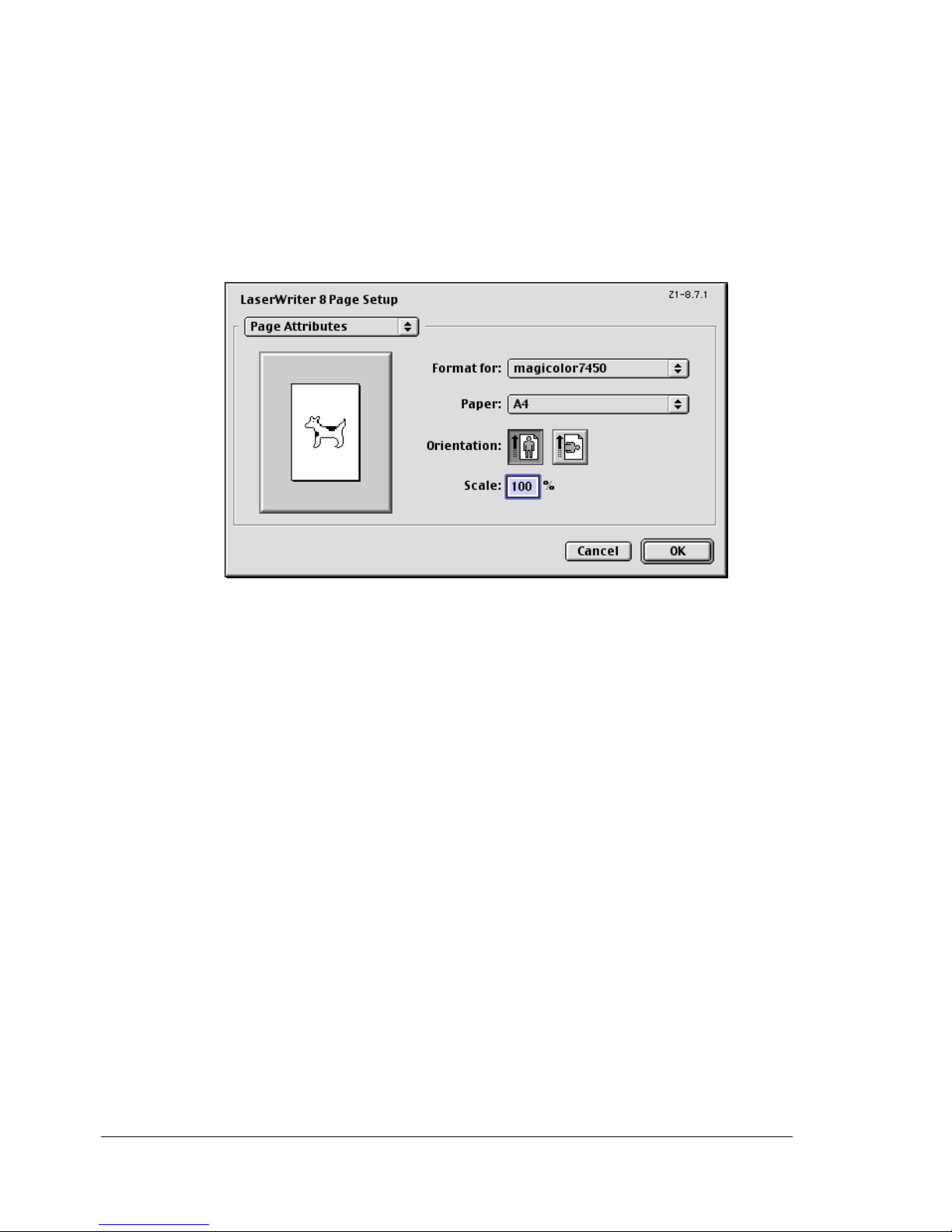

Page Attributes Options 54

Specifying a Custom Paper Size 55

Specifying Print Settings 57

Print Dialog Box Options 58

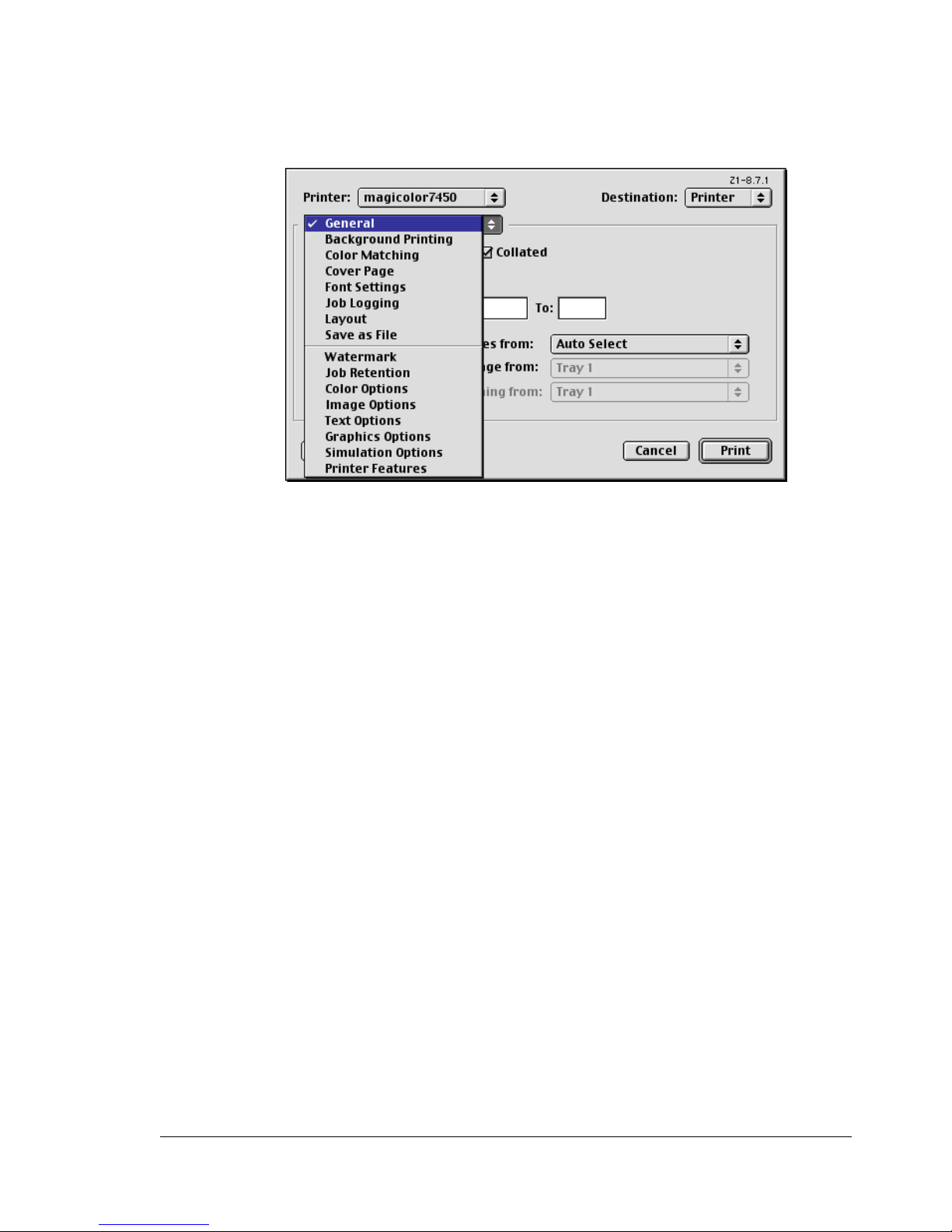

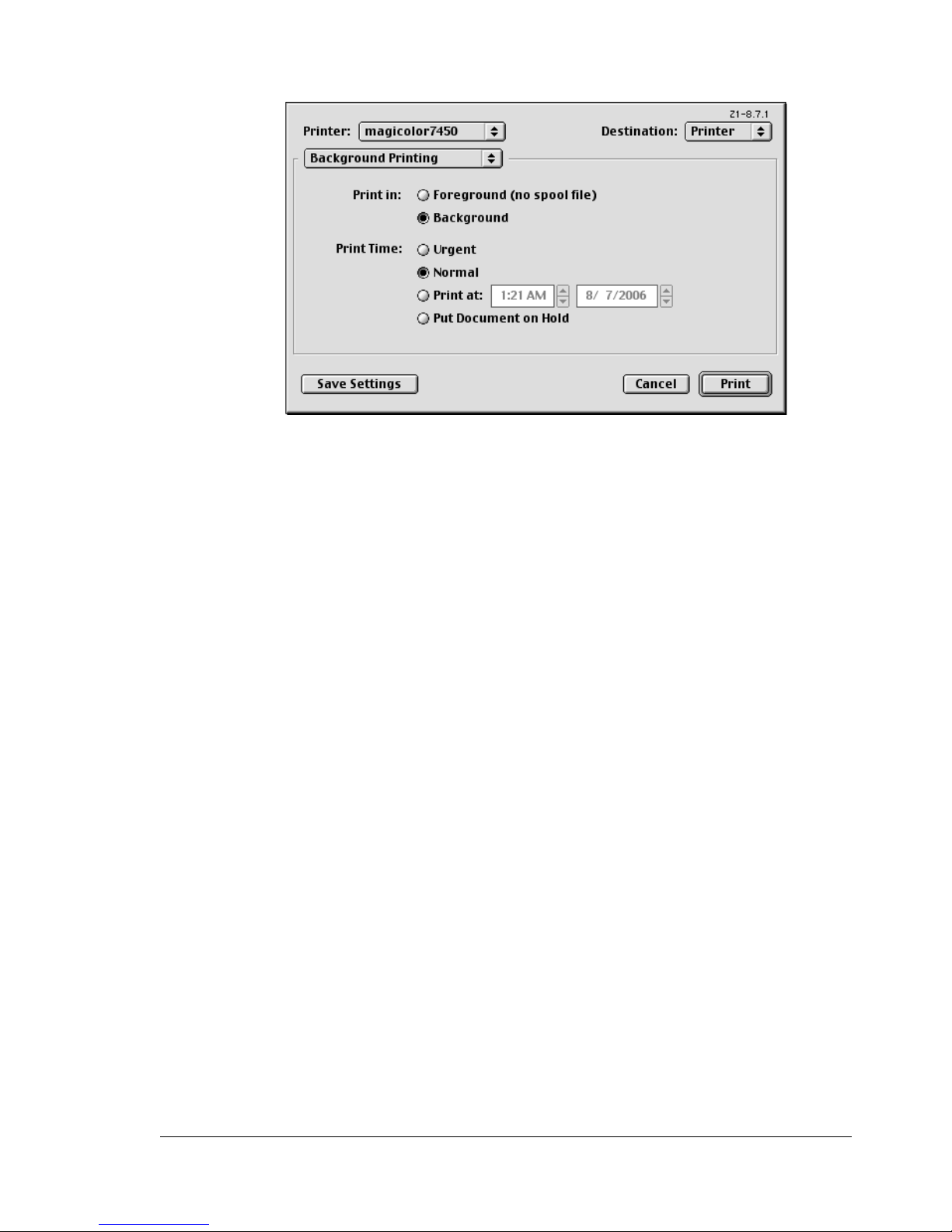

Common buttons 59 General Options 60 Background Printing 61 Color Matching 62 Cover Page 63 Font Settings 64 Job Logging 65 Layout 66 Save as File 67 Watermark 68 Job Retention 69 Color Options 70 Image Option, Text Option, Graphics Option 71 Simulation Option 72 Printer Features 73

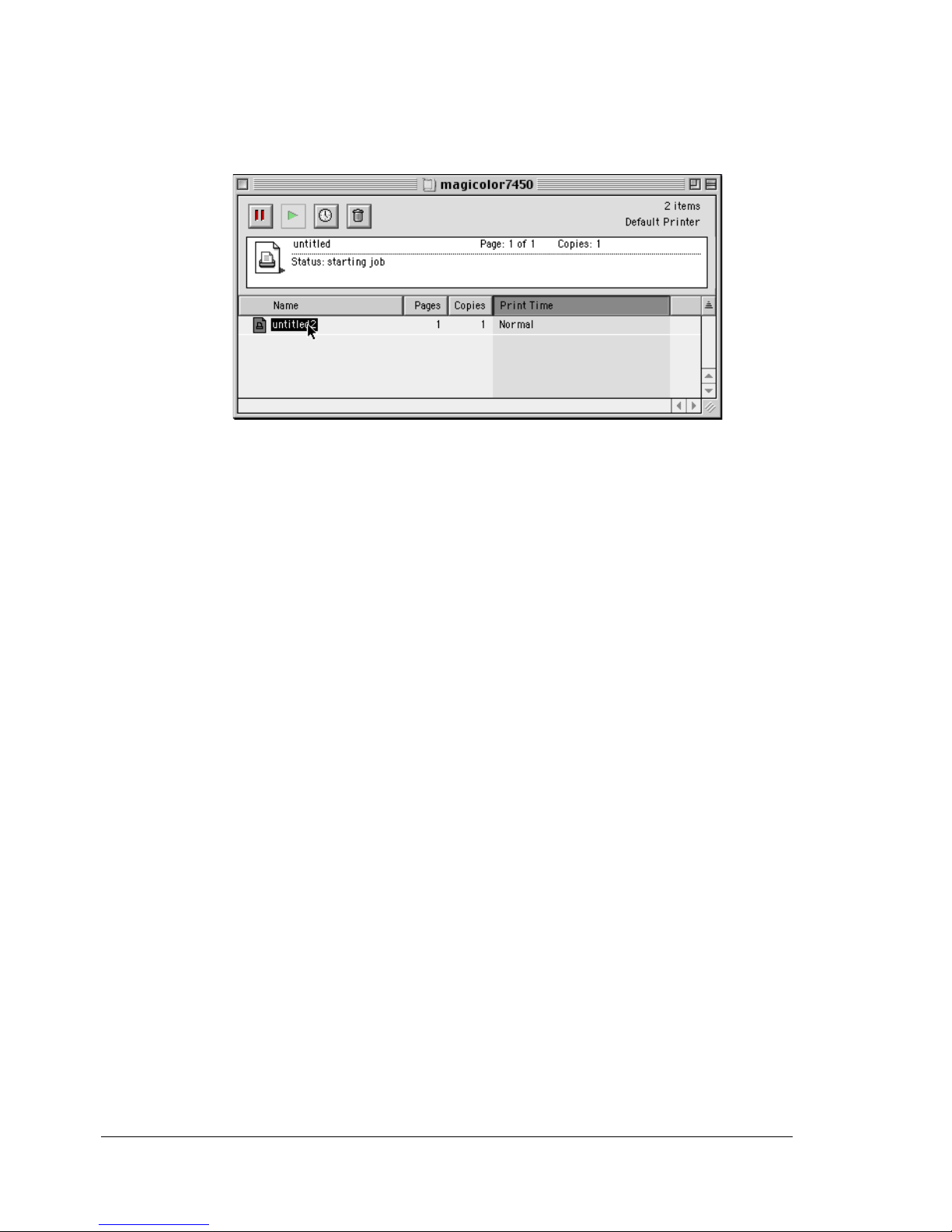

Checking Print Jobs 74 Troubleshooting 75

3 Operation on Linux ..........................................................................................77

System Requirements for the Printer Driver 78 Installing PPD File From the Command Line 79 Adding the Printer 80

Contentsii

Page 15

Specifying Printer Driver Settings 82

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Displaying the Settings Page 82 Printer Driver Settings 83

Extra 83 General 83 Graphics Options 84 Image Options 85 Options Installed 85 Simulation 86 Text Options 86 Banners 87

Printing a Document 88

Example Using LPR Command 88 Example Using OpenOffice 89

Checking Print Jobs 92 Troubleshooting 93

4 Operation on NetWare .................................................................................... 95

Printing With NetWare 96

Network Printing in a NetWare Environment 96 For Remote Printer Mode With NetWare 4.x Bindery Emulation 96 For Print Server Mode With NetWare 4.x Bindery Emulation 98 For NetWare 4.x Remote Printer Mode (NDS) 99 For NetWare 4.x/5.x/6 Print Server Mode (NDS) 101 For NetWare 5.x/6 Novell Distributed Print Service (NDPS) 102 Setting Up a Client (Windows) Settings When Using the NetWare Server 103

5 Printer Management Utilities ........................................................................105

Installing Printer Management Utilities on Windows 106

6 Understanding the Ethernet Configuration Menus .................................... 107

Ethernet Menu 108

Location within the Configuration Menu 108 Accessing the Ethernet Menu 109 Using the Network Menu Options 110

TCP/IP 110 TELNET 111 NetWare 112 AppleTalk 112 Speed/Duplex 112 CAMERA DIRECT 113

7 Network Printing ........................................................................................... 115

Network Connection 116

Theory 116

Contents

iii

Page 16

Making the Connection 117

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Ethernet Interface 117

Using DHCP 117

Setting the Address Manually 119

Network Printing 123

AppleTalk 123

Bonjour 123

BOOTP 123

DHCP 124

DDNS (Dynamic DNS) 124

HTTP 124

IPP 124

IPX/SPX 125

LPD/LPR 125

NetBEUI 125

SLP 125

SNMP 126

Port 9100 126

SMB 126

SMTP 126 Printing via IPP (Internet Printing Protocol) – Windows Server 2003/XP/ 2000 127

Adding an IPP Port using Add Printer Wizard 127

Troubleshooting 129

8 Using Crown Print Monitor+ .........................................................................131

Adding a Crown Port After Installing Crown Print Monitor+ 132

For Windows XP, 2000 and NT 4.0: 132 For Windows Me and 98 SE: 133 Configure Crown Port+ 135

9 Using PageScope Web Connection .............................................................137

About PageScope Web Connection 138

Display Language 138 Requirements 138

Setting Up the Printer Web Page 140

Determining the Printer Name 140 Setting Up Your Browser Software 140

Internet Explorer (version 6.0 for Windows) 141

Netscape Navigator (version 7.1) 142

Understanding the PageScope Web Connection Window 143

Navigation 143 Current Status 144 User Mode 144 Administrator Mode 144

Viewing Printer Status 146

Contentsiv

Page 17

System Page 146

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Summary (previous page) 147 Device Information 148 Detail 149 Counter 156 Online Assistance 157

Job Page 158

Active Job List (shown above) 158 Done Job List 159 Done Job List (Detail) 160

Print Page 161

Default Settings 161 Download Font/Form 170 Report Types 174 Direct Print 175

Configuring the Printer 176

System Page 176

Date/Time 176 Admin Password 178 Device Information 180 ROM Version 183 Online Assistance 184 Maintenance 186

Print Page 191

Local Interface 191 Default Settings 192 Download Font/Form 213

Network Page 217

TCP/IP 217 Bonjour 223 NetWare 224 IPP 228 FTP 231 SNMP 232 SMB 233 AppleTalk 234 Email 235 SSL/TLS Information 237 SSL/TLS Setting 238 Self-signed Certificate Setting 239 Request a certificate 241 Certificate Request 243 Install a Certificate 244 Encryption Strength Setting 245 Remove a Certificate 246 Mode using SSL/TLS 247

Contents

Page 18

Log Accounting Page 248

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Job (shown above) 248

Contentsvi

Page 19

Operation on

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Mac OS X

Page 20

System Requirements for the Printer Driver

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Before installing the printer driver, make sure that your system meets the following system requirements.

Computer Apple Macintosh computer installed with the

following processor:

– PowerPC G3 or later processor (Pow-

erPC G4 or later is recommended)

– Intel Core Duo or later processor

Connecting the computer and printer

Operating system Mac OS 9.2 or later

RAM More than OS recommendation (128 MB or

Available disk space 256 MB or more (for storing images)

USB connection, network connection (10Base-T/100Base-TX/1000Base-T)

Mac OS X 10.2 or later (We recommend installing the newest patch.) Mac OS X Server 10.2 or later

more is recommended)

System Requirements for the Printer Driver2

Page 21

Installing the Printer Driver

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

" You must have administrator privileges in order to install the printer

driver.

" Before proceeding with the installation, be sure to exit all running

applications.

Installing the magicolor 7450 Printer Driver

" The procedure for installing the printer driver on Mac OS X 10.4 is

described below. The following procedure or some steps may be different depending on the version of the operating system being used. Complete the installation according to the instructions in the dialog boxes that appear.

1 Insert the magicolor 7450 Software Utilities CD-ROM in the CD/DVD drive

of your Macintosh.

2 Double-click the CD icon on the desk top, and then double click the

mc7450 OSX Installer_103104.pkg package file.

" When using Mac OS X 10.2, double-click the mc7450 OSX

Installer_102.pkg package file icon.

3 Click Continue.

Installing the Printer Driver

Page 22

4 Check the Read Me information, and then click Continue.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

5 Check the details of the license agreement, and then click Continue.

6 Click Accept if you agree to the terms of the license.

Installing the Printer Driver4

Page 23

7 Select a destination volume to install the Driver, and then click Continue.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

8 Click Install.

Installing the Printer Driver

Page 24

9 Enter the administrator user name and password in the Authenticate dia-

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

log box, and then click OK.

The installer for the printer driver starts up.

10 After the installation has been completed, click Close.

This completes the installation of the magicolor 7450 printer driver.

Installing the Printer Driver6

Page 25

Printer Setup Utility Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

When Using a USB Connection

1 Use a USB cable to connect the printer to your computer and check that

the printer is turned on.

2 Open Printer Setup Utility, which can be accessed by clicking Startup

Disk, then Applications, then Utilities.

3 In the Printer List, click Add.

The detected printer appears in the Printer Browser.

Printer Setup Utility Settings

Page 26

4 Select magicolor 7450 in the Printer Browser.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

" If magicolor 7450 does not appear, check that the printer is turned

on and the USB cable is connected, and then restart the computer.

5 Check that KONICA MINOLTA mc7450 PPD is selected in the Printer

Using list.

6 Click Add.

Printer Setup Utility Settings8

Page 27

The new printer appears in the Printer List screen.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Printer Setup Utility Settings

Page 28

When Using a Network Connection

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The network connection settings can be specified in one of several ways: Bonjour Setting, AppleTalk setting, IP printing setting (IPP, LPD or Socket).

Bonjour Setting

1 Connect the printer to an Ethernet network. 2 Open Printer Setup Utility, which can be accessed by clicking Startup

Disk, then Applications, then Utilities.

3 In the Printer List, click Add.

The detected printer appears in the Printer Browser.

Printer Setup Utility Settings10

Page 29

4 Select KONICA MINOLTA magicolor 7450(xx::xx:xx) in the Printer

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Browser.

" "xx:xx:xx" refers to the last six digits of the MAC address (in hexadecimal).

5 Check that KONICA MINOLTA mc7450 PPD is selected in the Print

Using list.

6 Click Add.

Printer Setup Utility Settings

Page 30

7 Select the appropriate settings in the Printer Memory, Hard Disk, Paper

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Source Unit and Duplex Unit according to your printer setup.

8 Click Continue.

The new printer appears in the Printer List screen.

AppleTalk Setting

1 Connect the printer to an Ethernet network. 2 Open Printer Setup Utility, which can be accessed by clicking Startup

Disk, then Applications, then Utilities.

Printer Setup Utility Settings12

Page 31

3 In the Printer List, click Add.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The detected printer appears in the Printer Browser.

Printer Setup Utility Settings

Page 32

4 Select magicolor 7450 in the Printer Browser.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

5 Check that KONICA MINOLTA mc7450 PPD is selected in the Printer

Using list.

6 Click Add.

The new printer appears in the Printer List screen.

Printer Setup Utility Settings14

Page 33

7 Click Add.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Printer Setup Utility Settings

Page 34

IP Printing Setting

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

1 Connect the printer to an Ethernet network. 2 Open Printer Setup Utility, which can be accessed by clicking Startup

Disk, then Applications, then Utilities.

3 Click Add in the Printer List.

4 Click IP Printer.

Printer Setup Utility Settings16

Page 35

5 Select desired print protocol from the Protocol pop-up menu.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

" -For an IPP setup, select Internet Printing Protocol - IPP.

-For a port 9100 setup, select HP Jet Direct - Socket.

-For an LPD setup, select Line Printer Daemon - LPD.

Printer Setup Utility Settings

Page 36

6 Enter the IP address for the printer in the Address text box.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

" For an LPD setup, type “lp” in the Queue text box.

For an IPP setup, type “ipp” in the Queue text box.

7 Check that KONICA MINOLTA mc7450 PPD is selected in the Printer

Using list.

8 Click Add.

Printer Setup Utility Settings18

Page 37

9 Select the appropriate settings in the Printer Memory, Hard Disk, Paper

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Source Unit and Duplex Unit according to your printer setup, and then click Continue.

The new printer appears in the Printer List screen.

Printer Setup Utility Settings

Page 38

Selecting Print Options

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.

2 Select this printer in the Printer List, and then select Show Info from the

Printers menu.

3 Select Installable Options from the pop-up menu.

Selecting Print Options20

Page 39

4 Select the appropriate settings in the Printer Memory, Hard Disk, Paper

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Source Unit and Duplex Unit pop-up menus according to your printer setup, and then click Apply Changes.

5 Close the Printer Info dialog box.

Selecting Print Options

Page 40

Specifying Page Setup Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The following dialog box appears when Page Setup... is selected from the File menu in the application being used.

1 Select Page Setup... from the File menu.

The Page Setup dialog box appears.

2 Select this printer in the Format for pop-up menu.

You can select the following sections from the Settings pop-up menu.

Section Description

Page Attributes This is used to specify the settings for the

paper size, scaling, and print orientation.

Custom Paper Size This is used to specify a custom paper size.

Summary This is used to check the current settings.

Save As Default This is used to save the new settings as the

defaults.

Specifying Page Setup Settings22

Page 41

Page Attributes Options

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Page Attributes section is used to specify the settings for the paper size, scaling, and print orientation.

 Paper Size

Select the desired paper size from the Paper Size pop-up menu.

 Orientation

Select either a vertical or horizontal page orientation for printouts.

 Scale

If you want to enlarge or reduce the size of the printout, enter the scale ratio here (1-400%)

" Regardless of which paper size is selected, the printer does not print

within 0.157" (4 mm) of the edge of the paper.

Specifying Page Setup Settings

Page 42

Custom Paper Size Options

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Custom Page Size section is used to specify the dimensions for a custom page size.

 +

Click this button to create a new custom page size.

 -

Click this button to delete a custom page size.

 Duplicate

Click this button to duplicate (copy) the settings of an existing custom page size and create a new custom page size based on those settings.

 Paper Size

Enter the dimensions of the paper height and width for the custom page size.

Height: 5.5 - 18.0" (140 - 457 mm) for Tray 2/3/4/5.

5.5 - 47.0" (140 - 1200 mm) for Tray 1 (Manual Feed Tray).

Width: 3.6 - 12.2" (90 - 311 mm)

 Printer Margins

Enter the dimensions for the top, left, right, and bottom margins.

Specifying Page Setup Settings24

Page 43

Specifying Print Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The following dialog box appears when Print... is selected from the File menu in the application being used.

1 Select Print... from the File menu.

The Print dialog box appears.

2 Select this printer in the Printer pop-up menu.

The Print dialog box is used to specify the following print options.

Specifying Print Settings

Page 44

Print Dialog Box

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Section Description

Copies & Pages This section contains options for the number

of copies to be printed and the range of pages to print.

Layout This section contains options for specifying

the page layout when printing and the setting for double-sided printing.

Scheduler This section contains options for specifying

the print timing and priority of jobs.

Paper Handling This section contains options for specifying

the pages to be printed and their printing order.

ColorSync This section contains options for specifying

ColorSync settings.

Cover Page This section contains options for specifying

cover page settings.

Error Handling This section contains options for specifying

how an error is reported.

Paper Feed This section contains paper feed options.

Color Options This section contains options for color print-

ing.

Printer Features This section contains options for specifying

whether or not paper of the nearest size is automatically detected when no paper tray is loaded with paper of the same size as the document and for specifying how the back of the paper is printed.

Specifying Print Settings26

Page 45

Section Description

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Summary This is used to check the current settings.

" No warning message will be displayed if options cannot be used

together are selected.

Common buttons

 ? (Help button)

This displays help information about the Print dialog box.

 PDF

Click this button to select PDF menu. The print output can be save as a PDF file, or to send a fax.

 Preview

Click this button to view a preview image of the printout, to check that the print options are set correctly.

 Cancel

Click this button to close the Print dialog box without applying any of the settings.

 Print

Click this button to print using the selected print options.

Specifying Print Settings

Page 46

Copies & Pages

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Copies & Pages section is used to specify the number of copies to print and the range of pages to print.

 Copies

This specifies the number of copies to be printed. If the Collated checkbox is selected, all pages in the documents are printed as sets of printouts. For example, if 5 is entered for Copies and Collated is selected, the document is printed five times from the first page to the last page.

 Pages

All: Prints all pages in the document.

From, to: Specifies the range of pages to be printed.

Specifying Print Settings28

Page 47

Layout

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Layout section is used to specify the page layout when printing and the setting for double-sided printing.

 Pages per Sheet

Specifies the number of pages to be printed on one sheet of paper. For example, if 2 is selected, two pages are printed on one sheet of paper.

 Layout Direction

If you are printing more than one page per sheet, this specifies the direction and order the pages should be arranged on each sheet of paper.

 Border

This prints a border around the image for each of the pages printed on one sheet of paper when more than one page is printed on one sheet of paper.

 Two Sided Printing

Select the desired setting for double-sided printing when the optional duplexing unit is installed.

Off: Double-sided printing is not performed.

Long-Edge Binding: Double-sided printing is performed with the bind-

ing along the long edge of the paper.

Short-Edge Binding: Double-sided printing is performed with the bind-

ing along the short edge of the paper.

Specifying Print Settings

Page 48

" To print on both sides of the paper, Duplex Unit must be selected

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

under Installable Options (p. 20). The Long-Edge Biding check box or Short-Edge Biding check box can be selected even when the Duplex Unit is not installed. However, in this case, the print job will be cancelled.

Scheduler

The Scheduler section is used to specify the timing and priority for printing jobs.

 Print Document

Now: Select this option to begin printing immediately.

At: Specify the time to begin printing.

On Hold: Select this option to hold the print job.

 Priority

Select the priority for printing jobs that are being held.

Specifying Print Settings30

Page 49

Paper Handling

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Paper Handling section is used to specify the pages that are to be printed and the order in which the pages are printed.

 Page Order

Automatic: Select this option to print in the original page

order of the document.

Normal: Select this option to print in the normal page

order.

Reverse: Select this option to print in the reverse page

order.

 Print

All pages: Select this option to print all pages.

Odd numbered pages: Select this option to print only the pages with

odd page numbers.

Even numbered pages: Select this option to print only the pages with

even page numbers.

 Destination Paper Size

Use documents paper size: Select this option to use the document

size as created by software applications.

Scale to fit paper size: Select this option to fit the document size

to the size of paper used by the printer. Specify the size of paper used by the printer.

Specifying Print Settings

Page 50

ColorSync

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Color Conversion

Allows you to select host-based color matching or printer-based color matching.

 Quartz Filter

Allows you to select Quartz Filter.

Cover Page

 Print Cover Page

Allows you to set cover page before or after document.

 Cover Page Type

Allows you to select cover page type.

Specifying Print Settings32

Page 51

 Billing Info

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Allows you to set billing information printed on cover page.

Error Handling

 PostScript Errors

Allows you to select whether or not a report is outputted when a PostScript error occurs.

 Tray Switching

This feature is not available with this printer.

Specifying Print Settings

Page 52

Paper Feed

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Paper Feed section is used to specify the paper feed setting.

 All pages from

All pages in the document are printed using the paper in the specified paper tray.

 First page from

The first page of the document is printed on paper from a paper tray different from the tray used to print the rest of the document.

 Remaining from

The rest of the document is printed from the specified paper tray when the first page is to be printed on paper from a different tray.

" If an optional tray is installed, select Paper Source Unit under Install-

able Options (p. 20). If Paper Source Unit is not selected, Tray 3/4/5

appear in gray and cannot be selected.

Specifying Print Settings34

Page 53

Color Options

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Quick Color

Allows you to select a color preset.

" When Custom is selected, Advanced Color Options button

becomes effective.

 Brightness

Allows you to set Brightness.

 Color as Grayscale

Allows you to set Grayscale color.

 Color Separation

Allows you to set Color Separation.

 Advanced Color Options

Click this button to display the Advanced Color Options pane.

Specifying Print Settings

Page 54

Advanced Color Options/Image

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 RGB Source

Allows you to select RGB color profiles for images.

 RGB Intent

Allows you to select color intent for RGB images.

 RGB Gray Treatment

Allows you to select RGB gray treatment for images.

 Destination Profile

Allows you to select Destination Profile for images.

 Halftone

Allows you to select halftone for images.

 Hide Advanced Options

Click this button to hide the Advanced Color Options pane and display the Color Options pane.

 Manage Profile

Click this button to display the Color Profile Management dialog box. From this dialog box, color profiles can be added or deleted to those available as settings for RGB Source, Destination Profile and Simulation Profile of the Advanced Color Options pane.

 Download Manager

Click this button to start up the installed Download Manager.

Specifying Print Settings36

Page 55

" In order to start up Download Manager from the Advanced Color

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Options pane, Download Manager must be copied into the folder at the path Application\Download Manager mc7450. After creating the folder "Download Manager mc7450" in the "Application" folder, copy Download Manager into the created folder.

Advanced Color Options/Text

 RGB Source

Allows you to select RGB color profiles for text.

 RGB Intent

Allows you to select color intent for RGB text.

 RGB Gray Treatment

Allows you to select RGB gray treatment for text.

 Destination Profile

Allows you to select Destination Profile for text.

 Halftone

Allows you to select halftone for text.

 Hide Advanced Options

Click this button to hide the Advanced Color Options pane and display the Color Options pane.

Specifying Print Settings

Page 56

 Manage Profile

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Download Manager

Click this button to start up the installed Download Manager.

" In order to start up Download Manager from the Advanced Color

Advanced Color Options/Graphics

 RGB Source

Allows you to select RGB color profiles for graphics.

 RGB Intent

Allows you to select color intent for RGB graphics.

 RGB Gray Treatment

Allows you to select RGB gray treatment for graphics.

Specifying Print Settings38

Page 57

 Destination Profile

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Allows you to select Destination Profile for graphics.

 Halftone

Allows you to select halftone for graphics.

 Hide Advanced Options

Click this button to hide the Advanced Color Options pane and display the Color Options pane.

 Manage Profile

 Download Manager

Click this button to start up the installed Download Manager.

" In order to start up Download Manager from the Advanced Color

Specifying Print Settings

Page 58

Advanced Color Options/Simulation

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Simulation Profiles

Allows you to select color profiles for simulation.

 Match Paper Color

Allows you to set Match Paper Color.

 CMYK Gray Treatment

Allows you to select Simulation gray treatment.

 Hide Advanced Options

Click this button to hide the Advanced Color Options pane and display the Color Options pane.

 Manage Profile

 Download Manager

Click this button to start up the installed Download Manager.

" In order to start up Download Manager from the Advanced Color

Specifying Print Settings40

Page 59

Printer Features

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Nearest Size and Scale

If no paper tray contains paper of the specified size, the page is automatically enlarged or reduced and paper of the most appropriate size is selected.

 Manually Print on 2nd Side

This feature must be set when you set paper already printed on the front side.

 Paper Type

Select the setting for the type of media loaded into the specified media tray. Plain Paper/Recycled/Transparency 1/Transparency 2/Glossy/Label/ Thick 1/Thick 2/Thick 3/Letterhead/Envelope/Postcard

Specifying Print Settings

Page 60

Summary

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Summary is used to check the currently selected print settings.

Specifying Print Settings42

Page 61

Troubleshooting

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Symptom Solution

The setting in the saved presets are not applied.

Media type error appears. (OS X 10.2 only)

Checking the version number of the printer driver and PPD file.

The custom paper size is different from the size that was set.

When printing 2 pages on a single sheet of paper, the pages are not centered on the paper.

Depending on the functions selected for the printer, some preset settings are not saved.

If a media type, such as “Transparency,” is specified for Tray 3, Tray 4 or Tray 5, a media type error appears and the printer stops. Be sure to specify a media type supported by Tray 3, Tray 4 and Tray 5.

 For Mac OS X 10.4:

Select the printer from Printer Setup Util-

ity, and then click Show Info in the Print- ers menu. In the pop-up menu of the Printer Info dialog box, select Name & Location.

Depending on the operating system, the custom paper size settings may change slightly (for example, 5.80" may change to 5.79").

Depending on the operating system, the pages are not centered on the paper when printing two pages on a single sheet of paper with the following paper sizes.

The specified name cannot be used for the name of a custom paper size.

When printing multiple copies of multiple pages on a single sheet of paper with Collated selected, the pages are printed continuously.

While printing from Acrobat Reader, the pages are not correctly collated or the print job is cancelled.

Legal, Letter Plus, Foolscap, Government Legal, Statement, Folio

Due to the limitations of Mac OS X, the following names cannot be used as custom paper size names. Specify a different name.

 “Custom”

 General paper size names specified in the

PPD files, such as “A4” and “B4”

When printing multiple copies of multiple pages on a single sheet of paper, Collated cannot be selected.

If a printing error occurs with Acrobat Reader, print using the Preview application provided by the operating system.

Troubleshooting

Page 62

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Page 63

Operation on

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Mac OS 9

Page 64

System Requirements for the Printer Driver

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Before installing the printer driver, make sure that your system meets the following system requirements.

Computer Apple Macintosh computer with a Pow-

erPC G3 or later processor (PowerPC G4 or later is recommended)

Connection between computer and printer

Operating system Mac OS 9.1 or later

RAM More than OS recommendation (128 MB

Available disk space 256 MB or more is recommended (for

USB connection

Network connection (10Base T/100Base TX/1000Base T)

Mac OS X Classic mode (9.2.2 or later)

When using the Classic environment of Mac OS X, Mac OS X 10.2.6 or later is required.

or more is recommended)

storing images)

System Requirements for the Printer Driver46

Page 65

Installing the Printer Driver

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Double-click the mc7450 OS9 Installer icon.

The installer for the printer driver starts up.

" When using Mac OS X, start up the Classic environment before

installing the printer driver.

2 Check the details of the License Agreement, and click Accept if you

agree to the terms of the license.

3 Click Install.

The installer installs the printer driver.

Installing the Printer Driver

Page 66

Installation starts.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

4 After the installation has been completed, click Quit.

This completes the installation of the magicolor 7450 printer driver.

Selecting the Printer in the Chooser

Use the Chooser to use AppleTalk to connect the printer.

1 Use an 10Base-T/100Base-TX/1000Base-T cable to connect the printer

to a Ethernet network.

2 Select Chooser from the Apple menu.

" When using Mac OS X, the Apple menu is available with the icon

for the Classic environment in the menu bar.

To display the Classic status in the menu bar, select the “Show Classic status in menu bar” check box in the Classic dialog box.

Selecting the Printer in the Chooser48

Page 67

3 Select the LaserWriter 8 icon from the icons on the left side of the

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Chooser.

The printer name appears in the Select a printer section on the right side of the Chooser.

4 Select the printer. 5 Click Create. 6 Select KONICA MINOLTA mc7450PS en, then click Select.

The printer setup dialog box appears.

Selecting the Printer in the Chooser

Page 68

" For operating systems other than those in English, select the

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

printer indicated below, according to the language of the operating system.

- Czechoslovakian: KONICA MINOLTA mc7450PS cs

- German: KONICA MINOLTA mc7450PS de

- Spanish: KONICA MINOLTA mc7450PS es

- French: KONICA MINOLTA mc7450PS fr

- Italian: KONICA MINOLTA mc7450PS it

- Japanese: KONICA MINOLTA mc7450PS ja

- Korean: KONICA MINOLTA mc7450PS ko

- Dutch: KONICA MINOLTA mc7450PS nl

- Portuguese: KONICA MINOLTA mc7450PS pt_BR

- Simplified Chinese: KONICA MINOLTA mc7450PS zh_CN

- Traditional Chinese: KONICA MINOLTA mc7450PS zh_TW

7 Select the options that are installed, and then click OK.

The icon for the printer selected in step 3 appears on the desktop.

" In the Classic environment, no icon appears on the desktop.

Selecting the Printer in the Chooser50

Page 69

Selecting the Printer in the Desktop Printer

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Utility

Use the Desktop Printer Utility to use a USB cable to connect the printer.

1 Use the USB cable to connect the printer and your computer. 2 From Hard Disk, select Desktop Printer Utility. 3 Select LaserWriter 8 from With pop-up menu. 4 Select Printer (USB) from Create Desktop list.

5 Click OK. 6 Select Change to select the PPD file.

Selecting the Printer in the Desktop Printer Utility

Page 70

7 Select KONICA MINOLTA mc7450PS en from the list of PPD files.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

8 Click Select. 9 Click Change to select the USB Printer.

10 Select magicolor 7450 from the Select a USB Printer list.

Selecting the Printer in the Desktop Printer Utility52

Page 71

11 Click OK.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

12 Click Create.

13 Click Save. 14 Specify a printer name in the Save desktop printer as text box, and then

click Save.

The icon for magicolor 7450 appears on the desktop.

" In the Classic environment, no icon appears on the desktop.

Selecting the Printer in the Desktop Printer Utility

Page 72

Specifying Page Setup Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The Page Setup dialog box appears when Page Setup... is selected from the File menu.

Page Attributes Options

The Page Attributes section is used to specify the options for the Paper Size, scaling, and page orientation.

 Paper

Select the desired Paper Size from the Paper pop-up menu.

 Scale (%)

If you want to enlarge or reduce the size of the printout, enter the scale ratio (25%-400%) here.

 Orientation

Select either a vertical or horizontal page orientation for printouts.

" Regardless of which paper size is selected, the printer does not print

within 0.157 inch (4 mm) of the edge of the paper.

Specifying Page Setup Settings54

Page 73

Specifying a Custom Paper Size

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

You can also specify a paper size that is not listed in the Paper Size pop-up menu.

1 Select Custom Paper Sizes... from the pop-up menu, in the Page Setup

dialog box.

The Edit Paper Sizes dialog box appears.

2 Click New.

The following dialog box appears.

Specifying Page Setup Settings

Page 74

3 Enter a name for the custom paper size in the Custom Page Size Name

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

field, enter the dimensions in the Width and Height fields, enter the margins in Margins fields, and then click OK.

" The default units used for the dimensions for Width, Height and Mar-

gins is inches. To specify the dimensions in millimeters, select cm or pts from the Units pop-up menu.

4 To add several different custom paper sizes, click New and repeat step 3.

" To delete an existing custom paper size, select the custom paper

size from the list on the center of the dialog box, and then click Delete.

5 The custom paper size setting is saved, and the name of the custom

paper size can now be selected from the Paper pop-up menu.

6 After you have finished entering the settings, click Done.

Specifying Page Setup Settings56

Page 75

Specifying Print Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

The following dialog box appears when Print... is selected from the File menu in the application being used.

You can specify the following options from the Print dialog box.

Specifying Print Settings

Page 76

Print Dialog Box Options

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Section Description

General This section contains options for the number

of copies to be printed, the paper source, and the range of pages to be printed.

Background Printing This section contains options for spooling the

print data for background or foreground printing and the document printing time.

Color Matching This section contains options for Color Match-

ing.

Cover Page This section contains for specifying cover

page settings.

Font Settings This section contains options for Font Docu-

mentation and Font Down loading.

Job Logging This section contains options for creating a

job log.

Layout This section contains options for the number

of pages per sheet of paper and other duplex printing.

Save as File This section contains options for saving the

print image as a file and for the format of saved data.

Watermark This section contains options for watermark

settings.

Job Retention This section contains options for Job Reten-

tion.

Color Options This section contains options for color print-

ing.

Image Option Text Option Graphics Option

Simulation Option This section contains options for Simulation

Printer Features This section contains options for specifying

This section contains options for advanced color.

Profile.

whether or not paper of the nearest size is automatically detected when no paper tray is loaded with paper of the same size as the document and for specifying how the back of the paper is printed.

Specifying Print Settings58

Page 77

" No warning message will be displayed if options that cannot be used

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

together are selected.

Common buttons

 Preview

Click this button to view a preview image of the printout, to check that the print options are set correctly.

 Cancel

Click this button to close the Print dialog box without applying any of the settings.

 OK

Click this button to print using the selected print options.

 Save Settings

Click this button to save configuration changes made in the print dialog. These changes remain as the default settings until the configuration items are changed again.

Specifying Print Settings

Page 78

General Options

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Copies

Allows you to specify how many copies of the print job you want printed.

 Collated

If this item is selected, your print job is collated (one complete copy of the document is printed before the next copy is printed). Left unselected, the printing is uncollated.

 Pages

Select All to print all pages in the open document. To print a specific range of pages, select From, and then enter the beginning page number in the From text box and the ending page number in the To text box.

 Paper Source

Allows you to select the tray that the printer uses for the print job and to choose a different tray for the first page of the document, if you have more than one tray installed.

Specifying Print Settings60

Page 79

Background Printing

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Print In

Allows you to choose between printing in foreground and printing in background. Printing in background creates a spool file that is temporarily saved on your computer until the print job is ready to be processed. This allows you to continue working in your applications while the print job is processing. If you don’t have enough free file space on your computer to process a spool file, select Foreground printing.

 Print Time

Allows you to assign a priority status to the print job and specify a particular time that the print job should be printed.

Specifying Print Settings

Page 80

Color Matching

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Print Color

Allows you to choose from the color configurations available on your computer.

 Intent

Allows you to specify the color matching configuration or allow for automatic configuration. This item is disabled (grayed out) unless ColorSync Color Matching is the selected Print Color setting.

 Printer Profile

Allows you to select from the printer profiles that are available.

Specifying Print Settings62

Page 81

Cover Page

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Print Cover Page

Lets you choose whether to print a cover page, and specify Page the placement of the cover page in relation to the remaining pages of the print job.

 Cover Page Paper Source

Allows you to select the paper tray containing the cover Paper Source page media. The Cover Page contains information about the print job such as: user name, application, document name, date, time, printer, and number of pages. This option is disabled (grayed out) if Print Cover Page is set to None.

Specifying Print Settings

Page 82

Font Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Font Documentation

– Annotate Font Keys: Allows you to determine if the font keys are anno-

tated.

 Font Downloading

– Preferred Format: Allows you to select the preferred font format. – Always download needed fonts: If selected, fonts should always be

downloaded to the printer. Printer fonts are not used.

– Never generate Type 42 format: If selected, Type 42 fonts are not gen-

erated.

– Use Defaults: Restores factory default settings for font downloading.

Specifying Print Settings64

Page 83

Job Logging

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 If there is a PostScript error

Allows you to select whether or not a report is outputted when a PostScript error occurs.

 Job Documentation

Allows you to specify generating a job copy in the folder specified as the Job Documentation Folder, and generating a job font log following the completion of the print job.

 Job Documentation Folder

Allows you to select the location of the Job Documentation Folder. The folder selected holds a copy of the print jobs or job information of print jobs that are configured for job documentation. Use the Change button to browse to and select a different folder.

Specifying Print Settings

Page 84

Layout

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Pages Per sheet

Allows you to set the number of logical pages per physical sheet.

 Layout direction

Lets you identify either left-right or right-left logical page direction on the physical sheet.

 Border

Allows you to select a border to surround each logical page.

 Print on Both Sides

Allows you to configure the print job for duplex printing. This setting is disabled (grayed out) unless an optional duplex unit is installed.

 Binding

Determines the orientation of the logical pages on the physical sheet so the printed media is oriented for binding on the short edge or long edge of the media.

Specifying Print Settings66

Page 85

Save as File

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Format

Select the file format of the output file.

 PostScript Level

Allows you to select from available PostScript levels.

 Data Format

Sends the print job data to the file in either ASCII or Binary format.

 Font Inclusion

Allows you to choose the fonts that are included with the Inclusion print job as it is saved to a file.

Specifying Print Settings

Page 86

Watermark

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Tex t

Allows you to select watermark text.

 Font

Allows you to select watermark font type.

 Size

Allows you to select watermark font size.

 Color

Allows you to select watermark font color.

 Transparent

Allows you to set watermark transparency.

 Position

Allows you to select watermark position.

Specifying Print Settings68

Page 87

Job Retention

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Job Retention

Select type of job.

– Print: The job is printed normally. – Secured Job: Printer dose not print the job without the panel opera-

tion. Printer prints the job when you input Security ID correctly. The job is deleted after all copies are printed.

– Stored Job: Printer dose not print the job without the panel operation.

You can print desired copies through the panel. You can print additional copies through the panel later. If you stored the job with securityID, you have to input it every time print job. Printer keeps the job until it is deleted intentionally.

– Print and Hold: Printer prints all of multicopy print job, and then holds

the print job in the printer's hard disk for printing additional copies. The job isn’t deleted until it is intentionally deleted or the held job timeout occurs.

– Proof then Print: Printer prints 1 copy without the panel operation. You

can then print the rest of the copies through the panel. The job is deleted after the whole copies are printed.

" For details on each printing procedure, refer to the magicolor 7450

User’s Guide.

 Job Name

Allows you to set Job Name.

 User Name

Allows you to set User Name.

Specifying Print Settings

Page 88

 Security ID

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Select a Security ID to a Job.

" To use Job Retention feature, the optional Hard Disk must be installed

on the printer.

In addition, the printer must be set up with the Chooser to use the Hard Disk. For details on selecting the Hard Disk with the Chooser, refer to “Selecting the Printer in the Chooser” on page 48.

Color Options

 Brightness

Allows you to set Brightness of the image.

 Color as Grayscale

Allows you to set Grayscale color.

 Color Separation

Allows you to set Color Separation.

Specifying Print Settings70

Page 89

Image Option, Text Option, Graphics Option

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 RGB Source

Allows you to select RGB color profiles for images, text and graphics.

 RGB Intent

Allows you to select RGB intent for images, text and graphics.

 RGB Gray Treatment

Allows you to select RGB gray treatment for images, text and graphics.

 Halftone

Allows you to select halftone for images, text and graphics.

Specifying Print Settings

Page 90

Simulation Option

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Simulation Profiles

Allows you to select RGB color profiles for simulation.

 Match Paper Color

Allows you to set Match Paper Color.

 CMYK Gray Treatment

Allows you to select CMYK gray treatment.

Specifying Print Settings72

Page 91

Printer Features

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

 Nearest Size and Scale

If no paper tray contains paper of the specified size, the page is automatically enlarged or reduced and paper of the most appropriate size is selected.

 Manually Print on 2nd Side

This feature must be set when you set paper already printed on the front side.

 Paper Type

Allows you to select Paper Type.

Specifying Print Settings

Page 92

Checking Print Jobs

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

To check the progress of print jobs, double-click the magicolor 7450 desktop printer icon.

" In the Classic environment, Print Monitor automatically starts up,

and the icon appears in the Dock. Click the Print Monitor icon to check the status of print jobs.

Checking Print Jobs74

Page 93

Troubleshooting

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Symptom Action

When printing on both sides of paper with a custom size, an error occurs.

When printing from a Web browser, each frame is printed on a separate page.

Double-sided printing cannot be selected.

Tray 3, Tray4 or Tray 5 cannot be selected.

The error was cancelled, but the error message appeared again.

Both sides of paper with a custom size cannot be printed on. In addition, there are limitations on the media types that can be selected. Refer to the User’s Guide (CD-ROM) provided with the printer.

Depending on the Web browser being used, each frame will be printed on a separate page. Try printing from a different Web browser. You can confirm it using the “preview” function of the print dialog.

If the printer is connected by USB, select the installed options with the Chooser. For details on selecting options with the Chooser, refer to “Selecting the Printer in the Chooser” on page 48. In addition, there are limitations on the media types that can be selected. Refer to the User’s Guide (CD-ROM) provided with the printer.

Occasionally, the error message appears a few times, even though the error was cancelled.

Troubleshooting

Page 94

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Page 95

Operation on

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Linux

Page 96

System Requirements for the Printer Driver

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Before installing the printer driver, make sure that your system meets the following system requirements.

Operating systems Red Hat Linux 9.0, SuSE Linux 8.2

Connecting the computer and printer

RAM More than OS recommendation (128 MB or

Network LPR (queue: lp, LP, default, DEFAULT)

Available hard disk space 256 MB or more

USB connection, Parallel connection, Network connection (10Base-T/100Base-TX/ 1000Base-T)

more is recommended)

AppSocket/HP JetDirect

IPP

" As an example, the descriptions of the operations for Red Hat 9.0 are

provided in this chapter.

System Requirements for the Printer Driver78

Page 97

Installing PPD File From the Command Line

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

" Before proceeding with the installation, be sure to exit all running

applications.

" Root privileges are required in order to install ppd file.

1 Copy the ppd file from the Software Utilities CD-ROM to the “/usr/share/

cups/model/KONICA MINOLTA/” on the computer.

" A ppd file for each language is available in the corresponding “driv-

ers/linux/ppd/<language>” folder on the CD-ROM. Use the appropriate ppd file for the language.

" When printing from OpenOffice, use M7450opn.ppd. Otherwise,

use M7450PX.ppd. For details on the procedure for printing from OpenOffice, refer to “Example Using OpenOffice” on page 89.

2 From the Main Menu, select System Tools, then Ter mi na l. 3 Enter the command “/etc/init.d/cups restart”.

4 Quit Terminal.

Installing PPD File From the Command Line

Page 98

Adding the Printer

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

" After copying the PPD file, be sure to restart CUPS.

1 Start up the Web browser. 2 Enter the URL “http://localhost:631”, and then click Manage Printers.

The CUPS Administration Web page appears.

3 Click Add Printer.

A pop-up window appears.

4 Enter the user name and password for using root privileges, and then

click OK.

5 Enter the printer name, loca-

tion, and description, and then click Continue.

6 Select a Device Port from the

Device list, then click con- tinue.

- TCP/IP: AppSocket/HP JetDirect, Internet Printing Protocol (http) or LPD/LPR Host or Printer

Adding the Printer80

Page 99

- USB: USB Printer #1 (KONICA MINOLTA magicolor 7450)

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

- Parallel: Parallel Port #1

7 For a USB or parallel con-

nection, skip to step 8. Enter the device URI in the following form: socket://<Printer IP or Printer Hostname>[:port]

" Example:

Using Printer IP - socket:/ /192.168.1.190:9100 Using printer Hostname socket://Hostname:9100 Hostname may be substituted by IP Address, and Port is optional.

8 Click Continue. 9 Select KONICA MINOLTA,

click Continue.

10 Select KONICA MINOLTA

mc7450 PPD (en), then click Continue.

The following message appears.

Adding the Printer

Page 100

Specifying Printer Driver Settings

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Displaying the Settings Page

1 Start up the Web browser. 2 Enter the URL “http://local-

host:631”, and then click Manage Printers.

Printer on localhost.localdomain window appears.

3 Click Configure Printer.

The printer driver settings page appears.

Specifying Printer Driver Settings82
