Power Bank
10000 mAh
Manual
31883
I. Introduction
This product is a lightweight, high capacity, stylish and environmentally friendly mobile power
bank for most portable devices that can be used anytime or anywhere. The product adopts
high-performance Lithium-Ion batteries. The supplied micro-USB cable not only charges the
Power bank but I can also be used to charge devices with micro-USB inputs 5V/2.1A(max).
Provides adequate back-up power anywhere you go.
II. Application
• Suitable for most smartphones and tablet
iPhone®/iPad®/iPod
•
• Digital cameras
• Other mobile digital devices
• Dual Output, can charge two (2) device simultaneously
• Standard USB interface output is compatible with most USB charging devices
®
III. Performance
• Provides adequate back-up power anywhere you go.
• Plug & play
• Dual Output, can charge two (2) device simultaneously
• Flashlight
• Auto-Off when there is no attached device being charged.
• Short-circuit, over charge, over discharge and leakage protected.
• High conversion efficiency with intelligent protection for the lithium battery.
IV. Product Overview

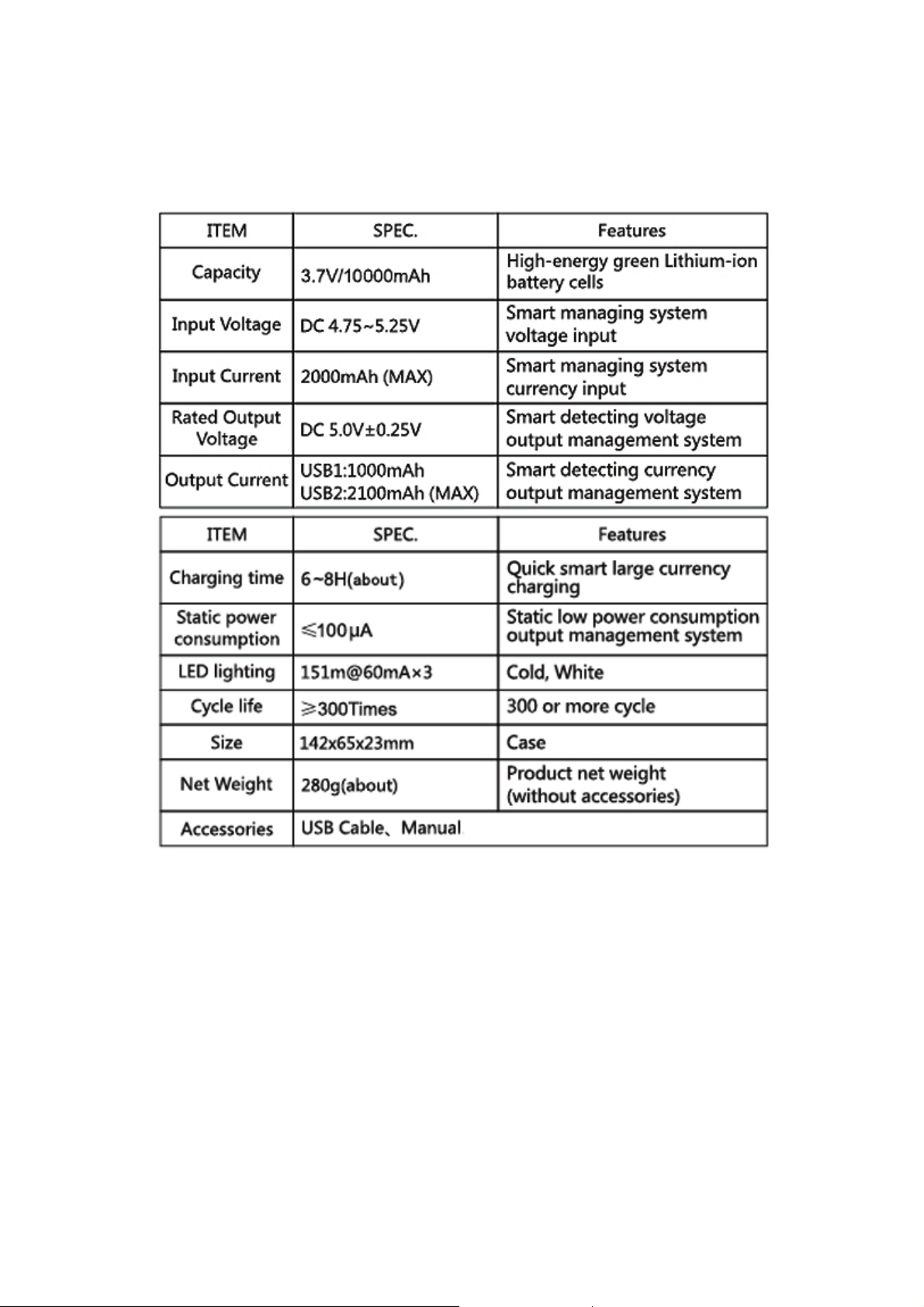

V. Technical parameters
VI. How to use
Power Display
Press the control button, the LED indicator lights will display the remaining charge. LED
indicator automatically turns off after 10 seconds.
Four LED light: 75% - 100% remaining charge
Three LED light: 50% - 75% remaining charge
Two LED light: 25% - 50% remaining charge
One LED light: 0% - 25% remaining charge

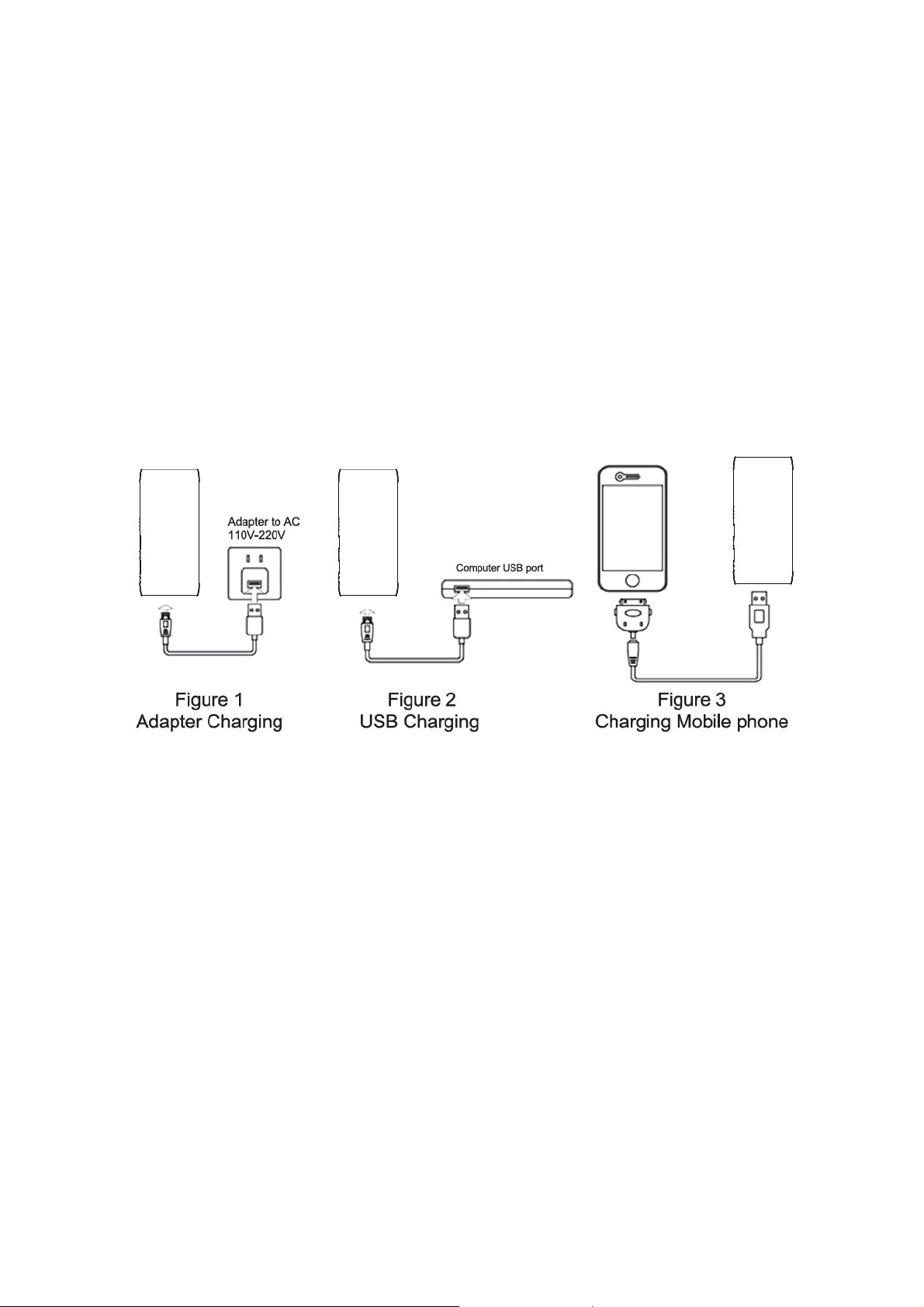

Charging the Unit
The power bank can be charge using the supplied micro-USB cable either a PC USB port
(Figure 2) or any standard USB charger (Figure 1) with a rated output of 5V/2.1A (max). During
charging the LED indicators will cycle, charging is complete when all 4 LED remains ON.
Charging your mobile devices
Use the supplied micro-USB cable to charge compatible devices 5V/2.1A (max). You may also
use the mobile device's original USB cable for charging (Figure 3)
LED flashlight
Press control button for 3 seconds, the LED flashlight will turn on. Then press the button again
for another 3 seconds, the LED flashlight will turn off.
VII. Notice
To ensure the product's safe operation, please read the manual carefully before using.
Attention
• This product uses built-in Lithium-Ion battery, do not use metal objects to short circuit the
product in order to avoid equipment failure and security risk.
• Do not expose in hot or humid environment
• Do not attempt to open, risk of fire or electrical shock, no serviceable parts inside
• Do not use incompatible power supply other than the specified maximum input of
5V/2.1A.
• Do not drop or puncture, there is a risk of fire or explosion
Terms of Use
• Charge the battery for the first time or if not used over a long period of time. Charge 8 to
10 hours for full capacity.
• Operating temperature is -10
room temperature of 20
• During charging the product will be warm to the touch, this is normal and not a
malfunction.
• If not used over a long period of time, it is required to charge the product once every 3
months to maintain charging properties.
• Stored power will self-discharge as a safety feature of the product, when ready to use,
please charge again.
• Clean with a dry cloth, do not use corrosive liquid or substance when cleaning the unit.
o
C to 45oC. For best charging results use the product in
o
C to 25oC.
