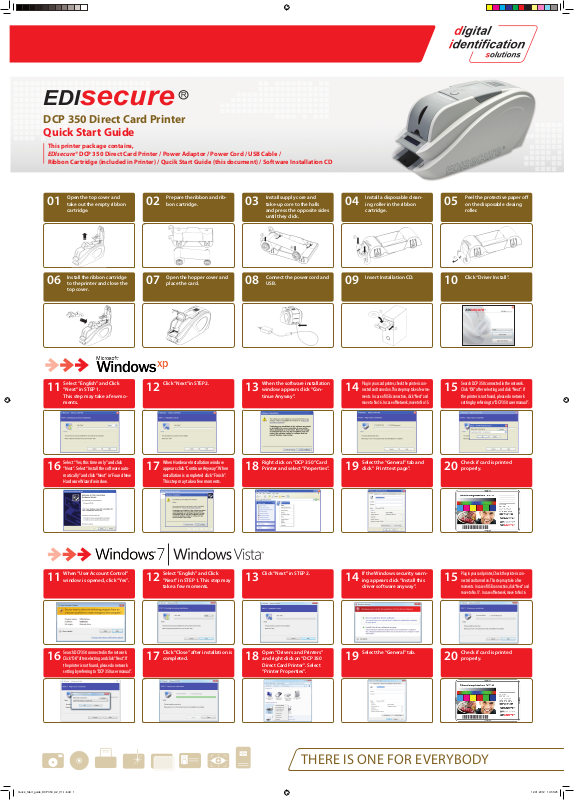

EDISecure DCP 350 Quick Start Manual

DCP 350 Direct Card Printer

Quick Start Guide

This printer package contains,
EDIsecure® DCP 350 Direct Card Printer / Power Adaptor / Power Cord / USB Cable /
Ribbon Cartridge (included in Printer) / Qucik Start Guide (this document) / Software Installation CD

01

06

Open the top cover and
take out the empty ribbon
cartridge.

Install the ribbon cartridge
to the printer and close the
top cover.

02

07

Prepare the ribbon and rib­bon cartridge.

Open the hopper cover and
place the card.

03

08

Install supply core and
take-up core to the halls
and press the opposite sides
until they click.

Connect the power cord and
USB.

04

09

Install a disposable clean­ing roller in the ribbon
cartridge.

Insert Installation CD.

05

10

Peel the protective paper off
on the disposable cleaing
roller.

Click “Driver Install”.

11

16

Select ”English” and Click
“Next” in STEP 1.
This step may take a few mo­ments.

Select “Yes, this time only” and click
“Next”. Select “Install the software auto­matically” and click “Next” in ‘Found New
Hardware Wizard’ window.

12

17

Click “Next”in STEP2.

When Hardware Installation window
appears click “Continue Anyway”. When
installation is completed click “Finish”.
This step may take a few moments.

13

18

When the software installation
window appears click “Con­tinue Anyway”.

Right click on “DCP 350” Card
Printer and select “Properties”.

14

19

Plug in your card printer, check the printer is con­nected and turned on. This step may take a few mo­ments. In case of USB connection, click “Next” and
move to No.16. In case of Network, move to No.15.

Select the “General” tab and
click “ Print test page”.

15

20

Search DCP 350 connected in the network.
Click “OK” after selecting and click “Next”. If
the printer is not found, please do network
setting by referring to “DCP 350 user manual”.

Check if card is printed
properly.

11

16

When “User Account Control”
window is opened, click “Yes”.

Search DCP 350 connected in the network.
Click “OK” after selecting and click “Next”. If
the printer is not found, please do network
setting by referring to “DCP 350 user manual”.

12

17

Select “English” and Click
“Next” in STEP 1. This step may
take a few moments.

Click “Close” after installation is
completed.

13

18

Click “Next” in STEP 2.

Open “Drivers and Printers”
and right click on “DCP 350
Direct Card Printer”. Select
“Printer Properties”.

14

19

If the Windows security warn­ing appears click “Install this
driver software anyway”.

Select the “General” tab.

15

20

Plug in your card printer, Check the printer is con­nected and turned on. This step may take a few
moments. In case of USB connection, click “Next” and
move to No.17. In case of Network, move to No.16.

Check if card is printed
properly.

THERE IS ONE FOR EVERYBODY

Quick_Start_guide_DCP350_A2_V1-1.indd 1 12.01.2012 14:55:25

DCP 350 Direct Card Printer

EDIsecure® DCP 350
EDIsecure® DCP 350 with Flipper Module

Content of printer package

EDIsecure® DCP 350 Direct Card Printer / Power Adaptor / Power Cord / USB Cable /
Ribbon Cartridge (included in Printer) / Quick Start Guide (this document) / Software Installation CD

Available Options, Ribbons and Accessories Approvals and Safty Instuructions

Order # Description

DIH10560 EDIsecure® DCP 350 / Single Side Direct Card Printer

DIH10561 EDIsecure® DCP 350 Ethernet Option
DIH10563 EDIsecure® DCP 350 Magnetic Stripe Option
DIH10564 EDIsecure® DCP 350 Smart Card Encoder
DIH10565 EDIsecure® DCP 350 Contactless Encoder
DIH10562 EDIsecure® DCP 350 Flipper Module

Order # Description

DIC10570 EDIsecure® DCP 350 Color Pro Ribbon, 5 Panel (Y,M,C,K,OP);250 c/r
DIC10571 EDIsecure® DCP 350 Color Pro Ribbon, 6 Panel (Y,M,C,K,OP,K);200 c/r
DIC10572 EDIsecure® DCP 350 Color Pro Ribbon, 5 Half Panel (Y,M,C,K,OP);350c/r
DIC10573 EDIsecure® DCP 350 Color Pro Ribbon, 6 Panel (Y,M,C,UV,K,OP);200 c/r
DIC10575 EDIsecure® DCP 350 Metallic Pro Silver Ribbon, (MS);1200 c/r
DIC10576 EDIsecure® DCP 350 Metallic Pro Gold Ribbon, (MG);1200 c/r
DIC10574 EDIsecure® DCP 350 Monochrome Pro Ribbon, (K);1200 c/r

Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference in which case the user will be required to correct the interference at his own expense.

Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out
in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil nu­mérique n’ément pas de bruits radioélectriques dépassant les limites applicable aux appareils numériques de la
class B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications
du Canada.

The Product Covered by this Declaration
EDIsecure® DCP350 Printer

The Basis on which conformity is being declared
The product identied above complies with the requirements by meeting the following standards

EMC Generic Emission Standard
EN 55024:1998+A1:2001+A2:2003
EN 301 489-1 V1.6.1
EN 301 489-3 V1.4.1

DIC10577 EDIsecure® DCP 350 Monochrome Pro White Ribbon, (W);1200 c/r
DIC10578 EDIsecure® DCP 350 Monochrome Pro Blue Ribbon, (B);1200 c/r
DIC10579 EDIsecure® DCP 350 Monochrome Pro Red Ribbon, (R);1200 c/r
DIC10569 EDIsecure® DCP 350 Monochrome Pro Scratch-o Ribbon, (SC);1200 c/r

DIC10580 EDIsecure® DCP 350 Color Ribbon, 5 Panel (Y,M,C,K,OP);250 c/r
DIC10581 EDIsecure® DCP 350 Color Ribbon, 6 Panel (Y,M,C,K,OP,K);200 c/r
DIC10583 EDIsecure® DCP 350 Color Ribbon, 6 Panel (Y,M,C,UV,K,OP);200 c/r
DIC10585 EDIsecure® DCP 350 Monochrome Ribbon, 2 Panel (K,OP);600 c/r
DIC10584 EDIsecure® DCP 350 Monochrome Ribbon, (K);1200 c/r

Order # Description

DIC10586 Long Sleeve Cleaning (x5)
DIC10587 Cleaning Roller (x10)
DIC10311 Magnetic Head Cleaning Card (x10)

Safety of Information Technology Equipment including Electrical Business Equipment
EN 60950-1:2006+A11:2009

Safty Instructions

Please read all of these instructions before using your printer and refer to the User’s Manual.

• To prevent electric shock do not remove covers.

• Do not attempt to service the printer yourself.

• There are no user serviceable parts inside. In the event of malfunction, refer servicing to your nearest Digital Iden­tication Solutions service center.

• Use only a power source within the limits marked on the AC adaptor power supply.

• Avoid spilling any liquid on the printer.

• The originally delivered power supply and power cord is to be used only.

When handling the printer
Avoid touching the thermal printing edge of the thermal print head. Grease and contamination will shorten its life.
Before transporting the printer, pack the printer in its original packing.

Accessory Text
In case of need for cleaning accessories, card materials or consumables please contact your dealer or your nearest
Digital Identication Solutions oce.
