Edirol VMC1 User Manual

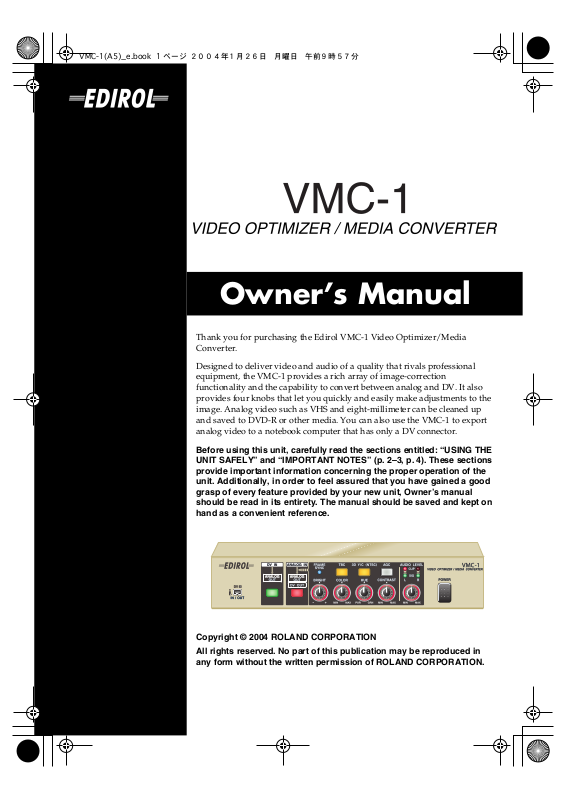

Owner’s Manual
Thank you for purchasing the Edirol VMC-1 Video Optimizer/Media
Converter.
Designed to deliver video and audio of a quality that rivals professional
equipment, the VMC-1 provides a rich array of image-correction
functionality and the capability to convert between analog and DV. It also
provides four knobs that let you quickly and easily make adjustments to the
image. Analog video such as VHS and eight-millimeter can be cleaned up
and saved to DVD-R or other media. You can also use the VMC-1 to export
analog video to a notebook computer that has only a DV connector.
Before using this unit, carefully read the sections entitled: “USING THE
UNIT SAFELY” and “IMPORTANT NOTES” (p. 2–3, p. 4). These sections
provide important information concerning the proper operation of the
unit. Additionally, in order to feel assured that you have gained a good
grasp of every feature provided by your new unit, Owner’s manual
should be read in its entirety. The manual should be saved and kept on
hand as a convenient reference.
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in
any form without the written permission of ROLAND CORPORATION.
USING THE UNIT SAFELY
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic
animals or pets.
001
• Before using this unit, make sure to read the
instructions below, and the Owner’s
Manual.
..................................................................................................
002c
• Do not open (or modify in any way) the unit
or its AC adaptor.
..................................................................................................
003
• Do not attempt to repair the unit, or replace
parts within it (except when this manual
provides specific instructions directing you
to do so). Refer all servicing to your retailer,
the nearest Roland Service Center, or an
authorized Roland distributor, as listed on
the “Information” page.
..................................................................................................
004
• Never use or store the unit in places that
are:
• Subject to temperature extremes (e.g.,
direct sunlight in an enclosed vehicle,
near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet
floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
..................................................................................................
007
• Make sure you always have the unit placed
so it is level and sure to remain stable.
Never place it on stands that could wobble,
or on inclined surfaces.
The symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.
008c
• Be sure to use only the AC adaptor supplied
with the unit. Also, make sure the line
voltage at the installation matches the input
voltage specified on the AC adaptor’s body.
Other AC adaptors may use a different
polarity, or be designed for a different
voltage, so their use could result in damage,
malfunction, or electric shock.
..................................................................................................
008e
• Use only the attached power-supply cord.
Also, the supplied power cord must not be
used with any other device.
..................................................................................................
009
• Do not excessively twist or bend the power
cord, nor place heavy objects on it. Doing so
can damage the cord, producing severed
elements and short circuits. Damaged cords
are fire and shock hazards!
..................................................................................................
010
• This unit, either alone or in combination
with an amplifier and headphones or
speakers, may be capable of producing
sound levels that could cause permanent
hearing loss. Do not operate for a long
period of time at a high volume level, or at a
level that is uncomfortable. If you
experience any hearing loss or ringing in the
ears, you should immediately stop using the
unit, and consult an audiologist.
..................................................................................................
011
• Do not allow any objects (e.g., flammable
material, coins, pins); or liquids of any kind
(water, soft drinks, etc.) to penetrate the
unit.
2
012b
• Immediately turn the power off, remove the
AC adaptor from the outlet, and request
servicing by your retailer, the nearest
Roland Service Center, or an authorized
Roland distributor, as listed on the “Information” page when:
• The AC adaptor, the power-supply cord,
or the plug has been damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has
been spilled onto the unit; or
• The unit has been exposed to rain (or
otherwise has become wet); or
• The unit does not appear to operate
normally or exhibits a marked change in
performance.
..................................................................................................
013
• In households with small children, an adult
should provide supervision until the child is
capable of following all the rules essential
for the safe operation of the unit.
..................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
..................................................................................................
015
• Do not force the unit’s power-supply cord
to share an outlet with an unreasonable
number of other devices. Be especially
careful when using extension cords—the
total power used by all devices you have
connected to the extension cord’s outlet
must never exceed the power rating (watts/
amperes) for the extension cord. Excessive
loads can cause the insulation on the cord to
heat up and eventually melt through.
..................................................................................................
016
• Before using the unit in a foreign country,
consult with your retailer, the nearest
Roland Service Center, or an authorized
Roland distributor, as listed on the “Information” page.
101b
• The unit and the AC adaptor should be
located so their location or position does not
interfere with their proper ventilation.
..................................................................................................
102c
• Always grasp only the plug on the AC
adaptor cord when plugging into, or
unplugging from, an outlet or this unit.
..................................................................................................
103b
• At regular intervals, you should unplug the
AC adaptor and clean it by using a dry cloth
to wipe all dust and other accumulations
away from its prongs. Also, disconnect the
power plug from the power outlet
whenever the unit is to remain unused for
an extended period of time. Any accumulation of dust between the power plug and
the power outlet can result in poor
insulation and lead to fire.
..................................................................................................
104
• Try to prevent cords and cables from
becoming entangled. Also, all cords and
cables should be placed so they are out of
the reach of children.
..................................................................................................
106
• Never climb on top of, nor place heavy
objects on the unit.
..................................................................................................
107c
• Never handle the AC adaptor or its plugs
with wet hands when plugging into, or
unplugging from, an outlet or this unit.
..................................................................................................
108b
• Before moving the unit, disconnect the AC
adaptor and all cords coming from external
devices.
..................................................................................................
109b
• Before cleaning the unit, turn off the power
and unplug the AC adaptor from the outlet
(p. 28).
..................................................................................................
110b
• Whenever you suspect the possibility of
lightning in your area, disconnect the AC
adaptor from the outlet.
..................................................................................................
118
• Should you remove a screw of the ground
terminal, make sure to put them in a safe
place out of children's reach, so there is no
chance of them being swallowed accidentally.
3
IMPORTANT NOTES
291a
In addition to the items listed under “USING THE UNIT SAFELY” on page 2–3, please read and
observe the following:
Power Supply
301
• Do not use this unit on the same power circuit with
any device that will generate line noise (such as an
electric motor or variable lighting system).
302
• The AC adaptor will begin to generate heat after
long hours of consecutive use. This is normal, and is
not a cause for concern.
307
• Before connecting this unit to other devices, turn off
the power to all units. This will help prevent
malfunctions and/or damage to speakers or other
devices.
Placement
351
• Using the unit near power amplifiers (or other
equipment containing large power transformers)
may induce hum. To alleviate the problem, change
the orientation of this unit; or move it farther away
from the source of interference.
352a
• This device may interfere with radio and television
reception. Do not use this device in the vicinity of
such receivers.
352b
• Noise may be produced if wireless communications
devices, such as cell phones, are operated in the
vicinity of this unit. Such noise could occur when
receiving or initiating a call, or while conversing.
Should you experience such problems, you should
relocate such wireless devices so they are at a
greater distance from this unit, or switch them off.
354a
• Do not expose the unit to direct sunlight, place it
near devices that radiate heat, leave it inside an
enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or
discolor the unit.
355b
• When moved from one location to another where
the temperature and/or humidity is very different,
water droplets (condensation) may form inside the
unit. Damage or malfunction may result if you
attempt to use the unit in this condition. Therefore,
before using the unit, you must allow it to stand for
several hours, until the condensation has completely
evaporated.
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry
cloth or one that has been slightly dampened with
water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a
soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of
any kind, to avoid the possibility of discoloration
and/or deformation.
Additional Precautions
553
• Use a reasonable amount of care when using the
unit’s buttons, sliders, or other controls; and when
using its jacks and connectors. Rough handling can
lead to malfunctions.
556
• When connecting / disconnecting all cables, grasp
the connector itself—never pull on the cable. This
way you will avoid causing shorts, or damage to the
cable’s internal elements.
557
•A small amount of heat will radiate from the unit
during normal operation.
558b
• To avoid disturbing your neighbors, try to keep the
unit’s volume at reasonable levels (especially when
it is late at night).
559a
• When you need to transport the unit, package it in
the box (including padding) that it came in, if
possible. Otherwise, you will need to use equivalent
packaging materials.
Add
• This product is compatible with regular NTSC or
PAL video signal. In case irregular signal is input, it
may obstruct stabile operation of this product.
562
• If using some other make of connection cable, please
note the following precautions.
• Some connection cables contain resistors. Do not
use cables that incorporate resistors for
connecting to this unit. The use of such cables can
cause the sound level to be extremely low, or
impossible to hear. For information on cable
specifications, contact the manufacturer of the
cable.
Copyright
851
• Unauthorized recording, distribution, sale, lending,
public performance, broadcasting, or the like, in
whole or in part, of a work (musical composition,
video, broadcast, public performance, or the like)
whose copyright is held by a third party is
prohibited by law.
853
• Do not use this unit for purposes that could infringe
on a copyright held by a third party. We assume no
responsibility whatsoever with regard to any
infringements of third-party copyrights arising
through your use of this unit.
4
Contents
USING THE UNIT SAFELY ..................................................................... 2
IMPORTANT NOTES............................................................................... 4
Main Features ......................................................................................... 6
Names of Things and What They Do .................................................... 8
Front Panel................................................................................................................... 8
Rear Panel .................................................................................................................. 10
Bottom Panel (DIP Switches) .................................................................................. 11
Deutsch
Bezeichnung und Funktion der Komponenten.................................. 12
Vorderseite................................................................................................................. 12
Bedienungselemente auf der Rückseite................................................................. 14
Unterseite (DIP-Schalter)......................................................................................... 15
Français
Description............................................................................................ 16
Face avant .................................................................................................................. 16
Face arrière................................................................................................................. 18
Face inférieure (commutateurs DIP)...................................................................... 19
Italiano
Nomi delle cose e loro funzioni........................................................... 20
Pannello Pa ................................................................................................................ 20
Pannello posteriore................................................................................................... 22
Pannello Inferiore (Interruttori DIP)...................................................................... 23
Español
Nombres de los diferentes elementos y sus funciones ................... 24
Panel frontal............................................................................................................... 24
Panel posterior .......................................................................................................... 26
Panel inferior (Interruptores DIP) .......................................................................... 27
Setup and Connections ....................................................................... 28
Turning the Power On/Off ..................................................................................... 28
Recording Video from a Video Tape to Your DVD Recorder............ 29
Capturing Video from a Video Tape into Your Computer................. 30
Watching Video from Your Computer on a Television ..................... 31
Appendix ............................................................................................... 32
Color Bar Output ...................................................................................................... 32
About Copy-protected Video.................................................................................. 32
Troubleshooting........................................................................................................ 32
Specifications............................................................................................................. 34
Index ...................................................................................................... 35
5
Main Features
Designed for High Quality Video and Audio, with 10-bit Video
AD/DA Conversion and 24-bit Audio AD/DA Conversion
Provides a resolution of 10 bits for video decoding and encoding, and 24 bits for audio AD/
DA conversion. It also has a Locked Audio function, which prevents video and audio from
drifting out of synchronization. (p. 11)
* The Locked Audio function is available only for analog input.
Make Corrections in Real Time While Watching the Image
Differences in camera settings, type, shooting conditions, and shooting technique can
produce inconsistencies in the hue and brightness of a video image. Also, analog video that
was captured some time ago can often be lacking in vividness of color. When dubbing from
analog to analog or from analog to DV or DVD, it is very effective to use the VMC-1’s image
correction functionality (brightness, intensity, hue, contrast) to minimize such
inconsistencies in the image and improve the overall quality. You can use the knobs to make
these adjustments in real time while watching the video. (p. 9)
* Available only for analog input.
TBC (Time Base Corrector) for Stabilizing Unstable Images
TBC is a function that cleans up the video image by eliminating the “jitter” (horizontal
shaking) caused by inaccuracies in head or tape rotation during analog videotape playback,
or due to degradation of the analog video signal. This function is very useful if you are
digitizing the video tape library you have collected over the years. You can also apply delay
to the audio to correct any timing discrepancies between the video and audio that might be
caused by the TBC. You can use a front panel button to switch this function on/off. (p. 8)
* Available only for analog input.
Motion Adaptive 3D Y/C Separator to Reduce Color Smearing
and Graininess
This function determines whether the image is moving or stationary, and if stationary,
compares the same scan lines of the preceding and following frames to separate the
brightness and color signals with high precision. This allows smearing to be reduced,
minimizing unwanted noise or blurring. You can use a front panel button to switch this
function on/off. (p. 9)
* Available only for composite input in NTSC mode.
6
Main Features
Frame Synchronizer Prevents Frame Dropouts and Audio
Dropouts
This function corrects inaccuracies in the timing of the video signal. Due to the mechanical
characteristics of consumer analog video decks, the preceding or following frame can
sometimes be output “out of step.” The Frame Synchronizer corrects slight inaccuracies of
the synchronization signal to prevent frame dropouts and audio dropouts. (p. 8)
* This will automatically turn on only when you use analog input.
AGC Function Corrects Over-Exposed Whites or UnderExposed Blacks
The image from a consumer analog video camera or dubbed video tape sometimes does not
have the optimal brightness. If such an image is digitized, over-exposed whites or underexposed blacks may occur. AGC corrects these problems by automatically optimizing the
brightness of the analog video. You can use a front panel button to switch this function on/
off. (p. 9)
* Available only for analog input.
* Correction is not possible if the input video already has over-exposed whites or under-exposed blacks.
Support for Both NTSC and PAL
* You cannot convert from NTSC to PAL or vice versa.
* 16:9 screen mode is not supported.
Two Sets of Analog Output Jacks Provided
Each set provides an S-video jack and a composite video jack, and they are capable of
providing simultaneous output. Analog input -> analog output is also supported, allowing
conversion between S-video connector <-> video jack (composite).
7
Names of Things and What They Do
Front Panel
1. DV connector 2 [DV2 IN/OUT]
Connect your DV device or computer here.
* You cannot use this simultaneously with the DV connector 1 on the VMC-1’s rear panel (p. 10). If
you attempt to use both simultaneously, your DV device may not function correctly.
2. DV input button [DV IN]
Turn this on if you want the video and audio signals from your DV device to be sent from
the analog output.
3. Analog input button [ANALOG IN]
Turn this on if you want the video and audio signals from the analog input to be sent from
the analog output.
4. Frame synchronizer indicator [FRAME SYNC]
This indicator will light when an analog video signal is input. The frame synchronizer
corrects synchronization inaccuracies caused by an unstable video signal, preventing lost
frames and audio dropouts.
5. Time base corrector button [TBC]
This corrects the image jitter that often occurs when an analog video deck is playing back.
Normally, you should leave this on. If this is on, the video and audio signals will be output
with a delay compared to the input signal, in order to allow for this processing to be
performed. If this delay is a problem, you can turn this function off.
8
Names of Things and What They Do
6. Three-D Y/C separation button [3D Y/C]
This is available only in NTSC mode (p. 11). This will reduce certain problems that may
occur when a composite signal is being input, such as fine diagonal black and white stripes
producing a rainbow-like effect (cross color) or the appearance of small white and black dots
outlined in black (dot interference), and will clean up the signal by reducing color smearing.
Normally, you should leave this on. If there is a great deal of movement in the image, this
may cause blurring. If so, turn this off. If this is off, 2-D Y/C separation is applied.
* In PAL mode 2-D Y/C separation is always applied, so this button will be disabled.
7. Automatic brightness adjustment button [AGC]
This corrects the over-exposed whites or under-exposed blacks that can occur if the
brightness of the image is not appropriate. Normally, you should leave this on.
* Correction is not possible if the input video already has over-exposed whites or under-exposed blacks.
8. Audio level indicator
The green indicator will light when an analog audio signal is input. The red indicator will
light if the input level is excessive. Lower the audio input level until the red indicator does
not light.
9. Power button [POWER]
10. Brightness knob [BRIGHT]
Turn this knob toward the right to brighten the image, or toward the left to darken the
image.
11. Color depth knob [COLOR]
Turn this knob toward the right to deepen the color, or toward the left to lighten the color.
12. Color hue knob [HUE]
Turn this knob toward the right to give the image a more greenish hue, or toward the left to
give it a more purple hue.
13. Contrast knob [CONTRAST]
Turn this knob toward the right to make the contrast stronger, or toward the left to decrease
it.
14. Audio input level knob [AUDIO LEVEL]
Turn this knob toward the right to increase the audio input level.
* When a DV signal is input, buttons/knobs/indicators 4.–8. and 10.–14. are disabled. These functions
apply only to analog input signals.
* When a DV signal is input, the indicators of each button and the illumination around the knobs will
go out.
Español Italiano Français Deutsch English
9
Names of Things and What They Do
Rear Panel
6
1. AC adaptor jack
Connect the included AC adaptor here.
2. Ground Terminal (p. 28)
3. Analog output jacks 1/2 [ANALOG OUTPUT 1/2]
These are analog output jacks for video and audio. Connect them to your monitor television,
DVD recorder, or video deck.
4. Analog input jack [ANALOG INPUT]
This is an analog video/audio jack. Connect it to your VHS or 8mm video deck.
* If video cables are connected to both the S-video input jack and the composite input jack, the S-video
input will take priority.
5. DV connector 1 [DV1 IN/OUT]
Connect this to your DV device or computer.
* Do not use this simultaneously with the DV connector 2 located on the front panel of the VMC-1 (p.
8). If you use the two simultaneously, your DV device may not work correctly.
6. Security Slot ( )
http://www.kensington.com/
10
Bottom Panel (DIP Switches)
Names of Things and What They Do
OFF ON
OFF ON
1Video Format NTSC PAL
2 NTSC Setup Level 0 IRE 7.5 IRE
3 Locked Audio Mode LOCKED UNKOCKED
4Audio Format 48kHz /
16bit 32kHz / 12bit
5Audio Mix Mode MAIN MAIN+SUB
6 Reserved
MODELMODEL
VMC-1VMC-1
SER.NO.SER.NO.
MADE IN JAPANMADE IN JAPAN
— 2
— 3
— 4
— 5
OFF ON
1. Video format setting switch [Video Format]
— 1
Specifies the video signal format.
OFF
ON PAL
NTSC
2. NTSC setup level setting switch [NTSC Setup Level]
Specifies the NTSC setup level.
OFF 0IRE
ON 7.5IRE
Select 0IRE in Japan, and select 7.5IRE in North America.
3. Locked Audio mode setting switch [Locked Audio Mode]
Specifies the Locked Audio mode for analog input.
OFF Locked
ON Unlocked
4. Audio format setting switch [Audio Format]
Specifies the audio sampling rate and bit depth when using analog input.
OFF 48kHz/16bit
ON 32kHz/12bit
5. Audio mix mode setting switch [Audio Mix Mode]
Specifies whether the sub-channels will be output when you input 32 kHz/12-bit 4-channel
audio format via DV.
OFF Main only
ON Mix 50% main + 50% sub
Make sure to turn off the power before you change the settings of the DIP switches on the
bottom panel.
Español Italiano Français Deutsch English
11
Bezeichnung und Funktion der
Komponenten
Vorderseite
1. DV-Anschluss 2 [DV2 IN/OUT]
Schließen Sie Ihr DV-Gerät oder Ihren Computer hier an.
* Sie können diesen Anschluss nicht gleichzeitig mit dem DV-Anschluss 1 an der Rückseite des VMC-1
benutzen (p. 14). Wenn Sie versuchen, beide Anschlüsse simultan zu nutzen, kann es sein, dass Ihr
DV-Gerät nicht einwandfrei funktioniert.
2. DV Input-Taste [DV IN]
Drücken Sie diese Taste, wenn die Video- und Audiosignale Ihres DV-Geräts vom analogen
Output gesendet werden sollen.
3. Analog Input-Taste [ANALOG IN]
Drücken Sie diese Taste, wenn die Video- und Audiosignale des analogen Inputs vom
analogen Output gesendet werden sollen.
4. Bildsynchronisationsanzeige [FRAME SYNC]
Diese Anzeige leuchtet, wenn ein analoges Videosignal am Input anliegt. Die Bildsynchronisation korrigiert Synchronfehler, die durch instabile Videosignale verursacht werden und
beugt Bild- und Tonverlusten vor.
5. Time-base-corrector Taste [TBC]
Korrigiert das Bildflimmern, das oft bei der Wiedergabe von analogen Videogeräten auftritt.
Normalerweise sollte der Time-base-corrector eingeschaltet sein. Die Video- und Audiosignale werden dann im Vergleich mit dem Input-Signal verzögert ausgegeben, damit die
Korrektur erfolgen kann. Wenn diese Verzögerung ein Problem darstellt, können Sie diese
Funktion ausschalten.
12
Loading...
