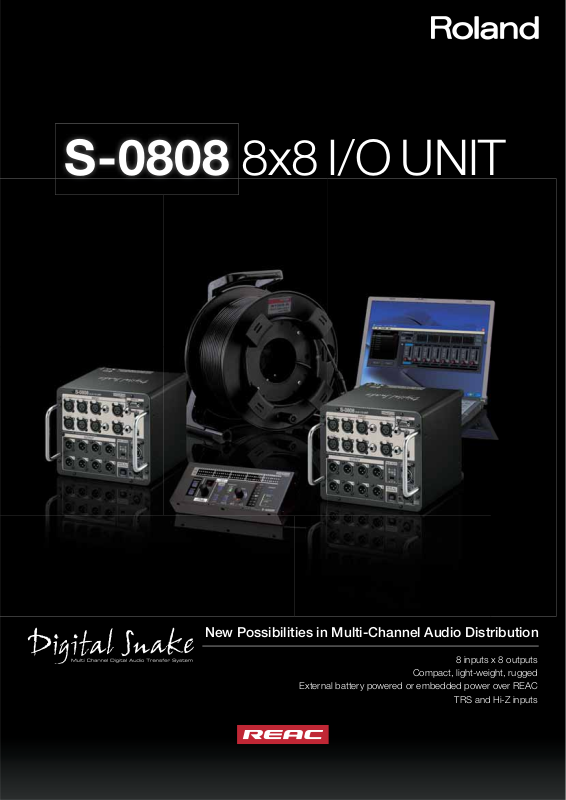

Edirol S-0808 BROCHURE

S-0808 8x8 I/O UNIT

New Possibilities in Multi-Channel Audio Distribution

8 inputs x 8 outputs

Compact, light-weight, rugged

External battery powered or embedded power over REAC

TRS and Hi-Z inputs

Compact and light-weight with support for external battery.
The new flexibility in digital audio transfer.

The S-0808 has unprecedented mobility enabling further convenience in many applications such as broadcast, event, live stage, audio
installation and location sound. Enjoy flexibility in setup using external battery operation or power supplied over REAC.

All channels e quipped with su perb qu ality preamps. Eliminate the n eed
for dire ct boxes wi th inputs 5 - 8 supportin g balan ced TRS a nd as well
as 7 and 8 suppor ting Hi-Z fr om guitars.

S-4000R Remote Controller

Dedicated remote controller for the Digital Snake
series. Gain level, pad and phantom power are
remotely controllable .

S-4000RCS Remote Control Sof tware

Dedic ated r emote c ont rol so ft wa re for th e
Digit al S n a ke se r i e s. Mo n i tor a ll 4 0 c ha n n el s
and con trol g ai n leve ls, p ad, an d ph anto m
power from your PC.

DC input for External Batter y.

Power supplied over REAC (RE AC Embedded Power).

S-0808 8x8 I/O Unit

Compact and Light-weight

The S-0808 weighs around 3k g ( 6.6lbs) enabling easy se t up. Rugged construction
with stee l ha nd le s wi ths tan ds th e ri go rs of l ive a nd f re que nt u se. Fa n-l es s
design enables quiet operation in any environment.

Superb Quality, Fully Discreet Preamp

All inputs employ a high quality preamp with fully discreet circuit design
resulting in outstanding sound. Eliminate the need for direct boxes by using the
TRS or Hi-Z in put s. Co ntro l in pu t ga in (-6 5 to +10dBu), Pad and Phantom
Power via a dedicated S-4000R Remote Controller or using the PC Remote
Control Software (S-4000RCS). When using as part of a V-Mixing System,
these parameters are controlled directly from the M-400 or M-380 V-Mixer.

Power Options

The S-0808 supports unique types of power
supply - R E AC Emb ed de d Power, and E x ter na l
Battery Options. Choose the type of power conducive
to you locati o n and appl i cation. Having not to rel y
on AC power ope ns up a wo rl d of conve ni en ce
and flexibility. V-Mount (IDX) and Gold Mount
(Anton Bauer) battery systems and mounts are
supported using the included adapter plate.

Battery-Powered 8x8 Snake

DC

8ch

8ch

100m

8in

S-0808

8out

BATTERY

An 8 input, 8 output simple digital snake system - ideal when AC power
is not convenient or ava i lable.

S-4000R

S-0808

BATTERY

8out

8in

DC
