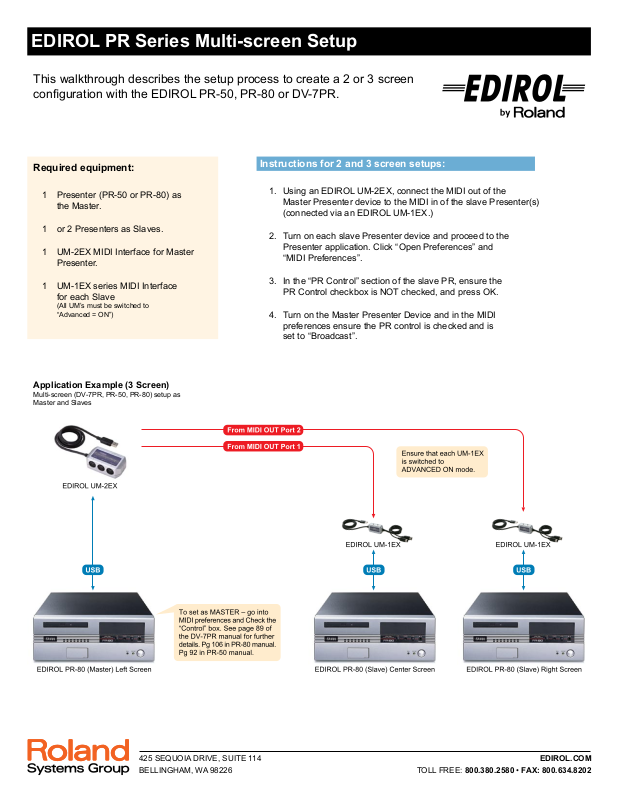

EDIROL PR Series Multi-screen Setup
This walkthrough describes the setup process to create a 2 or 3 screen
conguration with the EDIROL PR-50, PR-80 or DV-7PR.
Required equipment:
1 Presenter (PR-50 or PR-80) as
the Master.
1 or 2 Presenters as Slaves.
1 UM-2EX MIDI Interface for Master
Presenter.
1 UM-1EX series MIDI Interface
for each Slave
(All UM’s must be switched to “Advanced = ON”)
Application Example (3 Screen)
Multi-screen (DV-7PR, PR-50, PR-80) setup as
Master and Slaves
Instructions for 2 and 3 screen setups:
1. Using an EDIROL UM-2EX, connect the MIDI out of the Master Presenter device to the MIDI in of the slave Presenter(s) (connected via an EDIROL UM-1EX.)
2. Turn on each slave Presenter device and proceed to the Presenter application. Click “Open Preferences” and “MIDI Preferences”.
3. In the “PR Control” section of the slave PR, ensure the PR Control checkbox is NOT checked, and press OK.
4. Turn on the Master Presenter Device and in the MIDI preferences ensure the PR control is checked and is set to “Broadcast”.
425 SEQUOIA DRIVE, SUITE 114
BELLINGHAM, WA 98226
EDIROL.COM
TOLL FREE: 800.380.2580FAX: 800.634.8202
EDIROL PR Series Multi-screen Setup
This walkthrough describes the setup process to create a multi-screen
conguration with the EDIROL PR-50, PR-80 or DV-7PR.
Required equipment:
1 Presenter (PR-50 or PR-80) as
the Master.
3 or more Presenters as Slaves.
1 UM-550 or UM-880
1 UM-1EX series MIDI Interface
for each Slave
(All UM’s must be switched to “Advanced = ON”)
Application Example (4 Screen)
Multi-screen (DV-7PR, PR-50, PR-80) setup as
Master and Slaves
Instructions for setting up 4 or more screens:
1. Connect the MIDI OUT of the Master Presenter’s UM-1EX
to MIDI IN 2 on the UM-550/880.
2. Connect the MIDI IN of each Slave Presenter’s UM-1EX
to MIDI OUT 3,4, etc on the UM550/880.
3. Use the Patch button on the UM-550/UM-880 to patch the
Master Input to the Slave Outputs. Example: Press: Patch > Input 2 > Output 3 > Output 4> Output 5, etc (depending on how many slaves you have.
4. Turn on each slave Presenter device and proceed to the Presenter application. Click “Open Preferences”, then “MIDI Preferences”. Make sure the PR Control checkbox is NOT selected.
5. Turn on the Master Presenter Device and in the MIDI preferences ensure the PR control is checked and it is set to “Broadcast”.
