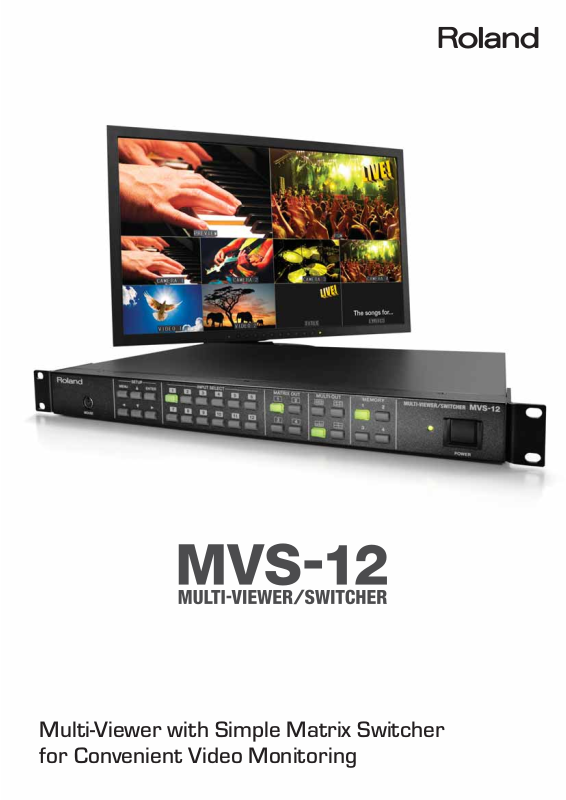

Edirol MVS-12 BROCHURE

Multi-Viewer with Simple Matrix Switcher
for Convenient Video Monitoring

Easily monitor and distribute input sources.
View all sources on a single HD display.

INTUITIVE OPERATION MATRIX SWITCHER

MULTI-VIEW

12 Screen Layout

■

MEMORY & CONTROL

Quick setup and operation with a mouse. Rearrange screen structure
with simple drag and drop motion. Select video source with a click of the
mouse.

Setup MENU also supports mouse operation.

●

Using the built-in Matrix Switcher function, 12 video sources are
assignable to 4 different outputs. Use as a simple switcher.

There are four layout patterns to choose from. Aspect ratios,
background color and source names can be selected from
the MENU.

10 Screen Layout

■

9 Screen Layout

■

4 Screen Layout

■

Four display setups can be saved and recalled
from the 4 front panel memory buttons.
In addition, the MVS-12 can be controlled from
a PC via LAN or RS-232C.

Multi-Viewer Display

PC

LAN

MULTI ­SOLUTIONS

Multi-viewer and Matrix
switcher function enables
system expansion.

Monitoring for Switcher Monitoring for Video Installation Expansion of SD Inputs

The MVS-12 is a perfect companion for the LVS-800 allowing you to preview
all monitor outputs. Using a MIDI connection the PGM/PVM video source is
displayed and indicated by a red frame and green frame (tally).

Camera 1

Camera 2

Camera 3

Camera 4

Camera 5

Camera 6

PC 1

PC 2

IN 1

IN 2

IN 3

IN 4

IN 5

IN 6

PC 1

PC 2

LVS-800

Video Mix/Live Switcher

Monitor 1 to 8
PGM, PVW

MIDI
OUT

MIDI

IN

MVS-12

Multi-Viewer Display

PVW

(IN 2)

IN 1 IN 3 IN 4

IN 5

PGM OUT

IN 2

IN 6 PC1

MULTI OUT

MULTI OUT
RGB/HDMI

RGB/HDMI

PGM OUT

(

PC2

)

PC2

Video sources can be distributed to up to four different locations. The Matrix Switcher function enables the V-1600HD mixer to access

additional SD inputs. By connecting a MIDI cable and using the
V-LINK function, the V-1600HD can directly select any video source
from the MVS-12.

Multi-Viewer Display

SD IN 1

12

MULTI OUT

RGB/HDMI

MIDI IN

MVS-12

Camera (Stage)

Camera (Stage)

Camera (Stage)

Camera

DVD Player

Video Player

Multi-Viewer Display

IN 1 IN 2 IN 3

IN 4 IN 5 IN 6

Camera

IN 1

IN 2

IN 3

IN 7

IN 8

IN 9

DVD

Player

MULTI OUT
RGB/HDMI

MVS-12

Video
Player

Matrix Output

Display

OUT 1

OUT 2

OUT 3

OUT 4

PREVIEW

Inputs

1234

Projector

Confidence Monitor

Video Recording

Back Stage

MATRIX OUT

MIDI OUT

MATRIX OUT1

SD IN

SD

select

V-1600HD

Multi-format Video Switcher

push

PGM
OUT
