Edimax Technology ES-5226RS User Manual
Notice
The contents of this manual are based on the table below listing
firmware version, software kernel version, and hardware version. If
the switch functions are different from the description of the manual,
please contact the local sale dealer for more information.
Firmware Version
Kernel Version
Hardware Version
V1.10
V1.1.5
----------
FCC Warning
This Equipment has been tested and found to comply with the limits for a Class-A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Content
INTRODUCTION......................................................................1
Features................................................................................................................1
Package Contents.................................................................................................1
HARDWARE DESCRIPTION..................................................3
Physical Dimensions.............................................................................................3
Front Panel...........................................................................................................3
LED Indicators ......................................................................................................5
Gigabit port LED Indicator.................................................................................5
Rear Panel............................................................................................................6
Desktop Installation...............................................................................................7
Attaching Rubber Pads .....................................................................................7
Rack-mounted Installation ....................................................................................7
Power On..............................................................................................................8
NETWORK APPLICATION.....................................................9
Small Workgroup ..................................................................................................9
Segment Uplink ..................................................................................................10
WEB-BASED MANAGEMENT..............................................11
About Web-based Management .........................................................................11
User Login ..........................................................................................................12
Main Page...........................................................................................................12
Administrator.......................................................................................................13
Authentication Configuration ...........................................................................13
System IP Configuration..................................................................................14
System Status.................................................................................................15
Default Switch Setting and Reboot..................................................................16
Port Management ...............................................................................................17
Port Configuration ...........................................................................................17
Port Mirroring ..................................................................................................19

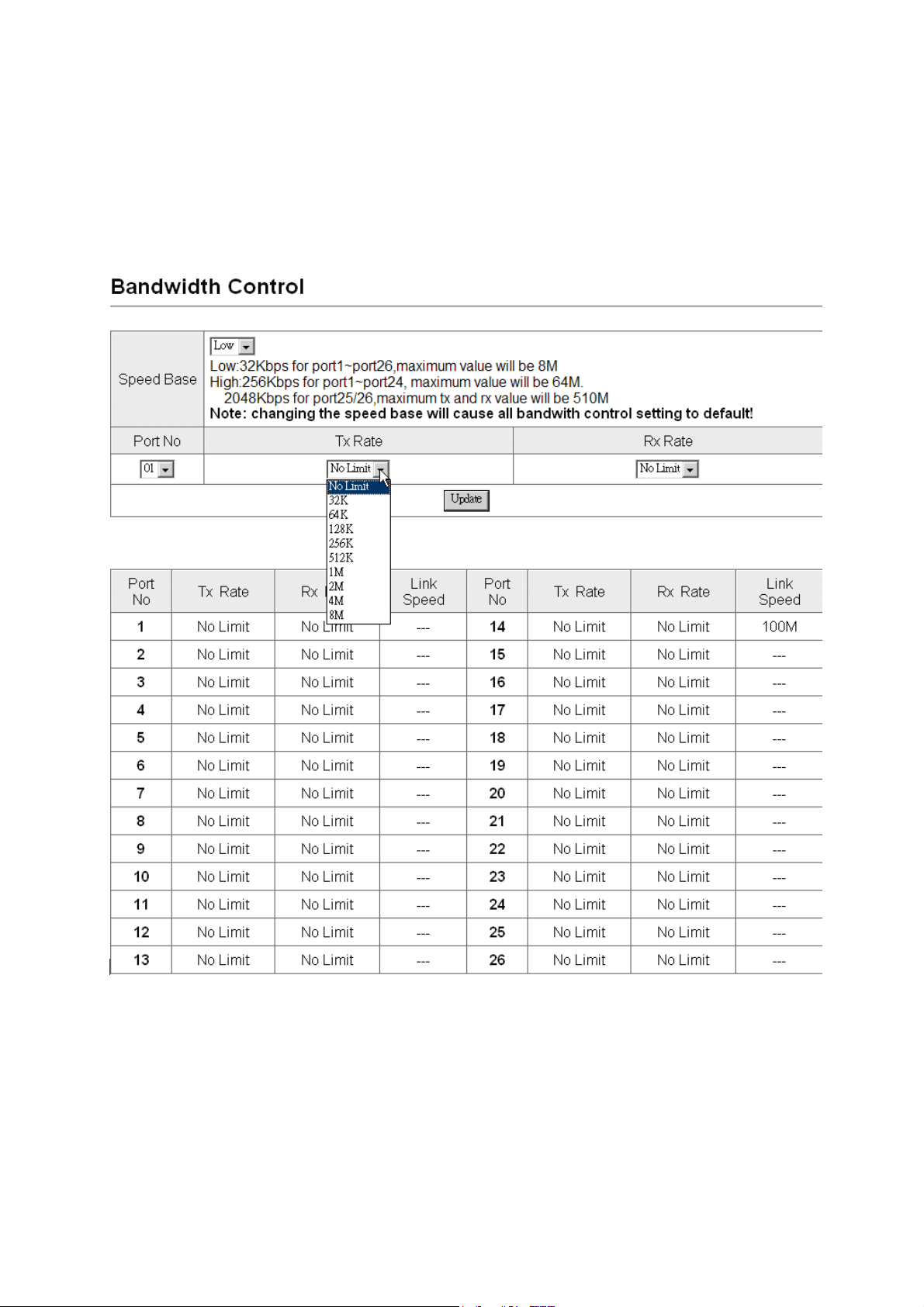

Bandwidth Control...........................................................................................20

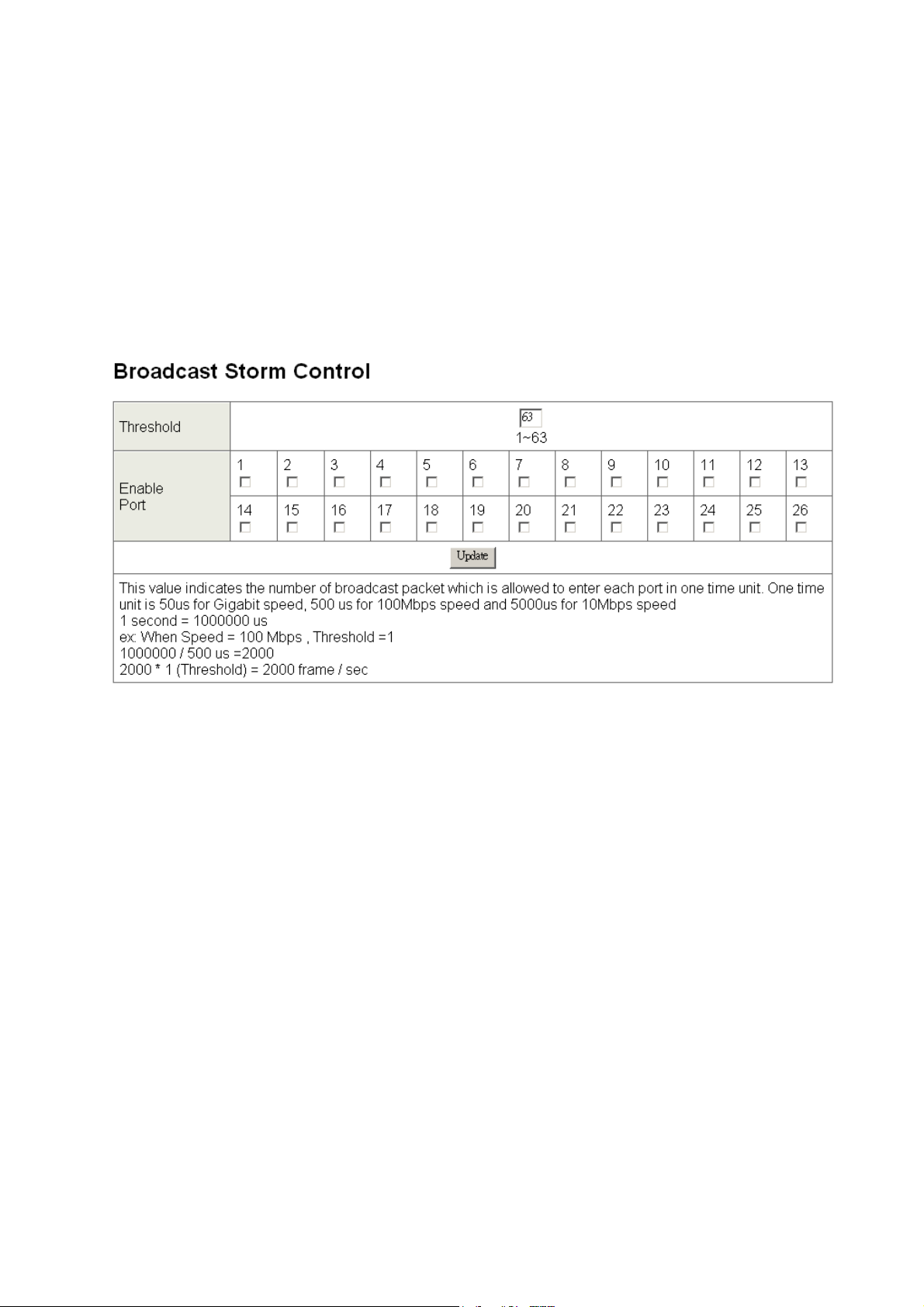

Broadcast Storm Control.................................................................................22
VLAN Setting......................................................................................................23
VLAN Member Setting (Port Based)................................................................23
VLAN Mode.....................................................................................................25
VLAN PVID Index Setting................................................................................27
Per Port Counter.................................................................................................29
QoS Setting ........................................................................................................31
Priority Mode...................................................................................................32
Class of Service Configuration........................................................................33
Security Filter......................................................................................................35
Trunk...................................................................................................................37
Trunk Configuration.........................................................................................37
Aggregation Information..................................................................................39

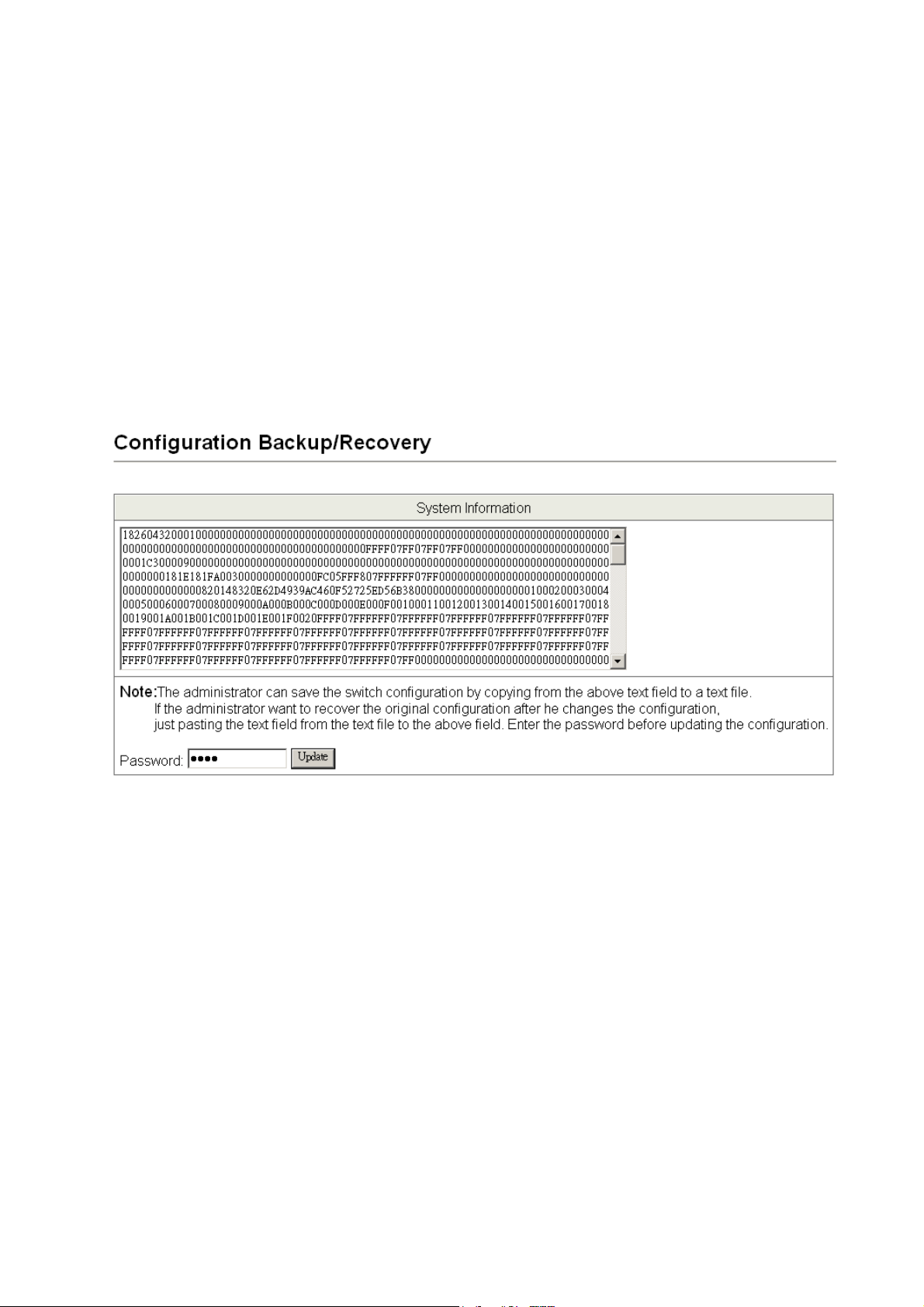

Configuration Backup/Recovery .........................................................................40
Firmware Update ................................................................................................41
Reboot................................................................................................................44
Logout.................................................................................................................45
TROUBLESHOOTING ..........................................................46
Incorrect connections..........................................................................................46
Faulty or loose cables.......................................................................46
Non-standard cables.........................................................................46
Improper Network Topologies...........................................................47
Diagnosing LED Indicators .................................................................................47
Cabling..............................................................................................47
TECHNICAL SPECIFICATION .............................................48
APPENDIX.............................................................................50
10 /100BASE-TX Pin outs...................................................................................50
10/100Base-TX Cable Schematic.......................................................................50
10/100/1000Base-TX Pin outs............................................................................51
10/100/1000Base-TX Cable Schematic..............................................................52
Introduction
The ES-5226RS is a multi-port Switch that can be used to build high-performance
switched workgroup networks. This switch is a store-and-forward device that
offers low latency for high-speed networking. The switch is targeted at workgroup,
department or backbone computing environment.
The ES-5226RS has 24 auto-sensing 10/100Base-TX RJ-45 ports and 2
auto-detect Gigabit combo ports for higher connection speed. This switch features
a store-and-forward switching scheme. This allows the switch to auto-learn and
store source address in a 4K-entry MAC address table.
Features
Conforms to IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab
1000Base-T, IEEE802.3z Gigabit fiber, IEEE802.3x Flow control and Back
pressure, IEEE 802.3ad Port Trunk, IEEE 802.1p Class of Service.
24 10/100 TX plus 2 10/100/1000/Mini-GBIC Combo
Automatic MDI/MDIX supported
High Switch Fabric up to 8.8Gbps
N-way Auto-Negotiation supported
Store-and-Forwarding Switching Architecture
4K-entry MAC address table
Non-Blocking full wire speed architecture
IEEE 802.3x Flow control:
¾ Pause-frame for full duplex mode
¾ Back-pressure for half duplex mode
Fan free design
Package Contents
1
Unpack the contents of the
ES-5226RS and verify them against the checklist
below:
ES-5226RS
Mounting Plate
Power Cord
Four Rubber Pads
User Manual
Compare the contents of the ES-5226RS package with the standard checklist
above. If any item is missing or damaged, please contact the local dealer for
exchanging.
2
Hardware Description
This section mainly describes the hardware of the ES-5226RS and gives a
physical and functional overview on the certain switch.
Physical Dimensions
The ES-5226RS physical dimensions is 440mm x 120mm x 44mm (W x D x H).
Front Panel
The front panel of the ES-5226RS consists of 24 x 10/100Base-TX RJ-45 ports
(Auto MDI/MDIX) and 2 auto-detect Giga ports which could be Copper Gigabit
port or Mini-GBIC Fiber module (optional). The LED Indicators are also located on
the front panel of the switch.
The Front panel of ES-5226RS
RJ-45 Ports (Auto MDI/MDIX): 24 x 10/100 N-way auto-sensing for
10Base-T or 100Base-TX connections.
In general, MDI means connecting to another Hub or Switch while MDIX
means connecting to a workstation or PC. Therefore, Auto MDI/MDIX would
allow connecting to another Switch or workstation without changing
non-crossover or crossover cabling.
3
2 Giga port: The traditional RJ-45 ports can be used for up-linking wide-band
paths in short distance (<100m), or the appropriate replaceable mini-GBIC
ports can be used for the application of wideband up-linking and long
distance transmissions to fit the flexible field request.
[NOTE]
When the Mini-GBIC slot and the corresponding RJ-45 port are both
being connected, the Mini-GBIC (Giga fiber) port has higher priority.
4
LED Indicators
e
e
The LED Indicators display real-time information of systematic operation status.
The following table provides descriptions of LED status and their meaning.
LED Status Description
Green Power On
Power
Off Power is not connected
Act/Duplex
Speed
Green The port works in 10/100 Full-duplex mod
Blinks
Networking is active
(continuously)
Blinks
(off for about 2
The port works in 10/100 Half-duplex mod
seconds and on
alternatively)
Off No device attached
Amber The port works at speed of 100Mbps
Blinks The port works at speed of 10Mbps
Gigabit port LED Indicator
The following table provides descriptions of Gigabit ports’ LEDs status and their
The Description of LED Indicators
5
meaning.
LED Status Description
The port works in 10/100 Full-duplex or
Green
gigabit mode
Blinks
Networking is active
(continuously)
Act/Duplex
Speed
Rear Panel
Blinks
(off for about 2
The port works in 10/100 Half-duplex mode
seconds and on
alternatively)
Off No device attached
Green The port works at speed of 1000Mbps
Blinks The port works at speed of 100Mbps
The Descriptions of Gigabit port LED Indicators
The 3-pronged power plug is located at the rear panel of the ES-5226RS shown
below. The switch will work with AC in the voltage range between 100 and 240V
and Frequency of 50-60Hz.
The Rear Panel of ES-5226RS
6
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet nearby. The
surface where the user put the switch should be clean, smooth, level and sturdy.
Make sure there is enough clearance around the switch to allow attachment of
cables, power cord and allow air circulation.
Attaching Rubber Pads
A. Make sure mounting surface on the bottom of the switch is grease and dust
free.
B. Remove adhesive backing from your Rubber Pads.
C. Apply the Rubber Pads to each corner on the bottom of the switch. These
footpads can prevent the switch from shock/vibration.
Rack-mounted Installation
The ES-5226RS comes with a rack-mounted kit and can be mounted in an EIA
standard size, 19-inch Rack. The switch can be placed in a wiring closet with
other equipment.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and
secure it with the smaller bracket screws. Then attach the remaining bracket
to the other side of the switch.
B. After having attached mounting brackets, position the ES-5226RS in the rack
by lining up the holes in the brackets with the appropriate holes on the rack.
Secure the switch to the rack with a screwdriver and the rack-mounting
screws.
7
[NOTE]
For proper ventilation, it allows about at least 4 inches (10 cm) of
clearance on the front and 3.4 inches (8 cm) on the back of the Switch. This
is especially important for enclosed rack installation.
Power On
Connect the power cord to the power socket on the rear panel of the Switch. The
other side of power cord connects to the power outlet. The internal power supply
of the Switch works with voltage in the range of 100-240VAC and Frequency of
50~60Hz. Check the power indicator on the front panel to see if power is properly
supplied.
8
Network Application
This section provides you a few samples of network topology in which the switch
is used. In general, the ES-5226RS is designed as a segment switch which with
its large address table (4k MAC address) and high performance, it is ideal for
interconnecting networking segments.
PC, workstations, and servers can communicate each other by directly
connecting with ES-5226RS. The switch automatically learns nodes address,
which are subsequently used to filter and forward all traffic based on the
destination address.
By using Uplink port, the switch can connect with another switch or hub to
interconnect other small-switched workgroups to form a larger switched network.
Meanwhile, the user can also use fiber ports to connect switches. The distance
between two switches by connecting with fiber cable can be up to 550 m
(multi-mode fiber) or 10 kilometer (single-mode fiber).
Small Workgroup
The ES-5226RS can be used as a standalone switch to which personal
computers, server, printer server, are directly connected to form a small
workgroup.
9
Segment Uplink
In the illustration below, two Ethernet switches (with PCs, print server, and local
server attached) are connected via 1000-FX or 10/100/1000Base-TX cable. All
the devices in this network can communicate with each other through the
switches. Connecting servers to the switch allows other users to access the data
on server.
10
Web-Based Management
This section introduces the configuration and functions of the Web-Based
management.
About Web-based Management
An embedded HTML web site resides in flash memory on the CPU board of the
switch. It offers advanced management features and allows users to manage the
switch from anywhere on the network through a standard browser such as
Microsoft Internet Explorer.
The Web-Based Management supports Internet Explorer 6.0. It is based on Java
Applets with an aim to reduce network bandwidth consumption, enhance access
speed and present an easy viewing screen.
The Web management only allows one person to log in at the same time. With
the first user logging, the system will force him to be logged out when the second
user tries to log in the system.
11
User Login
1. Launch the Internet Explorer.
2. Key in ‘http://’ and the IP address assigned to the ES-5226RS. Then, press
“
Enter
3. The login screen appears.
4. Key in ID & Password. The default login ID and password are “
5. Click “OK”, then the main page of the Web-based management appears.
”.
ES-5226RS
”.
1234
Main Page
Main Page of ES-5226RS
12
Loading...
