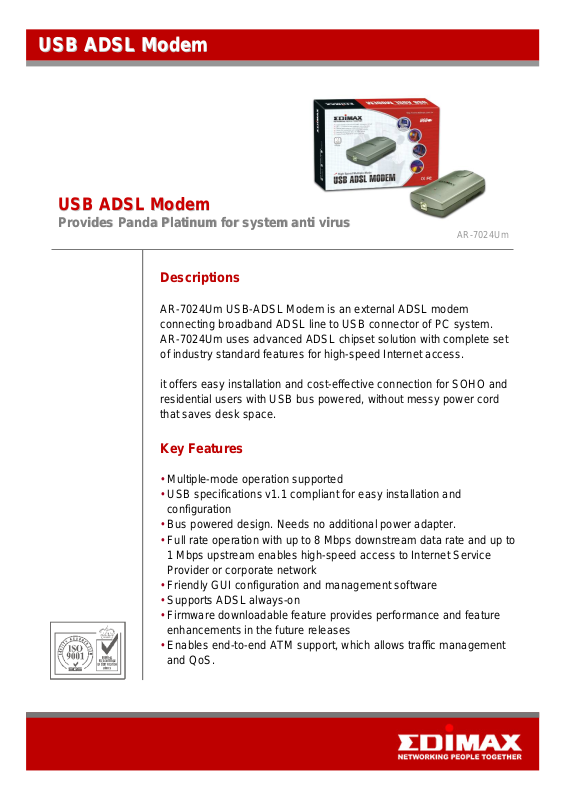

Descriptions

AR-7024Um USB-ADSL Modem is an external ADSL modem
connecting broadband ADSL line to USB connector of PC system.
AR-7024Um uses advanced ADSL chipset solution with complete set
of industry standard features for high-speed Internet access.

AR-7024Um

it offers easy installation and cost-effective connection for SOHO and
residential users with USB bus powered, without messy power cord
that saves desk space.

Key Features

• Multiple-mode operation supported

• USB specifications v1.1 compliant for easy installation and

configuration

• Bus powered design. Needs no additional power adapter.

• Full rate operation with up to 8 Mbps downstream data rate and up to

1 Mbps upstream enables high-speed access to Internet Service
Provider or corporate network

• Friendly GUI configuration and management software

• Supports ADSL always-on

• Firmware downloadable feature provides performance and feature

enhancements in the future releases

• Enables end-to-end ATM support, which allows traffic management

and QoS.

USB ADSL Modem

USB ADSL Modem

Communication Standards Compliant

ANSI T1.413 issue 2, ITU G.dmt (G.992.1) ITU G.lite (G.992.2)
G.994.1 (G.hs, Multimode), ADSL over POTS (Annex A)
ADSL over ISDN (Annex B / UR2)

ATM

RFC 2516 (PPP over Ethernet), RFC 2364 (PPP over ATM)
RFC 1577 (Classical IP over ATM)
RFC 1483 BPDU (Bridge Ethernet over ATM)
RFC 2684 LLC Encapsulation and VC Multiplexing over AAL5

Encapsulation Mode

For WAN Connection:
PPP over ATM VCMUX (RFC 2364) (WAN)
PPP over ATM LLC (RFC 2364) (WAN)
PPP over Ethernet VCMUX (RFC 2516) (WAN)
PPP over Ethernet LLCSNAP (RFC 2516) (WAN)
