Chapter I: Product Information
1-1 Introduction and safety information
Thank you for purchasing Edimax 3G-6200nL wireless 3G broadband
router! This high cost-efficiency router is the best choice for Mobile /
Small office / Home office users, all computers and network devices can
share a single wireless 3G modem or xDSL / cable** modem internet
connection at high speed. Easy install procedures allows any computer
users to setup a network environment in very short time - within minutes,
even inexperienced. When the number of your computers and
network-enabled devices grow, you can also expand the number of
network slot by simple attach a hub or switch, to extend the scope of your
network!
You can configure the router by running the Setup Wizard in the
CD-ROM provided in the package. The wizard provides quick setup for
wireless 3G/3.5G Internet connection, SSID, wireless security, firmware
upgrade and changing router’s password. When you start the Setup
Wizard, you will get the following Welcome screen. Please choose the
language to start with and follow the easy steps in the Wizard. No
instruction for the Setup Wizard is given here.
If you lost the CD-ROM or you prefer the traditional web setup, please
follow the procedures in Manual to configure the router
Note 1: Only one Internet connection (wireless 3G or xDSL/Cable) can
be used at the same time.
5
Page 6
Note 2: To prevent the compatibility problem between 3G USB Modem
cad and 3G router, it is recommended that you upgrade the latest
firmware of 3G router from Edimax website
http://www.edimax.com
.
Features
- Provides IEEE 802.11g/b wireless LAN access point
- Compatible with IEEE 802.11n standard with 150Mbps data rate
- High Internet access throughput
- Allow multiple users to share a single Internet connection
- Supports up to 253 network client users
- Provides one USB port for 3G wireless connection
- Internet Access via 3G modem or Cable/xDSL modem
- Access Servers on your LAN from the Public Network
- Equipped with one Ethernet port for LAN or WAN
- Support DHCP (Server/Client) for easy setup
- Support advance features such as: special applications, DMZ, virtual
server, access control, firewall
- Allow you to monitor the router’s status such as: DHCP Client Log,
System Log, Security Log and Device/Connection Status
- Easy to use Web-based GUI for configuration and management
- Remote Management allows configuration and upgrades from a
remote site (over the Internet)
Minimum Requirements
- One External xDSL (ADSL) or Cable modem with an Ethernet port
(RJ-45)
- Network Interface Card (NIC) for each Personal Computer (PC)
- Computer with a Web-Browser (Internet Explorer 5.0 or higher /
Netscape Navigator 7.2 or higher)
Package Contents
- One Wireless 3G broadband router
- One Quick Installation Guide
- One CD-ROM (Wizard, Multi-languages QIG and User Manual)
- One Power Adapter
- Ethernet Cable
- Accessories
6
Page 7
Note
The WAN “idle timeout” auto-disconnect function may not work due to
abnormal activities of some network application software, computer virus
or hacker attacks from the Internet. For example, some software sends
network packets to the Internet in the background, even when you are
not using the Internet. So please turn off your computer when you are
not using it. This function also may not work with some ISP. So please
make sure this function can work properly when you use this function in
the first time, especially your ISP charge you by access time.
Back Panel
The diagram (fig1.0) below shows the broadband router’s back panel.
The router’s back panel is divided into four sections, LAN, WAN, USB,
and Reset:
Figure 1.0
1) WAN/LAN Port
The Fast Ethernet port is for you to connect with xDSL/Cable modem or
connect with computer. The default setting is for you to connect with
computer or switch to extend network. If you would like to access
Internet via xDSL/Cable modem, you can login 3G-6200nL to enable
WAN function (to click
button ).
2)Antenna
For you to connect with antenna to get stronger wireless signal.
3) USB
The USB port allow you to share internet via 3G USB modem card.
4) WPS / Reset button
You can press the button 2~4 seconds to enable WPS for wireless
security.
When you experience some problem on using this router, or you forgot
7
Page 8
your password, you can press the reset button for longer than 10
seconds and the router will reset itself to the factory default settings
(warning: your original configurations will be replaced with the factory
default settings)
4) Power Jack
5V2A switching power adapter.
Front Panel
On the router’s front panel there are LEDs, which shows the status of
this router. Below is the list of each LED and its description.
LED Light
Status
On Wireless WPS function is enabled.
Off Wireless network is switched off.
WLAN
Flashing Wireless LAN activity (transferring or
On ETHERNET port is connected.
ETHERNET
Off ETHERNET port is not connected.
Flashing ETHERNET activity (transferring or
Description
receiving data).
INTERNET
receiving data).
On Router is connected to the Internet.
Off Router is not connected to the Internet.
Flashing Router is connecting to the Internet.
8
Page 9
Back Panel
Antenna A
Item Name Description
ETHERNET Local/ Wide Area Network (LAN/WAN) port.
Power Power connector, connects to A/C power adapter.
Reset / WPS Reset the router to factory default settings (clear all settings)
or start WPS function. Press this button and hold for 10
seconds to restore all settings to factory defaults, and press
this button for less than 5 seconds to start WPS function.
Antenna It is a 2dBi dipole antenna.
USB Connect your 3G/3.5G USB modem to the USB port to share
the 3G mobile Internet connection
9
Page 10
1-2 Safety Information
In order to keep the safety of users and your properties, please follow the
following safety instructions:
1. This router is designed for indoor use only; DO NOT place this router
outdoor.
2. DO NOT put this router at or near hot or humid places, like kitchen or
bathroom. Also, do not left this router in the car in summer.
3. DO NOT pull any connected cable with force; disconnect it from the
router first.
4. If you want to place this router at high places or hang on the wall,
please make sure the router is firmly secured. Falling from high places
would damage the router and its accessories, and warranty will be void.
5. Accessories of this router, like antenna and power supply, are danger to
small children under 3 years old. They may put the small parts in their
nose or month and it could cause serious damage to them. KEEP THIS
ROUTER OUT THE REACH OF CHILDREN!
6. The router will become hot when being used for long time (This is
normal and is not a malfunction), DO NOT put this router on paper,
cloth, or other flammable materials.
7. There’s no user-serviceable part inside the router. If you found that the
router is not working properly, please contact your dealer of purchase and
ask for help. DO NOT disassemble the router, warranty will be void.
8. If the router falls into water when it’s powered, DO NOT use your
hand to pick it up. Switch the electrical power off before you do anything,
or contact an experienced technician for help.
9. If you smell something strange, or even see some smoke coming out
from the router or power supply, remove the power supply or switch the
electrical power off immediately, and call dealer of purchase for help.
10
Page 11
1-3 System Requirements
z Internet connection, provided by xDSL or cable modem with a RJ-45
Ethernet port.
z Computer or network devices with wired or wireless network interface
card.
z Web browser (Microsoft Internet Explorer 4.0 or above, Netscape
Navigator 4.7 or above, Opera web browser, or Safari web browser).
z An available power socket
11
Page 12
Chapter II: System and Network Setup
2-1 Establish network connection
Setup Diagram
33GG//33..55GG MMooddeemm ccaarrdd iinnssttaallllaattiioonn::
If you have 3G/3.5G modem card and SIM card, please follow the
following instructions to establish connection
1. Connect power adapter to 3G-6200nL
2. Connect another Ethernet cable from the LAN port on router to the
Ethernet socket on the PC
3. Insert SIM card into 3G/3.5G modem card, and connect the modem
card with one of USB port of 3G-6200nL. The corresponding USB
LED indicator on 3G-6200nL will light.
12
Page 13
2-2 Setup client computers to obtain IP address automatically
After the network connection is established, the next step you should
do is setup the router with proper network parameters, so it can work
properly in your network environment.
Before you can connect to the router and start configuration
procedures, your computer must be able to get an IP address
automatically (use dynamic IP address). If it’s set to use static IP address,
or you’re unsure, please follow the following instructions to configure
your computer to use dynamic IP address:
If the operating system of your computer is….
Windows 95/98/Me - please go to section 2-2-1
Windows 2000 - please go to section 2-2-2
Windows XP - please go to section 2-2-3
Windows NT - please go to section 2-2-4
13
Page 14
2-2-1 Windows 95/98/Me IP address setup:
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network icon, and
Network window will appear. Select ‘TCP/IP’, then click ‘Properties’.
14
Page 15
2. Select ‘Obtain an IP address from a DHCP server’, then click ‘OK’.
15
Page 16
2-2-2 W indows 2000 IP address setup:
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network and Dial-up
Connections icon, double click Local Area Connection, and Local Area
Connection Properties window will appear. Select ‘Internet Protocol
(TCP/IP)’, then click ‘Properties’
16
Page 17
2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server
address automatically’, then click ‘OK’.
17
Page 18
2-2-3 Windows XP IP address setup:
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Double-click Network and Internet
Connections icon, click Network Connections, then double-click Local
Area Connection, Local Area Connection Status window will appear,
and then click ‘Properties’
18
Page 19
2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server
address automatically’, then click ‘OK’.
19
Page 20
2-2-4 Windows Vista IP address setup:
1. Click ‘Start’ button (it should be located at lower-left corner of your
computer), then click control panel. Click View Network Status and
Tasks, then click Manage Network Connections..Right-click Local Ar ea
Netwrok, then select ‘Properties’. Local Area Connection Properties
window will appear, select ‘Internet Protocol Version 4 (TCP / IPv4), and
then click ‘Properties’
20
Page 21
2. Select ‘Obtain an IP address automatically’ and ‘Obtain DNS server
address automatically’, then click ‘OK’.
21
Page 22
2-3 Connect to broadband router by web browser
Default IP address of this broadband router is ‘192.168.2.1’, and you can
connect to broadband router’s web-based configuration interface by any
connected computer with web browser (Internet Explorer 5.x or above,
Firefox, or Netscape).
Please input ‘192.168.2.1’ in web browser’s address bar and press ‘Enter’
key to establish connection:
You should see the following authentication window:
22
Page 23
Please input ‘admin’ in ‘User name’ field, and ‘1234’ in ‘Password’ field,
and click ‘OK’ button to enter web configuration interface.
TIPS: If you can’t establish connection with broadband router with web
browser (got ‘The page cannot be displayed’ or similar error message),
the IP address you inputted may be wrong. If you’ve changed the IP
address of this broadband router previously, please input correct IP
address instead of the default IP address ’192.168.2.1’.
If the DHCP server function of this broadband router is enabled, please
follow the following instructions to find out the IP address of this
broadband router:
23
Page 24
Please click ‘start’ -> ‘run’ at the bottom-lower corner of your desktop:
Input ‘cmd’, then click ‘OK’
24
Page 25
Input ‘ipconfig’, then press ‘Enter’ key. Please check the IP address
followed by ‘Default Gateway’ (In this example, the IP address of router
is 192.168.2.1, please note that this value may be different.)
NOTE: If the IP address of Gateway is not displayed, or the address followed
by ‘IP Address’ begins with ‘169’, please recheck network connection
between your computer and router, and / or go to the beginning of this
chapter, to recheck every step of network setup procedure.
If you tried the instructions listed above and still can not find the IP
address of this broadband router / you forget the password, please jump to
chapter 6-1 to reset the broadband router.
25
Page 26
2-4 Using ‘Quick Setup’
This broadband router provides a ‘Quick Setup’ menu, and you can setup
basic parameters of this broadband router.
Please follow the following instructions to use ‘Quick Setup’ menu:
1. Click ‘Quick Setup’ after logged in.
26
Page 27
2. In the first step of quick setup, you can setup automatic time
synchronization settings.
The descriptions of every setting items are listed as follow:
Item Name Description
Time Zone Please select a time zone of the country or
region of your residence here. If you can’t find
the country / region of your residence here,
please select a city / region which time zone is
the same with the country / region of your
residence.
Time Server Address This load-balance router supports NTP
(Network Time Protocol). NTP server will
provide correct time for this router to setup the
date and time of the router automatically.
Please input the host name or IP address of
NTP server here. If you don’t know the host
name or IP address of time server, please ask
network administrator or use ‘pool.ntp.org’ as
time server.
Daylight Savings If the country / region of your residence use
daylight saving time, please check ‘Enable
Function’ box, and select the beginning and
ending date of daylight time saving.
27
Page 28
After you finish with time zone settings, please click ‘Next’ to proceed to
next step of quick setup - broadband type:
Note : The default setting is for you to connect with computer or switch
to extend network. If you would like to access Internet via xDSL/Cable
modem, you can login 3G-6200nL to enable WAN function.

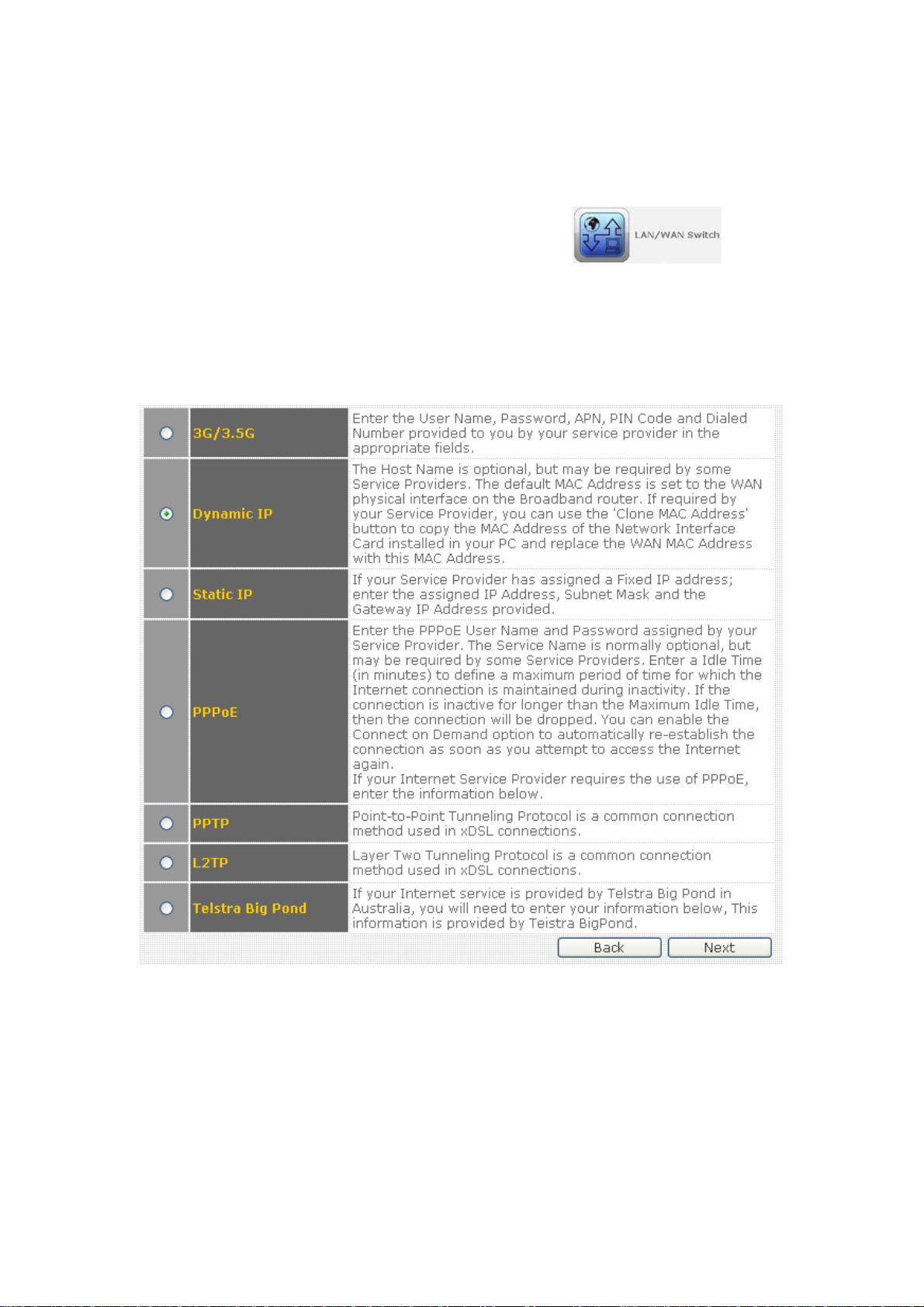

Please choose the broadband (Internet connection) type you’re using in
this page. There are six types of Internet connection, they are:

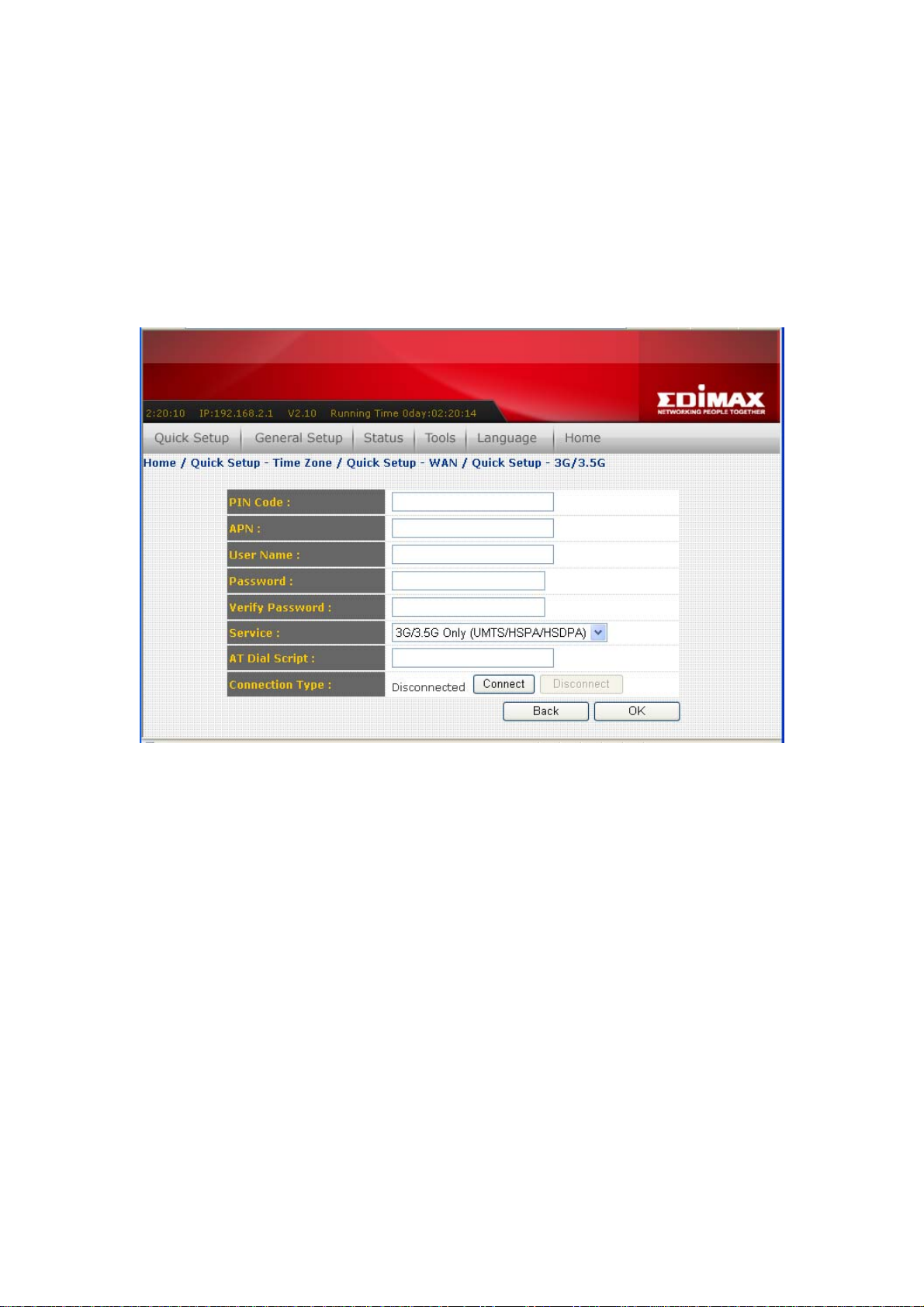

3G/3.5G - Please go to section 2-4-1
Dynamic IP - Please go to section 2-4-2

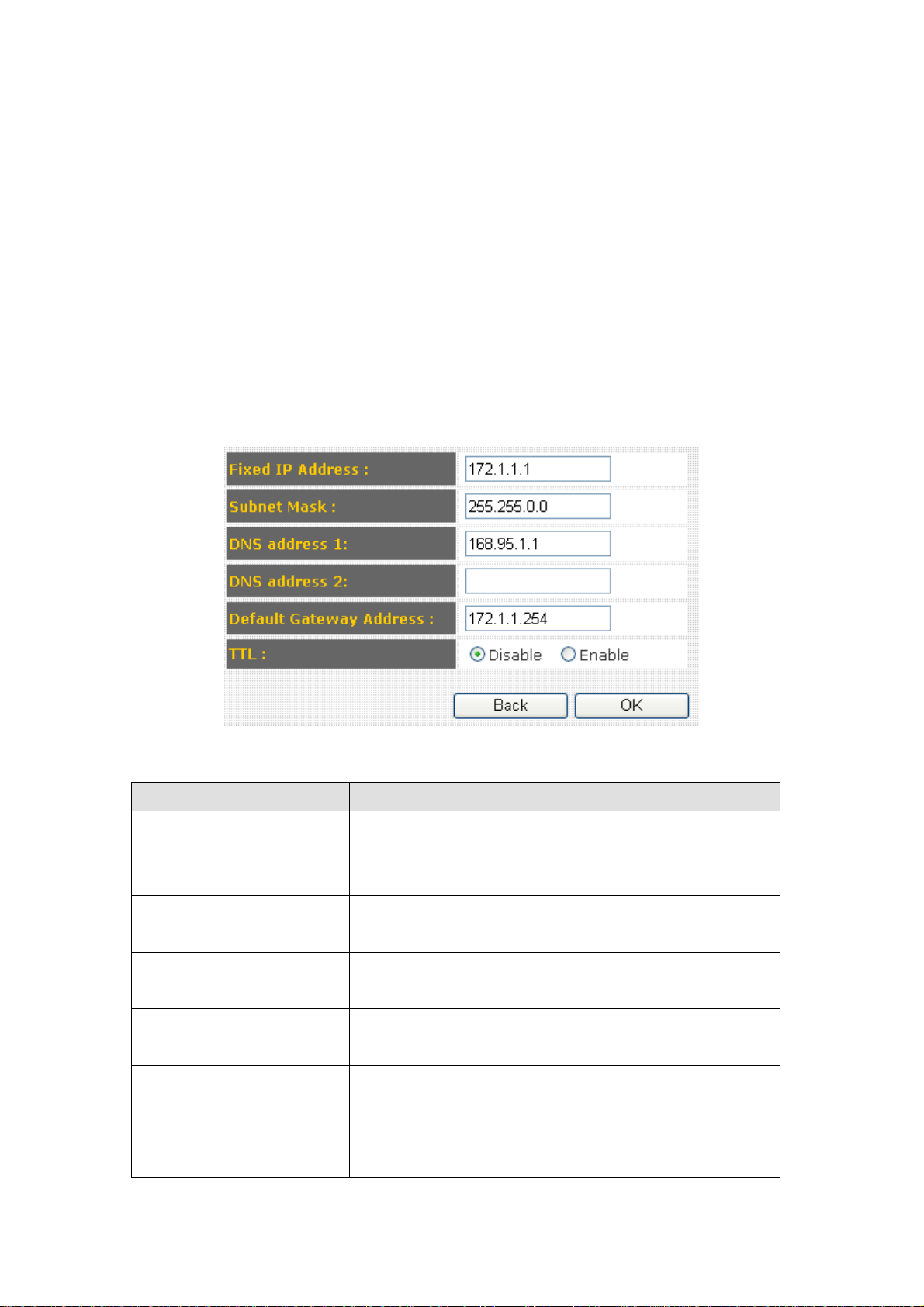

Fixed-IP xDSL - Please go to section 2-4-3
PPPoE xDSL - Please go to section 2-4-4

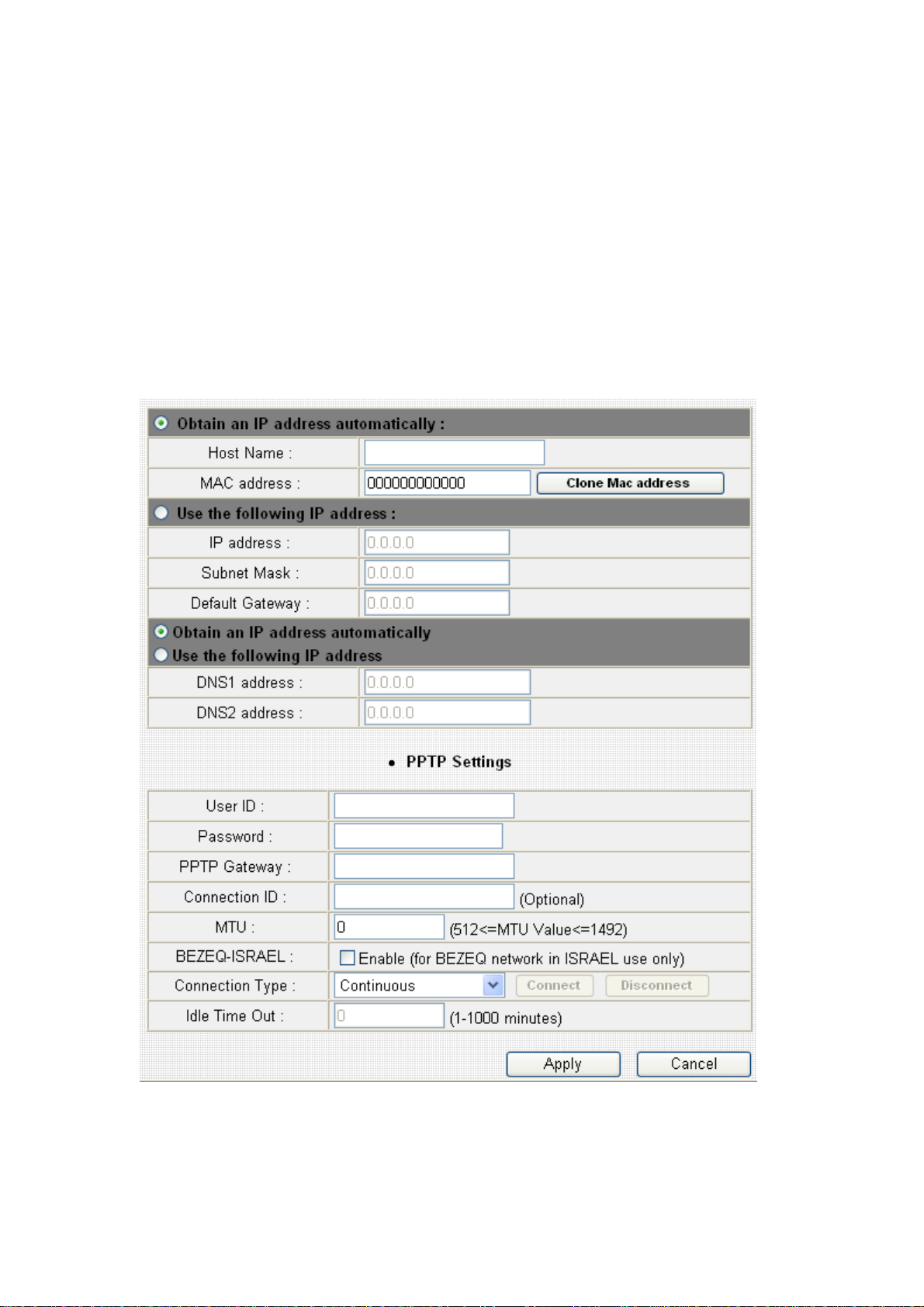

PPTP xDSL - Please go to section 2-4-5

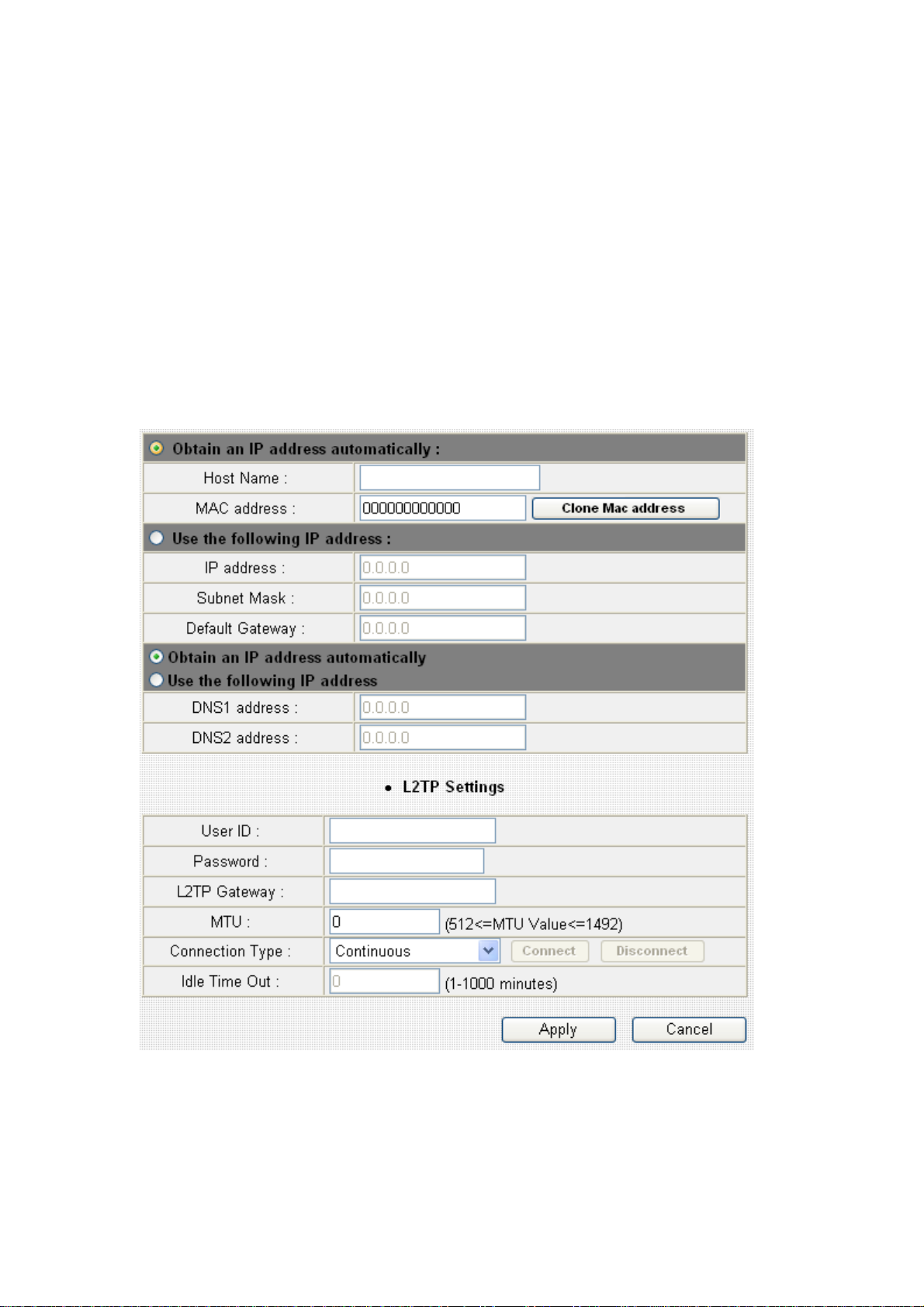

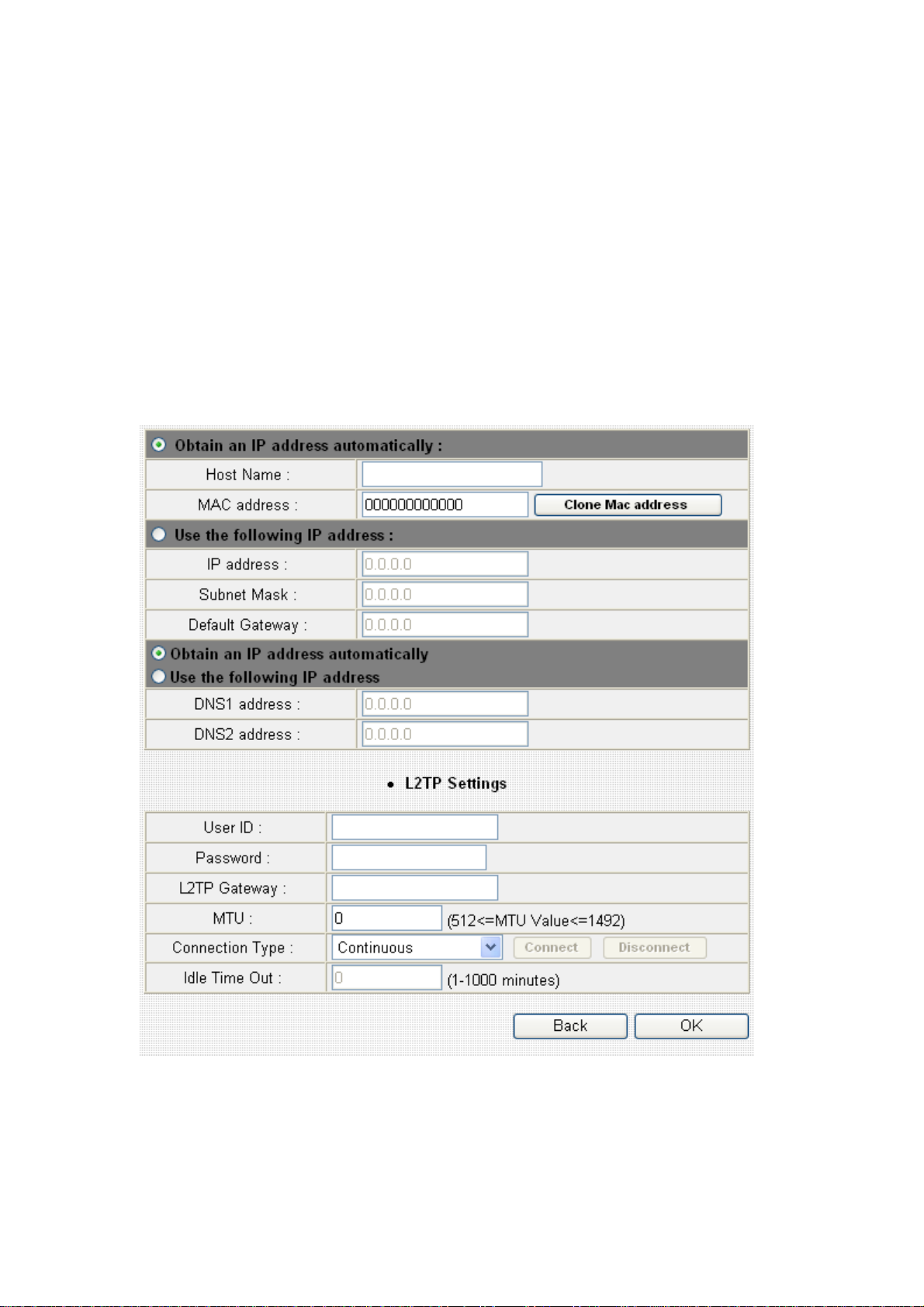

L2TP xDSL - Please go to section 2-4-6
28
Page 29

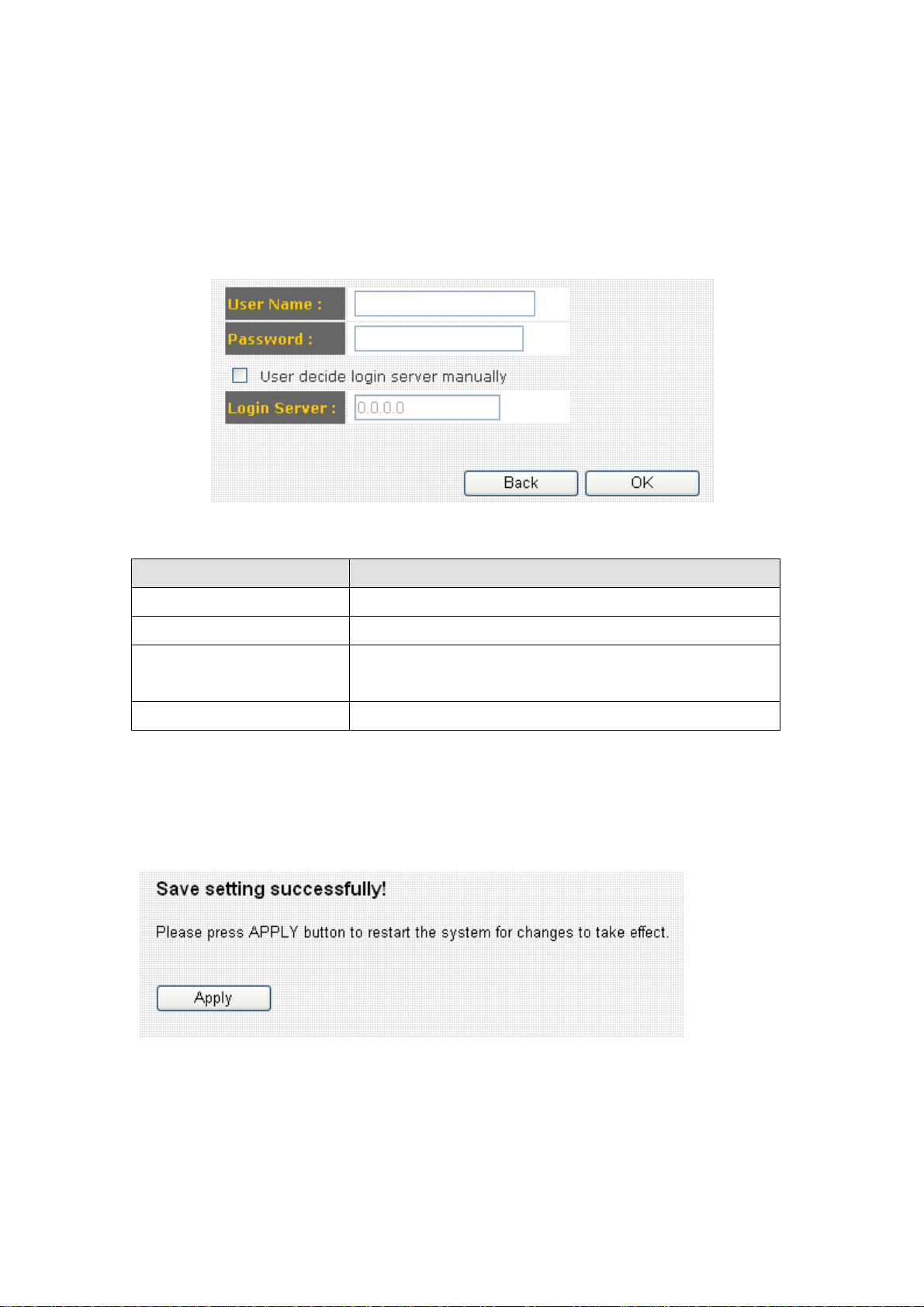

Telstra Big Pond - Please go to section 2-4-7
If you’re not sure, please contact your Internet service provider. A wrong
Internet connection type will cause connection problem, and you will not
be able to connect to internet.
If you want to go back to previous step, please press ‘Back’ button on the
bottom of this page.
NOTE: Some service providers use ‘DHCP’ (Dynamic Host
Configuration Protocol) to assign IP address to you. In this case, you
can choose ‘Cable Modem’ as Internet connection type, even you’re
using another connection type, like xDSL. Also, some cable modem
3.
uses PPPoE, so you can choose ‘PPPoE xDSL’ for such cable modem
connection, even you’re using a cable modem.
29
Page 30
2-4-1 3G/3.5G
3G-6200nL supports most of 3G/3.5G modem cards, just connect the
modem card to the USB port of 3G-6200nL and 3G-6200nL will
recognize it automatically, no additional setup procedure required.
However, some of modem cards require PIN code or account / password
(you have to use 3G-6200nL’s web interface to input these information),
and some modem cards requires you to connect the modem card with
your PC and install driver / utility before you connect it with 3G-6200nL
(all PCs which need to access Internet by 3G-6200nL requires to perform
this procedure once). If you still not able to connect to Internet, please use
wired Internet connection to access our website :
http://www.edimax.com/ , download latest version of firmware and
upgrade 3G-6200nL’s firmware. If you still not be able to get connected
by your 3G/3.5G modem card, please contact your dealer of purchase and
provide the model name of the 3G/3.5G modem card you have, we’ll try
our best to help you to solve the problem.
Only one Internet connection (wireless / wired) can be used at the same
time. Wireless connection (3G/3.5G) will be selected first, and use wired
Internet connection as backup. Therefore, please DO NOT connect your
3G/3.5G modem card with 3G-6200nL, or your telecomm service
provider may charge you with high communication fee. The default
setting is for you to connect with computer or switch to extend network.
If you would like to access Internet via xDSL/Cable modem, you can
login 3G-6200nL to enable WAN function. For example, if you connect
3G/3.5G modem card with 3G-6200nL when you’re using wired Internet
connection, wired connection will be dropped and use 3G/3.5G wireless
connection instead. If 3G/3.5G wireless signal reception is poor and the
connection can not be restored within 60 seconds, 3G-6200nL will use
wired Internet connection again, and will not switch back to wireless
Internet connection (This only happens with wired Internet connection is
available. If wired connection is unavailable, 3G-6200nL will try to
establish 3G/3.5G wireless connection again and again). If you want to
use 3G/3.5G wireless connection again, you need to remove 3G/3.5G
modem card from 3G-6200nL and reconnect it back after 5 seconds.
( A ) Plug and play, no setup procedure required.
Connect the USB 3G/3.5G modem card with 3G-6200nL and make sure
the corresponding USB LED indicator of 3G-6200nL lights up, then you
can use the web browser to access Internet.
30
Page 31
( B ) PIN code or user name / password required:
Please check the authentication method you want to use. Most of
telecomm service providers require you to input PIN Code, please check
‘SIM’ and input the PIN code provided by telecomm service provider.
Most of options listed here are optional and you don’t have to provide
those information if telecomm service provider doesn’t provide you with
those information.
If telecomm provider provides you with username / password, please
check /User Name / Password box and input the user name / password
provided by telecomm service provider, then click ‘OK’ button. Wait for
1 minute (for 3G-6200nL to reboot), then you can access Internet.
Note: Please select “CDMA”, if your ISP provide 3G CDMA system.
( C ) Driver / Utility required on PC side
Some 3G/3.5G modem card does not work with instructions (A) or (B)
listed above (ex. BandLuxe C100S). You need to install 3G/3.5G modem
card driver / utility on every PC which needs to access Internet first. After
driver / utility installation is complete, every PC will be able to access
Internet via 3G/6200nL.
1. PlugintheBandLuxeC100SmodemcardtotheUSBportofyour
31
Page 32
computer.

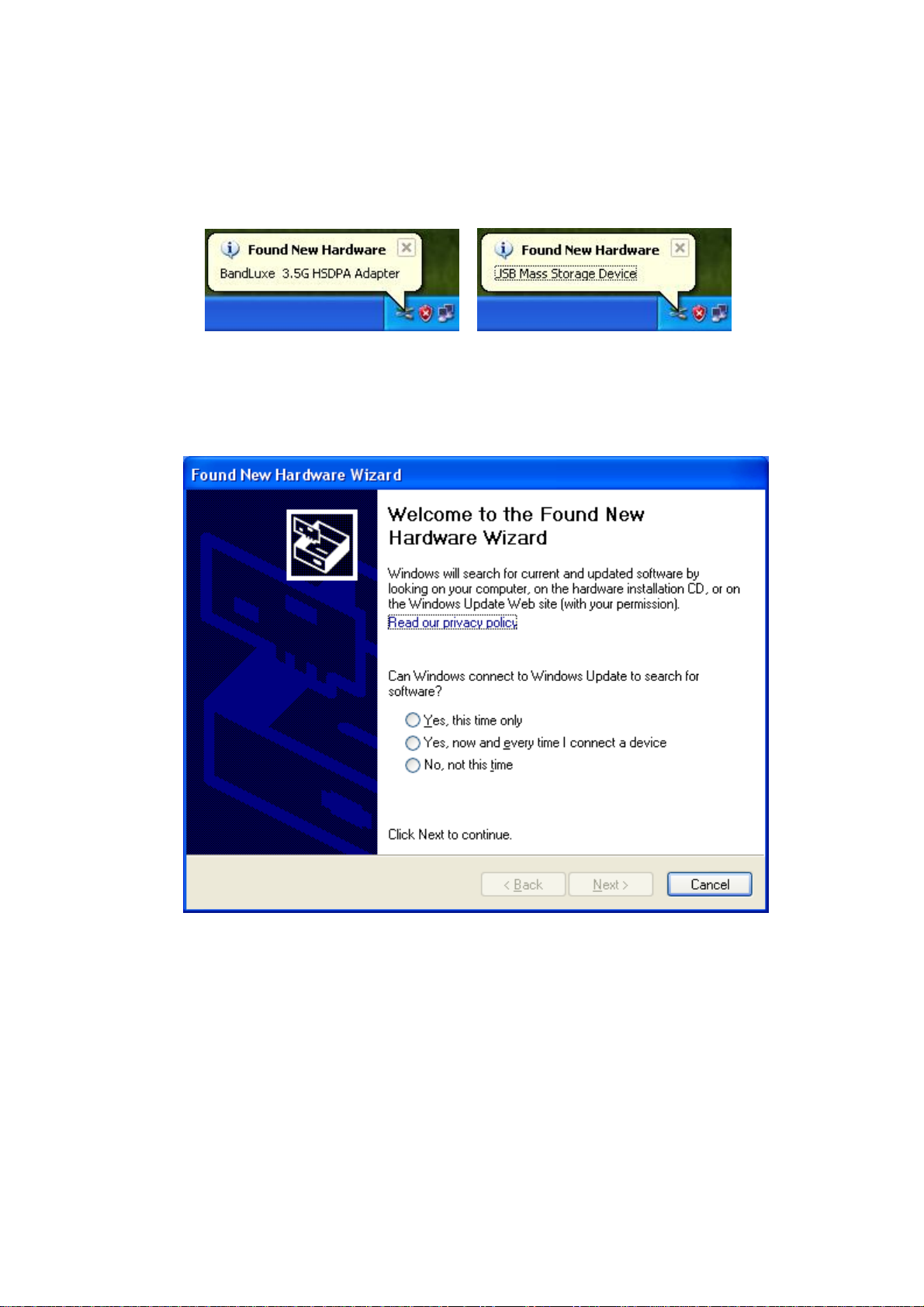

2. ThesystemwilldetectthehardwareofC100SUSBadapterand
alsothestorageinsidetheadapter.
3. Pleaseclick“Cancel”toignorethemessageofthefoundnew
hardwarewizard.
32
Page 33

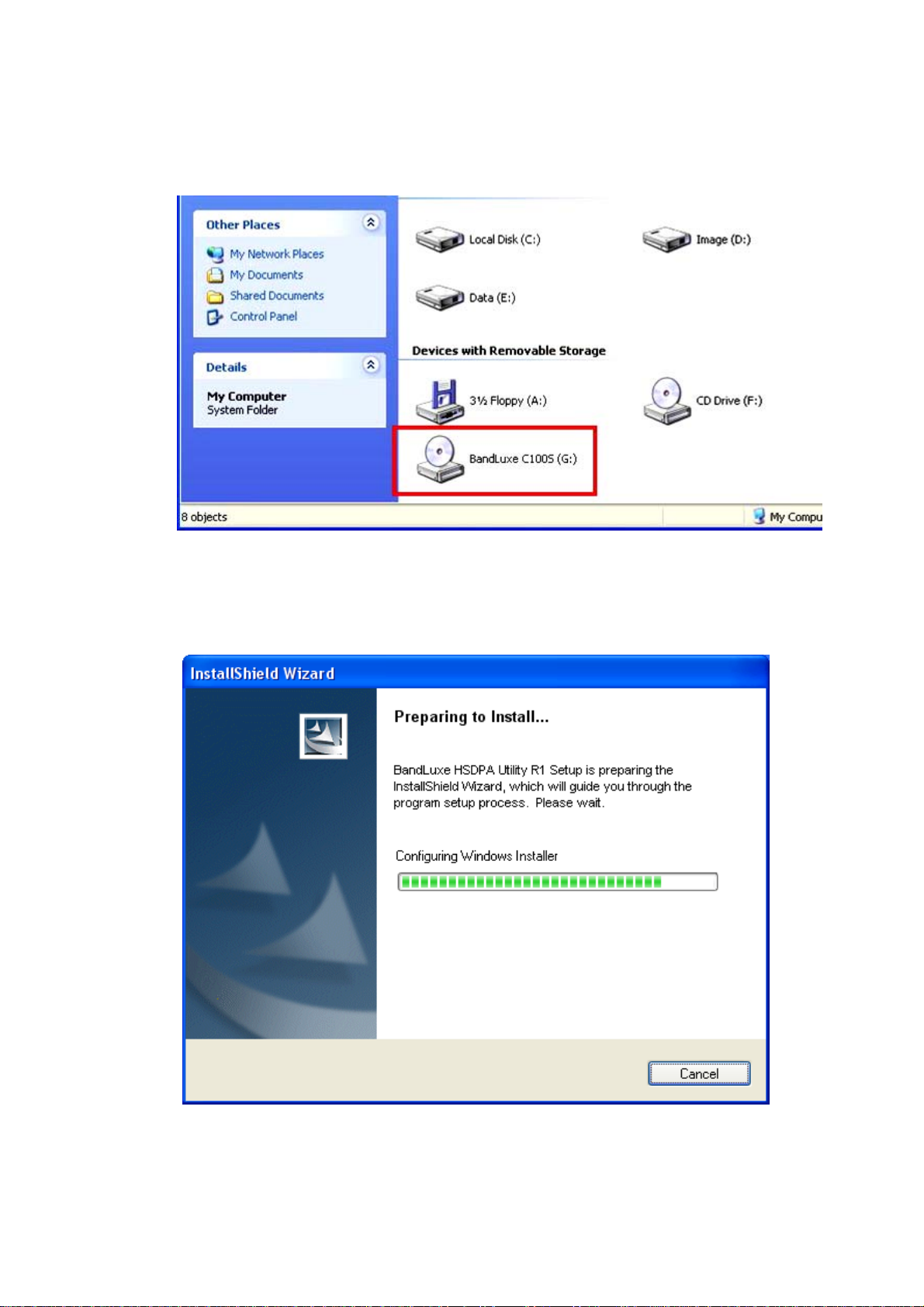

4. Pleasegoto“Mycomputer”,youwillseetheBandLuxeC100S.
Doubleclickthedevice.
5. Theprograminsidetheadapterwillpreparetoinstallthedriver
andutilityoftheadapter.
33
Page 34
6. Click“Next”.
7. Select“Iacceptthetermsinthelicenseagreement”andclick
“Next”.
34
Page 35
8. Ifyouwanttochangethedestinationfolder ,pleaseclick
“Change”.Click“Next”tocontinue.
9. Click“install”.
35
Page 36
10. Thesystemisinstallingthedriverandutilityoftheadapter .
11. Installsuccessfully,click“Finish”toclosetheinstallwizard.
36
Page 37

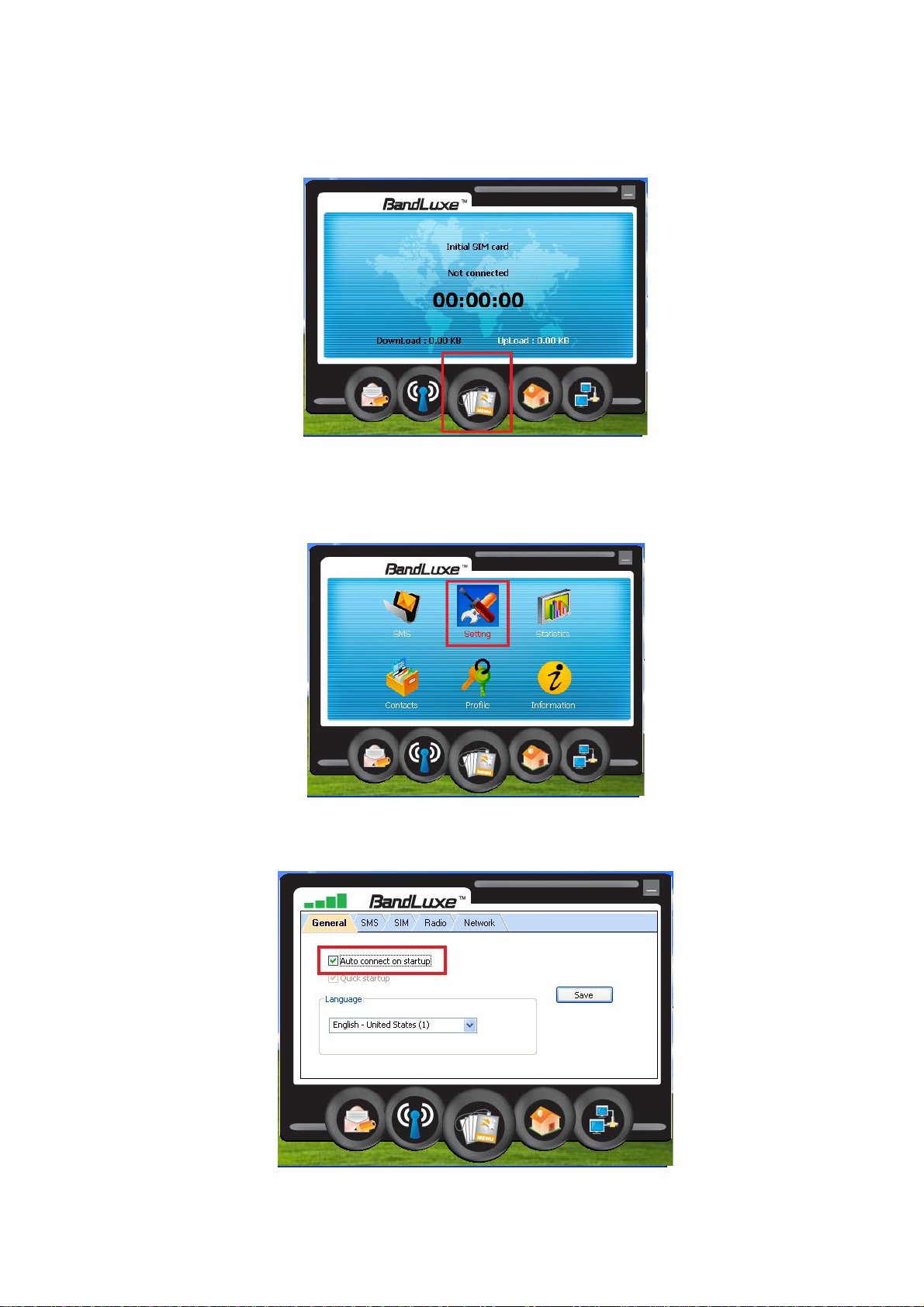

12. TheutilityofC100Swillstartupautomaticity.
Pleaseselectthe“MENU”
13. Click“Setting”.
14. Selectthe“Au to connectonstartup”.
37
Page 38
15. PlugintheC100SintotheUSBportofthe3Grouter.
16. TheUSBadapterwillgettheIPaddressfromISPautomatically.
YoucanchecktheStatusofthe3G‐6200nLontheWebsite(ex:
192.168.2.1).
17. NowyouareabletoconnecttoInternetsuccessfully.
Note : If your SIM card requires entering the PIN code, please enter into the
web management of the 3G router. In WAN setting web page, select 3G/3.5G.
Enter the PIN code of the adapter.
38
Page 39
2-4-2 Using ‘Dynamic IP’ as broadband connection type
If your Internet service provider uses cable modem to provide Internet
service to you, you can select this connection type. You can also select
this connection type if your ISP tells you that they will assign you the IP
address by ’DHCP’ (Dynamic Host Configuration Protocol).
Here are descriptions of every setup items:
Item Name Description
Host Name Please input the host name of your computer,
this is optional, and only required if your
service provider asks you to do so.
MAC address Please input MAC address of your computer
here, if your service provider only permits
computer with certain MAC address to access
internet. If you’re using the computer which
used to connect to Internet via cable modem,
you can simply press ‘Clone Mac address’
button to fill the MAC address field with the
MAC address of your computer.
DNS Address If your ISP provided you DNS address, please
input the DNS IP address here.
TTL Time-to-live (TTL) is a value in an Internet
Protocol packet that tells a network router
whether or not the packet has been in the
network too long and should be discarded.
39
Page 40

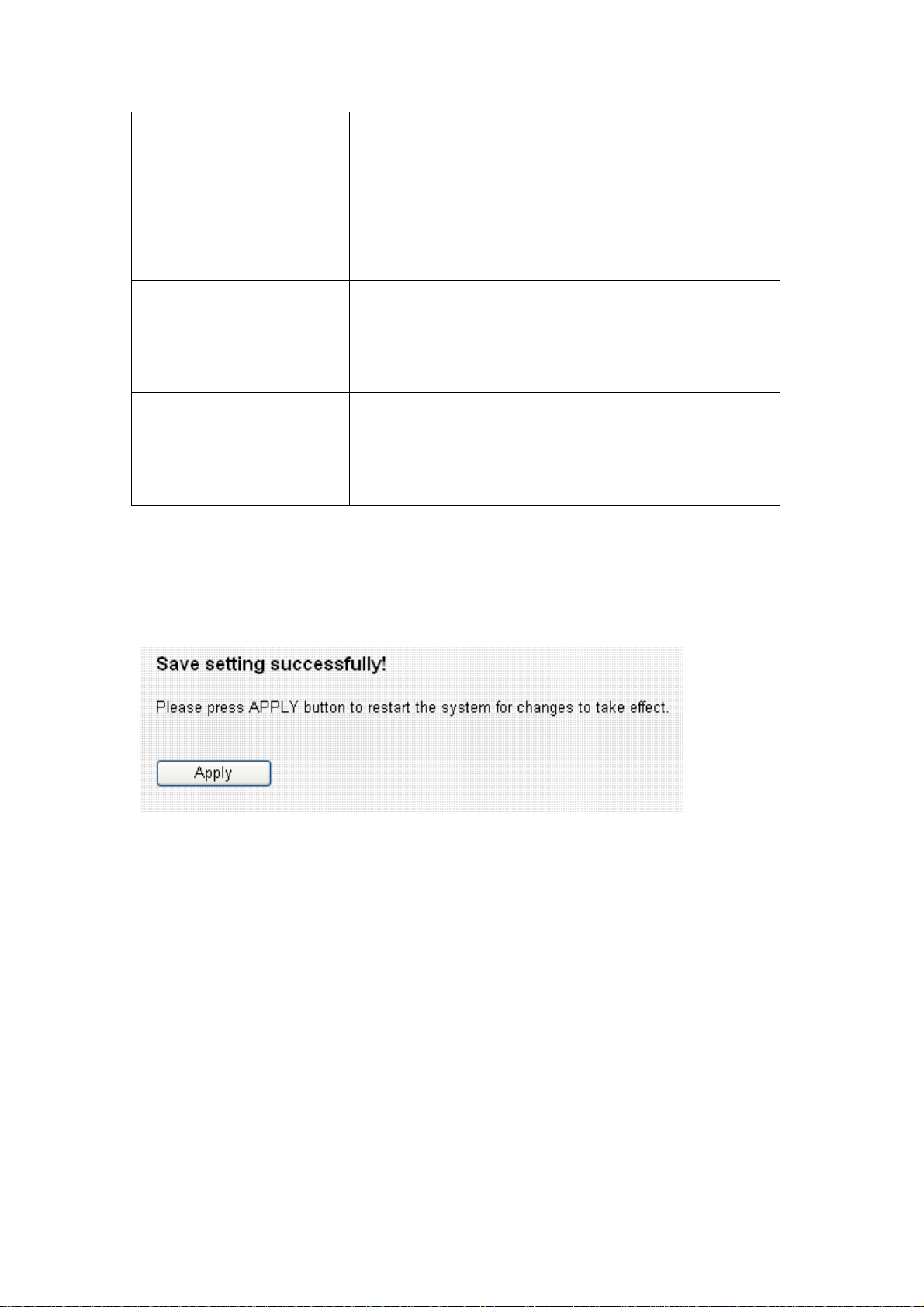

If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:

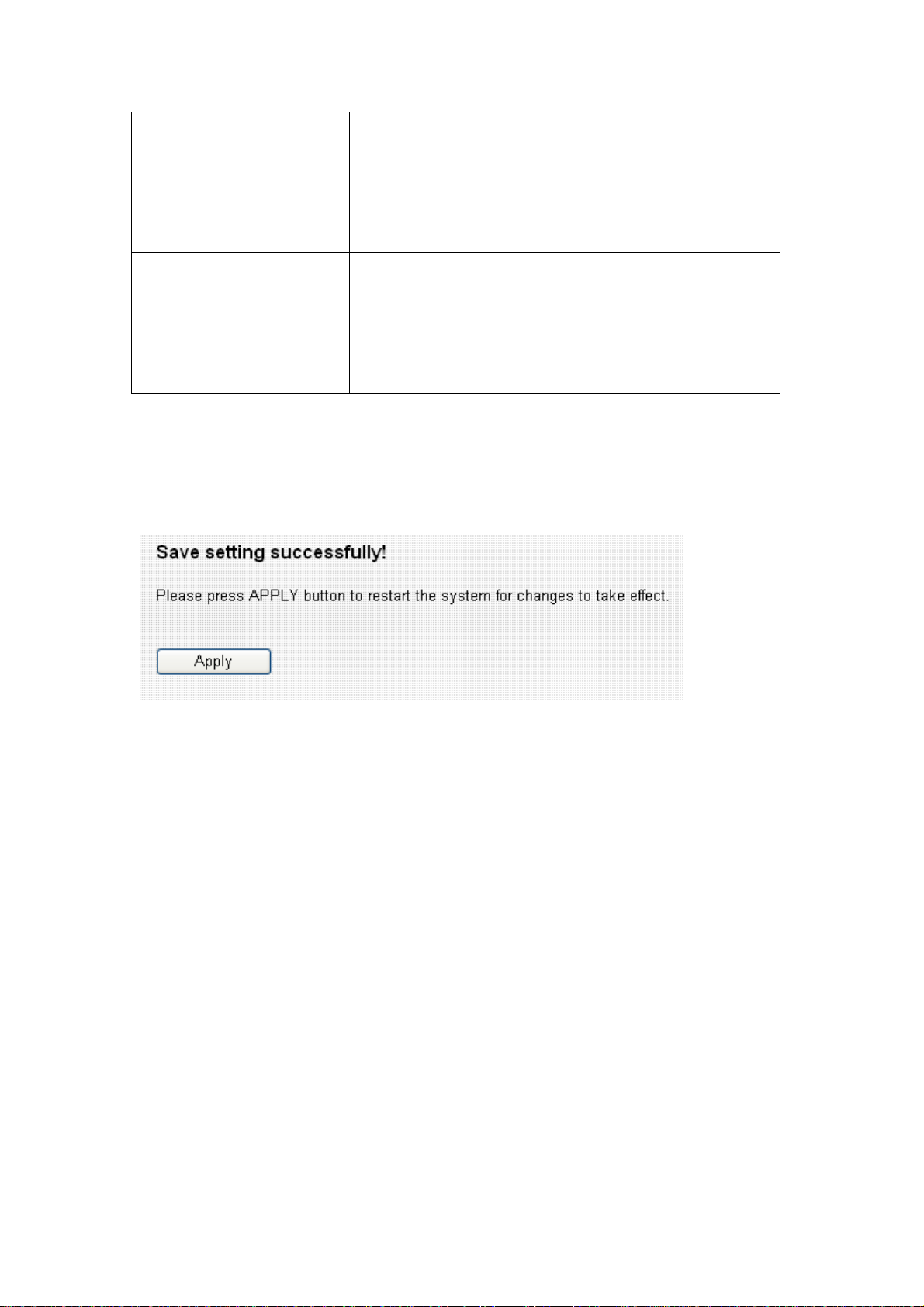

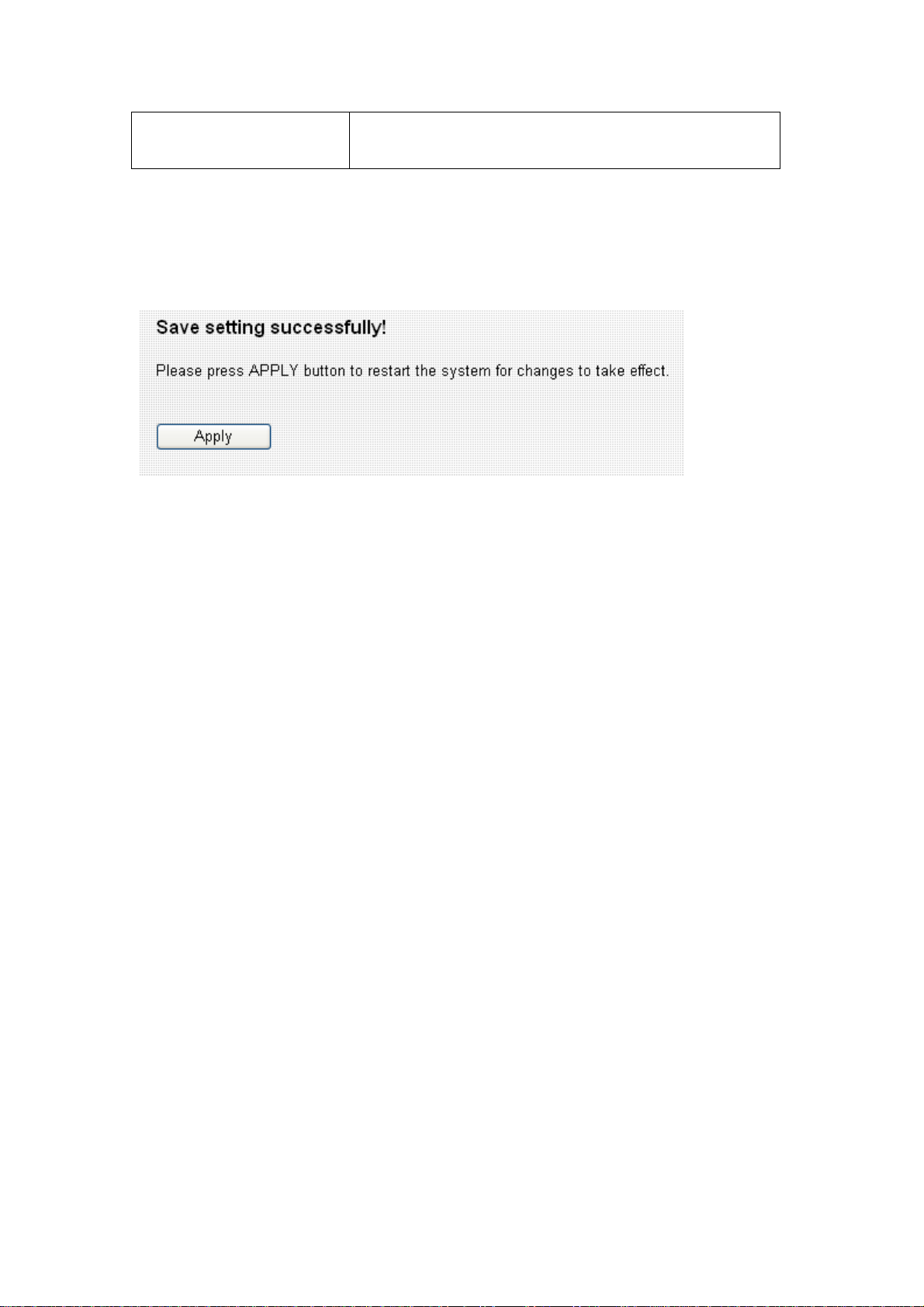

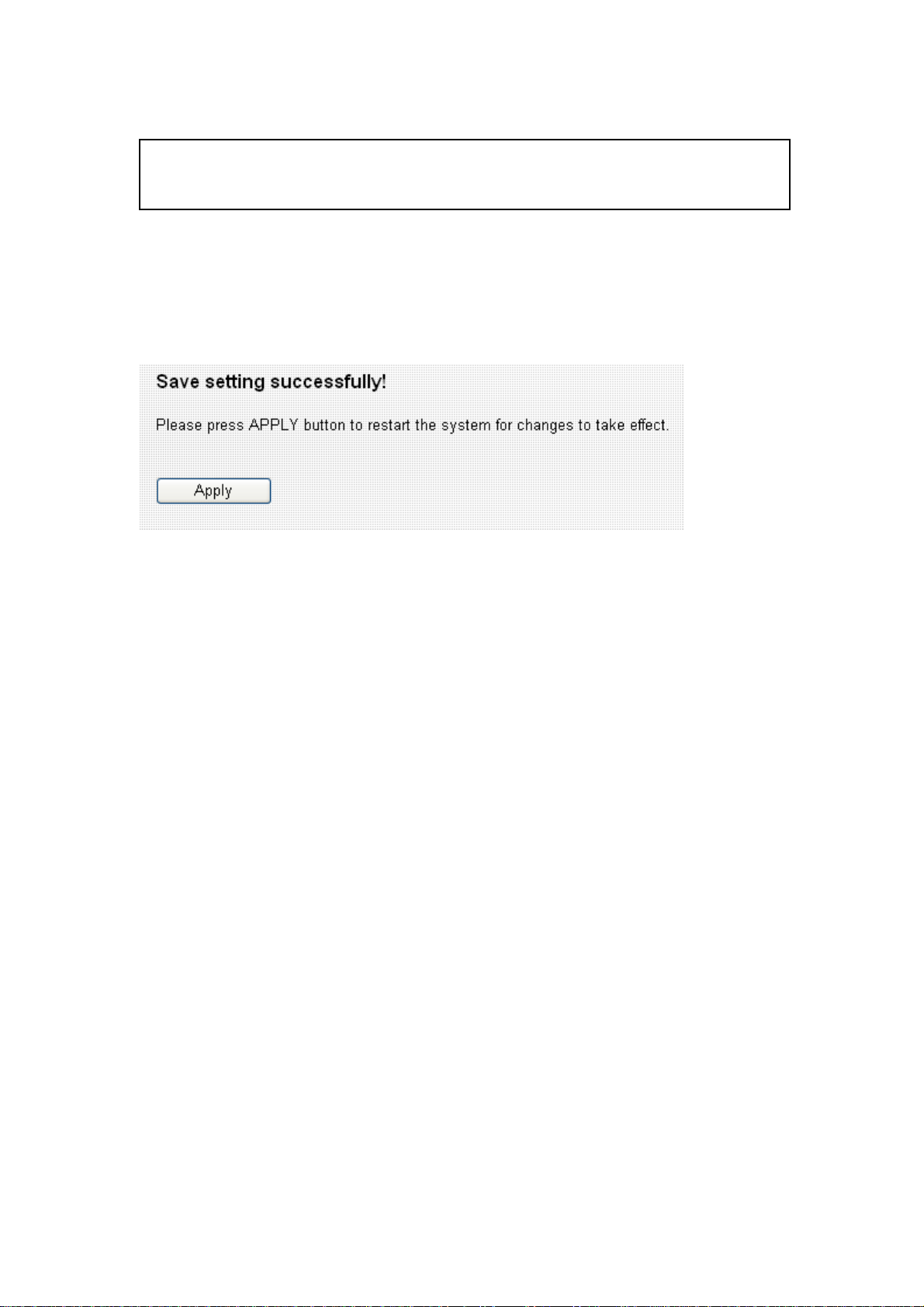

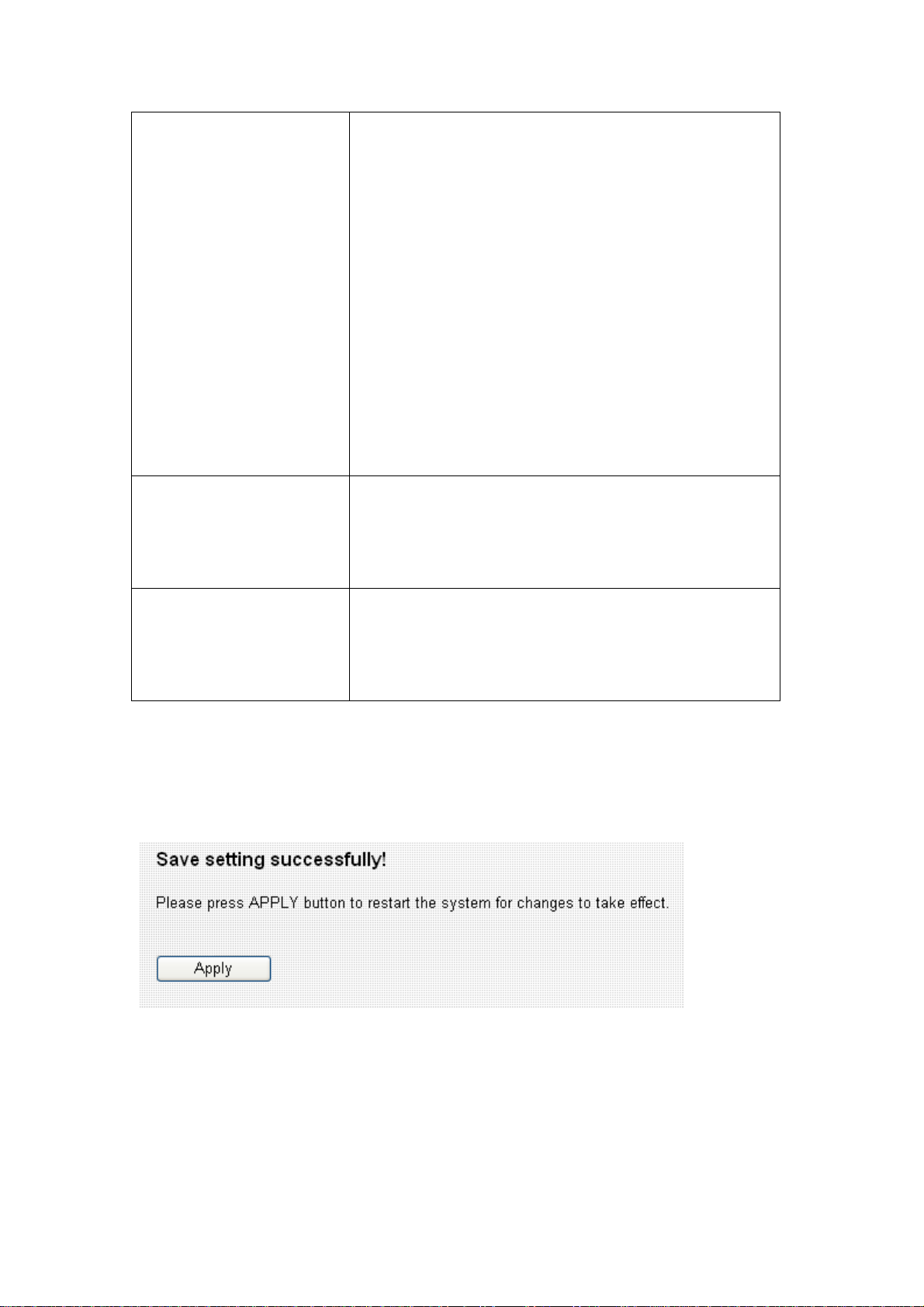

Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
40
Page 41
2-4-3 Using ‘Fixed-IP xDSL’ as broadband connection type
If your ISP requires you to set a fixed IP address to establish connection,
you can use this connection type to input the IP address information
assigned by your ISP.
Please note that not only xDSL connections (like ADSL, HDSL, VDSL)
can use this connection type, you can select this connection type for all
connections that requires you to input a fixed IP address. Also, if your ISP
is assigning a fixed IP address to you by DHCP or PPPoE, do not select
this connection type. Please contact your ISP’s service hotline to make
sure you really need to use static IP as connection type.
Here are descriptions of every setup items:
Item Name Description
IP address assigned by
your by your service
Please input IP address assigned by your
service provider.
provider
Subnet Mask Please input subnet mask assigned by your
service provider.
DNS address Please input the IP address of DNS server
provided by your service provider.
Service Provider
Gateway Address
Please input the IP address of DNS server
provided by your service provider.
TTL Time-to-live (TTL) is a value in an Internet
Protocol packet that tells a network router
whether or not the packet has been in the
network too long and should be discarded.
41
Page 42

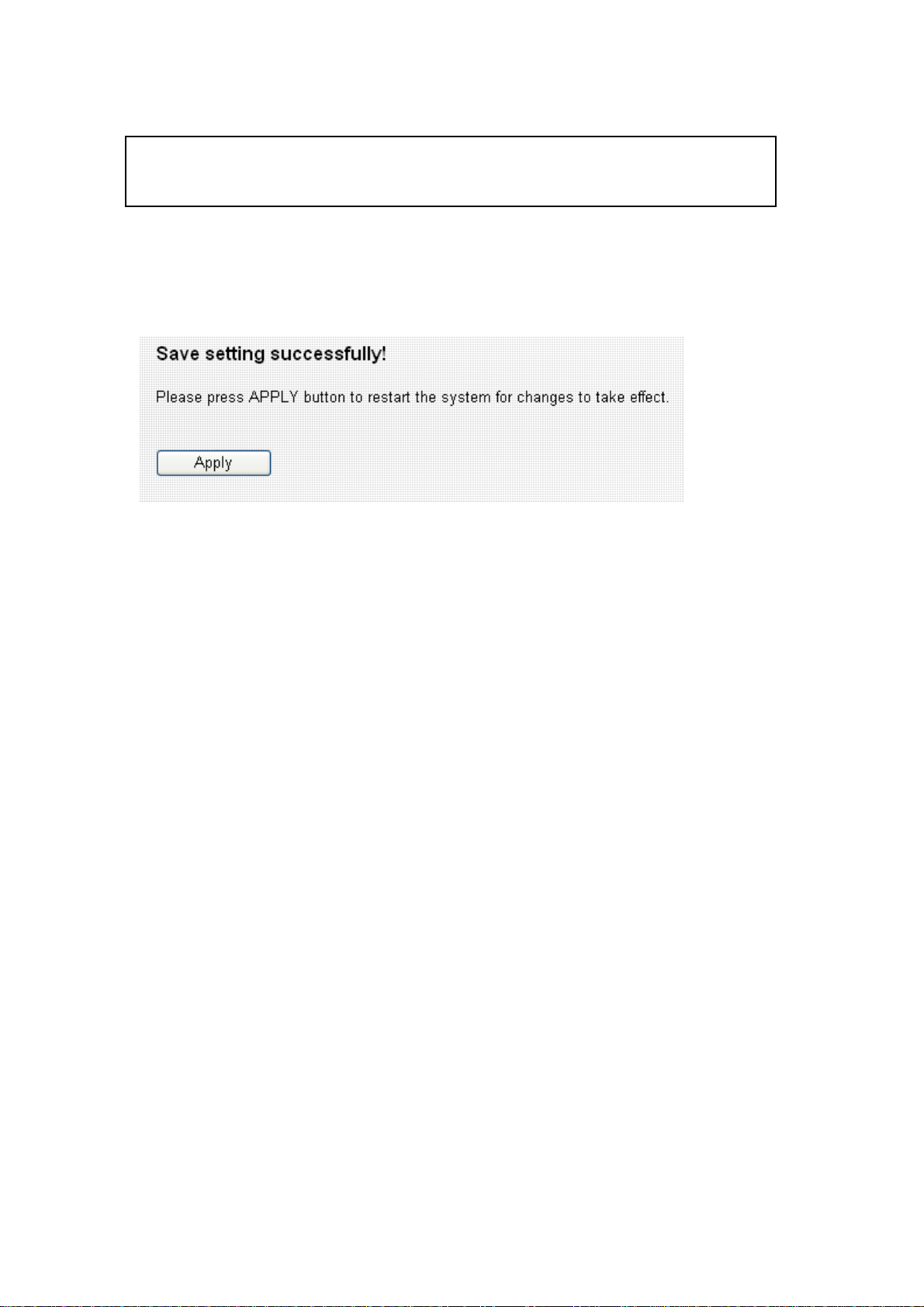

You must use the addresses provided b y your Internet service
provider, wrong setting value will cause connection problem.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
42
Page 43

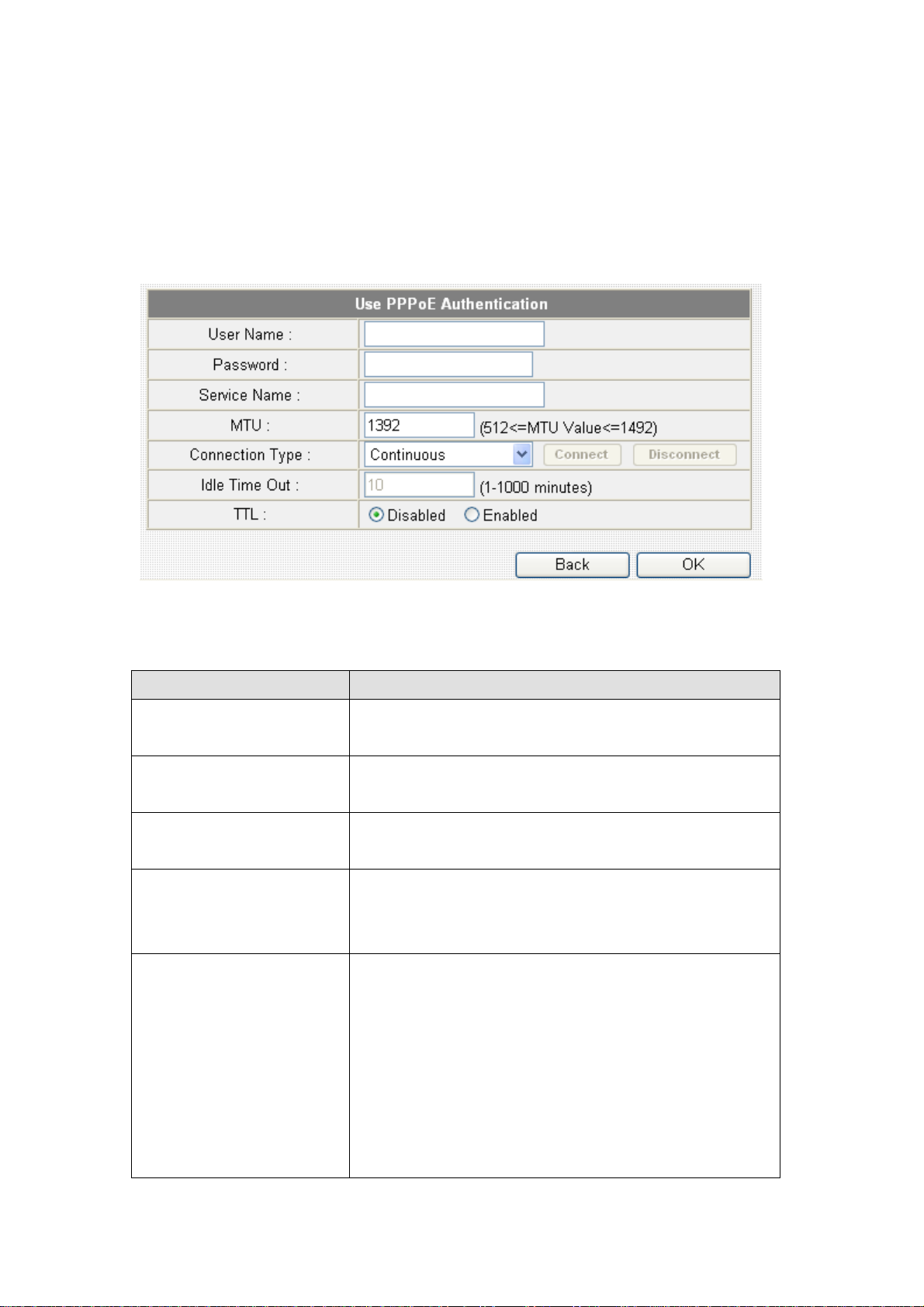

2-4-4 Using ‘PPPoE xDSL’ as broadband connection type
If your ISP requires you to establish Internet connection by PPPoE
(Point-to-Point Protocol over Ethernet), you can use this connection type
to establish Internet connection.
Here are descriptions of every setup items:
Item Name Description
User Name Please input user name assigned by your
Internet service provider here.
Password Please input the password assigned by your
Internet service provider here.
DNS address Please input the IP address of DNS server
provided by your service provider.
Service Name Please give a name to this Inte rnet service, this
is optional.
MTU Please input the MTU value of your network
connection here. If you don’t know, you can use
default value.
Connection Type Please select the connection type of Internet
43
Page 44
connection you wish to use. There are 3
options:
‘Continuous’ - keep internet connection alive,
do not disconnect.
’Connect on Demand’ - only connects to
Internet when there’s a connect attempt,
Manual - only connects to Internet when
‘Connect’ button on this page is pressed, and
disconnects when ‘Disconnect button is
pressed.
Idle T ime Out Please specify the time to shutdown internet
connect after no internet activity is detected in
minute(s). This option is only available when
connection type is ‘Connect on Demand’.
TTL Time-to-live (TTL) is a value in an Internet
Protocol packet that tells a network router
whether or not the packet has been in the
network too long and should be discarded.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
44
Page 45
2-4-5 Using ‘PPTP xDSL’ as broadband connection type
If your ISP requires you to use PPTP (Point-to-Point Tunneling Protocol)
to establish connection, you can select this connection type to establish
Internet connection.
PPTP xDSL requires two kinds of setting: WAN interface setting (setup
IP address) and PPTP setting (PPTP user name and password). Here we
start from WAN interface setting first:
Select the type of how you obtain IP address from your service provider
here. You can choose ‘Obtain an IP address automatically’ (equal to
45
Page 46
DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the
following IP address’ (i.e. static IP address).
WAN interface settings must be correctly set, or the Internet connection
will fail even those settings of PPTP settings are correct. Please contact
your Internet service provider if you don’t know what you should fill in
these fields.
Now please go to PPTP settings section:
Here are descriptions of every setup items:
Item Name Description
DNS address Please input the IP address of DNS server
provided by your service provider.
User ID Please input user ID (user name) assigned by
your Internet service provider here.
Password Please input the password assigned by your
Internet service provider here.
PPTP Gateway Please input the IP addr ess of PPTP gateway
assigned by your Internet service provider
here.
Connection ID Please input the connection ID here, this is
optional and you can leave it blank.
MTU Please input the MTU value of your network
connection here. If you don’t know, you can use
default value.
BEZEQ-ISRAEL Check ‘Enable’ box if you’re using BEZEQ
network service in Israel. Do not check this
box if you’re using other Internet service
provider.
Connection Type Please select the connection type of Internet
connection you wish to use. There are 3
options:
‘Continuous’ - keep internet connection alive,
do not disconnect.
’Connect on Demand’ - only connects to
Internet when there’s a connect attempt,
46
Page 47
Manual - only connects to Internet when
‘Connect’ button on this page is pressed, and
disconnects when ‘Disconnect button is
pressed.
Idle T ime Out Please specify the time to shutdown internet
connect after no internet activity is detected in
minute(s). This option is only available when
connection type is ‘Connect on Demand’.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
47
Page 48
2-4-6 Using 'L2TP xDSL' as broadband connection type
If your ISP requires you to use L2TP (Layer-2 Tunneling Protocol) to
establish connection, you can select this connection type to establish
Internet connection. L2TP is another popular connection method for
xDSL and other Internet connection types, and all required setting items
are the same with PPTP connection.
Like PPTP, there are two kinds of required setting, we’ll start from ‘WAN
Interface Settings’:
Please select the type of how you obtain IP address from your service
provider here. You can choose ‘Obtain an IP address automatically’ (equal
to DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the
48
Page 49
following IP address’ (equal to static IP address, please refer to ‘PPPoE
xDSL’ section above).
WAN interface settings must be correctly set, or the Internet connection
will fail even those settings of L2TP settings are correct. Please contact
your Internet service provider if you don’t know what you should fill in
these fields.
Now please go to L2TP settings section:
Here are descriptions of every setup items:
Item Name Description
User ID Please input user ID (user name) assigned by
your Internet service provider here.
Password Please input the password assigned by your
Internet service provider here.
L2TP Gateway Please input the IP address of L2TP gateway
assigned by your Internet service provider
here.
MTU Please input the MTU value of your network
connection here. If you don’t know, you can use
default value.
Connection Type Please select the connection type of Internet
connection you wish to use. There are 3
options:
‘Continuous’ - keep internet connection alive,
do not disconnect.
’Connect on Demand’ - only connects to
Internet when there’s a connect attempt,
Manual - only connects to Internet when
‘Connect’ button on this page is pressed, and
disconnects when ‘Disconnect button is
pressed.
Idle T ime Out Please specify the time to shutdown internet
connect after no internet activity is detected in
49
Page 50
minute(s). This option is only available when
connection type is ‘Connect on Demand’.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
50
Page 51
2-4-7 Using 'Telstra Big Pond' as broadband connection type
This connection type only works for Telstra big pond network service in
Australia. DO NOT select this connection type if you’re not using Telstra
big pond network service.
Here are descriptions of every setup items:
Item Name Description
User Name Please input the user name assigned by Telstra.
Password Please input the password assigned by Telstra.
User device login
server manually
Check this box to choose login server by
yourself.
Login Server Please input the IP address of login server here.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
51
Page 52
Chapter III: General Setup
The ‘General Setup’ is for you to setup “System, WAN, LAN, Wireless,
and others ( Advanced settings ) “.
Please follow the following instructions to use ‘General Setup’ menu:
1. Click ‘General Setup’ after logged in.
52
Page 53
2. Five submenus will appear:
System - Basic system settings
WAN - Setup WAN port manually , default setting is disable. If you
would like enable this function. Please click
button as follows.
LAN - Setup LAN port manually
Wireless - Setup wireless interface manually
Advanced Settings - Setup advanced settings of this broadband router
LAN/WAN Switch- For you to switch type of Ethernet port
53
Page 54
3-1 System
You can setup basic system settings of this broadband router in ‘System’
menu:
Please select the setting item you wish to set, then click ‘Apply’ button to
proceed. You can also click ‘Previous’ button to back to ‘System’ menu.
3-1-1 Time Zone
You can change the time zone settings of this broadband router. It’s
important to have correct date and time setting if you need to read system
log and use build-in firewall functions.
54
Page 55
The descriptions of every setting item are listed as follow:
Item Name Description
Time Zone Please select a time zone of the country or
region of your residence here. If you can’t find
the country / region of your residence here,
please select a city / region which time zone is
the same with the country / region of your
residence.
Time Server Address This load-balance router supports NTP
(Network Time Protocol). NTP server will
provide correct time for this router to setup the
date and time of the router automatically.
Please input the host name or IP address of
NTP server here. If you don’t know the host
name or IP address of time server, please ask
network administrator or use ‘pool.ntp.org’ as
time server.
Daylight Savings If the country / region of your residence use
daylight saving time, please check ‘Enable
Function’ box, and select the beginning and
ending date of daylight time saving.
55
Page 56

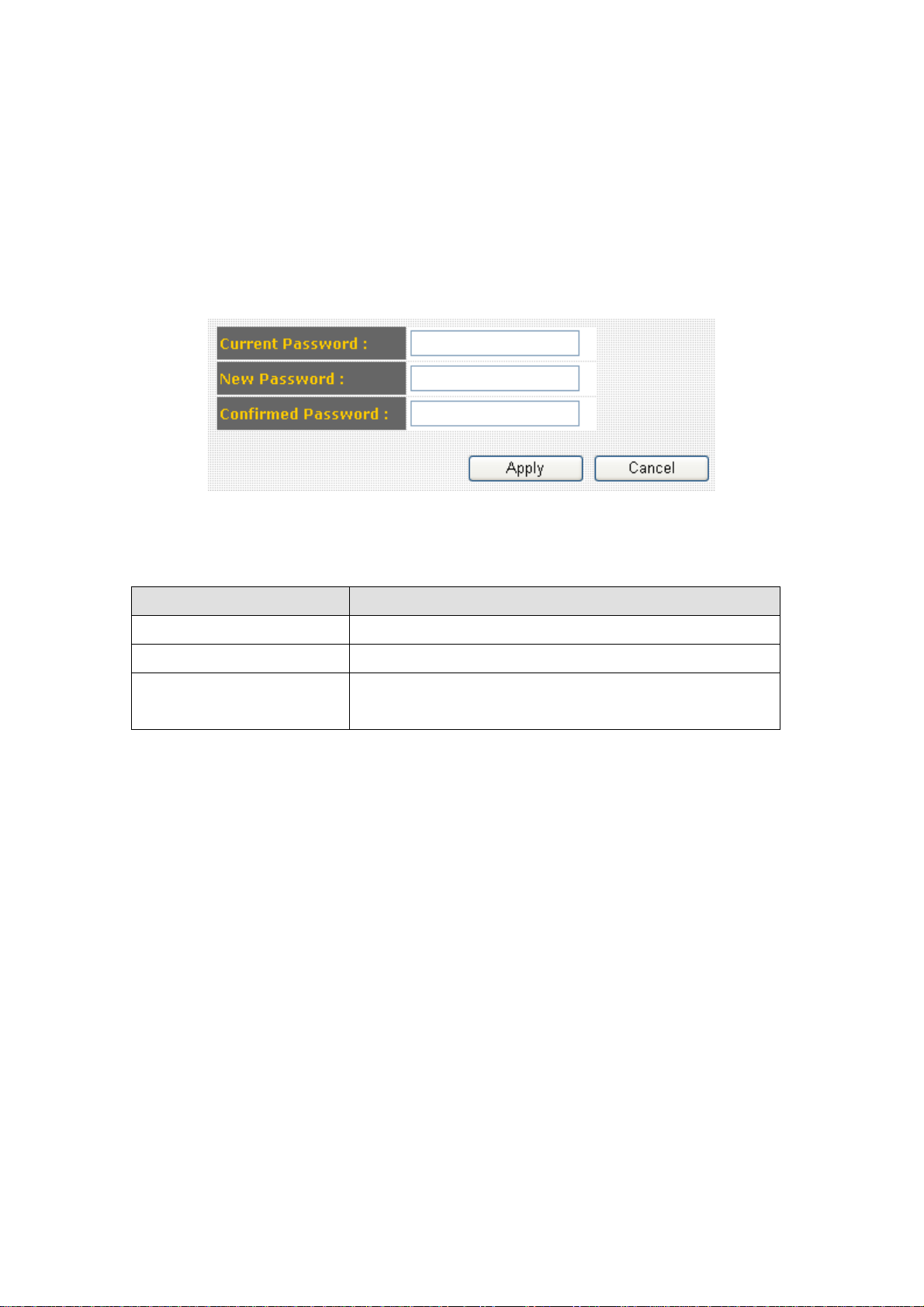

3-1-2 Password Settings
You can change the web login password of this broadband router. If you
keep using the default password ‘1234’, other people may access the
configuration interface without your permission. Please change the
password as soon as possible.
The descriptions of every setting item are listed as follow:
Item Name Description
Current Password Please input current password here.
New Password Please input new password here.
Confirmed Password Please input new password here again for
confirmation.
After you inputted current and new password, click ‘Apply’ to save
changes, or you can click ‘Cancel’ to keep current password untouched.
56
Page 57
3-1-3 Remote Management
If you need to manage this broadband router outside of your LAN (i.e.
from Internet), you can use this function to assign a remote IP address
which is permitted to connect to this broadband router’s web management
interface from Internet.
If it’s not required for you to manage this broadband router from Internet,
you can disable this function to improve security.
The descriptions of every setting item are listed as follow:
Item Name Description
Host address
Input the IP address of the remote host you
wish to initiate a management access.
Port
You can define the port number this router
should expect an incoming connection request.
If you’re providing a web service (default port
number is 80), you should try to use other port
number. You can use the default port setting
‘8080’, or something like ‘32245’ or ‘1429’.
(Any integer between 1 and 65534)
Enabled
Check this box to enable remote management
function. When this box is unchecked, no one
can access this broadband router’s
management interface from Internet.
57
Page 58
Please click ‘Apply’ to save changes in this page, or you can click
‘Cancel’ to discard all settings in this page. After you click ‘Apply’ button,
you’ll see the following message:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
58
Page 59
3-2 WAN
If you would like to access Internet via xDSL/Cable modem, you should
login 3G-6200nL to click “LAN/WAN Switch”
button
to enable the function.
You can setup WAN (Wide Area Network, i.e. Internet) connections of
this broadband router in ‘WAN’ menu:
Please select the WAN connection type you wish to use, then click
‘Apply’ to continue. You can also click ‘Previous’ to back to previous
page.
If you’re not sure which connection type you should use, please call your
ISP’s service hotline and ask for help. You’ll not be able to connect to
Internet with wrong connection type.
59
Page 60
3-2-1 3G/3.5G
3G-6200nL supports most of 3G/3.5G modem cards, just connect the
modem card to the USB port of 3G-6200nL and 3G-6200nL will
recognize it automatically, no additional setup procedure required.
However, some of modem cards require PIN code or account / password
(you have to use 3G-6200nL’s web interface to input these information),
and some modem cards requires you to connect the modem card with
your PC and install driver / utility before you connect it with 3G-6200nL
(all PCs which need to access Internet by 3G-6200nL requires to perform
this procedure once). If you still not able to connect to Internet, please use
wired Internet connection to access our website :
http://www.edimax.com/ ,download latest version of firmware and
upgrade 3G-6200nL’s firmware. If you still not be able to get connected
by your 3G/3.5G modem card, please contact your dealer of purchase and
provide the model name of the 3G/3.5G modem card you have, we’ll try
our best to help you to solve the problem.
Only one Internet connection (wireless / wired) can be used at the same
time. Wireless connection (3G/3.5G) will be selected first, and use wired
Internet connection as backup. Therefore, please DO NOT connect your
3G/3.5G modem card with 3G-6200nL, or your telecomm service
provider may charge you with high communication fee. For example, if
you connect 3G/3.5G modem card with 3G-6200nL when you’re using
wired Internet connection, wired connection will be dropped and use
3G/3.5G wireless connection instead. If 3G/3.5G wireless signal
reception is poor and the connection can not be restored within 60
seconds, 3G-6200nL will use wired Internet connection again, and will
not switch back to wireless Internet connection (This only happens with
wired Internet connection is available. If wired connection is unavailable,
3G-6200nL will try to establish 3G/3.5G wireless connection again and
again). If you want to use 3G/3.5G wireless connection again, you need
to remove 3G/3.5G modem card from 3G-6200nL and reconnect it back
after 5 seconds.
( A ) Plug and play, no setup procedure required.
Connect the USB 3G/3.5G modem card with 3G-6200nL and make sure
the corresponding USB LED indicator of 3G-6200nL lights up, then you
can use the web browser to access Internet.
( B ) PIN code or user name / password required:
Please check the authentication method you want to use. Most of
telecomm service providers require you to input PIN Code, please check
60
Page 61
‘SIM’ and input the PIN code provided by telecomm service provider.
Most of options listed here are optional and you don’t have to provide
those information if telecomm service provider doesn’t provide you with
those information.
If telecomm provider provides you with username / password, please
check /User Name / Password box and input the user name / password
provided by telecomm service provider, then click ‘OK’ button. Wait for
1 minute (for 3G-6200nL to reboot), then you can access Internet.
Note: Please choose “CDMA”, if your ISP use 3G CDMA system.
61
Page 62
3-2-2 Dynamic IP
Dynamic IP means your ISP will assign an IP address to you
automatically by ‘DHCP’ (Dynamic Host Configuration Protocol).
Dynamic IP is often used by cable modem Internet connection.
Here are descriptions of every setup items:
Item Name Description
Host Name Please input the host name of your computer,
this is optional, and only required if your
service provider asks you to do so.
MAC address Please input MAC address of your computer
here, if your service provider only permits
computer with certain MAC address to access
internet. If you’re using the computer which
used to connect to Internet via cable modem,
you can simply press ‘Clone Mac address’
button to fill the MAC address field with the
MAC address of your computer.
TTL Time-to-live (TTL) is a value in an Internet
Protocol packet that tells a network router
whether or not the packet has been in the
network too long and should be discarded.
62
Page 63
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
63
Page 64
3-2-3 Static IP
Some ISP will give you a fixed IP address, and ask you to use this IP
address to establish Internet connection. In this case, you have to select
this connection type to establish connection with your ISP.
Please note that if your ISP is assigning a fixed IP address to you by
DHCP or PPPoE, do not select this connection type. Please contact your
ISP’s service hotline to make sure you really need to use static IP as
connection type.
Here are descriptions of every setup items:
Item Name Description
IP address assigned by
your by your service
Please input IP address assigned by your
service provider.
provider
Subnet Mask Please input subnet mask assigned by your
service provider.
DNS address Please input the IP address of DNS server
provided by your service provider.
Service Provider
Gateway Address
Please input the IP address of DNS server
provided by your service provider.
TTL Time-to-live (TTL) is a value in an Internet
Protocol packet that tells a network router
whether or not the packet has been in the
network too long and should be discarded.
64
Page 65
You must use the addresses provided b y your Internet service
provider, wrong setting value will cause connection problem.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
65
Page 66
3-2-4 PPPoE
If your ISP requires you to establish Internet connection by PPPoE
(Point-to-Point Protocol over Ethernet), you can use this connection type
to establish Internet connection.
Here are descriptions of every setup items:
Item Name Description
User Name Please input user name assigned by your
Internet service provider here.
Password Please input the password assigned by your
Internet service provider here.
Service Name Please give a name to this Inte rnet service, this
is optional.
MTU Please input the MTU value of your network
connection here. If you don’t know, you can use
default value.
Connection Type Please select the connection type of Internet
connection you wish to use. There are 3
options:
‘Continuous’ - keep internet connection alive,
do not disconnect.
’Connect on Demand’ - only connects to
66
Page 67
Internet when there’s a connect attempt,
Manual - only connects to Internet when
‘Connect’ button on this page is pressed, and
disconnects when ‘Disconnect button is
pressed.
Idle T ime Out Please specify the time to shutdown internet
connect after no internet activity is detected in
minute(s). This option is only available when
connection type is ‘Connect on Demand’.
TTL Time-to-live (TTL) is a value in an Internet
Protocol packet that tells a network router
whether or not the packet has been in the
network too long and should be discarded.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
67
Page 68
3-2-5 PPTP
If your ISP requires you to use PPTP (Point-to-Point Tunneling Protocol)
to establish connection, you can select this connection type to establish
Internet connection.
PPTP requires two kinds of setting: WAN interface setting (setup IP
address) and PPTP setting (PPTP user name and password). Here we start
from WAN interface setting first:
Select the type of how you obtain IP address from your service provider
here. You can choose ‘Obtain an IP address automatically’ (equal to
68
Page 69
DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the
following IP address’ (i.e. static IP address).
WAN interface settings must be correctly set, or the Internet connection
will fail even those settings of PPTP settings are correct. Please contact
your Internet service provider if you don’t know what you should fill in
these fields.
Now please go to PPTP settings section:
Here are descriptions of every setup items:
Item Name Description
User ID Please input user ID (user name) assigned by
your Internet service provider here.
Password Please input the password assigned by your
Internet service provider here.
PPTP Gateway Please input the IP addr ess of PPTP gateway
assigned by your Internet service provider
here.
Connection ID Please input the connection ID here, this is
optional and you can leave it blank.
MTU Please input the MTU value of your network
connection here. If you don’t know, you can use
default value.
BEZEQ-ISRAEL Check ‘Enable’ box if you’re using BEZEQ
network service in Israel. Do not check this
box if you’re using other Internet service
provider.
Connection Type Please select the connection type of Internet
connection you wish to use. There are 3
options:
‘Continuous’ - keep internet connection alive,
do not disconnect.
’Connect on Demand’ - only connects to
Internet when there’s a connect attempt,
Manual - only connects to Internet when
69
Page 70
‘Connect’ button on this page is pressed, and
disconnects when ‘Disconnect button is
pressed.
Idle T ime Out Please specify the time to shutdown internet
connect after no internet activity is detected in
minute(s). This option is only available when
connection type is ‘Connect on Demand’.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
70
Page 71
3-2-6 L2TP
If your ISP requires you to use L2TP (Layer-2 Tunneling Protocol) to
establish connection, you can select this connection type to establish
Internet connection. L2TP is another popular connection method for
xDSL and other Internet connection types, and all required setting items
are the same with PPTP connection.
Like PPTP, there are two kinds of required setting, we’ll start from ‘WAN
Interface Settings’:
Please select the type of how you obtain IP address from your service
provider here. You can choose ‘Obtain an IP address automatically’ (equal
to DHCP, please refer to ‘Cable Modem’ section above), or ‘Use the
71
Page 72
following IP address’ (equal to static IP address, please refer to ‘PPPoE
xDSL’ section above).
WAN interface settings must be correctly set, or the Internet connection
will fail even those settings of L2TP settings are correct. Please contact
your Internet service provider if you don’t know what you should fill in
these fields.
Now please go to L2TP settings section:
Here are descriptions of every setup items:
Item Name Description
User ID Please input user ID (user name) assigned by
your Internet service provider here.
Password Please input the password assigned by your
Internet service provider here.
L2TP Gateway Please input the IP address of L2TP gateway
assigned by your Internet service provider
here.
MTU Please input the MTU value of your network
connection here. If you don’t know, you can use
default value.
Connection Type Please select the connection type of Internet
connection you wish to use. There are 3
options:
‘Continuous’ - keep internet connection alive,
do not disconnect.
’Connect on Demand’ - only connects to
Internet when there’s a connect attempt,
Manual - only connects to Internet when
‘Connect’ button on this page is pressed, and
disconnects when ‘Disconnect button is
pressed.
Idle T ime Out Please specify the time to shutdown internet
connect after no internet activity is detected in
72
Page 73
minute(s). This option is only available when
connection type is ‘Connect on Demand’.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
73
Page 74
3-2-7 Telstra Big Pond
This connection type only works for Telstra big pond network service in
Australia. DO NOT select this connection type if you’re not using Telstra
big pond network service.
Here are descriptions of every setup items:
Item Name Description
User Name Please input the user name assigned by Telstra.
Password Please input the password assigned by Telstra.
User device login
server manually
Check this box to choose login server by
yourself.
Login Server Please input the IP address of login server
here.
If you wish to select another connection type as broadband connection
type, click ‘Back’; or you can click ‘OK’ to finish with quick setup.
You’ll see the following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
74
Page 75
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
75
Page 76
3-3 LAN (Wired)
You can setup Wired LAN (Local Area Network) connections of this
broadband router in ‘LAN’ menu. Please also note that both wired and
wireless LAN uses the same LAN IP address settings, too.
LAN settings split into 3 sections: LAN IP, DHCP Server, and Static
DHCP leases. Please refer to corresponding sections below for detailed
setup instructions.
3-3-1 Start
Before you start - Suggestions for deciding an IP address to be used with
this broadband router
Before all computers using wired Ethernet connection or wireless
connection can communicate with each other and access internet, they
must have a valid IP address.
There are two ways to assign IP addresses to computers: static IP address
(set the IP address for every computer manually), and dynamic IP address
(IP address of computers will be assigned by router automatically. It’s
recommended for most of computers to use dynamic IP address, it will
save a lot of time on setting IP addresses for every computer, especially
when there are a lot of computers in your network; for servers and
network devices which will provide services to other computer and users
that come from Internet, static IP address should be used, so other
computes can locate the server.
This broadband router has a built-in DHCP (Dynamic Host Configuration
Protocol) server, and can help you to assign IP addresses to your client
computers. Almost all network computers / devices manufactured after
year 1995 are compatible with DHCP, and you can let this broadband
router to assign the IP address to client computers / devices for you.
76
Page 77
Suggestions on IP address numbering plan:
If you have no idea on how to define an IP address plan for your
network, here are some suggestions.
1. A valid IP address has 4 fields: a.b.c.d, for most of home and
company users, it’s suggested to use 192.168.c.d, where c is
an integer between 0 and 254, and d is an integer between 1
and 254. This router is capable to work with up to 253 clients,
so you can set ‘d’ field of IP address of router as 1 or 254 (or
any number between 1 and 254), and pick a number between 0
and 254 for field ‘c’.
2. In most cases, you should use ‘255.255.255.0’ as subnet mask,
which allows up to 253 clients (this also meets router’s
capability of working with up to 253 clients).
3. For all servers and network devices which will provide
services to other people (like Internet service, print service,
and file service), they should use static IP address. Give each
of them a unique number between 1 and 253, and maintain a
list, so everyone can locate those servers easily.
4. For computers which are not dedicated to provide specific
service to others, they should use dynamic IP address.
If you don’t really understand the descriptions listed above, don’t
worry! We will provide recommended setup values below.
77
Page 78
3-3-2 LAN IP
If you enable “DHCP Server” , the router can assign IP address to PC
which connect with the router. You can use this setting to assign an IP
address to the LAN interface of this broadband router.
Here are descriptions of every setup items:
Item Name Description
IP address Please input the IP address of this broadband
router’s LAN interface.
Subnet Mask Please input subnet mask for this network.
802.1d Spanning Tree If you wish to activate 802.1d spanning tree
function, select ‘Enabled’ for setup item
‘802.1d Spanning Tree’, or set it to ‘Disabled’.
DHCP Server If you want to activate DHCP server function
of this router, select ‘Enabled’, or set it to
‘Disabled’.
Lease Time Please select the lease time for every DHCP
leases here. You can select the time period from
the dropdown list, and the DHCP client will be
forced to obtain a new IP address from this
broadband router after this period of time.
You can select ‘Forever’ if you’re using this
broadband router with only few computers
(less than 30 computers)
Recommended Value if you don’t know what to fill:
IP Address: 192.168.1.254
Subnet Mask: 255.255.255.0
802.1d Spanning Tree: Disabled
DHCP Server: Enabled
78
Page 79
3-3-3 DHCP Server
You can use this setting to decide the range of IP address leases.
Here are descriptions of every setup items:
Item Name Description
Start IP Please input the start IP address of the IP
leases range.
End IP Please input the end IP address of the IP leases
range.
Domain Name If you wish, you can also input the domain
name for your network. This is optional.
Recommended Value if you don’t know what to fill:
Lease Time: Two Weeks (or ‘Forever’, if you have less than 20 computers)
Start IP: 192.168.2.2
End IP: 192.168.2.200
Domain Name: (leave it blank)
NOTE:
1. The number of the last field (mentioned ‘d’ field) of ‘End IP’ must be
greater than ‘Start IP’, and can not the same with router’s IP address.
2. The former three fields of IP address of ‘Start IP’, ‘End IP’, and ‘IP
Address of ‘LAN IP’ section (mentioned ‘a’, ‘b’, and ‘c’ field) should be
the same.
3. These settings will affect wireless clients, too.
79
Page 80

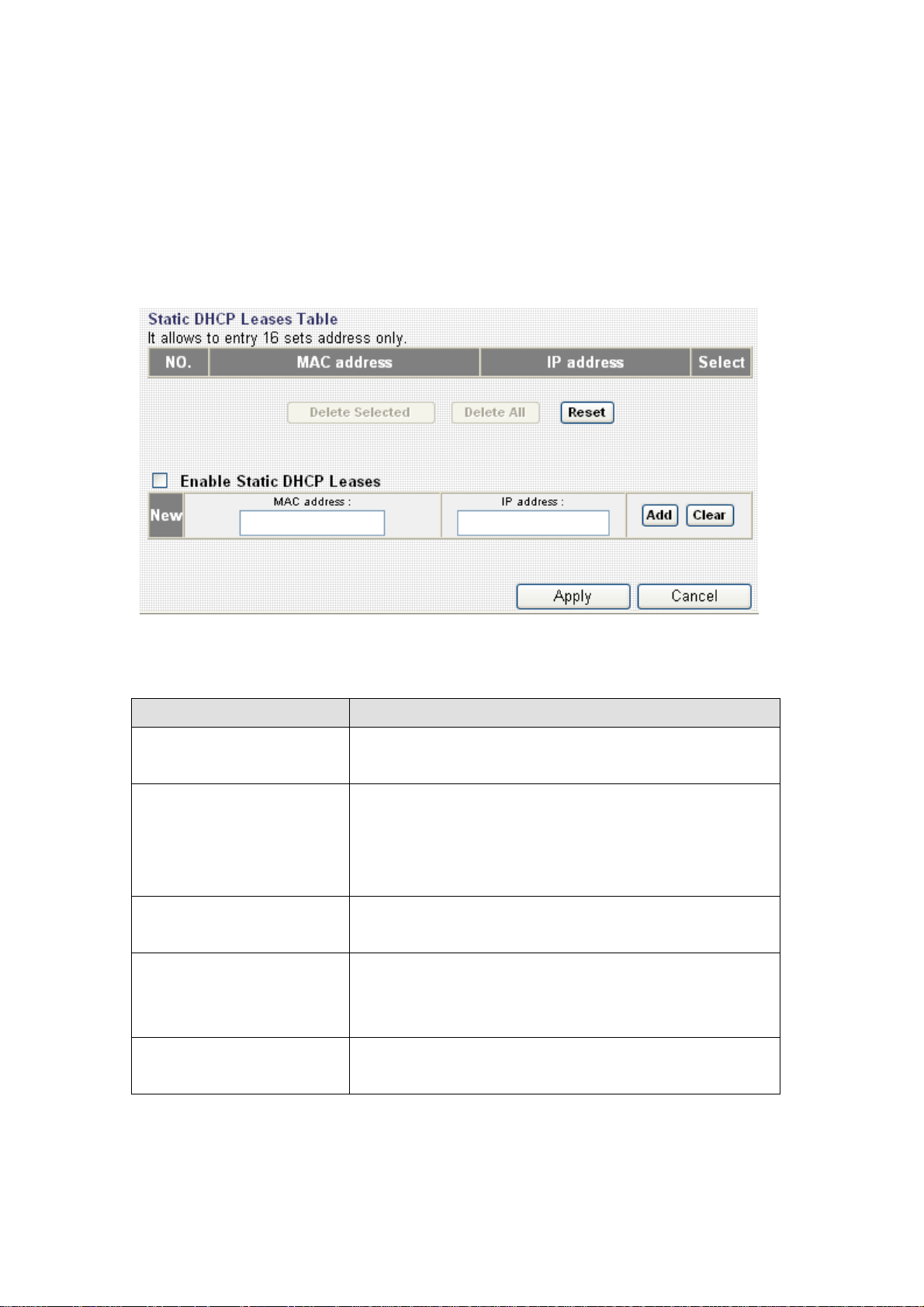

3-3-4 Static DHCP Leases
If you wish to assign a fixed IP address to certain computers / devices by
DHCP, you can use this function to establish a MAC-to-IP address table
here, so you can assign a specific IP address to a specific computer /
network device by its MAC address.
Here are descriptions of every setup items:
Item Name Description
Enable Static
DHCP Leases
Check this box to enable this function,
otherwise uncheck it to disable this function.
MAC Address Input the MAC address of the computer or
network device (total 12 characters, with
character from 0 to 9, and from a to f, like
‘001122aabbcc’).
IP address Input the IP address you want to assign to
this computer or network device.
Add After you inputted MAC address and IP
address pair, click this button to add the pair
to static DHCP leases table.
Clear Click this button to remove texts in MAC
address and IP address field.
80
Page 81
All MAC-to-IP address entries will be listed in this page, and this
broadband router supports up 16 static DHCP leases:
To delete one or more entries listed here, please check the box of the
mapping entry (under ‘Select’), and click ‘Delete Selected’ button.
If you wish to delete all mapping entries, click ‘Delete All’ button. To
deselect all checked boxes, click ‘Reset’ button.
When you finished with the settings in this page, you can click ‘Apply’
button to save changes you made in this page, or you can click ‘Cancel’
to discard changes. After you click ‘Apply’ button, you’ll see the
following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
81
Page 82
3-4 W ireless
You can setup Wireless LAN connection parameters of this broadband
router in ‘Wireless’ menu:
Please select one setting in this menu, then click ‘Apply’ to proceed. If
you wish to go back to previous page, click ‘Previous’.
82
Page 83

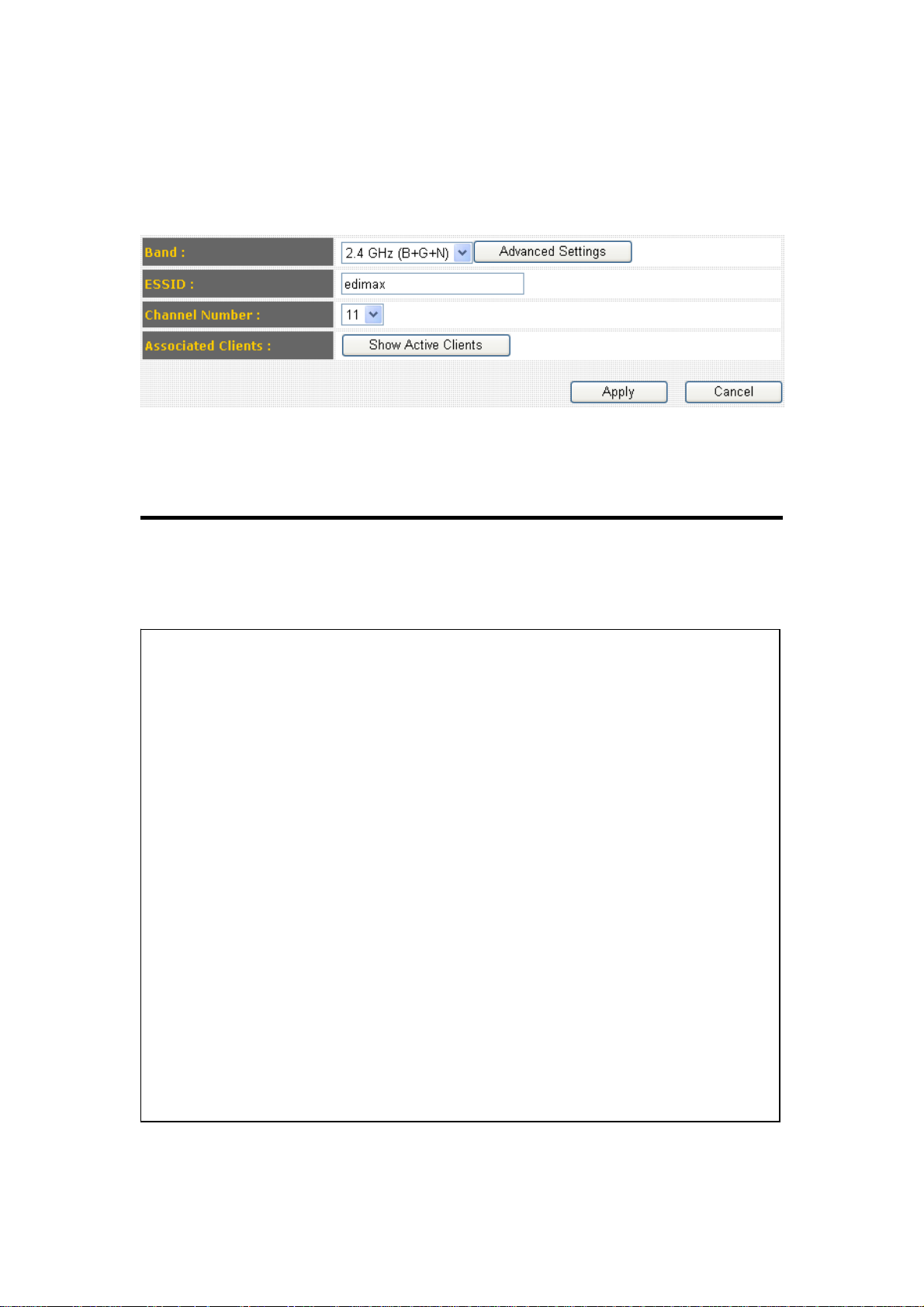

3-4-1 Basic Settings
You can set basic settings of wireless LAN here.
Here are descriptions of ‘Band’ setup items:
BAND : Please select the radio band you want to use from
‘Band’ dropdown menu , and the following message
will be displayed:
2.4 GHz (B) 2.4GHz band, only allows 802.11b wireless
2.4 GHz (N) 2.4GHz band, only allows 802.11n wireless
2.4 GHz (B+G) 2.4GHz band, only allows 802.11b and 802.11g
2.4 GHz (G) 2.4GHz band, only allows 802.11g wireless
network client to connect this router (maximum
transfer rate 11Mbps).
network client to connect this router (maximum
transfer rate 150Mbps).
wireless network client to connect this router
(maximum transfer rate 11Mbps for 802.1 1b
clients, and maximum 54Mbps for 802.11g
clients).
network client to connect this router (maximum
transfer rate 54Mbps).
83
Page 84
2.4 GHz (B+G+N) 2.4GHz band, allows 802.11b, 802.11g, and
802.11n wireless network client to connect this
router (maximum transfer rate 11Mbps for
802.11b clients, maximum 54Mbps for 802.11g
clients, and maximum 150Mbps for 802.11n
clients).
SSID: This is the name of wireless router. You can type any
alphanumerical characters here, maximum 32
characters. ESSID is used to identify your own
wireless router from others when there are other
wireless routers in the same area. Default SSID is
‘edimax’, it’s recommended to change default
ESSID name to the one which is meaningful to you,
like myhome, office_room1, etc.
Channel Number : Please select a channel from the dropdown list of
‘Channel Number’, available channel numbers are
1 to 13 for European countries, 1 to 11 for USA. You
can choose any channel number you want to use,
and almost all wireless clients can locate the
channel you’re using automatically without any
problem. However, it’s still useful to remember the
channel number you use, some wireless client
supports manual channel number select, and this
would help in certain scenario when there is some
radio communication problem.
Associated Clients : Click ‘Show Active Clients’ button, then an “Active
Wireless Client Table” will pop up. You can see the
status of all active wireless stations that are
connecting to the access point.
NOTE: If you don’t have special reason to limit the type of allowed
wireless client, it’s recommended to choose ‘2.4 GHz (B+G+N) to
maximize wireless client compatibility.
84
Page 85
TIPS: You can try to change channel number to another one if you
think the data transfer rate is too slow. There could be some other
wireless routers using the same channel, which will disturb the radio
communication between wireless client and the wireless router.
After you finish the wireless setting, please click ‘Apply’ button, after
you click ‘Apply’, the following message will be displayed on your web
browser:
85
Page 86
3-4-1 AP mode
In AP mode, the following settings will appear:
Here are descriptions of every setup items:
Item Name Description
Band Please select the radio band from one of
following options:
2.4 GHz (B): 2.4GHz band, only allows
802.11b wireless network client to connect this
router (maximum transfer rate 11Mbps).
2.4 GHz (N): 2.4GHz band, only allows
802.11n wireless network client to connect this
router (maximum transfer rate 150Mbps).
2.4 GHz (B+G): 2.4GHz band, only allows
802.11b and 802.11g wireless network client to
connect this router (maximum transfer rate
11Mbps for 802.11b clients, and maximum
54Mbps for 802.11g clients).
2.4 GHz (G): 2.4GHz band, only allows
802.11g wireless network client to connect this
router (maximum transfer rate 54Mbps).
2.4 GHz (B+G+N): 2.4GHz Band, Allows
802.11b, 802.11g, and 802.11N wireless clients.
It’s recommends to select this band to maximize
86
Page 87
compatibility.
ESSID This is the name of broadband router. You can
type any alphanumerical characters here,
maximum 32 characters. ESSID is used to
identify your own broadband router from
others when there are other broadband routers
in the same area. Default SSID is ‘Edimax’, it’s
recommended to change default ESSID value
to the one which is meaningful to you, like
myhome, office_room1, etc.
Channel Number Please select a channel from the dropdown list
of ‘Channel Number’, available channel
numbers are 1 to 13. You can choose any
channel number you want to use, and almost
all wireless clients can locate the channel
you’re using automatically without any
problem. However, it’s still useful to remember
the channel number you use, some wireless
client supports manual channel number select,
and this would help in certain scenario when
there is some radio communication problem.
Associated Clients Click ‘Show Active Clients’ button to show
the list of all connected wireless clients. You
can click ‘Refresh’ in new window to get
latest list again, or click ‘Close’ to close the
window.
Please note that if you have pop-up blocker
installed, you may have to disable it or tell
your pop-up blocker to allow the popup
window, or you will not be able to see the
wireless client list window.
Advanced Settings When you click ”Advanced Settings”, you
will get a windows as follows. Please do not
change the default settings, if you do not
understand the meaning of the setting.

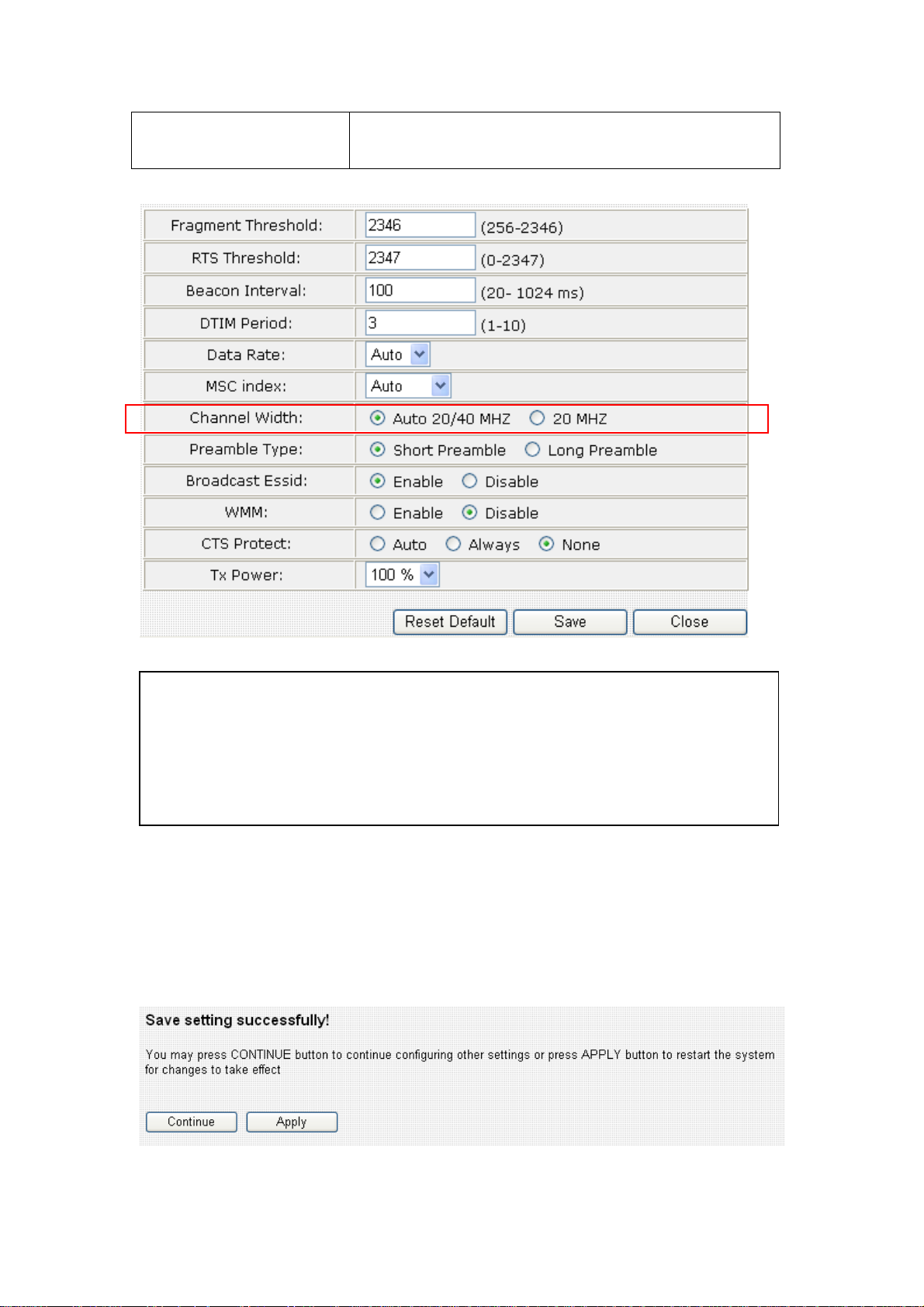

Where you can setup Channel Width in ”
87
Page 88
Auto 20/40MHz ” to get good wireless
signal.
TIPS: You can try to change channel number to another one if you
think the data transfer rate is too slow, or keep having problem while
transferring the file over wireless network. There could be some other
broadband routers using the same channel, which will disturb the
radio communication between wireless client and the broadband
When you finished with the settings in this page, you can click ‘Apply’
button to save changes you made in this page, or you can click ‘Cancel’
to discard changes. After you click ‘Apply’ button, you’ll see the
following messages:
88
Page 89
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
You can click ‘Continue’ to continue on other settings without restart the
broadband router, however, the changes you made will not take effect
before you restart the broadband router.
89
Page 90
3-4-2 Security Settings
This wireless router supports two types of encryption: WEP (Wired
Equivalent Privacy) and WPA (Wi-Fi Protected Access):
Please select an encryption method from ‘Encryption’ dropdown menu,
and corresponding setting will appear:
Disabled
Encryption is disabled. It’s not recommended to disable encryption
because other people may use certain wireless scanner to copy the data
transferred over air.
90
Page 91
WEP
Select WEP to enable WEP (Wired Equivalent Privacy) encryption:
Here are descriptions of every setup items:
Item Name Description
Key Length There are two types of WEP key length: 64-bit
and 128-bit. Using ‘128-bit’ is safer
than ’64-bit’, but will reduce some data
transfer performance.
Key Format There are two types of key format: ASCII and
Hex. When you select a key format, the number
of characters of key will be displayed. For
example, if you select ’64-bit’ as key length,
and ‘Hex’ as key format, you’ll see the message
at the right of ‘Key Format’ is ‘Hex (10
characters), which means the length of WEP
key is 10 characters.
Default Tx Key You can set up to four sets of WEP key, and you
can decide which key is being used by default
here. If you don’t know which one you should
use, select ‘Key 1’.
Encryption Key 1 to 4 Input WEP key characters here, the number of
91
Page 92
characters must be the same as the number
displayed at ‘Key Format’ field. You can use
any alphanumerical characters (0-9, a-z, and
A-Z) if you select ‘ASCII’ key format, and if
you select ‘Hex’ as key format, you can use
characters 0-9, a-f, and A-F. You must enter at
least one encryption key here, and if you
entered multiple WEP keys, they should not be
same with each other.
Please click ‘Apply’ to save changes, or click ‘Reset’ to clear the texts in
all fields. If you click ‘Apply’, the following messages will appear:
You can click ‘Continue’ to back to previous page and continue setting, or
click ‘Apply’ to restart the broadband router so the changes will take
effect.
WPA pre-shared key
WPA (Wi-Fi Protected Access) is also an encryption method and is safer
than WEP. It’s recommended to use WPA instead of WEP when you need
to use encryption to protect your data security.
92
Page 93
Here are descriptions of every setup items:
Item Name Description
WPA Unicast Cipher
Suite
Please select a type of WPA cipher suite.
Available options are: WPA (TKIP), WPA2
(AES), and WPA2 Mixed. You can select one of
them, but you have to make sure your wireless
client support the cipher you selected.
Pre-shared Key
Format
Select the type of pre-shared key, you
can select Passphrase (8 or more
alphanumerical characters, up to 63), or Hex
(64 characters of 0-9, and a-f).
Pre-shared Key Please input the WPA passphrase here.
It’s not recommended to use a word that can
be found in a dictionary due to security
reason.
Please click ‘Apply’ to save changes, or click ‘Reset’ to clear the texts in
all fields. If you click ‘Apply’, the following messages will appear:
You can click ‘Continue’ to back to previous page and continue setting, or
click ‘Apply’ to restart the broadband router so the changes will take
effect.
WPA RADIUS
If you have RADIUS authentication server on your local network, you
can authenticate the wireless clients by RADIUS server’ s user database.
Only authenticated clients can establish wireless connection with this
broadband router.
93
Page 94

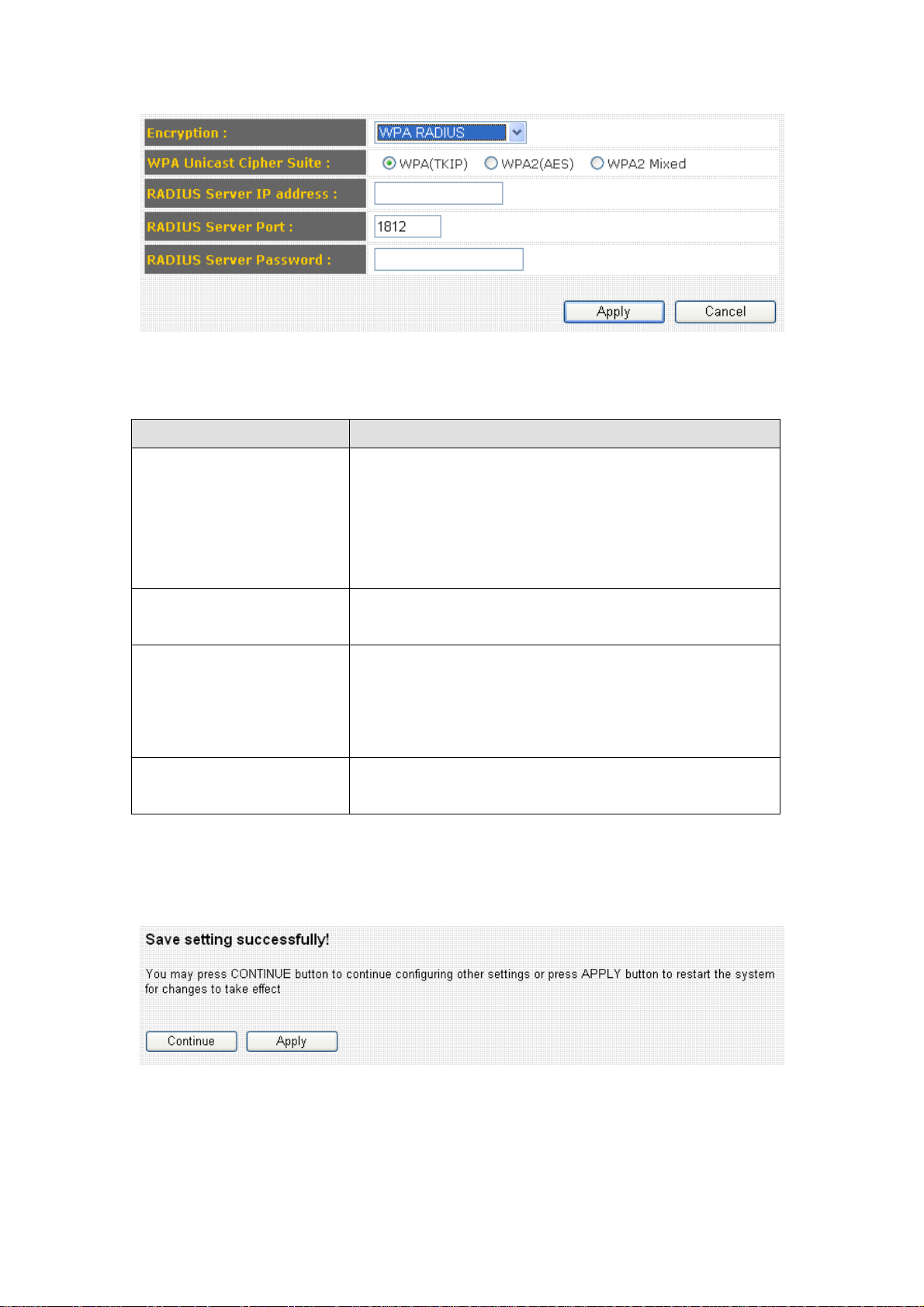

Here are descriptions of every setup items:
Item Name Description
WPA Unicast Cipher
Suite
Please select a type of WPA cipher suite.
Available options are: WPA (TKIP), WPA2
(AES), and WPA2 Mixed. You can select one of
them, but you have to make sure your wireless
client support the cipher you selected.
RADIUS Server IP
address
Input the IP address of RADIUS authentication
server here.
RADIUS Server Port Input the port number of RADIUS
authentication server here. Most of RADIUS
server will use port number 1812 and you can
keep using default value.
RADIUS Server
Password
Input the password of RADIUS authentication
server here.
Please click ‘Apply’ to save changes, or click ‘Reset’ to clear the texts in
all fields. If you click ‘Apply’, the following messages will appear:
You can click ‘Continue’ to back to previous page and continue setting, or
click ‘Apply’ to restart the broadband router so the changes will take
effect.
94
Page 95
3-4-3 MAC Address Filtering
This function will help you to prevent unauthorized users from
connecting to your wireless router; only those wireless devices who have
the MAC address you assigned here can gain access to your wireless
router. You can use this function with other security measures described
in previous section, to create a safer wireless environment. Up to 20
MAC addresses can be assigned.
To enable MAC address filtering, please check ‘Enable Wireless Access
Control’ box in this page, the descriptions of other setting items are listed
as follow:
Item Name Description
MAC address Input the MAC address you wish to add to the
MAC address to the table.
Comment You can input any text here as the comment of
this MAC address, like ‘ROOM 2A Computer’
or anything. You can input up to 16
alphanumerical characters here. This is
optional and you can leave it blank, however,
it’s recommended to use this field to write a
comment for every MAC addresses as a
95
Page 96
memory aid.
Add Click ‘Add’ button to add the MAC address and
associated comment to the MAC address
filtering table.
Clear Click ‘Clear’ to remove the value you inputted
in MAC address and comment field.
All MAC address entries will be listed in this page:
To delete one or more entries listed here, please check the box of the
mapping entry (under ‘Select’), and click ‘Delete Selected’ button.
If you wish to delete all mapping entries, click ‘Delete All’ button. To
deselect all checked boxes, click ‘Reset’ button.
When you finished with the settings in this page, you can click ‘Apply’
button to save changes you made in this page, or you can click ‘Cancel’
to discard changes. After you click ‘Apply’ button, you’ll see the
following messages:
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
96
Page 97
3-4-4 WPS
WPS (Wi-Fi Protected Setup) provides a convenient way to establish the
connection between this broadband router and wireless clients. Any
WPS-compatible wireless clients can establish secure connection with
this broadband router with simple push-button type configuration or
PinCode type configuration.
Here are descriptions of every setup items:
Item Name Description
Enable WPS Check this box to enable WPS function,
uncheck it to disable WPS.
WPS Status If the wireless security (encryption) function of
this wireless router is properly set, you’ll see
‘Configured’ message here. If wireless security
function has not been set, you’ll see
‘unConfigured’.
Self PIN code This is the WPS PIN code of this wireless
router. This code is useful when you need to
build wireless connection by WPS with other
WPS-enabled wireless devices.
SSID The SSID of this wireless router will be
displayed here.
Authentication Mode The wireless security authentication mode of
97
Page 98
this wireless router will be displayed here.
Passphrase Key The WPA passphrase will be displayed as
asterisk here.
Config Mode Select the WPS configuration role of this
broadband router.
Registrar: This broadband router will act as
WPS registrar and wait for wireless clients to
send WPS configuration request.
Enrollee: This broadband router will act as
WPS enrollee and send WPS configuration
request to other WPS registrar.
Configure via Push
Button
Configure via Client
PinCode
Click ‘Start PBC’ to start Push-Button type
WPS configuration (PBC). Please push the
WPS push-button on other WPS-compatible
network devices to begin WPS configuration.
You can also push the ‘WPS / Reset’ button
located at the back of this broadband router to
start PBC without using web configuration
interface.
Please input the PinCode displayed at the
configuration software of WPS-enabled
wireless client, and click ‘Start PIN’ to
establish connection with the wireless client.
98
Page 99
3-4-5 Wireless Schedule
By wireless schedule, you can restrict wireless clients (computers) from
accessing improper website. Because you can setup time and you can
enable/disable router’s wireless signal to control schedule of Internet
access .
Item Name Description
Enable Schedule
settings
Check this box to enable Schedule function,
uncheck it to disable Wireless Schedule .
Weekday Where you can select a day or several days.
Time Enter a start time for the schedule.
Command Wireless on or Wireless off (Enable or Disable
wireless signal for the schedule)
Note : The function is not workable, if you disable wireless hardware
button ( back panel ).
Click “ Add ”, the list of schedules will be listed here.
Please click ‘Apply’ to save changes you made and restart the broadband
router, this requires about 30 seconds and the broadband router will stop
responding (this is normal and is not malfunction). You can reconnect to
this broadband router and continue on other settings later.
99
Page 100
3-5 Advance Settings*
This router provides various network functionalities like QoS and NAT,
and you can configure these functions in ‘Advanced Settings’ menu.
Please select the function you wish to set, then click ‘Apply’ button. If
you wish to go back to previous page, click ‘Previous’ button.
100
Loading...
