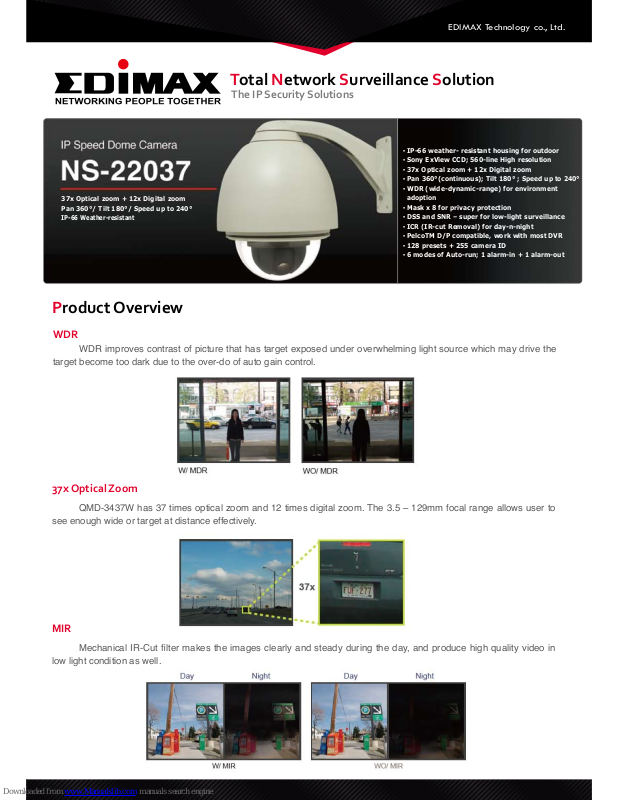

Page 1
EDIMAX Technology co., Ltd.
The IP Security Solutions
Total Network Surveillance Solution
Product Overview
▪ IP-66 weather- resistant housing for outdoor
▪ Sony ExView CCD; 560-line High resolution
▪ 37x Optical zoom + 12x Digital zoom
▪ Pan 360°(continuous); Tilt 180° ; Speed up to 240°
▪ WDR (wide-dynamic-range) for environment
adoption
▪ Mask x 8 for privacy protection
▪ DSS and SNR – super for low-light surveillance
▪ ICR (IR-cut Removal) for day-n-night
▪ PelcoTM D/P compatible, work with most DVR
▪ 128 presets + 255 camera ID
▪ 6 modes of Auto-run; 1 alarm-in + 1 alarm-out
37x Optical zoom + 12x Digital zoom
Pan 360°/ Tilt 180°/ Speed up to 240°
IP-66 Weather-resistant
WDR improves contrast of picture that has target exposed under overwhelming light source which may drive the
target become too dark due to the over-do of auto gain control.
WDR
QMD-3437W has 37 times optical zoom and 12 times digital zoom. The 3.5 – 129mm focal range allows user to
see enough wide or target at distance effectively.
37x Optical Zoom
Mechanical IR-Cut lter makes the images clearly and steady during the day, and produce high quality video in
low light condition as well.
MIR
Page 2
Specications
Dimension
Description
Full D1 37X IP Outdoor Speed Dome Camera
IR-LED
NA
sensor
1/4 Sony Ex-View CCD
Processor
DSP Base (DaVinci TM320DM365)
Lens (optical / digital)
37x/12x ( f3.5-129.5mm) / F1.6-3.9
Min. Illumination (Color/BW/
Slow Shutter mode)
0.7lux/0.06lux /0.002 lux
Video Compression
H.264 HP/MP/BP, MPEG-4 SP, M-JPEG
Resoultion (Color/BW)
520TVL / 570TVL
Multiple Streaming
Yes
ICR
Yes
SD/SDHC interface
Yes
Power-over-Ethernet(IEEE 802.3af)
NA
Audio Support
Two-way
Alarm Input/output
1x D/I, 1x D/O
IP Digital zoom
10x
ONVIF
Yes
Protocol
TCP/IP,IPV6,UDP,ICMP ,DHCP ,NTP ,DNS ,DDNS ,SMTP ,FTP ,HTTP ,HTTPs
,Samba,PPPoE ,UPnP, Bonjour, RTP, RTSP, RTCP, IPV4
QoS
Yes
Multi-level user access
Yes
IP ltering
Yes
3GPP support
Yes
Time Management
Manual Time Setting
Time Server and NTP support
Real Time Clock
Event Management
Events Triggered by Motion detection or GPIO
Image or Video Upload/Send over email ,FTP, samba
Recording Video le to SD Card by schedule
System Management
64-ch Management Software(EdiView RS-64)
Operation Temperature
-35oC~55oC
Approvals
CE, FCC
Package
Accessories:
Power Supply (AC 24V)
Packaging(Brown Box)
CD, QIG
©2010 Edimax. All other company names and products are trademarks or registered trademarks of their respective companies.
We reserve the right to introduce modications without notice.
