EDIMAX Technology co., Ltd.
The IP Security Solutions
Total Network Surveillance Solution

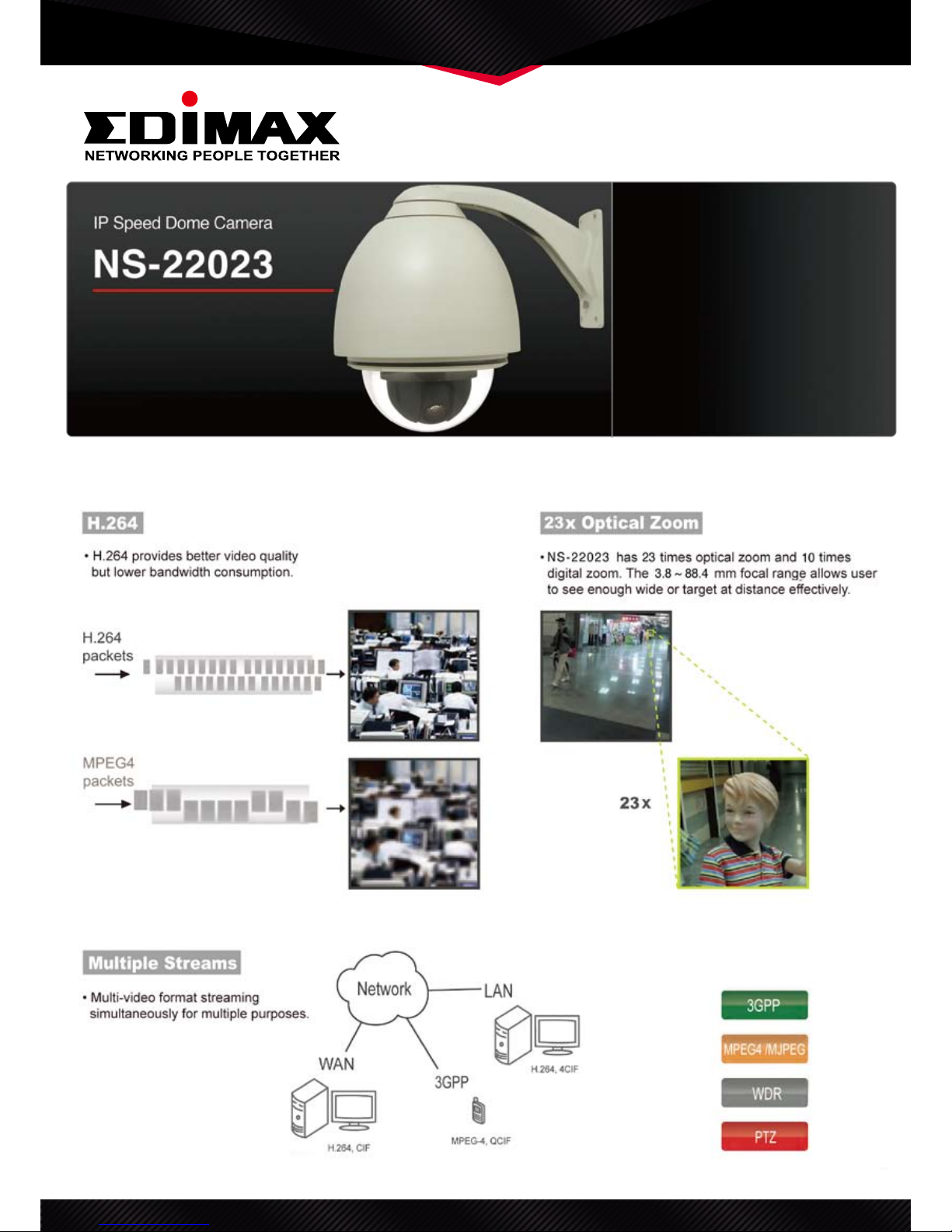

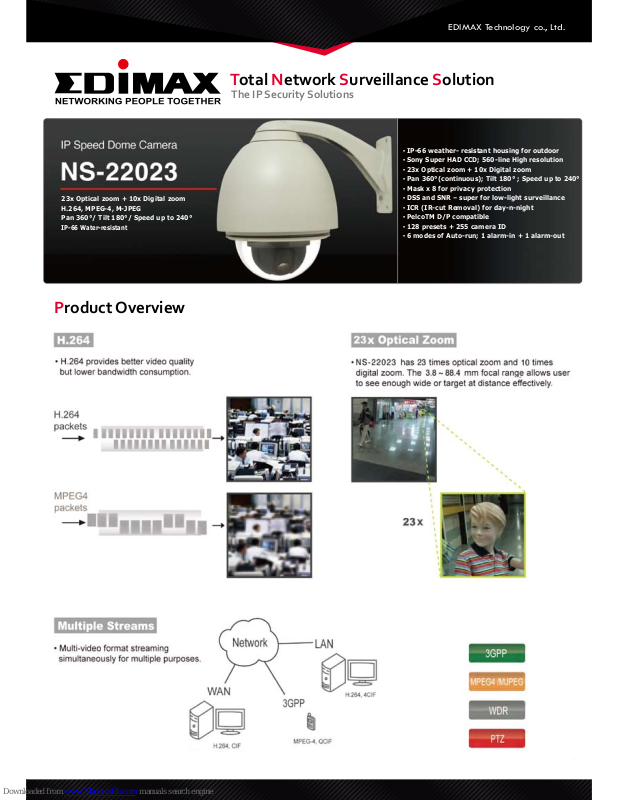

Product Overview
▪ IP-66 weather- resistant housing for outdoor
▪ Sony Super HAD CCD; 560-line High resolution
▪ 23x Optical zoom + 10x Digital zoom
▪ Pan 360°(continuous); Tilt 180° ; Speed up to 240°
▪ Mask x 8 for privacy protection
▪ DSS and SNR – super for low-light surveillance
▪ ICR (IR-cut Removal) for day-n-night
▪ PelcoTM D/P compatible
▪ 128 presets + 255 camera ID
▪ 6 modes of Auto-run; 1 alarm-in + 1 alarm-out
23x Optical zoom + 10x Digital zoom
H.264, MPEG-4, M-JPEG
Pan 360°/ Tilt 180°/ Speed up to 240°
IP-66 Water-resistant
Page 2
Specications
Dimension
Description
Full D1 23X IP Outdoor Speed Dome Camera
IR-LED
NA
sensor
1/4 Sony Super HAD CCD
Processor
DSP Base (DaVinci TM320DM365)
Lens (optical / digital)
23x/10x ( f3.8-88.4mm) F1.6-3.0
Min. Illumination
(Color/BW/ Slow Shutter mode)
0.6lux/0.1lux/0.005lux
Video Compression
H.264 HP/MP/BP, MPEG-4 SP, M-JPEG
Resoultion (Color/BW)
520TVL / 570TVL
Multiple Streaming
Yes
ICR
Yes
SD/SDHC interface
Yes
Power-over-Ethernet(IEEE 802.3af)
NA
Audio Support
Two-way
Alarm Input/output
1x D/I, 1x D/O
IP Digital zoom
10x
ONVIF
Yes
Protocol
TCP/IP,IPV6,UDP,ICMP ,DHCP ,NTP ,DNS ,DDNS ,SMTP ,FTP ,HTTP ,HTTPs
,Samba,PPPoE ,UPnP, Bonjour, RTP, RTSP, RTCP, IPV4
QoS
Yes
Multi-level user access
Yes
IP ltering
Yes
3GPP support
Yes
Time Management
Manual Time Setting
Time Server and NTP support
Real Time Clock
Event Management
Events Triggered by Motion detection or GPIO
Image or Video Upload/Send over email ,FTP, samba
Recording Video le to SD Card by schedule
System Management
64-ch Management Software(EdiView RS-64)
Operation Temperature
-35oC~55oC
Approvals
CE, FCC
Package
Accessories:
Power Supply (AC 24V)
Packaging(Brown Box)
CD, QIG
©2010 Edimax. All other company names and products are trademarks or registered trademarks of their respective companies.
We reserve the right to introduce modications without notice.
