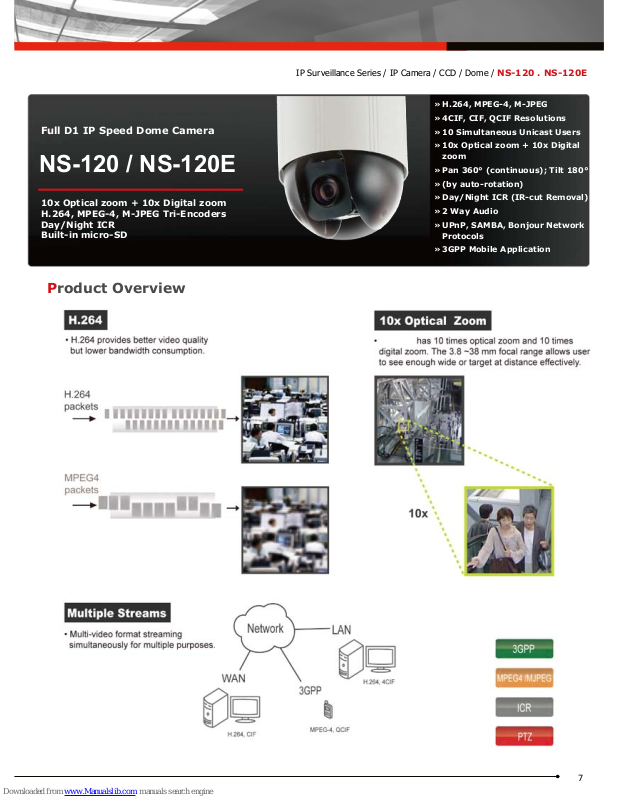

Product Overview
IP Surveillance Series / IP Camera / CCD / Dome / NS-120 . NS-120E
10x Optical zoom + 10x Digital zoom
H.264, MPEG-4, M-JPEG Tri-Encoders
Day/Night ICR
Built-in micro-SD
H.264, MPEG-4, M-JPEG »
4CIF, CIF, QCIF Resolutions »
10 Simultaneous Unicast Users »
10x Optical zoom + 10x Digital »
zoom
Pan 360° (continuous); Tilt 180° »
(by auto-rotation) »
Day/Night ICR (IR-cut Removal) »
2 Way Audio »
UPnP, SAMBA, Bonjour Network »
Protocols
3GPP Mobile Application »
NS-120 / NS-120E
Full D1 IP Speed Dome Camera
Page 2
8
Specications
IP Surveillance Series / IP Camera / CCD / Dome / NS-120 . NS-120E
Description
NS-120 Full D1 IP Speed Dome Camera
NS-120E Full D1 PoE IP Speed Dome Camera
Sensor
1/4 Sony Super HAD CCD
Processor
DSP Base (DaVinci TM320DM365)
Lens (optical / digital)
10x/10x ( f3.8-38mm)F1.8-2.8
Min. Illumination
(Color/BW/Slow Shutter
mode)
0.7 Lux / 0.02 Lux / 0.005 Lux
Video Compression
H.264 HP/MP/BP, MPEG-4 SP, M-JPEG
Resolution (Color/BW)
520TVL / 570TVL
Multiple Streaming
Yes
SD/SDHC interface
Yes
Power-over-Ethernet
(IEEE 802.3af)
NS-120E
Two-way Audio Support
Yes
Alarm Input/output
1x D/I, 1x D/O
Digital zoom
10x
ONVIF
Yes
Protocol
TCP/IP,IPV6,UDP,ICMP ,DHCP ,NTP ,DNS ,DDNS,SMTP ,FTP ,HTTP ,HTTPs ,Samba,PPPoE
,UPnP,
Bonjour, RTP, RTSP, RTCP, IPV4
QoS
Yes
Multi-level user access
Yes
IP ltering
Yes
3GPP support
Yes
Time Management
Manual Time Setting
Time Server and NTP support
Real Time Clock
Event Management
Events Triggered by Motion detection or GPIO
Image or Video Upload/Send over email ,FTP, Samba
Recording Video le to SD Card by schedule
System Management
64CH Management Software(EdiView RS-64)
Operation Temperature
-10oC~50oC
Approvals
CE, FCC
Dimension
123.1 mm (D) x 123.1 mm (W) x 180.1 mm (H)
Weight
400 g
Package
Accessories: Power Supply ; CD
