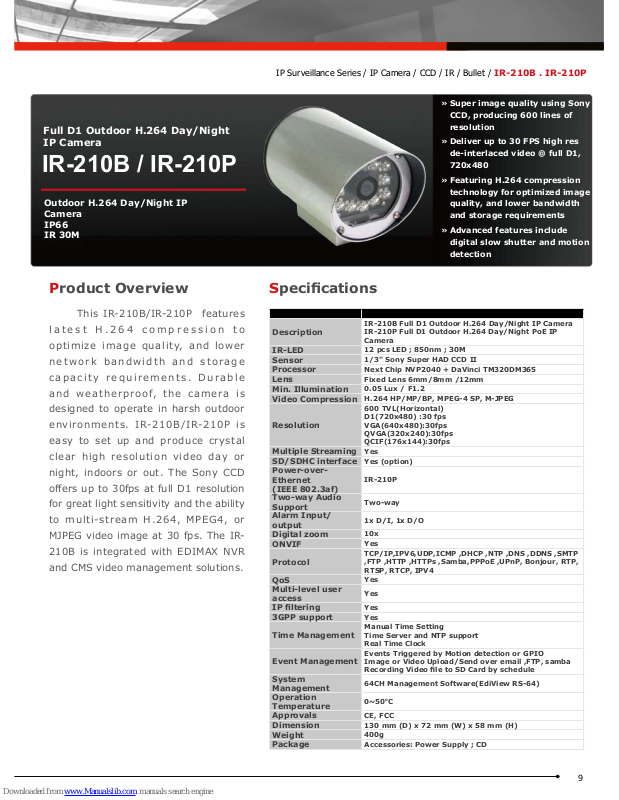

Page 1
9
Product Overview
This IR-210B/IR-210P features
l a t e s t H . 2 6 4 c o m p r e s s i o n t o
optim ize im age quali ty, and lower
n e t w o r k b a n d w i dt h a n d s t o r a g e
c a p a c it y r e q u i re m e n t s. D ura b l e
and weath e r proof, t h e c amera i s
designed to operate in harsh outdoor
environmen ts. IR-210 B/IR-21 0P is
easy to set up and produce crystal
clear high res olu tion v ideo day or
night, indoors or out. The Sony CCD
offers up to 30fps at full D1 resolution
for great light sensitivity and the ability
to multi-stream H.264, MPEG4, or
MJPEG video image at 30 fps. The IR-
210B is integrated with EDIMAX NVR
and CMS video management solutions.
Specications
IP Surveillance Series / IP Camera / CCD / IR / Bullet / IR-210B . IR-210P
Outdoor H.264 Day/Night IP
Camera
IP66
IR 30M
Super image quality using Sony »
CCD, producing 600 lines of
resolution
Deliver up to 30 FPS high res »
de-interlaced video @ full D1,
720x480
Featuring H.264 compression »
technology for optimized image
quality, and lower bandwidth
and storage requirements
Advanced features include »
digital slow shutter and motion
detection
IR-210B / IR-210P
Full D1 Outdoor H.264 Day/Night
IP Camera
Description
IR-210B Full D1 Outdoor H.264 Day/Night IP Camera
IR-210P Full D1 Outdoor H.264 Day/Night PoE IP
Camera
IR-LED
12 pcs LED ; 850nm ; 30M
Sensor
1/3" Sony Super HAD CCD II
Processor
Next Chip NVP2040 + DaVinci TM320DM365
Lens
Fixed Lens 6mm/8mm /12mm
Min. Illumination
0.05 Lux / F1.2
Video Compression
H.264 HP/MP/BP, MPEG-4 SP, M-JPEG
Resolution
600 TVL(Horizontal)
D1(720x480) :30 fps
VGA(640x480):30fps
QVGA(320x240):30fps
QCIF(176x144):30fps
Multiple Streaming
Yes
SD/SDHC interface
Yes (option)
Power-overEthernet
(IEEE 802.3af)
IR-210P
Two-way Audio
Support
Two-way
Alarm Input/
output
1x D/I, 1x D/O
Digital zoom
10x
ONVIF
Yes
Protocol
TCP/IP,IPV6,UDP,ICMP ,DHCP ,NTP ,DNS ,DDNS ,SMTP
,FTP ,HTTP ,HTTPs ,Samba,PPPoE ,UPnP, Bonjour, RTP,
RTSP, RTCP, IPV4
QoS
Yes
Multi-level user
access
Yes
IP ltering
Yes
3GPP support
Yes
Time Management
Manual Time Setting
Time Server and NTP support
Real Time Clock
Event Management
Events Triggered by Motion detection or GPIO
Image or Video Upload/Send over email ,FTP, samba
Recording Video le to SD Card by schedule
System
Management
64CH Management Software(EdiView RS-64)
Operation
Temperature
0~50oC
Approvals
CE, FCC
Dimension
130 mm (D) x 72 mm (W) x 58 mm (H)
Weight
400g
Package
Accessories: Power Supply ; CD
