EDIMAX IC-7110P, IC-7110W, IC-7110 Quick Installation Guide

IC-7110 / IC-7110W / IC-7110P

User Manual

10-2011 / v1.0

Notice According to GNU General Public License Version 2

Certain Edimax products include software code developed by third parties, software code is subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Please see the GNU (www.gnu.org) and LPGL(www.gnu.org) Websites to view the terms of each license.

The GPL Code and LGPL Code used in Edimax products are distributed without any warranty and are subject to the copyrights of their authors. For details, see the GPL Code and LGPL Code licenses. You can download the firmware-files at

http://www.edimax.com under "Download" page.

Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.

Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability, or fitness for any particular purpose. Any software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right to revise this publication and to make changes from time to time in the contents hereof without the obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different from those shown in this QIG. For more information about this product, please refer to the user manual on the CD-ROM. The software and specifications are subject to change without notice. Please visit our website www.edimax.com for updates. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

Table of Contents

Chapter I: Getting Familiar with Your Network Camera ................................... 5

1.1 Package Contents .............................................................................. 5

1.2 Introduction ......................................................................................... 6

1.3 Product Features ................................................................................ 7

1.4 Key Components ................................................................................ 8

1.5 Camera Installation ........................................................................... 16

1.6 Locating the IP Address of this Network Camera .............................. 19

1.7 Using the Camera Admin Software to Locate the Camera ............... 23

1.8 Logging in the Management Interface .............................................. 30

Chapter II: Using the Management Interface ................................................. 35

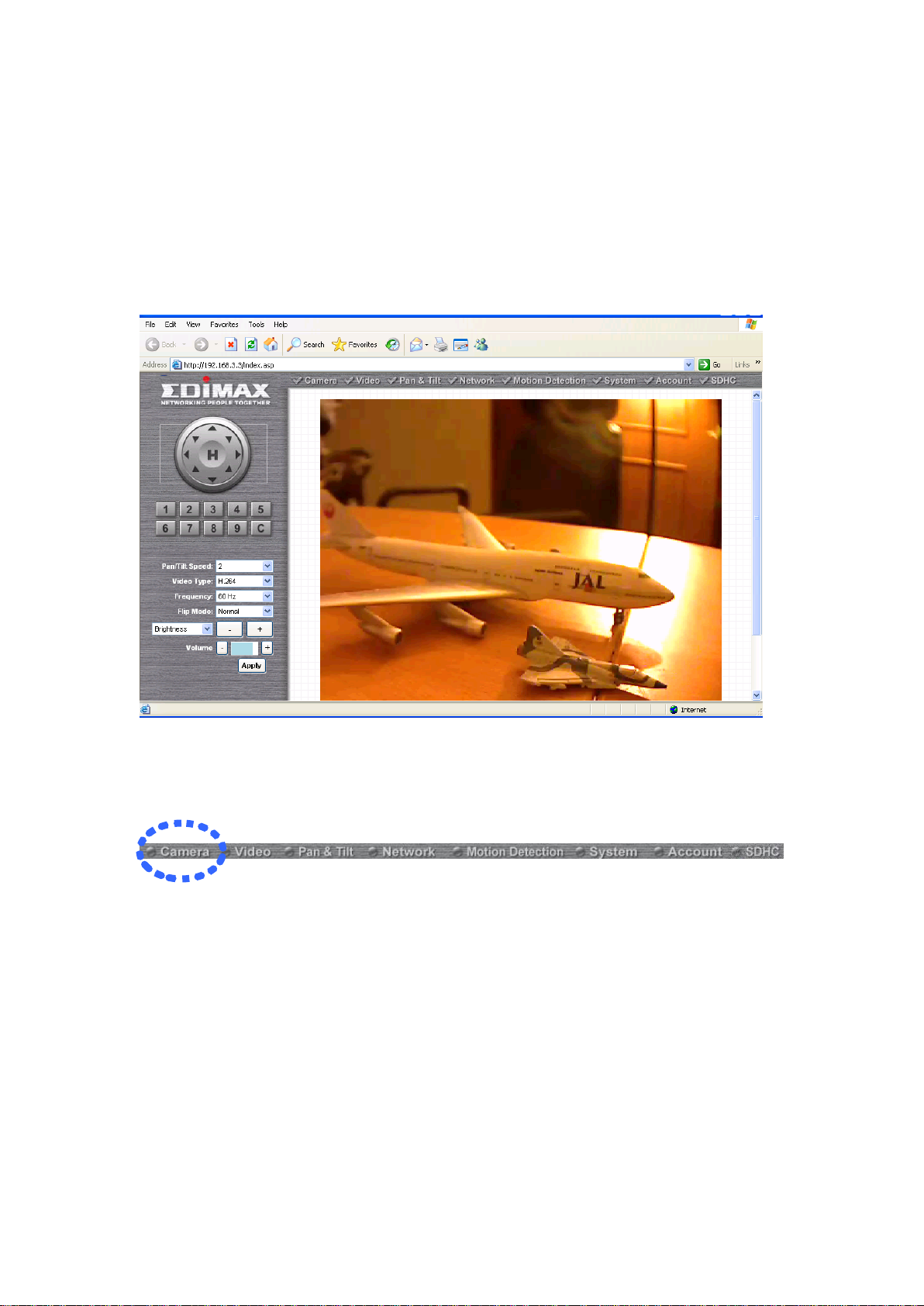

2.1 Camera Settings ............................................................................... 35

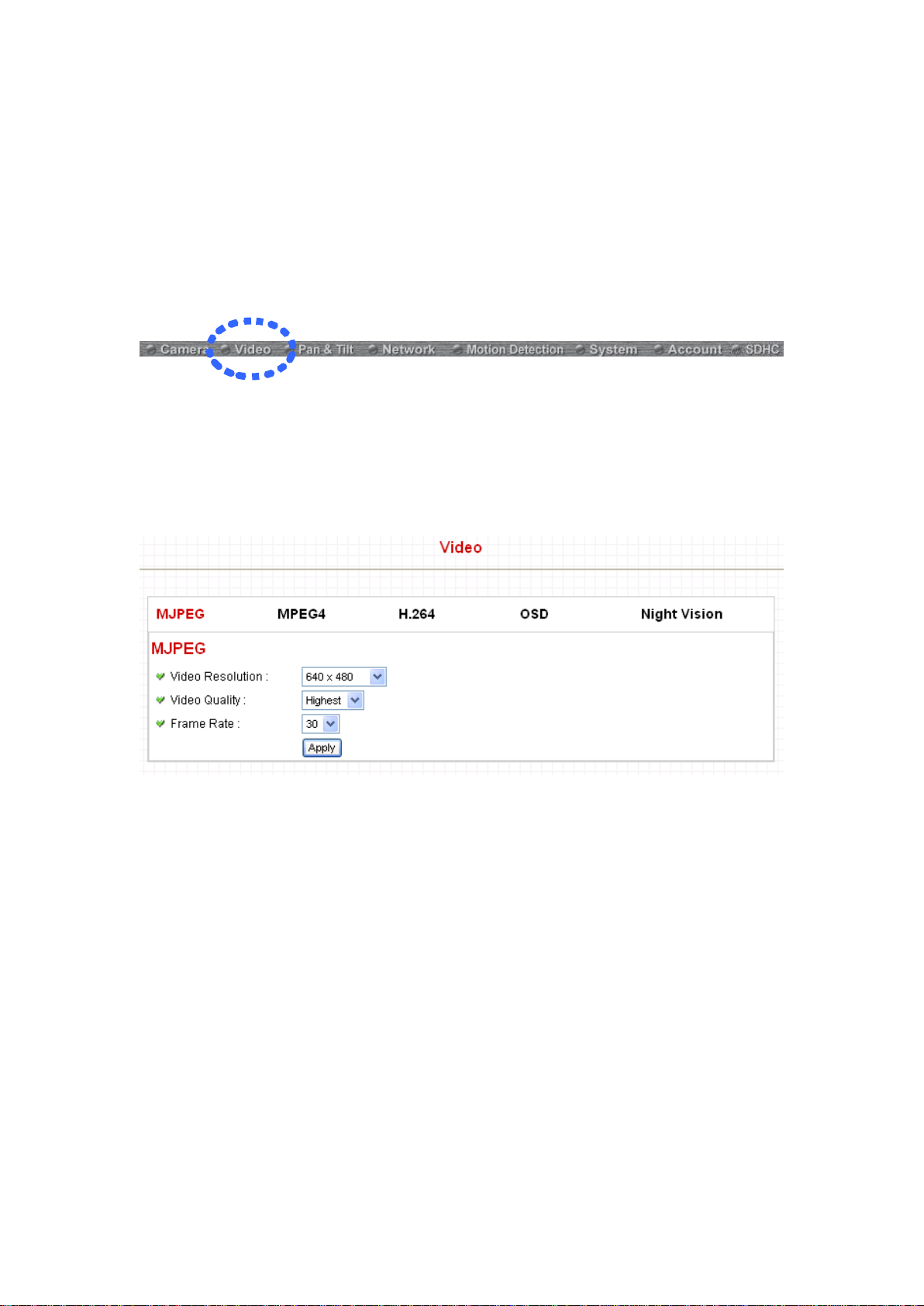

2.2 Video ................................................................................................ 39

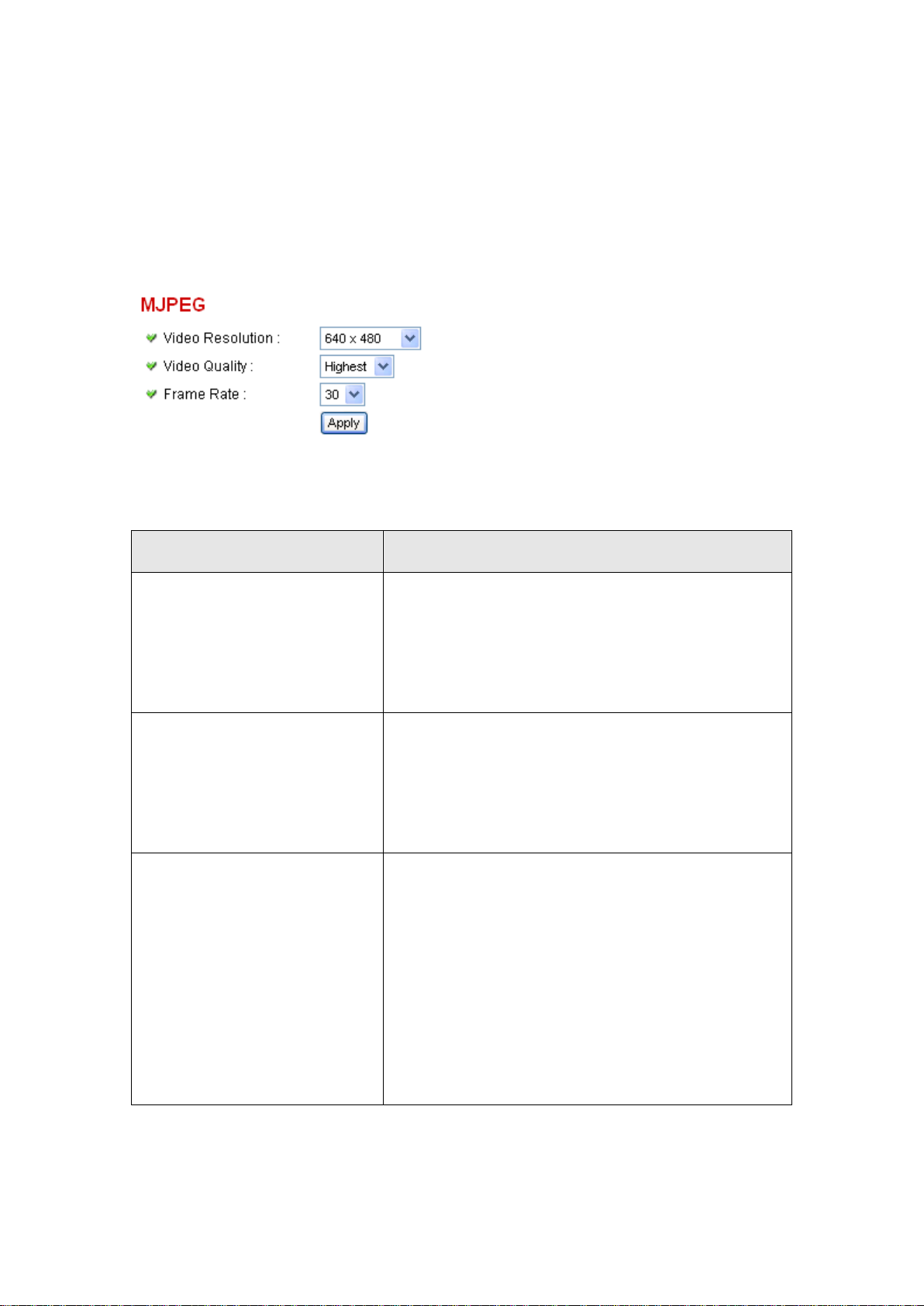

2.2.1 MJPEG ................................................................................... 40

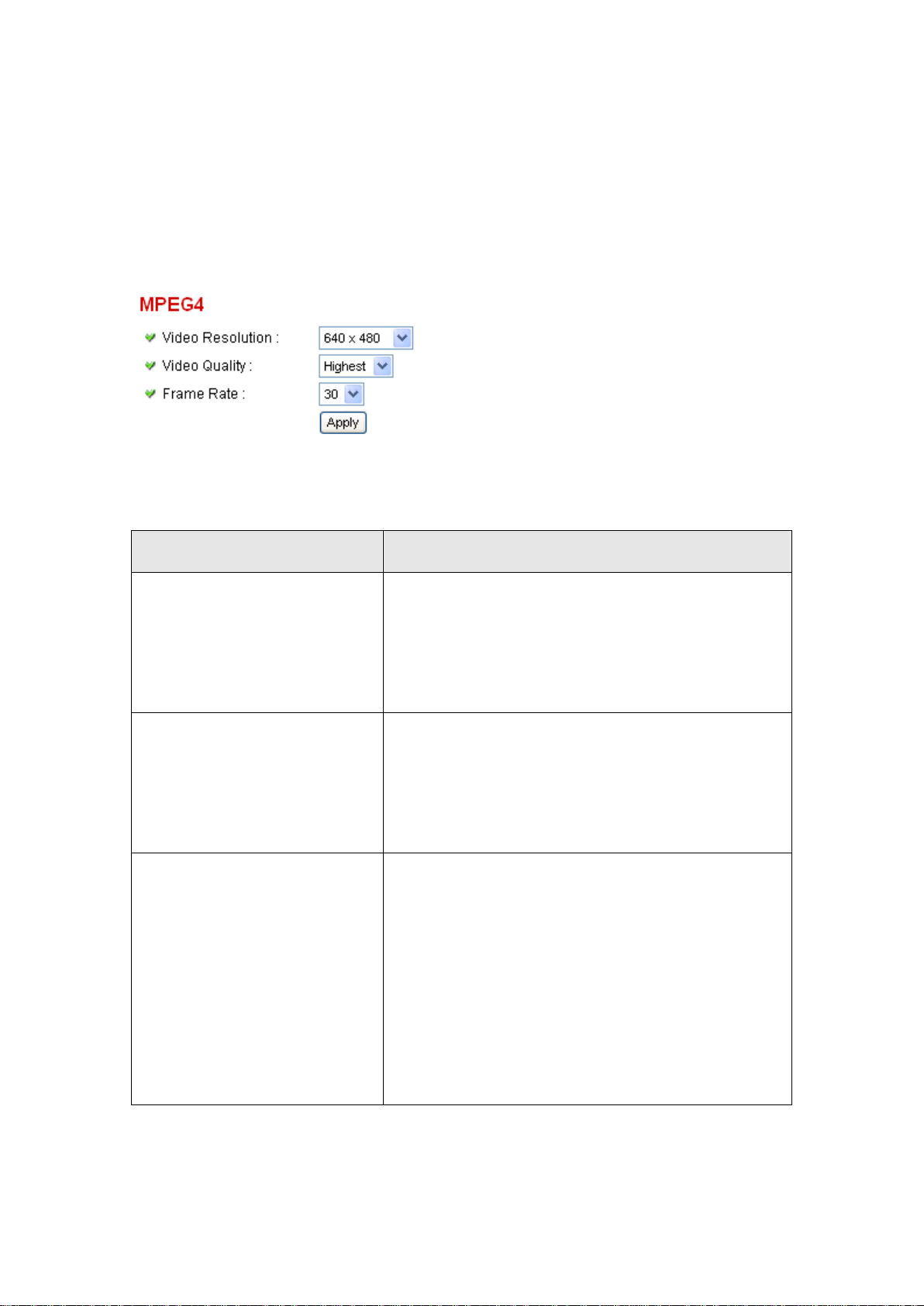

2.2.2 MPEG4 ................................................................................... 41

2.2.3 H.264 ...................................................................................... 42

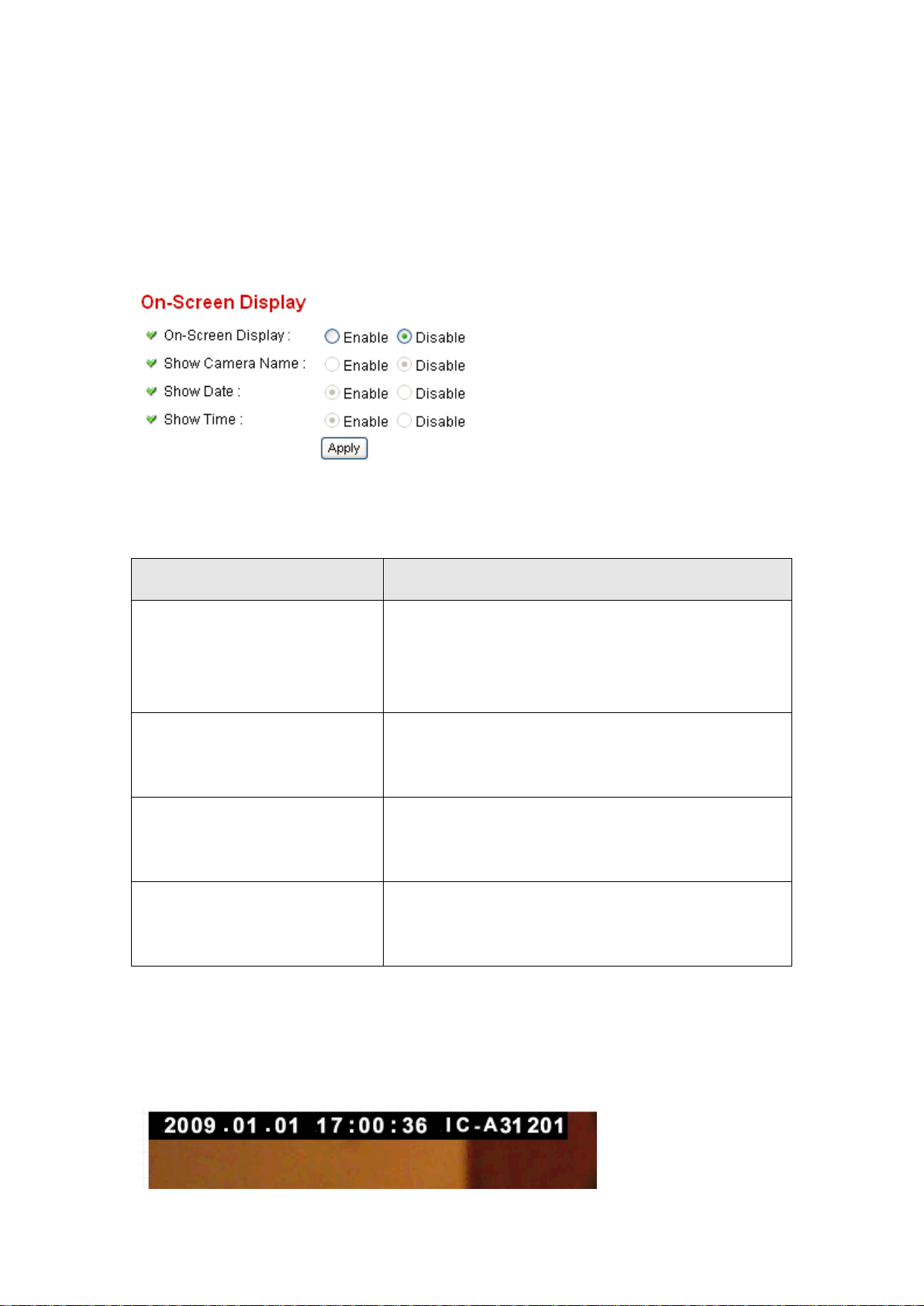

2.2.4 OSD ........................................................................................ 43

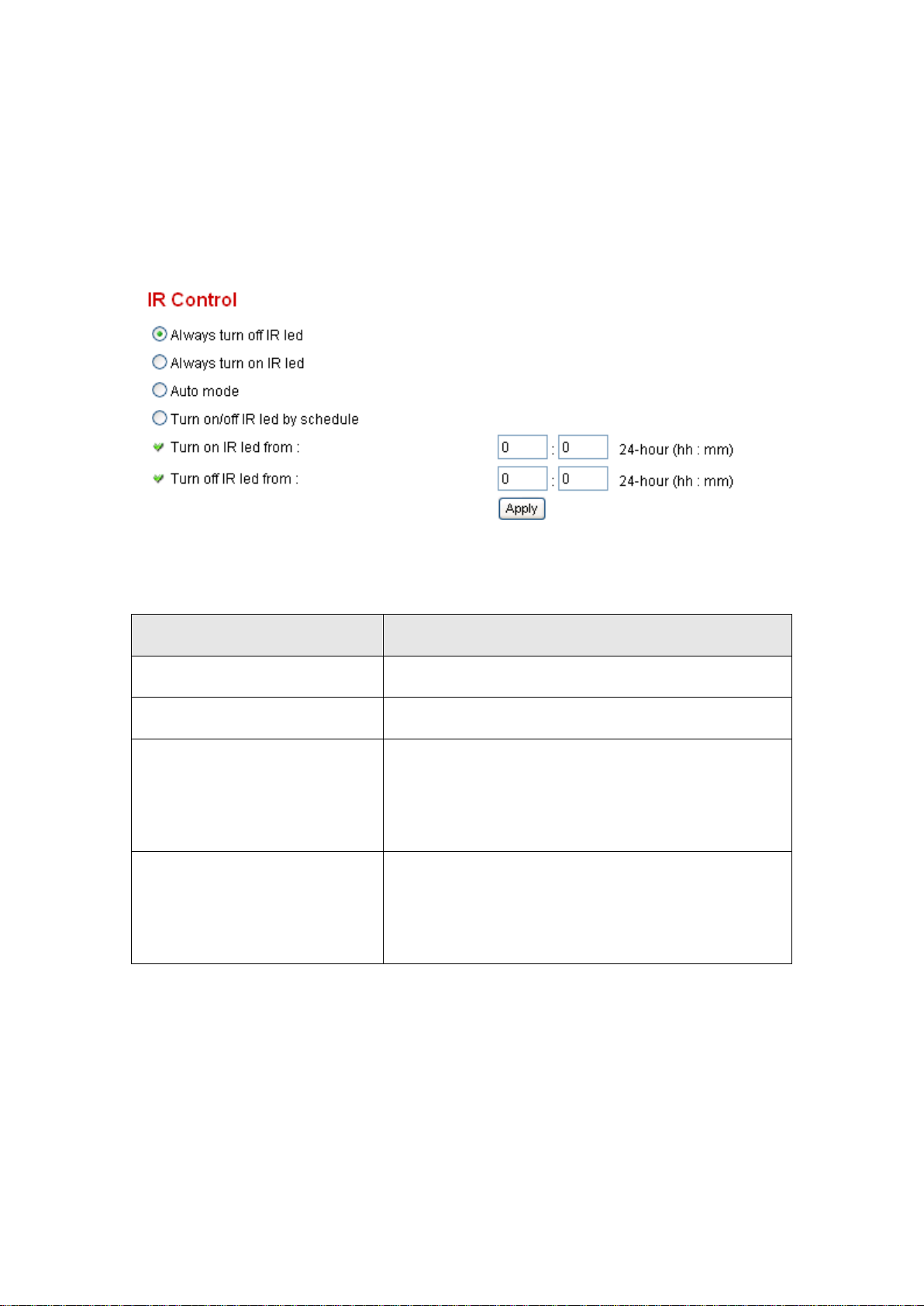

2.2.5 Night Vision ............................................................................ 44

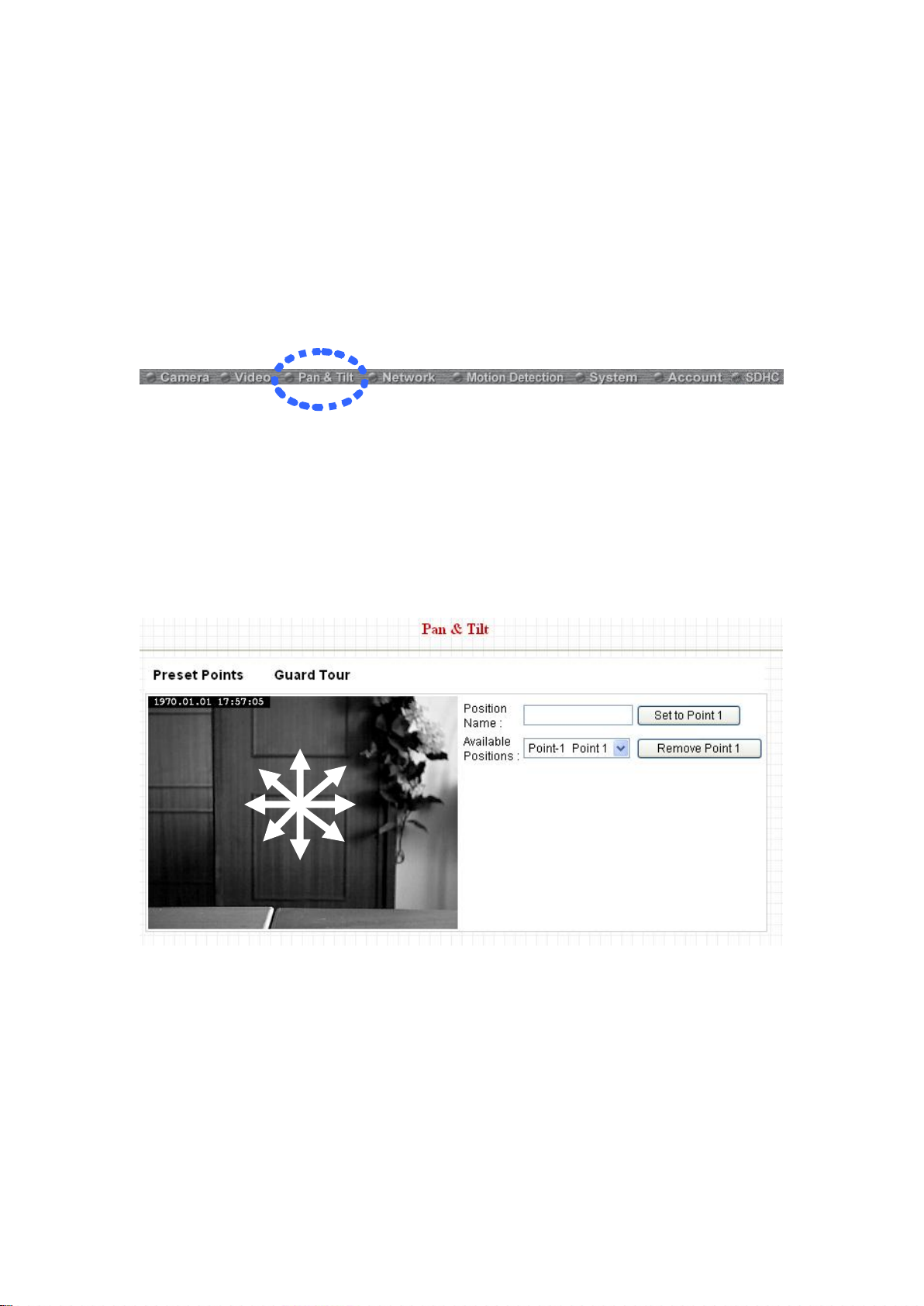

2.3 Pan and Tilt ....................................................................................... 45

2.3.1 Preset Points .......................................................................... 45

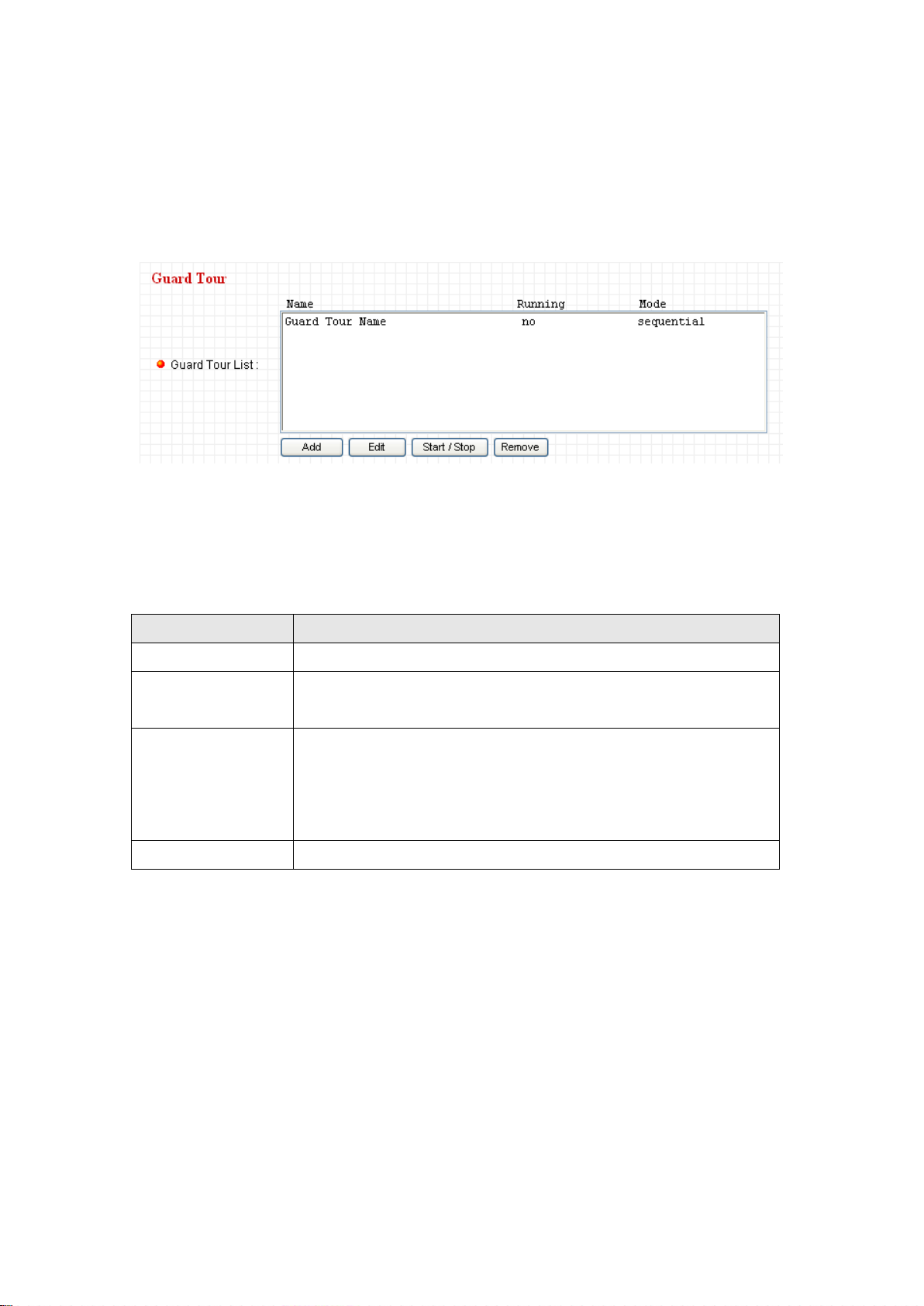

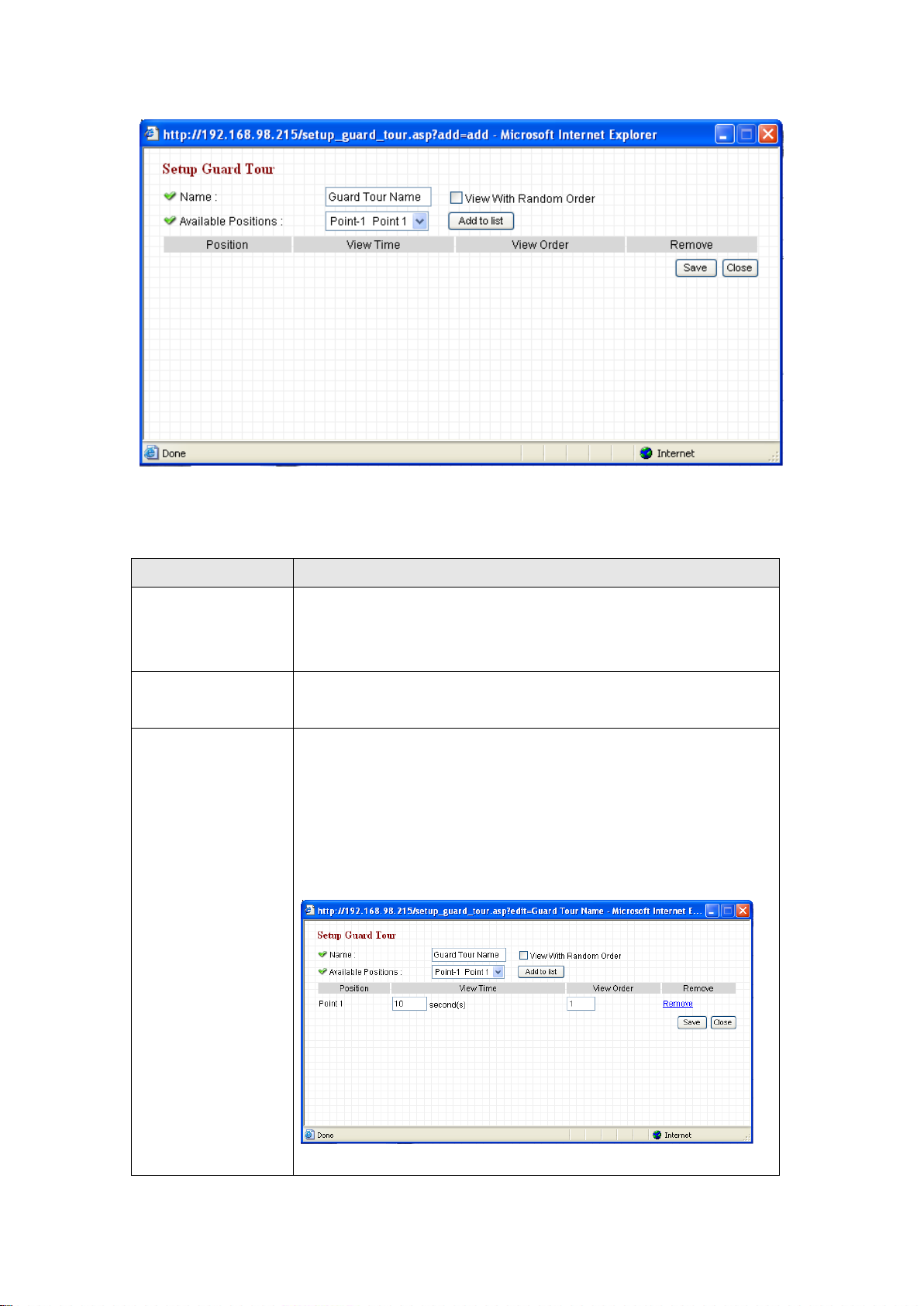

2.3.2 Guard Tour .............................................................................. 47

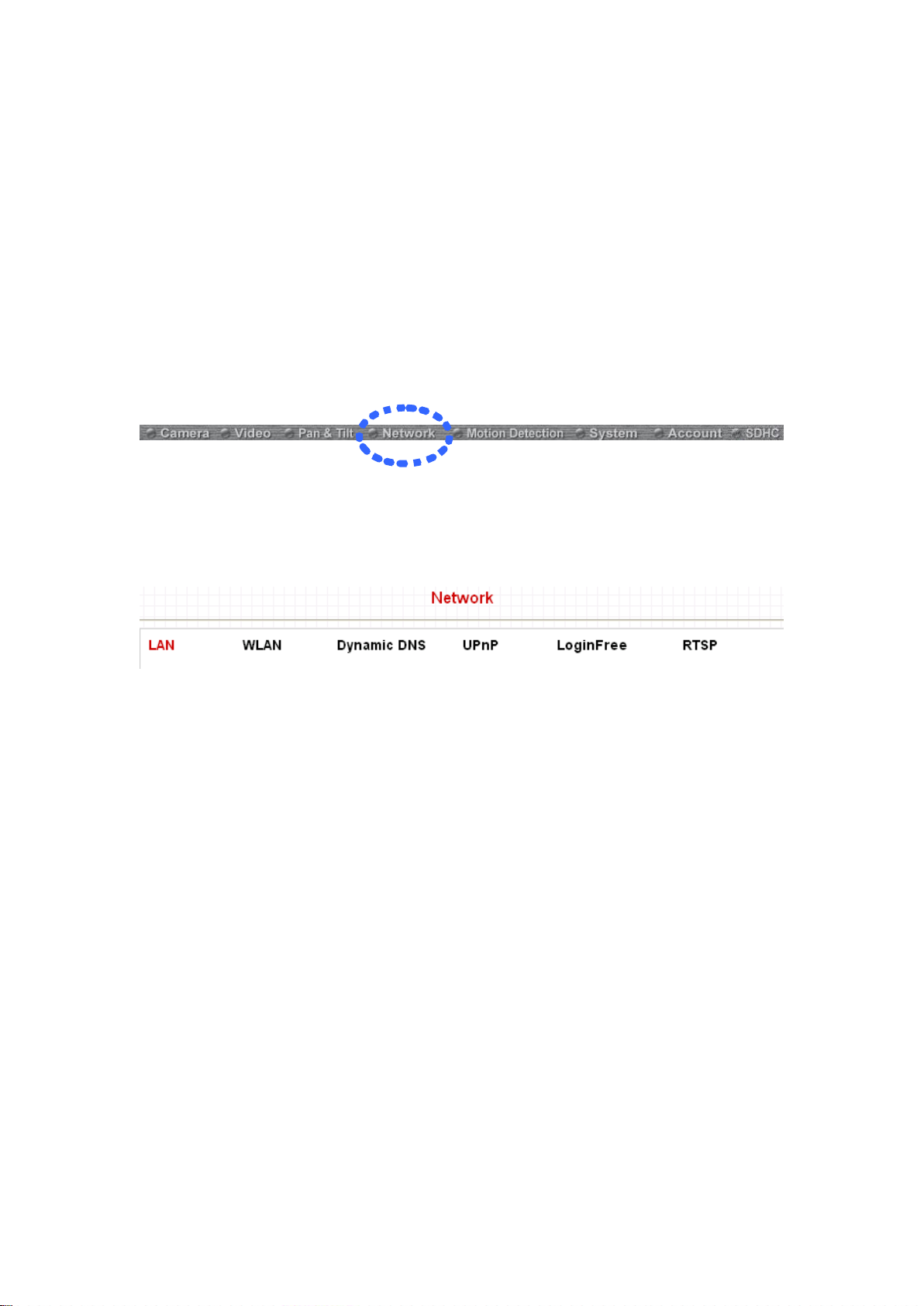

2.4 Network Settings ............................................................................... 50

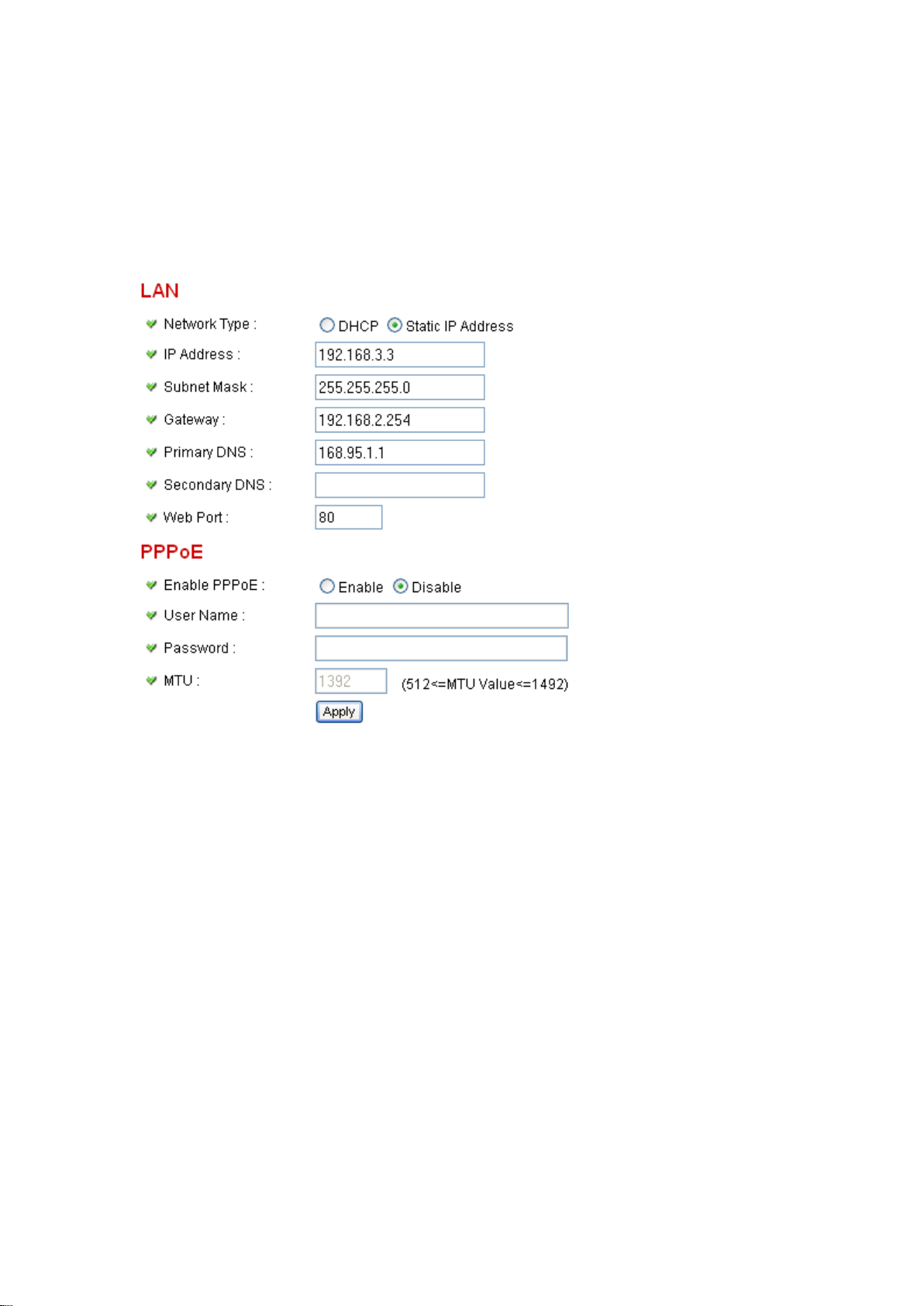

2.4.1 LAN ........................................................................................ 51

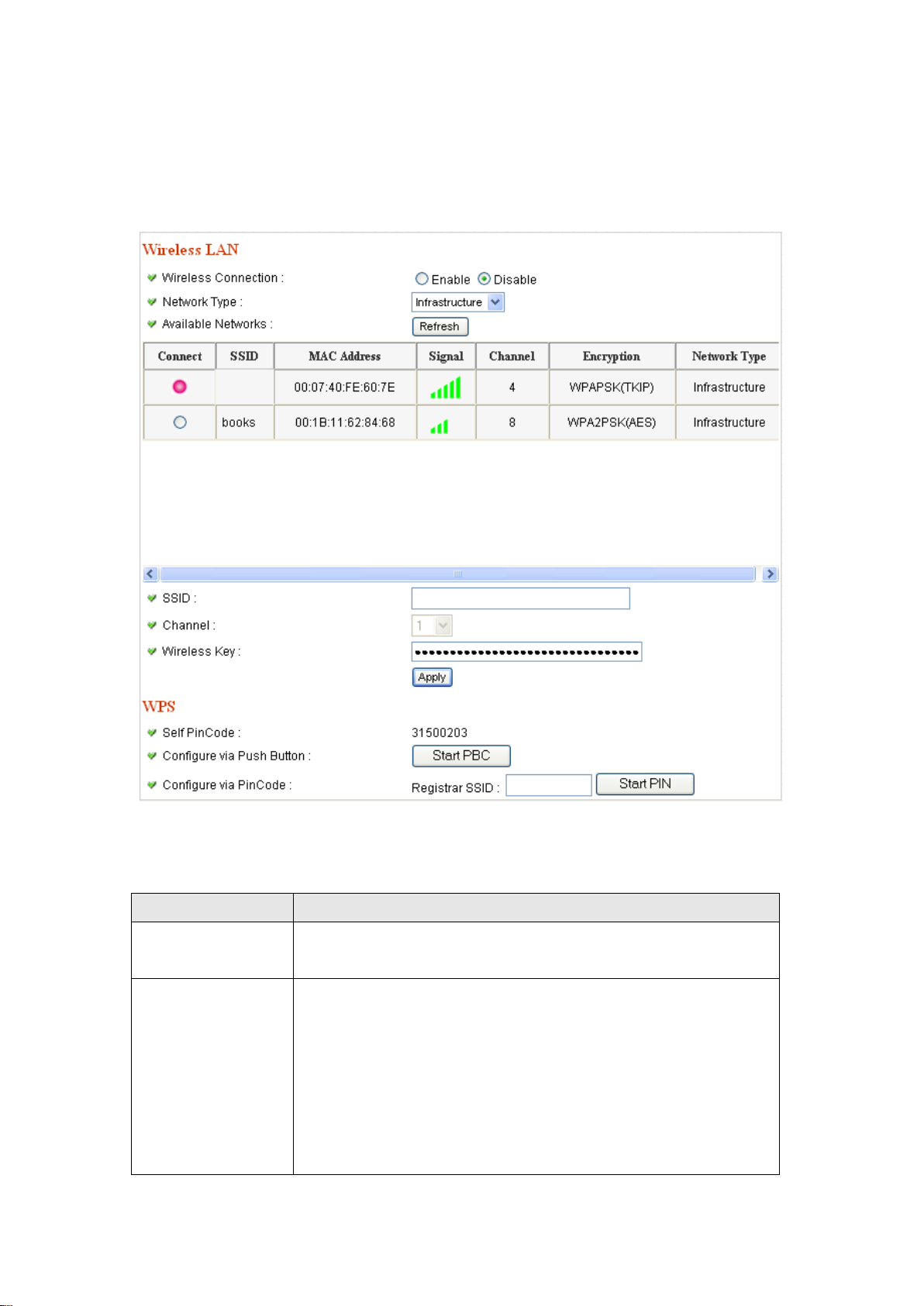

2.4.2 WLAN ..................................................................................... 54

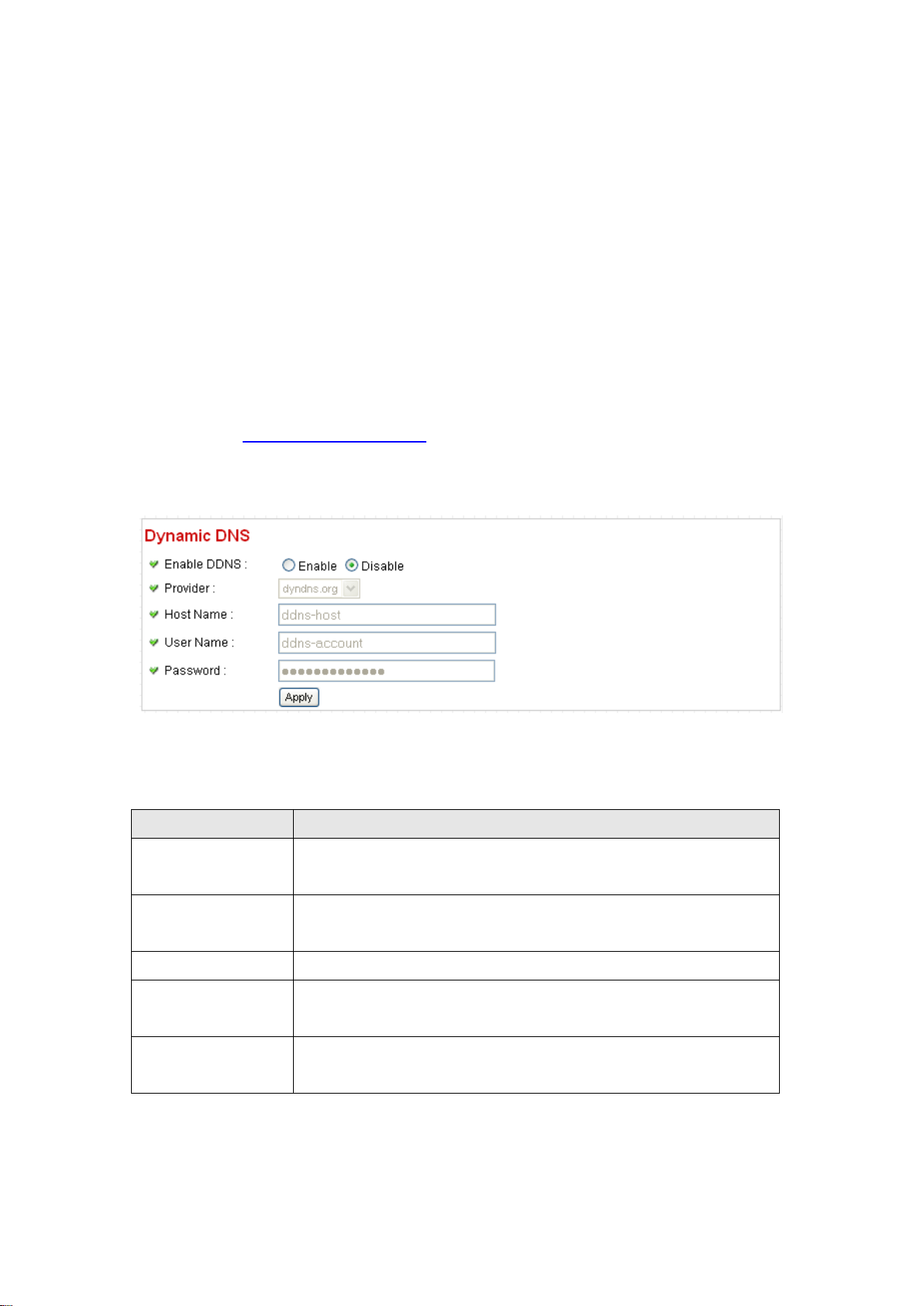

2.4.3 Dynamic DNS ......................................................................... 57

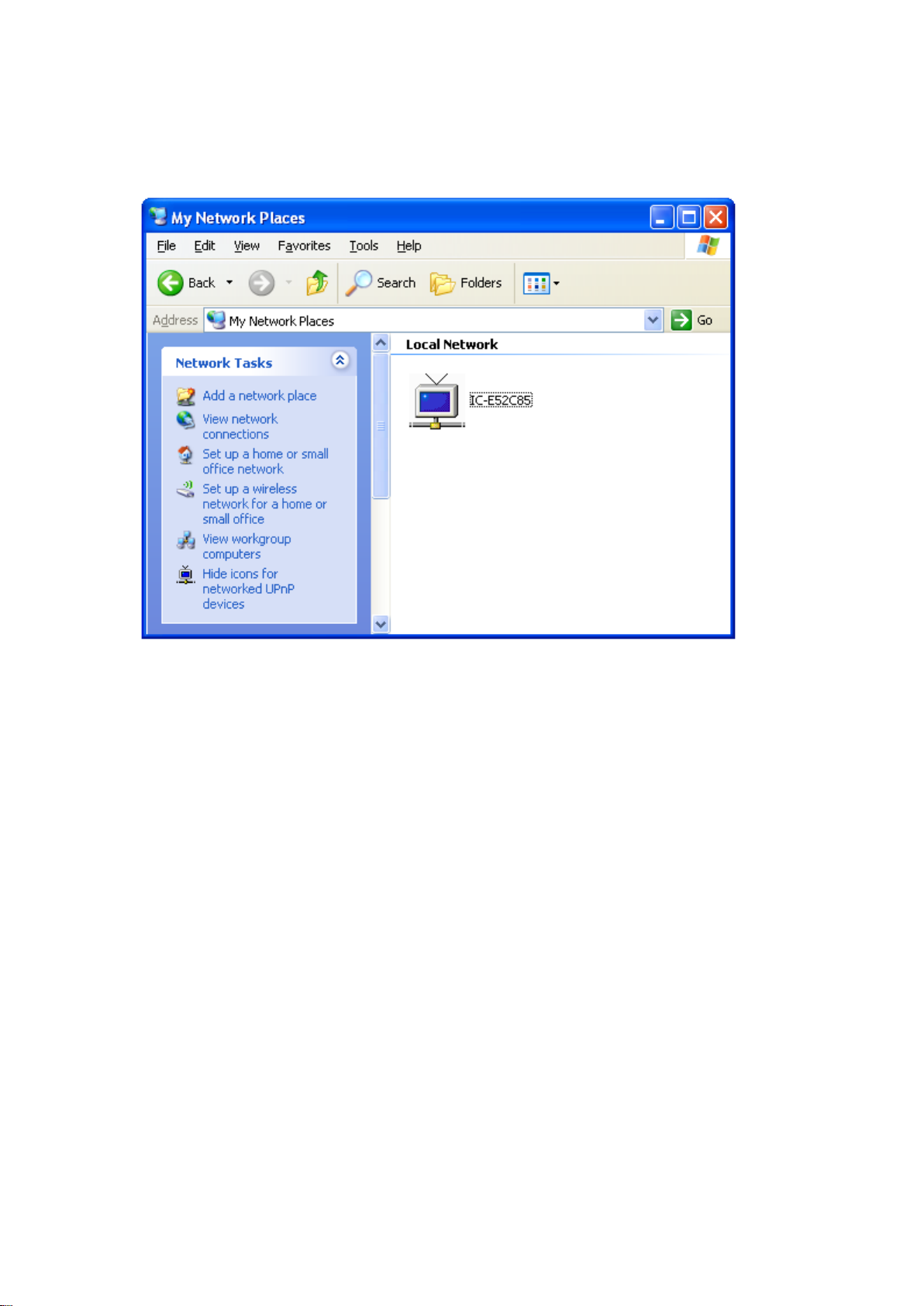

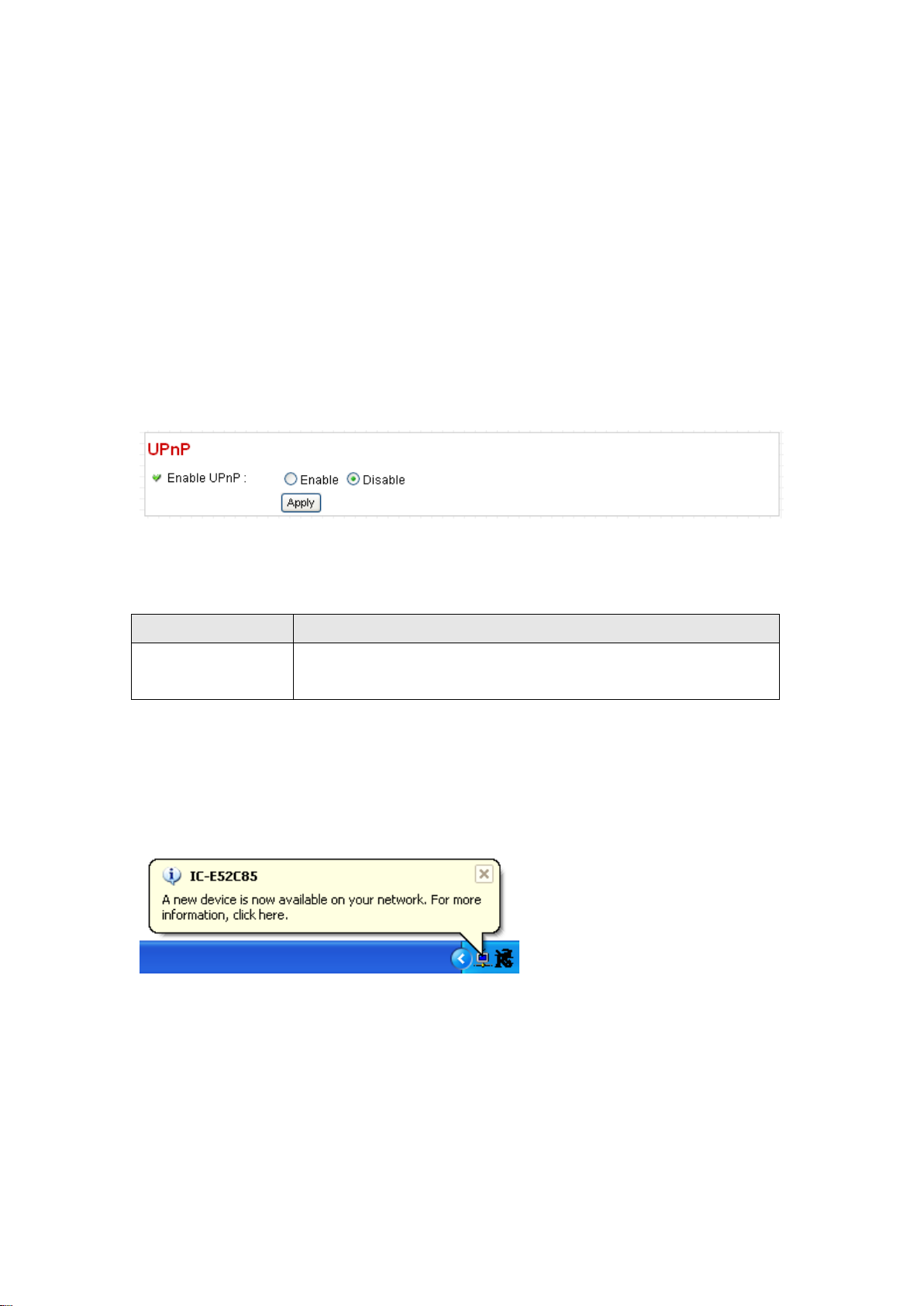

2.4.4 UPnP ...................................................................................... 58

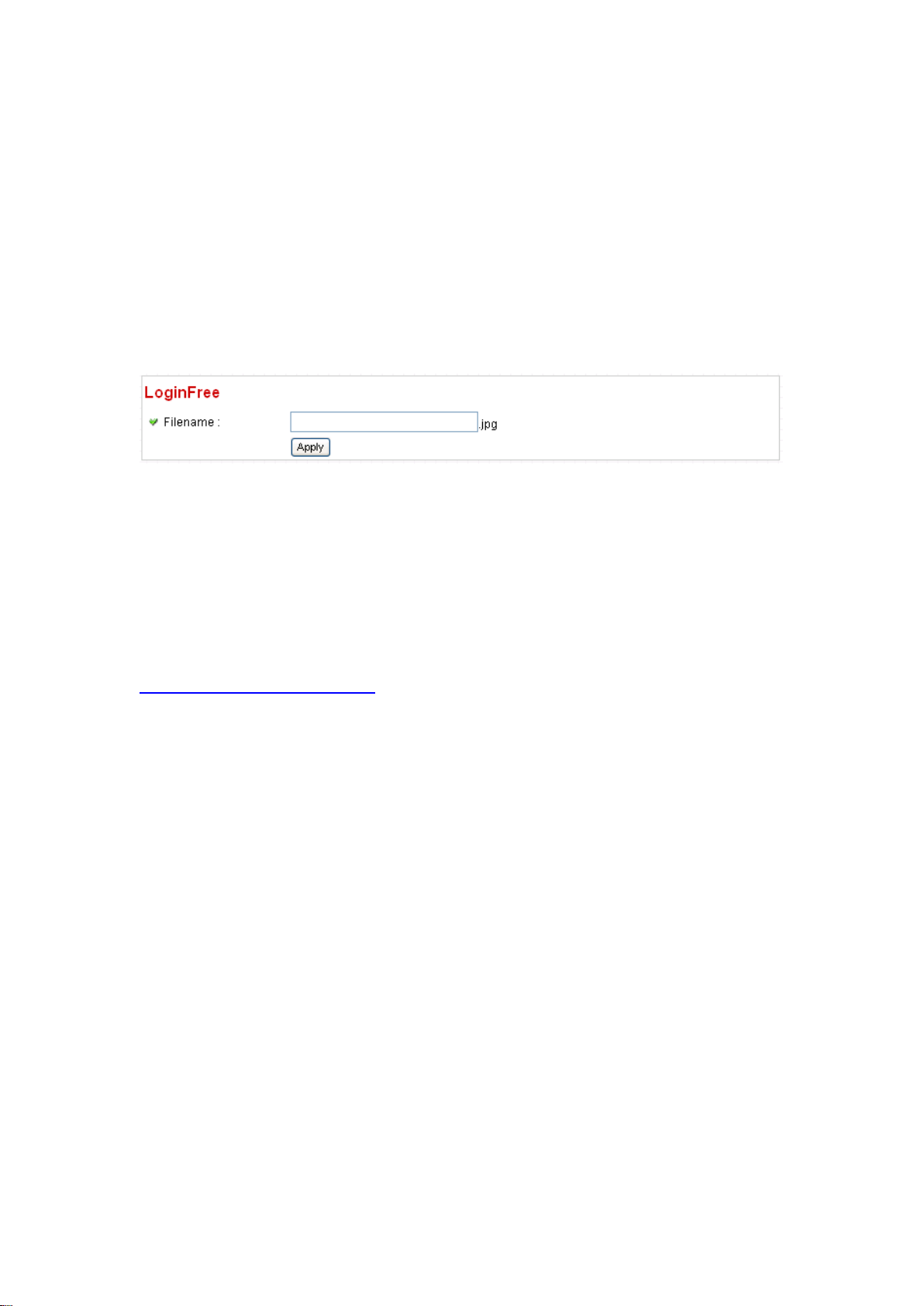

2.4.5 LoginFree ............................................................................... 60

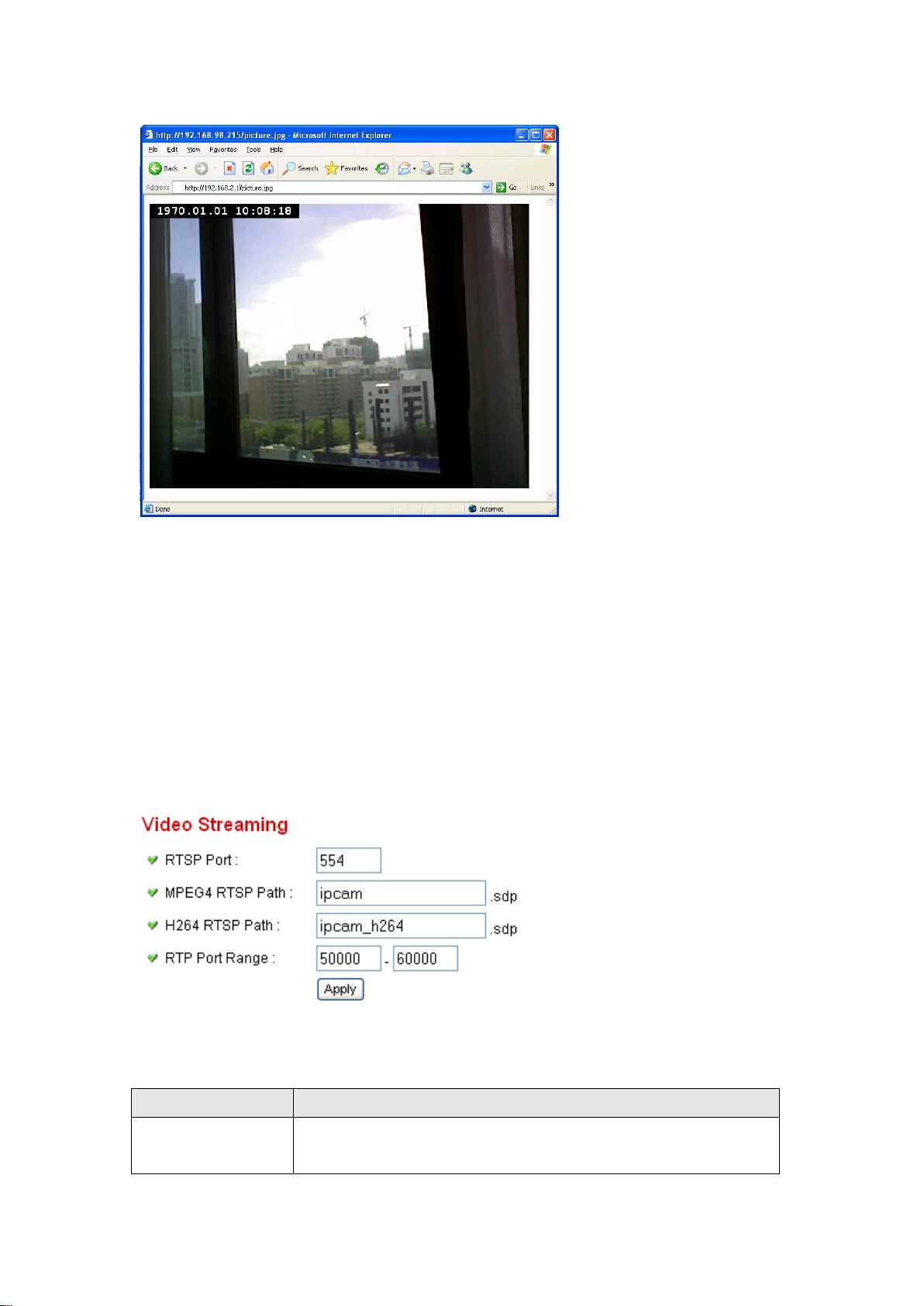

2.4.6 RTSP ...................................................................................... 61

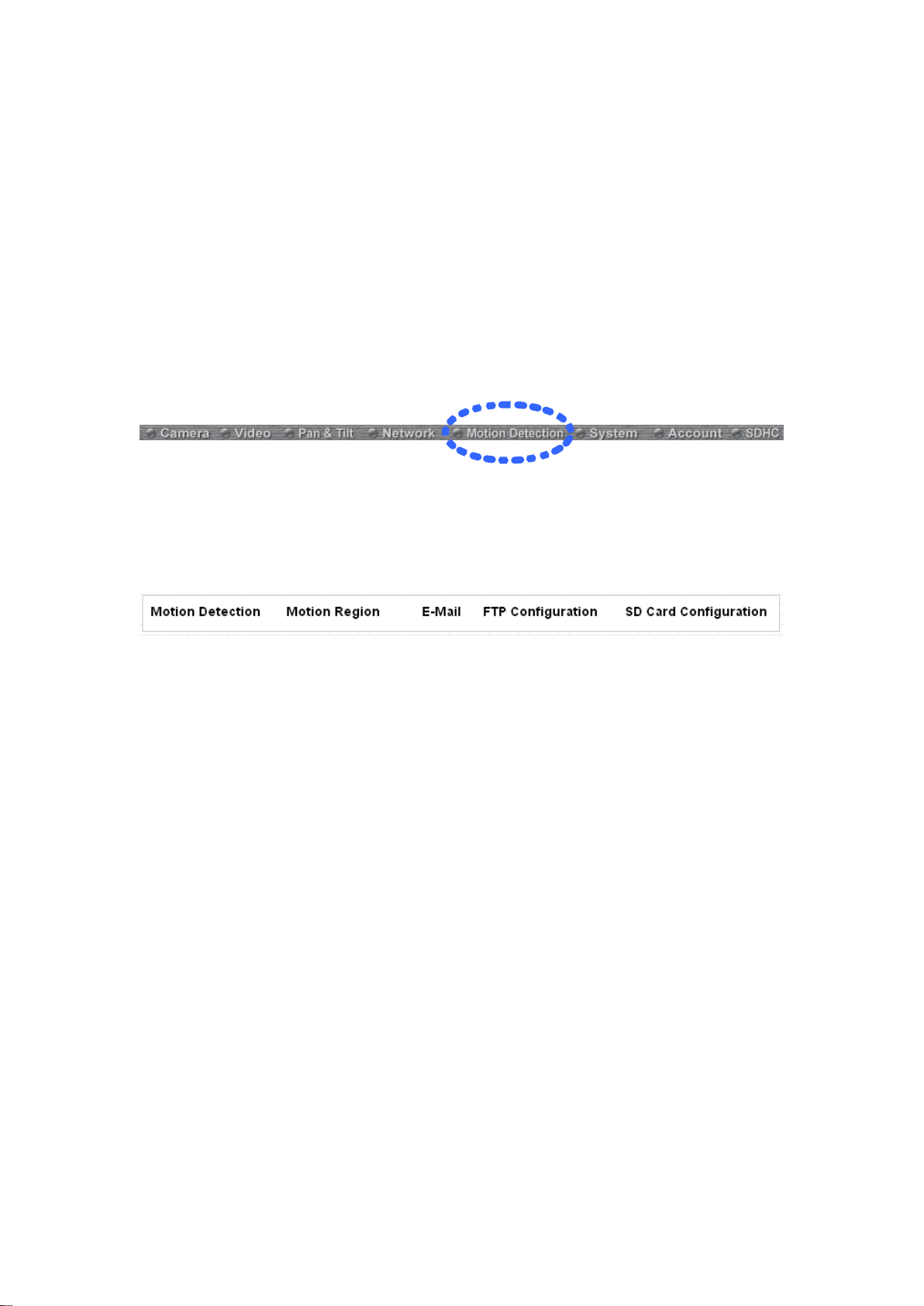

2.5 Motion Detection ............................................................................... 63

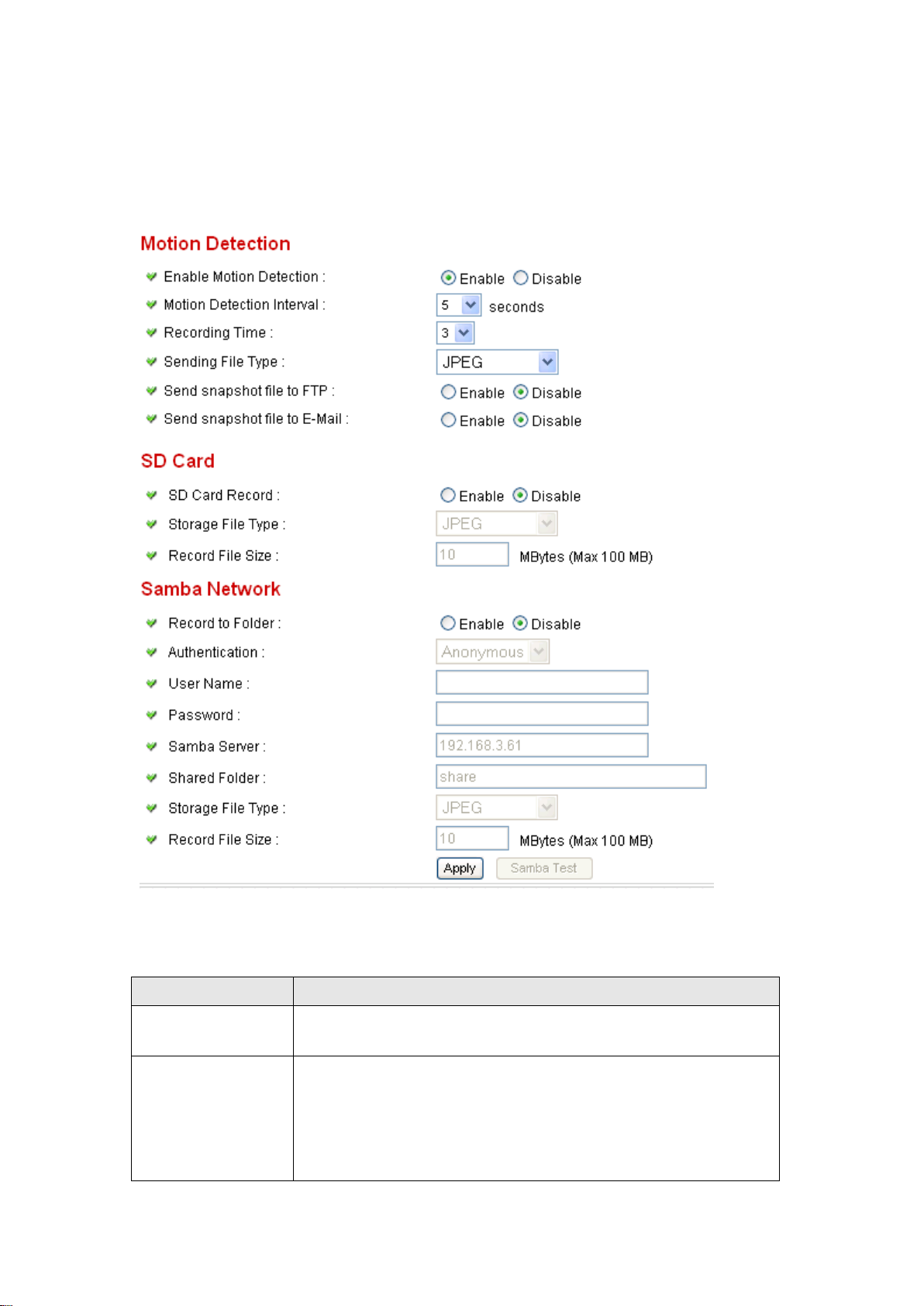

2.5.1 Motion Detection ..................................................................... 64

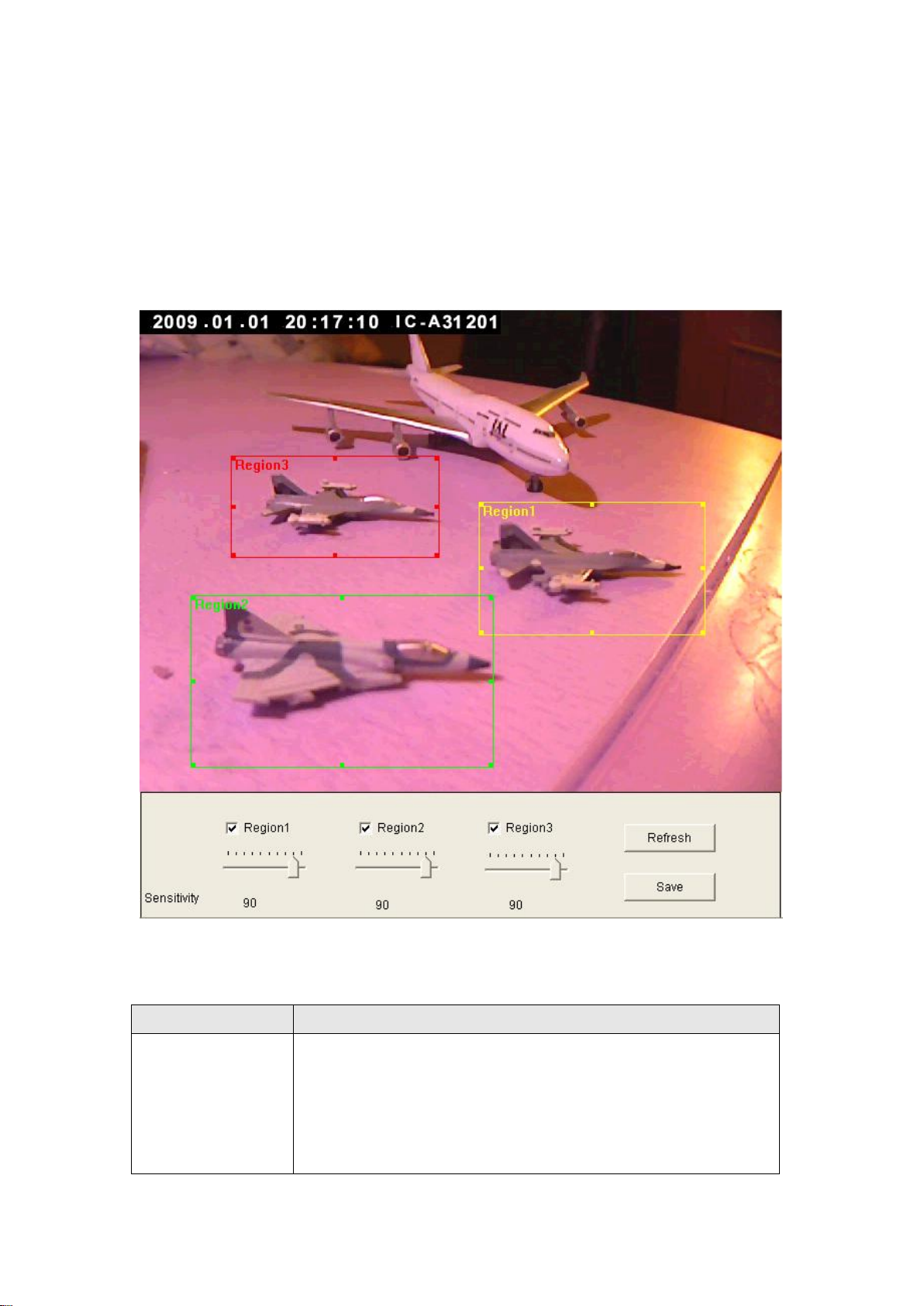

2.5.2 Motion Region ........................................................................ 66

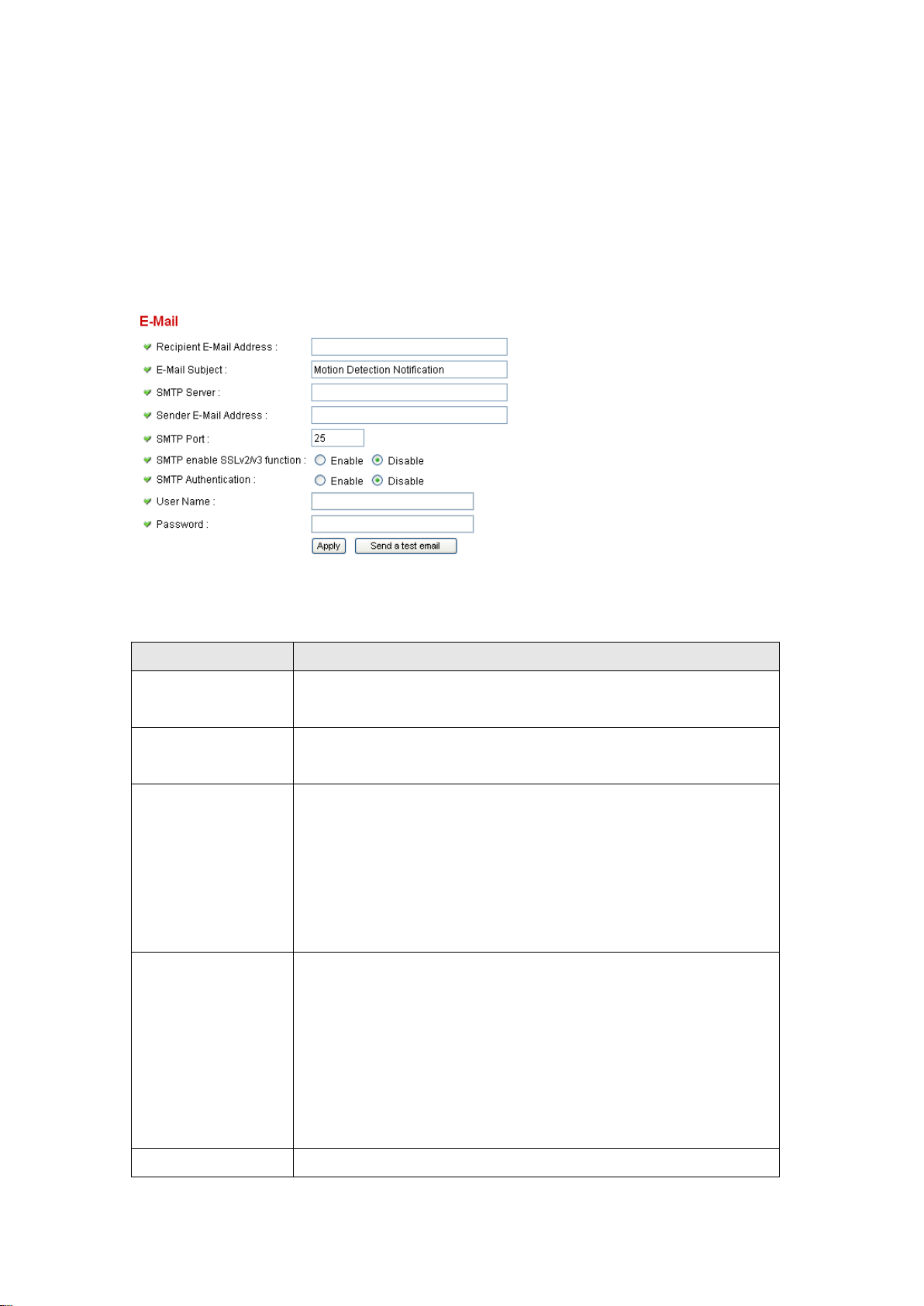

2.5.3 Email....................................................................................... 68

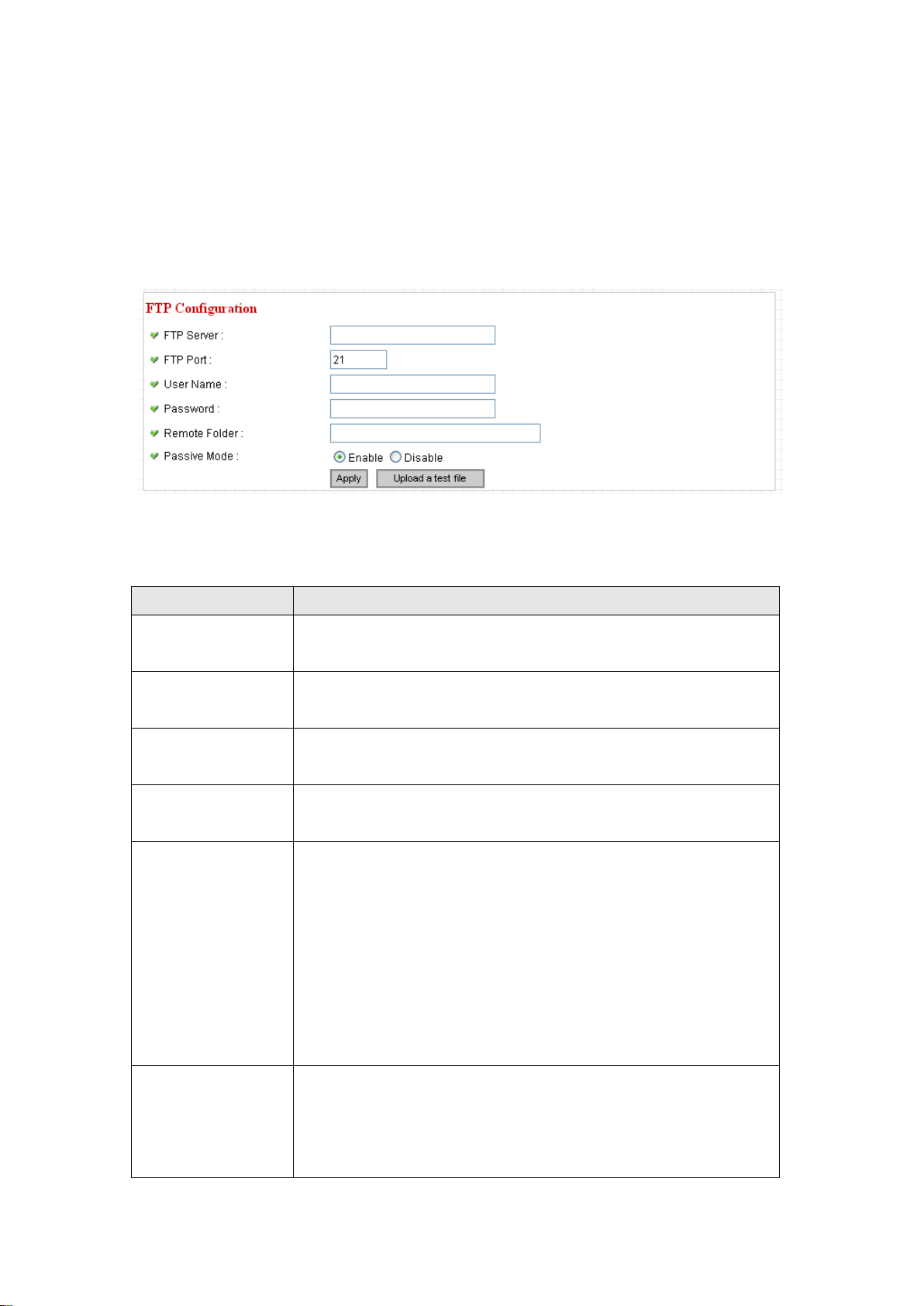

2.5.4 FTP Configuration................................................................... 70

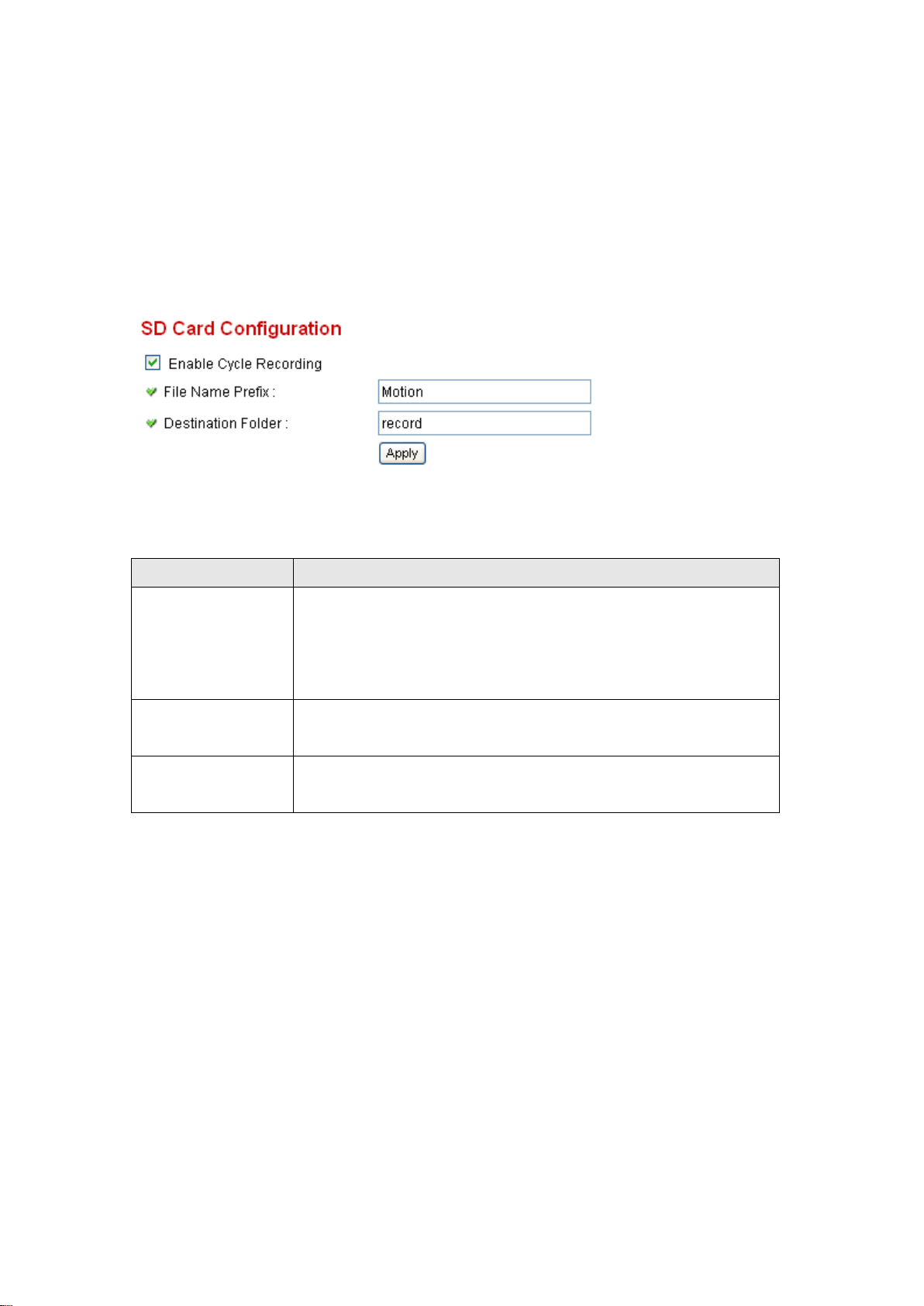

2.5.5 SD Card Configuration............................................................ 72

2.6 System Info ....................................................................................... 73

2.6.1 Camera Information ................................................................ 74

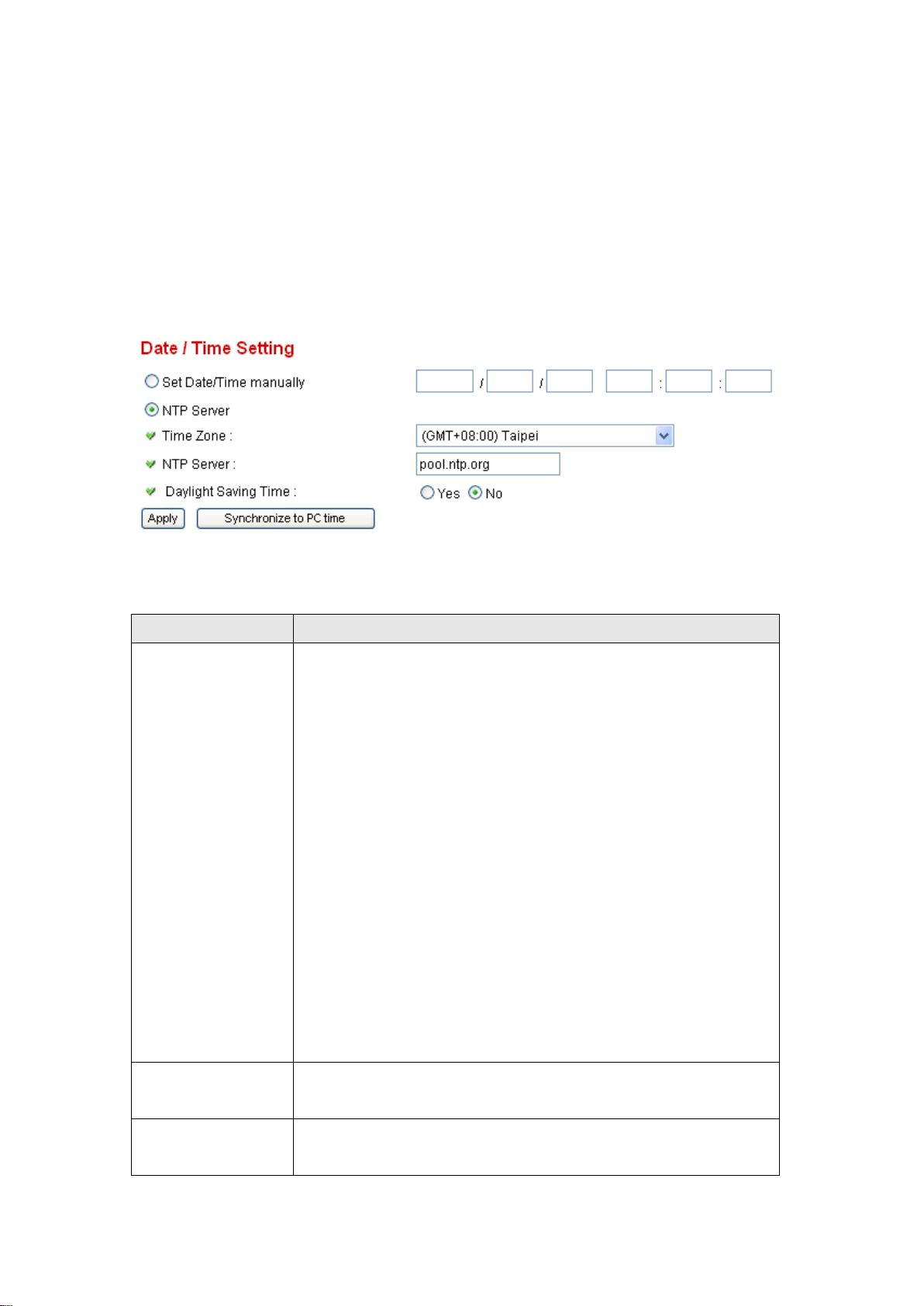

2.6.2 Date / Time Setting ................................................................. 75

2.6.3 Schedule ................................................................................. 77

2.6.4 Utilities .................................................................................... 79

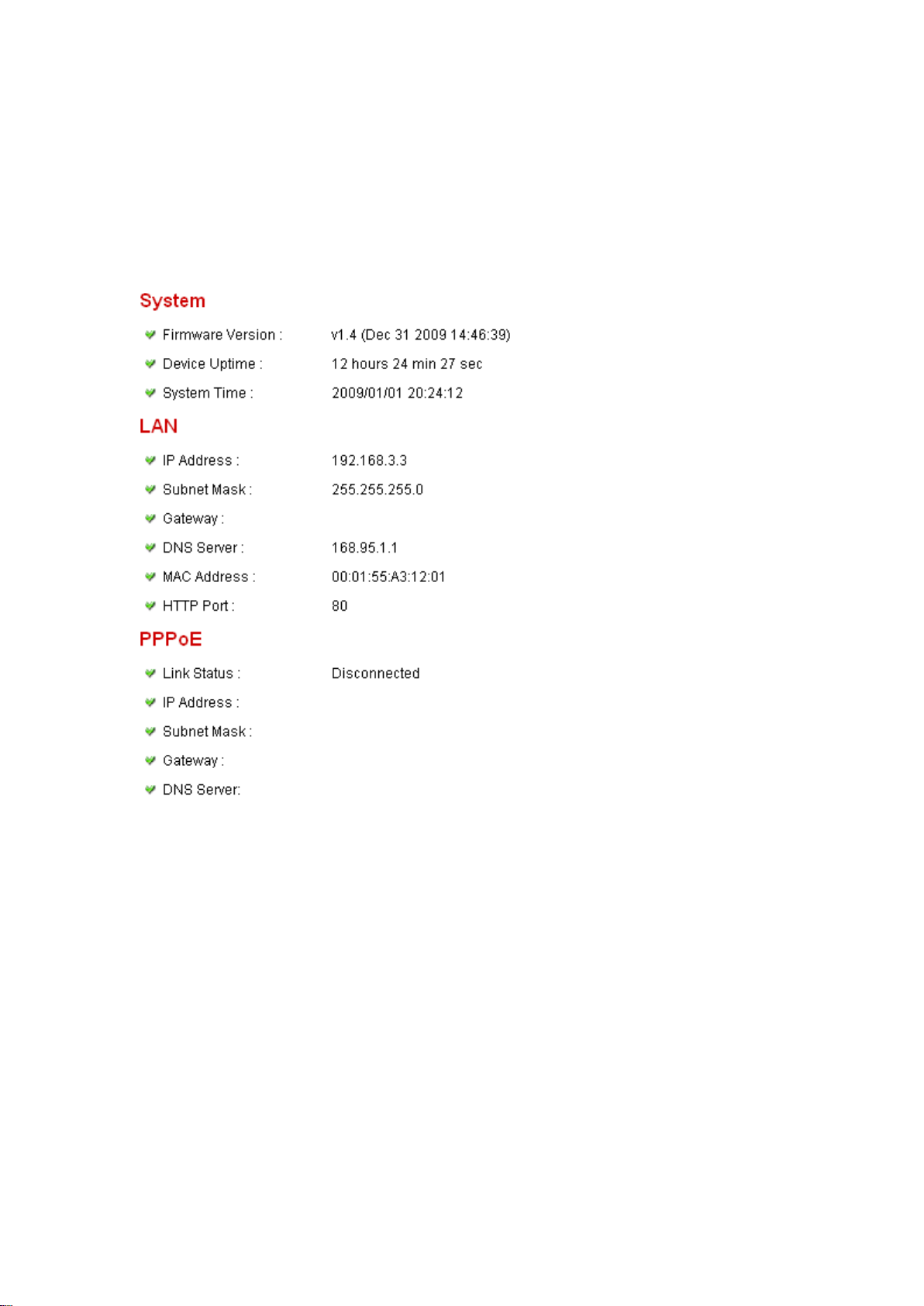

2.6.5 Status...................................................................................... 81

2.6.6 System Log ............................................................................. 82

2.7 Account ............................................................................................. 83

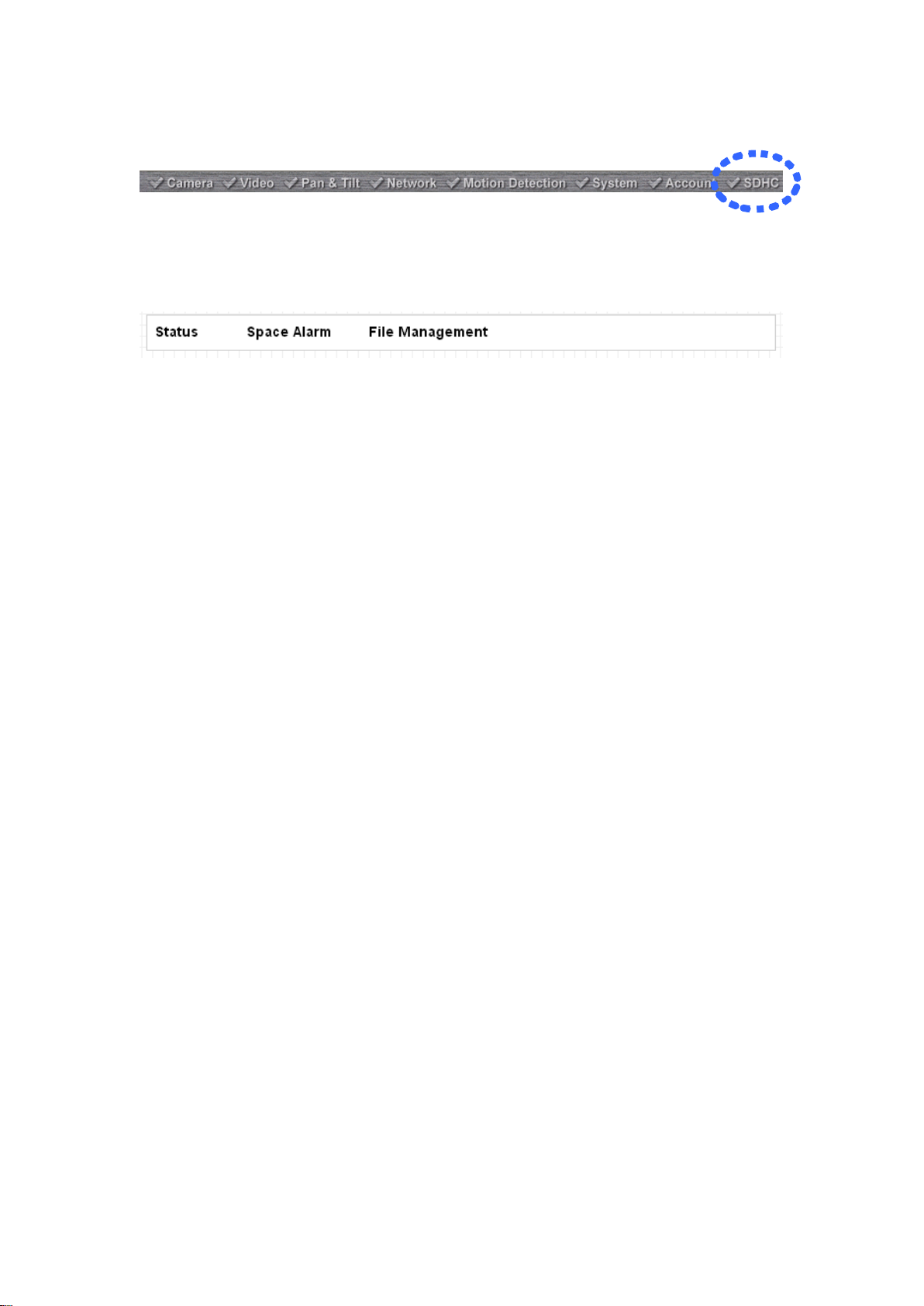

2.8 SDHC ............................................................................................... 85

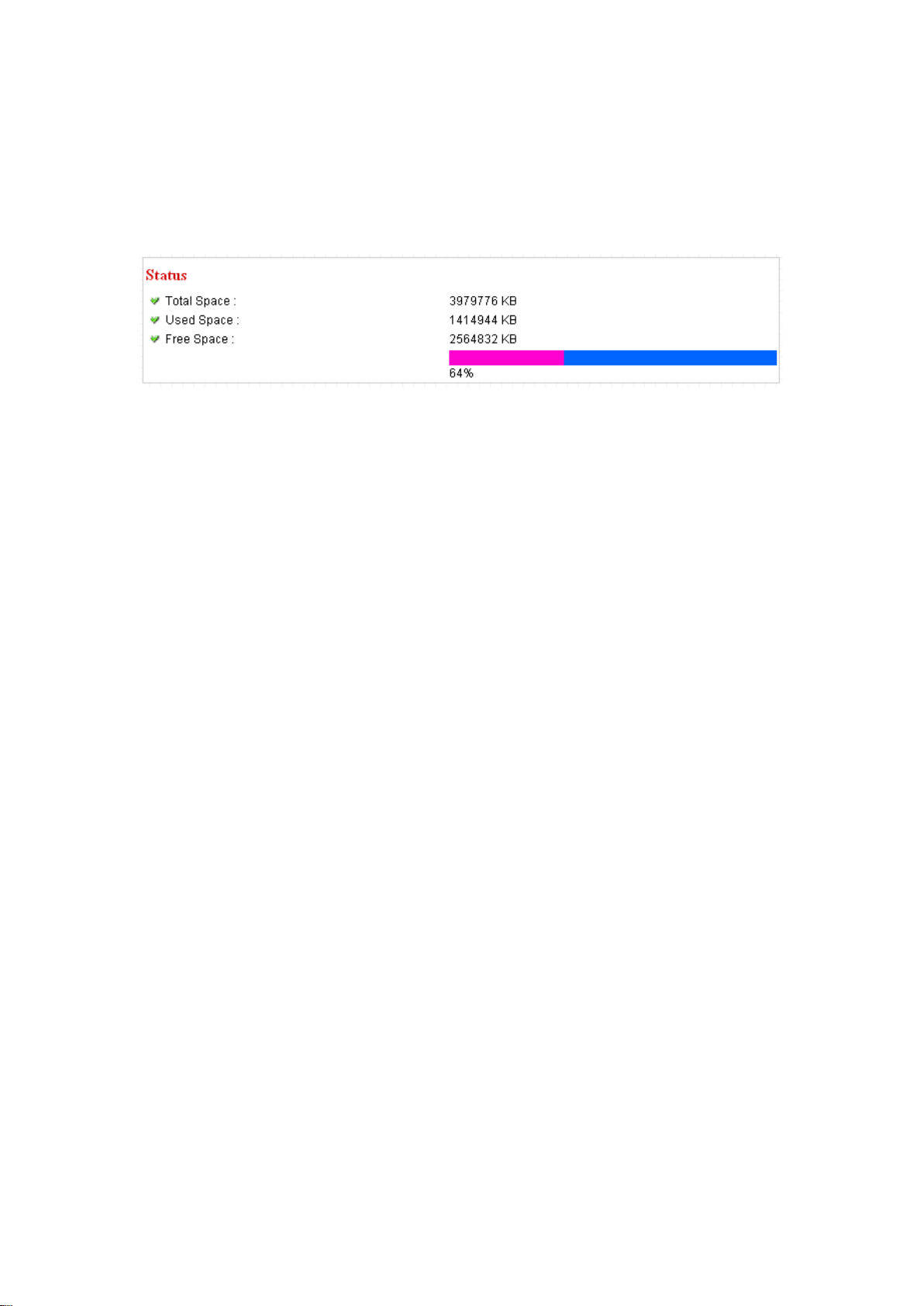

2.8.1 Status...................................................................................... 86

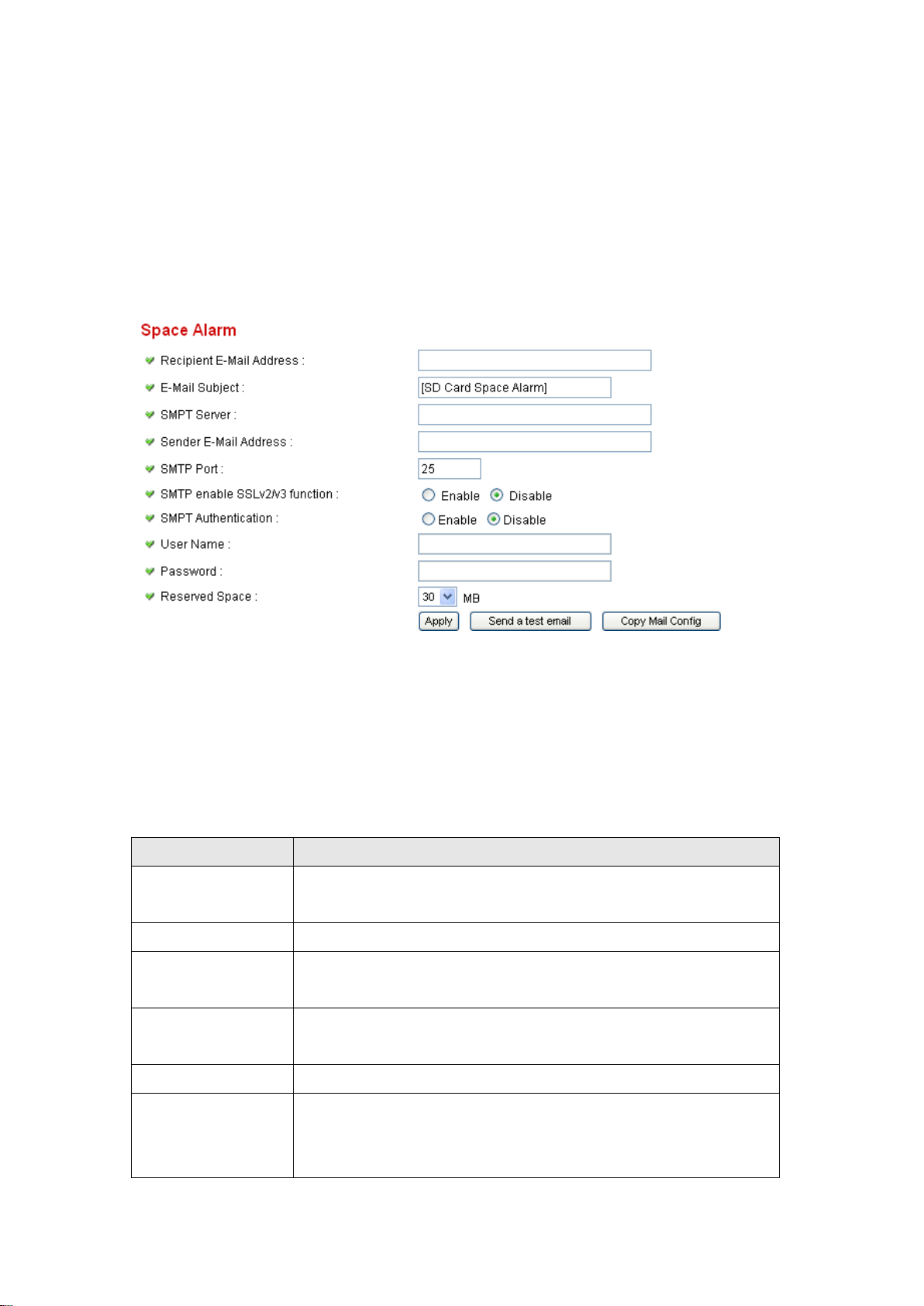

2.8.2 Space Alarm ........................................................................... 87

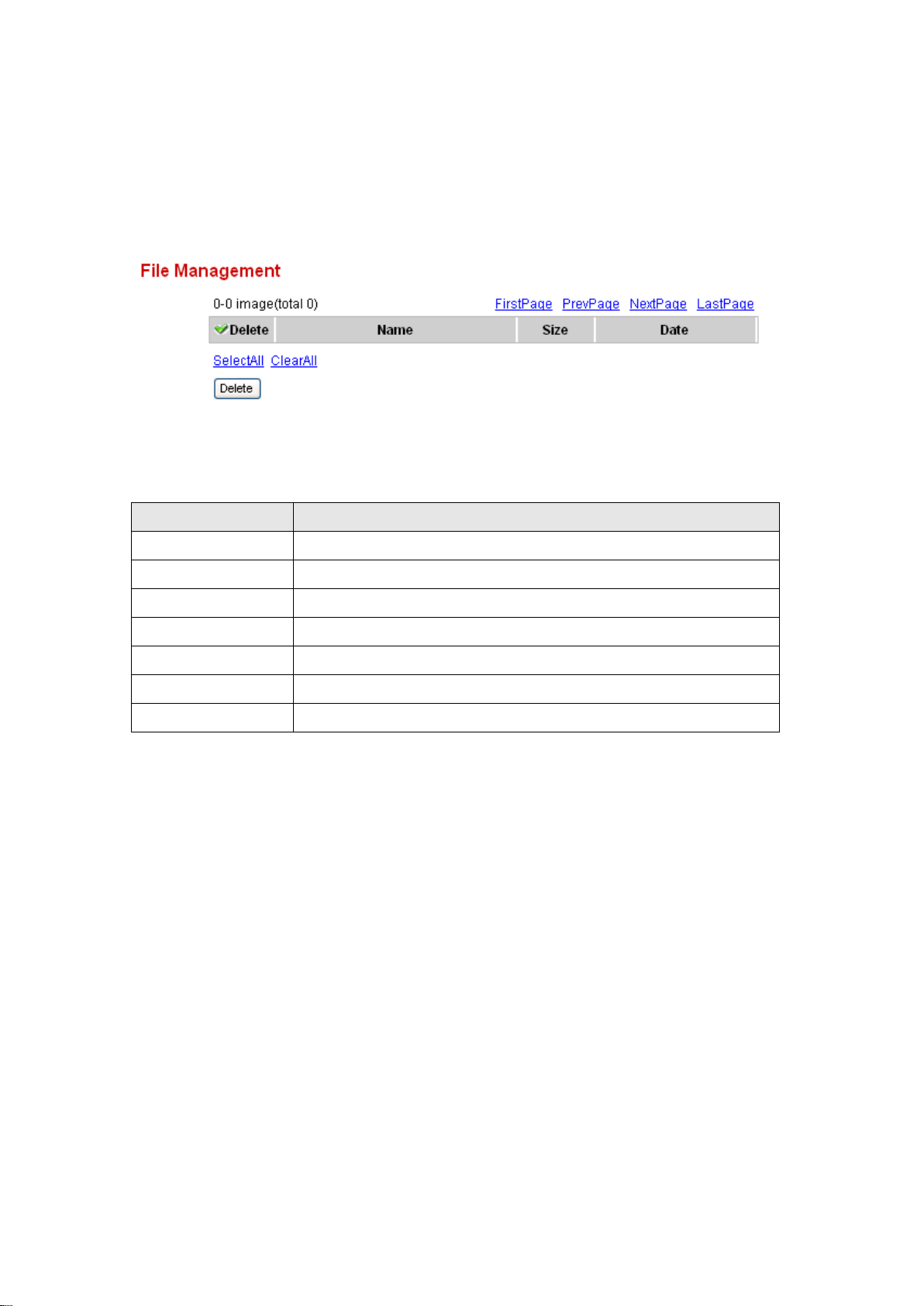

2.8.3 File Management .................................................................... 89

Chapter III: Using the Surveillance Software.................................................. 90

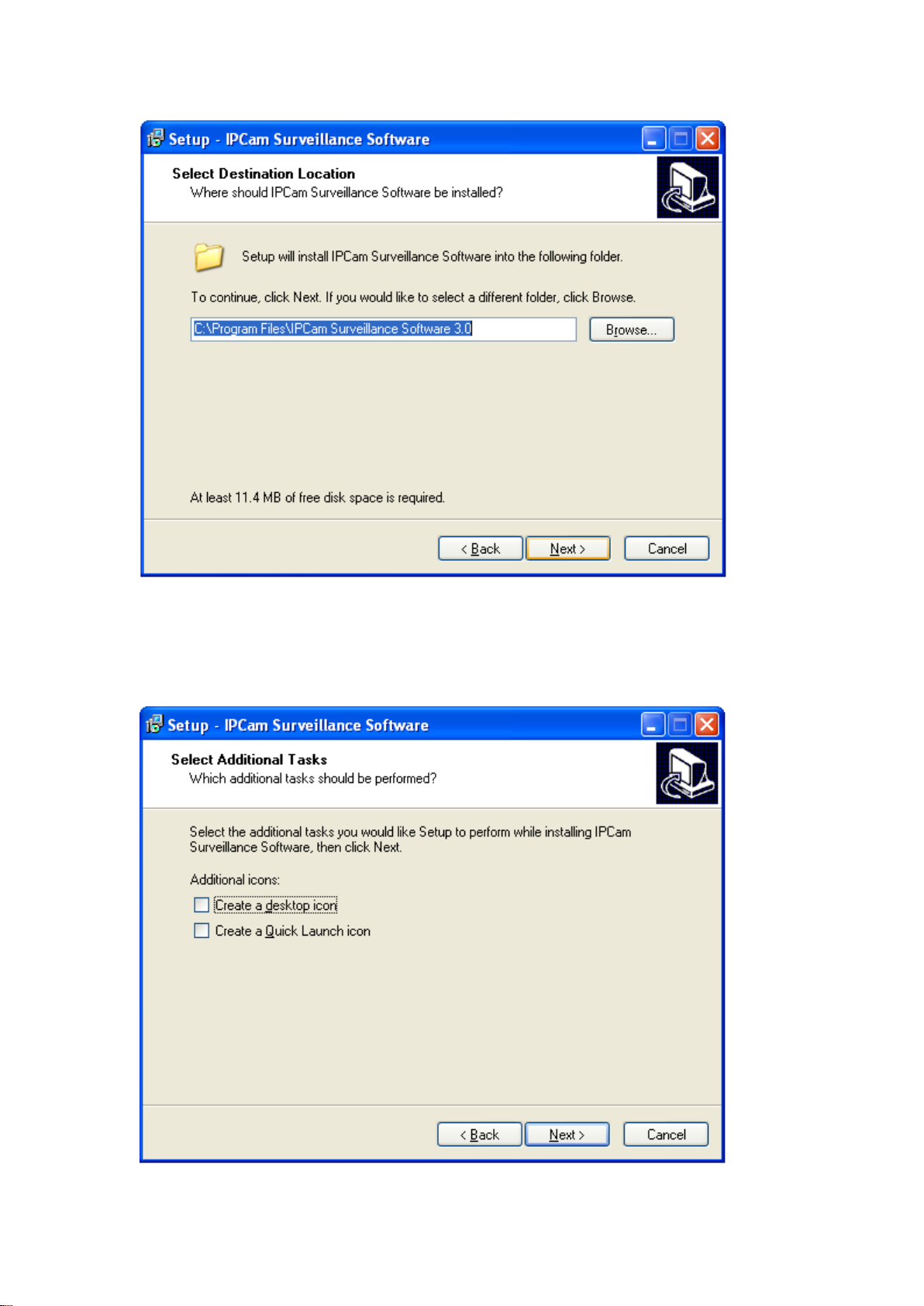

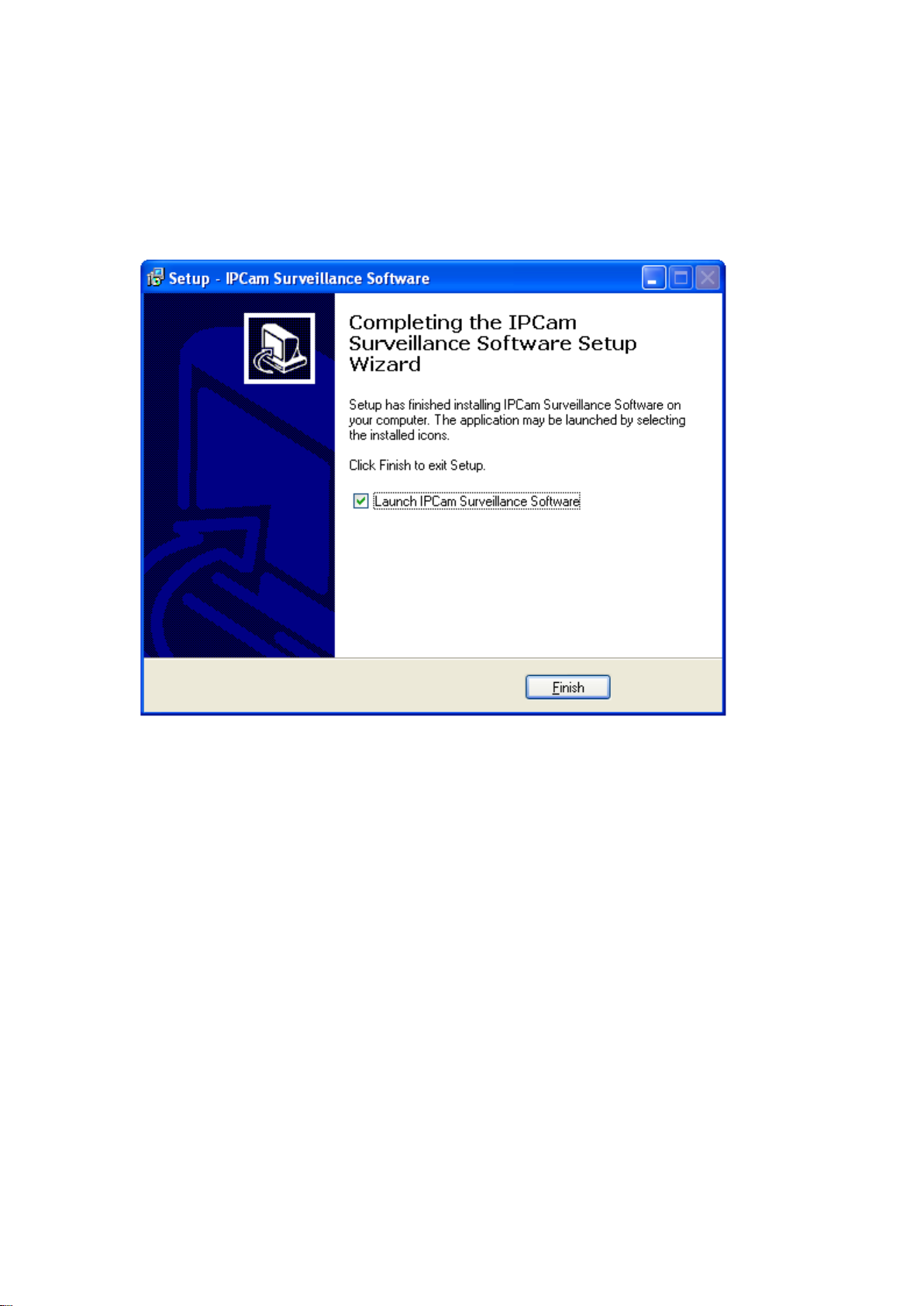

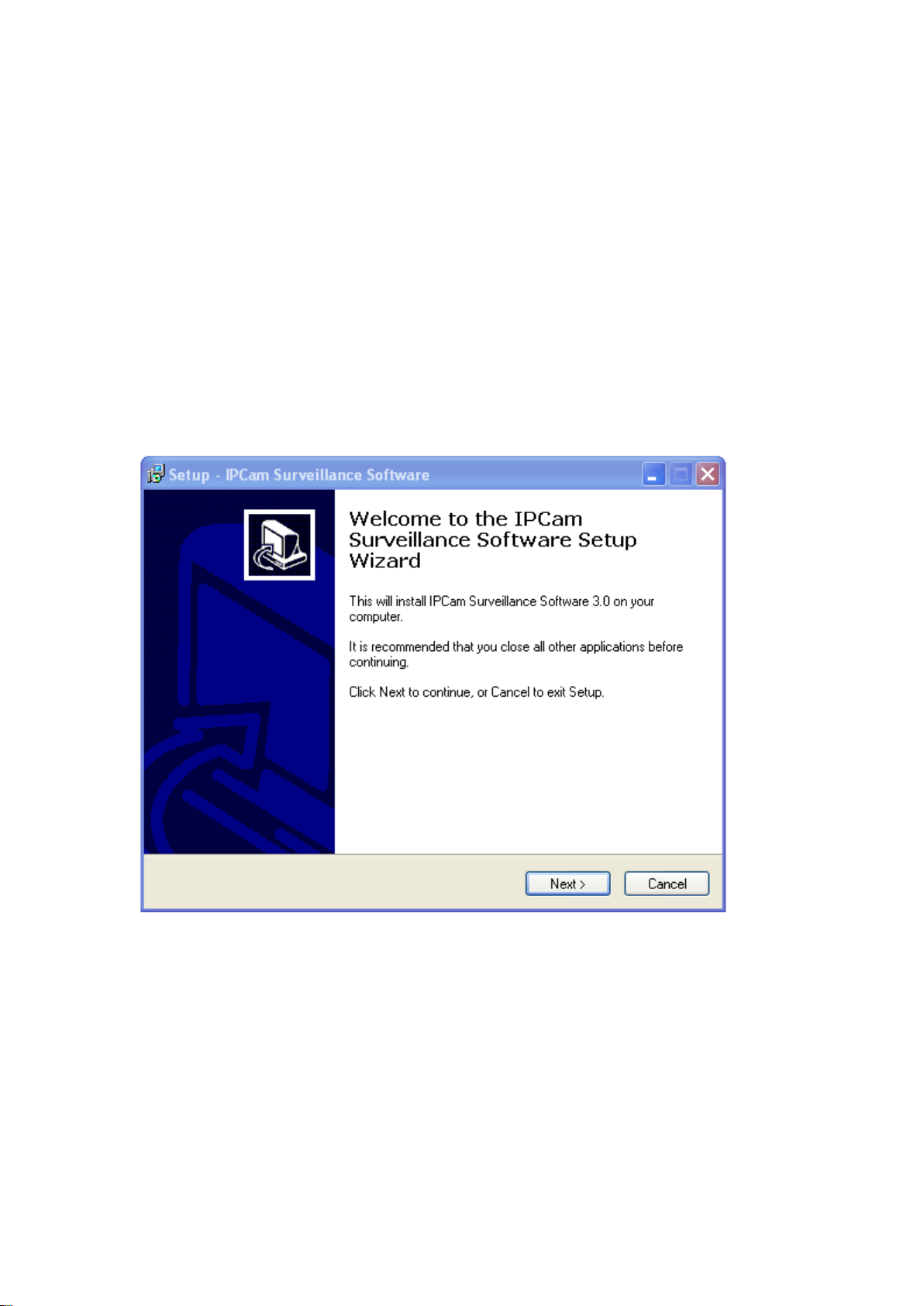

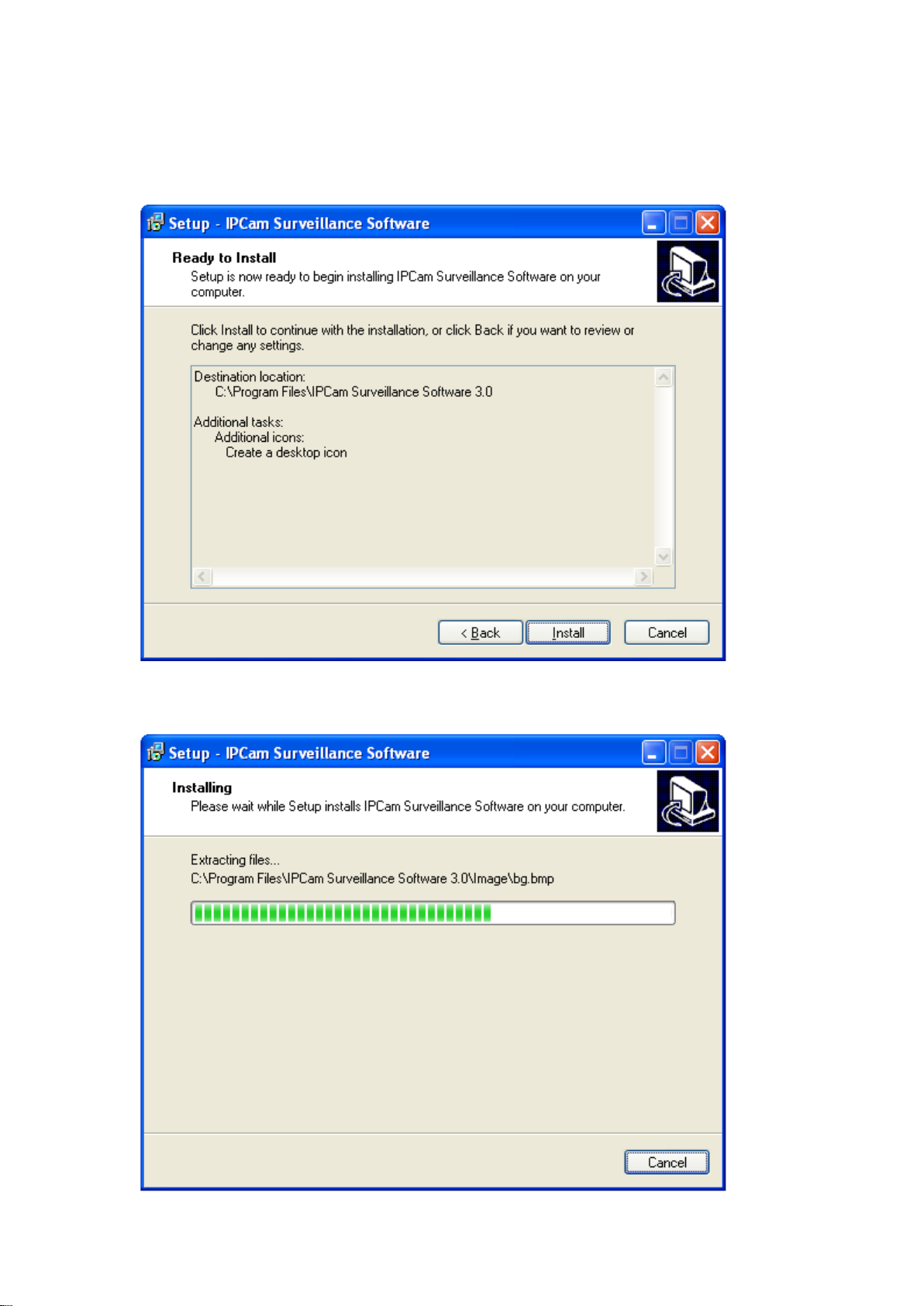

3.1 Installing network Camera Surveillance Software ............................. 90

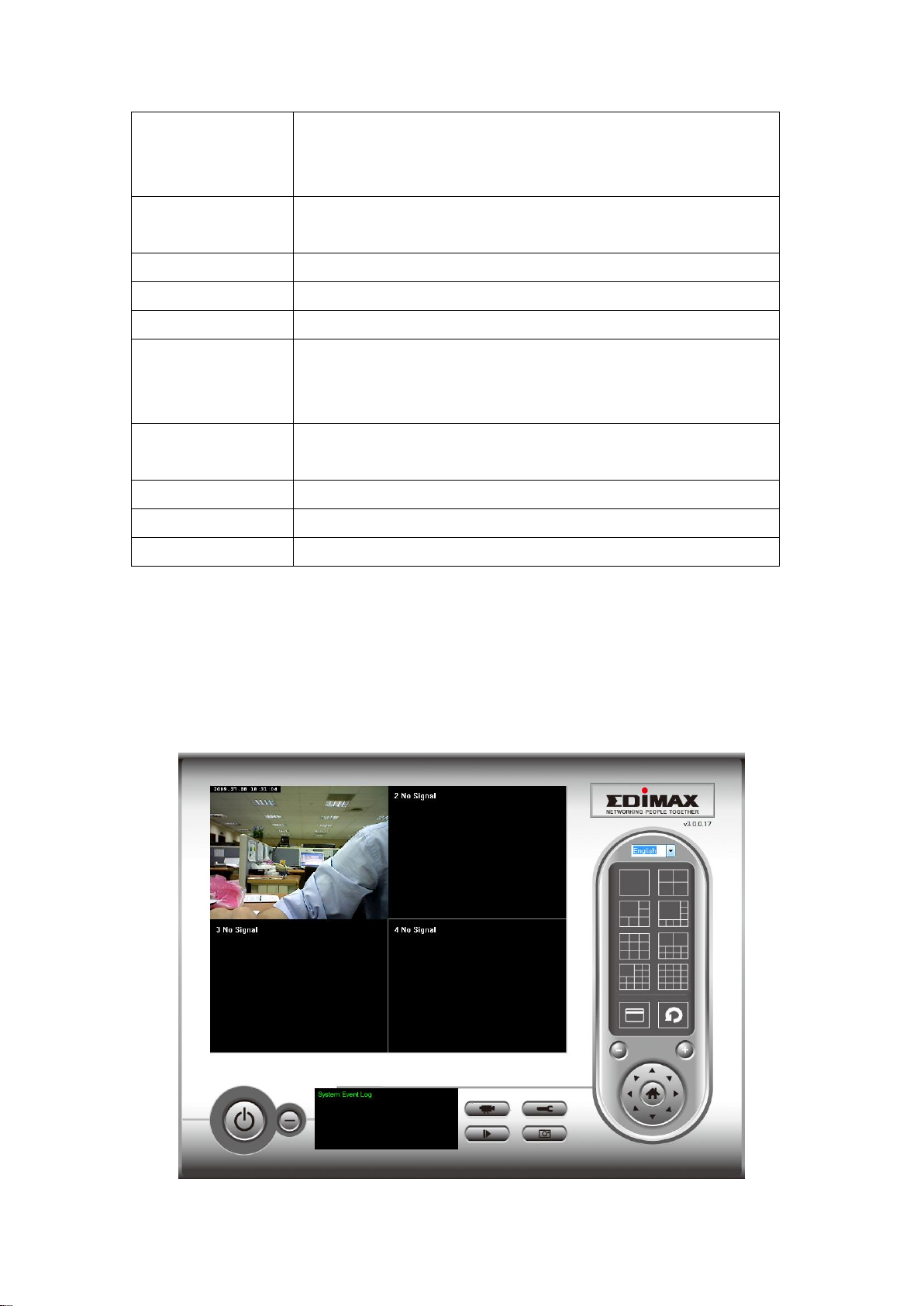

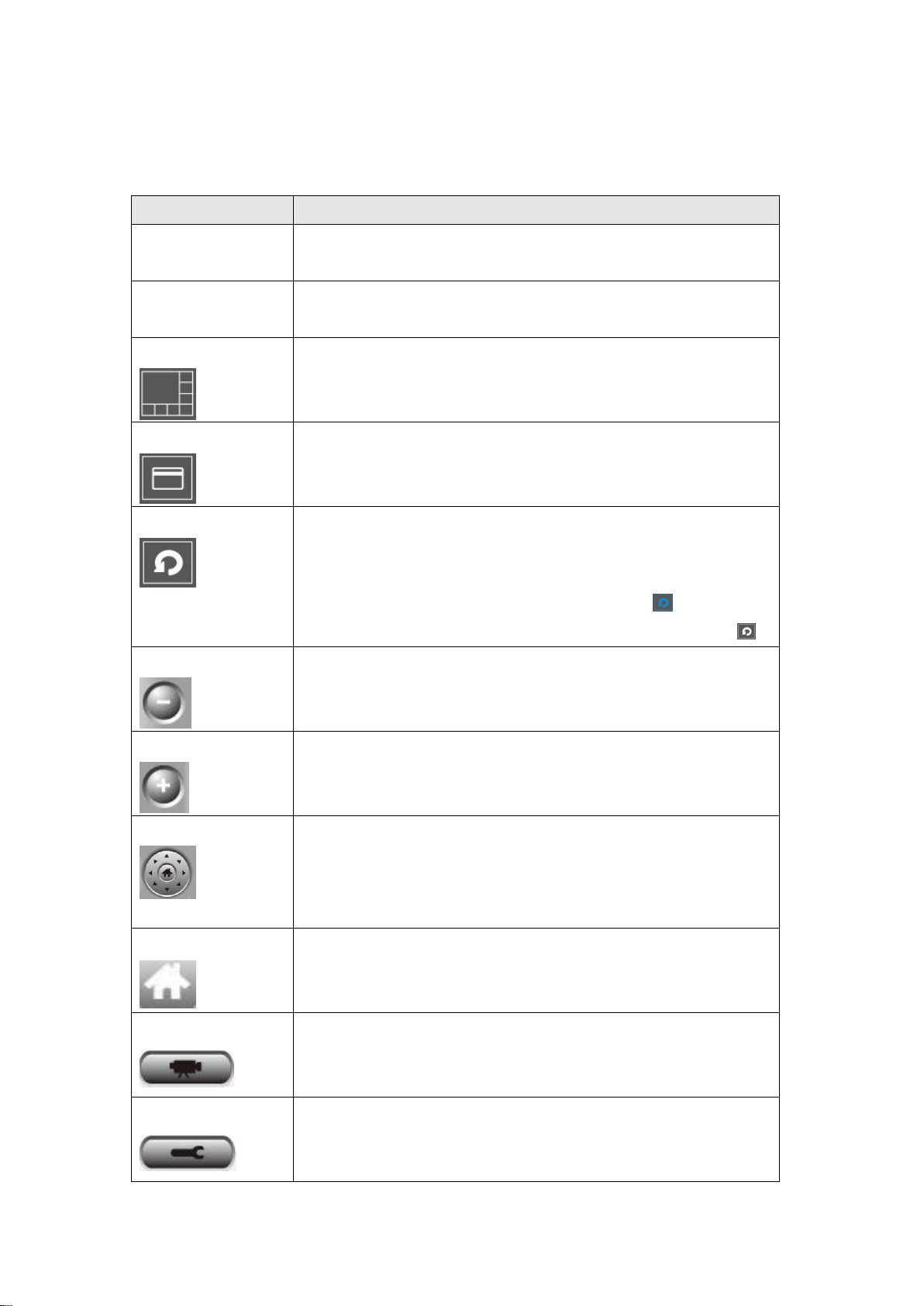

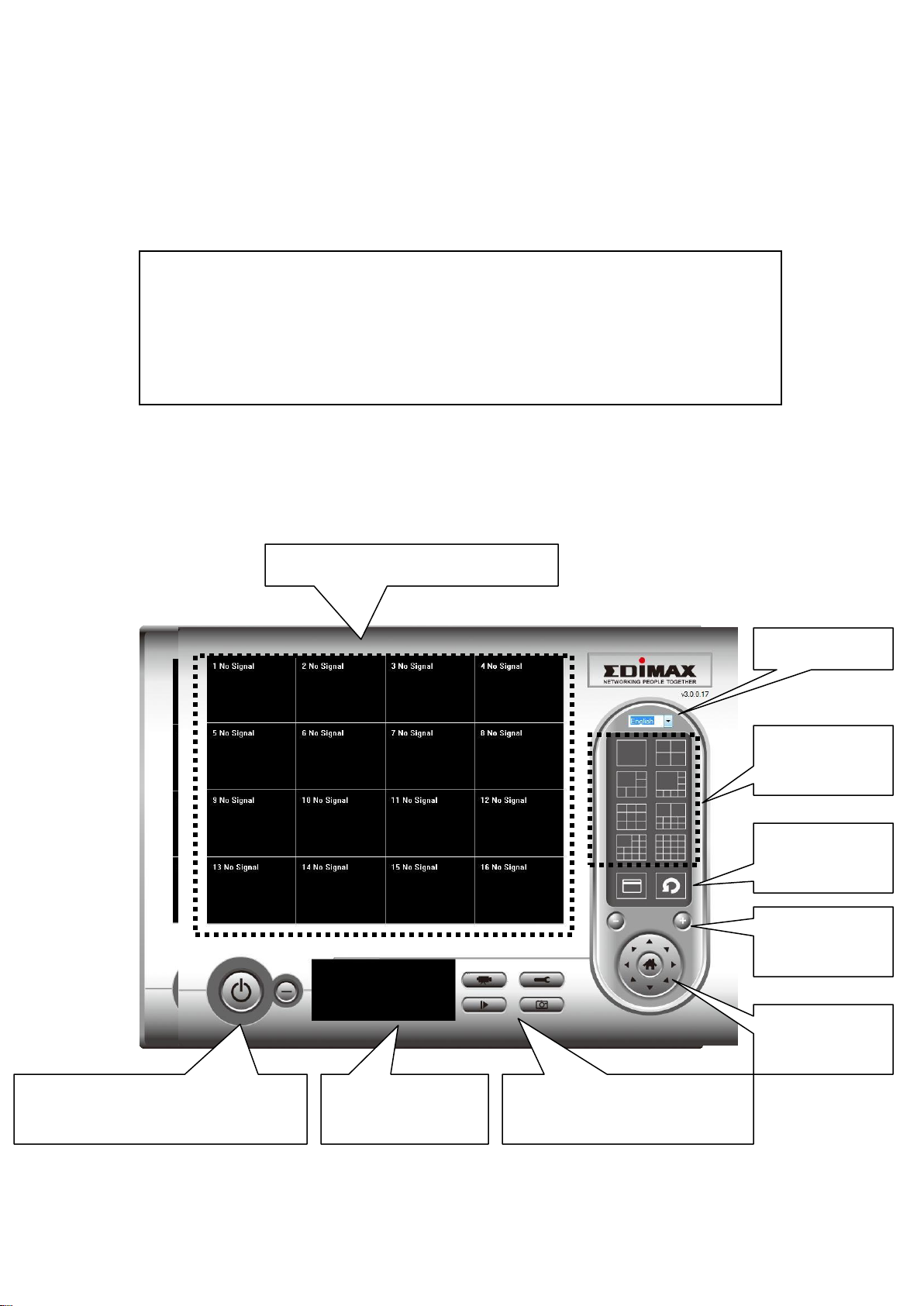

3.2 Using network camera surveillance software .................................... 94

3.3 Configure network camera surveillance software ............................. 97

3.3.1 Configure cameras ................................................................. 97

3.3.1.1 ‘Camera’ tab ............................................................................. 98

3.3.1.2 Schedule Recording ................................................................ 100

3.3.1.3 Audio ...................................................................................... 103

3.3.1.4 Motion Record ....................................................................... 104

3.3.2 General Settings ................................................................... 106

3.3.2.1 ‘General’ tab ........................................................................... 106

3.3.2.2 ‘E-Mail Setting’ tab ................................................................ 108

3.3.2.3 Security .................................................................................. 110

3.3.2.4 About...................................................................................... 111

3.4 Change Display Layout ................................................................... 113

3.5 Full-screen mode ............................................................................ 117

3.6 Scan ............................................................................................... 118

3.7 Zoom-in / Zoom-out ................................................................ ........ 120

3.8 PTZ ................................................................................................. 122

3.9 Snapshot......................................................................................... 123

3.10 Recording ..................................................................................... 124

3.11 Video Playback ............................................................................. 125

Chapter IV: How to Access the Network Camera Remotely with iPhone &

Android Phones ........................................................................................... 126

4.1 iPhone App Installation ................................................................... 129

4.2 Android App installation .................................................................. 141

4.3 Web browser installation ................................................................. 158

Chapter V: Appendix .................................................................................... 164

5.1 Specifications .................................................................................. 164

5.2 How to apply for a free DNS account at http://www.dyndns.org ..... 165

5.3 Troubleshooting .............................................................................. 168

Chapter I: Getting Familiar with Your Network Camera

Item Name

Quantity

Network Camera

1 2 Antenna(IC-7110W only)

2 3 Power Adapter

1 4 Ethernet Cable

CD ROM (Including Manual/Utility/Multi-Language QIG)

1 6

Accessory kit

1 7 Quick Installation Guide

1 8 Mounting Kit

1.1 Package Contents

Thank you for purchasing this Network camera! Before you start to use this Network camera, please check the package contents. If anything is missing, please contact the dealer of purchase and return the package to claim for missing contents.

1.2 Introduction

Thank you for purchasing this Network camera! This Network camera is an ideal product for all kinds of video surveillance purposes, like home/office safety, kid/pet monitoring, and remote video acquire etc. Edimax IC-7110 series is tailor made to stream live video over your network. You can view the Network camera's video from anywhere on your local computers or via the Internet. Besides, Edimax IC-7110 series features high quality and high frame rate video streaming through advanced video compression. In order to achieve the highest video quality, simply select H.264, MPEG4 or M-JPEG depending on your network settings.

Some people may concern that there will be some places which will not be covered by camera, but this problem is completely solved by this Network camera. With built-in pan-tilt function, you can point the camera to the position where you wish to look at with user interface. You can even define a preset path, and the camera will cruise along the path you defined.

If the environment is too dark, it‟s also not a problem. This camera equips 9 IR-LEDs and will illuminate automatically when the environment is too dark, and the image captured by this camera will still be clear.

You can discover more useful functions in next section!

1.3 Product Features

No pre-loaded software required - all you need is a browser like Internet Explorer 6 (and above, with plugin installed). With supplied video surveillance software, you can connect up to 16 video cameras and view images captured by every camera at the same time. Supports 3 video resolutions: M-JPEG and H.264 SXGA(1280 x 1024), VGA (640 x 480), and QVGA (320 x 240); MPEG-4 XGA (1024 x 768), VGA (640 x

480), and QVGA (320 x 240). Anti-flicker function (eliminates flash caused by fluorescent lights, 50 / 60Hz selectable). Video control functions, like brightness and zoom-in / zoom-out. Audio function, suitable for applications like video conference or environment monitor. Pan & tilt control. 9 automatically-controlled IR LEDs. Wired and wireless network (IC-7110W only, 802.11b / 802.11g / 802.11n) support Wireless data encryption (WEP / WPA) Supports DHCP and PPPoE protocol, you can also assign a fixed IP address to the camera also. Supports Dynamic DNS (used to allocate the network camera‟s Internet address, when the ISP you‟re using does not assign you with a fixed Internet address). Supports UPnP, Windows XP (and above) will discover this network camera in network neighbor automatically. Send captured picture and video by Email or FTP when motion is detected. Configurable motion detection sensitivity (6 levels from most sensitive to least sensitive). Built-in real-time clock, date and time information will be recorded with every captured picture / video clip (also supports auto time synchronization via network time protocol). Upgradeable firmware - enjoy new functions without buying a new camera! Supports up to 16 users, and you can set different password to different user. Usage and event logging.

1.4 Key Components

Item

Description

Power/Cloud

The power LED will flash and light up when the camera is powered on and ready for access to Cloud.

Audio Indicates Audio status

LAN

When the Network Camera is linked to a wired network, this LED will light up. The LED will flash while video is transmitted or received through a wired network.

ACT

(IC-7110P only)

The LED will flash while data is transmitted.

Front View

Focus Ring

IR LED

Microphone

Wired & Wireless:

POE model:

Power LED Audio LED LAN LED WLAN LED

Power LED Audio LED ACT LED LAN LED

Wireless

(IC-7110W only)

When the Network Camera is linked to a wireless network, this LED will light up. The LED will flash while video is transmitted or received through a wireless network.

Focus Ring

You can change the aim and focus of the camera by adjusting the camera head's aim and adjusting the focus ring. Simply point it in your direction of choice and rotate the focus ring to your preference.

IR LEDs

Lights up when environment is too dark

Microphone

Collects audio

USB Port

Power Connector

SD Card Slot Ethernet Port

Audio Connector

Back View

IC-7110:

IC-7110W:

Antenna Base

Power Connector WPS Button

SD Card Slot

Audio Connector Ethernet Port

IC-7110P:

Item

Description

Power Connector

Connects to 12V DC power adapter

SD Card Slot

Accepts SD / SD-HC memory card for image / video storage

USB Port* (IC-7110 only)

Accepts USB WiFi adapter** to enable wireless

Audio Connector

Connects to external speaker for audio output

Ethernet Connector

Connect to your local area network

Power Connector

SD Card Slot

Audio Connector

Ethernet Port

Antenna Base (IC-7110W only)

Connects to supplied antenna

WPS Button (IC-7110W only)

Press the WPS button (click) on the Network Cam and click on the Access Point that you want to wirelessly connect it to.

Note: The USB port only works with Edimax USB WiFi adapters.

Note: Edimax EW-7711HPn, EW-7711UAn, EW-7711USN,

EW-7711UMn & EW-7711UTn

Item

Description

Reset Button

Press the button with pen nib and hold for 5 seconds to reset the camera settings to factory default value.

Side View

Reset Button

Item

Description

Tripod Connect or

Connects to tripod to secure the camera when the camera is not put on a horizontal surface.

Bottom View

Tripod Connector

1.5 Camera Installation

Please follow the following instructions to set your network camera up.

1. Unpack the product package and check if anything‟s missing.

2. Connect the Ethernet cable to your local area network, and connect the

other end to the LAN jack of this network camera.

3. Plug the power adapter to wall socket, and connect the power connector to

the power jack located at the bottom of the network camera.

4. Connect two antennas to the antenna bases, which is located at the back of

this network camera.

5. Place the camera at a secure place, and point the camera to the place you

wish to monitor. If you wish to hang the camera on the ceiling or wall, please use the tripod connector (located at the bottom of the camera) to secure the camera.

6. Launch Internet Explorer on your computer, and following the instructions

given in next section to set the network camera.

1.6 Locating the IP Address of this Network Camera

Default IP address of this network camera is 192.168.2.3. If you wish to assign another IP address to this network camera, you have to log onto the web configuration interface of the camera first.

If the left three fields of the IP address of your computer is not 192.168.2, you‟ll have to change the IP address of your computer first:

1. Click „Start‟ -> „Control Panel‟

2. Double-click „Network Connections‟ icon.

3. Right-click „Local Area Connection‟, and click „Properties‟.

4. Select „Internet Protocol (TCP/IP)‟, then click „Properties‟.

5. In „IP address‟ field, please fill in any IP address begins with „192.168.2‟,

and ends with a value greater than 2 and less than 254 (You can use the example in the picture „192.168.2.339‟). In Subnet mask field, please fill „255.255.255.0‟. Please keep all other fields empty, and click „OK‟.

If you changed the IP address of this network camera and you forget it, there‟re 2 methods to recover it:

a. Press and hold the „Reset‟ button located at the bottom of this network

camera, to clear all settings of the network camera and reset the IP address back to 192.168.2.3. You‟ll lose all settings in the network camera.

b. Ask network administrator to check the DHCP release table, if the

camera was set to obtain the IP address by DHCP, a new record will be added to DHCP release table on DHCP server when the network camera is connected to the local area network.

1.7 Using the Camera Admin Software to Locate the Camera

If you can‟t connect to the camera by the instructions given in last chapter, you can use camera admin software to search the camera which is connected to your local area network. The admin software is also capable to locate multiple cameras on your local area network.

Please insert the user manual CD-ROM supplied in the product package, and the CD will automatically running the installation, if not please double-click „EdiView Finder utility_v1.0.5‟ icon:

Then follow the following instructions to install and use camera admin software:

1. Double-click Ediview finder installer, and click „Run‟ when you‟re prompted:

2. Ediview finder will list all Ediamx network cameras found on local network, with their IP address and MAC address:

You can click icon to find network cameras on local network again, or select an network camera and click Icon to configure it (see next step).

To preview the image of network camera, please click the icon indicated by white arrow, and provide username / password, and a snapshot will be displayed.

This function is only available when this icon is displayed as blue color.

3. Ediview finder will inspect network camera‟s connection type and if it‟s connected to Internet, this may take a few seconds, please be patient.

4. This message will tell you if your network camera is connected to Internet (connected to the cloud), and the connection type (wired or wireless). When

you see this message, click „Next‟ to continue. If you don‟t want to change

network camera‟s name and password, you can click „X‟ on the upper-right

corner of window to close ediview finder utility

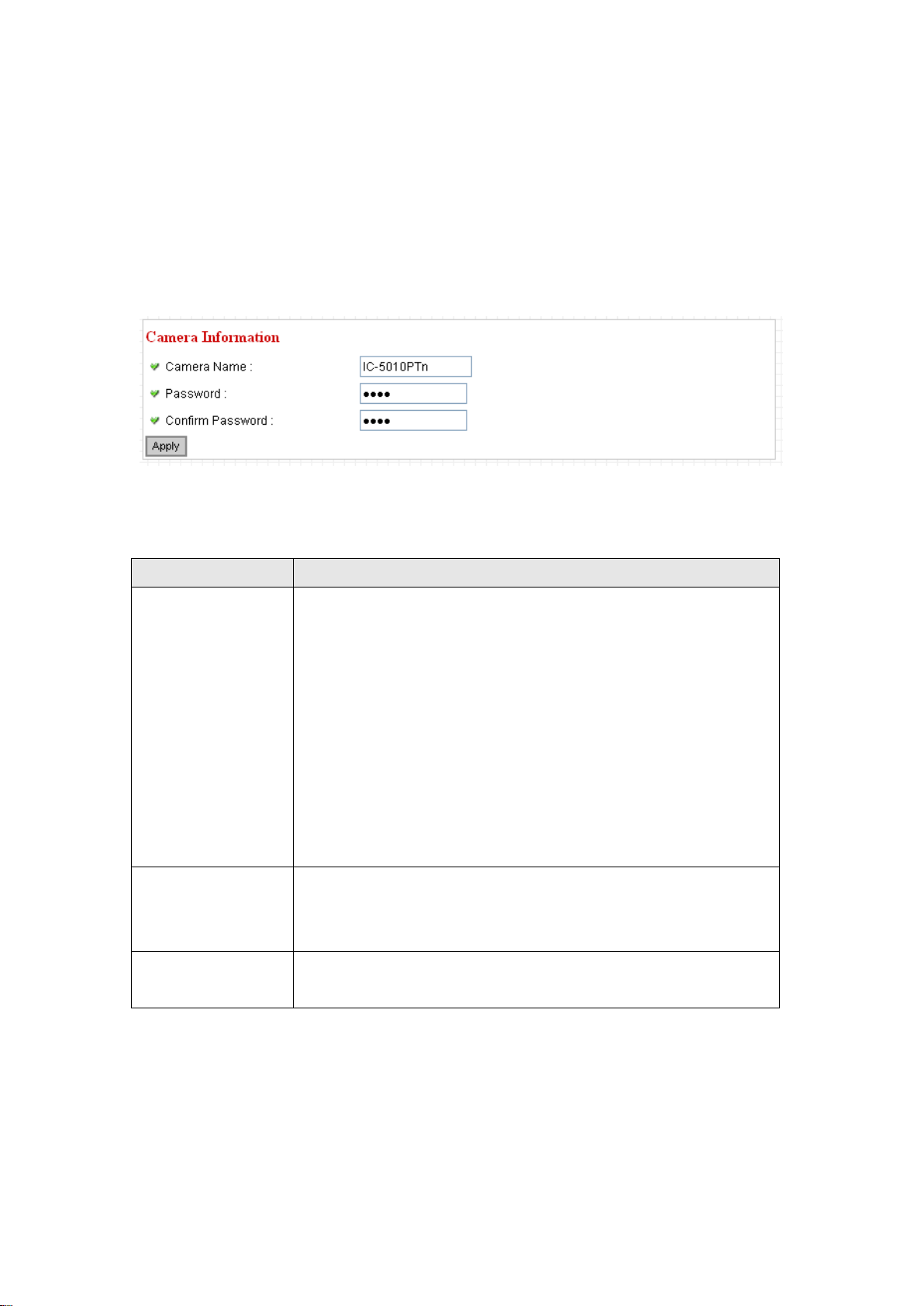

5. You can input these information to configure network camera. Camera Name: Input network camera‟s name used to identify this network camera. Password: Input new password Confirm: Input new password again for confirmation Click „OK‟ button to keep changes

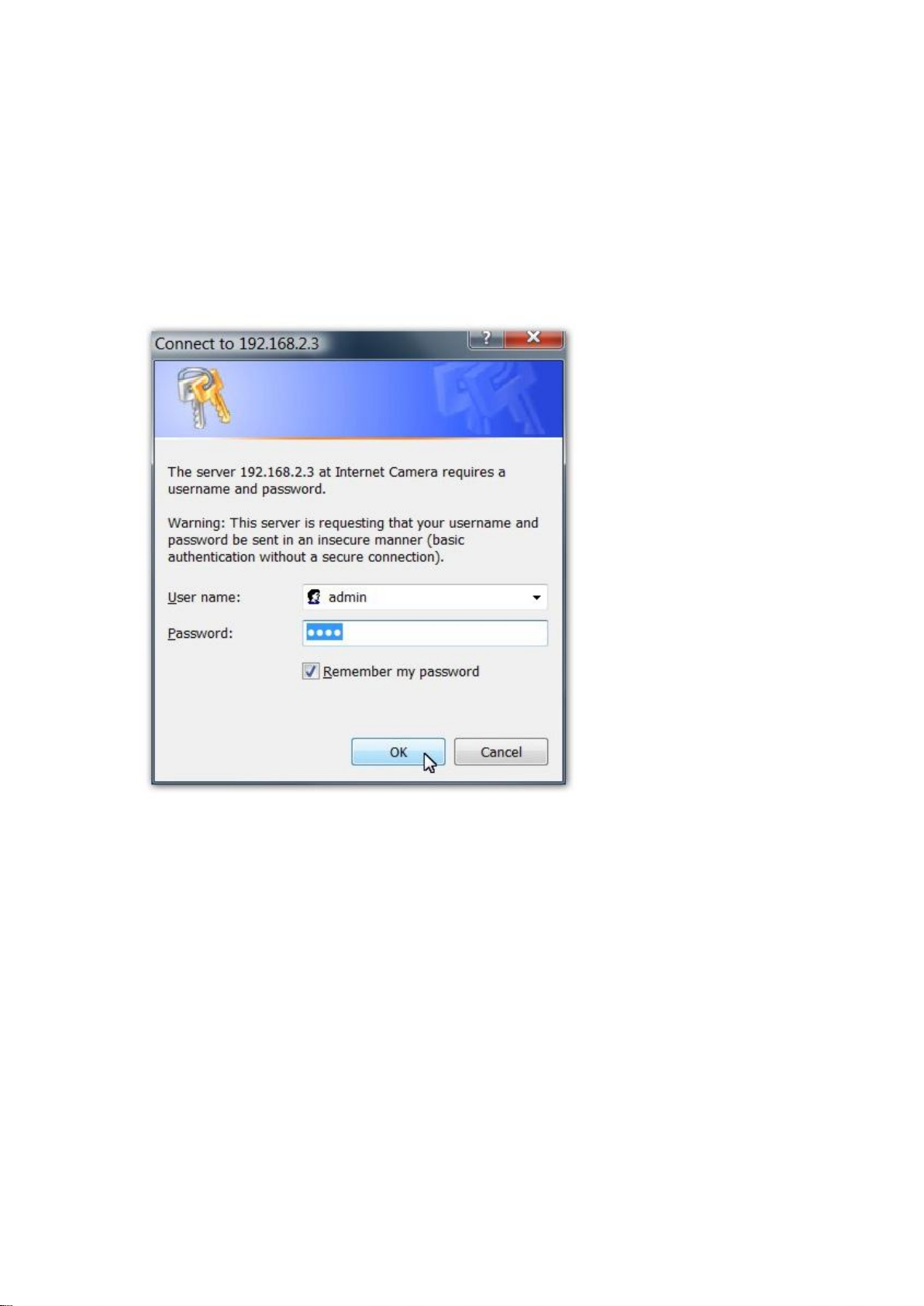

After the camera finder utility is launched, all cameras found on your local area network will be displayed. To preview the image of network camera, please click the icon indicated by white arrow, and provide username / password, and a snapshot will be displayed

This function is only available when this icon is displayed as blue color.

All camera-related information will be displayed here. If you wish to connect to certain camera by web browser, double-click the camera listed here.

The camera admin software also provides several functions:

Language change: This camera finder utility supports 3 languages: English, Chinese, and Simplified Chinese. You can select the language you wish to use from language dropdown menu located at upper-right corner of camera finder utility.

Search camera: Click this button to search all cameras on local area network again.

Configure camera: Click this button to configure camera‟s network and

security setting. You‟ll be prompted to input camera‟s password:

Input the password (default: 1234) and click OK to configure the camera‟s network and security setting:

In „Lan Setting‟ page, you can configure camera‟s network settings. Select „DHCP‟ to set the camera to obtain an IP address from DHCP server on local area network automatically, and select „Manual IP‟ to input the IP address information manually. Click „OK‟ to save settings.

+ 142 hidden pages
