Page 1
GS-1105PE
Quick Installation Guide
03-2024 / V1.0
Page 2
Contents
I. Product Information ................................................. 1
I-1 Package Content .................................................................. 1
I-2 Hardware Overview ............................................................. 1
I-3 LED Status............................................................................. 2
II. Installation .............................................................. 2
II-1. Physically Setup .................................................................... 2
II-2. Connection ........................................................................... 4
III. DIP Switch Definition ................................................ 5
IV. More Information .................................................... 6
V. Safety Instructions ................................................... 6
Page 3

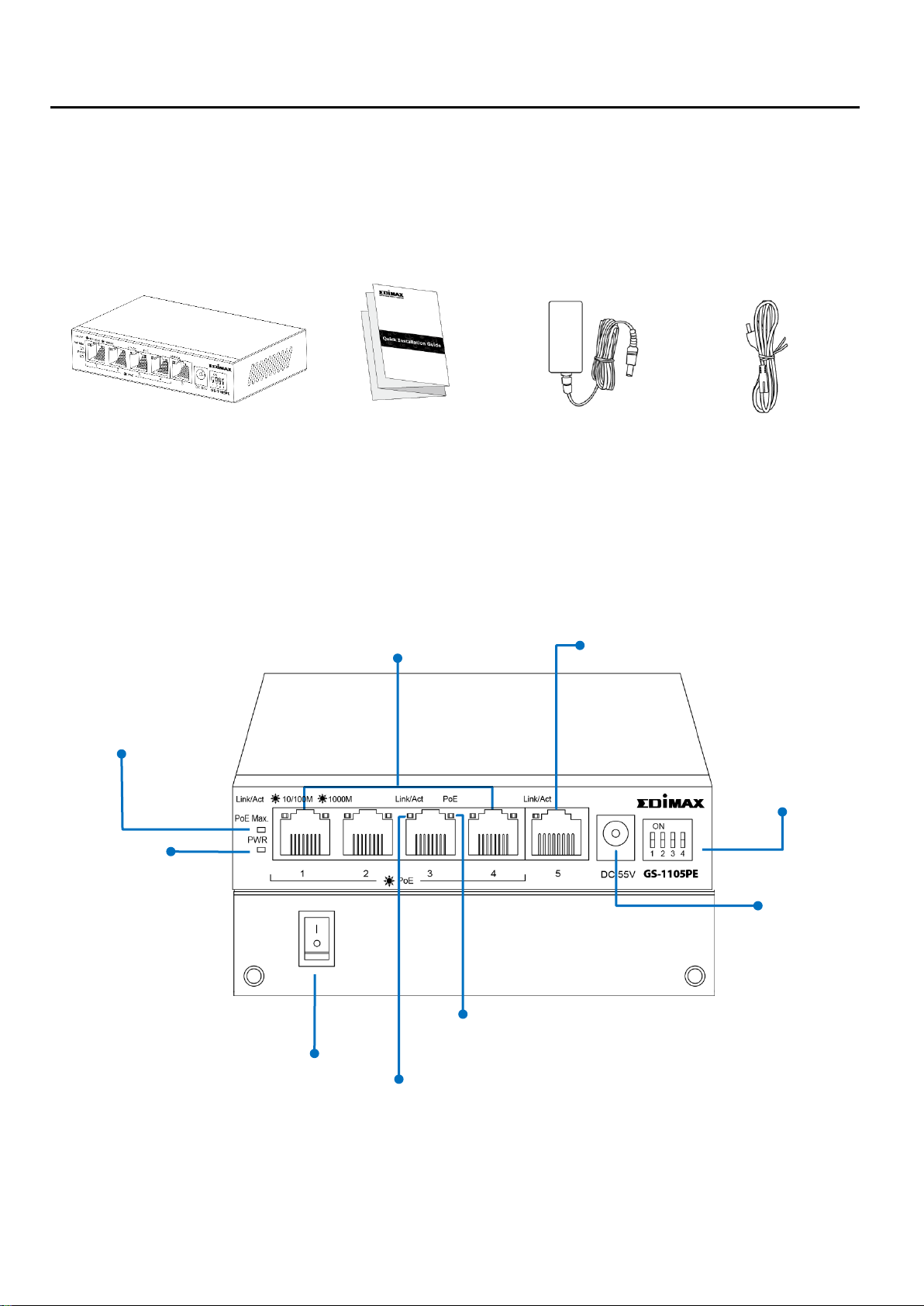

I. Product Information
Power Adapter
GS-1105PE
Quick Installation
Guide
Power Adapter
Power Cord
PoE Max. LED
Power On/Off
Switch
PWR
Power Status
LED
Gigabit PoE+ Port
(Port 1-4)
DIP Switch
DC In
Gigabit Port (Port 5)
Left LED: LINK/Act Status (Port 1-5)
Right LED: PoE Status (Port 1-4)
GS-1105PE: Long Range 5-Port Gigabit Switch with 4 PoE+ Ports and DIP Switch
I-1 Package Content
I-2 Hardware Overview
1
Page 4
Function
Color
Status
Description
PWR
Green
On
Power on
Off
Power off
PoE Max.
Green
On
Total PoE power consumed is
exceeding PoE power budget
Off
Total PoE power consumed is under
PoE power budget
PoE
(1-4 Port)
Green
On
Feeding power to PoE devices
Off
PoE function is not active
Link/Act
(1-5 port)
Green
On
Link at 1000Mbps
Blinking
Sending or receiving data
Off
Port disconnected or link fail
Amber
On
Link at 10/100Mbps
Blinking
Sending or receiving data
Off
Port disconnected or link fail
I-3 LED Status
II. Installation
Read the following topics and perform the procedures in the correct order.
Incorrect installation may cause damage to the product.

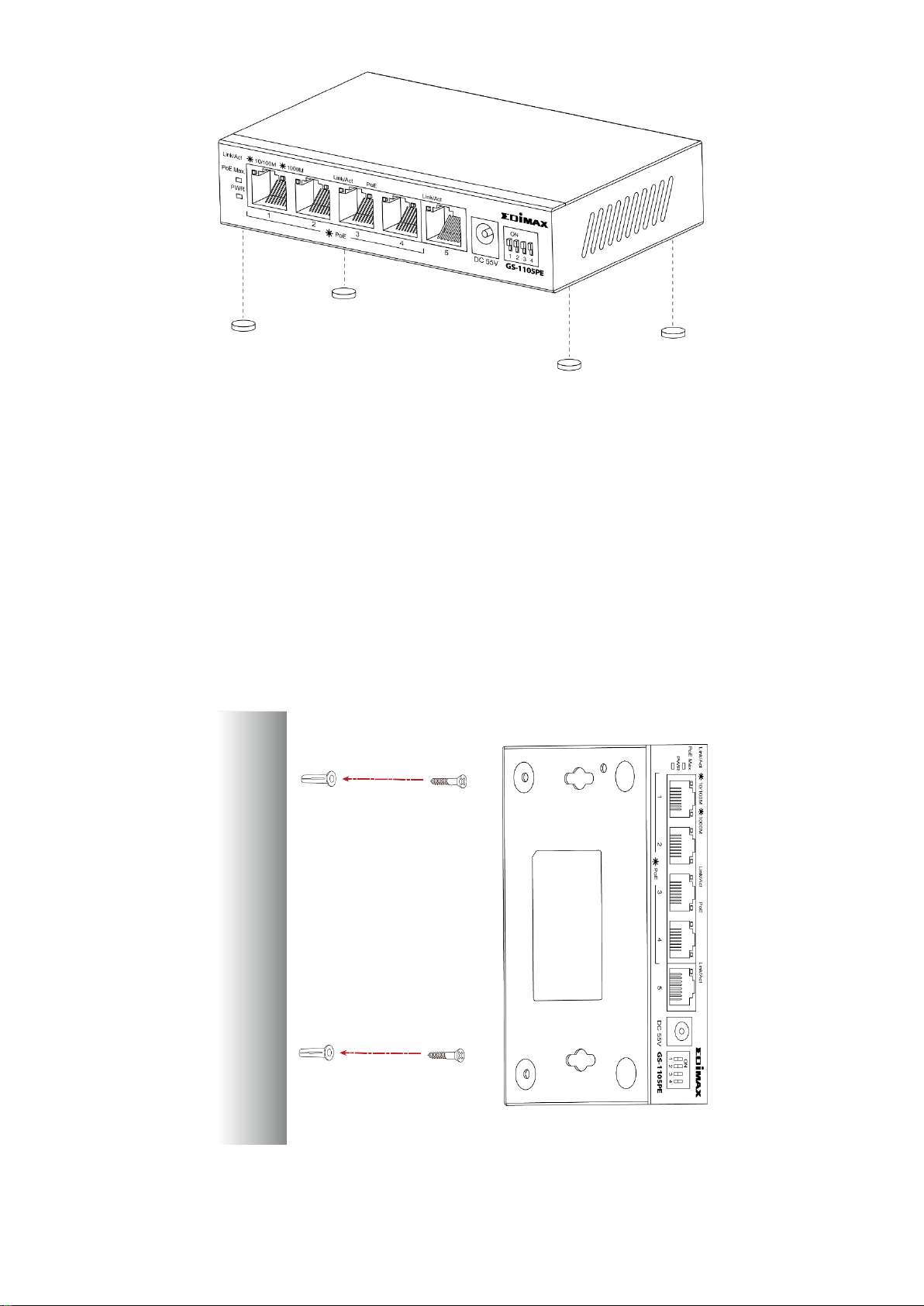

II-1. Physically Setup
There are two ways to physically set up the switch. No matter how you
installed the switch, please keep it with good ventilation.
1. Desktop Placement: Attach the supplied rubber feet to the recessed areas
on the bottom of the switch. Place the switch on a flat surface and keep it
with good ventilation.
2
Page 5
2. Wall-mount the switch: You can mount the switch on a wall. The switch is
designed with mounting holes. Two sets of wall-mounted screws are
required. For wall-mounted installation, please refer to the figure below
(this product does not come with wall-mounted installation screws and
accessories). Measure the distance between the 2 mounting holes and
screw a screw each into the wall. Carefully place the unit onto the wall by
covering the caps of the screw with the mounting holes and keep it with
good ventilation.
3
Page 6
1. Power on
3. Connect devices
2. Uplink to another switch

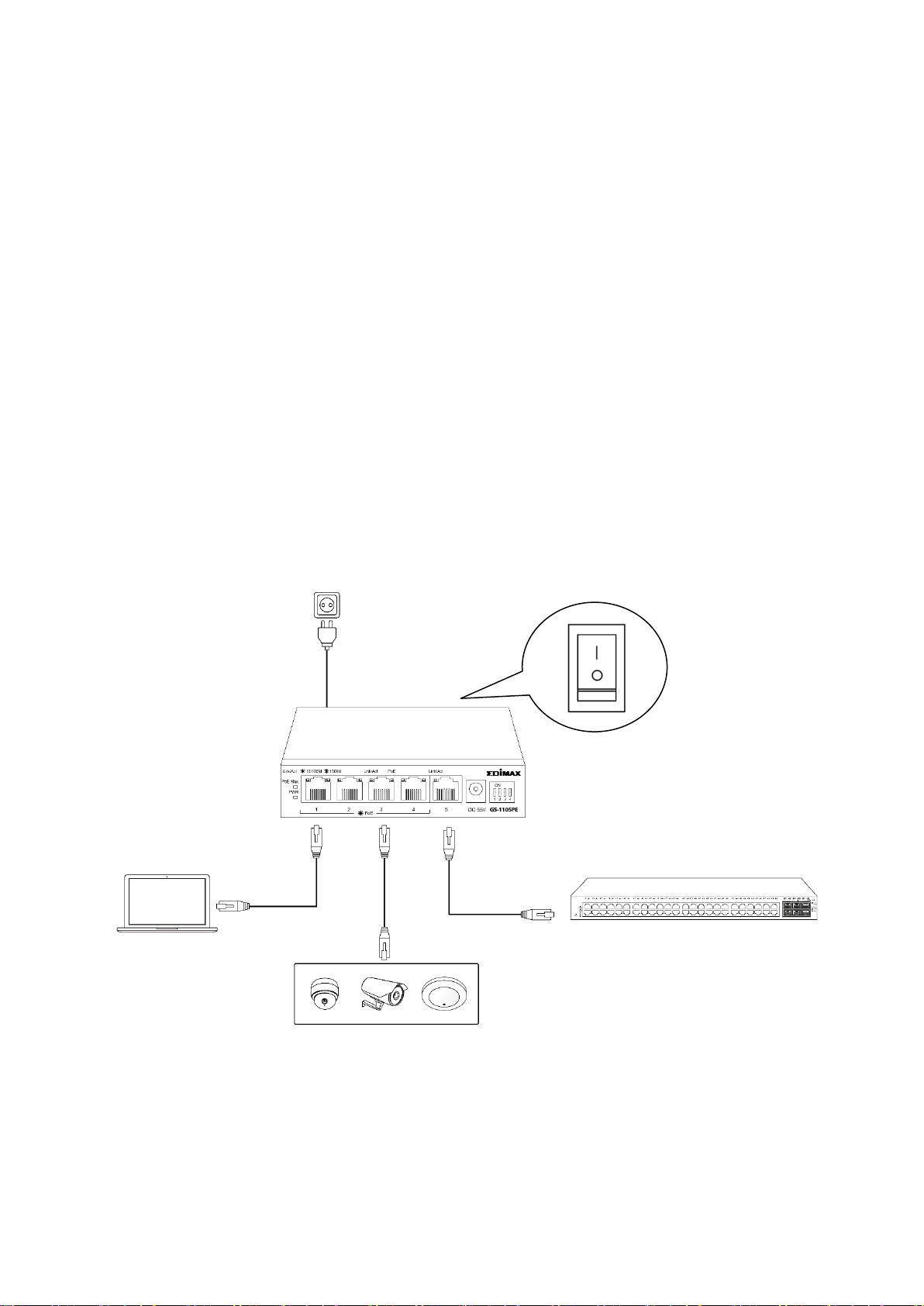

II-2. Connection
1. Power on: Connect the power adapter to the switch and the power outlet.
Turn on the power switch by clicking the power button. The switch is
powered by the 100-240VAC 50/60Hz external power supply. (Note: Make
sure the PWR LED is green.)
2. Uplink: Plug the standard Cat5e or above Ethernet cable into the LAN port
(Note: Make sure that the LED is green or amber) and connect it to another
switch.
3. Connect devices: Plug the standard Cat5e or above Ethernet cable into the
LAN port and connect to any networking device with an Ethernet port.
(Note: Make sure that the "LAN" Link/Act LED is green or amber.) The
hardware installation is complete!
4
Page 7
DIP Switch No. &
Function
Port
No.
Status
Description
1
PoE Distance
Extend
1 & 2
On
PoE distance extend to 200m
or above, data rates decrease
to 10Mbps
Off
The data rates and distance
will be auto-negotiated
2
PoE Distance
Extend
3 & 4
On
PoE distance extend to 200m
or above, data rates decrease
to 10Mbps
Off
The data rates and distance
will be auto-negotiated
3
VLAN
1-4
On
VLAN enable
Off
VLAN disable
4
QoS
1-5
On
QoS enable
Off
QoS disable

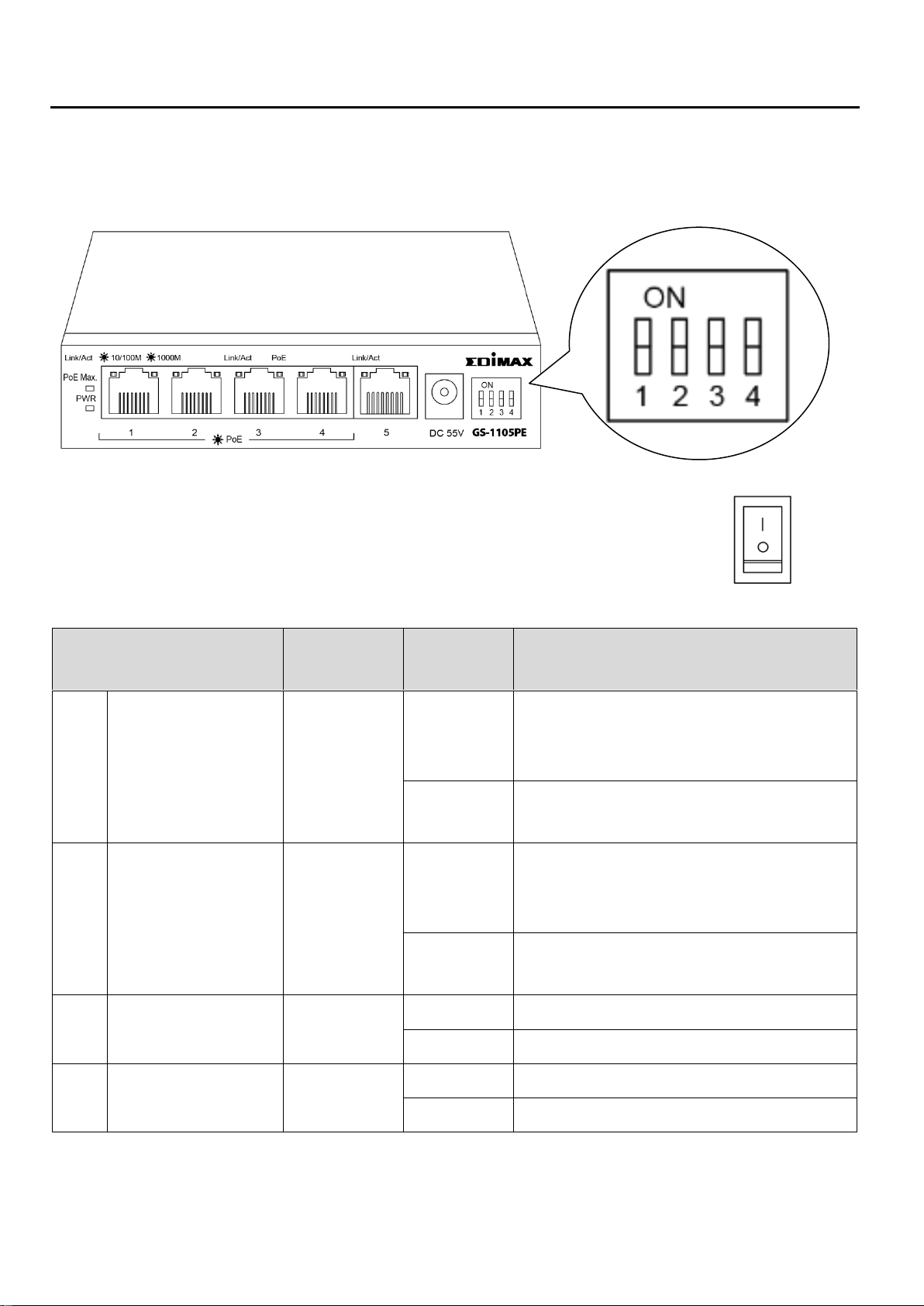

III. DIP Switch Definition
The front panels of PoE+ switch provides four pins DIP Switch. The detailed
descriptions are shown in the following table.
NOTE: After changing DIP switch status, please restart the
GS-1105PE to enable the changes. The power switch is
on the back panel of the switch.
5
Page 8
IV. More Information
For more product information, you can find all supporting documents from the
link below or via the QR code:
https://www.edimax.com/download/
Please search the model name “GS-1105PE” to enter the referred page.
V. Safety Instructions
The following general safety guidelines are provided to help ensure your own
personal safety and protect your product from potential damage. Remember to
consult the product user instructions for more details.
This product is designed for indoor use only.
Static electricity can be harmful to electronic components. Discharge static
electricity from your body (i.e. touching grounded bare metal) before
touching the product.
The device contains no user serviceable parts. Do not attempt to service the
product and never disassemble the product.
Do not spill food or liquid on your product and never push any objects into
the openings of your product.
Do not use this product near water, areas with high humidity, or
condensation.
Keep the product away from radiators and other heat sources.
This device is not designed to be operated by children.
Always unplug the product from mains power before cleaning and use a dry
lint free cloth only.
6
Page 9
COPYRIGHT
Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission from Edimax Technology Co., Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability, or fitness for any particular purpose. Any software described in this
manual is sold or licensed as is. Should the programs prove defective following their
purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire
cost of all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right to
revise this publication and to make changes from time to time in the contents hereof
without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear slightly different from
those shown in this QIG. The software and specifications are subject to change without
notice. Please visit our website www.edimax.com for updates. All brand and product
names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
7
Page 10
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also
complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provided with antenna installation instructions and
consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual
recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure
the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg,
Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and
Switzerland.
EU Countries Not Intended for Use
None
8
Page 11
EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 2014/30/EU.
Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive
2014/30/EU.
Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními
směrnic 2014/30/EU.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi
Dyrektywą UE 2014/30/EU.
Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 2014/30/EU.
Русский: Это оборудование соответствует основным требованиям и положениям Директивы
2014/30/EU.
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek
(2014/30/EU).
Türkçe: Bu cihaz 2014/30/EU. direktifleri zorunlu istekler ve diğer hükümlerle ile uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 2014/30/EU.
Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc
2014/30/EU.
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 2014/30/EU.
Español: El presente equipo cumple los requisitos esenciales de la Directiva 2014/30/EU.
Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili della
Direttiva 2014/30/EU.
Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen
van richtlijn 2014/30/EU.
Português: Este equipamento cumpre os requesitos essênciais da Directiva 2014/30/EU.
Norsk: Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv
2014/30/EU.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta
bestämmelser i direktiv 2014/30/EU.
Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante
forordninger i direktiv 2014/30/EU.
suomen kieli: Tämä laite täyttää direktiivien 2014/30/EU. oleelliset vaatimukset ja muut asiaankuuluvat
määräykset.
-------------------------------------------------------------------------------------------------------------------
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It
should be handed over to the applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.
9
Page 12
Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European R&TTE
directives.
Equipment:
5-port Gigabit Ethernet Switch with 4 PoE ports
Model No.:
GS-1105PE
The following European standards for essential requirements have been followed:
Directives 2014/30/EU
EMC
:
EN 55032:2015/A1:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021
EN 55035:2017/A11:2020
Directives 2014/35/EU
Safety (LVD)
:
EN IEC 62368-1:2020+A11:2020
Date & Place of Issue: 29/Mar./2024, Taipei
Signature:
Printed Name:
Hunter Chen
Title:
Director
a company of:
Edimax Technology Co., Ltd.
No. 278, Xinhu 1st Rd., Neihu Dist.,
Taipei City, Taiwan
Edimax Technology Europe B.V.
Fijenhof 2,
5652 AE Eindhoven,
The Netherlands
Date & Place of Issue: 29/Mar./2024, Eindhoven
Signature:
Printed Name:
David Huang
Title:
Director
10
Page 13
Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the United Kingdom EMC
and Safety directives.
Equipment:
5-port Gigabit Ethernet Switch with 4 PoE ports
Model No.:
GS-1105PE
The following European standards for essential requirements have been followed:
Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091)
EMC
:
EN 55032:2015/A1:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021
EN 55035:2017/A11:2020
Electrical Equipment (Safety) Regulations 2016 (S.I. 2016/1101)
Safety (LVD)
:
EN IEC 62368-1:2020+A11:2020
Date & Place of Issue: 29/Mar./2024, Taipei
Signature:
Printed Name:
Hunter Chen
Title:
Director
a company of:
Edimax Technology Co., Ltd.
No. 278, Xinhu 1st Rd., Neihu Dist.,
Taipei City, Taiwan
Edimax Technology Europe B.V.
Fijenhof 2,
5652 AE Eindhoven,
The Netherlands
Date & Place of Issue: 29/Mar./2024, Eindhoven
Signature:
Printed Name:
David Huang
Title:
Director
11
Loading...
