EDIMAX GS-1008PL V2 User manual

GS-1008PL V2/GS-1008P V2/ ES-1008P V2
Quick Installation Guide
09-2020 / v1.1
Contents
I. Product Information .................................................. 1
I-1. Package Contents .................................................................................. 2
I-2. Hardware Overview .............................................................................. 2
I-3. LED Status ............................................................................................. 3
I-4. DIP Switch Status .................................................................................................................. 4
II. Hardware Installation ............................................... 5
I. Product Information
The Edimax GS-1008P V2 and GS-1008PL V2 PoE+ switch equipped with eight 1G Gigabit Ethernet ports and ES-1008P V2 PoE+ switch equipped with eight 10M/100M Ethernet ports.
For efficient network utilization the GS-1008P V2, GS-1008PL V2 and ES-1008P V2 PoE+ switch allow the relevant settings (PoE distance, QoS, and VLAN) to be optimized via a single DIP switch.
You can find all supporting documents from the link below or via QR Code:
https://www.edimax.com/download
(Once youve visited the Edimax official website, please enter the model no.
GS-1008PL V2, GS-1008P V2 or ES-1008P V2 into the search box to search
for your product.)
1
GS-1008PL V2, GS-1008P V2
or ES-1008P V2
I-1. Package Contents
No.
Description
1
DIP Switch
2
PWR Indicator
3
PoE Alert Indicator
4
PoE Indicator
5
Data Rate Indicator
6
LAN Ports x8
7
Power Jack
Power Cord Quick Installation Guide
Rack-Mount Kit
1
2 3 5
6
7
4
7
Before start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s):
I-2. Hardware Overview
2
I-3. LED Status
Function
Color
Status
Descriptions
PWR
Green
On
Power on
Off
Power off
PoE Alert
Green
On
Total PoE power consumed is exceeding PoE power budget*
Off
Total PoE power is within PoE power budget*
PoE
Green
On
Feeding power to PoE devices (Link at 1000Mbps)
Off
PoE/PoE+ function is not active
Data Rate
Green
On
Link at 1000Mbps
Amber
On
Link at 10/100Mbps
Green/Amber
Blinking
Sending or receiving data
Green/Amber
Off
No date transmitission or No device connected to this port
*NOTE: Total maximum PoE power budget:
˙ GS-1008P V2/ES-1008P V2: 130W ˙ GS-1008PL V2: 70W
3

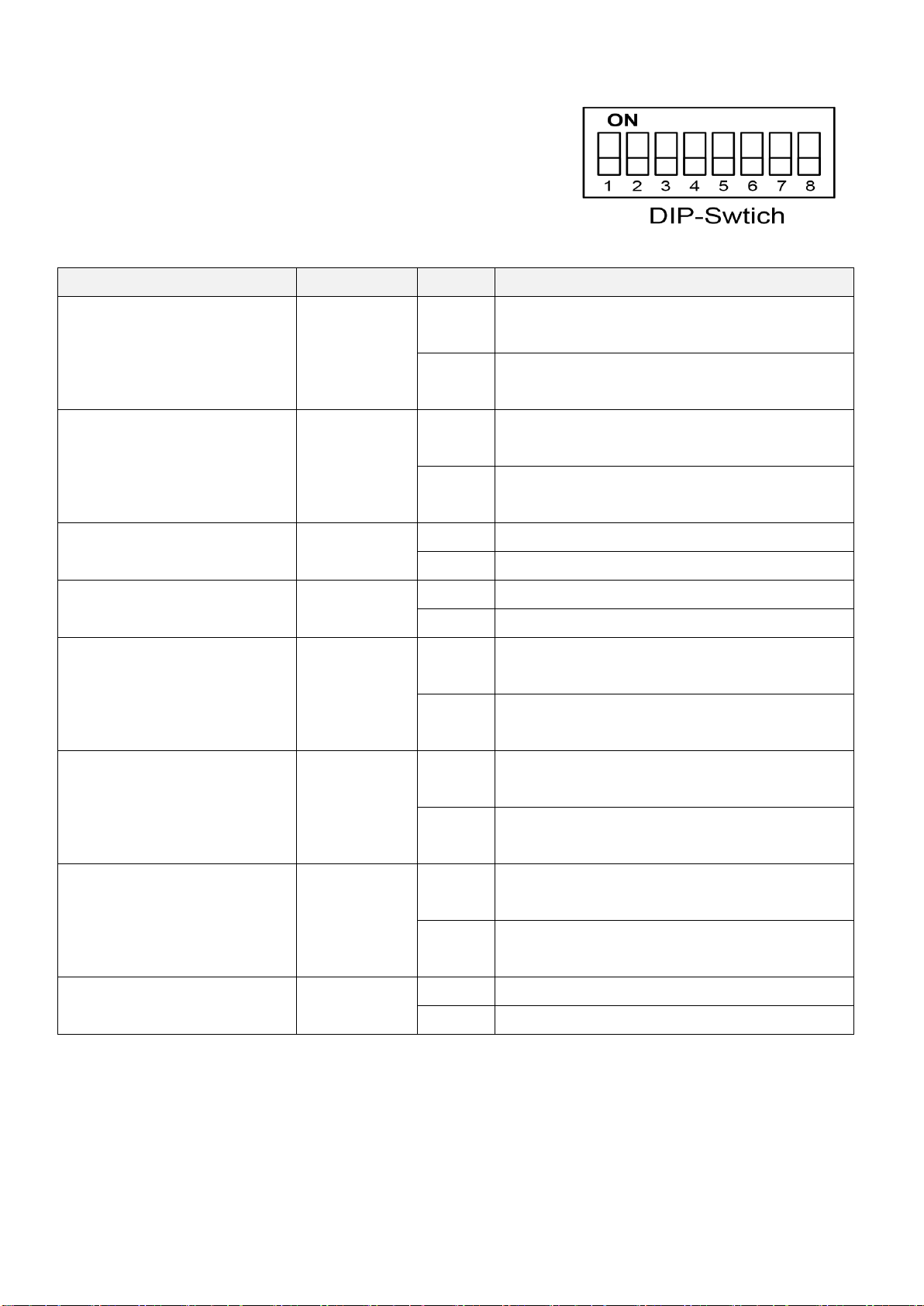

I-4. DIP Switch Status
DIP Switch Number
PoE Port
Status
Description
1. PoE Distance Extend
Port 1&2 On
PoE distance extend to 200m or above, data rates decrease to 10Mbps
Off
The data rates and distance will be auto-negotiated
2. PoE Distance Extend
Port 3&4 On
PoE distance extend to 200m or above, data rates decrease to 10Mbps
Off
The data rates and distance will be auto-negotiated
3. VLAN
Port 1~ 4 On
VLAN enable
Off
VLAN disable
4. QoS
All On
QoS enable
Off
QoS disable
5. PoE Distance Extend
Port 5 On
PoE distance extend to 200m or above, data rates decrease to 10Mbps
Off
The data rates and distance will be auto-negotiated
6. PoE Distance Extend
Port 6 On
PoE distance extend to 200m or above, data rates decrease to 10Mbps
Off
The data rates and distance will be auto-negotiated
7. PoE Distance Extend
Port 7 On
PoE distance extend to 200m or above, data rates decrease to 10Mbps
Off
The data rates and distance will be auto-negotiated
8. VLAN
Port 5~7 On
Port 5~7 VLAN enable
Off
Port 5~7 VLAN disable
NOTE: After changing DIP switch status, please unplug and replug the power.
4
II. Hardware Installation
This section will guide you through the steps to set up the GS-1008PL V2,
GS-1008P V2 and ES-1008P V2.
1. Plug power adapter into a wall outlet.
NOTE: Ensure the PWR LED lights on Green.
2. Plug an Ethernet cable from the LAN port to any network device that
equipped with an Ethernet port.
NOTE: Ensure the LAN LED lights on Green or Amber.
5
