Walker
W296BT
Headphones
Operating instructions
1
■ Product features
● Excellent low frequency, popular toning and suitable for various music style;
● Plastic ear hooks that are wore in ear to prevent from falling;
● CSR chip, Bluetooth Ver. 4.1 and the connection distance is over 10m;
● Operation time is over 8 hours and supports battery life display;
● Headphones IPX5 can cope with daily sweat and water splash. The wire controller
IPX7 can forever be rinsed by water;
● Three key wire controller can support voice call, volume adjustment and song
switching, easy for use;
● Support CVC noise reduction and HSP/HFP/A2DP/AVRCP protocol;
● Support one operating 2 units, voice control of mobile awakening and factory setting
restore.
■ Specifications
Bluetooth version
Bluetooth V4.1
Bluetooth protocol
HFP、HSP、A2DP、AVRCP
Valid distance
10m
Operating time
8h
Charging time
2h
Standby time
About 300h
Rated input
DC 5.0V 500mA
Frequency response
range
20Hz-20KHz
2
Sensitivity (SPL)
100dB
Nominal impedance
16m
■ Package list
Headphones*1 pcs
USB charging cable*1 pcs
Manual/Warranty card*1
PCS each
Silica earplug Large size*1
pair
Silica earplug Middle size*1
pair
Silica earplug Small size*1
pair
3
■ Functions
1. Volume increment/Next song
2. Charging port
3. LED lights
4. Microphone
5. Multi-function key
6. Volume decrement/Last song
■ Charging
Before usage, please ensure the headphones are fully charged; during
usage, if only the red light can be seen twice every 8 seconds and a prompt
beep is heard, this indicates low battery capacity. Please use after being
charged.
Red light on= Charging
Red light off/Blue light on= Charging completed
Charging time: about 2 hours.
Note: If headphones are not charged for a long time, the battery life shall be
shortened greatly. We suggest you to charge your headphones at least one
every three months.
4
Warning: The chargeable batteries that provide power for this
product must be disposed properly for recycling. Do not put
batteries into fire to preventing explosion.
■ How to use headphones
1. Power on/Off
Power on: Press and hold multi-pad for about 2 seconds. Release the
key when the blue light is on and a prompt beep can be heard in the
headphones.
Power off: Press and hold multi-pad for about 5 seconds. Release the
key when the red light is on and a prompt beep can be heard in the
headphones.
5
2. How to wear headphones
2.1 Select the earmuffs with proper size based on your ear size and install
them.
2.2 Wear the left and right channel to the corresponding left and right ear as
shown in the following figure. Wear the headphones first and then adjust
the ear hooks to go around the upper part of your ear to properly fix the
headphones.
2.3 Use the headphones‟ wire clip to obtain better wearing experience.
3. Pairing/Connection
6
Pair with bluetooth mobile
The steps are as below:
3.1 Place the headphones close to your mobile. The closer the better. Press
and hold multi-pad for about 5 seconds and release it when the red and
blue light flash alternatively. Now the headphones are in pairing mode.
3.2 Enable the mobile‟s bluetooth and search bluetooth devices. Select
„EDIFIER W296BT‟ to pair up and connect. After being connected
successfully, the prompt beep sounds and the headphones‟ blue light is
flashing quickly.
Tip: During connection, if the mobile prompts inputting password, please
input 0000; after pairing up, there is no need to pair up with the mobile after
power on again. The bluetooth headphones shall automatically connect the
mobile it connected last time.
One operating 2 units connection
The headphones can simultaneously connect two Bluetooth devices. The
operation is as below.
1. After the first mobile pairing up, switch the headphones off and on again to
enter the pairing status. Switch the headphones off again after the
second mobile is connected. After switching on, the headphones shall
automatically connect the second mobile and you can manually click on
the mobile to connect the first mobile.
2. After connecting with the second mobile, you can select “EDIFIER
7
W296BT” connection in the pairing records of the first mobile. Now the
headphones have successfully connected with two mobiles.
Note: When two mobiles have different operating system (E.g. One has
Android and one iOS). Some cross-system operations may have delay (E.g.
Pause songs in A mobile and meanwhile play songs in B mobile). Please be
aware that this is normal phenomenon.

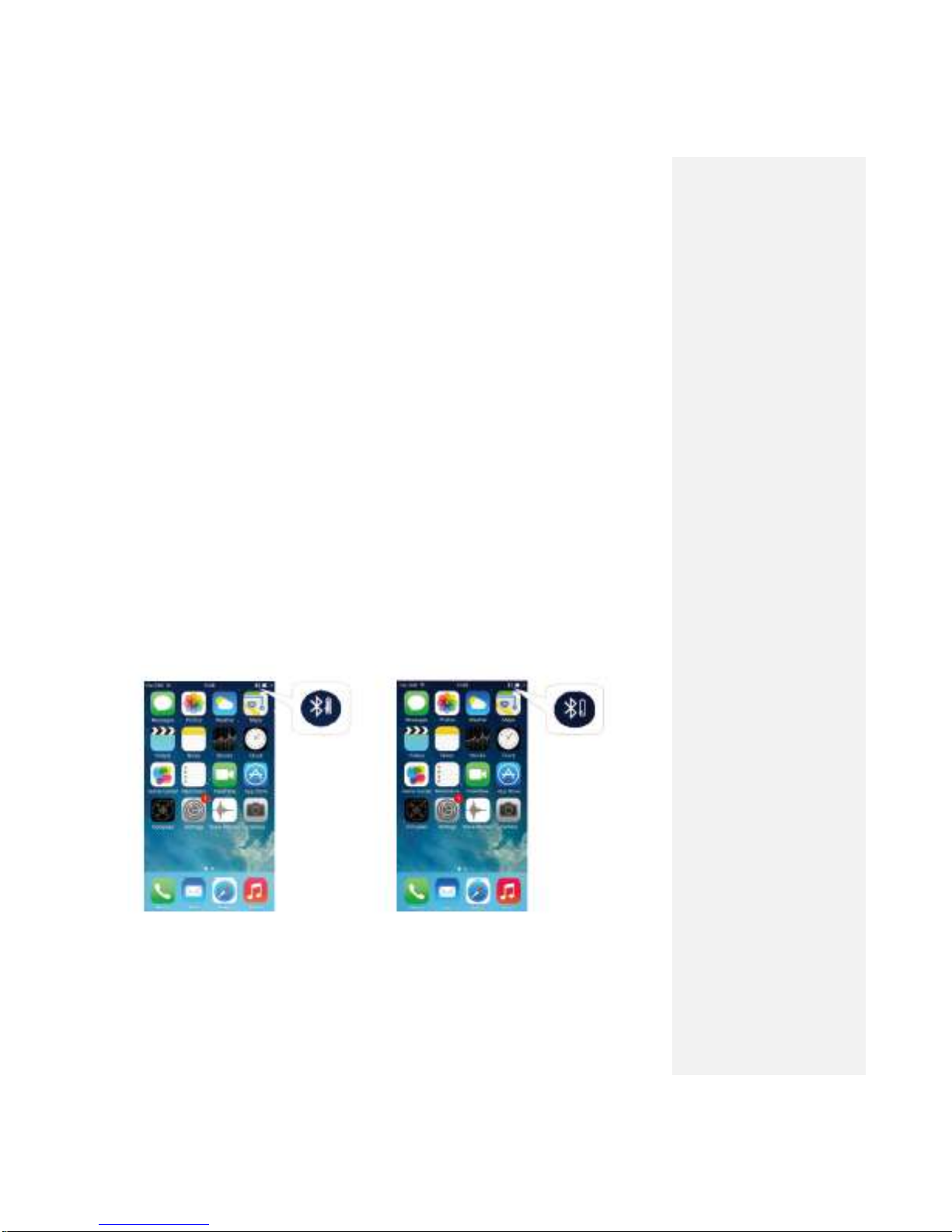

4. Battery display
When this headphone is connected with iOS device, the headphones‟
current battery life is displayed on the device. When the headphone power is
low, the red color is displayed in the battery symbol to prompt you to charge
the headphones.
Fully charged Low power
5. How to use headphones to make a call
8
5.1 Basic call operation
Function
Headphone status
Operation
Receiving
incoming call
Incoming call ringing
Press the multi-function key
Refuse incoming
call
Incoming call ringing
Press and hold multi-pad about
2 seconds
Terminate call
Talking
Press the multi-function key
Increase volume
Talking
Press + key
Decrease volume
Talking
Press - key
Talking transferred
to mobile
Talking
Press and hold multi-pad about
2 seconds
Talking transferred
to headphones
Talking
Press and hold multi-pad about
2 seconds
Microphone muted
Talking
Press and hold + key about 2
seconds
Cancel mute
Talking(Microphone
muted)
Press and hold + key about 2
seconds
Voice dial
Connected device
Press + key and - key together
Redial last call
Connected device
Double click multi-function key
Note:
● In order to get the optimal effect for making a call, please place the wire
controller of microphone as close to your mouth as possible.
● Some calls received via mobile shall be first transferred to mobile. Now
you can use the call switch of your mobile or operate on your mobile to
switch the call to the headphones. Please read your mobile manual for
the operation in detail.
9
2. Make three way call
Function
Headphone
status
Operation
Hang out the current call
to receive new incoming
call
There is the
second
incoming call
Press the multi-function
key
Receive new incoming
call
There is the
second
incoming call
Press and hold multi-pad
about 2 seconds
6. Play music
Function
Headphone status
Operation
Increase volume
Play music
Press the volume + key
Decrease volume
Play music
Press the volume - key
Last song
Play music
Press and hold the
volume - key about 2
seconds
Next song
Play music
Press and hold the
volume + key about 2
seconds
Pause play
Play music
Press the
multi-function key
Restore play
Pause play
Press the
10
multi-function key
Note:
● Remote play control (Last/Next/Pause/Restore) functions require your
mobile or Bluetooth transmitter to support AVRCP protocol.
7. Clear pairing list
Press and hold multi-pad, volume up and volume down key in standby status
and wait for 5 seconds to clear all the paired device list of the headphones.
(Note: After clearing the pairing records successfully, the headphones shall
automatically enter into the pairing status after the headphone is switched
on).
8. Hardware reset
If the headphones cannot be switched on or have no response during usage
even after being fully charged, please reset it as below:
8.1 Press and hold multi-pad and use the charging cable to connect your
mobile to the USB port of computer or USB power adapter.
8.2 Press and hold multi-pad until the headphones is on and the
headphones are reset.
11
■ Maintenance
When usage, please read the following suggestions that may be helpful for
you to obey the warranty clauses and extend the service time of the
product.
● In order to keep the product dry, please do not place the product at the
damp places so as not to affect the product‟s internal circuit. Avoid using
the product when exercising strenuously or sweating heavily to prevent
sweat from soaking into the product to damage the product.
● Do not place the product at the places exposed to sun or in high
temperature. High temperature would shorten the service life of
electronic components, damage battery and make some plastic
components deformed.
● Do not place the product at very cold places to prevent damaging the
internal circuit board.
● Do not try to dismantle the product. If non-professional personnel
12
operates, they may damage the product.
● Do not fall, vibrate strongly, strike the product with hard object to prevent
damaging the internal circuit.
● Please do not use drastic chemical products and cleaner to clean the
headphones.
● Do not use sharp objects to scratch on the product surface to prevent
damaging the outer case and affecting looking. If the product cannot work
properly, please send it to your qualified repair units, the personnel shall
help you solve your problem with their whole heart.
■ FAQs
1. The red light flashes instead of the blue light.
Answer: It means that the headphones battery is low. You need to recharge
your headphones again.
13
2. The red light is off during charging.
Answer: a. Please ensure the charging device is properly connected with the
headphones.
b. When the headphones are not used for a long time, the battery will
enter the hibernate status. Now it needs to charge about 30
minutes and then the red light shall be on.
3. The headphones hear nothing.
Answer: a. Ensure if the headphones are in work status.
b. Ensure the headphones volume is suitable.
c. Ensure if the headphones are connected with mobile properly.
d. Ensure the headphones are in normal work environment.
4. Headphone is not good for talking.
Answer: a. Please ensure if your mobile is in the area with strong signal.
b. The effective operational distance of the headphones is 10m. Please
ensure the headphones are in effective operational distance and
there is no obstacle between the headphones and your mobile.
5. Why can the headphones not pause, restore, last song and next song
when playing music?
Answer: The function requires the device paired up with the headphones to
support AVRCP (Audio/Video Remote Control Profile) protocol.
6. After not being used for a long time, the product cannot be switched on
nor charged.
Answer: Please refer to hardware reset to reset and then charge the
product.
14
15
Note: The environment-friendly use period depends on the conditions like
temperature and moisture under which the product can work properly.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
A warning that batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Correct Disposal of this product. This marking indicates that this product should not be
disposed with other household disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
Fully understand user manual before use.
Ensure your player at low volume levels or power off before you leaving.
NOTE: This equipment has been tested and found to comply with the limits for a
带格式的: 字体: (默认) Arial,
四号
16
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1)this device may not cause interference, and
(2) this device must accept any interference, includinginterference that may cause
undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie
Canada applicables auxappareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes :
(1) l'appareil ne doitpas produire de brouillage, et
(2) l'utilisateur de l'appareil doitaccepter tout brouillage radioélectrique subi, même si le
brouillageest susceptible d'en compromettre lefonctionnement.
17
Loading...
