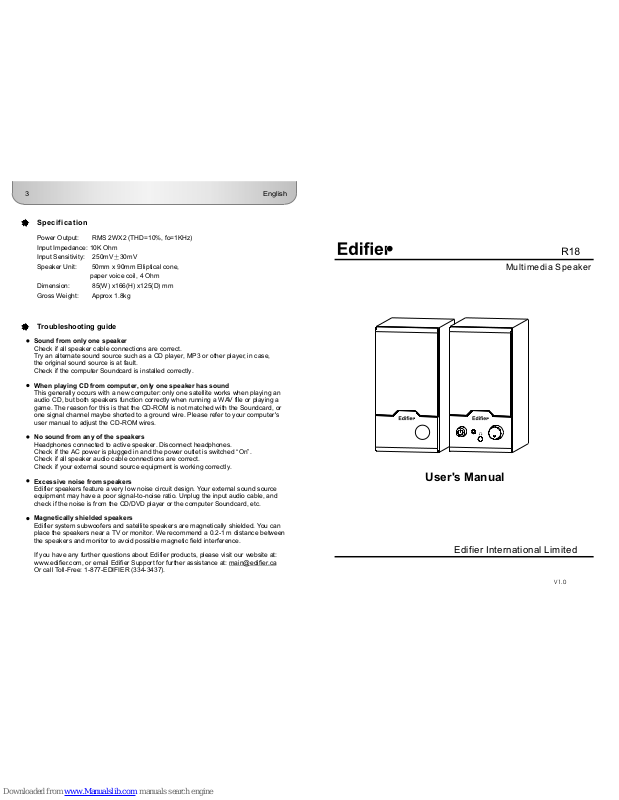

Edifier International Limited
Multimedia Speaker
User's Manual
3
English
Specification
Power Output: RMS 2WX2 (THD=10%, fo=1KHz)
Input Impedance: 10K Ohm
Input Sensitivity: 250mV 30mV
Speaker Unit: 50mm x 90mm Elliptical cone,
paper voice coil, 4 Ohm
Dimension: 85(W) x166(H) x125(D) mm
Gross Weight: Approx 1.8kg
Sound from only one speaker
Check if all speaker cable connections are correct.
Try an alternate sound source such as a CD player, MP3 or other player, in case,
the original sound source is at fault.
Check if the computer Soundcard is installed correctly.
When playing CD from computer, only one speaker has sound
This generally occurs with a new computer: only one satellite works when playing an
audio CD, but both speakers function correctly when running a WAV file or playing a
game. The reason for this is that the CD-ROM is not matched with the Soundcard, or
one signal channel maybe shorted to a ground wire. Please refer to your computer's
user manual to adjust the CD-ROM wires.
No sound from any of the speakers
Headphones connected to active speaker. Disconnect headphones.
Check if the AC power is plugged in and the power outlet is switched “On”.
Check if all speaker audio cable connections are correct.
Check if your external sound source equipment is working correctly.
Excessive noise from speakers
Edifier speakers feature a very low noise circuit design. Your external sound source
equipment may have a poor signal-to-noise ratio. Unplug the input audio cable, and
check if the noise is from the CD/DVD player or the computer Soundcard, etc.
Magnetically shielded speakers
Edifier system subwoofers and satellite speakers are magnetically shielded. You can
place the speakers near a TV or monitor. We recommend a 0.2-1 m distance between
the speakers and monitor to avoid possible magnetic field interference.
If you have any further questions about Edifier products, please visit our website at:
www.edifier.com, or email Edifier Support for further assistance at: main@edifier.ca
Or call Toll-Free: 1-877-EDIFIER (334-3437).
Troubleshooting guide
V1.0
1
English
WARNING
Congratulations on your purchase of the Edifier R18 Multimedia Speaker System. With the right care
and attention, it will give you years of high-quality stereo and audio performance. Before operating the
system, please read this manual fully to obtain the best results from your new product.
The lightning flash with arrowhead inside the triangle, is intended to alert the user to the presence of
un-insulated dangerous voltage within the product's enclosure that may be of a sufficient magnitude to
constitute a risk of electric shock to persons.
Unplug this apparatus when unused for long
periods of time.
Do not block the openings in the speaker
cabinets. Never push objects into speaker
vents or slots because of fire or electric shock
hazards, and provide sufficient space around
the speakers for proper ventilation.
Place the speakers in a stable location so that
it will not fall causing damage to the speakers
or bodily harm.
Unplug the speakers from the computer and
from the electrical outlet before cleaning them
with a damp cloth.
Servicing is required when the apparatus has
been damaged in any way, such as the powersupply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally,
or has been dropped. Refer all servicing to
qualified service personnel only.
TO REDUCE THE RISK OF ELECTRIC
SHOCK:
Do not expose this apparatus to rain or
moisture.
Do not use the speakers near water, and do
not immerse them in any liquid or pour any
liquid on them.
Place the speakers away from all heat sources,
such as heater , stoves, and direct sunlight.
Do not defeat the safety purpose of the
polarized plug. A polarized plug has two blades
with one wider than the other. The wider blade
is provided for your safety. If the provided plug
does not fit into your outlet, consult an
electrician for replacement of the obsolete
outlet. Protect the power cord from being
walked on or pinched particularly at plugs,
convenience receptacles, and the point where
they exit from the apparatus.
For added protection during lightning storms,
unplug the speakers from the electrical outlet
and turn off the computer.
s
SAFETY INSTRUCTIONS
Please read all the instructions herein.
Please retain this manual safely for future reference.
Please heed all safety warnings.
Please install in accordance with the manufacturer's instructions.
Please adjust the volume control to a comfortable level to avoid damaging your hearing and the
system.
CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL ONLY.
The exclamation point inside the triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product.
2
English
Package checklist:
1 x Active speaker
1 x Passive speaker
1 x User's manual
Front
Back
Speakers are muted when you connect
headphones. Use the volume control on
your audio source to adjust the
headphone volume.
Overview
Packaging
1. Passive speaker
3. Power button
5. Headphone jack (3.5 mm)
2. Active speaker
4. LED power indicator
6. Volume control
7. Audio line-in stereo plug (3.5 mm)
8. Power cord
9. Passive speaker cable
1. Connecting to an audio source
Connect the line-in stereo plug on the active speaker to an audio source, such as a
sound card, CD player etc.
2. Operating the system
Connect the power cord to an AC outlet, and press the POWER button. Adjust the
volume control to a comfortable listening level.
Speaker connection instructions
