R1580MB
Multimedia Speaker
User manual

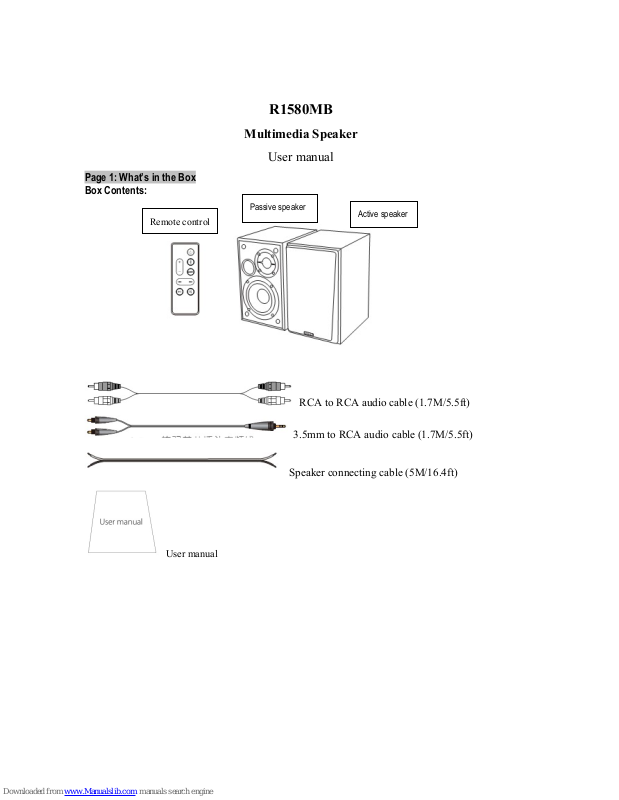

Page 1: What’s in the Box
Box Contents:
RCA to RCA audio cable (1.7M/5.5ft)
3.5mm to RCA audio cable (1.7M/5.5ft)
Speaker connecting cable (5M/16.4ft)
User manual
Passive speaker
Active
speaker
Remote control
Page 2
Page2 Speaker control
1. PC/AUX input
2. MIC1 port
3. MIC2 port
4. Bass volume knob
5. Power switch
6. Power cable
7. Connect to passive speaker
8. Connect to active speaker
9. Microphone volume adjustment
10. PC/AUX/Bluetooth volume adjustment
11. Master volume knob
Press: audio source mode selection
Press and hold: disconnect Bluetooth under Bluetooth mode; enter standby under other modes
12. Power indicator
Green: AUX/PC mode
Blue: Bluetooth mode
Page 3
Page 3 Remote control
Note:
1. Do not place the remote control in places that are hot and humid.
2. Do not charge the batteries.
3. Remove the batteries when unused for a long period of time.
4. The battery should not be exposed to excessive heat such as direct sun, fire or similar.
5. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
WARNING!
1. Don’t swallow the battery; danger of chemical burn.
2. The product includes a wafer battery. Swallowing this battery may lead to injury or death. Do not place the
new or old battery where children can get to it.
3. Don’t use the product if the battery cover is missing or not closed, and keep the remote inaccessible to
children.
4. Please go to the hospital immediately if the battery is swallowed.
Volume increase
Volume decrease
Play/pause (for Bluetooth mode)
Previous track (for Bluetooth
mode)
ON/standby
Mute/de-mute
PC/AUX input
Press: Bluetooth
Press and hold: Disconnect Bluetooth
Next track (for Bluetooth mode)
Battery loading:
Please refer to the illustration to open the battery compartment,
insert the CR 2025 battery and close the compartment.
Page 4
Page 4 Connection
Page 5 Bluetooth operation
1. Press the master volume knob on the active speaker or on the remote control to select Bluetooth
mode, LED indicator will turn blue.
2. Set your Bluetooth device (mobile phone, tablet etc.) to search and connect "EDIFIER R1580MB".
Note:
* The Bluetooth on R1580MB can only be searched and connected after the speaker switched into Bluetooth
mode. The existing Bluetooth connection will be disconnected once the speaker is switched into other audio
inputs. When the speaker is switched back to Bluetooth mode, the speaker will try to connect to the last
connected Bluetooth audio source device.
* Pin code is “0000” if it is needed.
* To enjoy all Bluetooth functions of this product, please ensure your audio source device has A2DP and
AVRCP profile.
* Bluetooth connectivity and compatibility may be different between different source devices, depending on
the software versions of source devices.
Blue
1. Connect the speakers with the speaker connecting cable.
2. Connect audio source (mobile phone, tablet etc.) to PC IN/AUX IN input on the
active speaker rear panel using the included audio cable, LED indicator will turn
green.
3. Connect to power source and turn on the speaker, power indicator is lit.
4. Play music and adjust volume to a comfortable level.
5. R1580MB can be connected to microphone. Insert microphone into MIC1/MIC2
port on the active speaker rear panel and adjust the volume with MIC volume
adjustment knob.
Page 5
Page 5 Bluetooth operation
Specifications
Power output: R/L: 21W + 21W
Noise level: ≤25dB(A)
Frequency response: 55Hz~20KHz
Microphone dynamic range: -50~30dBV
Input sensitivity: PC: 700±50mV
AUX: 550±50mV
Bluetooth: 550±50mFFs
Treble unit: ½ inch (13mm)
Mid-range and bass unit: 4 inch (116mm)
Bluetooth version: V4.0, A2DP and AVRCP protocol
Input type: Microphone/AUX/PC/Bluetooth
