Edifier EDF47 User Manual

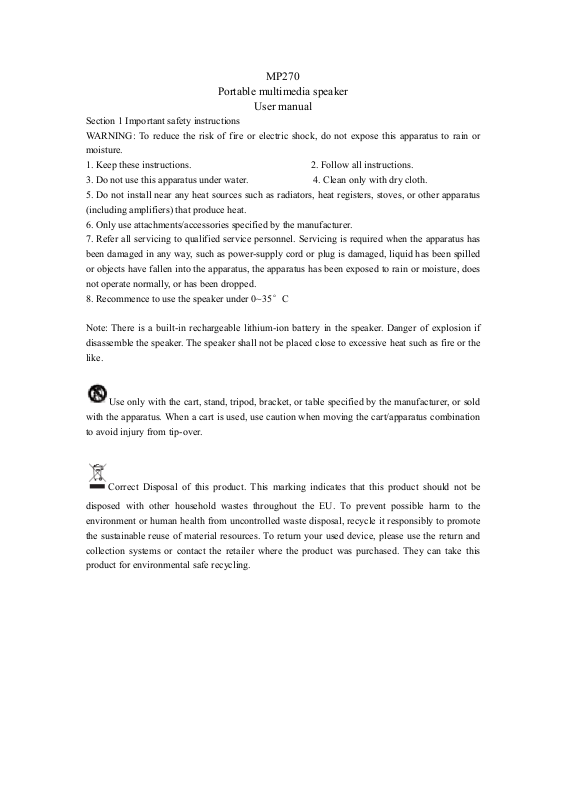

MP270

Portable multimedia speaker

User manual

Section 1 Important safety instructions

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

moisture.

1. Keep these instructions. 2. Follow all instructions.

3. Do not use this apparatus under water. 4. Clean only with dry cloth.

5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

6. Only use attachments/accessories specified by the manufacturer.

7. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

8. Recommence to use the speaker under 0~35°C

Note: There is a built-in rechargeable lithium-ion battery in the speaker. Danger of explosion if

disassemble the speaker. The speaker shall not be placed close to excessive heat such as fire or the

like.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over.

Correct Disposal of this product. This marking indicates that this product should not be

disposed with other household wastes throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, recycle it responsibly to promote

the sustainable reuse of material resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was purchased. They can take this

product for environmental safe recycling.

Section 2 Box content

Speaker

USB connecting cable

3.5mm audio cable

Portable bag

User manual

Note: the photos on this manual will have difference from the actual product, please prevail with the product at

hand.

Section 3 Charge and power on

Charge

Charging

● Using the micro USB connecting cable, connect speaker to a USB power source on a computer

or USB AC adapter (please use DC5V 2A adapter or above for charging when the speaker is

charging and playing, to avoid power shortage).

● The charging indicator is lit when in charging, and it will be off when speaker is fully charged.

● Please fully charge the speaker before the first time use (about 7 hours).

● To ensure a full charge and for optimal audio playback, please fully charge the speaker once a

month.

● When un-use the speaker, please turn off the speaker.

Power on/ off

Power on: slide the power switch from OFF to ON, the indicator is on and speaker emits a prompt.

Power off: slide the power switch from ON to OFF.

Warning: Need to properly handle the recharging battery for recycling use, and do not put the

battery into fire to avoid explosion.

Section 4 Illustrations

1. Power switch

2. USB connector port / DC output

3. AUX input port

4. micro USB port

5. Charging indicator

6. Function indicator

7. Audio source input selector

8. Bluetooth phone key

9. Next track/folder

10. Previous track/folder

11. Play/Pause

12. Volume up/down

13. Build-in microphone 1

14. Build-in microphone 2

Note:

1. Previous/next track are only available in Bluetooth and USB flash disk input mode (support

AVRCP protocol).

2. Please make sure your device supports A2DP protocol.

3. The functions of build-in microphone 1 and build-in microphone 2 are the same.
