Edifier EDF32 Users Manual

S2000 Pro

The exclamation point inside the triangle

is intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature

accompanying the product.

To prevent the risk of electric shock, do not
remove cover (or back). No user-serviceable
Parts inside. Refer servicing to qualified
Service personnel only.

The lightning flash with arrowhead inside
the triangle, is intended to alert the user
to the presence of un-insulated dangerous
voltage within the product's enclosure
that may be of a sufficient magnitude to
constitute a risk of electric shock to persons.

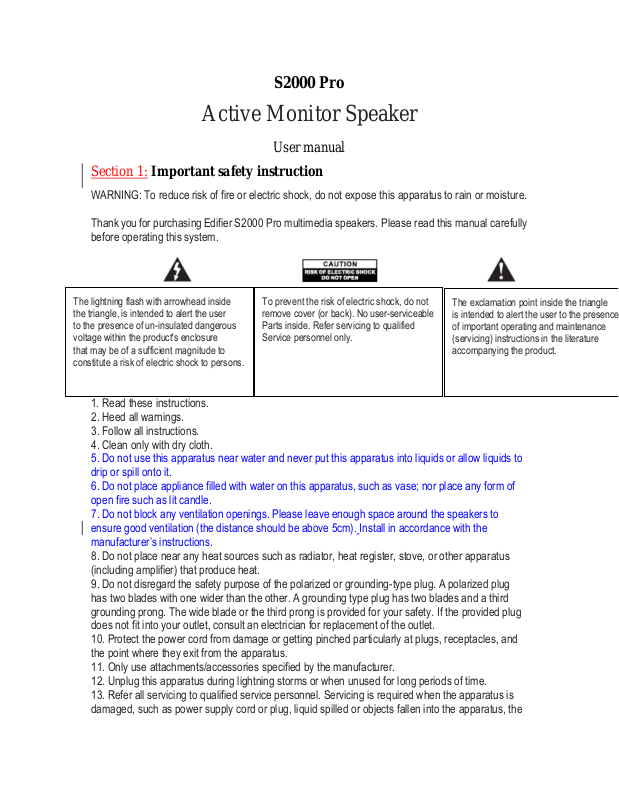

Active Monitor Speaker

User manual

Section 1: Important safety instruction

WARNING: To reduce risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Thank you for purchasing Edifier S2000 Pro multimedia speakers. Please read this manual carefully
before operating this system.

1. Read these instructions.

2. Heed all warnings.

3. Follow all instructions.

4. Clean only with dry cloth.

5. Do not use this apparatus near water and never put this apparatus into liquids or allow liquids to
drip or spill onto it.

6. Do not place appliance filled with water on this apparatus, such as vase; nor place any form of
open fire such as lit candle.

7. Do not block any ventilation openings. Please leave enough space around the speakers to
ensure good ventilation (the distance should be above 5cm). Install in accordance with the

manufacturer’s instructions.

8. Do not place near any heat sources such as radiator, heat register, stove, or other apparatus
(including amplifier) that produce heat.

9. Do not disregard the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the outlet.

10. Protect the power cord from damage or getting pinched particularly at plugs, receptacles, and
the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus is
damaged, such as power supply cord or plug, liquid spilled or objects fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. The MAIN plug is used as the disconnecting devices, the disconnecting device shall remain
readily operable.

15. The Maximum ambient temperature is 45° C / 113° F

16. Do not use strong acid, strong alkali and other chemical solvents to clean the product surface.
Please use neutral solvent or water to clean the product.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.

Correct Disposal of this product. This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.

This equipment is a Class II or double insulated electrical appliance. It has been designed
in such a way that it does not require a safety connection to electrical earth.

Passive speaker

Active speaker

Remote control

Section 2: In The Box

Box Contents:

3.5mm-RCA audio cable (1.7M / 5.5’)

RCA to RCA audio cable（1.7M / 5.5’）

Speaker connecting cable (5M / 16’)

Fiber optic input cable (1.5M / 5’)

User manual

Section 3: Speaker Controls

1. Master volume control/ input selection

Press in to navigate between audio sources: BAL->AUX->Optical->Coaxial->Bluetooth.

Note: Press and hold the Master volume control to disconnect from Bluetooth devices

2. Treble trimmer

3. Bass trimmer

4. Left Channel of the Balanced

5. Right Channel of the Balanced

6. Power switch

7. Auxiliary input port

8. Optical input port

9. Coaxial input port

10. Connect to passive (left) speaker

11. Power cord

12. Connect to active (right) speaker

13. Display screen

Mode selection:

When switching to Monitor mode: the icon on the display screen blinks once
When switching to Dynamic mode: the icon on the display screen blinks twice
When switching to Classic mode: the icon on the display screen three times
When switching to Vocal mode: the icon on the display screen four times
