Edifier E25 User Manual
Manual Edition 1.0, Sep. 2013
IB-200-E00250-01
Luna Eclipse
Edifier International Ltd.,
Suite 1610
16th Floor, Tower II,
Lippo Centre,
89 Queensway
Hong Kong
Tel: +852 2522 6989
Fax: +852 2522 1989
www.edifier-international.com
2013 Edifier International Limited. All rights reserved.
Printed in China
NOTICE:
For the need of technical improvement and system upgrade,information contained herein may be subject to change
from time to time without prior notice.
Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may
be slightly different from actual product. If any difference is found, the actual product prevails.
e25-Multimedia Speaker
User manual | Manuel d’utilisateur | Manual de usuario | Manual do utilizador
Important safety instructions
Important safety instructions
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Thank you for purchasing this EDIFIER product. For generations, EDIFIER tries to provide powered speaker products to satisfy the need of our
end customers, even the most demanding ones. This product can add to your home entertainment, personal computer, and mini home
theater great sound performance. Please read this manual carefully to obtain the best of this system.
The lightning flash with arrowhead inside
thetriangle, is intended to alert the user
to the presence of un-insulated dangerous
voltage within the product's enclosure
that may be of a sufficient magnitude to
constitute a risk of electric shock to persons.
1. Read these instructions. 2. Keep these instructions.
3. Heed all warnings. 4. Follow all instructions.
5. Do not use this apparatus near water. 6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
9.
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily
operable.
FCC Caution:
"Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the
equipment."
FCC statement:
"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation."
1
English
To prevent the risk of electric shock, do not
remove cover (or back). No user-serviceable
Parts inside. Refer servicing to qualified
Service personnel only.
The exclamation point inside the triangle
is intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
"This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help."
IC statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class【B】digital apparatus complies with Canadian ICES-003.
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.
(1) cet appareil ne peut pas causer l’intervention, et
(2) cet appareil doit accepter de l’intervention, y compris l’intervention qui peut causer l’opération non désirée de.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailerwhere the product was purchased. They can take this product for environmental
safe recycling.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a
safety connection to electrical earth.
English
2

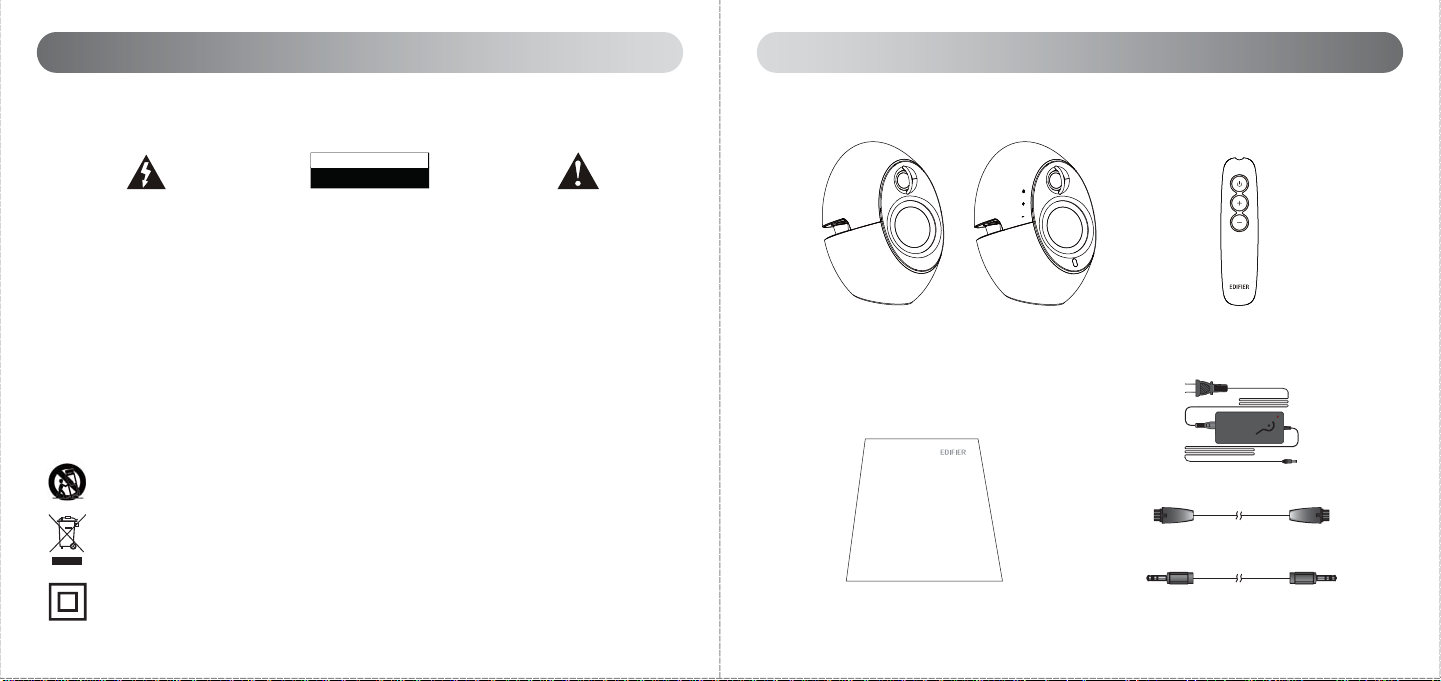

Unpack the box Illustrations
Box contents
1
2
3
3
English
Luna Eclipse
e25-Multimedia Speaker
User manual | Manuel d’utilisateur | Manual de usuario | Manual do utilizador
User manual
Remote controlPassive speaker Active speaker
Power adapter & power cord
Speaker connecting cable
3.5mm-3.5mm audio connecting cable
4
Front view
1. Standby/ON
2. Volume up
3. Volume down
4. Input indicator
(blue: Bluetooth; red: AUX)
Play/Pause:
To put the system into Standby/On: Touch and hold “ ” for approximately 2 seconds.
5
6
7
Aux In
DC In (18V)
L Spk Out
Rear view
5. Connect to audio connecting cable
6. Connect to power adapter
7. Connect to passive speaker
8. Connect to active speaker
Touch “ , , ” at the same time briefly.
8
Spk In
4
English
Operational guide Illustrations & Connectivity
Remote control
9
10
11
Connectivity
5
English
Bluetooth
9. Standby/ON
10. Volume up
11. Volume down
12. Battery compartment
Battery loading:
12
Insert a coin into the slot and rotate anti-clockwise to open the battery
compartment, install the new CR 2025 battery and rotate the cover
clockwise to close the compartment.
Note:
Do not place the remote control in places that are hot and humid.
1.
Do not charge the batteries.
CloseOpen
2.
Remove the batteries when unused for long period of time.
3.
The battery should not be exposed to excessive heat such as
4.
direct sun, fire or similar.
Aux In
DC In (18V)
L Spk Out
EDIFIER Luna Eclipse
blue
Set you device (mobile phone, tablet device, MP3/MP4 player etc.) to search and select “EDIFIER Luna Eclipse”.
→
Pair your device with “EDIFIER Luna Eclipse”.
→
When the connection is made, the input indicator will change to blue.
→
Play the audio on your paired device and adjust the volume to a desired level.
→
In Bluetooth Mode
Track001
Track002
Track003
...
To skip to the next track:
Slide from to .
2”
To disconnect Bluetooth:
To revert to the previous track:
Slide from to .
Touch and hold “ , , ” at the same time for approximately 2 seconds.
When the Bluetooth is disconnected, the system will automatically switch
Note:
to AUX mode.
Spk In
Note:
1. To enjoy the full Bluetooth functions of this product, please ensure your mobile device has A2DP & AVRCP profile.
2. PIN code for connection is “0000” if needed.
Track001
Track002
Track003
...
English
6
Specifications Troubleshooting
7
English
Power output: RMS 15W × 2 (treble) + 22W × 2 (bass) (DRC ON)
Signal to noise ratio: ≥85dBA
Frequency response: 50Hz ~ 20KHz (+/-6dB)
Input type: Bluetooth/AUX
Input sensitivity: 600mV ± 50mV
Adjustment: Touch keys, remote control
Bass & mid-range unit: 3 inch (82mm), 6Ω
Treble unit: Φ19mm silk dome, magnetically shielded, 6Ω
Dimension: 122(W) × 212(H) × 222(D) mm
Weight (net/gross): Approx. 3.96kg/5.33kg
● Switch the EDIFIER Luna Eclipse off then on and reconnect to the audio source.
● Ensure Bluetooth function is enabled compatible on your Bluetooth devices.
● Move the devices closer and retry the connection.
● Try another Bluetooth device for connection.
● Please check if power is connected, and if the wall outlet is switched on.
● Please Switch the system off then on and reconnect to the audio source.
● Please check if the system is in STBY.
● Please check if the master volume is turned to minimum.
● Please check if the audio input cable is connected correctly.
● Please check if there is signal from audio source.
●
Keep a 0.2 ~1m distance between the speaker system and monitor or TV set to avoid magnetic interference.
If you have any further questions or concerns regarding EDIFIER Products…
Asia, Europe, Oceania:
Please visit our website at: www.edifier-international.com or email EDIFIER Support for further assistance at:
enquiry@edifier.com,
Dear Customer, thank you for purchasing this EDIFIER product. For the EDIFIER warranty applicable for this product,
→
we refer you to the EDIFIER website www.edifier-international.com/warranty-terms.
Canada/USA/Mexico: www.edifier.ca, Email: service@edifier.ca
If you prefer, you may contact us by phone, Toll Free: 1-877-EDIFIER (334-3437) in Canada, 1-800-688-7406
in US.
South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese) for detailed
local contact information.
English
8
