EDIC-mini Pro B42 Short Operating Instruction
1

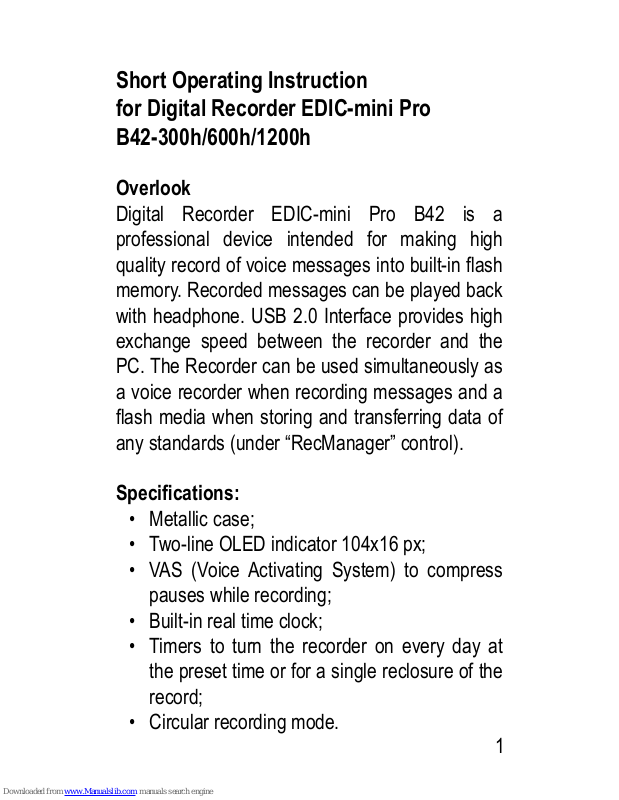

Short Operating Instruction
for Digital Recorder EDIC-mini Pro
В42-300h/600h/1200h
Overlook
Digital Recorder EDIC-mini Pro В42 is a
professional device intended for making high
quality record of voice messages into built-in ash
memory. Recorded messages can be played back
with headphone. USB 2.0 Interface provides high
exchange speed between the recorder and the
PC. The Recorder can be used simultaneously as
a voice recorder when recording messages and a
ash media when storing and transferring data of
any standards (under “RecManager” control).
Specications:
• Metallic case;
• Two-line OLED indicator 104x16 px;
• VAS (Voice Activating System) to compress
pauses while recording;
• Built-in real time clock;
• Timers to turn the recorder on every day at
the preset time or for a single reclosure of the
record;
• Circular recording mode.
2
Recorder’s Appearance
Legend Keys:
1. Switch: – «Stop»; – «Record»;
2. USB connector;
3. LED;
4. Microphone;
5. Display;
6. Headphone connector;
7. Button
8. Button
9. Button
10.Lid;
11.“Reset” button; “Record” “Stop”
3
Supplied Software (available on the recorder’s
built-in Flash memory) makes it possible to:
• Save the recorded messages onto the PC as
standard sound les (WAV);
• Restore compressed pauses when uploading
les onto the drive;
• Set the DVR parameters;
• Apply password protection of the access to the
recorder’s settings and information;
• Update software;
• Randomly delete the records.
Technical Characteristics:
• Battery life in record mode (8 K Hz, without
compression) at the fully charged battery:
up to 4,5 days;
• Battery life in stand-by mode: up to 1 year;
• Battery life in record mode with VAS (audio
signals below threshold): up to 1,5 week;
• Last digits in the models’ names specify the
maximum recording duration in hours (builtin memory capacity) for the recording mode:
sample rate 8 kHz, and 2 bit ADPCM:
– 300h:300 hours 2 Gb
– 600h: 600 hours 4 Gb
– 1200h: 1200 hours 8 Gb
