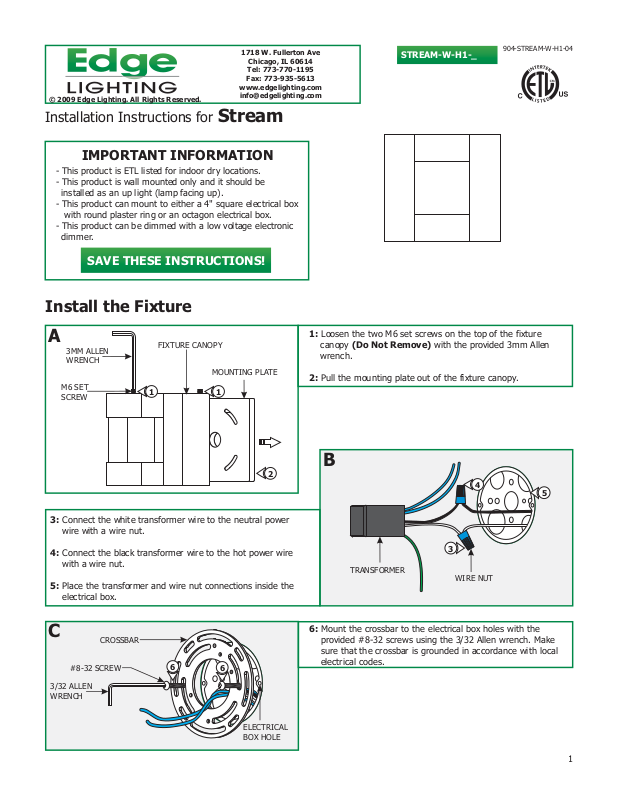

Installation Instructions for Stream
IMPORTANT INFORMATION
- This product is ETL listed for indoor dry locations.
- This product is wall mounted only and it should be
installed as an up light (lamp facing up).
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product can be dimmed with a low voltage electronic
dimmer.
SAVE THESE INSTRUCTIONS!
Install the Fixture
A
3MM ALLEN
WRENCH
M6 SET
SCREW
FIXTURE CANOPY
MOUNTING PLATE
11
STREAM-W-H1-_
M2-IND-_
Loosen the two M6 set screws on the top of the fixture
1:
canopy (Do Not Remove) with the provided 3mm Allen
wrench.
2: Pull the mounting plate out of the fixture canopy.
904-STREAM-W-H1-04
2
3: Connect the white transformer wire to the neutral power
wire with a wire nut.
4: Connect the black transformer wire to the hot power wire
with a wire nut.
5: Place the transformer and wire nut connections inside the
electrical box.
C
3/32 ALLEN
WRENCH
CROSSBAR
#8-32 SCREW
6
6
ELECTRICAL
BOX HOLE
B
4
3
TRANSFORMER
Mount the crossbar to the electrical box holes with the
6:
provided #8-32 screws using the 3/32 Allen wrench. Make
sure that the crossbar is grounded in accordance with local
electrical codes.
WIRE NUT
5
1
Page 2
D
3/32 ALLEN
WRENCH
CENTER HOLE
8
7
GROOVED EDGE
8
#8-32 SCREW
CROSSBAR
MOUNTING
PLATE
7: Feed the transformer wires through the mounting plate
center hole.
8: Align the mounting plate so that the grooved edge faces up
ward. Secure the mounting plate to the crossbar with the
provided #8-32 screws and tighten using the 3/32 Allen
wrench.
E
FIXTURE CANOPY
MOUNTING PLATE
9
9: Connect each transformer low voltage wire (blue wire) to one
fixture wire with a wire nut.
F
M6 SET
SCREW
FIXTURE
CANOPY
3MM ALLEN
WRENCH
11
11
10
MOUNTING
PLATE
Install the Lamp
WARNING: RISK OF FIRE
Never replace a Xenon (Xelogen) lamp with a regular Halogen
lamp. A regular Halogen lamp requires a protective glass shield.
9
10: Place all wires and wire nut connections inside the
backplate.
11: Replace the fixture canopy onto the mounting plate and
secure it by tightening the two M6 set screws with the 3mm
Allen wrench.
G
CAUTION:
lamping, disconnect the power to the fixture.
NOTE: Use only fingers and a soft cloth to install the lamps.
Use MAX 20 Watt Bi-Pin Xenon (Xelogen) Lamp.
1: Push the lamp pins completely into the socket holes.
To reduce risk of a burn or electrical shock during
1
LAMP
SOCKET
2
