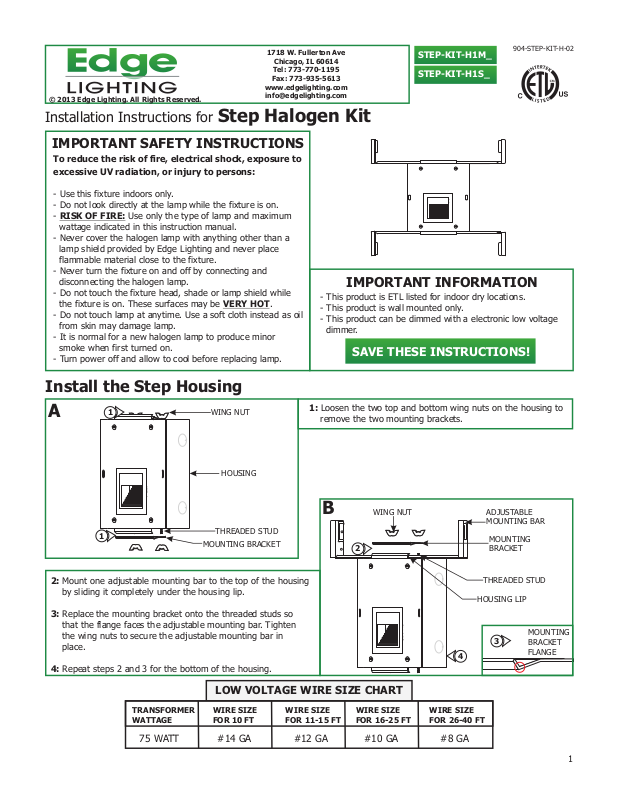

Installation Instructions for Step Halogen Kit
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Use this fixture indoors only.
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Turn power off and allow to cool before replacing lamp.
IMPORTANT INFORMATION
- This product is ETL listed for indoor dry locations.
- This product is wall mounted only.
- This product can be dimmed with a electronic low voltage
dimmer.
SAVE THESE INSTRUCTIONS!
STEP-KIT-H1M_
_
STEP-KIT-H1S_
904-STEP-KIT-H-02

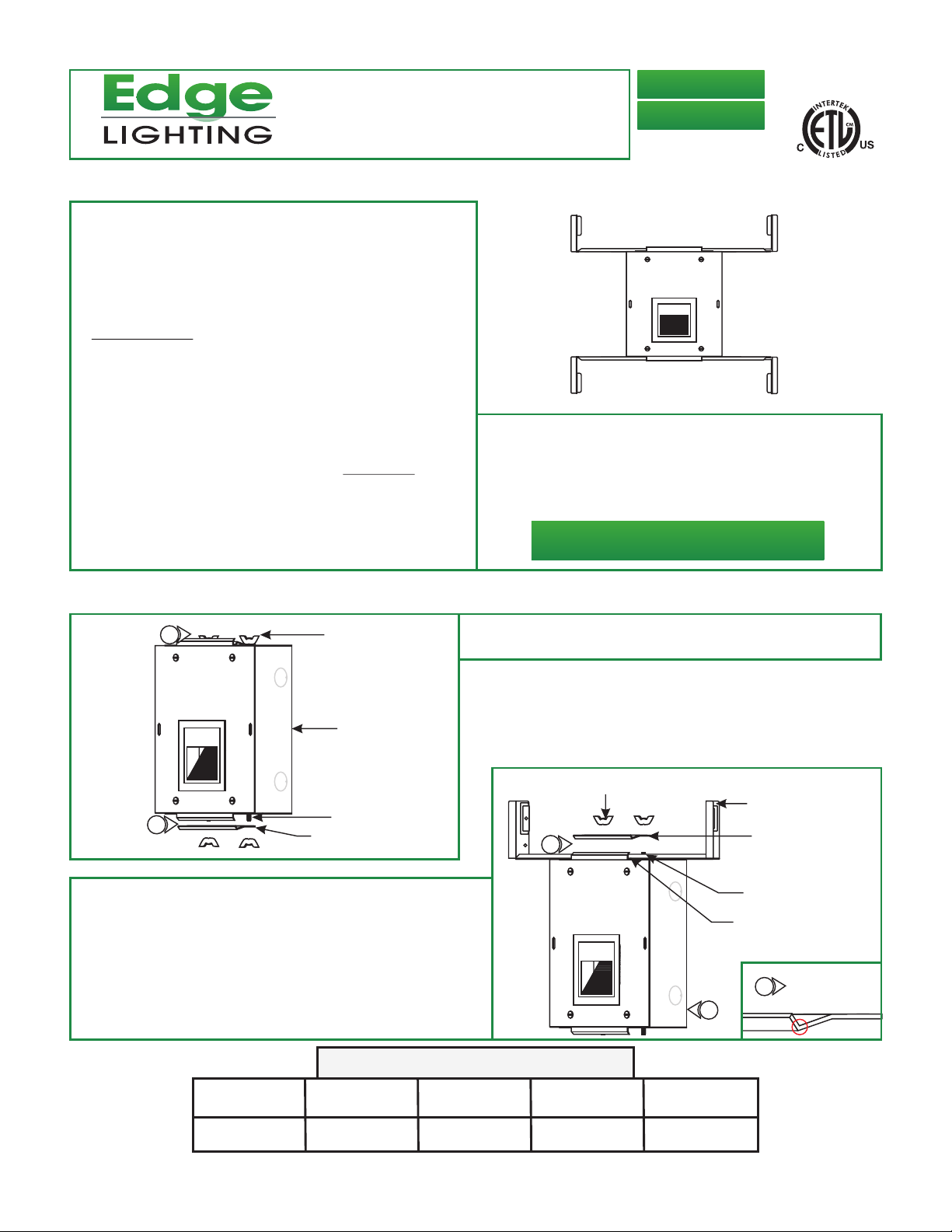

Install the Step Housing
A
2: Mount one adjustable mounting bar to the top of the housing
by sliding it completely under the housing lip.
3: Replace the mounting bracket onto the threaded studs so
that the flange faces the adjustable mounting bar. Tighten
the wing nuts to secure the adjustable mounting bar in
place.
4: Repeat steps 2 and 3 for the bottom of the housing.
1
1
WING NUT
HOUSING
THREADED STUD
MOUNTING BRACKET
1: Loosen the two top and bottom wing nuts on the housing to
remove the two mounting brackets.
B
WING NUT
2
ADJUSTABLE
MOUNTING BAR
THREADED STUD
HOUSING LIP
4
MOUNTING
BRACKET
3
MOUNTING
BRACKET
FLANGE
LOW VOLTAGE WIRE SIZE CHART
TRANSFORMER
WATTAGE
WIRE SIZE
FOR 10 FT
75 WATT #14 GA #12 GA #10 GA #8 GA
WIRE SIZE
FOR 11-15 FT
WIRE SIZE
FOR 16-25 FT
WIRE SIZE
FOR 26-40 FT
1
Page 2

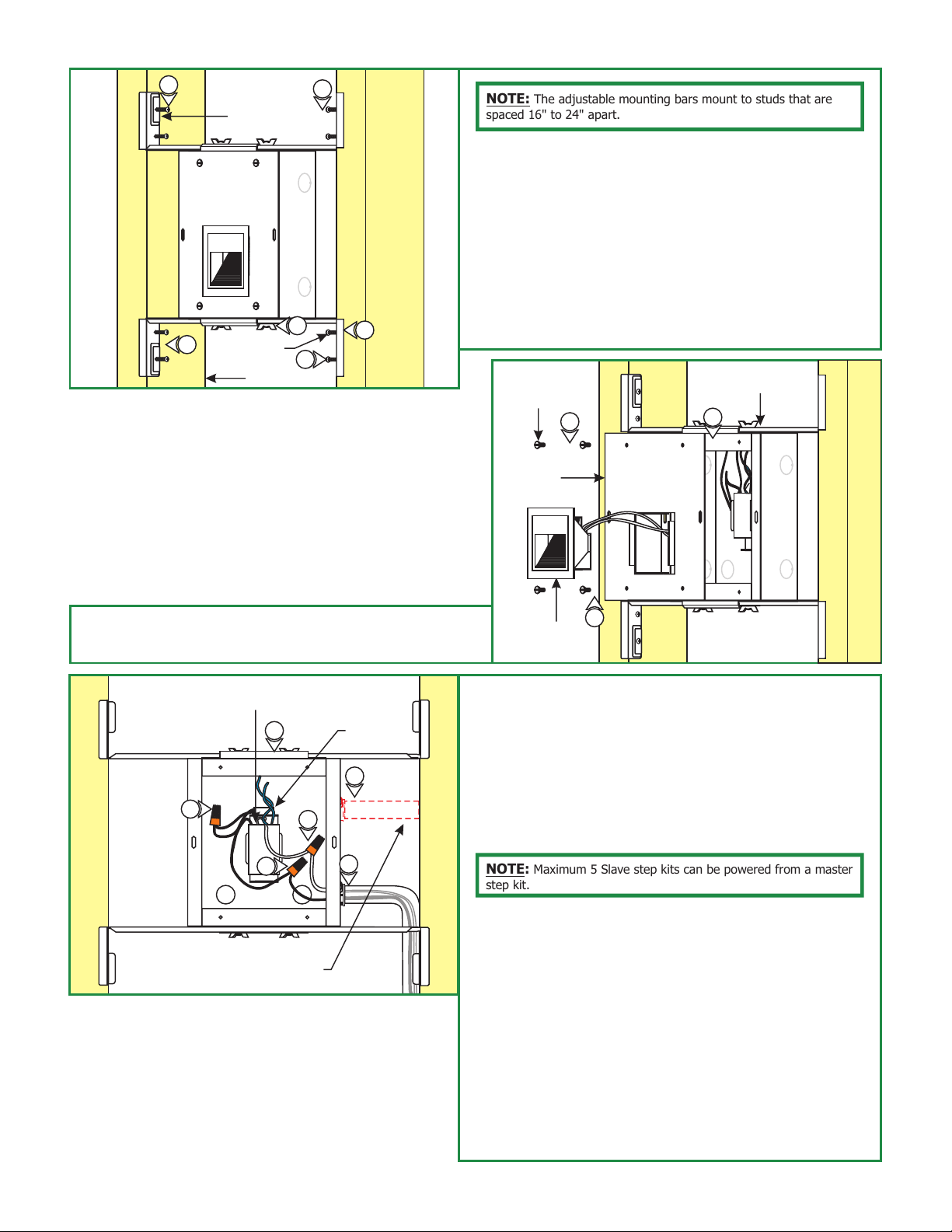

C
7
ADJUSTABLE
MOUNTING BAR
7
NOTE: The adjustable mounting bars mount to studs that are
spaced 16" to 24" apart.
Select the location between the two studs for the housing to
5:
be mounted.
6: Place the adjustable mounting bars between the studs.
7: Make sure the lips on the adjustable mounting bars are
against the studs. Secure the adjustable bars to the studs
with the provided eight #8 screws.
8: Slide the housing to desired position. If necessary loosen the
wing nuts to ease the sliding. After the desired position is
achieved tighten all the wing nuts.
D
#8-32 SCREW
9
COVER
HOUSING
10
7
#8 SCREW
STUD
8
7
6
9: Loosen the four #8-32 screws on the front of the housing.
10: Remove the trim and cover from the housing.
E
TRANSFORMER
17
16
OPTIONAL CONDUIT
TO SLAVE HOUSING
14
THERMAL
PROTECTOR
13
15
12
TRIM
9
11: Remove a knock out to install the power line conduit.
12: Install the conduit and run the power line wires to the
housing.
13: (OPTIONAL)-If using slave housings (Maximum 5 Slave
Housings), repeat step 1 through 10 on pages 1 and 2 for
each slave housing; run conduits for the low voltage wires
in sequence from the master housing and slave housing to
the adjacent slave housing .
NOTE: Maximum 5 Slave step kits can be powered from a master
step kit.
14: Make sure that the housing is grounded in accordance
with local electrical codes.
15: Connect the transformer white wire to the power line
neutral wire with a wire nut.
16: Connect the black thermal protector wire to the power line
hot wire with a wire nut.
17: The transformer black wire is connected by default to the
other wire of the thermal protector.
18: If using slave housings, then follow the "Slave Step Kit
Wiring" steps; otherwise follow "Install the Drywall, Trim &
Lamp" steps on page 4.
2
Page 3

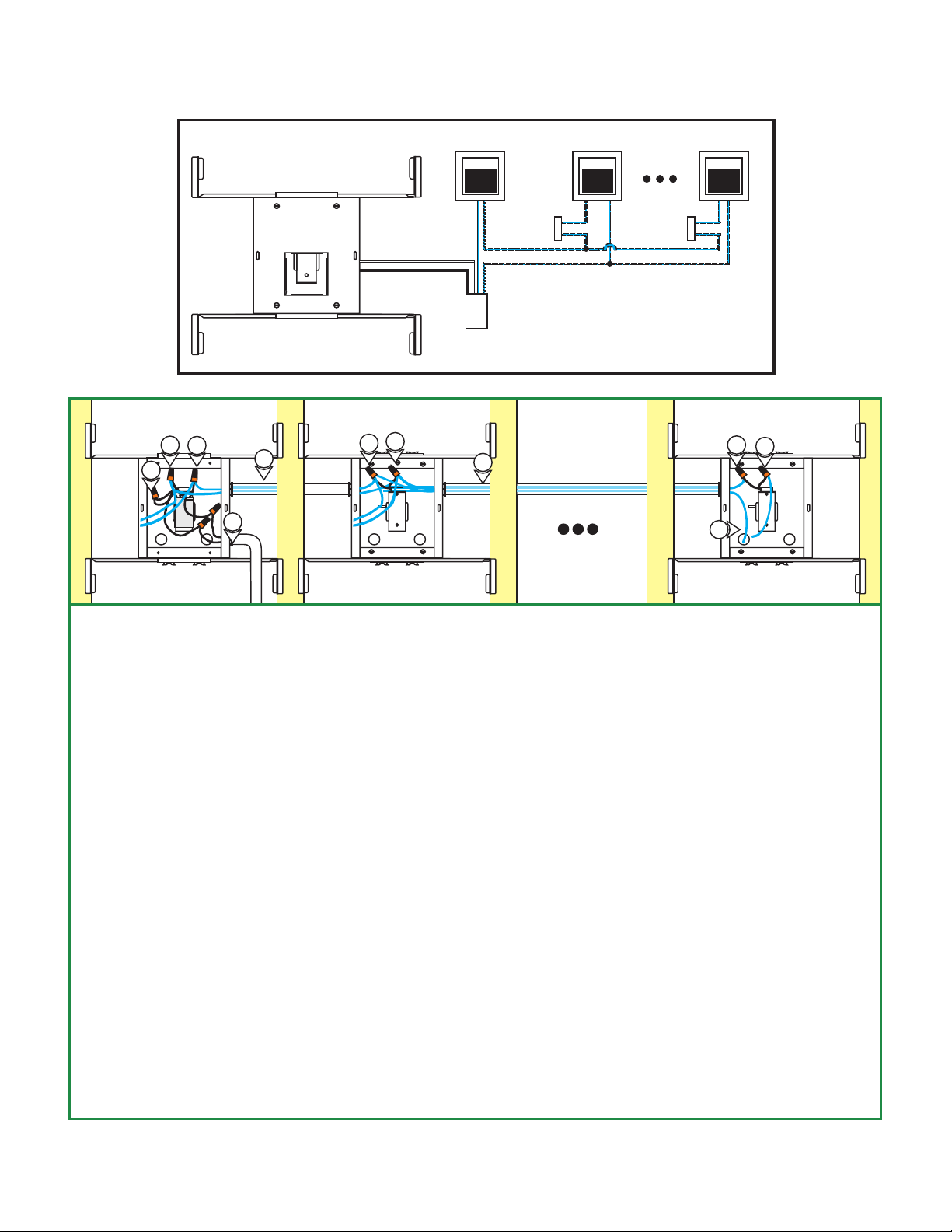

Slave Step Kit Wiring
HOUSING
WHITE (NEUTRAL)
BLACK (HOT)
MASTER TRIM SLAVE TRIM SLAVE TRIM
THERMAL
PROTECTOR
75W MAX
ELECTRONIC
TRANSFORMER
STEP WIRING DIAGRAM
F
MASTER SLAVE LAST SLAVE
7
3
4
5
1
2
6
1
11
9
10
1: Run the proper low voltage wires to each housing by referring to the "Low Voltage Wire Size Chart" on page 1. The distances
are from the master housing to each slave housing. Refer to the wiring diagram above before proceeding with the steps
below.
2: Make sure the power to the transformer line voltage wires are off.
3: Starting with the master housing, connect one transformer wire to one low voltage wire going to adjacent slave housing and
to a 1 foot long low voltage pigtail wire with a wire nut.
4: Connect the other transformer wire to the other low voltage wire going to the adjacent slave housing and another 1 foot long
low voltage pigtail wire with a wire nut.
5: Continuing with the adjacent slave housing, connect one of the low voltage wires coming from the preceding housing to
one of the thermal protector wire with a wire nut.
6: Connect the other thermal protector wire to one of the low voltage wires going to the next slave housing and to a 1 foot long
low voltage pigtail wire with a wire nut.
7: Connect the other low voltage wire coming from the preceding housing to the low voltage wire going to the next housing and
another 1 foot long low voltage pigtail wire.
8: Repeat steps 4 through 6 for all other slave housing except the last one.
9: For the last slave housing, connect one low voltage wire coming from the preceding housing to one of the thermal protector
with a wire nut.
10: Connect the other thermal protector wire to a 1 foot long low voltage pigtail wire with a wire nut.
11: Make sure the other low voltage wire coming from preceding housing extends 1 foot out of the slave housing.
3
Page 4
G
#8-32 SCREW
12
12: Feed the pigtail wires through the cover hole and mount to
cover to the housing with the four #8-32 screws.
13: Repeat step 12 for the remaining housings.

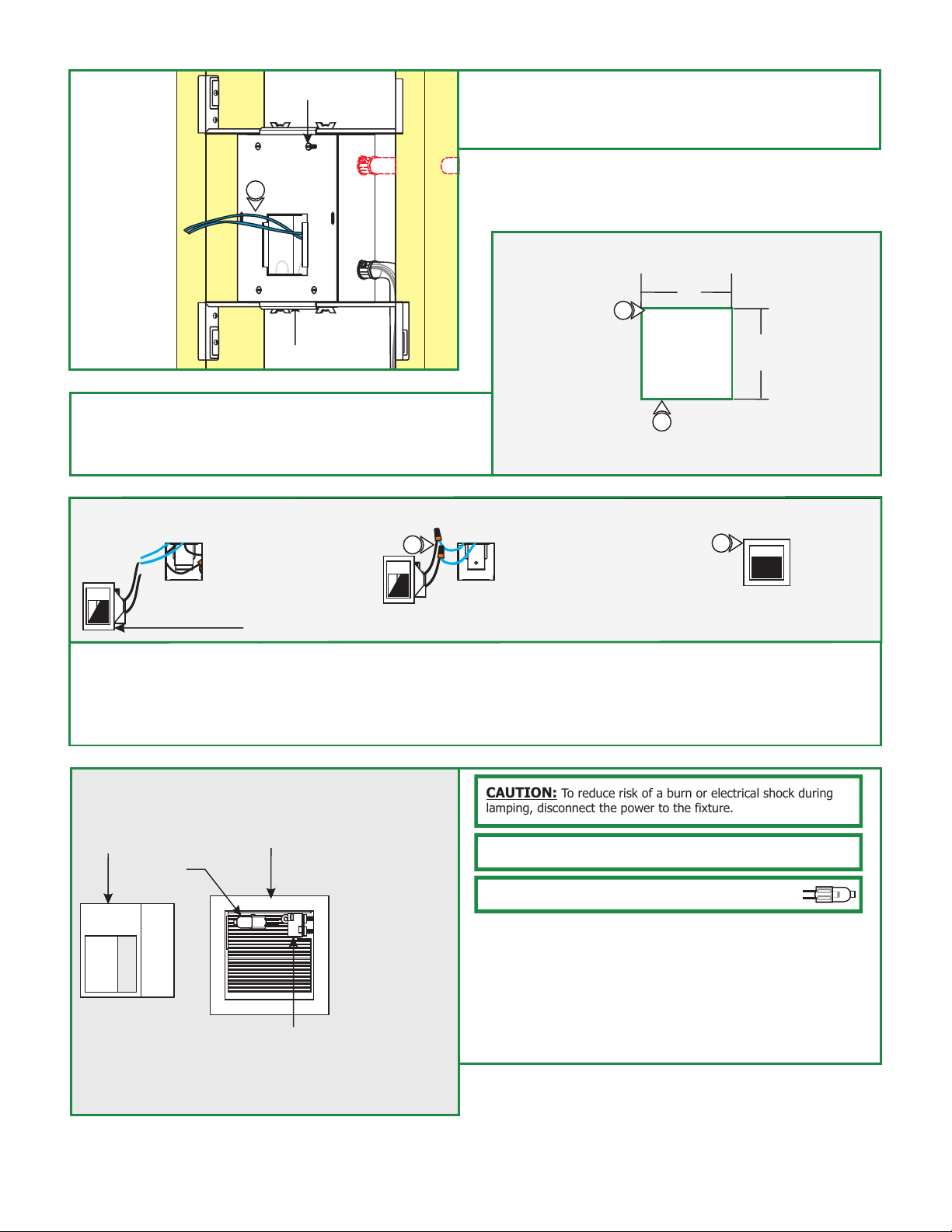

Install Drywall, Trim & Lamp
H
3"
1
COVER
1: Mark 3" square(s) on drywall where the housing opening is
(are) located.
2: Cut out the marked square(s) and install the drywall.
2
3"
I
DRYWALL
TRIM
3: After installing drywall and finishing it, connect each wire coming out of the housing opening to one trim wire with a wire nut.
4: Place all wires inside the housing and gently push the trim into the housing opening by squeezing the side springs.
5: (Optional) - If slave housings are used, then repeat steps 3 and 4 for all slave housings.
J
3
CAUTION: To reduce risk of a burn or electrical shock during
lamping, disconnect the power to the fixture.
4
COVER
LAMP
TRIM
SOCKET
NOTE: Use only fingers and a soft cloth to install the lamps.
Use MAX 10 Watt Bi-Pin Halogen Lamp For Each Socket.
6: Pull the trim cover off to expose the socket.
7: Push the lamp pins completely into the socket holes.
8: Replace the cover to the trim.
9: (Optional) - If slave housing are used, repeat steps 6
through 8 for all the housings.
4
