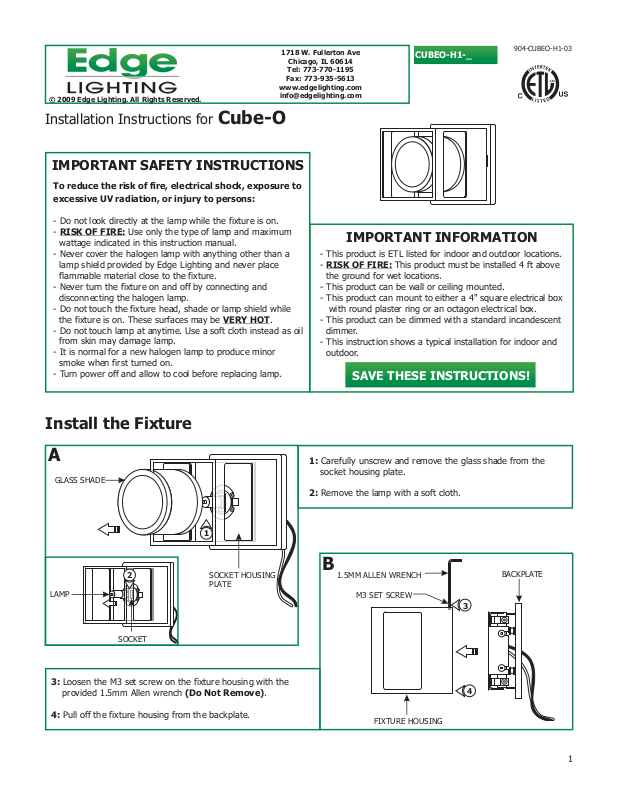

Installation Instructions for Cube-O
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:
- Do not look directly at the lamp while the fixture is on.
- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.
- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.
- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.
- It is normal for a new halogen lamp to produce minor
smoke when first turned on.
- Turn power off and allow to cool before replacing lamp.
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
IMPORTANT INFORMATION
- This product is ETL listed for indoor and outdoor locations.
- RISK OF FIRE:
the ground for wet locations.
- This product can be wall or ceiling mounted.
- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.
- This product can be dimmed with a standard incandescent
dimmer.
- This instruction shows a typical installation for indoor and
outdoor.
CUBEO-H1-_
M2-IND-_
This product must be installed 4 ft above
904-CUBEO-H1-03
SAVE THESE INSTRUCTIONS!
Install the Fixture
A
GLASS SHADE
1
2
LAMP
SOCKET
3:
Loosen the M3 set screw on the fixture housing with the
provided 1.5mm Allen wrench (Do Not Remove).
4: Pull off the fixture housing from the backplate.
SOCKET HOUSING
PLATE
1: Carefully unscrew and remove the
socket housing plate.
2: Remove the lamp with a soft cloth.
B
1.5MM ALLEN WRENCH
M3 SET SCREW
FIXTURE HOUSING
glass shade from the
BACKPLATE
3
4
1
C
5: Loosen the four M5 screws on the sides of the socket plate
with the provided 2.5mm Allen wrench (Do Not Remove).
SOCKET PLATE
5
5
5
5
M5 SCREW
6: Pull off the socket housing plate from the socket plate.
D
NUT
LOCK
WASHER
6
SOCKET HOUSING PLATE
2.5MM ALLEN
WRENCH
7: Remove the two nuts and lock washers to lift the socket
plate off of the backplate.
E
THUMB NUT
BACKPLATE
9
THREADED STUD
8
8
MOUNTING PLATE
BACKPLATE
7
SOCKET
PLATE
7
8: Remove the two thumb nuts from the backplate threaded
studs.
9: Lift the mounting plate from the backplate.
F
SOCKET PLATE
NOTE: The mounting plate and backplate can be omitted for
indoor locations only if socket plate covers the entire electrical
box.
NOTE: For installation without the mounting plate and
backplate, connect the black and white socket plate wires to the
hot and neutral power wires respectively. Make sure that the
socket plate is grounded in accordance with electrical codes.
Mount the socket plate to the electrical box with two #8-32
screws and omit steps 10 through 17.
SOCKET PLATE
#8-32 SCREW
ELECTRICAL
BOX HOLES
2
G
MOUNTING PLATE
#8-32 SCREW
10: Mount the mounting plate to the electrical box holes with
the provided two #8-32 screws.
10
H
1
ELECTRICAL
BOX HOLE
11
BACKPLATE
11: Feed the fixture wires from the socket plate into the
backplate center hole.
I
14
13
15: Place all wires and wire nut connections properly inside the
electrical box.
12
FIXTURE
WIRES
SOCKET PLATE
12: Connect the backplate ground wire (bare wire) to the
mounting plate. Make sure that the mounting plate is
grounded in accordance with local electrical codes.
13: Connect the white fixture wire to the neutral power wire
with a wire nut.
14: Connect the black fixture wire to the hot power wire with a
wire nut.
J
THREADED STUD
16
16
15
16: Align the two backplate holes with the mounting plate
threaded studs (make sure the gasket is in place) and
secure it in place with the two thumb nuts.
K
SOCKET PLATE
NUT
17
17
BACKPLATE
LOCK
WASHER
THUMB NUT
17: Replace and tighten the two lock washers and nuts to
secure the socket plate onto the backplate.
BACKPLATE
3
L
18
18
SOCKET PLATE
M5 SCREW
18: Push the socket housing plate slots onto the M5 screws and
tighten them with the 2.5mm Allen wrench.
M
M3 SET SCREW
19
SOCKET HOUSING PLATE
19: Align the fixture housing to the backplate (Make sure the
set screw is on top) and push it completely in.
20: Tighten the M3 set screw on the fixture housing with the
1.5 MM Allen wrench to secure in place.
N
LAMP
2.5MM ALLEN
WRENCH
SOCKET
21
20
BACKPLATE
FIXTURE HOUSING
CAUTION:
lamping, disconnect the power to the fixture.
NOTE: Use only fingers and a soft cloth to install the lamps.
Use MAX 60 Watt Type T4, G9 Base, Bi-Pin
Halogen Lamp.
21: Push the lamp pins completely into the socket holes.
To reduce risk of a burn or electrical shock during
22: Align the slots on the glass shade ring with the socket
housing plate tabs. Replace and rotate the glass shade to
lock it in place.
23: For installation in wet location, caulk around the fixture
fixture canopy with waterproof construction sealant.
O
SLOT
23
TAB
22
GLASS SHADE RING
4
