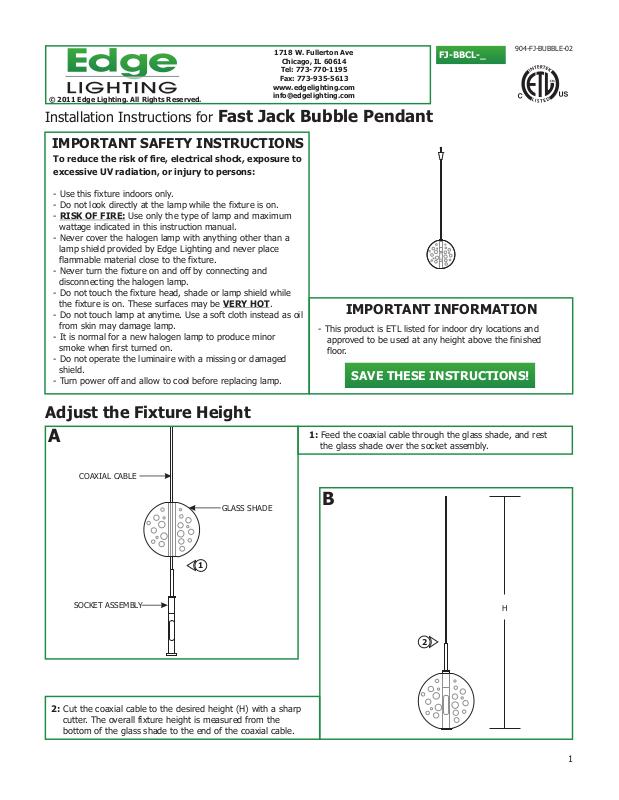

Installation Instructions for Fast Jack Bubble Pendant

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:

- Use this fixture indoors only.

- Do not look directly at the lamp while the fixture is on.

- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.

- Never cover the halogen lamp with anything other than a
lamp shield provided by Edge Lighting and never place
flammable material close to the fixture.

- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.

- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.

- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.

- It is normal for a new halogen lamp to produce minor
smoke when first turned on.

- Do not operate the luminaire with a missing or damaged
shield.

- Turn power off and allow to cool before replacing lamp.

IMPORTANT INFORMATION

- This product is ETL listed for indoor dry locations and
approved to be used at any height above the finished
floor.

SAVE THESE INSTRUCTIONS!

FJ-BBCL-_

904-FJ-BUBBLE-02

Adjust the Fixture Height

A

COAXIAL CABLE

GLASS SHADE

1

SOCKET ASSEMBLY

1: Feed the coaxial cable through the glass shade, and rest
the glass shade over the socket assembly.

B

H

2

2: Cut the coaxial cable to the desired height (H) with a sharp

cutter. The overall fixture height is measured from the
bottom of the glass shade to the end of the coaxial cable.

1

C

2MM ALLEN
WRENCH

1.5MM ALLEN
WRENCH

3: Loosen the two M4 set screw on base of the coaxial fixture
connector with the 2mm Allen wrench provided. Do not

remove these set screws.

4: Remove the M3 set screw on tip of the connector with the

1.5mm Allen wrench provided.

M4 SET SCREW

COAXIAL FIXTURE CONNECTOR

5: Feed the coaxial cable through the conical nipple and flared
side of the strain relief tube. Slide the conical nipple and
strain relief tube down the coaxial cable.

3

4

M3 SET
SCREW

E

6

D

CONICAL NIPPLE

6: Feed the coaxial cable into the coaxial fixture connector. The
coaxial cable will come to a stop point.

STRAIN RELIEF TUBE

5

COAXIAL CABLE

COAXIAL CABLE

7: Keep feeding the coaxial cable in until the inner wire is
visible in the screw hole of the fixture connector tip. The
outer metal jacket will start to wrinkle.

8: Hold the fixture connector in place. Replace and tighten the
M3 set screw on fixture connector tip with the 1.5mm Allen
wrench.

9: Pull down the outer metal jacket to smooth the wrinkles.

F

1.5MM ALLEN WRENCH

M3 SET SCREW

WRINKLE

9

OUTER METAL JACK

8

7

INNER WIRE

FIXTURE CONNECTOR

2

10: Push the strain relief tube completely into the coaxial
fixture connector. Make sure the slot on the strain relief
tube is not inline with the M4 set screw.

11: Tighten the two M4 set screws with the 2mm Allen wrench.

G

2MM ALLEN WRENCH

M4 SET SCREW

COAXIAL FIXTURE
CONNECTOR

11

10

STRAIN RELIEF TUBE

H

12

12

12

12

CIRCUIT #1

12

13

12

12: Use fingers to tighten the Fast Jack fixture connector into

the Fast Jack system connector (Monorail, Monorail Wall,
Monorail 2 Circuit, or multi-port and mono-point canopies.
Refer to the instructions provided with the system

12

connector or canopy).

13: Refer to the instructions provided with the Monorail 2
Circuit fixture connector to choose the Circuit #1 or Circuit
#2.

CIRCUIT #2

1
2
N

13

1
2
N

3

Install the Lamp

I

GLASS SHADE

SOCKET ASSEMBLY

CAUTION: To reduce risk of a burn or electrical shock during

lamping, disconnect the power to the fixture.

1: Lift the glass shade up to expose the socket assembly.

1

J

GLASS SHADE

CAUTION: To reduce risk of a burn or electrical shock during

lamping, disconnect the power to the fixture.

NOTE: Use only fingers and a soft cloth to install the lamps.

Use MAX 20 Watt, Type Bi-Pin Halogen Lamp.

2: Push the lamp pins completely into the socket holes.

K

GLASS SHADE

3

SOCKET

LAMP

3: Carefully lower the glass shade onto the socket assembly.

NOTE: Use only a clean damp towel to clean the bubble balls. Do

not use any cleaning solutions which may cause the colored
bubble balls to get damaged.

2

SOCKET

4
