Edge Lighting Angle Joining Connectors User Manual
© 2009 Edge Lighting. All Rights Reserved.
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
info@edgelighting.com
MC-LC-_
904-MC-LC-02

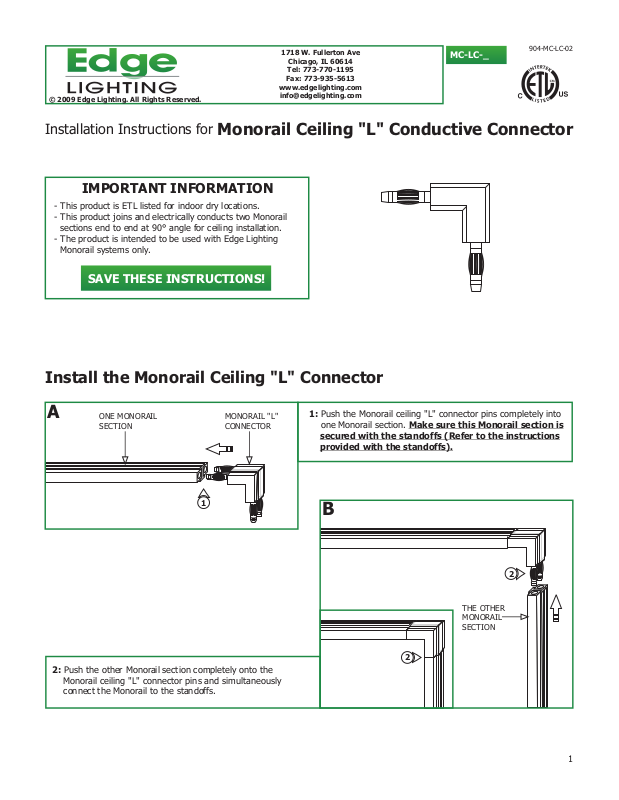

Installation Instructions for
Monorail Ceiling "L" Conductive Connector
IMPORTANT INFORMATION
- This product is ETL listed for indoor dry locations.
- This product joins and electrically conducts two Monorail
sections end to end at 90° angle for ceiling installation.
- The product is intended to be used with Edge Lighting
Monorail systems only.
SAVE THESE INSTRUCTIONS!
Install the Monorail Ceiling "L" Connector
A
ONE MONORAIL
SECTION
MONORAIL "L"
CONNECTOR
1: Push the Monorail ceiling "L" connector pins completely into
one Monorail section. Make sure this Monorail section is
secured with the standoffs (Refer to the instructions
provided with the standoffs).
1
2: Push the other Monorail section completely onto the
Monorail ceiling "L" connector pins and simultaneously
connect the Monorail to the standoffs.
B
2
THE OTHER
MONORAIL
SECTION
2
1
