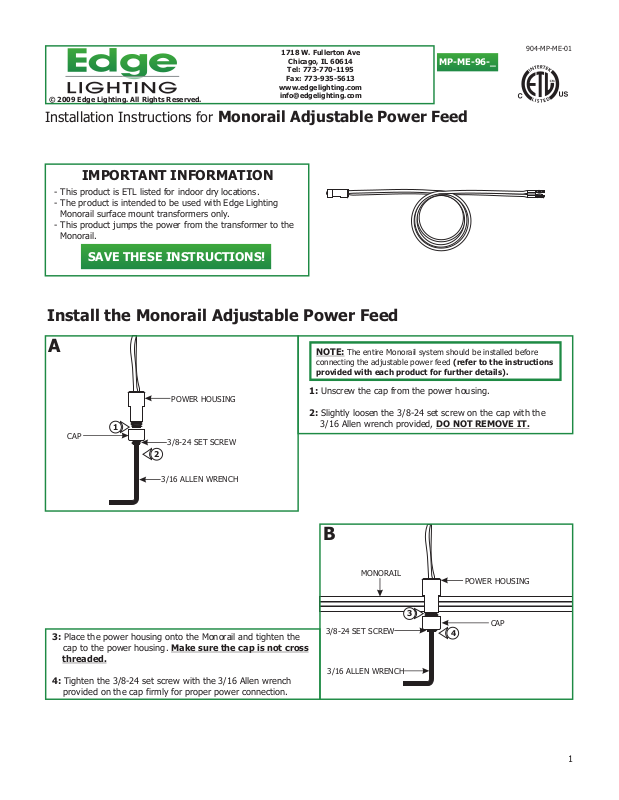

Installation Instructions for Monorail Adjustable Power Feed

IMPORTANT INFORMATION

- This product is ETL listed for indoor dry locations.

- The product is intended to be used with Edge Lighting
Monorail surface mount transformers only.

- This product jumps the power from the transformer to the
Monorail.

SAVE THESE INSTRUCTIONS!

Install the Monorail Adjustable Power Feed

904-MP-ME-01

A

POWER HOUSING

CAP

3: Place the power housing onto the Monorail and tighten the
cap to the power housing. Make sure the cap is not cross

threaded.

4: Tighten the 3/8-24 set screw with the 3/16 Allen wrench

provided on the cap firmly for proper power connection.

1

3/8-24 SET SCREW

2

3/16 ALLEN WRENCH

The entire Monorail system should be installed before

NOTE:

connecting the adjustable power feed (refer to the instructions
provided with each product for further details).

1: Unscrew the cap from the power housing.

2: Slightly loosen the 3/8-24 set screw on the cap with the
3/16 Allen wrench provided, DO NOT REMOVE IT.

B

MONORAIL

3

3/8-24 SET SCREW

3/16 ALLEN WRENCH

POWER HOUSING

CAP

4

1

C

1.5MM ALLEN WRENCH

5: (OPTIONAL) To shorten the adjustable power feed cable,
loosen the four M3 set screws on the male end connector

(Do Not Remove) with the 1.5mm Allen wrench provided.

6: Remove the male end connector and trim the adjustable

power feed cable to the desired length.

M3 SET SCREW

8

6

5

POWER FEED CABLE

MALE END CONNECTOR

NOTE:

The 12 volt 600 watt, dual feed Monorail surface mount
transformer, MT-600-12-_ models require two Monorail adjustable
power feed, one for each feed contact.

9: Push the male end connector completely into the Monorail
surface mount transformer feed contact.

7: Strip 3/8" off of the insulation from the end of the wires.

8: Insert the stripped portion of the wires completely into the

male end connector and tighten the four M3 set screws
firmly with the 1.5mm Allen wrench.

D

MALE END SIDE

9

SURFACE TRANSFORMER

MONORAIL FEED CONTACT
