Edgecore Networks ECWO5210L User Manual

ECWO5210-L

Outdoor Access Point

Quick Installation Guide

1

ECWO5210-L Outdoor Access Point ENGLISH

FCC CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.

This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range.
※ FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the

potential for harmful interference to co-channel Mobile Satellite systems.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Quick Installation Guide

2

ECWO5210-L Outdoor Access Point ENGLISH

CE CAUTION

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Model: ECWO5210-L

For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and
hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.

• Radio: EN 300.328

:

• Radio: EN 50392

• EMC: EN 301.489-1, EN 301.489-17,

• EMC: EN 55022 Class B, EN 55024:+ A1 + A2 including the followings:

EN 61000-3-2, EN 61000-3-3.
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

• Safety: EN 60950-1 + A11,

Caution:

 This declaration is only valid for configurations (combinations of software, firmware, and hardware)

provided and supported by Edgecore Networks Corporation. The use of software or firmware not provided
and supported by Edgecore Networks Corporation. may result in the equipment no longer being
compliant with the regulatory requirements.

European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range

2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be
restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory
authority for compliance.

Quick Installation Guide

3

Preface

Package Contents

The ECWO5210-L is a rugged multi-mode,
high-end dual radio 802.11 b/g/n + ac MIMO Access
Point (AP), specifically designed for building
municipal or campus wide wireless networks in
harsh outdoor environments. There are two system
modes that can be used for dual purposes. It can be
deployed as a traditional multi-wireless Access
Point (AP) or a Relay. The ECWO5210-L access
points make wireless communication fast, secure
and easy.

The die-cast Aluminum sealed ECWO5210-L is
rust-free and IP68 compliant. It is high wind load
resilient and is designed to operate in a wide range
of temperature. Flexible deployment with a variety
of antennas allows ECWO5210-L to easily serve
clients located in different directions as well as for
coverage extension.

This Quick Installation Guide (including FAQ
Instruction Guide) provides instructions for getting
started with the ECWO5210-L.

1. Edgecore ECWO5210-L x 1

2. Quick Installation Guide (QIG) x 1

3. Mounting Kit x 1

4. Ground Cable x 1

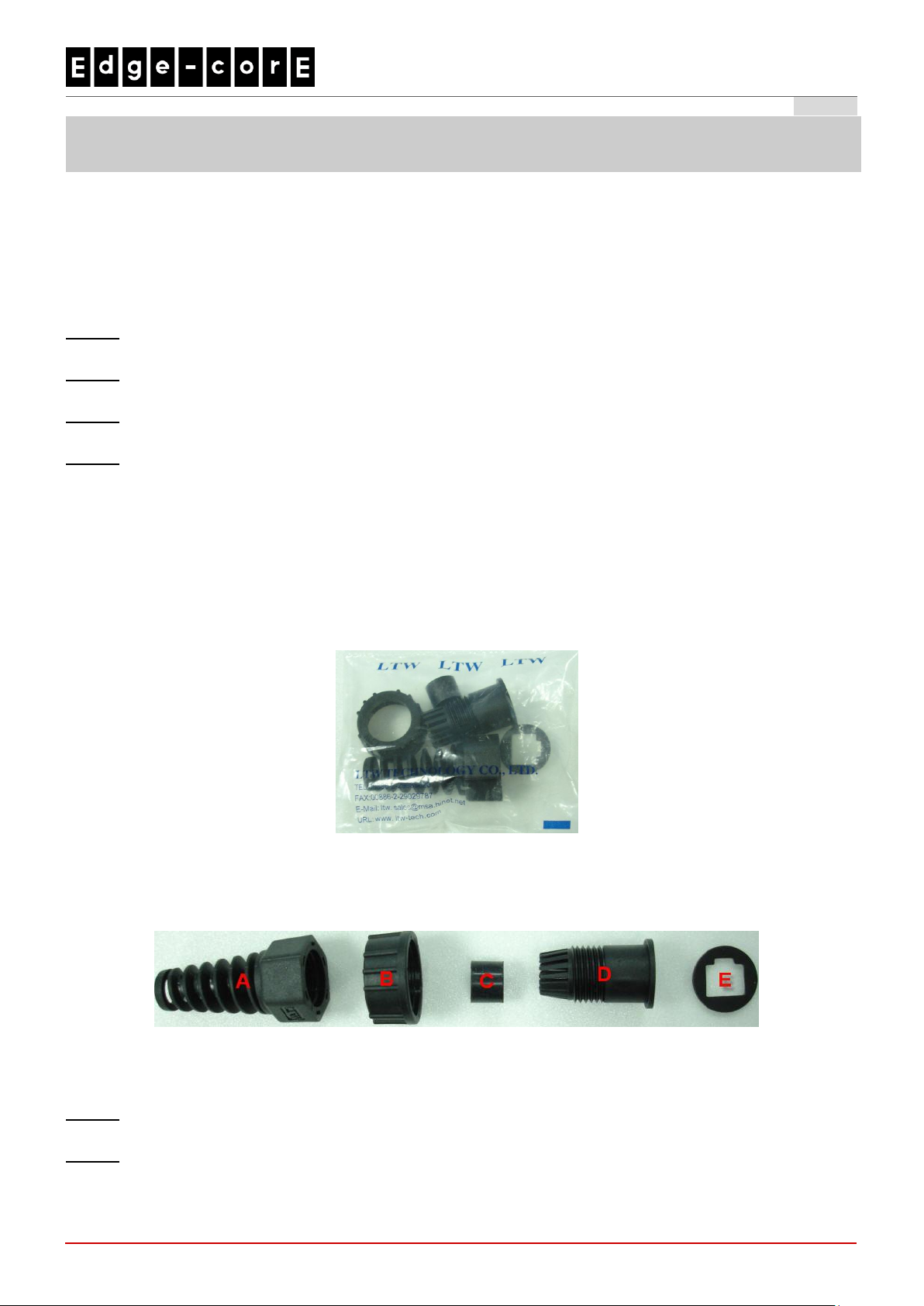

5. Waterproof M12 Connector Pack x 1

6. Waterproof RJ45 Connector Pack x 2

It is recommended to keep the original

packing material for possible future shipment
when repair or maintenance is required. Any
returned product should be packed in its
original packaging to prevent damage during
delivery.

ECWO5210-L Outdoor Access Point ENGLISH

Quick Installation Guide

4

System Overview

N-type Connector x 4

For connecting to an antenna (RF Card A x 2, RF Card B x 2)
Connector marked –1 is for the primary antenna when the AP is not in 802.11n
or 802.11ac mode. Utilize all connectors for optimized MIMO performance.

Ground Connector

For connecting the ground wire

ECWO5210-L Outdoor Access Point ENGLISH

ECWO5210-L

Top

Back

Quick Installation Guide

5

1

M12 DC Connector

DC input (12V) is supported on ECWO5210-L

2

Ventilation Valve

Due to extreme weather conditions, water vapor in the ECWO5210-L may
condense. The valve allows ventilation to prevent moisture buildup within
the ECWO5210-L.

3

Uplink (PoE Connector)

For connecting to the Power Sourcing Equipment (PSE)

4

Ethernet LAN

Attach Ethernet cables here for connecting to the wired local network

5

Console

The system can be configured via a serial console port. The administrator
can use a terminal emulation program such as Microsoft’s Hyper Terminal
for troubleshooting purposes.

ECWO5210-L Outdoor Access Point ENGLISH

Bottom
