Edge-Core ecs4510-28f Installation Manual

Installation Guide

www.edge-core.com

ECS4510-28F
28-Port Layer 2
Gigabit Ethernet Switch

I

NSTALLATION

G

UIDE

ECS4510-28F GIGABIT ETHERNET SWITCH

Layer 2 Switch
with 22 100/1000BASE-X SFP Ports,
2 Combination Gigabit (RJ-45/SFP) Ports,
2 10G SFP+ Ports,
and 1 10G Dual-Port Extender Module Slot

ECS4510-28F

E102012-CS-R01

150200000437A

– 5 –

COMPLIANCES AND SAFETY
STATEMENTS

FCC - CLASS A

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.

You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the
equipment.

You may use unshielded twisted-pair (UTP) for RJ-45 connections - Category 3
or better for 10 Mbps connections, Category 5 or better for 100 Mbps
connections, Category 5, 5e, or 6 for 1000 Mbps connections. For fiber optic
connections, you may use 50/125 or 62.5/125 micron multimode fiber or 9/125
micron single-mode fiber.

C

OMPLIANCES AND SAFETY STATEMENTS

– 6 –

CE MARK DECLARATION OF CONFORMANCE FOR EMI AND SAFETY (EEC)

This information technology equipment complies with the requirements of the
Council Directive 89/336/EEC on the Approximation of the laws of the Member
States relating to Electromagnetic Compatibility and 73/23/EEC for electrical
equipment used within certain voltage limits and the Amendment Directive 93/
68/EEC. For the evaluation of the compliance with these Directives, the following
standards were applied:

RFI Emission:

◆ Limit class A according to EN 55022

◆ Limit class A for harmonic current emission according to EN 61000-3-

2

◆ Limitation of voltage fluctuation and flicker in low-voltage supply

system according to EN 61000-3-3

Immunity:

◆ Product family standard according to EN 55024

◆ Electrostatic Discharge according to EN 61000-4-2

◆ Radio-frequency electromagnetic field according to EN 61000-4-3

◆ Electrical fast transient/burst according to EN 61000-4-4

◆ Surge immunity test according to EN 61000-4-5

◆ Immunity to conducted disturbances, Induced by radio-frequency

fields: EN 61000-4-6

◆ Power frequency magnetic field immunity test according to EN 61000-

4-8

◆ Voltage dips, short interruptions and voltage variations immunity test

according to EN 61000-4-11

LVD:

◆ EN 60950-1:2006 + A11:2009 + A1:2010+A12:2011

C

OMPLIANCES AND SAFETY STATEMENTS

– 7 –

SAFETY COMPLIANCE

Warning: Fiber Optic Port Safety

Avertissment: Ports pour fibres optiques - sécurité sur le plan optique

Warnhinweis: Faseroptikanschlüsse - Optische Sicherheit

PSE ALARM

本製品に同梱いたしております電源コードセットは、
本製品専用です。本電源コードセットは、本製品以外の
製品並びに他の用途でご使用いただくことは出来ません。
製品本体に同梱された電源コードセットを利用し、他製品
の電源コードセットを使用しないで下さい。

When using a fiber optic port, never look at the transmit laser while it
is powered on. Also, never look directly at the fiber TX port and fiber
cable ends when they are powered on.

Ne regardez jamais le laser tant qu'il est sous tension. Ne regardez
jamais directement le port TX (Transmission) à fibres optiques et les
embouts de câbles à fibres optiques tant qu'ils sont sous tension.

Niemals ein Übertragungslaser betrachten, während dieses
eingeschaltet ist. Niemals direkt auf den Faser-TX-Anschluß und auf
die Faserkabelenden schauen, während diese eingeschaltet sind.

CLASS I

LASER DEVICE

DISPOSITIF LASER

DE CLASSE I

LASERGER
DER KLASSE I

ÄT

C

OMPLIANCES AND SAFETY STATEMENTS

– 8 –

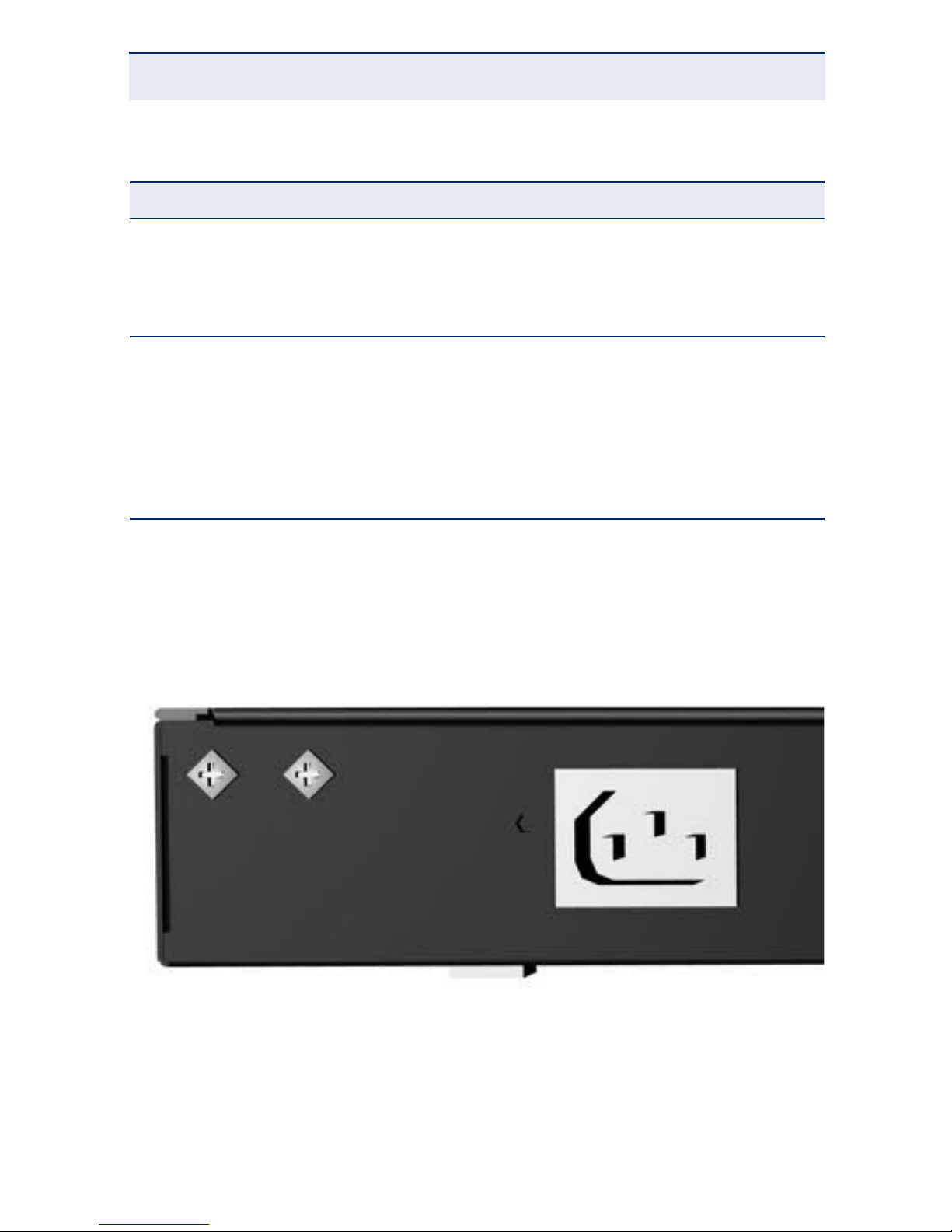

POWER CORD SAFETY

Please read the following safety information carefully before installing
the switch:

WARNING:

Installation and removal of the unit must be carried out by qualified

personnel only.

◆ The unit must be connected to an earthed (grounded) outlet to comply with

international safety standards.

◆ Do not connect the unit to an A.C. outlet (power supply) without an earth

(ground) connection.

◆ The appliance coupler (the connector to the unit and not the wall plug) must

have a configuration for mating with an EN 60320/IEC 320 appliance inlet.

◆ The socket outlet must be near to the unit and easily accessible. You can

only remove power from the unit by disconnecting the power cord from the
outlet.

◆ This unit operates under SELV (Safety Extra Low Voltage) conditions

according to IEC 60950. The conditions are only maintained if the
equipment to which it is connected also operates under SELV conditions.

France and Peru only

This unit cannot be powered from IT

†

supplies. If your supplies are of IT type,
this unit must be powered by 230 V (2P+T) via an isolation transformer ratio
1:1, with the secondary connection point labelled Neutral, connected directly to
earth (ground).

†

Impédance à la terre

I

MPORTANT

!

Before making connections, make sure you have the correct cord

set. Check it (read the label on the cable) against the following:

C

OMPLIANCES AND SAFETY STATEMENTS

– 9 –

Veuillez lire à fond l'information de la sécurité suivante avant d'installer
le Switch:

AVERTISSEMENT:

L’installation et la dépose de ce groupe doivent être confiés à

un personnel qualifié.

◆ Ne branchez pas votre appareil sur une prise secteur (alimentation

électrique) lorsqu'il n'y a pas de connexion de mise à la terre (mise à la
masse).

◆ Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la

masse) afin de respecter les normes internationales de sécurité.

◆ Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale)

doit respecter une configuration qui permet un branchement sur une entrée
d’appareil EN 60320/IEC 320.

Power Cord Set

U.S.A. and Canada The cord set must be UL-approved and CSA certified.

The minimum specifications for the flexible cord are:

- No. 18 AWG - not longer than 2 meters, or 16 AWG.

- Type SV or SJ

- 3-conductor

The cord set must have a rated current capacity of at least 10 A

The attachment plug must be an earth-grounding type with NEMA
5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

Denmark The supply plug must comply with Section 107-2-D1, Standard

DK2-1a or DK2-5a.

Switzerland The supply plug must comply with SEV/ASE 1011.

U.K. The supply plug must comply with BS1363 (3-pin 13 A) and be fitted

with a 5 A fuse which complies with BS1362.

The mains cord must be <HAR> or <BASEC> marked and be of type
HO3VVF3GO.75 (minimum).

Europe The supply plug must comply with CEE7/7 (“SCHUKO”).

The mains cord must be <HAR> or <BASEC> marked and be of type
HO3VVF3GO.75 (minimum).

IEC-320 receptacle.

C

OMPLIANCES AND SAFETY STATEMENTS

– 10 –

◆ La prise secteur doit se trouver à proximité de l’appareil et son accès doit

être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant
son cordon électrique au niveau de cette prise.

◆ L’appareil fonctionne à une tension extrêmement basse de sécurité qui est

conforme à la norme IEC 60950. Ces conditions ne sont maintenues que si
l’équipement auquel il est raccordé fonctionne dans les mêmes conditions.

France et Pérou uniquement:

Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si
vos alimentations sont du type impédance à la terre, ce groupe doit être
alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur
d’isolement à rapport 1:1, avec un point secondaire de connexion portant
l’appellation Neutre et avec raccordement direct à la terre (masse).

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Etats-Unis et Canada: Le cordon doit avoir reçu l’homologation des UL et un certificat de

la CSA.

Les spécifications minimales pour un cable flexible sont AWG No.
18, ouAWG No. 16 pour un cable de longueur inférieure

à 2

m

ètres.

- type SV ou SJ

- 3 conducteurs

Le cordon doit être en mesure d’acheminer un courant nominal
d’au moins 10 A.

La prise femelle de branchement doit être du type à mise à la
terre (mise à la masse) et respecter la configuration NEMA 5-15P
(15 A, 125 V) ou NEMA 6-15P (15 A, 250 V).

Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de

la norme DK2 1a ou DK2 5a.

Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE

1011.

Europe La prise secteur doit être conforme aux normes CEE 7/7

(“SCHUKO”)
LE cordon secteur doit porter la mention <HAR> ou <BASEC> et

doit être de type HO3VVF3GO.75 (minimum).

C

OMPLIANCES AND SAFETY STATEMENTS

– 11 –

Bitte unbedingt vor dem Einbauen des Switches die folgenden
Sicherheitsanweisungen durchlesen:

WARNUNG:

Die Installation und der Ausbau des Geräts darf nur durch

Fachpersonal erfolgen.

◆ Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose

angeschlossen werden.

◆ Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche

die internationalen Sicherheitsnormen erfüllt.

◆ Der Gerätestecker (der Anschluß an das Gerät, nicht der

Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320
konfigurierten Geräteeingang haben.

◆ Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein.

Die Stromversorgung des Geräts kann nur durch Herausziehen des
Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.

◆ Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen

(Sicherheitskleinstspannung) gemäß IEC 60950. Diese Bedingungen sind
nur gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter
SELV-Bedingungen betrieben werden.

Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:

Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalten.

Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung)

sein und die Aufschrift <HAR> oder <BASEC> tragen.
Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

C

OMPLIANCES AND SAFETY STATEMENTS

– 12 –

WARNINGS AND CAUTIONARY MESSAGES

ENVIRONMENTAL STATEMENTS

The manufacturer of this product endeavours to sustain an environmentally­friendly policy throughout the entire production process. This is achieved though
the following means:

◆ Adherence to national legislation and regulations on environmental

production standards.

◆ Conservation of operational resources.

◆ Waste reduction and safe disposal of all harmful un-recyclable by-products.

◆ Recycling of all reusable waste content.

◆ Design of products to maximize recyclables at the end of the product’s life

span.

◆ Continual monitoring of safety standards.

W

ARNING

:

This product does not contain any serviceable user parts.

W

ARNING

:

Installation and removal of the unit must be carried out by

qualified personnel only.

W

ARNING

:

When connecting this device to a power outlet, connect the
field ground lead on the tri-pole power plug to a valid earth ground line
to prevent electrical hazards.

W

ARNING

:

This switch uses lasers to transmit signals over fiber optic
cable. The lasers are compliant with the requirements of a Class 1
Laser Product and are inherently eye safe in normal operation.
However, you should never look directly at a transmit port when it is
powered on.

C

AUTION

:

Wear an anti-static wrist strap or take other suitable
measures to prevent electrostatic discharge when handling this
equipment.

C

AUTION

:

Do not plug a phone jack connector in the RJ-45 port. This
may damage this device.

C

AUTION

:

Use only twisted-pair cables with RJ-45 connectors that
conform to FCC standards.

C

OMPLIANCES AND SAFETY STATEMENTS

– 13 –

END OF PRODUCT LIFE SPAN

This product is manufactured in such a way as to allow for the recovery and
disposal of all included electrical components once the product has reached the
end of its life.

MANUFACTURING MATERIALS

There are no hazardous nor ozone-depleting materials in this product.

DOCUMENTATION

All printed documentation for this product uses biodegradable paper that
originates from sustained and managed forests. The inks used in the printing
process are non-toxic.

C

OMPLIANCES AND SAFETY STATEMENTS

– 14 –

– 15 –

ABOUT THIS GUIDE

PURPOSE

This guide details the hardware features of the switch, including the physical and
performance-related characteristics, and how to install the switch.

AUDIENCE

The guide is intended for use by network administrators who are responsible for
installing and setting up network equipment; consequently, it assumes a basic
working knowledge of LANs (Local Area Networks).

CONVENTIONS

The following conventions are used throughout this guide to show information:

RELATED PUBLICATIONS

The following publication gives specific information on how to operate and use
the management functions of the switch:

The Management Guide

Also, as part of the switch’s software, there is an online web-based help that
describes all management related features.

N

OTE

:

Emphasizes important information or calls your attention to

related features or instructions.

C

AUTION

:

Alerts you to a potential hazard that could cause loss of data,
or damage the system or equipment.

W

ARNING

:

Alerts you to a potential hazard that could cause personal

injury.

A

BOUT THIS GUIDE

– 16 –

REVISION HISTORY

This section summarizes the changes in each revision of this guide.

SEPTEMBER 2012 REVISION

This is the first revision of this guide.

– 17 –

CONTENTS

COMPLIANCES AND SAFETY STATEMENTS 5

A

BOUT THIS GUIDE 15

C

ONTENTS 17

T

ABLES 19

F

IGURES 21

1I

NTRODUCTION 23

Overview 23
Description of Hardware 25

2NETWORK PLANNING 29

Introduction to Switching 29
Application Examples 30
Application Notes 33

3INSTALLING THE SWITCH 35

Selecting a Site 35
Ethernet Cabling 36
Equipment Checklist 37
Mounting 38
Installing an Optional SFP/SFP+ Transceiver 41
Grounding the Switch 42
Connecting to a Power Source 43
Connecting to the Console Port 44

4MAKING NETWORK CONNECTIONS 47

Connecting Network Devices 47

C

ONTENTS

– 18 –

Twisted-Pair Devices 47
Fiber Optic SFP Devices 49
10 Gbps Fiber Optic Connections 51
Connectivity Rules 52
Cable Labeling and Connection Records 54

ATROUBLESHOOTING 57

Diagnosing Switch Indicators 57
Power and Cooling Problems 58
Installation 58
In-Band Access 58

BCABLES 59

Twisted-Pair Cable and Pin Assignments 59
Fiber Standards 63

CSPECIFICATIONS 65

Physical Characteristics 65
Switch Features 67
Management Features 67
Standards 68
Compliances 68

GLOSSARY 69

I

NDEX 75

– 19 –

TABLES

Table 1: SFP Port (1~24) and SFP+ Port (25~28) Status LEDs 27
Table 2: 10/100/1000 Mbps RJ-45 Ports Status LEDs (23~24) 27
Table 3: System Status LEDs 28
Table 4: Serial Converter Wiring 44
Table 5: Maximum 10GBASE-SR 10 Gigabit Ethernet Cable Lengths 52
Table 6: Maximum 10GBASE-LR 10 Gigabit Ethernet Cable Length 52
Table 7: Maximum 10GBASE-ER 10 Gigabit Ethernet Cable Length 53
Table 8: Maximum 1000BASE-T Gigabit Ethernet Cable Length 53
Table 9: Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths 53
Table 10: Maximum 1000BASE-LX Gigabit Ethernet Cable Length 53
Table 11: Maximum 1000BASE-ZX Gigabit Ethernet Cable Length 53
Table 12: Maximum Fast Ethernet Cable Lengths 54
Table 13: Maximum Ethernet Cable Length 54
Table 14: Troubleshooting Chart 57
Table 15: 10/100BASE-TX MDI and MDI-X Port Pinouts 60
Table 16: 1000BASE-T MDI and MDI-X Port Pinouts 62
Table 17: Fiber Standards 63

T

ABLES

– 20 –

– 21 –

FIGURES

Figure 1: Front Panel 23
Figure 2: Rear Panel 24
Figure 3: Side Panel 24
Figure 4: Port and System LEDs 27
Figure 5: Power Supply Socket 28

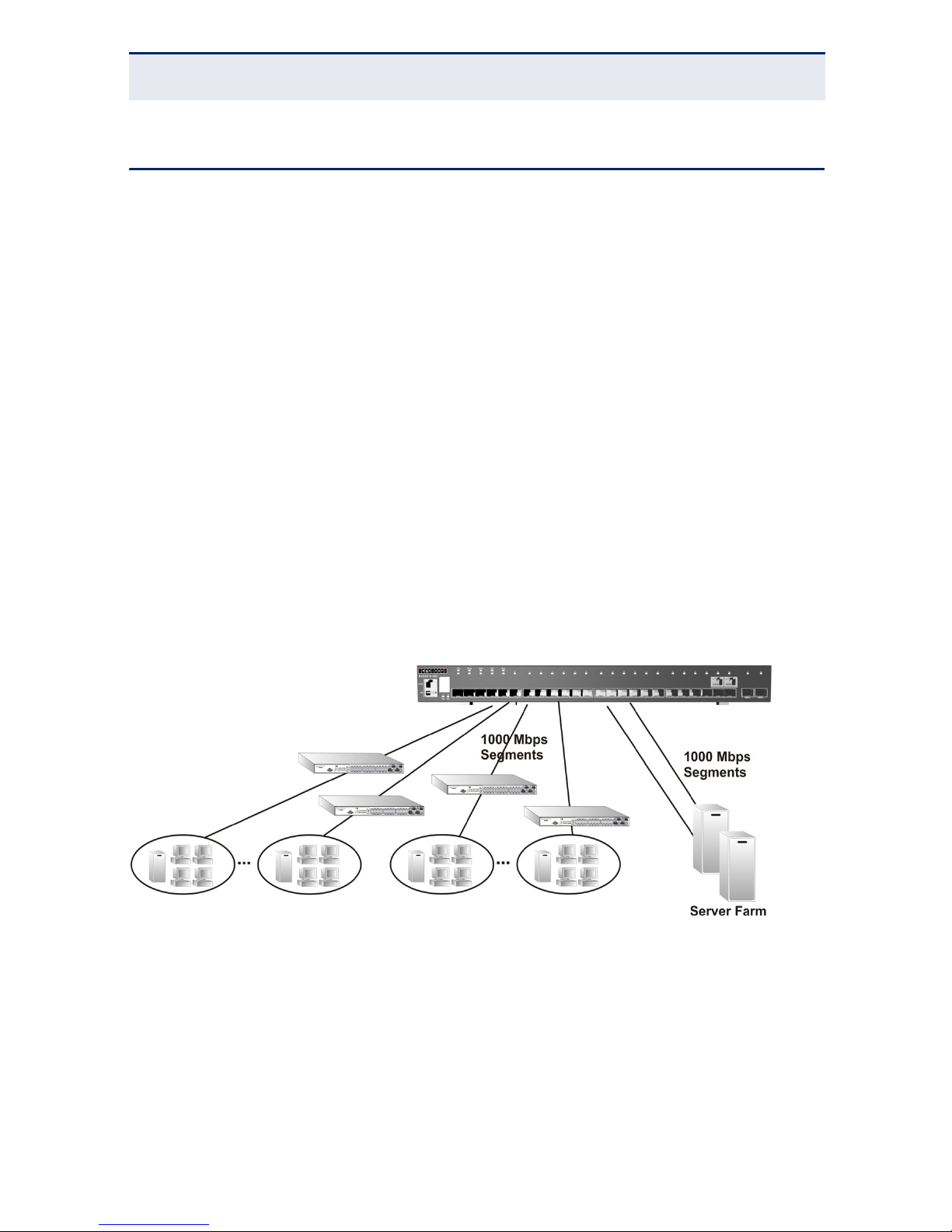

Figure 6: Network Aggregation Plan 30

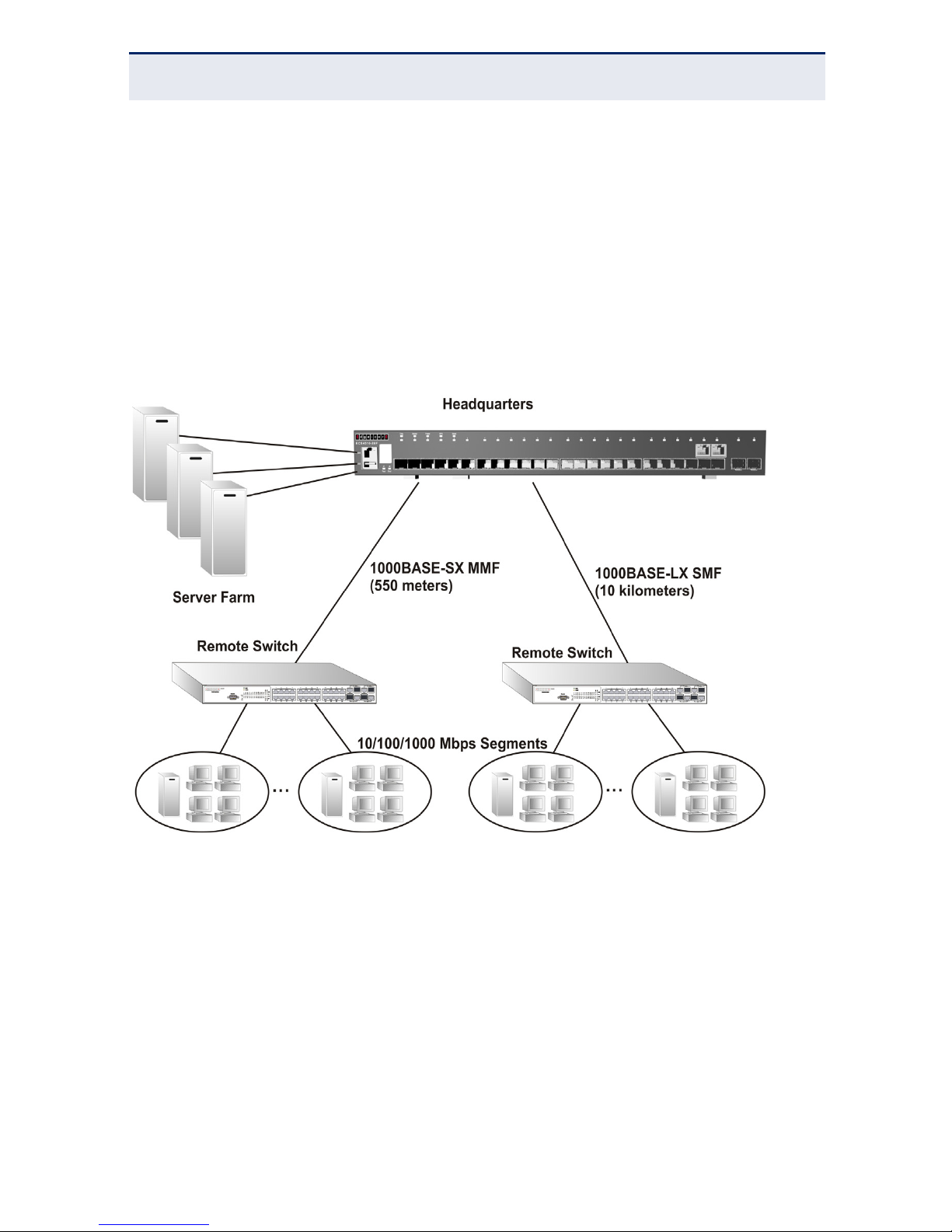

Figure 7: Remote Connections with Fiber Cable 31
Figure 8: Making VLAN Connections 32

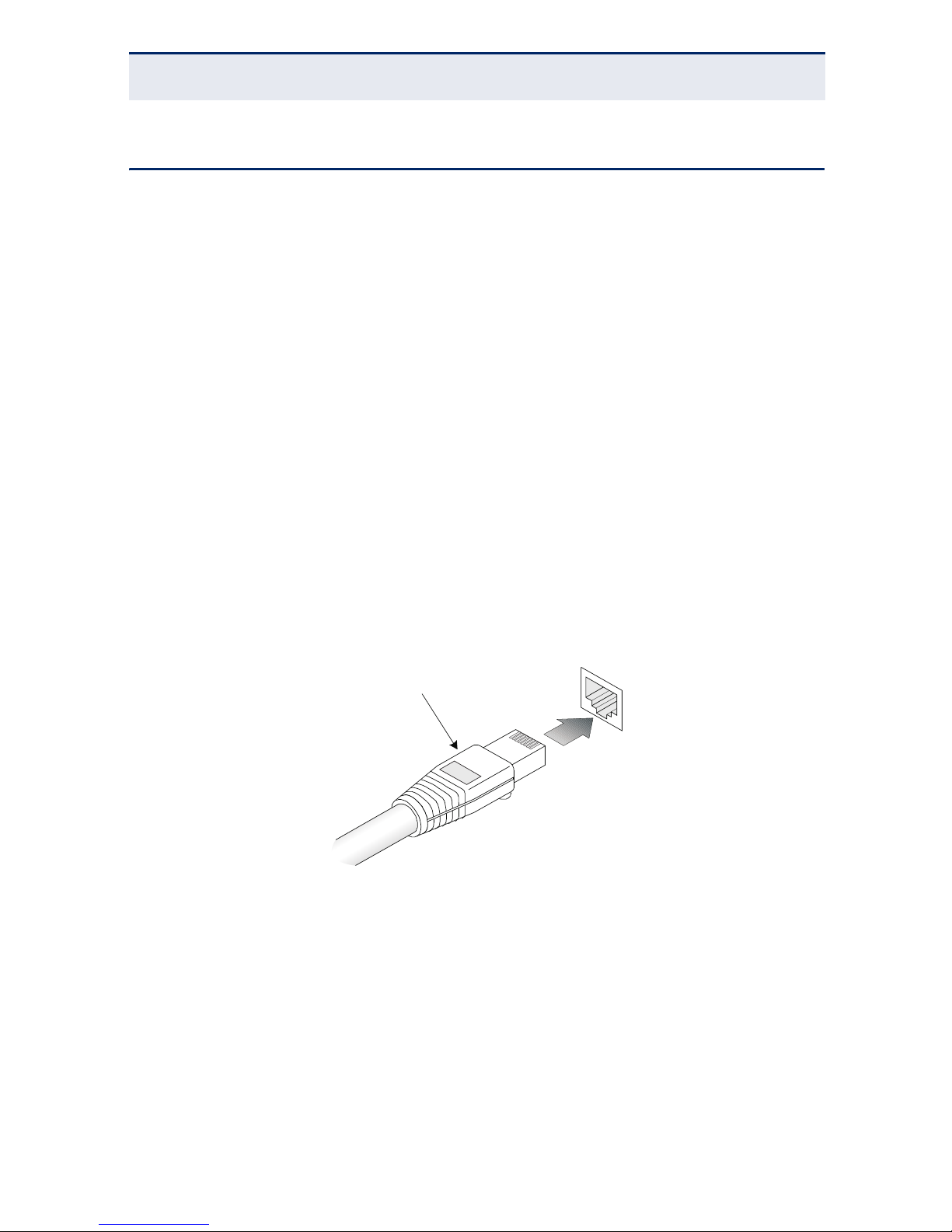

Figure 9: RJ-45 Connections 36
Figure 10: Attaching the Brackets 39
Figure 11: Installing the Switch in a Rack 40
Figure 12: Inserting an SFP Transceiver into a Slot 41
Figure 13: Grounding Point 43
Figure 14: Power Socket 43
Figure 15: Console Port Connection 44

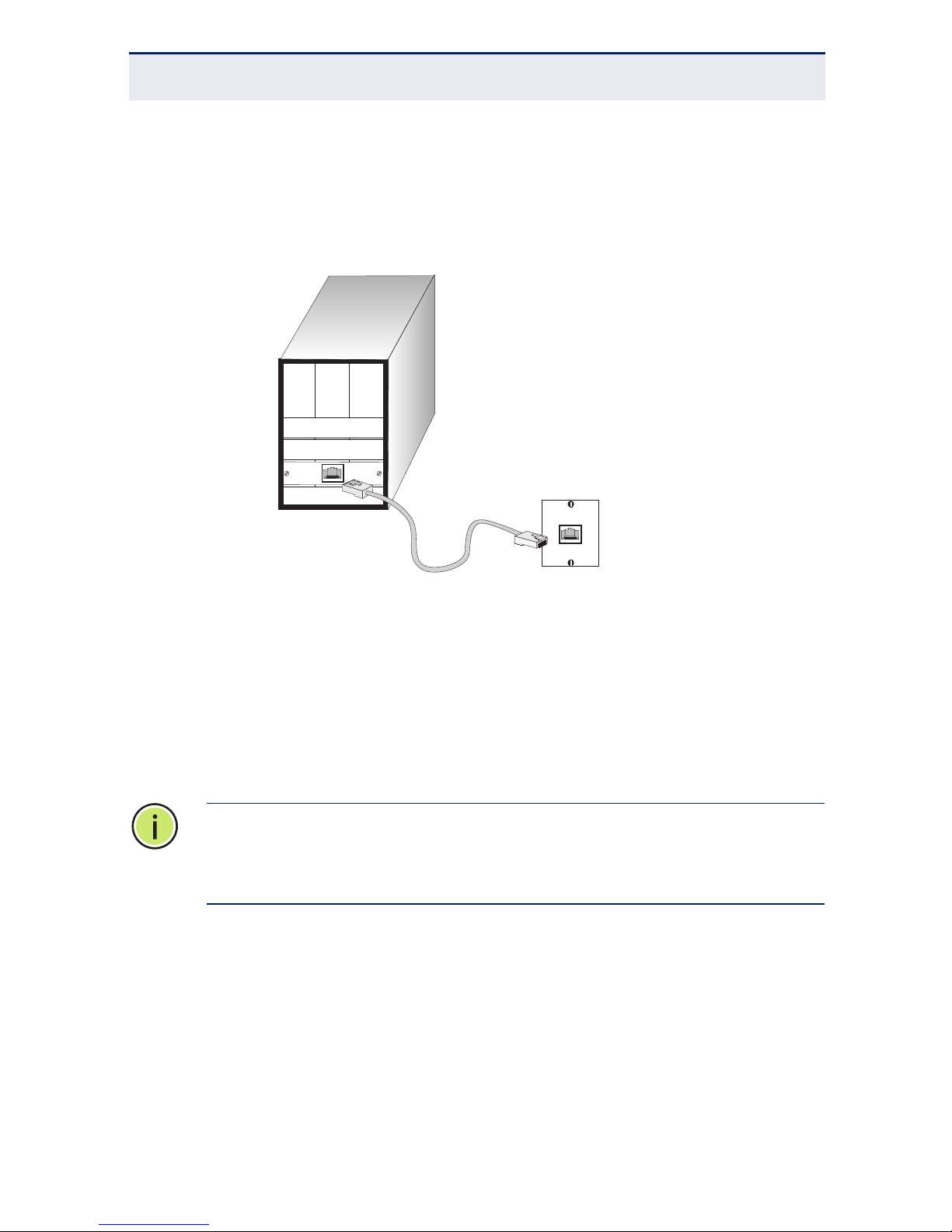

Figure 16: Making Twisted-Pair Connections 48
Figure 17: Making Fiber Port Connections 50
Figure 18: RJ-45 Connector Pin Numbers 59

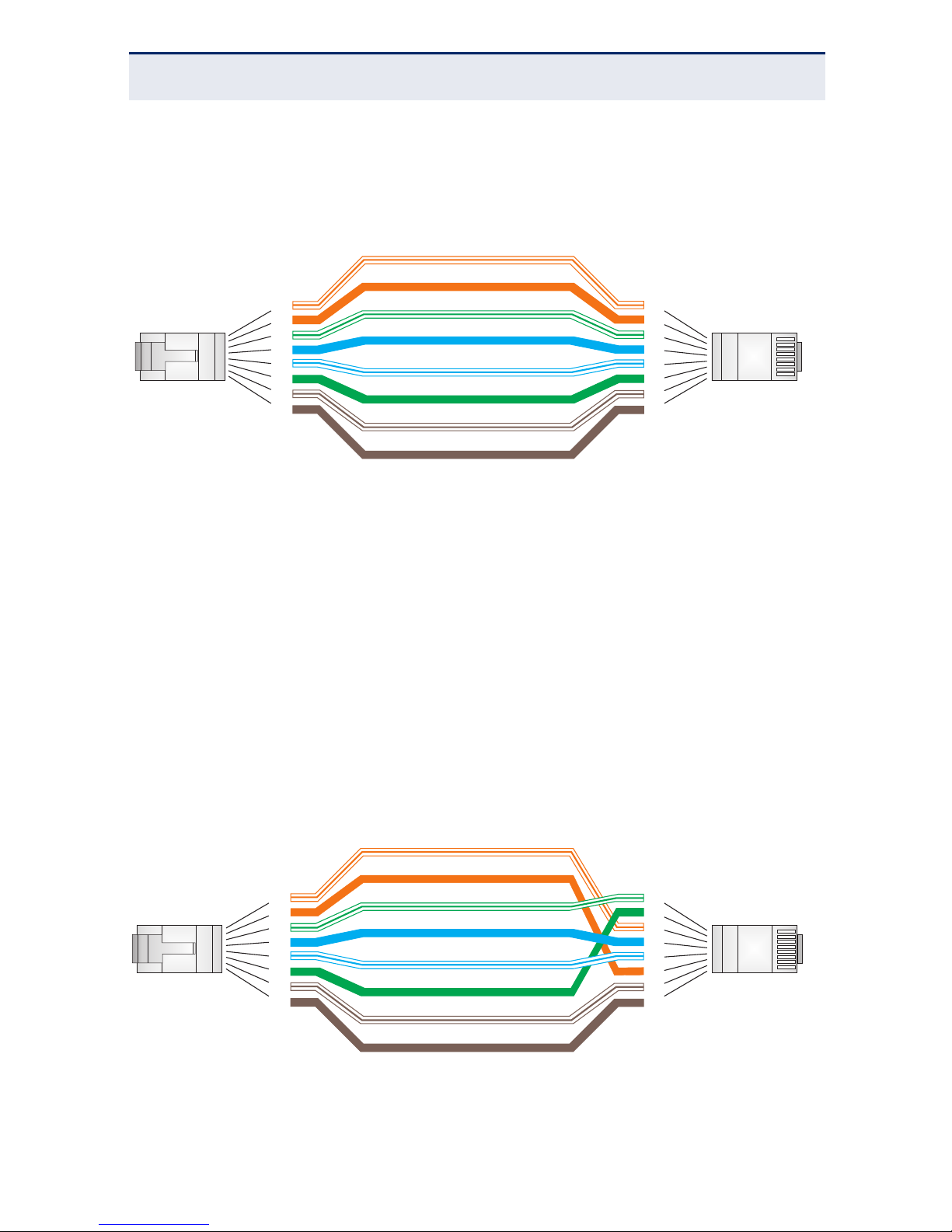

Figure 19: Straight-through Wiring 61
Figure 20: Crossover Wiring 61

F

IGURES

– 22 –

– 23 –

1 INTRODUCTION

OVERVIEW

The ECS4510-28F is an intelligent Layer 2 switch with 24 100/1000BASE-X SFP
transceiver slots, two combination ports, comprised of two RJ-45 ports and two
SFP+ transceiver slots, two 10G SFP+ slots, and one 10G dual-port extender
module slot.

The switch includes an SNMP-based management agent embedded on the main
board, which supports both in-band and out-of-band access for managing the
stack.

This switch can easily tame your network with full support for Spanning Tree
Protocol, Multicast Switching, and Virtual LANs. It brings order to poorly
performing networks by segregating them into separate broadcast domains with
IEEE 802.1Q compliant VLANs, empowers multimedia applications with multicast
switching and CoS services.

Figure 1: Front Panel

Port Status Indicators

1000BASE-T/SFP
Combination Ports

System Indicators

RJ-45 Console Port

100/1000BASE-X SFP Ports

SFP+ Ports

USB Port

C

HAPTER

1

| Introduction

Overview

– 24 –

Figure 2: Rear Panel

Figure 3: Side Panel

SWITCH ARCHITECTURE

This Gigabit Ethernet switch employs a wire-speed, non-blocking switching
fabric. This permits simultaneous wire-speed transport of multiple packets at low
latency on all ports. The switch also features full-duplex capability on all ports,
which effectively doubles the bandwidth of each connection.

The switch uses store-and-forward switching to ensure maximum data integrity.
With store-and-forward switching, the entire packet must be received into a
buffer and checked for validity before being forwarded. This prevents errors
from being propagated throughout the network.

Extender Module

Power Socket

DB-25 RPS Socket

Grounding Points

Cooling Fans

C

HAPTER

1

| Introduction

Description of Hardware

– 25 –

NETWORK MANAGEMENT OPTIONS

With a comprehensive array of LEDs, the switch provides “at a glance”
monitoring of network and port status. The switch can be managed over the
network with a web browser or Telnet application, or via a direct connection to
the console port. The switch includes a built-in network management agent that
allows it to be managed in-band using SNMP or RMON (Groups 1, 2, 3, 9)
protocols. It also has an RJ-45 serial port on the front panel for out-of-band
management. A PC may be connected to this port for configuration and
monitoring out-of-band through the included RJ-45-to-DB-9 console cable.

For a detailed description of the management features, refer to the Management
Guide.

DESCRIPTION OF HARDWARE

RJ-45 PORTS

The switch contains two combination RJ-45 ports that operate at 10 Mbps or
100 Mbps, half or full duplex, or at 1000 Mbps, full duplex. They are shared with
SFP ports 23~24. In its default configuration, if an SFP transceiver (purchased
separately) is installed in a slot and has a valid link on its port, the associated
RJ-45 port is disabled and cannot be used. The switch can also be configured to
force the use of an RJ-45 port or SFP slot, as required.

Because the RJ-45 ports support automatic MDI/MDI-X operation, you can use
straight-through cables for all network connections to PCs or servers, or to other
switches or hubs. (See “Twisted-Pair Cable and Pin Assignments” on page 59)

Each of these ports support auto-negotiation, so the optimum transmission
mode (half or full duplex), and data rate (10, 100, or 1000 Mbps) can be
selected automatically. If a device connected to one of these ports does not
support auto-negotiation, the communication mode of that port can be
configured manually.

C

HAPTER

1

| Introduction

Description of Hardware

– 26 –

SFP TRANSCEIVER SLOTS

The switch contains 24 Small Form Factor Pluggable (SFP) transceiver slots that
operate at 1000 Mbps full duplex. These slots support 1000 Mbps SFP Gigabit
Ethernet transceivers and 100 Mbps Fast Ethernet trasceivers..

For information on the recommended standards for fiber optic cabling, see

“1000 Mbps Gigabit Ethernet Collision Domain” on page 53 and “100 Mbps Fast
Ethernet Collision Domain” on page 54.

SFP+ TRANSCEIVER SLOTS

The Small Form Factor Pluggable Plus (SFP+) transceiver slots are 10G capable
slots that support both SFP and SFP+ transceivers (purchased seperately).

CONSOLE PORT

An RJ-45 serial console port is provided on the switch front panel for a
connection to a console device through an included console cable. The console
device can be a PC or workstation running a VT-100 terminal emulator, or a VT­100 terminal.

C

HAPTER

1

| Introduction

Description of Hardware

– 27 –

PORT AND SYSTEM STATUS LEDS

The switch includes a display panel for key system and port indications that
simplify installation and network troubleshooting. The LEDs, which are located
on the front panel for easy viewing, are shown below and described in the
following tables.

Figure 4: Port and System LEDs

Table 1: SFP Port (1~24) and SFP+ Port (25~28) Status LEDs

LED Condition Status

(Link/Activity) On/Flashing Green Port has established a valid network connection.

Flashing indicates activity.

Off There is no valid link on the port.

Table 2: 10/100/1000 Mbps RJ-45 Ports Status LEDs (23~24)

LED Condition Status

(Link/Activity) On/Flashing Green Port has established a valid network connection.

Flashing indicates activity.

Off There is no valid link on the port.

SFP Port Status LEDs

System Status LEDs

Extender Module LEDs

C

HAPTER

1

| Introduction

Description of Hardware

– 28 –

POWER SUPPLY SOCKET

There is one power socket on the rear panel of the switch. The standard power
socket is for the AC power cord.

Figure 5: Power Supply Socket

Table 3: System Status LEDs

LED Condition Status

Power On Green The unit’s internal power supply is operating

normally.

On Amber The unit has an internal power supply fault.

Off The unit has no power connected.

Diag On Green The system diagnostic test has completed

successfully.

Flashing Green The system diagnostic test is in progress.

On Amber After powering on, this indicates that the system

diagnostic test has detected a fault.

During operation, this indicates that an installed
SFP transceiver has failed.

– 29 –

2 NETWORK PLANNING

INTRODUCTION TO SWITCHING

A network switch allows simultaneous transmission of multiple packets via non­crossbar switching. This means that it can partition a network more efficiently
than bridges or routers. The switch has, therefore, been recognized as one of
the most important building blocks for today’s networking technology.

When performance bottlenecks are caused by congestion at the network access
point (such as the network card for a high-volume file server), the device
experiencing congestion (server, power user, or hub) can be attached directly to
a switched port. And, by using full-duplex mode, the bandwidth of the dedicated
segment can be doubled to maximize throughput.

When networks are based on repeater (hub) technology, the distance between
end stations is limited by a maximum hop count. However, a switch turns the
hop count back to zero. So subdividing the network into smaller and more
manageable segments, and linking them to the larger network by means of a
switch, removes this limitation.

A switch can be easily configured in any Ethernet, Fast Ethernet, or Gigabit
Ethernet network to significantly boost bandwidth while using conventional
cabling and network cards.

C

HAPTER

2

| Network Planning

Application Examples

– 30 –

APPLICATION EXAMPLES

The switch is not only designed to segment your network, but also to provide a
wide range of options in setting up network connections. Some typical
applications are described below.

NETWORK AGGREGATION PLAN

With 28 parallel bridging ports (i.e., 28 distinct collision domains), the switch can
collapse a complex network down into a single efficient bridged node, increasing
overall bandwidth and throughput.

In the figure below, the 1000BASE-X SFP ports on the switch are providing 1000
Mbps connectivity for up to 24 segments. In addition, the switch is also
connecting several servers at 1000 Mbps.

Figure 6: Network Aggregation Plan

C

HAPTER

2

| Network Planning

Application Examples

– 31 –

REMOTE CONNECTIONS WITH FIBER CABLE

Fiber optic technology allows for longer cabling than any other media type. A
1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a
1000BASE-LX (SMF) link up to 10 km, and a 1000BASE-ZX link up to 100 km.
This allows the switch to serve as a collapsed backbone, providing direct
connectivity for a widespread LAN.

The figure below illustrates the switch connecting multiple segments with fiber
cable.

Figure 7: Remote Connections with Fiber Cable

C

HAPTER

2

| Network Planning

Application Examples

– 32 –

MAKING VLAN CONNECTIONS

This switch supports VLANs which can be used to organize any group of network
nodes into separate broadcast domains. VLANs confine broadcast traffic to the
originating group, and can eliminate broadcast storms in large networks. This
provides a more secure and cleaner network environment.

VLANs can be based on untagged port groups, or traffic can be explicitly tagged
to identify the VLAN group to which it belongs. Untagged VLANs can be used for
small networks attached to a single switch. However, tagged VLANs should be
used for larger networks, and all the VLANs assigned to the inter-switch links.

Figure 8: Making VLAN Connections

N

OTE

:

When connecting to a switch that does not support IEEE 802.1Q

VLAN tags, use untagged ports.

C

HAPTER

2

| Network Planning

Application Notes

– 33 –

APPLICATION NOTES

1. Full-duplex operation only applies to point-to-point access (such as when a

switch is attached to a workstation, server or another switch). When the
switch is connected to a hub, both devices must operate in half-duplex
mode.

2. Avoid using flow control on a port connected to a hub unless it is actually

required to solve a problem. Otherwise back pressure jamming signals may
degrade overall performance for the segment attached to the hub.

3. Based on recommended standards, the length of fiber optic cable for a

single switched link should not exceed:

■

1000BASE-SX: 550 m (1805 ft) for multimode fiber.

■

1000BASE-LX: 10 km (6.2 miles) for single-mode fiber.

■

1000BASE-ZX: 100 km (62 miles) for single-mode fiber.

However, power budget constraints must also be considered when
calculating the maximum cable length for your specific environment.

C

HAPTER

2

| Network Planning

Application Notes

– 34 –

– 35 –

3 INSTALLING THE SWITCH

SELECTING A SITE

Switch units can be mounted in a standard 19-inch equipment rack or on a flat
surface. Be sure to follow the guidelines below when choosing a location.

◆ The site should:

■

be at the center of all the devices you want to link and near a power
outlet.

■

be able to maintain its temperature within 0 to 45 °C (32 to 113 °F)
and its humidity within 10% to 90%, non-condensing

■

provide adequate space (approximately two inches) on all sides for
proper air flow

■

be accessible for installing, cabling and maintaining the devices

■

allow the status LEDs to be clearly visible

◆ Make sure twisted-pair cable is always routed away from power lines,

fluorescent lighting fixtures and other sources of electrical interference,
such as radios and transmitters.

◆ Make sure that the unit is connected to a separate grounded power outlet

that provides 100 to 240 VAC, 50 to 60 Hz, is within 2 m (6.6 feet) of each
device and is powered from an independent circuit breaker. As with any
equipment, using a filter or surge suppressor is recommended.

C

HAPTER

3

| Installing the Switch

Ethernet Cabling

– 36 –

ETHERNET CABLING

To ensure proper operation when installing the switch into a network, make sure
that the current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T
operation. Check the following criteria against the current installation of your
network:

◆ Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP)

cables with RJ-45 connectors; Category 3 or better for 10BASE-T, Category
5 or better for 100BASE-TX, and Category 5, 5e or 6 for 1000BASE-T.

◆ Protection from radio frequency interference emissions

◆ Electrical surge suppression

◆ Separation of electrical wires (switch related or other) and electromagnetic

fields from data based network wiring

◆ Safe connections with no damaged cables, connectors or shields

Figure 9: RJ-45 Connections

RJ-45 Connector

C

HAPTER

3

| Installing the Switch

Equipment Checklist

– 37 –

EQUIPMENT CHECKLIST

After unpacking this switch, check the contents to be sure you have received all
the components. Then, before beginning the installation, be sure you have all
other necessary installation equipment.

PACKAGE CONTENTS

◆ Gigabit Ethernet Switch (ECS4510-28F)

◆ Power Cord—either US, Continental Europe or UK

◆ Two rack-mounting brackets and eight screws

◆ RJ-45 to DB-9 serial converter (for console connection)

◆ This Installation Guide

◆ Management Guide CD

OPTIONAL RACK-MOUNTING EQUIPMENT

If you plan to rack-mount the switch, be sure to have the following equipment
available:

◆ Four mounting screws for each device you plan to install in a rack—these

are not included

◆ A screwdriver (Phillips or flathead, depending on the type of screws used)

C

HAPTER

3

| Installing the Switch

Mounting

– 38 –

MOUNTING

This switch can be mounted in a standard 19-inch equipment rack or on a
desktop or shelf. Mounting instructions for each type of site follow.

RACK MOUNTING

Before rack mounting the switch, pay particular attention to the following
factors:

◆ Temperature: Since the temperature within a rack assembly may be higher

than the ambient room temperature, check that the rack-environment
temperature is within the specified operating temperature range.

◆ Mechanical Loading: Do not place any equipment on top of a rack-mounted

unit.

◆ Circuit Overloading: Be sure that the supply circuit to the rack assembly is

not overloaded.

◆ Grounding: Rack-mounted equipment should be properly grounded.

Particular attention should be given to supply connections other than direct
connections to the mains.

To rack-mount devices:

1. Attach the brackets to the device using the screws provided in the Bracket

Mounting Kit.

C

HAPTER

3

| Installing the Switch

Mounting

– 39 –

Figure 10: Attaching the Brackets

2. Mount the device in the rack, using four rack-mounting screws (not

provided). Be sure to secure the lower rack-mounting screws first to
prevent the brackets being bent by the weight of the switch.

C

HAPTER

3

| Installing the Switch

Mounting

– 40 –

Figure 11: Installing the Switch in a Rack

3. If installing a single switch only, turn to “Connecting to a Power Source” on

page 43.

4. If installing multiple switches, mount them in the rack, one below the other,

in any order.

DESKTOP OR SHELF MOUNTING

The switch includes four pre-installed rubber feet for desktop or shelf mounting.

To mount devices on a horizontal surface, follow these steps:

1. Set the device on a flat surface near an AC power source, making sure there

are at least two inches of space on all sides for proper air flow.

2. If installing a single switch only, go to “Connecting to a Power Source” on

page 43.

3. If installing multiple switches, place each device squarely on top of the one

below, in any order.

C

HAPTER

3

| Installing the Switch

Installing an Optional SFP/SFP+ Transceiver

– 41 –

INSTALLING AN OPTIONAL SFP/SFP+ TRANSCEIVER

The SFP slots support the following optional SFP transceivers:

◆ 1000BASE-SX (ET4201-SX)

◆ 1000BASE-LX (ET4201-LX)

◆ 1000BASE-ZX (ET4201-ZX)

Figure 12: Inserting an SFP Transceiver into a Slot

The SFP+ slots support the following optional SFP+ transceivers:

◆ 10GBASE-SR (ET5402-SR)

◆ 10GBASE-LR (ET5402-LR)

◆ 10GBASE-ER (ET5402-ER)

To install an SFP transceiver, follow these steps:

1. Consider network and cabling requirements to select an appropriate SFP

transceiver type.

2. Insert the transceiver with the optical connector facing outward and the slot

connector facing down. Note that SFP transceivers are keyed so they can
only be installed in one orientation.

C

HAPTER

3

| Installing the Switch

Grounding the Switch

– 42 –

3. Slide the SFP transceiver into the slot until it clicks into place.

GROUNDING THE SWITCH

Before powering on the switch, ground the switch to earth as described below.

1. Ensure that the rack in which the switch is to be mounted is properly

grounded.

2. Ensure that there is a good electrical connection to the grounding point on

the rack (no paint or isolating surface treatment).

3. Disconnect all power cables to the switch.

4. The switch chassis is connected internally to 0 V. This circuit is connected to

the grounding terminal on the back of the switch (right corner). Attach
#6 AWG stranded copper wire to the grounding terminal on the switch.

5. Then attach the grounding wire to the ground point on the rack.

N

OTE

:

SFP transceivers are hot-swappable. The switch does not need to
be powered off before installing or removing a transceiver. However,
always first disconnect the network cable before removing a
transceiver.

N

OTE

:

SFP transceivers are not provided in the switch package.

C

AUTION

:

The earth connection must not be removed unless all supply

connections have been disconnected.

C

HAPTER

3

| Installing the Switch

Connecting to a Power Source

– 43 –

Figure 13: Grounding Point

CONNECTING TO A POWER SOURCE

To connect a switch to a power source:

1. Insert the power cable plug directly into the AC socket located at the back of

the switch.

Figure 14: Power Socket

2. Plug the other end of the cable into a grounded, 3-pin, AC power source.

N

OTE

:

For International use, you may need to change the AC line cord.
You must use a line cord set that has been approved for the socket type
in your country.

Grounding Points

C

HAPTER

3

| Installing the Switch

Connecting to the Console Port

– 44 –

3. Check the front-panel LEDs as the device is powered on to be sure the

Power LED is lit. If not, check that the power cable is correctly plugged in.

CONNECTING TO THE CONSOLE PORT

This port is used to connect a console device to the switch through a straight­through UTP cable and an RJ-45-to-DB-9 serial converter. The console device
can be a PC or workstation running a VT-100 terminal emulator, or a VT-100
terminal. An RJ-45-to-DB-9 converter is supplied with the unit for connecting to
a RS-232 serial DB-9 DTE port, as illustrated below. The pin assignments used in
the RJ-45-to-DB-9 converter are described below.

Figure 15: Console Port Connection

WIRING MAP FOR SERIAL CABLE

The following table describes the pin connections for the RJ-45-to-DB-9 serial
cable.

Table 4: Serial Converter Wiring

8-PIN RJ-45 Port

(Switch Console Port)

Null Modem 9-PIN DB-9 Port

(PC’s DTE Com Port)

6 TXD (transmit data) ------------------------> 2 RXD (receive data)

3 RXD (receive data) <----------------------- 3 TXD (transmit data)

4 SGND (signal ground) -------------------------- 5 SGND (signal ground)

RJ-45 Connector

Console Port

DB-9 Port

aaa

aaa
aaa

aaa

C

HAPTER

3

| Installing the Switch

Connecting to the Console Port

– 45 –

The serial port’s configuration requirements are as follows:

◆ Default Baud rate—115,200 bps

◆ Character Size—8 Characters

◆ Parity—None

◆ Stop bit—One

◆ Data bits—8

◆ Flow control—none

C

HAPTER

3

| Installing the Switch

Connecting to the Console Port

– 46 –

– 47 –

4 MAKING NETWORK CONNECTIONS

CONNECTING NETWORK DEVICES

The switch is designed to be connected remote devices using optional SFP
transceivers. It may also be connected to 10, 100, or 1000 Mbps network cards
in PCs and servers, as well as to other switches and hubs.

TWISTED-PAIR DEVICES

Each device requires an unshielded twisted-pair (UTP) cable with RJ-45
connectors at both ends. Use Category 5, 5e or 6 cable for 1000BASE-T
connections, Category 5 or better for 100BASE-TX connections, and Category 3
or better for 10BASE-T connections.

CABLING GUIDELINES

The RJ-45 ports on the switch support automatic MDI/MDI-X pinout
configuration, so you can use standard straight-through twisted-pair cables to
connect to any other network device (PCs, servers, switches, routers, or hubs).

See Appendix B for further information on cabling.

C

AUTION

:

Do not plug a phone jack connector into an RJ-45 port. This

will damage the switch.

C

HAPTER

4

| Making Network Connections

Twisted-Pair Devices

– 48 –

CONNECTING TO PCS, SERVERS, HUBS AND SWITCHES

1. Attach one end of a twisted-pair cable segment to the device’s RJ-45

connector.

Figure 16: Making Twisted-Pair Connections

2. If the device is a network card and the switch is in the wiring closet, attach

the other end of the cable segment to a modular wall outlet that is
connected to the wiring closet. Otherwise, attach the other end to an
available port on the switch.

Make sure each twisted pair cable does not exceed 100 meters (328 ft) in
length.

3. As each connection is made, the Link LED (on the switch) corresponding to

each port will light green or amber to indicate that the connection is valid.

N

OTE

:

Avoid using flow control on a port connected to a hub unless it is
actually required to solve a problem. Otherwise back pressure jamming
signals may degrade overall performance for the segment attached to
the hub.

C

HAPTER

4

| Making Network Connections

Fiber Optic SFP Devices

– 49 –

FIBER OPTIC SFP DEVICES

An optional Gigabit SFP transceiver (1000BASE-SX, 1000BASE-LX, 1000BASE­ZX) can be used for a backbone connection between switches, or for connecting
to a high-speed server.

Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable
with an LC connector at both ends. Each multimode fiber optic port requires 50/
125 or 62.5/125 micron multimode fiber optic cabling with an LC connector at
both ends.

1. Remove and keep the LC port’s rubber plug. When not connected to a fiber

cable, the rubber plug should be replaced to protect the optics.

2. Check that the fiber terminators are clean. You can clean the cable plugs by

wiping them gently with a clean tissue or cotton ball moistened with a little
ethanol. Dirty fiber terminators on fiber optic cables will impair the quality
of the light transmitted through the cable and lead to degraded performance
on the port.

3. Connect one end of the cable to the LC port on the switch and the other end

to the LC port on the other device. Since LC connectors are keyed, the cable
can be attached in only one orientation.

W

ARNING

:

This switch uses lasers to transmit signals over fiber optic
cable. The lasers are compliant with the requirements of a Class 1
Laser Product and are inherently eye safe in normal operation.
However, you should never look directly at a transmit port when it is
powered on.

W

ARNING

:

When selecting a fiber SFP device, considering safety, please
make sure that it can function at a temperature that is not less than the
recommended maximum operational temperature of the product. You
must also use an approved Laser Class 1 SFP transceiver.

C

HAPTER

4

| Making Network Connections

Fiber Optic SFP Devices

– 50 –

Figure 17: Making Fiber Port Connections

4. As a connection is made, check the Link LED on the switch corresponding to

the port to be sure that the connection is valid.

The SFP fiber optic ports operate at 1 Gbps, full duplex, with auto-negotiation of
flow control. The maximum length for fiber optic cable operating at Gigabit
speed will depend on the fiber type as listed under "1000 Mbps Gigabit Ethernet

Collision Domain" on page 53.

C

HAPTER

4

| Making Network Connections

10 Gbps Fiber Optic Connections

– 51 –

10 GBPS FIBER OPTIC CONNECTIONS

An optional 10 Gigabit transceiver (SFP+) can be used for a backbone
connection between switches.

Single-mode fiber ports require 9/125 micron single-mode fiber optic cable.
Multimode fiber optic ports require 50/125 or 62.5/125 micron multimode fiber
optic cable. Each fiber optic cable must have an LC connector attached at both
ends.

1. Remove and keep the port’s protective cover. When not connected to a fiber

cable, the cover should be replaced to protect the optics.

2. Check that the fiber terminators are clean. You can clean the cable plugs by

wiping them gently with a clean tissue or cotton ball moistened with a little
ethanol. Dirty fiber terminators on fiber cables will impair the quality of the
light transmitted through the cable and lead to degraded performance on
the port.

3. Connect one end of the cable to the LC port on the switch and the other end

to the LC port on the other device. Since LC connectors are keyed, the cable
can be attached in only one orientation.

4. As a connection is made, check the Link LED on the module to be sure that

the connection is valid.

The 10G fiber optic ports operate at 10 Gbps full duplex. The maximum length
for fiber optic cable operating at 10 Gbps will depend on the fiber type as listed
under "10 Gbps Ethernet Collision Domain" on page 52.

W

ARNING

:

This switch uses lasers to transmit signals over fiber optic
cable. The lasers are compliant with the requirements of a Class 1
Laser Product and are inherently eye safe in normal operation.
However, you should never look directly at a transmit port when it is
powered on.

W

ARNING

:

When selecting a fiber device, considering safety, please
make sure that it can function at a temperature that is not less than the
recommended maximum operational temperature of the product. You
must also use an approved Laser Class 1 SFP transceiver.

C

HAPTER

4

| Making Network Connections

Connectivity Rules

– 52 –

CONNECTIVITY RULES

When adding hubs (repeaters) to your network, please follow the connectivity
rules listed in the manuals for these products. However, note that because
switches break up the path for connected devices into separate collision
domains, you should not include the switch or connected cabling in your
calculations for cascade length involving other devices.

1000BASE-T CABLE REQUIREMENTS

All Category 5 UTP cables that are used for 100BASE-TX connections should also
work for 1000BASE-T, providing that all four wire pairs are connected. However,
it is recommended that for all critical connections, or any new cable installations,
Category 5e (enhanced Category 5) or Category 6 cable should be used. The
Category 5e and 6 specifications include test parameters that are only
recommendations for Category 5. Therefore, the first step in preparing existing
Category 5 cabling for running 1000BASE-T is a simple test of the cable
installation to be sure that it complies with the IEEE 802.3-2005 standards.

10 GBPS ETHERNET COLLISION DOMAIN

Table 5: Maximum 10GBASE-SR 10 Gigabit Ethernet Cable Lengths

Fiber Size Fiber Bandwidth Maximum Cable Length Connector

62.5/125 micron
multimode fiber

160 MHz/km 2-26 m (7-85 ft.) LC

200 MHz/km 2-33 m (7-108 ft.) LC

50/125 micron
multimode fiber

400 MHz/km 2-66 m (7-216 ft.) LC

500 MHz/km 2-82 m (7-269 ft.) LC

2000 MHz/km 2-300 m (7-984 ft.) LC

Table 6: Maximum 10GBASE-LR 10 Gigabit Ethernet Cable Length

Fiber Size Fiber Bandwidth Maximum Cable Length Connector

9/125 micron single­mode fiber

N/A 10 km (6.2 miles) LC

C

HAPTER

4

| Making Network Connections

Connectivity Rules

– 53 –

1000 MBPS GIGABIT ETHERNET COLLISION DOMAIN

Table 7: Maximum 10GBASE-ER 10 Gigabit Ethernet Cable Length

Fiber Size Fiber Bandwidth Maximum Cable Length Connector

9/125 micron single­mode fiber

N/A 40 km (24.85 miles) LC

Table 8: Maximum 1000BASE-T Gigabit Ethernet Cable Length

Cable Type Maximum Cable Length Connector

Category 5, 5e, or 6 100-ohm UTP or STP 100 m (328 ft) RJ-45

Table 9: Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths

Fiber Size Fiber Bandwidth Maximum Cable Length Connector

62.5/125 micron
multimode fiber

160 MHz/km 2-220 m (7-722 ft) LC

200 MHz/km 2-275 m (7-902 ft) LC

50/125 micron
multimode fiber

400 MHz/km 2-500 m (7-1641 ft) LC

500 MHz/km 2-550 m (7-1805 ft) LC

Table 10: Maximum 1000BASE-LX Gigabit Ethernet Cable Length

Fiber Size Fiber Bandwidth Maximum Cable Length Connector

9/125 micron single­mode fiber

N/A 2 m - 10 km (7 ft - 6.2 miles) LC

Table 11: Maximum 1000BASE-ZX Gigabit Ethernet Cable Length

Fiber Size Fiber Bandwidth Maximum Cable Length Connector

9/125 micron single­mode fiber

N/A 2 m - 100 km

(7 ft - 62 miles)

LC

C

HAPTER

4

| Making Network Connections

Cable Labeling and Connection Records

– 54 –

100 MBPS FAST ETHERNET COLLISION DOMAIN

10 MBPS ETHERNET COLLISION DOMAIN

CABLE LABELING AND CONNECTION RECORDS

When planning a network installation, it is essential to label the opposing ends of
cables and to record where each cable is connected. Doing so will enable you to
easily locate inter-connected devices, isolate faults and change your topology
without need for unnecessary time consumption.

To best manage the physical implementations of your network, follow these
guidelines:

◆ Clearly label the opposing ends of each cable.

◆ Using your building’s floor plans, draw a map of the location of all network-

connected equipment. For each piece of equipment, identify the devices to
which it is connected.

◆ Note the length of each cable and the maximum cable length supported by

the switch ports.

◆ For ease of understanding, use a location-based key when assigning

prefixes to your cable labeling.

◆ Use sequential numbers for cables that originate from the same equipment.

◆ Differentiate between racks by naming accordingly.

Table 12: Maximum Fast Ethernet Cable Lengths

Type Cable Type Max. Cable Length Connector

100BASE-TX Category 5 or better 100-ohm

UTP or STP

100 m (328 ft) RJ-45

Table 13: Maximum Ethernet Cable Length

Type Cable Type Max. Cable Length Connector

10BASE-T Category 3 or better 100-ohm UTP 100 m (328 ft) RJ-45

C

HAPTER

4

| Making Network Connections

Cable Labeling and Connection Records

– 55 –

◆ Label each separate piece of equipment.

◆ Display a copy of your equipment map, including keys to all abbreviations at

each equipment rack.

C

HAPTER

4

| Making Network Connections

Cable Labeling and Connection Records

– 56 –

– 57 –

A TROUBLESHOOTING

DIAGNOSING SWITCH INDICATORS

Table 14: Troubleshooting Chart

Symptom Action

Power LED is Off

◆ Check connections between the switch, the power cord and

the wall outlet.

◆ Contact your dealer for assistance.

Power LED is on
Amber

◆ Contact your local dealer for assistance.

Diag LED On Amber

◆ Power cycle the switch to try and clear the condition.

◆ If the condition does not clear, contact your dealer for

assistance.

Link LED is Off

◆ If an SFP transceiver has failed, replace it.

◆ Verify that the switch and attached device are powered on.

◆ Be sure the cable is plugged into both the switch and

corresponding device.

◆ If the switch is installed in a rack, check the connections to

the punch-down block and patch panel.

◆ Verify that the proper cable type is used and its length does

not exceed specified limits.

◆ Check the adapter on the attached device and cable

connections for possible defects. Replace the defective
adapter or cable if necessary.

A

PPENDIX

A

| Troubleshooting

Power and Cooling Problems

– 58 –

POWER AND COOLING PROBLEMS

If the power indicator does not turn on when the power cord is plugged in, you
may have a problem with the power outlet, power cord, or internal power
supply. However, if the unit powers off after running for a while, check for loose
power connections, power losses or surges at the power outlet. If you still
cannot isolate the problem, the internal power supply may be defective.

INSTALLATION

Verify that all system components have been properly installed. If one or more
components appear to be malfunctioning (such as the power cord or network
cabling), test them in an alternate environment where you are sure that all the
other components are functioning properly.

IN-BAND ACCESS

You can access the management agent in the switch from anywhere within the
attached network using Telnet, a web browser, or other network management
software tools. However, you must first configure the switch with a valid IP
address, subnet mask, and default gateway. If you have trouble establishing a
link to the management agent, check to see if you have a valid network
connection. Then verify that you entered the correct IP address. Also, be sure
the port through which you are connecting to the switch has not been disabled.
If it has not been disabled, then check the network cabling that runs between
your remote location and the switch.

N

OTE

:

The management agent accepts up to four simultaneous Telnet
sessions. If the maximum number of sessions already exists, an
additional Telnet connection will not be able to log into the system.

– 59 –

B CABLES

TWISTED-PAIR CABLE AND PIN ASSIGNMENTS

For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of
wires. For 1000BASE-T connections the twisted-pair cable must have four pairs
of wires. Each wire pair is identified by two different colors. For example, one
wire might be green and the other, green with white stripes. Also, an RJ-45
connector must be attached to both ends of the cable.

The figure below illustrates how the pins on the RJ-45 connector are numbered.
Be sure to hold the connectors in the same orientation when attaching the wires
to the pins.

Figure 18: RJ-45 Connector Pin Numbers

C

AUTION

:

DO NOT plug a phone jack connector into any RJ-45 port. Use
only twisted-pair cables with RJ-45 connectors that conform with FCC
standards.

C

AUTION

:

Each wire pair must be attached to the RJ-45 connectors in a
specific orientation.

8

1

1

8

A

PPENDIX

B

| Cables

Twisted-Pair Cable and Pin Assignments

– 60 –

10BASE-T/100BASE-TX PIN ASSIGNMENTS

Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45
connections: 100-ohm Category 3 or better cable for 10 Mbps connections, or
100-ohm Category 5 or better cable for 100 Mbps connections. Also be sure

that

the length of any twisted-pair connection does not exceed 100 meters (328 feet).

The RJ-45 ports on the switch base unit support automatic MDI/MDI-X
operation, so you can use straight-through cables for all network connections to
PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2,
3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3,
and 6 at the other end of the cable. When using any RJ-45 port on this switch,
you can use either straight-through or crossover cable.

Note: The “+” and “-” signs represent the polarity of the wires that make

up each wire pair.

STRAIGHT-THROUGH WIRING

If the twisted-pair cable is to join two ports and only one of the ports has an
internal crossover (MDI-X), the two pairs of wires must be straight-through.
(When auto-negotiation is enabled for any RJ-45 port on this switch, you can
use either straight-through or crossover cable to connect to any device type.)

You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet.

Table 15: 10/100BASE-TX MDI and MDI-X Port Pinouts

Pin MDI Signal Name MDI-X Signal Name

1 Transmit Data plus (TD+) Receive Data plus (RD+)

2 Transmit Data minus (TD-) Receive Data minus (RD-)

3 Receive Data plus (RD+) Transmit Data plus (TD+)

6 Receive Data minus (RD-) Transmit Data minus (TD-)

4,5,7,8 Not used Not used

A

PPENDIX

B

| Cables

Twisted-Pair Cable and Pin Assignments

– 61 –

Figure 19: Straight-through Wiring

CROSSOVER WIRING

If the twisted-pair cable is to join two ports and either both ports are labeled
with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a crossover
must be implemented in the wiring. (When auto-negotiation is enabled for any
RJ-45 port on this switch, you can use either straight-through or crossover cable
to connect to any device type.)

You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet.

Figure 20: Crossover Wiring

White/Orange Stripe

Orange

White/Green Stripe

Green

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8

EIA/TIA 568B RJ-45 Wiring Standard

10/100BASE-TX Straight-through Cable

End A

End B

Blue

White/Blue Stripe

Brown

White/Brown Stripe

White/Orange Stripe

Orange

White/Green Stripe

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8

EIA/TIA 568B RJ-45 Wiring Standard

10/100BASE-TX Crossover Cable

End A

End B

Green

Blue

White/Blue Stripe

Brown

White/Brown Stripe

A

PPENDIX

B

| Cables

Twisted-Pair Cable and Pin Assignments

– 62 –

1000BASE-T PIN ASSIGNMENTS

All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use
straight-through cables for all network connections to PCs or servers, or to other
switches or hubs.

The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These
ports require that all four pairs of wires be connected. Note that for 1000BASE-T
operation, all four pairs of wires are used for both transmit and receive.

Use 100-ohm Category 5, 5e or 6 unshielded twisted-pair (UTP) or shielded
twisted-pair (STP) cable for 1000BASE-T connections. Also be sure

that the

length of any twisted-pair connection does not exceed 100 meters (328 feet)

.

CABLE TESTING FOR EXISTING CATEGORY 5 CABLE

Installed Category 5 cabling must pass tests for Attenuation, Near-End Crosstalk
(NEXT), and Far-End Crosstalk (FEXT). This cable testing information is specified
in the ANSI/TIA/EIA-TSB-67 standard. Additionally, cables must also pass test
parameters for Return Loss and Equal-Level Far-End Crosstalk (ELFEXT). These
tests are specified in the ANSI/TIA/EIA-TSB-95 Bulletin, “The Additional
Transmission Performance Guidelines for 100 Ohm 4-Pair Category 5 Cabling.”

Note that when testing your cable installation, be sure to include all patch cables
between switches and end devices.

Table 16: 1000BASE-T MDI and MDI-X Port Pinouts

Pin MDI Signal Name MDI-X Signal Name

1 Bi-directional Pair A Plus (BI_DA+) Bi-directional Pair B Plus (BI_DB+)

2 Bi-directional Pair A Minus (BI_DA-) Bi-directional Pair B Minus (BI_DB-)

3 Bi-directional Pair B Plus (BI_DB+) Bi-directional Pair A Plus (BI_DA+)

4 Bi-directional Pair C Plus (BI_DC+) Bi-directional Pair D Plus (BI_DD+)

5 Bi-directional Pair C Minus (BI_DC-) Bi-directional Pair D Minus (BI_DD-)

6 Bi-directional Pair B Minus (BI_DB-) Bi-directional Pair A Minus (BI_DA-)

7 Bi-directional Pair D Plus (BI_DD+) Bi-directional Pair C Plus (BI_DC+)

8 Bi-directional Pair D Minus (BI_DD-) Bi-directional Pair C Minus (BI_DC-)

A

PPENDIX

B

| Cables

Fiber Standards

– 63 –

ADJUSTING EXISTING CATEGORY 5 CABLING TO RUN 1000BASE-T

If your existing Category 5 installation does not meet one of the test parameters
for 1000BASE-T, there are basically three measures that can be applied to try
and correct the problem:

1. Replace any Category 5 patch cables with high-performance Category 5e or

Category 6 cables.

2. Reduce the number of connectors used in the link.

3. Reconnect some of the connectors in the link.

FIBER STANDARDS

The International Telecommunication Union (ITU-T) has standardized various
fiber types for data networks. These are summarized in the following table.

Table 17: Fiber Standards

ITU-T
Standard

Description Application

G.651 Multimode Fiber

50/125-micron core

Short-reach connections in the 1300­nm or 850-nm band

G.652 Non-Dispersion-Shifted Fiber

Single-mode, 9/125-micron core

Longer spans and extended reach.
Optimized for operation in the 1310­nm band. but can also be used in the
1550-nm band

G.652.C Low Water Peak Non-

Dispersion-Shifted Fiber

Single-mode, 9/125-micron core

Longer spans and extended reach.
Optimized for wavelength-division
multiplexing (WDM) transmission
across wavelengths from 1285 to
1625 nm. The zero dispersion
wavelength is in the 1310-nm region.

G.653 Dispersion-Shifted Fiber

Single-mode, 9/125-micron core

Longer spans and extended reach.
Optimized for operation in the region
from 1500 to 1600-nm.

A

PPENDIX

B

| Cables

Fiber Standards

– 64 –

G.654 1550-nm Loss-Minimized Fiber

Single-mode, 9/125-micron core

Extended long-haul applications.
Optimized for high-power
transmission in the 1500 to 1600-nm
region, with low loss in the 1550-nm
band.

G.655 Non-Zero Dispersion-Shifted

Fiber

Single-mode, 9/125-micron core

Extended long-haul applications.
Optimized for high-power dense
wavelength-division multiplexing
(DWDM) operation in the region from
1500 to 1600-nm.

Table 17: Fiber Standards (Continued)

ITU-T
Standard

Description Application

– 65 –

C SPECIFICATIONS

PHYSICAL CHARACTERISTICS

PORTS

24 1000BASE-SFP, with auto-negotiation
2 10/100/1000BASE-T, shared with two SFP transceiver slots

NETWORK INTERFACE

Ports 1-24: SFP connector
Shared Ports 1-2: RJ-45 connector, auto MDI/X

10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better)
100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better)
1000BASE-T: RJ-45 (100-ohm, UTP or STP cable; Category 5, 5e or 6)
*Maximum Cable Length - 100 m (328 ft)

BUFFER ARCHITECTURE

1.5 Mbyte packet buffer

AGGREGATE BANDWIDTH

64 Gbps

SWITCHING DATABASE

16K MAC address entries

LEDS

System: Power, Diag, RPS
Port:

Status (link and activity)

A

PPENDIX

C

| Specifications

Physical Characteristics

– 66 –

WEIGHT

3.8 kg (8.38 lbs)

SIZE

(W x D x H): 440 x 315 x 44 mm (17.32 x 12.4 x 1.73 inches)

TEMPERATURE

Operating: 0°C to 45°C (32°F to 113°F)
Storage: -40°C to 70°C (-40°F to 158°F)

HUMIDITY

Operating: 10% to 90% (non-condensing)

AC INPUT

100 to 240 V, 50-60 Hz, 2A

POWER SUPPLY

Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz

POWER CONSUMPTION

42W (without expansion module)
50W (with one expansion module)

MAXIMUM CURRENT

0.42 A @ 100 VAC (without expansion module)

0.51 A @ 100 VAC (with one expansion module)

A

PPENDIX

C

| Specifications

Switch Features

– 67 –

SWITCH FEATURES

FORWARDING MODE

Store-and-forward

THROUGHPUT

Wire speed

FLOW CONTROL

Full Duplex: IEEE 802.3x
Half Duplex: Back pressure

MANAGEMENT FEATURES

IN-BAND MANAGEMENT

SSH, Telnet, SNMP, or HTTP

OUT-OF-BAND MANAGEMENT

RS-232 RJ-45 console port

SOFTWARE LOADING

HTTP, TFTP in-band, or XModem out-of-band

A

PPENDIX

C

| Specifications

Standards

– 68 –

STANDARDS

IEEE 802.3-2005

Ethernet, Fast Ethernet, Gigabit Ethernet
Full-duplex flow control
Link Aggregation Control Protocol

IEEE 802.1D -2004

Spanning Tree Protocol
Rapid Spanning Tree Protocol
Multiple Spanning Tree Protocol

ISO/IEC 8802-3

COMPLIANCES

EMISSIONS

EN55022 (CISPR 22) Class A
EN 61000-3-2/3
FCC Class A
CE Mark

IMMUNITY

EN 61000-4-2/3/4/5/6/8/11

SAFETY

UL/CUL (CSA 22.2 NO 60950-1 & UL 60950-1)
CB (IEC/EN60950-1)

– 69 –

GLOSSARY

10BASE-T

IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or
5 UTP cable.

100BASE-TX

IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5
UTP cable.

1000BASE-LH

Specification for long-haul Gigabit Ethernet over two strands of 9/125 micron
core fiber cable.

1000BASE-LX

IEEE 802.3z specification for Gigabit Ethernet over two strands of 50/125, 62.5/
125 or 9/125 micron core fiber cable.

1000BASE-SX

IEEE 802.3z specification for Gigabit Ethernet over two strands of 50/125 or

62.5/125 micron core fiber cable.

1000BASE-T

IEEE 802.3ab specification for Gigabit Ethernet over 100-ohm Category 5, 5e or
6 twisted-pair cable (using all four wire pairs).

AUTO-NEGOTIATION

Signalling method allowing each node to select its optimum operational mode
(e.g., speed and duplex mode) based on the capabilities of the node to which it
is connected.

G

LOSSARY

– 70 –

BANDWIDTH

The difference between the highest and lowest frequencies available for network
signals. Also synonymous with wire speed, the actual speed of the data
transmission along the cable.

COLLISION DOMAIN

Single CSMA/CD LAN segment.

CSMA/CD

CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication
method employed by Ethernet, Fast Ethernet, and Gigabit Ethernet.

END STATION

A workstation, server, or other device that does not forward traffic.

ETHERNET

A network communication system developed and standardized by DEC, Intel,
and Xerox, using baseband transmission, CSMA/CD access, logical bus topology,
and coaxial cable. The successor IEEE 802.3 standard provides for integration
into the OSI model and extends the physical layer and media with repeaters and
implementations that operate on fiber, thin coax and twisted-pair cable.

FAST ETHERNET

A 100 Mbps network communication system based on Ethernet and the CSMA/
CD access method.

FULL DUPLEX

Transmission method that allows two network devices to transmit and receive
concurrently, effectively doubling the bandwidth of that link.

GIGABIT ETHERNET

A 1000 Mbps network communication system based on Ethernet and the CSMA/
CD access method.

G

LOSSARY

– 71 –

IEEE

Institute of Electrical and Electronic Engineers.

IEEE 802.3

Defines carrier sense multiple access with collision detection (CSMA/CD) access
method and physical layer specifications.

IEEE 802.3AB

Defines CSMA/CD access method and physical layer specifications for
1000BASE-T Gigabit Ethernet. (Now incorporated in IEEE 802.3-2005.)

IEEE 802.3U

Defines CSMA/CD access method and physical layer specifications for 100BASE­TX Fast Ethernet. (Now incorporated in IEEE 802.3-2005.)

IEEE 802.3X

Defines Ethernet frame start/stop requests and timers used for flow control on
full-duplex links. (Now incorporated in IEEE 802.3-2005.)

IEEE 802.3Z

Defines CSMA/CD access method and physical layer specifications for 1000BASE
Gigabit Ethernet. (Now incorporated in IEEE 802.3-2005.)

LAN SEGMENT

Separate LAN or collision domain.

LED

Light emitting diode used for monitoring a device or network condition.

LOCAL AREA NETWORK (LAN)

A group of interconnected computer and support devices.

G

LOSSARY

– 72 –

MEDIA ACCESS CONTROL (MAC)

A portion of the networking protocol that governs access to the transmission
medium, facilitating the exchange of data between network nodes.

MIB

An acronym for Management Information Base. It is a set of database objects
that contains information about the device.

MODAL BANDWIDTH

Bandwidth for multimode fiber is referred to as modal bandwidth because it
varies with the modal field (or core diameter) of the fiber. Modal bandwidth is
specified in units of MHz per km, which indicates the amount of bandwidth
supported by the fiber for a one km distance.

NETWORK DIAMETER

Wire distance between two end stations in the same collision domain.

RJ-45 CONNECTOR

A connector for twisted-pair wiring.

SWITCHED PORTS

Ports that are on separate collision domains or LAN segments.

TIA

Telecommunications Industry Association

TRANSMISSION CONTROL PROTOCOL/INTERNET PROTOCOL (TCP/IP)

Protocol suite that includes TCP as the primary transport protocol, and IP as the
network layer protocol.

G

LOSSARY

– 73 –

USER DATAGRAM PROTOCOL (UDP)

UDP provides a datagram mode for packet-switched communications. It uses IP

as the underlying transport mechanism to provide access to IP-like services.
UDP packets are delivered just like IP packets – connection-less datagrams that
may be discarded before reaching their targets. UDP is useful when TCP would
be too complex, too slow, or just unnecessary.

UTP

Unshielded twisted-pair cable.

VIRTUAL LAN (VLAN)

A Virtual LAN is a collection of network nodes that share the same collision
domain regardless of their physical location or connection point in the network.
A VLAN serves as a logical workgroup with no physical barriers, allowing users to
share information and resources as though located on the same LAN.

G

LOSSARY

– 74 –

– 75 –

INDEX

NUMERICS

10 Gbps connectivity rules 52
10 Mbps connectivity rules 54
100 Mbps connectivity rules 53
1000 Mbps connectivity rules 53
1000BASE-LH fiber cable Lengths 53
1000BASE-LX fiber cable Lengths 53
1000BASE-SX fiber cable Lengths 52, 53
1000BASE-T

pin assignments

62

ports 25
100BASE-TX, cable lengths 54
10BASE-T, cable lengths 54

A

air flow requirements 35
applications

central wiring closet

30

collapsed backbone 30

remote connections with fiber 31
