Eden SOLO, SOLO 3000 Technical Manual

Access control

SOLO / SOLO 3000

Biometric reader with RS485 output

Technical manual

Technical manual SOLO/SOLO3000 – V1.5 p.2/12

Contents

Contents ......................................................................................................................... 2

Acknowledgement ......................................................................................................... 3

Information and recommendations .............................................................................. 4

Technical characteristics .............................................................................................. 5

1) SOLO/SOLO3000 .................................................................................................. 5

2) Compatibility .......................................................................................................... 5

Wiring diagram ............................................................................................................... 6

1) Connecting reader on C1P2FX control unit ........................................................... 6

2) Connecting reader on C4PLUSFX control unit ...................................................... 7

3) Connecting reader on GENIUS control unit ........................................................... 8

Connectors blocks ......................................................................................................... 9

Check list ................................................................ ................................ ....................... 10

Notes .............................................................................................................................. 11

Technical manual SOLO/SOLO3000 – V1.5 p.3/12

Acknowledgement

Dear client,

You have just purchased a “SOLO/SOLO3000” fingerprint identification reader built by the company EDEN INNOVATIONS.

The entire EDEN INNOVATIONS team would like to thank you for your interest as well as your confidence in our security solution.

We hope that you will be completely satisfied with the level of security it provides for your company’s premises.

Should you have any comments, please contact us via our web site at

www.eden-innovations.com

The EDEN INNOVATIONS team.

Technical manual SOLO/SOLO3000 – V1.5 p.4/12

Information and recommendations

o Pursuant to European directive UTE C00-200, incorporating directives 89/336 EEC and 92/31 EEC, SOLO/SOLO3000 complies with the following standards:

• NF EN 50081-1 governing electromagnetic radiation, and

• NF EN 50082-1 governing electromagnetic susceptibility.

o Cabling recommendations: the cables used to connect readers, the network and other peripherals must be installed in accordance with the instructions for Level 2 (protected environment) of standard NF EN 61000-4-4.

o This product must be installed by an approved company. Incorrect installation and usage may result in electric shock or fire. Before installing the product, read the technical information and comply with the recommendations.

o Once the power is turned off, all the internal capacitors will discharge themselves to a

safe level after 60 seconds under normal conditions. However, in the event of a power failure, the charge may be maintained for much longer and suitable.

Technical manual SOLO/SOLO3000 – V1.5 p.5/12

Technical characteristics

1) SOLO/SOLO3000

Maximum power consumption ........ 300mA @12V

Power supply voltage ...................... 9 – 14VDC

Weight ............................................. 195 g

Housing dimensions ........................ 121 x 78 x 39 mm

Operating temperature .................... - 20°C to + 50°C

........................................................ -4°F to +122°F

Fingerprints SOLO .......................... 500 templates

Fingerprints SOLO3000 .................. 3000 templates

2) Compatibility

Software:

SENATORFX.NET .......................... V1.1.6.0 or later

SENATORFX .................................... V5.0.11 or later

Hardware:

C1P2FX .......................................... V2.4 or later

C4PLUSFX ..................................... V4.0 or later

GENIUS .......................................... V1.0 or later

Technical manual SOLO/SOLO3000 – V1.5 p.6/12

Wiring diagram

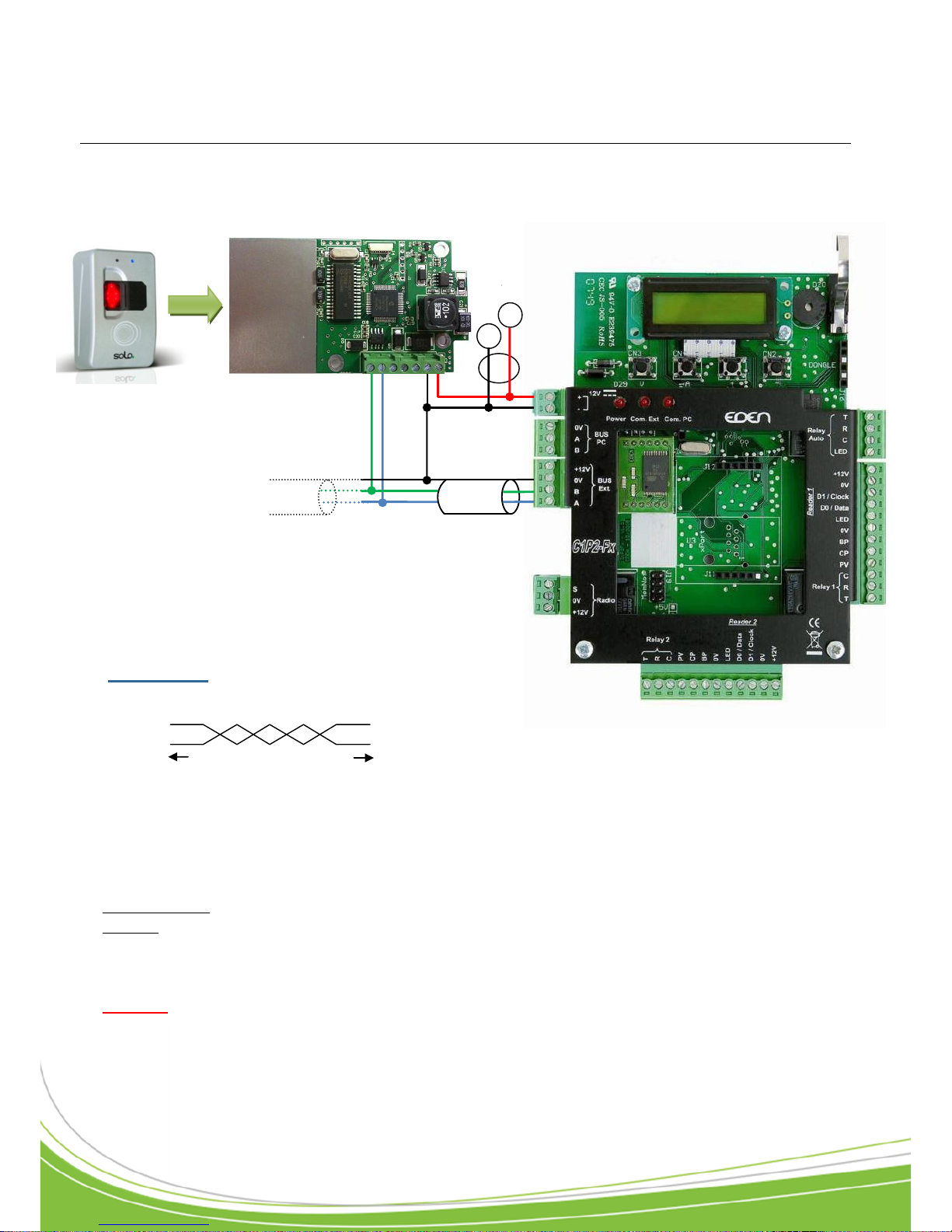

1) Connecting reader on C1P2FX control unit

Data sheet :

Be sure to use the same pair for A and B Be sure to separate the supply from the bus RS485

Characteristic: Sensitive connection Screen: Mandatory

To achieve 1200m (2730 ft), you need to install a 120 resistor at each end of the network between points A and B (see above).

Caution: The total length must not exceed the recommended distance.

A B

SYT recommended

1200m (2730 ft) Max

Ø 0.6 mm (1/30 in)

2 pairs recommended

RS485

+

POWER SUPPLY

12Vcc

Technical manual SOLO/SOLO3000 – V1.5 p.7/12

POWER

SUPPLY

12Vcc

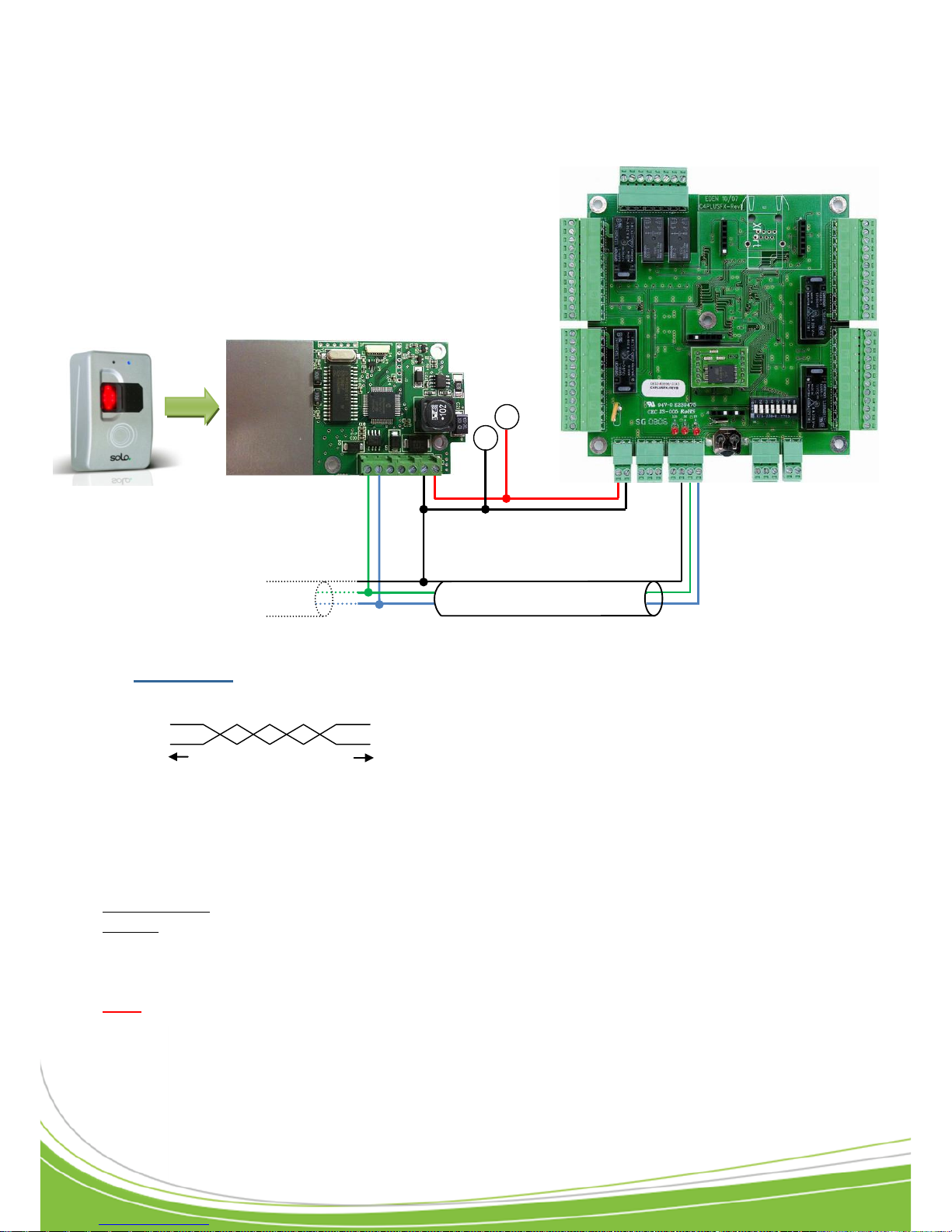

2) Connecting reader on C4PLUSFX control unit

(?) Data sheet :

Be sure to use the same pair for A and B Be sure to separate the supply from the bus RS485

Characteristic: Sensitive connection Screen: Mandatory

To achieve 1200m (2730 ft), you need to install a 120 resistor at each end of the network between points A and B (see above).

Note: The total length must not exceed the recommended distance.

A B

SYT recommended

1200m (2730 ft) Max

Ø 0.6 mm (1/30 in)

2 pairs recommended

+

RS485

Technical manual SOLO/SOLO3000 – V1.5 p.8/12

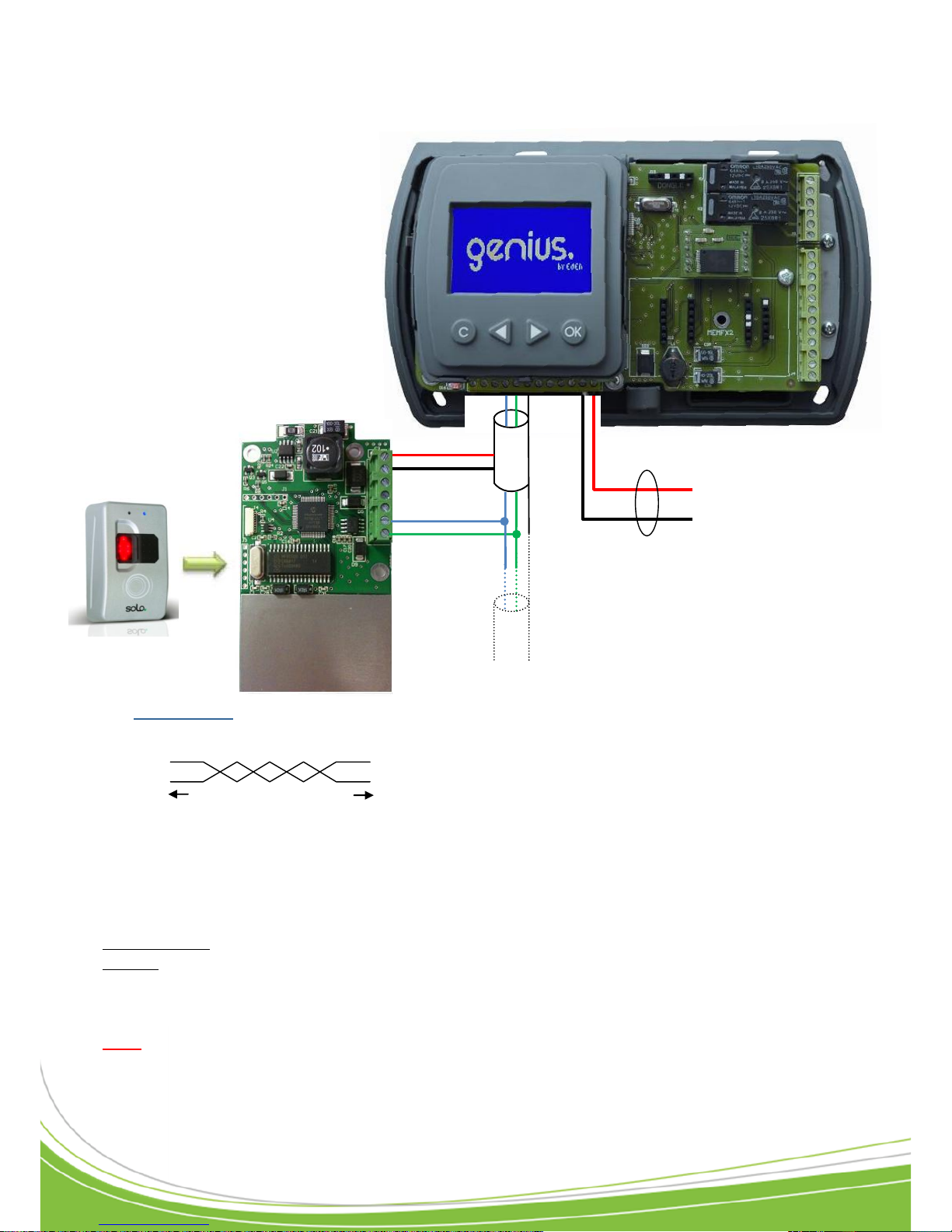

3) Connecting reader on GENIUS control unit

(?) Data sheet:

Be sure to use the same pair for A and B Be sure to separate the supply from the bus RS485

Characteristic: Sensitive connection Screen: Mandatory

To achieve 1200m (2730 ft), you need to install a 120 resistor at each end of the network between points A and B (see above).

Note: The total length must not exceed the recommended distance.

A B

SYT recommended

1200m (2730 ft) Max

Ø 0.6 mm (1/30 in)

2 pairs recommended

Power Supply +12Vcc

+

-

RS485

Technical manual SOLO/SOLO3000 – V1.5 p.9/12

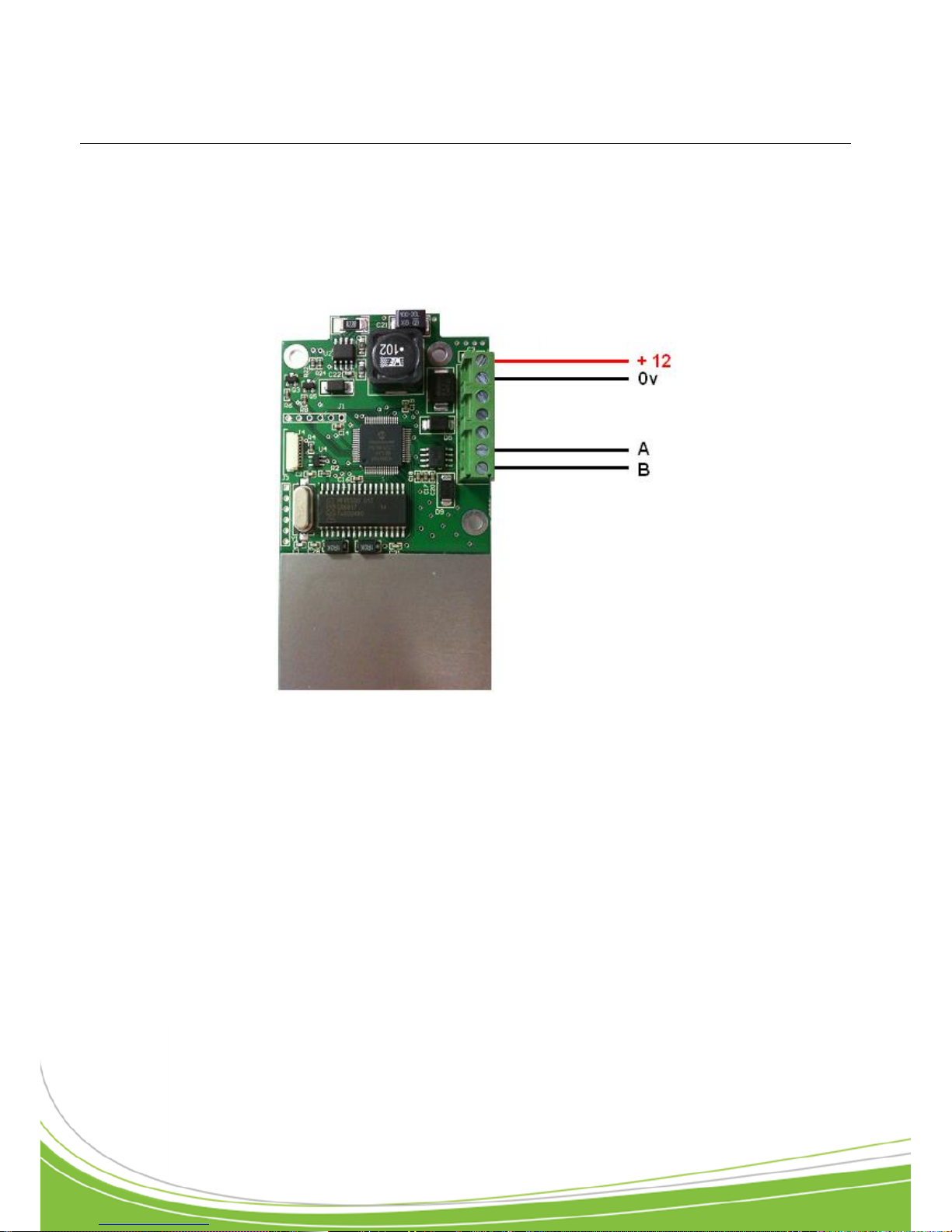

Connectors blocks

Technical manual SOLO/SOLO3000 – V1.5 p.10/12

Check list

SOLO / SOLO 3000

 Serial number :  ID number :  Gasket :  Torx bit :  Torx screw :  Bag :  Wall seal :

Technical manual SOLO/SOLO3000 – V1.5 p.11/12

Technical Support :

[email protected]

Notes

-------------------------------------------------------------------------------------------------------------------------------

Zone Commerciale et Artisanale

670, route de Berre

13510 EGUILLES

France

www.eden-innovations.com
