Page 1

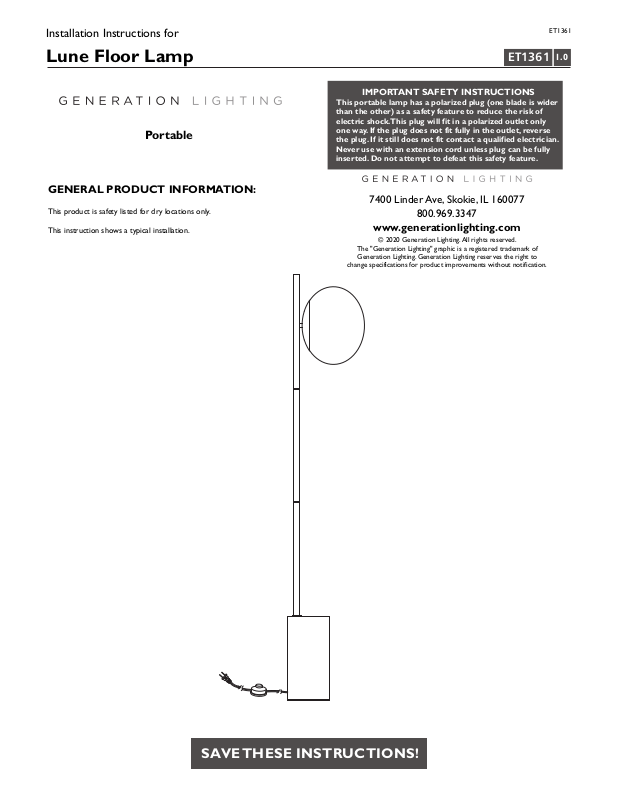

Installation Instructions for
ET1361
Lune Floor Lamp
Portable
GP I :ENERAL RODUCT NFORMATION
This product is safety listed for dry locations only.
This instruction shows a typical installation.
ET1361
IMPORTANT SAFETY INSTRUCTIONS
This portable lamp has a polarized plug (one blade is wider
than the other) as a safety feature to reduce the risk of
electric shock.This plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit contact a qualified electrician.
Never use with an extension cord unless plug can be fully
inserted. Do not attempt to defeat this safety feature.
7400 Linder Ave, Skokie, 160077IL
800.969.3347
www.generationlighting.com
© 2020 Generation Lighting.All rights reserved.
The "Generation Lighting" graphic is a registered trademark of
Generation Lighting. Generation Lighting reserves the right to
change specifications for product improvements without notification.
1.0
SAVE THESE INSTRUCTIONS!
Page 2
Install the Fixture
1A
SHADE BASE
4
SOCKET ASSEMBLY
COLUMN
THREADED COLUMN
THREADED PIPE
SHADE
3
LAMP
2
2
1
5
BASE
WASHERS
1
1
Insert the threaded pipe into the base and secure together using washers and hex nut.
2
Assemble the columns by screwing them together, then screw the column assembly onto the threaded pipe.
Screw the socket assembly onto the column assembly.
3
Screw the lamp into the socket. Refer to the label on the lamp socket for Max Wattage information.
4
5
Install the shade by screwing it onto the threads on the shade base.
HEX NUT
