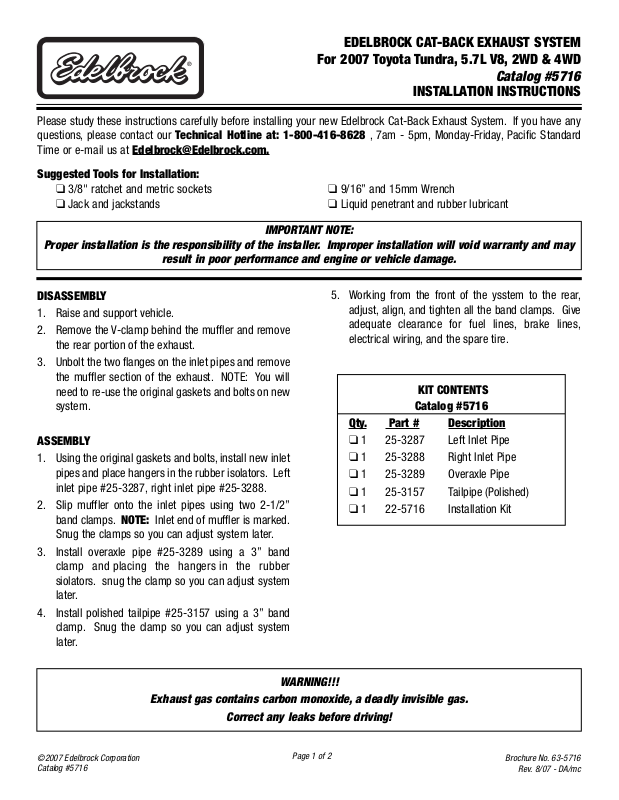

Edelbrock 5716 User Manual
©2007 Edelbrock Corporation
Catalog #5716
Brochure No. 63-5716
Rev. 8/07 - DA/mc
Page 1 of 2
EDELBROCK CAT-BACK EXHAUST SYSTEM
For 2007 Toyota Tundra, 5.7L V8, 2WD & 4WD
Catalog #5716
INSTALLATION INSTRUCTIONS
Please study these instructions carefully before installing your new Edelbrock Cat-Back Exhaust System. If you have any
questions, please contact our Technical Hotline at: 1-800-416-8628 , 7am - 5pm, Monday-Friday, Pacific Standard
Time or e-mail us at Edelbrock@Edelbrock.com.
Suggested Tools for Installation:
❑ 3/8" ratchet and metric sockets ❑ 9/16” and 15mm Wrench
❑ Jack and jackstands ❑ Liquid penetrant and rubber lubricant
DISASSEMBLY
1. Raise and support vehicle.
2. Remove the V-clamp behind the muffler and remove
the rear portion of the exhaust.
3. Unbolt the two flanges on the inlet pipes and remove
the muffler section of the exhaust. NOTE: You will
need to re-use the original gaskets and bolts on new
system.
ASSEMBLY
1. Using the original gaskets and bolts, install new inlet
pipes and place hangers in the rubber isolators. Left
inlet pipe #25-3287, right inlet pipe #25-3288.
2. Slip muffler onto the inlet pipes using two 2-1/2”
band clamps. NOTE: Inlet end of muffler is marked.
Snug the clamps so you can adjust system later.
3. Install overaxle pipe #25-3289 using a 3” band
clamp and placing the hangers in the rubber
siolators. snug the clamp so you can adjust system
later.
4. Install polished tailpipe #25-3157 using a 3” band
clamp. Snug the clamp so you can adjust system
later.
WARNING!!!
Exhaust gas contains carbon monoxide, a deadly invisible gas.
Correct any leaks before driving!
IMPORTANT NOTE:
Proper installation is the responsibility of the installer. Improper installation will void warranty and may
result in poor performance and engine or vehicle damage.
KIT CONTENTS
Catalog #5716
Qty
. Part # Description
❑ 1 25-3287 Left Inlet Pipe
❑ 1 25-3288 Right Inlet Pipe
❑ 1 25-3289 Overaxle Pipe
❑ 1 25-3157 Tailpipe (Polished)
❑ 1 22-5716 Installation Kit
5. Working from the front of the ysstem to the rear,
adjust, align, and tighten all the band clamps. Give
adequate clearance for fuel lines, brake lines,
electrical wiring, and the spare tire.
®
©2007 Edelbrock Corporation
Catalog #5716
Brochure No. 63-5716
Rev. 8/07 - DA/mc
Page 2 of 2
WARNING: Support your vehicle with proper
jackstands or ramps rated for the total vehicle weight.
Place stands so that the rear axle is allowed to hang
free for easy system removal.
WARNING: These cat-back systems are engineered
to fit stock catalytic converters or equivalent
replacements. If your original system has been
modified, Edelbrock will not warranty fit or
performance.
Edelbrock Corporation, 2700 California St., Torrance, CA 90503
Tech Line: (800) 416-8628
Office: (310) 781-2222
E-Mail: Edelbrock@Edelbrock.com
®
