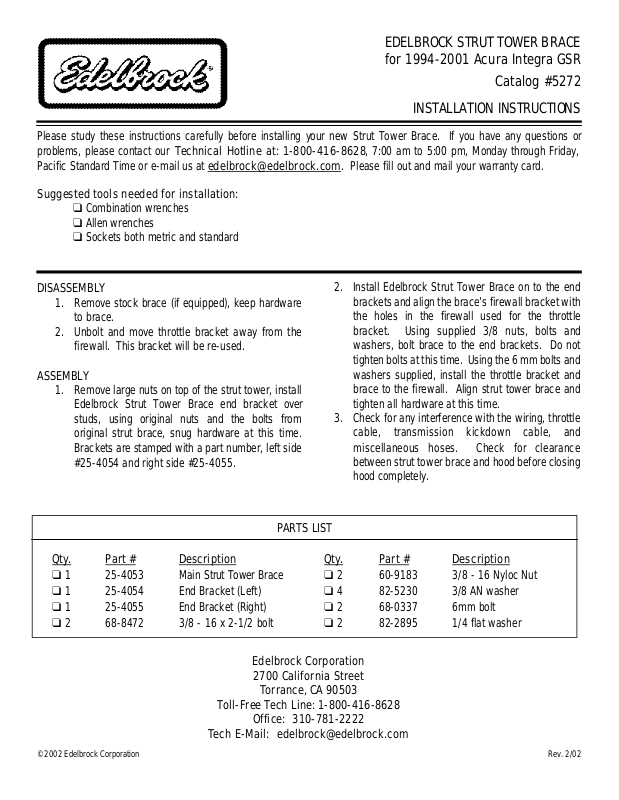

EDELBROCK STRUT TOWER BRACE
for 1994-2001 Acura Integra GSR
Catalog #5272
INSTALLATION INSTRUCTIONS
Please study these instructions carefully before installing your new Strut Tower Brace. If you have any questions or
problems, please contact our Technical Hotline at: 1-800-416-8628, 7:00 am to 5:00 pm, Monday through Friday,
Pacific Standard Time or e-mail us at edelbrock@edelbrock.com. Please fill out and mail your warranty card.
Suggested tools needed for installation:
❑ Combination wrenches
❑ Allen wrenches
❑ Sockets both metric and standard
DISASSEMBLY
1. Remove stock brace (if equipped), keep hardware
to brace.
2. Unbolt and move throttle bracket away from the
firewall. This bracket will be re-used.
ASSEMBLY
1. Remove large nuts on top of the strut tower, install
Edelbrock Strut Tower Brace end bracket over
studs, using original nuts and the bolts from
original strut brace, snug hardware at this time.
Brackets are stamped with a part number, left side
#25-4054 and right side #25-4055.
PARTS LIST
Qty. Part # Description Qty. Part # Description
❑ 1 25-4053 Main Strut Tower Brace ❑ 2 60-9183 3/8 - 16 Nyloc Nut
❑ 1 25-4054 End Bracket (Left) ❑ 4 82-5230 3/8 AN washer
❑ 1 25-4055 End Bracket (Right) ❑ 2 68-0337 6mm bolt
❑ 2 68-8472 3/8 - 16 x 2-1/2 bolt ❑ 2 82-2895 1/4 flat washer
2. Install Edelbrock Strut Tower Brace on to the end
brackets and align the brace’s firewall bracket with
the holes in the firewall used for the throttle
bracket. Using supplied 3/8 nuts, bolts and
washers, bolt brace to the end brackets. Do not
tighten bolts at this time. Using the 6 mm bolts and
washers supplied, install the throttle bracket and
brace to the firewall. Align strut tower brace and
tighten all hardware at this time.
3. Check for any interference with the wiring, throttle
cable, transmission kickdown cable, and
miscellaneous hoses. Check for clearance
between strut tower brace and hood before closing
hood completely.
