GPS
Vehicle
Tracker
USER MANUAL
V5.0
EDW-310
Contents
1 Product Overview
3
2 For Your Safety
3
3 EDW-310 Parameters
3
4 Getting Started
4
4.1 Hardware and Accessories 4
4.2 Light and Button Functionality 4
4.3 Connecting and Installation 5
4.4 Examples of Interfacing Application 6
5 SMS Command
8
5.1 Basic SMS Commands 8
5.1.1 Position Report 8
5.1.2 Set Interval for
Automatic Timed Report 8
5.1.3 Stop Automatic Timed Report 8
5.2 GPRS Setting by SMS 8
9
9
9
9
5.2.1 Set ID for EDW-310
5.2.2 Set APN
5.2.3 Set IP Address and Port
5.2.4 Set Time Interval for Sending GPRS Packet
5.2.5 Enable GPRS Tracking Function
9
6 Tracking on Map
9
7 Troubleshooting
11
8 SMS Command List
12
- 2 -

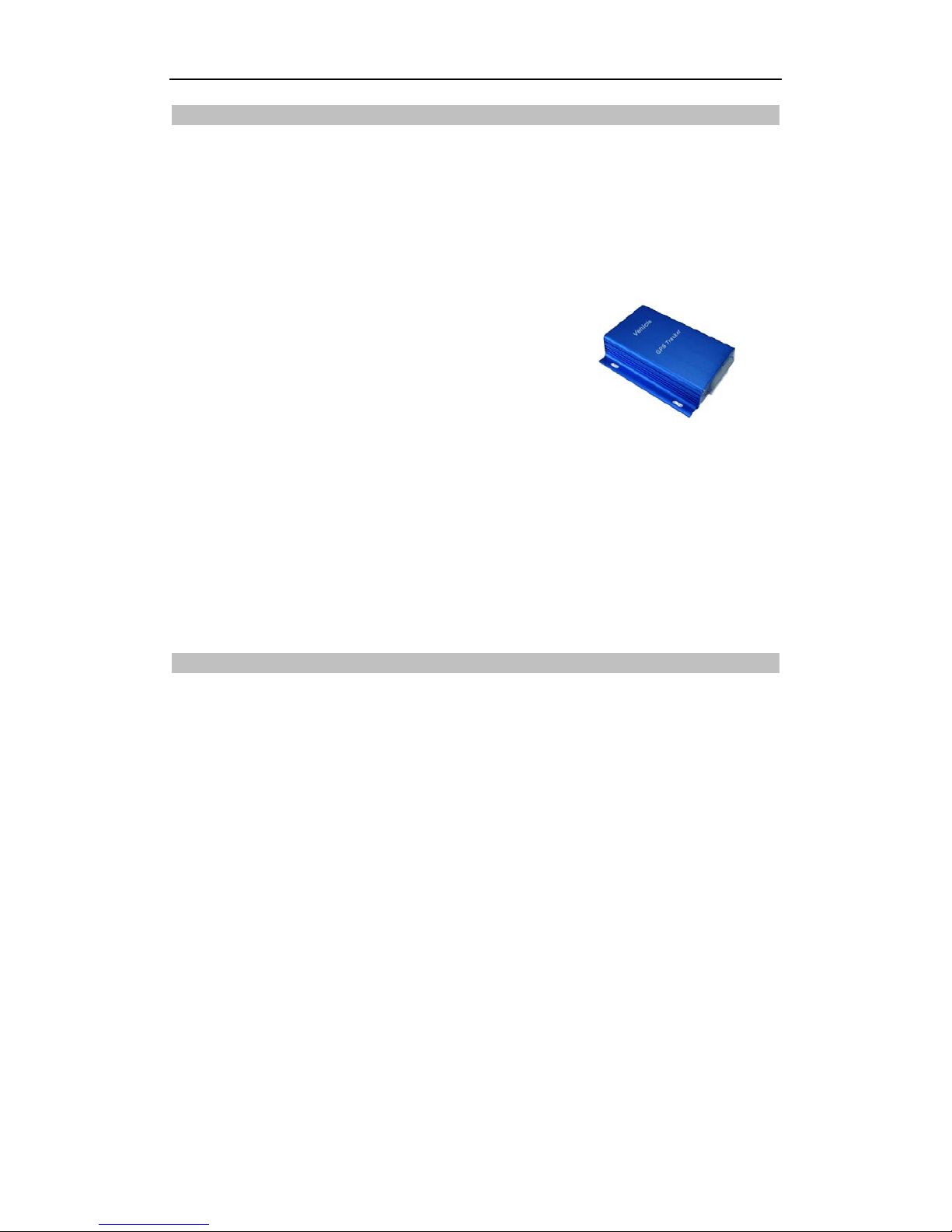

1 Product Overview
EDW-310 is
a GPS/GSM/GPRS tracking device which is specially developed and designed for
vehicle real-time tracking and security. With superior GPS and GPRS modules, EDW-310 has good
sensitivity and stable performance. It can get accurate GPS fix even in remote places.
Main Features:
Tracking via SMS or GPRS (TCP/UDP)
Current location report
Tracking by time interval
Position logging capacity up to 260,000+ waypoints
Store in GPS blind area &forward when GPRS re-establish
Built-in motion sensor for power saving
SOS panic button
Geo-fencing control
Low battery alert
Speeding aler
t
Engine Cut
Wiretapping (optional)
Alert when EDW-310 enters/exits GPS blind area
Alert when EDW-310 is turned on
I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs.
Analog Input: 2 10 bits resolution analog inputs
2 For Your Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read the full user manual
for more information.
Proper Connection - When connecting with other devic
e, read carefully its manual so as to carry out
correct installation. Do not connect it to other incompatible devices.
Qualified Accessories - Use original parts, qualified batteries and peripheral equipments to avoid damage
to EDW-310.
Safe Driving - Drivers should not operate this product while driving. ----------
Qualified Service - Only qualified personnel can install or repair EDW-310.
Water Resistance - EDW-310 is not water resistant. Keep it dry. Install it inside the vehicle or use
waterproof bag if necessary.
Confidential Phone Number - For safety reason, do not tell other people the mobile phone number of your
EDW-310 without taking precautions of security settings.
- 3 -
3 EDW-310 Parameters
Power Supply +9V - +35V / 1.5A
Backup Battery 900mAh
Dimension 104mm x 62mm x 24mm
Installation Dimension 104mm x 83mm x 24mm
Weight 150g
Operating temperature -20° to 55° C
Humidity 5% to 95% Non-condensing
Frequency GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Module latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 meters (60,000 feet) max.
Velocity Limit 515 meters/second (1000 knots) max.
LED 2 LED lights to show GPS/GSM working status.
Flash Memory 8MB
Interface 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs;
5 outputs.
4 Getting Started
This section will describe how to set up y
our
EDW-310. 4.1 Hardware Features
EDW-310 includes:
•EDW-310 Main Unit
• GPS Antenna
• GSM Antenna
• Wires
• USB Cable with converter
• CD including
- User Manual
- Other document or software if required
- 4 -
4.2 Light and Button Functionality
Blue LED - indicating GPS status
On
One or more inputs are active
Flashing ( every 0.1 second)
The unit is being Initialized
Flashing (on for 0.1 second and off for 2.9 seconds)
EDW-310 has a GPS fix
Flashing (on for 1 second and off for 2 seconds)
EDW-310 has no GPS fix
Green LED - indicating GSM status
On
One call is coming in/ one call is being made
Flashing ( every 0.1 second)
The unit is being Initialized
Flashing (on for 0.1 second and off for 2.9 seconds)
EDW-310 is connected to the GSM network
Flashing (on for 1 second and off for 2 seconds)
EDW-310 is not connected to the GSM network
SOS Button Press it to send SMS alert
4.3 Connecting and Installation
Read this manual before using your EDW-310 and check if all parts are included in the packaging
box.
E
nsure that your EDW-310 has a working SIM installed.
- Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and
receive SMS)
- Check that the SIM Lock code is turned off
- If you require the function of sending an SMS location report to the authorized phone number when it
makes a call to the EDW-310, please make sure the SIM installed supports displaying caller ID.
Before inserting SIM card, cut off the power for the AVL unit.

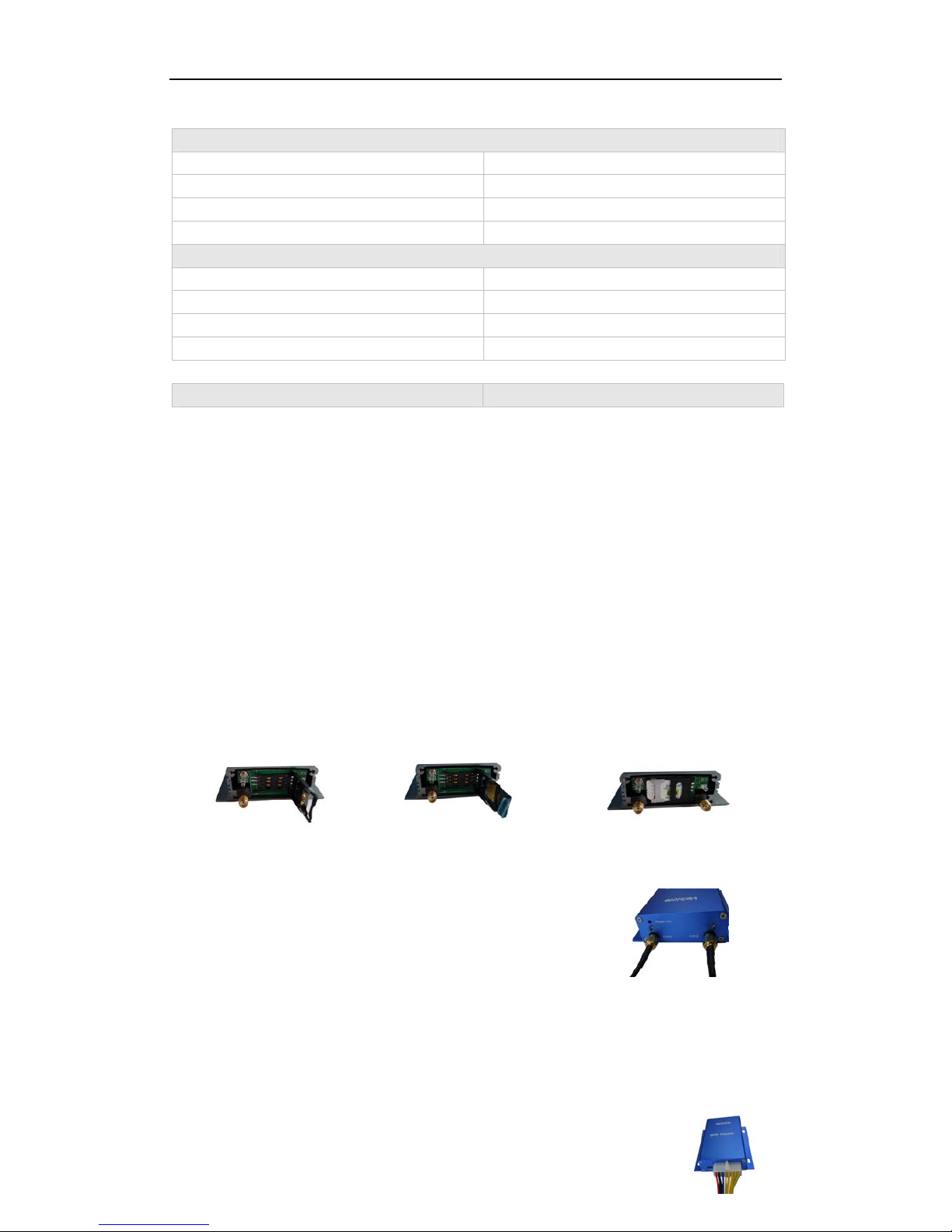

Install SIM Card
- Unscrew and remove the front cover of your EDW-310.
- Insert the SIM card by sliding it into the card slot with the chip module facing to the connectors on PCB.
onnect the GSM Antenna to the unit.
nals in the sky. It should be fixed to face the sky and should
ind a suitable place inside the car for installing the unit. Wiring connections must be firm and r eliable
- Put back the front cover and screw it up.
C
Connect the GPS Antenna to the unit.
- GPS antenna is used to receive satellite sig
not be covered or shielded by any objects containi
ng metal, such as the metallic windshield.
F
and the joints should be wrapped with insulating tape tightly. The unused electrical wire should be
prop
erly insulated.
- 5 -
Check if all wirings have been connected correctly and then connect the unit to
connector for microphone is set in the PCB. If you need to link with an extra microphone for wiretapping
stallation Guide:
the motor power.
A
purpose, contact us to add this optional function before we deliver the devices to you.
In

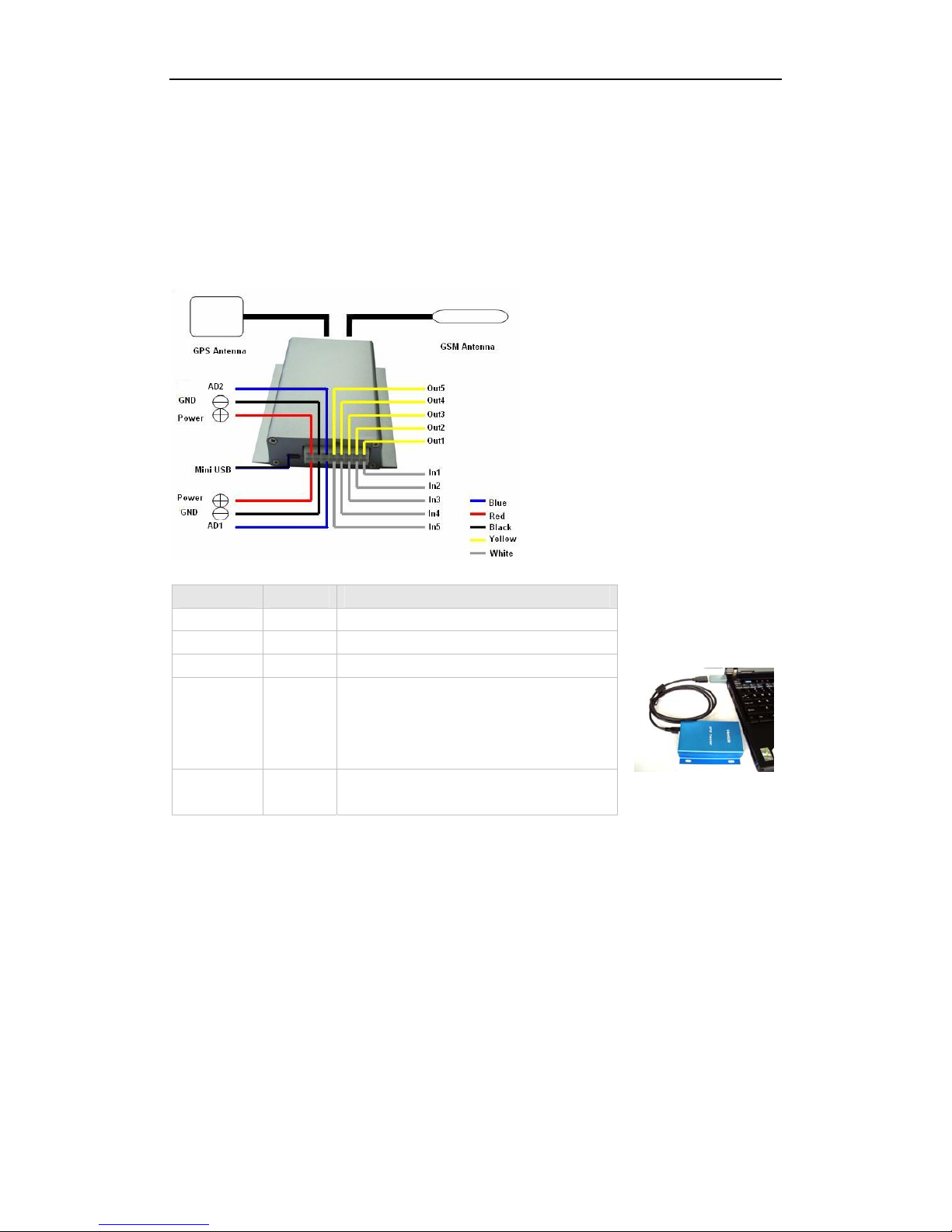

Descriptions of PINs
Pin Color Function
1 Red DC In. Input voltage: 9V~35V. 12V suggested.
2 Black GND
3 White Digital Inputs
4 Yellow Outputs
( if be drove by CMD, output pin will be connect
to GND inside Tracker in order that the current
can fl
ow in Tracker ) ------
5 Blue ts. 10 Bits Resolution Analog Inpu
Input voltage: 0~6V.
ini USB Port
ker with computer by USB cable for configuration ,
e USB cable.
ote: USB cable for configuration is optional
accessory, and need buy it separately )
M
Connect the trac
You need to install the driver - PL
-2303 Driver Installer - for using th
Refer to <GPS Tracker Parameter Editor> for configuration .
(n
---------
- 6 -

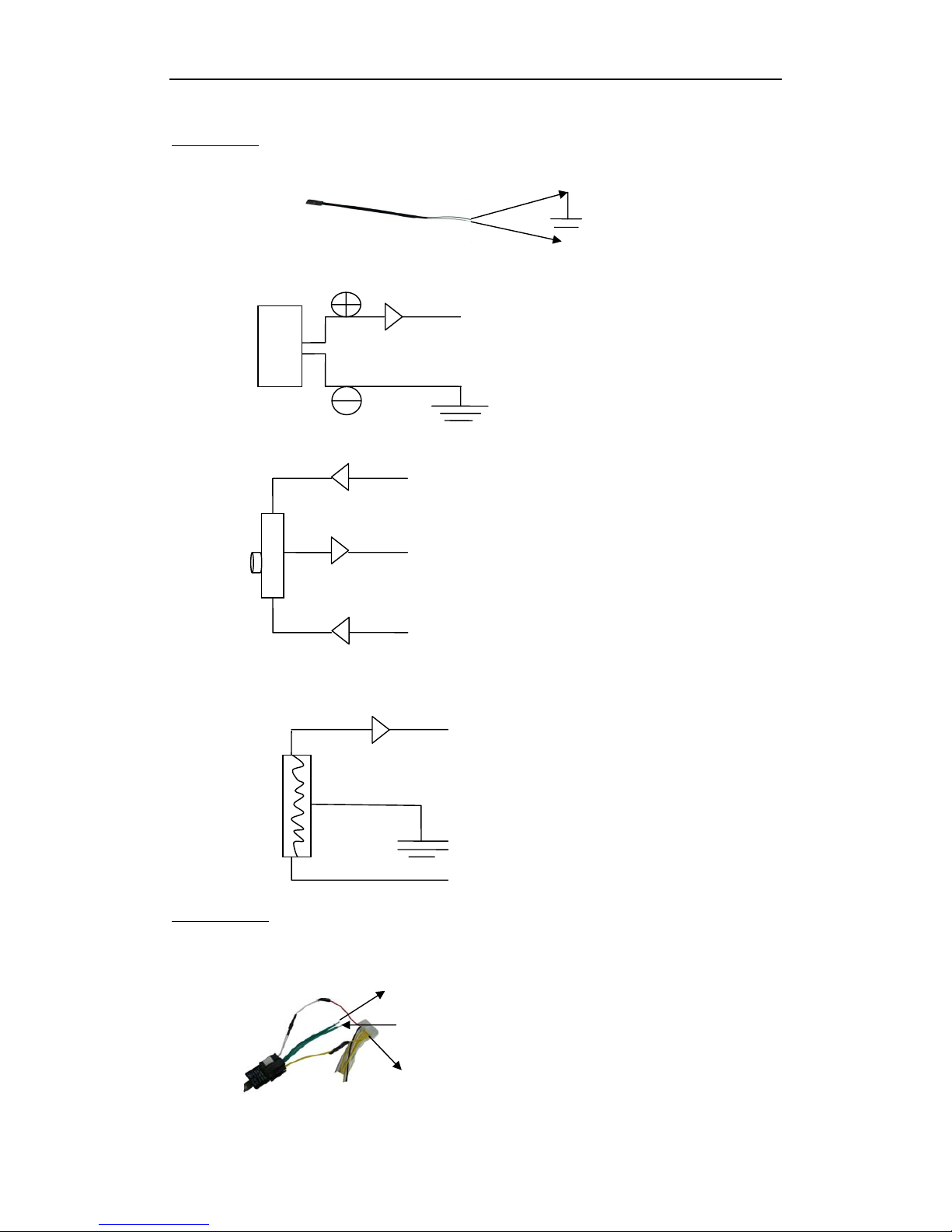

4.4 Examples of Interfacing Application
For Input Ports
1. SOS Button - Input 1 / Input 2 / Input 3
n Detection - Input 4 / Input 5
2. Ignitio
3. Detecting Lock Status of Car’s Door or Trunk(Car Boot): Locked or Unlocked - Input 4 / Input 5
4. Connecting with Sensors (such as weight sensor) - Input 2 / Input3
For Output Ports
1. Engine Cut
Output 1
Car power supply
Relay
Car battery
+12v/+24v
Input 2 / Input 3
+12v/+24v
Weight Sensor
Status
Input 4 or Input 5
Power positive
Power negative
Output 1
Lock
+12v/+24v
Black
Input 1
White
SOS Button
Input 4 or Input 5
Ignition
- 7 -
2. Connecting with Car Alarm
Output 2
+12v/+24v
Alarm
For Analog Input
5 SMS Command
EDW-310 will only accept commands from a user with the correct password. Commands with
wrong password are ignored. The default password is 000000.
5.1 Basic S
MS Commands
5.1.1 Position Report
To know the location of your EDW-310, send an SMS or make a telephone call directly to EDW-310
and it will report its location by SMS.
Command: W<password>,<000>
Notes: The default password is 000000.
Example:
SMS sent: W000000,000
SMS received:
Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50
To get EDW-310’s position by another easier way:
(a) Call EDW-310 using your mobile phone.
(
b) After listening to the ring for 10 - 20 seconds, hang up the phone.
(c) Then after 20 second, your mobile phone will receive a position SMS.
5.1.2 Set Interval for Automatic Timed Report
Description: Automatic timed reports will be sent to your mobile phone according to the time interval you
set.
Command: W<password>,002,XXX
Notes: XXX is the interval in minute. If XXX=
000 it will stop tracking
Example:
SMS sent: W000000,002,005
SMS received: Set Timer Ok/005
- 8 -
EDW-310 will then report its location by SMS every 5 minutes.
5.1.3 Stop Automatic Timed Report
Description: Automatic timed reports will stop once EDW-310 receives stop
command. Command: W<password>,002,000
Example:
SMS sent: W000000,002,000
SMS received: Set Timer Ok/000
EDW-310 will stop automatic timed report
For more detailed SMS commands please go to Chapter 8 - SMS Command List
5.2 GP
RS Settings by SMS
Tracking via GPRS, you should set IP, Port and APN for EDW-310.
Ensure that your SIM card in EDW-310 supports GPRS connection prior to setting.
5.2.1 Set ID for EDW-310
Command: W<password>,010,ID
Note: Tracker ID must not over 14 digits.
Example: W000000,010,123456789
EDW-310 will then reply with an SMS (‘Set SIM Ok/123456789’) to confirm this
setting.
5.2.2 Set APN
Command: W<password>,011,APN,A
PN Name,APN Password
Note: If no APN name and password required, input APN only.
Example: W000000,011,CMNET
EDW-310 will reply with an SMS (like ‘Set APN Ok/CMNET’) to confirm this
setting.
5.2.3 Set IP Address and Port
Command: W<password>,012,IP,PORT
Example: W000000,012,202.116.11.12,8000
EDW-310 will then reply an SMS (‘Set IP Ok /202.116.11.12,8000’) to confirm this
setting.
5.2.4 Set Time Interval for Sending GPRS
Packet
Command: W<password>,014,time interval(in unit of 10 seconds) (MOVE Mode: vibration )
Example: W000000,014,00003
EDW-310 will send GPRS packet every 30 seconds in Move mode(vibration)
Command: W<password>,114,time interval(in unit of 10 seconds)
(PARK Mode: no vibration )
Example: W000000,114,00012
EDW-310 will send GPRS p
acket every 120 seconds in Park mode(no
vibration)
W000000,014,00000 is “STOP GPRS”
- 9 -
For more information regarding of bulk configuration by USB cable please refer to < GPS Tracker
Parameter Editor>.
For more information regarding GPRS settings please refer to <GPRS Communication Protocol >.
If you are using GpsGate Software, please contact us for writing GpsGate protocol before
delivery.
- 10 -
6 Tracking on Map
Download Google Earth from
http://earth.google.com/
Start the Google Earth (For more information about Google Earth please refer to http://earth.google.com/)
as the following picture shows:
Input the latitude and longitude that you receive from the tracker by SMS and click the search button.
Google Earth will display the location for you.
Example:
When you receive:
Latitude = 22 32 40.05N
Longitude = 114 04 57.74E
Type as the following picture shows:
(Note: you should input the latitude and longitude as: 22 32 40.05N 114 04 57.74E)
Now you can find the location of your tracker:
- 11 -
Or you can start the Internet Explorer and connect to http://maps.google.com for displaying the location.
Or you can use local map software on PDA or car navigation device to input the coordinates.
7 Troubleshooting
Problem: Unit will not turn on
Possible Cause: Resolution:
Wiring was not connected properly Check and make sure wiring connection is in order.
Battery needs charging Recharge battery
Problem: Unit will not respond to SMS
Possible Cause: Resolution:
GSM antenna was not installed properly Make EDW-310 connected to GSM network.
GSM Network is slow Wait for SMS. Some GSM networks slow down during
peak time or when they have equipment problems.
Unit is sleeping Cancel sleeping mode
Wrong password in your SMS or wrong SMS format Write correct password or SMS format
The SIM in EDW-310 has run out of credit
Replace or top up the SIM card
No SIM card Insert working SIM card. Check in phone that the SIM
can send SMS message.
SIM card has expired Check in phone that the SIM can send SMS
message. Replace SIM card if needed.
SIM has PIN code set Remove PIN code by inserting SIM in you phone and
deleting the code.
SIM is warped or damaged Inspect SIM, clean the contacts. If re-inserting does
not help try another to see if it will work.
Roaming not enabled If you are in a different country your SIM account
must have roaming enabled.
Problem: SMS received starts with ‘Last…’
Possible Cause: Resolution:
Unit does not have clear view of the sky Move the antenna of the unit to a location where the
- 12 -
sky is visible.
EDW-310 is in an inner place
Wait for the target to come out
Battery is low Recharge the unit and the GPS will start working.
8 SMS Command List
(Remarks: ****** is user’s password, and the default password is 000000)
Description Command Remarks
Get current location
W******,000 Get current location of EDW-310
Change user’s password
W******,001,###### ****** is old password
###### is new password
Set interval for automatic
timed report
W******,002,XXX XXX is the interval in minute. If
XXX=000 it will stop tracking
Set preset phone number
for SOS button
W******,003,F,P,T F=0, to turn off this function;
F=1, to send SMS;
As SOS button is linked to IN1, P=1.
T: Preset phone number. Max 16 digits
Set low power alert
When EDW-310 voltage
is lower than the preset
value, it will send one low
power alert to the SOS
preset number.
W******,004,X X (voltage preset value)
=0 , to turn off this function
=1, <3.3V send SMS alert
=2 , <3.4V send SMS alert
=3 , <3.5V send SMS alert (default )
=4 , <3.6V send SMS alert
=5 , <3.7V send SMS alert
Set over speed alert When
EDW-310 speeds higher
than the preset value, it
will send an SMS to the
SOS preset number.
W******,005,XX XX (the preset value of speed)
=00 , to turn off this function
=[01, 20] (unit: 10Km/h)
For example, W000000,005,08, it will
sent alert
when it is over 80Km/h
Set Geo-fence alert
When the EDW-310 moves
out of preset scope, it will
send one Geo-fence SMS
to the SOS pres
et number.
W******,006,XX XX ( preset distance to original place )
=00, close
=01, 30m
=02, 50m
=03, 100m
=04, 200m
=05, 300m
=06, 500m
=07, 1000m
=08, 2000m
- 13 -
Extend Settings
W******,008,ABCDEFG###
A=0, turn off the function of sending an
SMS location report to the authorized
phone number when it makes a call to
EDW-310.
A=1, turn on the function of s
ending an
SMS location report to the authorized
phone number when it makes a call to
EDW-310.
B=0, location data of NMEA 0183
GPRMC will be interpreted into normal
text for easy reading.
For example:
Longitude = 114 degree - 04 cent
-57.74 second
Latitude = 22 degree -32 cent -40.05
second
B=1, location data complies with NMEA
0183 GPRMC protocol.
For example:
$GPRMC,072414.000,V,3114.3763,N,
12131.3255,E,0.00,0.00,050805,*00 C=0,
turn off the function to
automatically hang up an incoming call.
C=1, turn on the function to
automatically hang up an incoming call
after 4 - 5 rings.
D=0, Turn off the function of sending an
SMS when EDW-310 is turned on.
D=1, Turn on the function of sending an
SMS to SOS number when EDW-310
is turned on.
E=0, reserved
E=1, EDW-310 shuts down
automatically when the power voltage
lower than 3V. F=0, Turn off the alert
when EDW-310 enters GPS blind area.
F=1, Turn on the alert when EDW-310
enters GPS blind area. SMS is to be
sent to SOS number
G=0, LED light works normally
G=1, LED light stops flashing when
EDW-310 working.
### is the ending character
(default value is: ABCDEFG=1000100 )
- 14 -
Presetting by SMS for GPRS tracking (Ensure that your SIM card supports GPRS connection prior to setting)
Set ID for EDW-310
W******,010,ID Tracker ID must not over 14 digits.
Set APN W******,011,APN,APNName,APN
Password
If no APN name and password
required, just insert APN only;
APN defaulted as ‘CMNET’;
APN + APN name + password not over
39 characters.
Set IP Address and Port W******,012,IP, Port IP: xxx.xxx.xxx.xxx Port: [1,65534]
Set Time Interval for
Sending GPRS Packet
MOVE Mode: vibration
W******,014,XXXXX XXXXX should be in five digitals and in
unit of 10 seconds.
XXXXX=00000, to close this function;
XXXXX=00001~65535, time interval for
sending GPRS packet and in unit of 10
seconds.
Set Time Interval for
Sending GPRS Packet
PARK Mode:
no vibration
W******,114,XXXXX XXXXX should be in five digitals and in
unit of 10 seconds.
XXXXX=00000, to close this function;
XXXXX=00001~65535, time interval for
sending GPRS packet and in unit of 10
seconds.
For more information regarding GPRS settings please refer to <GPRS Communication Protocol>
Output Control
W******,020,P,F P =1, Out1
=2, Out2
=3, Out3
=4, Out4
=5, Out5
F =0, to close the output
=1, to open the output
Output Control (Safe
mode)-------------
This function is achievable
wh
en the speed is below
10km/h and GPS is
available.
W******,120,ABCDE ABCDE represents Out1, Out2, Out3,
Out4, and Ou
t5 respectively.
If A or B or C or D or E,
=0, to close the output
=1, to open the output
=2, to remain previous status
Set phone number for
wiretapping
W******,030,T T is the telephone number for
wiretapping and max. 16 digits
Set time zone difference
W******,40,FTT F: ‘+’ or ‘-‘
TT: time zone difference (unit: hour)
example, w000000,040,-08
- 15 -
Loading...
