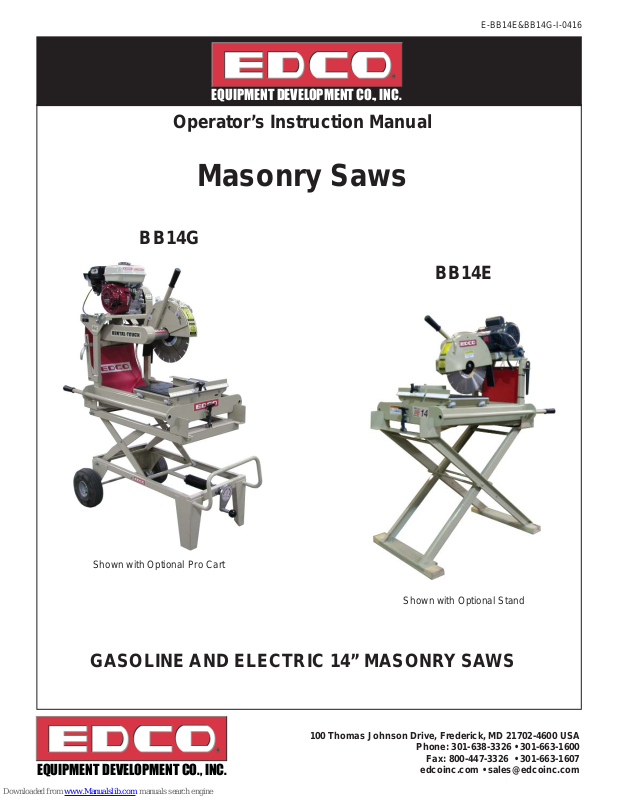

Page 1
Operator’s Instruction Manual
BB14G
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Masonry Saws
BB14E
Shown with Optional Pro Cart
GASOLINE AND ELECTRIC 14” MASONRY SAWS
EQUIPMENT DEVELOPMENT CO., INC.
Shown with Optional Stand
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: 301-638-3326 • 301-663-1600
Fax: 800-447-3326 • 301-663-1607
edcoinc.com • [email protected]
Page 2
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
SAFETY
MESSAGES
• Safety Instructions are proceeded by a graphic alert symbol
of DANGER, WARNING, or CAUTION.
GASOLINE/PROPANE POWERED EQUIPMENT
ous. It should only be dispensed in well ventilated
areas, and with a cool engine.
• Small gasoline engines produce high concentra tions of carbon monoxide (CO) example: a 5 HP 4
cycle engine operation in an enclosed 100,000
cu. ft. area with only one change of air per hour is capable of
providing deadly concenrations of CO in less than fi fteen min-
utes. Five changes of air in the same area will produce noxious
fumes in less than 30 minutes. Gasoline or propane powered
quipment should not be used in enclosed or partially enclosed
areas. Symptoms of CO poisoning include, headache,
nausea, weakness, dizziness, visual problems and loss of
conscious ness. If symptoms occur get into fresh air and
seek medical attention immediately.
ELECTRICAL POWERED EQUIPMENT
Extreme care must be taken when operating electric
models with water present: Ensure power cord is properly grounded, is attached to a Ground-Fault-Interrupter
(GFI) outlet, and is undamaged.
• Check all electrical cables - be sure connections are tight and
cable is continuous and in good condition. Be sure cable is
correctly rated for both the operating current and voltage of
this equipment.
• Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with qualifi ed electri-
cian or service person if there is any doubt as to whether the
outlet is properly grounded. Adhere to all local codes and
ordinances.
• NOTE: In the event of a malfunction or breakdown, grounding
provides a path of least resistance for the electric current to
dissipate. The motor is equipped with a grounded plug and
must be connected to an outlet that is properly installed and
properly grounded. DO NOT modify the plug provided on the
motor. If the plug does not fi t the outlet have a qualifi ed elec-
trician install the proper receptacle.
• Switch motor OFF before disconnecting power.
SAFETY MESSAGES
Indicates an imminent hazard which, if not
avoided, will result in death or serious injury.
Indicates an imminent hazard which, if not avoided, can result in death or serious injury.
Indicates hazards which, if not avoided, could
result in serious injury and or damage to the
equipment.
• Engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
• Gasoline is extremely fl ammable and poison-
• Do not disconnect power by pulling cord. To disconnect, grasp
the plug, not the cord.
• Unplug power cord at the machine when not in use and before
servicing.
GENERAL INSTRUCTIONS
• Equipment should only be operated by trained personnel in
good physical condition and mental health (not fatigued). The
operator and maintenance personnel must be physically able
to handle the bulk weight and power of this equipment.
• This is a one person tool. Maintain a safe operating distance
to other personnel. It is the operators’ responsibility to keep
other people (workers, pedestrians, bystanders, etc.) away
during operation. Block off the work area in all directions with
roping, safety netting, etc. for a safe distance. Failure to do so
may result in others being injured by fl ying debris or exposing
them to harmful dust and noise.
• This equipment is intended for commercial use only.
• For the operator’s safety and the safety of others, always keep
all guards in place during operation.
• Never let equipment run unattended.
• Personal Protection Equipment and proper safety attire must
be worn when operating this machinery. The operator must
wear approved safety equipment appropriate for the job such
as hard hat and safety shoes when conditions require. Hearing protection MUST be used (operational noise levels of this
equipment may exceed 85dBA). Eye protection MUST be worn
at all times.
Keep body parts and loose clothing away from moving
parts. Failure to do so could result in dismemberment
or death.
• Do not modify the machine.
• Stop motor/engine when adjusting or servicing this equipment.
Maintain a safe operating distance from fl ammable
materials. Sparks from the cutting-action of this machine
can ignite fl ammable materials or vapors.
DUST WARNING
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains chemicals known to cause cancer,
birth defects, or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints, and
• Crystalline silica from bricks and concrete and other
masonry products.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your risk:
work in a well ventilated area, use a dust control system, such
as an industrial-style vacuum, and wear approved personal
safety equipment, such as a dust/particle respirator designed
to fi lter out microscopic particles.
Page 2
800-638-3326 • edcoinc.com • [email protected]
Page 3
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
Table of Contents
Section Page Number
Safety/Warnings .........................................................................................................................................2
Specifi cations/Table of Contents ................................................................................................................3
Operator Controls ....................................................................................................................................4-5
Safety Guidelines .. ....................................................................................................................................6
Operating Instructions ...........................................................................................................................7-11
Maintenance ........................................................................................................................................12-14
Maintenance Schedule .............................................................................................................................15
Notes ...................................................................................................................................................16-17
SMI Dust and Silica Warning ....................................................................................................................18
Limited Equipment Warranty ....................................................................................................................19
E-SPTS-I-0809
BB14G
Height
Length
Width
Both models shown with optional stands
HOW TO ORDER REPAIR PARTS
T o insure product safety and reliability , always
use genuine EDCO replacement parts when
making repairs to the equipment.
When ordering parts, please specify the MODEL and SERIAL NUMBER of the machine as
given on the NAMEPLATE. In addition, give
part number, description and quantity as listed
in the parts list.
Please note: Due to improvements and
changes in the equipment the illustrations
shown may be different from the actual machine.
Toll Free: Voice 1-800-638-3326
Fax 1-800-447-3326
Figure 1
Model
Height
Width
Length
Weight
BB14E
Width
Length
Height
Specifi cations and dimensions are approximate
and subject to change.
BB14E
31.5”
80cm
25”
63.5cm
42 1/4”
107.8cm
165 lbs
74.8kg
BB14G
37”
94cm
25”
63.5cm
43”
109cm
175 lbs
79.4kg
800-638-3326 • edcoinc.com • [email protected]
Page 3
Page 4
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
Operator Controls - Gas Models
BB14 Gas (Figure 2)
A Air Filter
B. Fuel Tank
C. On/Off Switch
D. Water Pump Belt Guard
E. Oil Dip Stick
F. Handle
G. Blade Guard
H. Water Tray Plug
I. Rolling Table
J. Angle Cutting Stop
K. Welded Steel Frame/Water Tray
L. Drive Belt Guard
M. Cutting Head Lock
N. Engine Throttle
O. Recoil Starter
P. Optional Pro Cart
B CDE
A
O
N
L
M
K
P
Figure 2
F
G
H
J
I
Do not operate gasoline powered equipment
Page 4
800-638-3326 • edcoinc.com • [email protected]
without adequate ventilation.
Carbon monoxide is an invisible,
odorless gas that can kill.
Figure 3
Page 5
G L
M
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
J
EQUIPMENT DEVELOPMENT CO., INC.
Operator Controls- Electric Models
I
A
K
J
C
B
D
N
E
H
F
BB14 Electric (Figure 4)
A. Operating Handle
B. Motor
C. Reset Button
D. Power Cord
E. Water Pick Up Hose
F. Water Tray Plug
G. Rolling Table
H. Welded Steel Frame/Water Tray
I. Blade Guard
J. Drive Belt Guard
K. Blade Guard Lock
L. Cutting Angle Lock
M. Optional Folding Table
N. Submersible Water Pump
Figure 4
Electric motor must be properly grounded
at all times.
Figure 5
800-638-3326 • edcoinc.com • [email protected]
Page 5
Page 6
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
Read and understand this Operator’s Instruction Manual,
and the Engine Manufacturer’s Owner’s Manual
before operating this equipment.
Death of serious injury can result if this machine is used improperly.
Safety Guidelines
Eye and ear protection must be worn at all times while the saw is in use. During normal operation, sound
pressure levels exceed 85dBA. Use only ANSI approved safety glasses to help prevent eye injury. Standard
eyeglasses have only impact resistant lenses; they are NOT safety glasses.
Operator must wear appropriate clothing and footwear. Do not wear loose clothing or jewelry that can
get tangled in moving parts. Footwear should provide sure footing and protection from debris that may be
dropped. Take steps to insure hair will not be caught in moving parts. If necessary, tie it back.
• When loading or unloading the saw, use caution. Make sure rolling table is locked so that the blade will not
be damaged. Do not move the saw while the engine is running.
• Never exceed the maximum operating speed of the blade. Match the blade speed rating with the arbor shaft
speed. (See page 11)
• Never leave the saw running unattended.
• Never operate this saw under the infl uence of drugs, alcohol or when taking medications that impair the senses or
reactions, or when excessively tired or under stress.
• Do not lend or rent this equipment without including the Operator’s Instruction Manual and the Engine Manufac turer’s Manual.
• Make sure all safety decals can be clearly read and understood. Replace damaged or missing decals immeditely.
For Electric Models:
• Electric motor must be properly grounded at all times. Check the outlet box to be sure the electrical service is
properly grounded and that adequate power is available. Insuffi cient power will cause motor to overheat and burn
out. Use only grounded extension cords correctly sized for the current draw and voltage drop (amp rating and
length). Never use frayed, damaged, taped or under rated extension cords. Electrical shock could result in death
or serious injury and damage to the equipment.
For Gasoline Models:
• Poisonous exhaust gas. Do not operate gasoline powered equipment without adequate ventilation. Carbon
monoxide is an invisible, odorless gas that can kill. NEVER REFUEL AN ENGINE WHILE IT IS HOT OR AN
ENGINE WHILE IT IS RUNNING. Only refuel in a well-ventilated area and only refuel after the engine has cooled
completely. Thoroughly cleanup any spilled fuel before starting the engine.
Dry cutting creates a large volume of airborne dust. For health reasons, the operator should wear an
applicable respirator. The dust may contain chemicals known to cause serious illnesses, including
Silicosis - a fatal disease of the lungs. Check the chemical properties of the material to be cut and
follow all EPA/OSHA regulations.
Safety warnings and guidelines do not by themselves eliminate danger.
They are not substitutes for proper accident prevention procedures and good judgement.
Page 6
800-638-3326 • edcoinc.com • [email protected]
Page 7
EQUIPMENT DEVELOPMENT CO., INC.
Operating Instructions
Before Starting:
• Read and understand the instructions supplied by the engine manufacturer.
• Familiarize yourself with all engine and saw controls. (Figure 2)
• Visually inspect the entire machine for damage or wear. Look for signs of oil or fuel leaks.
Remove excess dirt or debris. Check that all nuts, bolts and screws are tight. Check for
proper alignment of moving parts, possible binding of moving parts, breakage of parts,
loose mounting brackets, and any other condition that might affect operation.
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
• Inspect diamond blade and arbor shaft. Check blades for cracks, loose segments,
worn or out-of-round arbor holes. Do not use warped, twisted, out-of-balance blades
or any blade of questionable condition. Refer to Rx for Diamond Blades.
• Install back splash shield (Figure 6 and 7).
Figure 6
On Gasoline Models:
• Gasoline models are shipped from the factory dry, meaning without oil or gasoline.
Both will need to be added before the unit is used. Check the Engine Manufacturer’s
Owner’s Manual for instructions on break-in, servicing and proper use of engine.
• Check engine oil. Make sure that it is at the proper level and that it is clean.
Note: Some engines have an Oil Alert System that will automatically stop the engine before the oil level falls below
the safe limit. To avoid an unexpected shut down, check the oil level regularly during operation.
• Check the fuel level. Do not over fi ll fuel tank and never refuel a hot engine. If refueling is necessary during
operation, allow engine to cool down fi rst.
Figure 7
On Electric Models:
• Electric masonry saws are shipped with a grounded, male plug attached to the machine. Verify that any extension
cord that is used is sized appropriately for the electrical load and that it is properly grounded. Use only 3 wire
(single phase), grounded electrical cables that are marked U.L. and/or C.S.A. approved.
• Inspect the power and extension cords for damage. Do not use if either cord is frayed or
showing signs of wear.
• Identify the electrical power requirements of the saw. The voltage requirements of the motor can be found on the
motor data plate.
• Verify that the power switch is in the off position before plugging machine into the power source.
800-638-3326 • edcoinc.com • [email protected]
Page 7
Page 8
E-BB14E&BB14G-I-0416
On Gasoline models only
Black knob
EQUIPMENT DEVELOPMENT CO., INC.
When Wet Cutting:
• Secure the drain plug and fi ll the tray with clean water.
On Gasoline Models:
• To engage water pump loosen the black knob and
lightly push top of water pump to the left with
constant pressure and tighten black knob.
(Figure 9 & 12)
• Prime the pump using the priming bulb. Pump the
bulb until water fi lls the clear plastic coolant hose
from the tray to the pump.
On Electric Models:
On Gasoline models only
• Plug submersible pump into the special outlet on the
motor (circled). (Figure 10)
This outlet is intended for the water
pump only pictured in (Figure 11).
Do not use it for any other purpose.
Shows BB14E Water Pump Outlet
Figure 10
Black knob
Figure 9
• To engage water pump loosen the black knob and lightly
push top of water pump to the left with constant pressure
and tighten black knob. (Figures 9 & 12) Use the priming
bulb shown in
On All Models:
• The water in the tray must be kept clean. Running dirty
water through the system will cause damage.
(Figure 13)
DO NOT LET THE
WATER PUMP RUN DRY.
to prime the water pump.
Figure 11
Page 8
800-638-3326 • edcoinc.com • [email protected]
• To change the water, turn off the saw, remove the plug
in the bottom of the tray to drain water and dispose of
properly. Do not drain onto the surface being worked on
or other maintained surface because staining will occur.
Flush any loose grit and dirt out of the tray. Replace
drain plug and refi ll with clean water. If water fl ow to the
blade seems to be low, check that strainer is clean and
the water pump pulley is properly engaged.
Page 9
EQUIPMENT DEVELOPMENT CO., INC.
On Gasoline models only
Black knob
When Dry Cutting:
• Drain and fl ush any water or debris in the tray and
dispose of properly.
On Gasoline models:
• To disengage water pump loosen the black knob and
push top of water pump to the right with constant
pressure and tighten black knob. (Figures 9 & 12)
On Electric Models:
• Unplug the submersible pump from the water pump
outlet on the motor.
E-BB14E&BB14G-I-0416
On Gasoline models only
E-SPTS-I-0809
Blank
Figure 13
Be careful when draining water
from tray and dispose of waste
away from work area.
Black knob
Figure 12
• To disengage water pump loosen the black knob and
push top of water pump to the right with constant
pressure and tighten black knob (Figures 9 & 12).
DO NOT LET THE
WATER PUMP RUN DRY.
Blade
Cover
Lock
Knob
Draining the water directly to the ground will
cause a potentially serious working hazard including, but not limited to, risk from electric shock if
using an electric motor.
800-638-3326 • edcoinc.com • [email protected]
Figure 14 (BB14E)
Page 9
Page 10
E-BB14E&BB14G-I-0416
Throttle
EQUIPMENT DEVELOPMENT CO., INC.
Starting the Engine:
• Be sure blade is clear of item to be cut.
• Determine that the recoil starter assembly turns freely, starter rope pulls easily, and the rope retracts properly.
• Follow the instructions supplied in the Engine Manufacturer’s Owner’s Manual for starting engine.
• Open the throttle and allow engine to reach operating temperature. Open throttle fully , do not use the throttle as a means
to match the arbor shaft speed to the specifi ed blade speed requirements.
Be certain to use the proper blade for the machine.
Note: To ensure that the necessary power is transferred to the blade, all cutting must be done at full throttle. The gov-
ernor is factory set for correct speed - altering this setting may damage the machine. Maintain the engine
according to factory specifi cations.
Throttle
Figure 15 (BB14G)
Starting the Electric Motor:
REMINDER: Motor burnout due to use of improper voltage will void the warranty on the motor.
• Be sure blade is clear of the item to be cut.
• Turn on the motor.
• Listen for motor to reach operating speed. Do not use if motor hums or does not reach operating speed within a
few seconds. Motor hum may indicate a malfunction due to:
- Job site voltage may be too low.
- An Internal motor problem.
- The blade may be jammed.
or
- The belts may be too tight.
Page 10
800-638-3326 • edcoinc.com • [email protected]
Page 11
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Cutting:
• Do not strain the engine/motor while cutting. Do not jam work piece into the blade. Do not twist the work piece
while cutting.
• When you have fi nished cutting:
On Gasoline models: To stop engine, return throttle to idle. Stop the engine by turning the engine mounted stop
switch to the OFF position. Do not leave the saw running unattended.
On electric models: Turn the power switch to OFF. Wait until saw comes to a complete stop before performing
any type of maintenance.
• Clean dust and debris from machine.
IMPORTANT:
• When actually cutting masonry products, it is important that the blade is at it’s maximum RPM. DO NOT force or
jam the blade. Forcing the blade will cause the motor to overheat, tripping the overload device or severe motor
damage.
• Do not reach underneath or around work piece while the blade is rotating.
• Keep stable footing at all times while cutting.
• Keep hair, clothing, fi ngers and all body parts away from the blade and any other
moving parts.
Model
BB14E
BB14G
Diameter
Blade
14 inches
14 inches
Arbor Shaft
Rating
2600 RPM
2600 RPM
Figure 17
Max.
Cutting Depth
5 inches
5 inches
Possible Diamond Blade Problems
Segment Loss:
Usually insufficient
water
Blade not properly tightened
800-638-3326 • edcoinc.com • [email protected]
Arbor Hole
Out-Of-Round
or seated on arbor.
Cracked Segments
and/or Core
Wrong Blade for the job.
Blade Will Not Cut:
Blade is glazed or
to hard for the job.
Page 11
Page 12
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
Disconnect spark plug lead before performing
any maintenance on this machine.
Maintenance
Consult the Engine Manufacturer’s Owner’s Manual for more detailed engine maintenance instructions.
Changing the Blade:
• Inspect the new blade thoroughly before installing. Check for cracks, loose or missing segments, worn or out-of-
round arbor holes. Refer to the Rx for Diamond Blades pamphlet provided with your blade for more detailed
information on inspecting blades. Be sure the blade is appropriate for the job and matches the arbor speed and
mounting confi guration on this saw. (Figure 17)
Figure 18
• Push the rolling table all the way to the back of the machine.
• Blade guard should be rotated all the way up and tightened into place.
• Remove blade cap and bolt. Carefully remove old blade.
• Inspect arbor shaft, backing plate and blade guard while blade is off.
Clean if dirty or replace if damaged or worn.
• Look for “direction of rotation” markings on the blade. (Usually an arrow
stamped on the blade.)
• Place new blade on the arbor shaft verifying that once installed the
markings on the blade follow the proper direction of rotation.
• R einstall and tighten bolt (Figure 18) using a SAE 3/4” wrench. Reinstall blade cap.
• Reposition blade guard and tighten. Reconnect spark plug lead. (if applicable)
Page 12
800-638-3326 • edcoinc.com • [email protected]
Page 13
E-BB14E&BB14G-I-0416
Figure 19)
Drive Belt
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Belt Adjustment and Replacement:
• Periodically check belt(s) for damage, same type and are at the proper tension. Do not mix belts. Slipping belt(s) will
overheat causing the cutting speed to be limited and shorten the life of the belts. Over-tensioned belts will shorten the
life of the belt(s) and bearings.
• On new equipment and after installing new belt(s) of the same type, be certain to re-tension the belt(s) after the
fi rst 4 hours of use. New belts are stiff and require a break in period. Belts that are loose could slip and/or over-
heat.
• Damaged, stretched or excessively worn belt(s) should be replaced with a new complete set of belt(s) of the same
type. Do not mix belts.
Important!
• Belt(s) must be replaced with the same type.
• Blade must be realigned every time the belt(s) are tensioned, gas model only.
On Gasoline Models:
• Access belt from back of machine.
• Remove two (2) cap screws from both sides of the
belt guard as circled in photo to right (
Lift off belt cover, Water pump drive wheel and belt
are now accessible.
• To change drive belt (Figure 20), loosen engine mount bolts
and belt tensioner, tilt engine torward water pump
until belt can be removed.
Figure 19).
On Electric Models:
NOTE: Due to machine improvements
pictures may not show your particular
machine. The instructions however are the
same.
• Loosen motor mounts (4)
(Figure 21)
• Loosen jacking bolt until belts
slide off sheave. (Figure 22)
Figure 19
Water
Pump
Wheel
Drive Belt
Figure 20
• Replace with a new complete
set of belts of same type. Do
not mix belt types.
• Adjust jacking bolt to tension belts.
• Square motor to frame.
• Retighten motor mount bolts.
800-638-3326 • edcoinc.com • [email protected]
Figure 21
Motor
Mount
Bolts
Jacking
Bolt
Figure 22
Page 13
Page 14
E-BB14E&BB14G-I-0416
Grease Fittings
Figure 23
EQUIPMENT DEVELOPMENT CO., INC.
Grease Bearings:
• Drive shaft bearings must be greased every 4 hours.
(All are not visible in this photo)
• Electric Motor - if your motor has a grease fi tting, grease every
3600 hours. Use Exxon Mobil Polyrex EM. Don not over grease.
Apply 1 pump slowly taking a minute to apply. Too much grease
can cause premature bearing failure.
Change Engine Oil:
• Check Engine Oil before each operation. Open the fi ller cap and
look at the dip stick. (Figure 24) Oil should be clearly visable both
on the stick and in the cavity and should look fairly clean. Running
the machine on dirty oil or when the oil is low will result in damage
to the engine.
Dip Stick
Figure 24
Figure 25
• Change the Engine Oil after every 50 hours of operation or sooner
as conditions require. Refer to the Engine Manufacturer’s Owner’s
Manual for specifi c viscosity recommendations and changing
instructions.
Inspect and Clean Air Filter:
(FIgure 25 shows Honda Cyclone Dual Filter style element).
• Refer to the Engine Manufacturer’s Owner’s Manual for instructions
on specifi c models.
• Check air fi lter at least once daily.
• Dirt build up on the fi lter will cause excessive engine wear.
Clean and Lubricate Wheels on Rolling Table:
• During daily visual inspection, check to be sure the wheels on
both sides of the rolling table move smoothly and that there is no
debris in the wheel groove. (Circled) (Figure 26)
Figure 26
Page 14
800-638-3326 • edcoinc.com • [email protected]
• Lubricate the wheels as necessary.
• Replace damaged or worn wheels.
Note: If rolling table fails to roll smoothly loosen the 3 nuts on the left
hand side of the table (operator’s position) and re-align wheel rails.
Re-tighten
Page 15
EQUIPMENT DEVELOPMENT CO., INC.
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
Repairs are to be preformed
by EDCO or by approved
EDCO repair technicians.
Visually Inspect Entire
Machine and Hardware
Check Engine Oil*
Inspect Blade and
Arbor Shaft
Inspect Guards
Clean Air Filter
Element*
Maintenance Schedule
Before
each
Operation
X
X
X
Daily Every 4
Hours
X
X
Every 50
Hours of
Operation
Read and follow all instructions
in the Engine Manufacturer’s
Owner’s Manual.
As
Required
Annually Every 3600
Hours
Clean Dust and
Dirt Off Machine
Change Engine Oil*
Inspect Belts
Belt Tensioning
Lubricate Wheels
on Rolling Table
Replace Spark Plug*
Clean Water Strainer
Grease Bearing
Motor Bearing
if fi tting available
X
X
NEW
X
X
X
X
X
X
X
800-638-3326 • edcoinc.com • [email protected]
*Gasoline Models Only
Page 15
Page 16
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
NOTES
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
Page 16
800-638-3326 • edcoinc.com • [email protected]
This page intentionally left blank.
Page 17
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
NOTES
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
800-638-3326 • edcoinc.com • [email protected]
This page intentionally left blank.
Page 17
Page 18
E-BB14E&BB14G-I-0416
EQUIPMENT DEVELOPMENT CO., INC.
SMI Dust and Silica Warning
Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing
chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other
reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or
the composition of the tool being used, review the material safety data sheets and/or consult your employer, the manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources on hazardous materials. California
and some other authorities, for instance, have published lists of substances known to cause cancer, reproductive toxicity,
or other harmful effects.
Control dust, mist and fumes at the source where possible. In this regard use good work practices and follow the rec-
ommendations of the manufacturers/suppliers, OSHA/NIOSH, and occupational and trade associations. Water should
be used for dust suppression when wet grinding/cutting/drilling is feasible. When the hazards from inhalation of dust,
mists and fumes cannot be eliminated, the operator and any bystanders should always wear a respirator approved by
NIOSH/MSHA for the material being used.
Grinding/cutting/drilling of masonry, concrete and other materials with silica in their composition may give off dust or mists
containing crystalline silica. Silica is a basic component of sand, quartz, brick clay , granite and numerous other minerals
and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory
diseases, including silicosis. In addition, California and some other authorities have listed respirable crystalline silica
as a substance known to cause cancer. When grinding/cutting/drilling such materials, always follow the respiratory
precautions mentioned above.
Page 18
800-638-3326 • edcoinc.com • [email protected]
Page 19
EQUIPMENT DEVELOPMENT CO., INC.
LIMITED EQUIPMENT WARRANTY OF SALE – TERMS & CONDITIONS
Equipment Development Company, Inc. herein referred to as EDCO (Seller) warrants that
each new unit manufactured by EDCO to be free from defects in material and workmanship
in normal use and service for a period of (1) one year (except for the cutter drum assembly
on all model concrete/asphalt planes, in which case the warranty period shall be 90 days)
from date of shipment to the original retail or equipment rental center owner.
Accessories or equipment furnished and installed on the product by EDCO but manufactured by
others, including, but not limited to engines, motors,electrical components, transmissions etc., shall
carry the accessory manufacturers own warranty.
EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by
EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been
defective in material or workmanship.
EDCO reserves the right to modify, alter and improve any part or parts
without incurring any obligation to replace any part or parts previously sold without such
modified, altered or improved part or parts.
This warranty is in lieu of and excludes all other warranties, expressed, implied, statutory,
or otherwise created under applicable law including, but not limited to the warranty of merchantability and the warranty of fitness for a particular purpose in no event shall seller or
the manufacturer of the product be liable for special, incidental, or consequential damages,
including loss of profits, whether or not caused by or resulting from the negligence of seller
and/or the manufacturer of the product unless specifically provided herein. In addition, this
warranty shall not apply to any products or portions there of which have been subjected to
abuse, misuse, improper installation, maintenance, or operation, electrical failure or abnormal
conditions and to products which have been tampered with, altered, modified, repaired,
reworked by anyone not approved by seller or used in any manner inconsistent with the
provisions of the above or any instructions or specifications provided with or for the product
FORCE MAJEURE
Seller’s obligation hereunder are subject to, and Seller shall not be held responsible for, any
delay or failure to make delivery of all or any part of the Product due to labor difficulties,
fires, casualties, accidents, acts of the elements, acts of God, transportation difficulties,
delays by a common carrier, inability to obtain Product, materials or components or qualified
labor sufficient to timely perform part of or all of the obligations contained in these terms
and conditions, governmental regulations or actions, strikes, damage to or destruction in
whole or part of manufacturing plant, riots, terrorist attacks or incidents, civil commotions,
warlike conditions, flood , tidal waves, typhoon, hurricane, earthquake, lightning, explosion
or any other causes, contingencies or circumstances within or without the United States not
subject to the Seller’s control which prevent or hinder the manufacture or delivery of the
Products or make the fulfillment of these terms and conditions impracticable. In the event
of the occurrence of any of the foregoing, at the option of Seller, Seller shall be excused
from the performance under these Terms and Conditions, or the performance of the Seller
shall be correspondingly extended.
This document sets forth the terms and conditions pursuant to which the purchaser (“Purchaser”) will purchase and Equipment Development Co.Inc. (“Seller”)will sell the products,
accessories, attachments (collectively the Products “) ordered by the Purchaser. These terms
and conditions shall govern and apply to the sale of Seller’s Products to Purchaser, regardless
of any terms and conditions appearing on any purchase order or other forms submitted by
Purchaser to Seller, or the inconsistency of any terms therein and herein.
1. PRICE
All prices set forth on any purchase order or other document are F .O.B. Sellers facility or distribution
point, as may be determined by Seller (F .O.B.Point). All prices are exclusive of any and all taxes,
including, but not limited to, excise, sales, use, property or transportation taxes related to the sale or
use of the Products, now or hereafter imposed, together with all penalties and expenses. Purchaser
shall be responsible for collecting and/or paying any and all such taxes, whether or not they are
stated in any invoice for the Products. Unless otherwise specified herein, all prices are exclusive
of inland transportation, freight, insurance and other costs and expenses relating to the shipment
of the Products from the F.O.B. point to Purchaser’s facility. Any prepayment by Seller of freight
insurance and other costs shall be for the account of Purchaser
and shall be repaid to Seller.
2. PAYMENT TERMS
Payment terms are as follows. 2% 10 days (to approved and qualified accounts). Net 30 days.
This is a cash discount for invoices paid within 10 days after the invoice date, regardless of date
of receipt of shipment. This is not a trade discount and will not be granted to accounts that do not
adhere to stated terms.
*All past due accounts are subject to a late payment fee of 1.5% per month or a maximum allowed
by law if different, along with the expenses incidental to collection including reasonable attorney’s
fees and costs.
*Seller reserves the right to hold shipments against past due accounts.
*Seller reserves the right to alter payment terms.
3. FREIGHT TERMS
All shipments will be made F.O.B. shipping point as designated in these T erms and Conditions, and
title shall pass at the F .O.B. point. Delivery to the initial common carrier shall constitute delivery to
the Purchaser. Any claims for loss or damage during shipment are to be filed with carrier by the
Purchaser. Seller will not assume responsibility for the performance of the carrier.
Back orders will be shipped in the most practical fashion with charges consistent with our freight
policy established with the original order. UPS, FED EX, MAIL or shipments by other couriers are
subject to the same terms and conditions as outlined in paragraph #3”Freight Terms”.
4. DELIVERY, DAMAGES, SHORTAGES
Seller shall use reasonable efforts to attempt to cause the Products to be delivered as provided for in these
T erms & Conditions. Delivery to the initial common carrier shall constitute the delivery to the Purchaser.
Sellers responsibility, in so far as transportation risks are concerned ceases upon the delivery of the
Products in good condition to such carrier at the F .O.B. point and all the Products shall be shipped at the
Purchaser’s risk. Seller shall not be responsible or liable for any loss of income and/or profits, or incidental,
special, consequential damages resulting from Seller’s delayed performance in shipment and delivery.
5. RETURN OF DEFECTIVE PRODUCTS
Defective or failed material shall be held at the Purchaser’s premises until authorization has been
granted by Seller to return or dispose of Products. Products that are to be returned for final inspection
must be returned Freight Prepaid in the most economical way. Credit will be issued for material
found to be defective upon Seller’s inspection based on prices at time of purchase.
6. PRODUCTS ORDERED IN ERROR
Products may be returned, provided that claim is made and Seller is notified within 7 days of receipt of
Products, and the Products are in original buyer’s possession not more than 30 days prior to return,
subject to Seller’s approval. If Products are accepted for return, they must be Freight Prepaid and
buyer will be charged a minimum of 15% restocking charge, plus a charge back for outbound freight
charges if the original order was shipped prepaid. Returns are not accepted for any Products that
are specifically manufactured to meet the buyer’s requirement of either specifications or quantity.
AGREEMENTS
These T erms and Conditions constitute the entire agreement between Seller and Purchaser as it relates to
terms and conditions of sale, and supersedes any and all prior oral or written agreements, correspondence,
quotations or understandings heretofore in force between the parties relating to the subject matter hereof.
There are no agreements between Seller and Purchaser with respect to the Product herein except those
specifically set forth in and made part of these terms and conditions. Any additional terms, conditions
and/or prices are rejected by Seller.
These terms and conditions may be modified, cancelled or rescinded only by a written
agreement of both parties executed by their duly authorized agents.
USE ONLY GENUINE EDCO PARTS & ACCESSORIES
For your own safety, the safety of others and the life of your machine.
E-BB14E&BB14G-I-0416
E-SPTS-I-0809
Page 19
800-638-3326 • edcoinc.com • [email protected]
Page 20
EQUIPMENT DEVELOPMENT CO., INC.
SURFACE PREPARATION, RESORATION, PROFESSIONAL
SAWING EQUIPMENT & HAND HELD TOOLS
100 THOMAS JOHNSON DRIVE, FREDERICK, MD 21702
PHONE: 800-638-3326 OR 301-663-1600
Fax: 800-447-3326 or 301-663-1607
Email: [email protected]
Website: edcoinc.com
E-SPTS-I-0809
Patents Pending & Issued
800-638-3326 • edcoinc.com • [email protected]
Created - 6, 2014
Edited - 4, 2016
Printed in USA ©2014
Loading...
