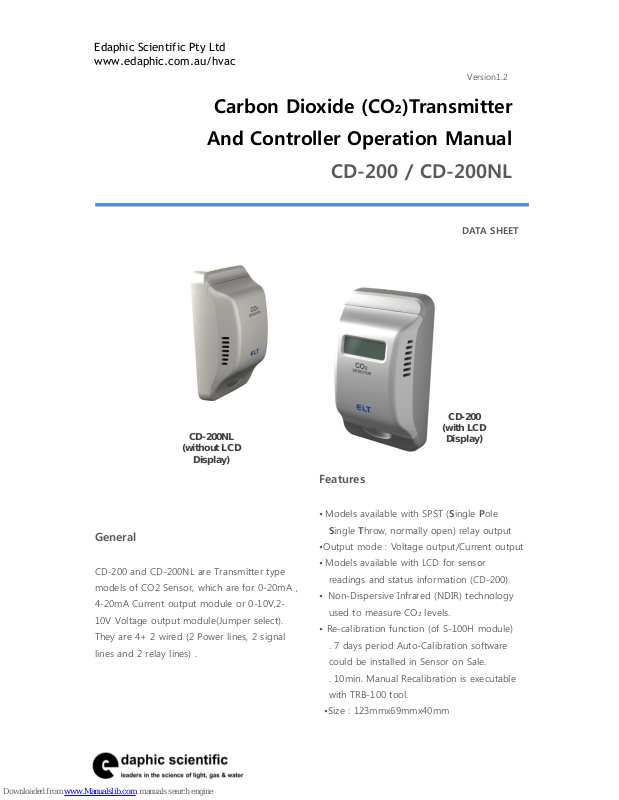

General
CD-200 and CD-200NL are Transmitter type
models of CO2 Sensor, which are for 0-20mA ,
4-20mA Current output module or 0-10V,2-
10V Voltage output module(Jumper select).
They are 4+ 2 wired (2 Power lines, 2 signal
lines and 2 relay lines) .
DATA SHEET
Features
•.Models available with SPST (Single Pole
Single Throw, normally open) relay output
•Output mode : Voltage output/Current output
•.Models available with LCD for sensor
readings and status information (CD-200).
• Non-Dispersive Infrared (NDIR) technology
used to measure CO₂ levels.
• Re-calibration function (of S-100H module)
. 7 days period Auto-Calibration software
could be installed in Sensor on Sale.
. 10min. Manual Recalibration is executable
with TRB-100 tool.
•Size : 123mmx69mmx40mm
Carbon Dioxide (CO₂)Transmitter
And Controller Operation Manual
CD-200 / CD-200NL

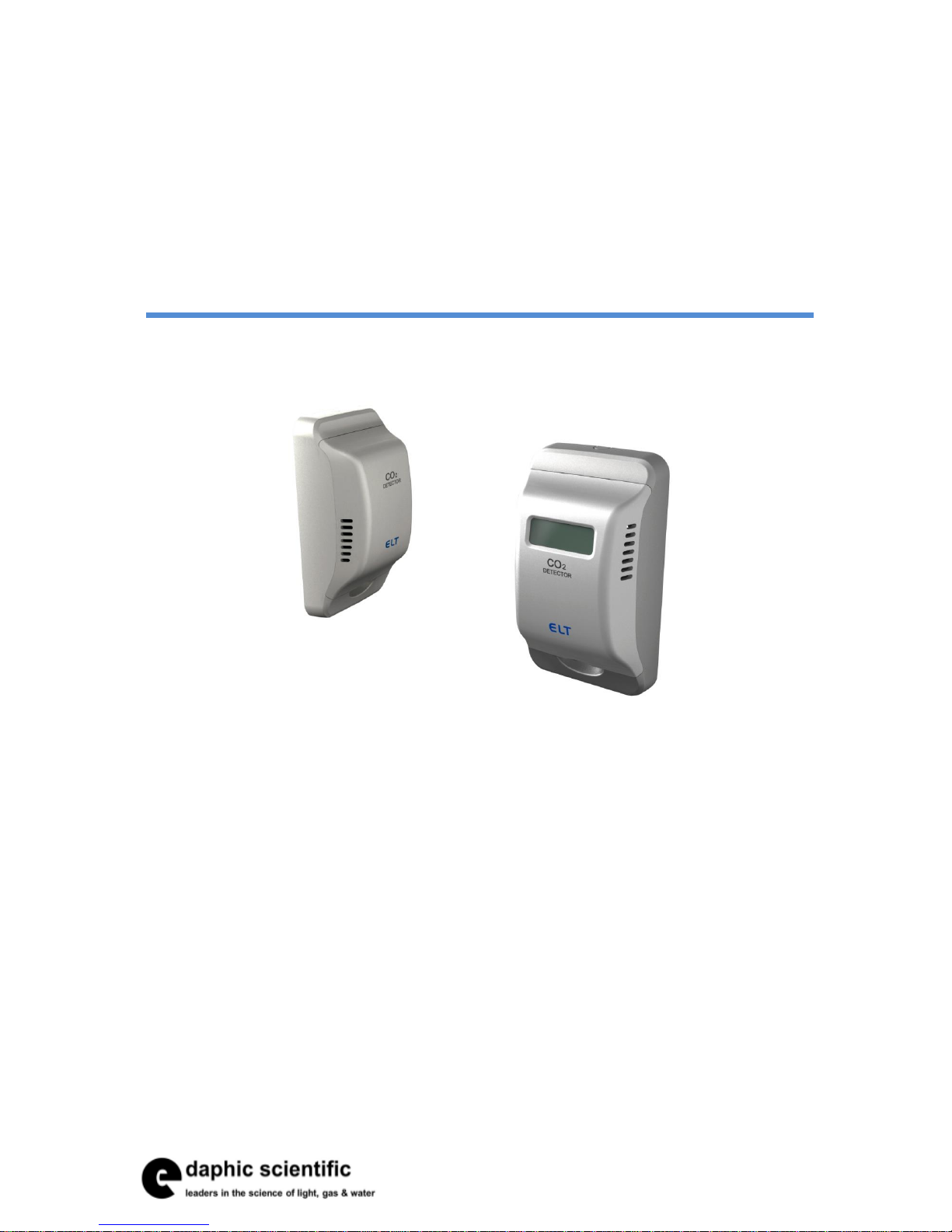

CD-200NL
(without LCD
Display)
CD-200
(with LCD
Display)
Page 2
Specifications
General Performance
Operating Temperature range
0 ~ 50℃
Operating Humidity range
0 ~ 95% RH (Non-condensing)
Storage Temperature
-20℃ ~60℃
CO₂ Measurement
Sensing Method
NDIR (Non-dispersive Infrared)
Measurement Range
0 to 5,000 / 10,000ppm (Selectable by jumper),
0 to 2,000 (Optional)
Accuracy
±30ppm ±5%
Response Time(90%)
150 seconds
Sampling Interval
3 sec.
Electrical Data
Input Power
24VAC, 24VDC± 20%, 50/60Hz
(2 Power lines)
OutputConnector
4 ~ 20mA and 2 ~ 10VDC (Default)
0 ~ 10VDCand 0 ~ 20mA
(Jumper selectable
-Voltage output or current output)
Relay Output(available for CD-200)
Contract Rating
1A/120VAC or 1A/24VDC
Configuration
SPST, Normally Open relay
Relay Activated
On ≥ 1,000ppm,
Relay Deactivated
Off ≤900ppm
Relay on signal is designed to be activated
when CO2 measured value surpass 1,000ppm
and deactivated down to 900 ppm to avoid
unwanted rapid switching by hysteresis effect.
Relay activation and deactivation point could
be changed on sale as option.
Option 1.
Relay Activated & Deactivated
On ≥ 900ppm, Off ≤800ppm

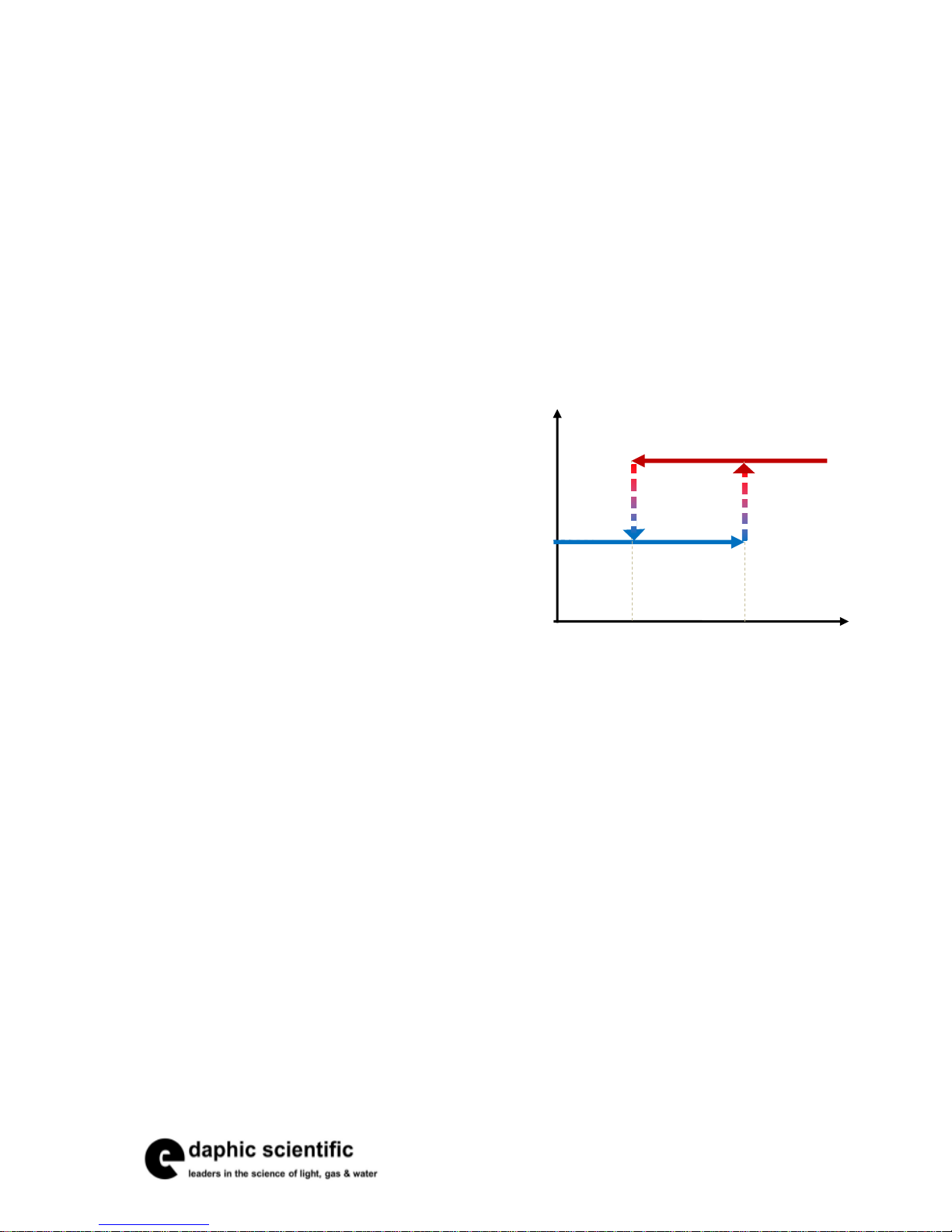

OFF
(PPM)
ON
CO2
Relay Signal
Low
900
1,000
Hysteresis
High
Edaphic Scientific Pty Ltd
www.edaphic.com.au/hvac
Page 3

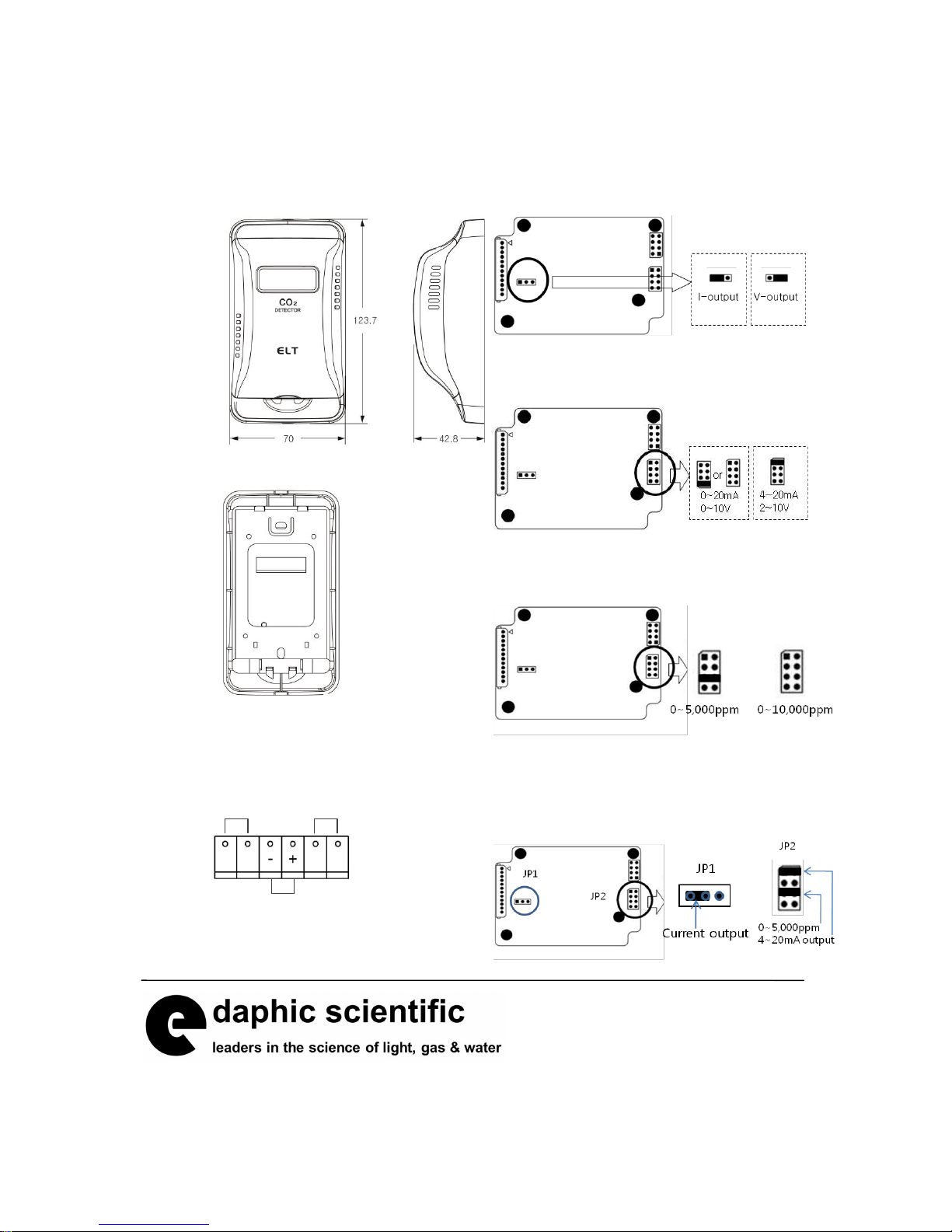

Dimensions (unit : mm)
Wiring Method
Relay Output 24V
V/mA Output
JP1 Output Selection
JP2 Output Selection
JP2 ppm range Selection
Example JP1, JP2 Selection
(For current output, 0~5,000ppm range,
4~20mA output selection)
Subject to change without notice.
2014 Edaphic Scientific. All rights reserved.
2014. April.
Edaphic Scientific Pty Ltd
www.edaphic.com.au/hvac
