Page 1
light-drive elite
Setup Manual
light-drive elite - Setup Manual
© e:cue control GmbH
An OSRAM Company
Rev. 1_06/2009www.ecue.de
Page 2
Page 3
light-drive elite - Setup Manual
table of contents
4. Using the light-drive elite ...................................................9
5.1 Technical specications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Page 4
light-drive elite - Device Overview
1. Device Overview
Light-drive
Light-drive is a new e:cue product category of devices that combine a standalone DMX controller and a user interface in a single unit. Designed to allow end-users
to setup custom light scenes and color-changing eects directly on the device,
light-drives are easy to use and require no software to setup light scenes. By
outpuing directly DMX512 protocol, light-drives can control LED xtures through a single RJ-45 connection for power and data.

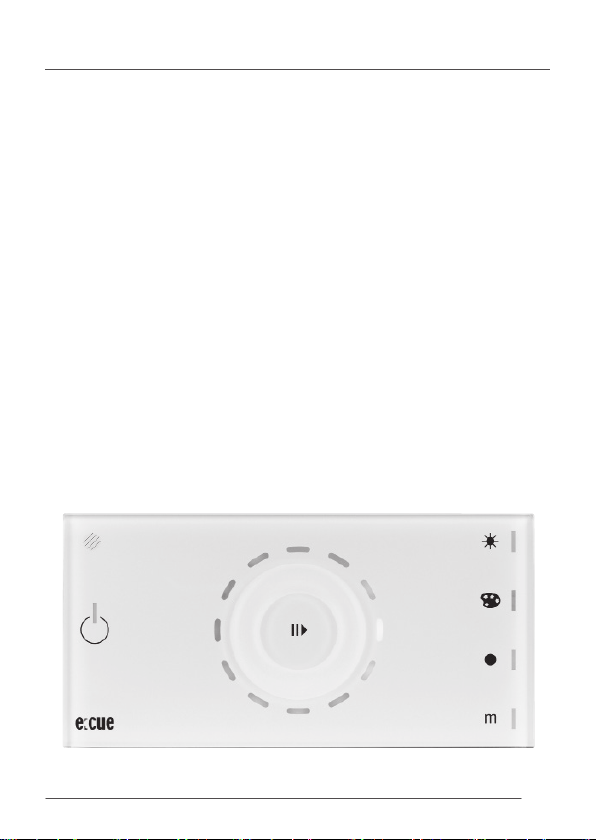

Dear valued customer,
Thank you very much for purchasing light-drive elite.
light-drive elite is a wall-mounted standalone DMX controller and interactive user interface for dynamic
lighting. End-users can easily setup color changing eects and control
lighting directly using the device.
The user interface features touch­sensitive keys and wheel with color
LEDs for intuitive selection of colors
and adjustment of intensity and speed.
Memory function allows end-users to
dene four colors for color-changing eects. It can be easily connected to LED RGB xtures through an RJ-45
connection for power and data.
The interface glassy nish is designed
for an elegant appearance as well as easy maintenance.
4
Key features
• Standalone DMX controller and user interface
• 512 channels DMX output (RGB)
• 4 mode keys to select intensity, color, white and memory mode.
• On/o key and a play/pause key
• 4 user-dened memory slots
• 5 status LEDs
• Touch wheel with 12 RGB LEDs
• Built-in IR receiver for remote
control
• Glass nish
• Ultra thin design
• Available in black or white
• Color chase on up to 12 RGB xtures / light-points with spread eect
Page 5
light-drive elite - Included in the Package
2. Included in the Package
light-drive elite
black
or
white
• this setup manual
• micro ber cloth
• hex socket screw key
• power and data merger
5
Page 6
light-drive elite - Hardware Installation
3. Hardware Installation

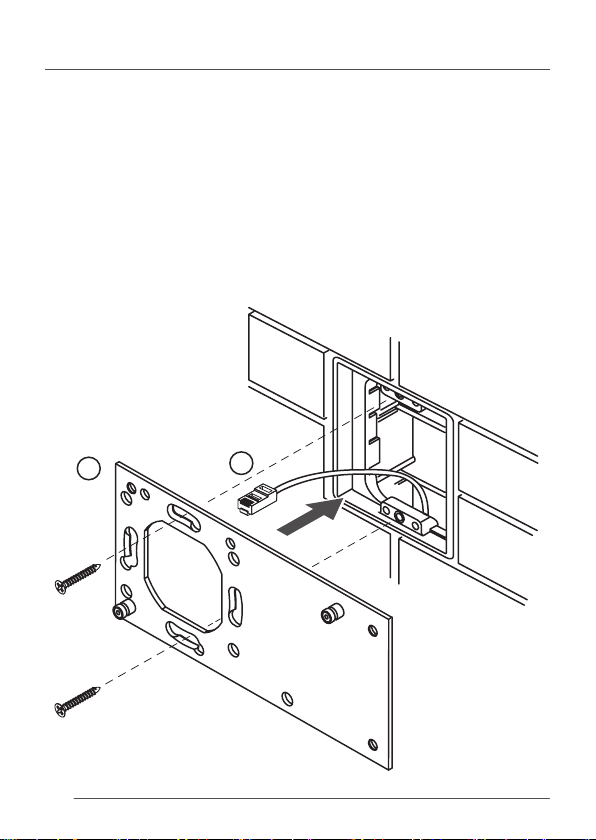

3.1 Mounting
The light-drive elite is designed for in-wall mounting.
Mounting the light-drive elite:
1. Mount the backplate
2. Connect the cable
1
6
2
Page 7
light-drive elite - Hardware Installation

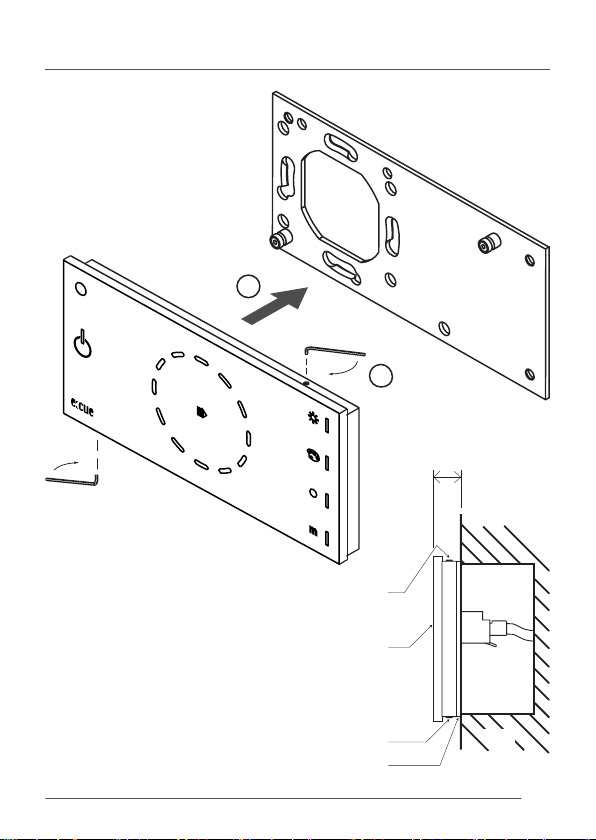

3. Place light-drive elite on the backplate
4. Tighten hex screws
3
Hex xing screw
4
13 mm / 0.51 inch
Front glass plate
Hex xing screw
Metal backplate
Wall
Side View
7
Page 8
light-drive elite - Hardware Installation

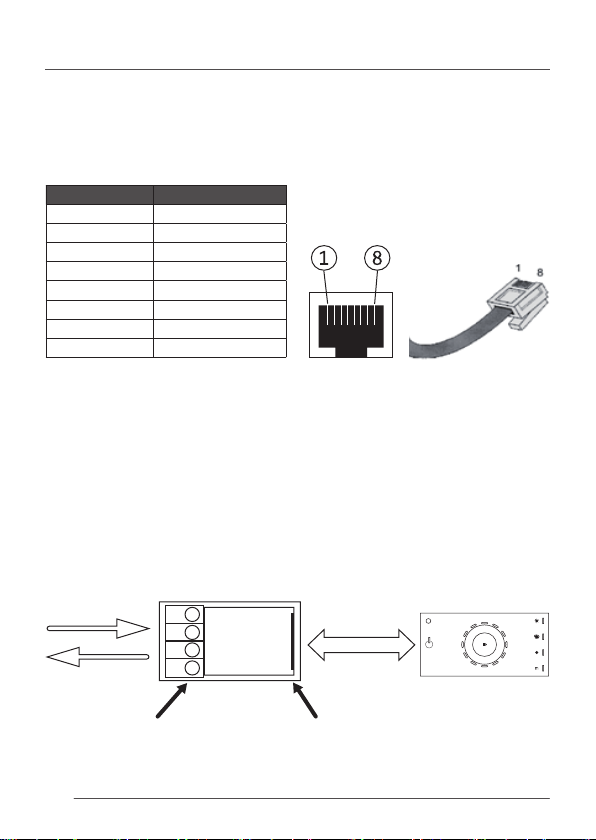

3.2 Power and Data
The light-drive elite has a single RJ-45 connector for power input and data
output.
pin no. signal
1 DMX ­2 DMX + 3 GND 4 nc 5 VCC in: 24V DC 6 GND 7 nc 8 nc
For a simple connection to LED xtures, light-drive elite package includes a power and data merger, which combines power and data into a single cable according to the specication below.
8
power in
DMX out
screw terminal s RJ-45
24 V GND DMX+ DMX-
power/da ta
Page 9
light-drive elite - Using the light-drive elite
4. Using the light-drive elite

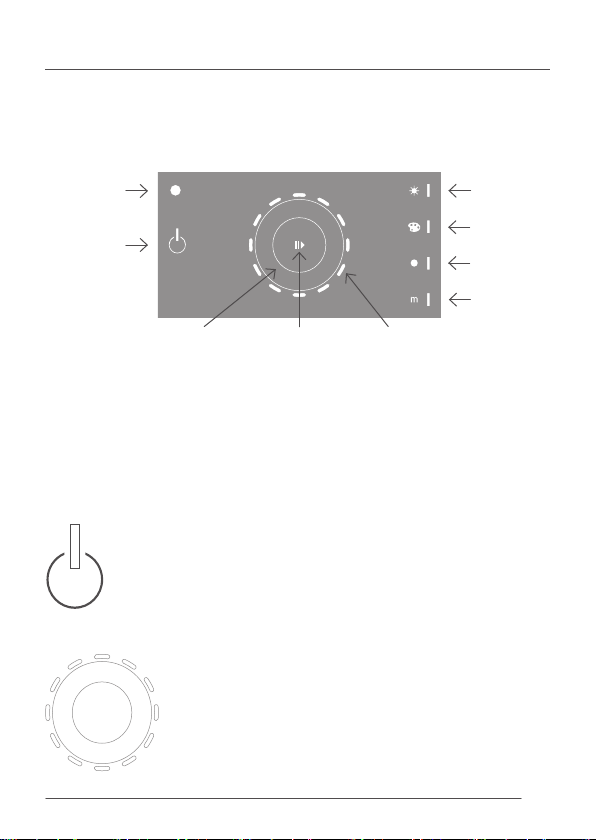

4.1 Overview
IR receiver
on/o key
touch wheel play/pause key LED ring
4.2 Using light-drive elite controls
On/O Key
The on/o key turns the unit on or o. Fixtures will fade out when the device is turned o. When the device is turned on, it will start in the last used mode.
Touch Wheel
The touch wheel is backlit with 12 RGB LEDs and it is used to select and adjust intensity, colors, white color temperature, speed, spread and memory function.
intensity key
color key
white key
memory key
9
Page 10
light-drive elite - Handling

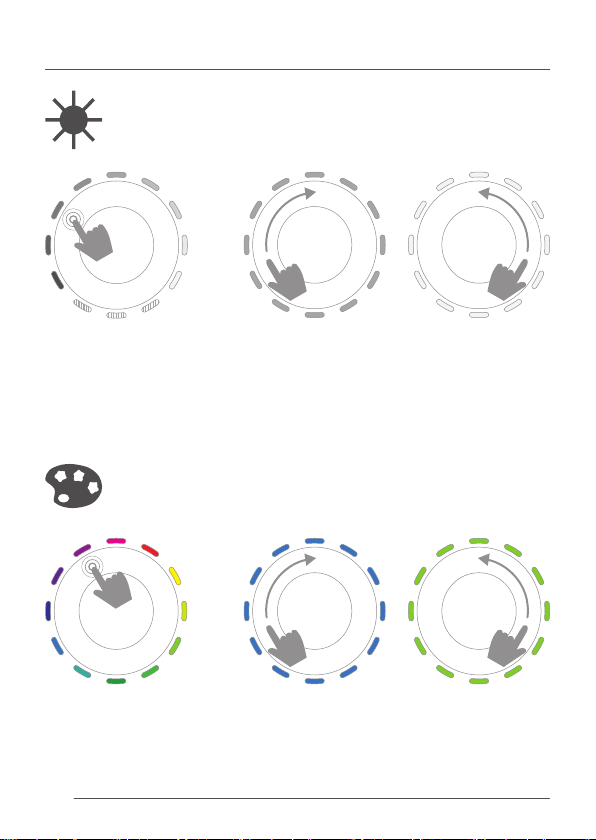

Intensity Mode
Touching the intensity key activates intensity mode.
For a quick change of the intensity simply touch the wheel at the desired intensity displayed on the
LED ring.
Color Mode
Touching the color key activates color mode.
For a quick change of the color simply touch the wheel at the desired color
displayed on the LED ring.
10
For ne adjustment, scroll the wheel clockwise to increase the intensity, or counterclockwise to
decrease the intensity.
For ne adjustment, scroll the touch wheel
slowly clockwise or counterclockwise to adjust the color.
Page 11
light-drive elite - Handling

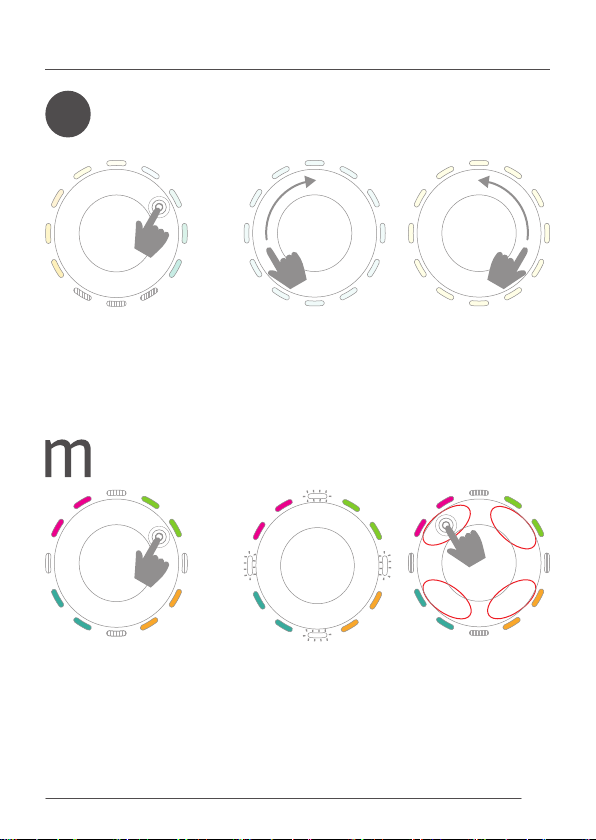

White Mode
Touching the white key activates white mode.
For a quick change of the intensity simply touch the wheel at the desired color temperature displayed on
the LED ring.
Memory Mode
Touching the memory key activates memory mode.
Selecting saved colors
Four saved colors are displayed on four separate
areas of the LED ring. Touch the wheel next to two color LEDs to select the displayed
color.
For ne adjustment, slide the wheel clockwise to for a colder white, and counterclockwise for a
warmer white.
Saving colors with the memory function
After selecting a color in any other mode, touch
and hold memory key for more than 3 seconds.
LED ring will blink to signal that you can now
save the current color in one memory slot. Touch
the wheel at one of the memory slots, displayed by LED ring (see the encircled areas below).
11
Page 12
light-drive elite - Handling

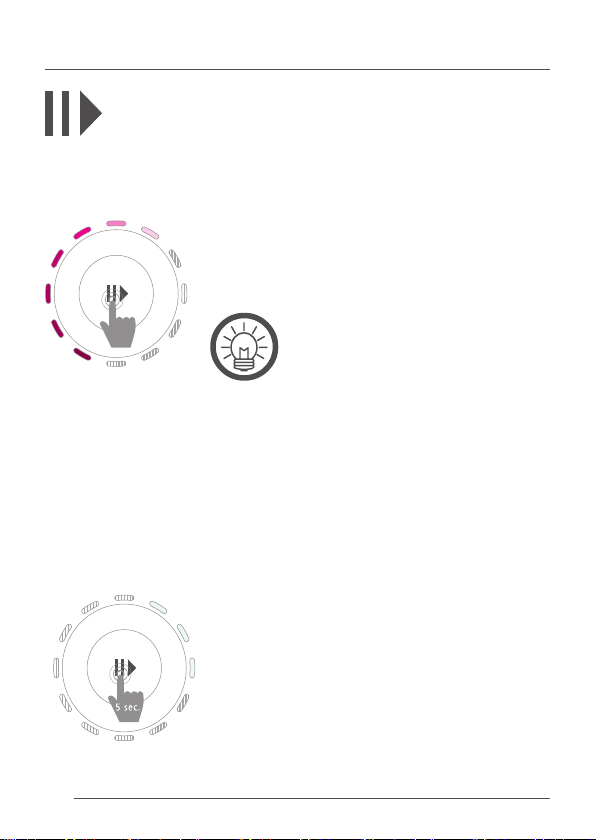

Replay Mode
Touching the play/pause key starts or stops the replay mode. In replay mode, user-dened colors change gracefully from one color to the next using a congured spread. See Conguring the Spread
for details.
The LED ring will display a rotating color-chase according to the previously congured speed. Scroll the
wheel clockwise to increase and counterclockwise to decrease the speed.
If you choose four colors for the user memories, that are close to each other on the color circle (e.g. orange, red, blue, green) the sequence looks much beer as
the path from one color to another does not need to go through whole color circle.
Conguring the Spread
The spread conguration allows the user to apply a color chase eect spread over up to 12 RGB xtures (i.e. light-points) at a time. If the spread is set to one, then colors will fade from one color to another, saved in memory mode, on all RGB xtures at the same time.
If the spread is set to greater than one, then fading between colors is distributed over the number of chosen xtures. As a result, all xtures will have dierent
12
11
10
9
8
7
1
5
6
e.g. three xtures activated
12
colors equal to the number of chosen xtures. Press and hold the play/pause key for 5 seconds to cong­ure the spread. The LED-Ring shows the number of
2
dened RGB-xtures that are used to calculate the spread. Minimum number of xtures is 1 (all RGB-
3
xtures show the same color), maximum is 12 (color spread will be repeated after 13th xture).
4
Touch the wheel at the desired number of xtures. When nished, wait a few seconds and the unit will
go back to replay mode.
Page 13
light-drive elite - Handling
4.3 Cleaning mode
Touch and hold the on/o key for 5 seconds until the on/o LED is blinking, to
activate the cleaning mode.
In cleaning mode, touching the keys or the wheel will be ignored. This option is useful to clean the device without aecting the controls. When nished, wait a
few seconds and the unit will automatically come back in the last used mode.
4.4 Reset
Touch and hold the memory key for more than 10 seconds until you hear a beep to reset the device to its default values. This includes memory color, speed,
intensity and the spreading.
4.4 Idle / Stand by
If the keys or wheel are not touched for a few seconds, the unit will go into idle mode, which means that the LED ring and the LEDs will be dimmed.
If the keys or wheel are not touched for one minute, then the unit will go into standby mode, which means that the LED ring on the device will be turned o.
13
Page 14
light-drive elite - Handling

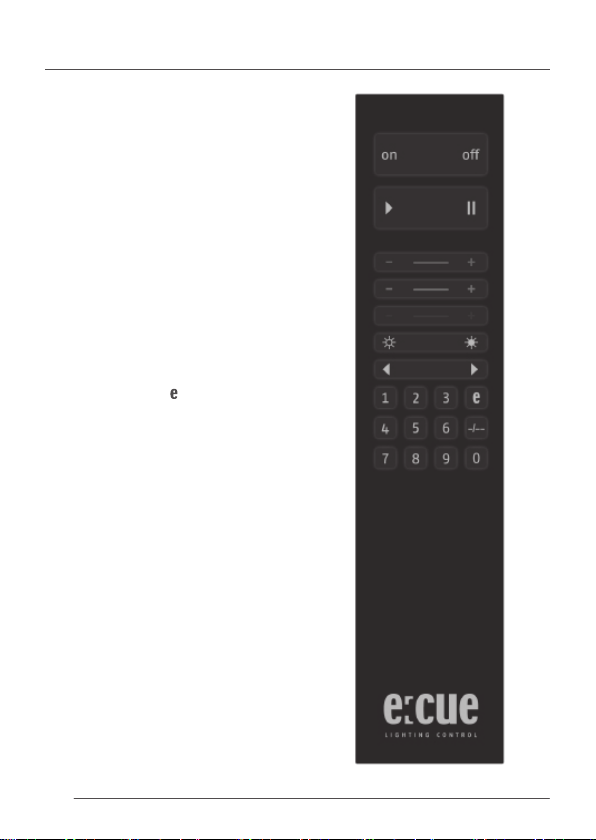

4.5 Remote Control
All previously described features are
also accessible via remote control, except “conguration of spread”, “cleaning mode” and “reset”.
The unit´s on/o LED will blink when it is receiving IR-remote control
signals.
In addition to the four user-dened colors, you can recall four xed colors (red, green, blue, white) via the buons “5” to “8” on the remote
control.
Store:
Press and hold the “ second, then press the desired number (“1” to “4”) on the remote control to
store the adjusted color.
” buon for one
14
Page 15
light-drive elite - Technical Data
5. Technical Data
5.1 Technical specications
Order numbers
light-drive elite black
light-drive elite white
General Specications
Dimensions (WxHxD) 160 x 80 x 11 mm/6.3 x 3.15 x 0.43 in
Weight kg / lbs 0,3 kg / 0.66 lbs
Power 24 V DC, 100 mA (RJ-45)
Operating temperature °C / °F 0 ... 40 °C/32 ... 104 °F
Storage temperature °C / °F -20 ... 80 °C/-4 ... 176 °F
Operating / storage hum. 0 ... 80%, not condensing
Environment IP20
Housing Glass (surface), aluminium (housing)
Mounting In wall mounting
Certications CE
light-drive Specications
User interface Capacitive touch sensor
DMX output RJ-45
Input IR (RC5)
AA439160138
AA439170138
15
Page 16
light-drive elite - Technical Data

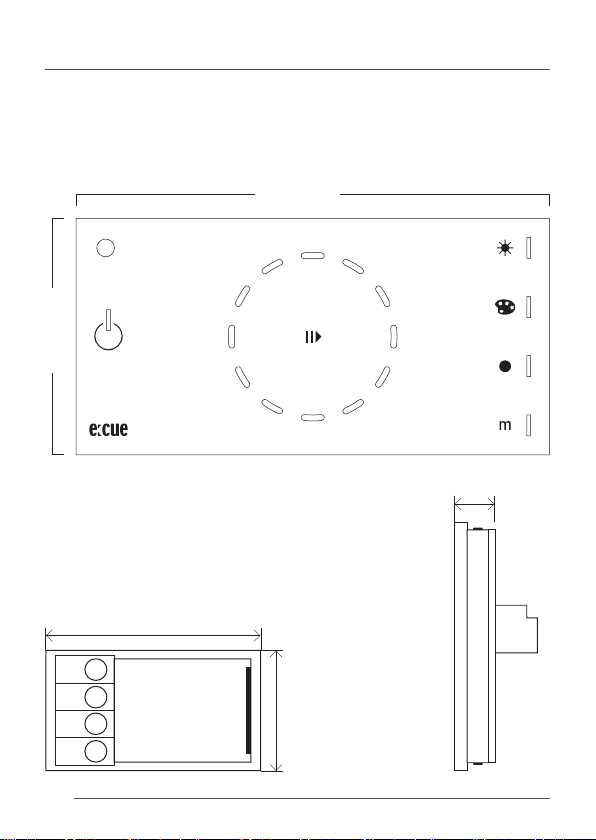

5.2 Dimensions
All dimensions in mm and inch
(mm/inch).
160 / 6.3
80 / 3.15
Power and data merger
31 mm / 1.22 inch
19 mm / 0.74 inch
24 V GND DMX+ DMX-
13 mm / 0.51 inch
16
Page 17
light-drive elite - Technical Data

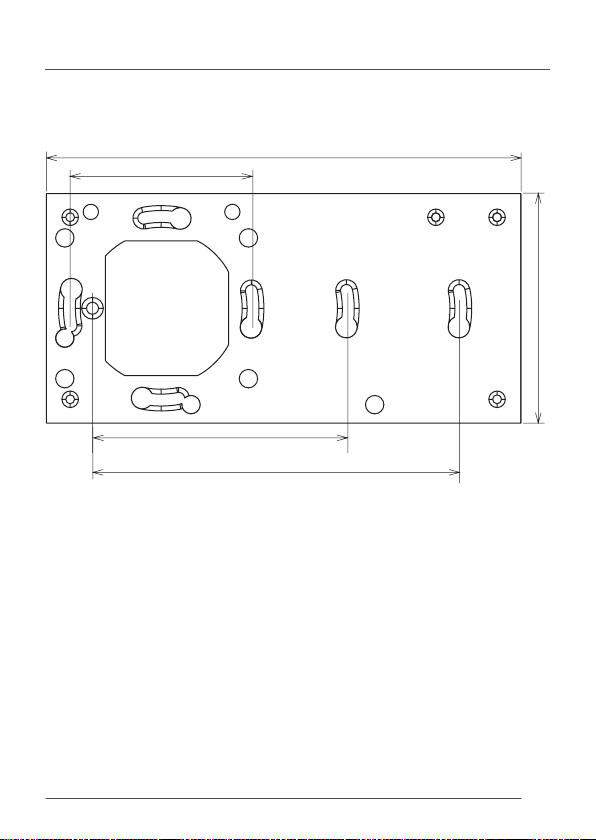

Mounting Plate
60 mm / 2.36 inch
A
B
C
155 mm / 6.1 inch
75 mm / 2.95 inch
A B C
83,5 mm / 3.29 inch
120 mm / 4.72 inch
17
Page 18
light-drive elite - Warning Notices
6. Warning Notices
The electronic components are very sensitive to electrostatic
discharge (ESD). Be careful not to touch the components. Please do
all preparation work on a static-free surface. Please always ensure to wear an antistatic wrist strap.
Any usage other than described in this manual is not permied,
can damage the device and lead to associated risks such as short-
circuit, re or electric shock. If not otherwise noted, no part of the product may be modied or rebuilt.
18
Page 19
light-drive elite - imprint, copyright
Windows is a trademark of the Microsoft Corporation, Redmond, United States
of America. All other company names and / or product names are trademarks and / or registered trademarks of the concerning manufacturer. The products
under circumstances don’t exactly correspond with the representation. Proper­ties, capacity and technical data depending on the operating system and used hardware can dier. Subject to change without notice!
marketability or other properties of the product. There is no way to assert a claim
to e:cue, not on the legal way nor other ways. e:cue is not responsible for damages, including all disadvantages that are not just limited on loss of sales, that are accrued
• By the use of the product.
• By the loss of serviceability of the product.
• By misuse, happenings, circumstances or actions that e:cue does not have
lighting control is a registered trademark of the e:cue control GmbH.
does not grant guarantee on validity for a particular reason, the
inuence, no maer if the damages as well as consequential damages are direct or indirect; whether they are special damages or others, nor if the
damage is caused by the owner of the guarantee or third persons.
19
Page 20
© 2009 - e:cue control GmbH - An OSRAM Company - Germany - www.ecue.de
