ECTACO Partner® PW800 User Manual

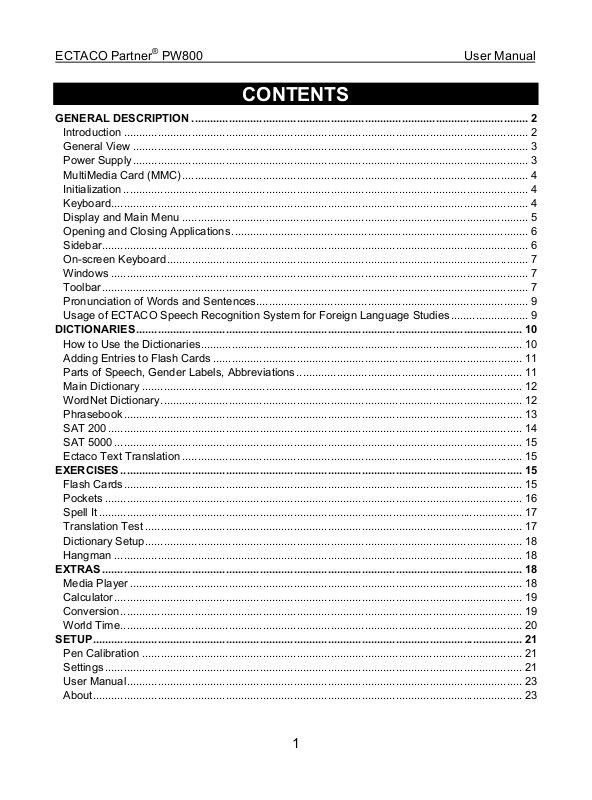

CONTENTS
GENERAL DESCRIPTION .............................................................................................................2
Introduction ................................................................................................................................... 2
General View ................................................................................................................................ 3
Power Supply................................................................................................................................ 3
MultiMedia Card (MMC)................................................................................................................ 4
Initialization ................................................................................................................................... 4
Keyboard....................................................................................................................................... 4
Display and Main Menu ................................................................................................................ 5
Opening and Closing Applications ................................................................................................6
Sidebar.......................................................................................................................................... 6
On-screen Keyboard..................................................................................................................... 7
Windows ....................................................................................................................................... 7
Toolbar.......................................................................................................................................... 7
Pronunciation of Words and Sentences........................................................................................ 9
Usage of ECTACO Speech Recognition System for Foreign Language Studies ......................... 9
DICTIONARIES............................................................................................................................. 10
How to Use the Dictionaries........................................................................................................ 10
Adding Entries to Flash Cards .................................................................................................... 11
Parts of Speech, Gender Labels, Abbreviations ......................................................................... 11
Main Dictionary ........................................................................................................................... 12
WordNet Dictionary..................................................................................................................... 12
Phrasebook................................................................................................................................. 13
SAT 200 ...................................................................................................................................... 14
SAT 5000 .................................................................................................................................... 15
Ectaco Text Translation .............................................................................................................. 15
EXERCISES .................................................................................................................................. 15
Flash Cards................................................................................................................................. 15
Pockets ....................................................................................................................................... 16
Spell It ......................................................................................................................................... 17
Translation Test .......................................................................................................................... 17
Dictionary Setup.......................................................................................................................... 18
Hangman .................................................................................................................................... 18
EXTRAS ........................................................................................................................................ 18
Media Player ............................................................................................................................... 18
Calculator.................................................................................................................................... 19
Conversion.................................................................................................................................. 19
World Time.................................................................................................................................. 20
SETUP........................................................................................................................................... 21
Pen Calibration ........................................................................................................................... 21
Settings ....................................................................................................................................... 21
User Manual................................................................................................................................ 23
About........................................................................................................................................... 23
1
ECTACO Partner® PW800 User Manual
GENERAL DESCRIPTION
Introduction
Congratulations on purchasing the high-end class Talking Electronic Dictionary &
Audio PhraseBook™! The product you have purchased is the result of combined
efforts of ECTACO's staff of linguists, engineers, and programmers. You are now the
owner of one of the most advanced electronic devices ever produced for translation
purposes and for language studies.
ECTACO Partner® PW800 features:
• Main Dictionary of over 500,000 words (depends on the language pair)
• WordNet dictionary – 70,000 words with explanations
• SAT 200 and SAT 5000 vocabularies
• Voice function
• Phonetic transcription
• Instant reverse translation
• Look-up function
• Advanced word recognition and MorphoFinder™
• "Add New Word" function
• Audio phrasebook with speech recognition function and more than 14,000 phrases
pronounced by native speakers
• Ability to display possible replies you may hear from your interlocutor
• Vector Ultima™ spell-checker
• Language learning modules: Flash Cards, Pockets, Spell It, Translation Test
• Media Player with mp3 support
• Currency conversion
• Metric conversion
• World Time
• Daily Alarm
• Calculator
• Three font sizes: small, medium, large
• Adjustable color schemes for customizing the appearance of screen elements
• Slang Lock
• Color touch screen
• MMC/SD slot
• Headphone jack
• Microphone jack
• AC/DC adapter jack
Device is powered by AC/DC adapter and rechargeable battery (all included in the
standard package)
2
ECTACO Partner® PW800 User Manual
General View
The general view and essential features of ECTACO Partner® PW800 are shown
below:
Power Supply
ECTACO Partner® PW800 is powered by a special Li-Polymer rechargeable battery.
When the battery becomes weak, a warning message will be displayed. In that case,
the voice function will be disabled in order to prevent an excessive discharge of the
battery and a resulting loss of data in RAM. To restore full functionality of the device,
recharge the battery as soon as possible.
How to Recharge the Battery
• Make sure the battery is inserted in the battery compartment which is located on the
bottom panel of the device.
Note: Only a special rechargeable battery and a special adapter may be used with
your ECTACO Partner® PW800. Use of an inappropriate external power supply may
cause failure of the device and will void the warranty.
• Connect the AC/DC adapter to your device. The AC/DC adapter jack is located on
the rear edge of the device and is labeled DC 6V.
The red LED signal shows that the battery is recharging and the green one shows it is
charged.
3
ECTACO Partner® PW800 User Manual
MultiMedia Card (MMC)
Before you start working with your ECTACO Partner® PW800, please make sure the
MMC is installed into the MMC / SD slot of the device. If the card is not installed, slide
it into the slot located on the right edge of the device – the contacts of the card face
up, label face down. Push the card gently until it clicks into place. To eject the MMC,
just push it in slightly.
Initialization
The initialization routine is started:
• when ECTACO Partner
• after the system has been reset with the RESET button.
Note: The RESET button is located on the left-hand side of the keyboard (over the
key). It can be accessed with any thin object like a paper clip. Never use a needle or a
sharp pin for this purpose since it can damage the device.
®
PW800 is turned on for the first time;
Keyboard
The keyboard allows you to enter any word just in seconds. Language modes can be
toggled by pressing the
The function and control keys are described below.
Note: Key1+Key2 here and further on signifies the combination of keys to use – first
press and release Key1, then press and release Key2.
Key Function(s)
Reset
+ ,
key.
Turn the device On or Off
Re-initialize system
Use speech recognition (available in Phrasebook)
Show the list of Main Menu sections and active applications
Use speech function
Close active window / Cancel
Delete character to the left of cursor
Switch focus between displayed controls (check boxes, radio
buttons etc.)
Type in uppercase / Enter additional symbols (marked on the
numeric keys)
Launch spell-checker
4
ECTACO Partner® PW800 User Manual
Use shortcut keys (shortcuts for toolbar buttons, where available,
+key
, , ,
,
are shown in their corresponding tool tips) / Input accented and
special characters (in models without the
Switch language or translation direction
Input accented and special characters – please refer to the
Keyboard section of the online manual (see page 23)
Execute
Move cursor or highlight / Scroll lines
Page by screen / Switch Main Menu sections
Enter space
key)
Display and Main Menu
ECTACO Partner® PW800 features touch screen (320 x 240 pixels) with a windowsdriven graphical interface. The Main Menu consists of four sections, which visually
organize access to the ECTACO Partner® PW800 applications.
Note: Tapping screen items is preferably done with the supplied pointing device called
the stylus, which, when not in use, is kept in a special slot at the base of the device's
case (see General View). As an on-board help to the user, a short toolbar button
description (tool tip) appears when an on-screen button is being touched.
Main Menu
• To access the Main Menu, turn the device on, then press on the keyboard,
or tap
the Dictionaries, Exercises, Extras, or Setup items in that menu will bring you to the
corresponding section.
• If you are using a model with more than one language pair, go to the Main Menu and
then tap on the toolbar to change the Target language.
• Use the Dictionaries section to access Main Dictionary, WordNet Dictionary,
Phrasebook, SAT 200, and SAT 5000.
• Use the Exercises section to access Flash Cards, Pockets, Spell It, Translation Test,
Dictionary Setup, and Hangman
• Use the Extras section to access Media Player, Calculator, Conversion, and World
Time.
• Use the Setup section to access Pen Calibration, Settings, User Manual, and About.
Note: To disable the Slang lock function in the Setup section, please use this
password: showslan.
1
Available in some models.
on the screen and select the Desktop item in the appeared menu. Tapping
1
.
5
ECTACO Partner® PW800 User Manual
Opening and Closing Applications
• The easiest way to open a specific application is to tap its corresponding icon.
Alternatively, the applications can be chosen by pressing the arrow keys
, , , ) or one of the paging keys ( , ) on the keyboard. When the
(
application name is highlighted, just press to launch the program.
• To close an application, tap in the upper right corner of the screen, or press .
Sidebar
Twelve applications of ECTACO Partner® PW800 have their permanent touchsensitive shortcut buttons on the Sidebar to the right and left of the screen.
Main Dictionary
WordNet Dictionary
SAT 200
Phrasebook
Flash Cards
Pockets
6
Spell It
Translation Test
Media Player
Calculator
World Time
Settings
ECTACO Partner® PW800 User Manual
On-screen Keyboard
The on-screen keyboard is a set of virtual keys displayed on the screen. This set of
keys simulates the conventional physical keyboard or part of it. The on-screen
keyboard shown below is the most widely used throughout the ECTACO Partner®
PW800 applications.
• In applications featuring text input, tap the
screen keyboard. To hide it, tap anywhere on the screen outside of the on-screen
keyboard.
• When using the on-screen keyboard, tap
button on the toolbar to invoke the on-
to access additional characters.
Windows
Every application, pop-up menu, or dialog box used in ECTACO Partner® PW800
appears in its own window. A window is displayed as a framed screen area with two
main elements: the title bar and the close button (
or ).
Any window can be closed either by pressing
close button in the upper-right corner of the window.
• To move an overlapping pop-up window, tap on its title bar and drag the window to
another part of the screen holding the stylus down.
The scroll bar is shown when the contents don't all fit on the screen. The slider shows
the position of the displayed contents relative to the rest of data.
On the scroll bar:
• tap a scroll arrow
• tap and drag the slider to browse information;
• tap the scroll bar below or above the slider to jump to the corresponding portion of
text.
or to advance or go back one line;
on the keyboard or by tapping the
Toolbar
A toolbar is a set of horizontally arranged buttons shown at the bottom of the
pertaining window.
7
ECTACO Partner® PW800 User Manual
Toolbar buttons have the following functions:
Show the list of Main Menu sections and active applications
Change the Target language (in multilanguage devices)
Invoke on-screen keyboard
Display the List of sets
Switch language or translation direction
Reset statistics
Use speech function
Switch to metric conversion
Switch to currency conversion
Add entry to User's Dictionary or Flash Cards
Show similar words
Go to the previous entry
Go to the next entry
Change application settings
Translate
Go back
Go forward
Clear input
Change operating mode (in Phrasebook)
Set date and time
Use speech recognition (in Phrasebook)
Change color scheme
Show sample of word usage
Delete item
Battery life indicator
Daily Alarm disabled
8
ECTACO Partner® PW800 User Manual
Daily Alarm enabled
As an on-board help to the user, a short toolbar button description (tool tip) appears
when a button is being tapped.
Pronunciation of Words and Sentences
One of the most exciting features of ECTACO Partner® PW800 is the TTS (Text-toSpeech) technology which allows you to listen to the pronunciation of words and
phrases in English and, if available, in the target language.
• To hear the displayed or highlighted headword pronounced, tap
key.
Note: Certain words have several variants of pronunciation. So the pronunciation of
the TTS engine and the given phonetic transcription may be different. In this case,
consider the variant given in the dictionary as the basic one.
• To hear the translation or explanation pronounced, highlight the desired portion of it
by using the stylus and then tap
TTS is able to generate the pronunciation of any text, not limited to dictionary entries.
Simply type a word or phrase in the WordNet Dictionary input field and then tap or
press the
Note: The Volume option (found in the Settings application) allows you to adjust
speech volume.
key to listen to its pronunciation.
or press the key.
or press the
Usage of ECTACO Speech Recognition System for
Foreign Language Studies
Our innovations in the field of automatic speech recognition have made it possible to
create this excellent educational tool. Available with your ECTACO Partner
will help you to easily master a foreign language.
First, you listen to a phrase recorded by a native foreign language speaker and then
pronounce it by yourself. Then the device compares the phrase you have spoken with
the prerecorded sample helping you to improve your pronunciation.
To take advantage of this advanced feature, please follow these steps:
• Turn the device on and navigate to the Main Menu.
• If you are using a model which features more than one language pair, tap
toolbar and then select the target language you want to practice. Otherwise, skip this
step.
• In the Main Menu, tap the Phrasebook icon. The application will open.
• If necessary, change the source language by tapping
should be your native tongue.
For easy reference, phrases in the Phrasebook are arranged by topic.
• To open the topics list, tap at the upper left of the screen.
9
. The source language
®
PW800, it
on the
ECTACO Partner® PW800 User Manual
• To open a topic, just tap it with the stylus. You will see a list of subtopics.
• Tap on the desired subtopic and then highlight a phrase in your native language.
• To hear the phrase pronounced in the target language, tap
• Repeat it several times until you learn the correct pronunciation.
• Change the direction of translation by tapping
• Position yourself near the built-in microphone at a distance of 3 – 6 inches (8 – 15
cm).
• Tap . You will see the SPEAK UP message.
Note: The absence of the icon may signify that there is no speech recognition
engine available for the selected language at the moment.
• Say the newly learned phrase into the microphone.
The phrase you have said in the foreign language will be compared to the model
pronunciation. If you have pronounced the phrase correctly, the device will recognize it
and then show or pronounce (depending on the Auto playback setting) its translation in
your native language. If the device does not recognize you – simply repeat the above
steps.
Note: The accuracy of speech recognition depends on the level of external noise. It is
best to ensure silence in the room where you practice your pronunciation.
To achieve the best results, please consider the following:
1. Ensure the room is relatively quiet.
2. Choose an optimum distance of 3 – 6 inches (8 – 15 cm) from the built-in
microphone, taking your normal speaking volume into consideration.
3. Do not say unrelated words or phrases into the microphone.
4. Try to say phrases distinctly and plainly without clipping syllables.
5. Avoid carelessness in pronunciation (smacking of lips, loudly inhaling or exhaling,
mumbling, interruptions, repetitions, etc.).
.
.
DICTIONARIES
How to Use the Dictionaries
• To translate or explain a word, start entering it from the keyboard.
Note: The MorphoFinder™ function helps you find source words for English past
participles, gerunds and plural forms. For example, if you enter "distributes" you will
get "distribute" as there is no translation or explanation for "distributes" because it is a
form of "distribute".
• If the desired word appears before you have finished typing, select it (tap the
corresponding line), or make sure it is highlighted and press
translation(s) or explanation(s).
10
to see its
ECTACO Partner® PW800 User Manual
Spell-checker Vector Ultima™
The multilingual spell-checker Vector Ultima™ is one of the most advanced on the
market. When you are unsure of a word's spelling, Vector Ultima™ allows you to enter
the word as you hear it and choose a spelling version from the list.
• Type the word board as you hear it: bord.
• Tap
appear on the screen.
• Select the word board to see its translations.
or press + either of the , keys. A list of suggested Similar words will
Instant Reverse Translation and Instant Explanation
For your convenience, ECTACO Partner® PW800 provides Instant Reverse
Translation and Instant Explanation for all words and expressions in the dictionaries.
• To obtain explanation of the English headword, tap
WordNet Dictionary in the appeared menu.
• To obtain instant reverse translation of a word or phrase within the displayed
translations, just highlight the desired item with the stylus and then tap
In ECTACO Partner® PW800, you can make up to 4 reverse translations in succession
(without closing windows).
on the toolbar and then select
.
Adding Entries to Flash Cards
This useful feature allows you to create your personal sets of entries copied from the
Main Dictionary, Phrasebook, or SAT 5000.
• Open the Main Dictionary, Phrasebook, or SAT 5000.
• Select the desired entry and then tap on the toolbar.
• If necessary, change the displayed set name by tapping next to the word Subject.
• To confirm changes, tap OK.
Parts of Speech, Gender Labels, Abbreviations
Translations or explanations of a headword are shown with their parts of speech:
11
ECTACO Partner® PW800 User Manual
A – adjective
ABBR – abbreviation
ADV – adverb
ART – article
AUX – auxiliary
CONJ – conjunction
ID – idiom
INTRJ – interjection
N – noun
If applicable and available, nouns are marked with gender and number labels:
F – feminine
M – masculine
MF – common gender
Certain words and expressions in the dictionary are marked with the following
abbreviations:
anat. – anatomy
bact. – bacteriology
biochem. – biochemistry
biol. – biology
bot. – botany
chem. – chemistry
comm. – commerce
comp. – computers
econ. – economics
el. – electronics
fin. – finance
jur. – law
mech. – mechanics
med. – medicine
NPR – proper noun
NUM – numeral
PART – particle
PHR – phrase
PREF – prefix
PREP – preposition
PRON – pronoun
SUFF – suffix
V – verb
N – neuter
PL – plural
opt. – optics
pharm. – pharmacy
physiol. – physiology
psychol. – psychology
stomat. – stomatology
vet. – veterinary
Main Dictionary
ECTACO Partner® PW800 contains the most advanced electronic dictionary available
on the market. This manual usually refers to it as the Main Dictionary.
Note: The Main Dictionary contains not only general vocabulary and technical terms
but also slang. You can hide it using the Slang Lock function in the Setup section. To
disable Slang Lock, please use this password: showslan.
• Select Main Dictionary from the Dictionaries section, or tap
• Please refer to the How to Use the Dictionaries section for further information.
on the Sidebar.
WordNet Dictionary
ECTACO Partner® PW800 includes the advanced English explanatory dictionary –
WordNet.
• Tap on the toolbar, or press . Then select Dictionaries in the appeared
menu. You will see the Dictionaries section of the Main Menu.
• Tap the WordNet Dictionary icon. The application will open.
12
ECTACO Partner® PW800 User Manual
Please refer to the How to Use the Dictionaries section for further information.
Note: When viewing entries in the WordNet Dictionary, tap on the underlined items to
follow the corresponding links.
Phrasebook
ECTACO Partner® PW800 substitutes for an interpreter in standard situations, such as
registering at a hotel, shopping, visiting a bank etc. You simply choose the appropriate
phrase and the device will pronounce its translation.
Basics
• Tap on the toolbar, or press . Then select Dictionaries in the appeared
menu. You will see the Dictionaries section of the Main Menu.
• Tap the Phrasebook icon. The application will open.
For easy reference, the phrases are arranged by topic.
• To open the topics list, tap at the upper left of the screen.
• Use the , keys or stylus to select the desired topic.
• To open a topic, just tap it with the stylus or press
subtopics.
• Tap on the desired subtopic.
• To hear the phrase translation pronounced, tap
or press .
Phrases Mode, Words Mode, Search Mode
• Tap and then select Words, Phrases, You may hear, or Search.
In the Words mode, the application shows useful words and speech patterns
pertaining to the topic, if available.
In the Phrases mode, the application shows full sentences, some of which have
changeable parts. These are underlined. For example, when viewing the phrase How
. You will see a list of
13
ECTACO Partner® PW800 User Manual
frequent are the flights? you can tap the flights and change it to the trains. The phrase
translation will change accordingly.
Select You may hear to view a list of possible replies you may hear from your
interlocutor.
Use the Search mode to find the desired phrase. You may input a whole phrase (for
example, Thank you) or a single word (thank).
Note: To reduce the search time, please open the desired topic before you start
searching. Also, select the Search in the current topic only option.
Settings
• Tap to open the Settings screen.
• Under the phrase My gender, select your gender.
• Select the Listener gender.
The gender options provide greater translation flexibility and accuracy. They affect the
way PW800 translates certain words and phrases, not the voiceover. You cannot
change the voice from male to female or vice versa.
• Select the Auto playback option to instantly hear the phrase translation pronounced
(when your phrase is recognized).
Note: Contents of the phrasebook may vary depending on the selected gender
options.
Speech Recognition
The Phrasebook application features speech recognition function.
• Open the desired subtopic. You will see the list of its phrases.
• Tap or press the button.
• Say your phrase. If it is on the list, highlight will move to the desired phrase.
• To hear the phrase translation pronounced, tap
or press .
SAT 200
This application includes two hundred keywords with transcription, explanation,
synonyms, and samples selected from the SAT vocabulary.
• Tap on the toolbar, or press . Then select Dictionaries in the appeared
menu. You will see the Dictionaries section of the Main Menu.
• Tap the SAT 200 icon. The application will open.
• To view word's transcription, explanation, synonyms, and samples, just start entering
the word in the input line and then tap the requested entry when it appears in the list.
Alternatively, highlight the desired entry by using ( , ) and press .
• Use SAT 200 as described in the How to Use the Dictionaries section.
14
ECTACO Partner® PW800 User Manual
SAT 5000
This application includes five thousand words with transcriptions and explanations
from the SAT vocabulary.
• Tap
menu. You will see the Dictionaries section of the Main Menu.
• Tap the SAT 5000 icon. The application will open.
• To view word's transcription and explanation, just start entering the word in the input
line and then tap the requested entry when it appears in the list. Alternatively, highlight
the desired entry by using
Use SAT 5000 as described in the How to Use the Dictionaries section.
on the toolbar, or press . Then select Dictionaries in the appeared
, and press .
Ectaco Text Translation2
ECTACO Partner® PW800 features a highly efficient text translating program.
• Tap
menu. You will see the Dictionaries section of the Main Menu.
• Tap the Ectaco Text Translation icon. The application will open.
• To select the direction of translation, tap
• Input a text for translation.
• Press
• To obtain a reverse translation of a word, highlight it and then tap
• Select the desired dictionary for translation.
• Close the dictionary window to return to Ectaco Text Translation.
• To hear a portion of text pronounced, highlight it and then tap
press
• Tap on the toolbar to clear the screen and enter a new text.
on the toolbar, or press . Then select Dictionaries in the appeared
on the toolbar or press the button.
to automatically translate the text.
.
on the toolbar or
.
EXERCISES
Flash Cards
This fascinating game will help you quickly develop your vocabulary and considerably
advance in learning new words. Our method is simple: learn new words while playing
Flash Cards.
2
Available in some models.
15
ECTACO Partner® PW800 User Manual
The face of a card shows the source word translation/explanation, and the reverse
side shows the source word. The player browses the cards and, whenever necessary,
uses a hint.
There are 20 pre-defined card sets in this game. Besides, you can create your own
sets. The goal is to learn all cards in the set. You will be prompted to proceed to the
next set once you have finished the current one.
The game statistics is stored in the device memory so you can resume playing from
where you left off.
• Tap on the toolbar, or press . Then select Exercises in the appeared
menu. You will see the Exercises section of the Main Menu.
• Tap the Flash Cards icon. The game will begin.
The Flash Cards screen with the first card from the first set will be shown. By default,
you can select up to 20 pre-defined sets. If you want to create your personal sets of
flash cards, please refer to the Dictionary Setup section.
The number of unlearned cards in a set is recorded for each game. This information is
displayed on the screen. For example, Left: 10 means you have 10 cards unlearned.
• Tap the Drop button to set a card apart.
• To go to the next card, tap Next.
• Select the Always show translation option to have the program show you the source
word in each card.
• Alternatively, tap on the Show translation message to see the source word. To hide
the source word, just tap on it.
You may quit the game and resume playing at any time. Just launch Flash Cards to
continue playing from where you left off.
Pockets
This is a traditional game targeting in-depth word learning. In this game, the same
cards as those used in the Flash Cards game are divided into 4 groups (4 pockets). At
the beginning of the game all cards are located in the first pocket. You turn the cards
one by one and, if you know the hidden source word, put the card in the second
pocket. Keep browsing until all the cards from the first pocket are moved to the second
pocket.
At the second stage you move the cards to the third pocket and, again, if you know the
hidden source word, put the card in the next pocket.
The goal is to move all cards to the fourth pocket. You will aim most of your efforts at
learning difficult words, while simple words will shortly jump to the fourth pocket.
The game statistics is stored in the device memory so you can resume playing from
where you left off.
• Tap
menu. You will see the Exercises section of the Main Menu.
• Tap the Pockets icon. The game will begin.
• Tap on the first pocket.
on the toolbar, or press . Then select Exercises in the appeared
16
ECTACO Partner® PW800 User Manual
The first card from those stored in the selected pocket will be displayed.
• Tap Drop if you know the hidden word.
The card will be moved to the upper pocket.
• If you do not know the source word, tap Next, and the card will remain in the current
pocket.
The bottommost line of the screen displays the number of cards left in the pocket. The
game continues until all cards are moved to the fourth pocket and memorized.
Spell It
In this game special attention is paid to the correct spelling of words. The program
displays the cards one by one with the source word hidden. This game is similar to
Flash Cards, but this time you should type the source word yourself. As in all other
games, you can view the source word at any time.
The game statistics is stored in the device memory so you can resume playing from
where you left off.
• Tap
menu. You will see the Exercises section of the Main Menu.
• Tap the Spell It icon.
The Spell It screen with the first card from the first set will be shown. By default, you
can select up to 20 pre-defined sets. If you want to create your personal sets of cards,
please refer to the Dictionary Setup section.
• Type the correct source word in the text input field and tap OK.
• Tap Skip to go to the next card. When you reach the last card in a set, you will return
to the first unlearned card from the given set.
• Tap on the Show translation message to see the source word. To hide the source
word, just tap on it.
on the toolbar, or press . Then select Exercises in the appeared
Translation Test
In this game you should choose a source word which best corresponds to the given
description. You will be offered four choices, and you should select the correct one. If
your choice is incorrect, you will be prompted to answer the given question later.
The game statistics is stored in the device memory so you can resume playing from
where you left off.
• Tap on the toolbar, or press . Then select Exercises in the appeared
menu. You will see the Exercises section of the Main Menu.
• Tap the Translation Test icon.
The word description and four answer choices will be displayed.
• Tap on the correct one.
If you have made an error, the word will be replaced with "- - -". If you have guessed
the word, it will be highlighted for a second, and the card will be set apart. If you guess
wrong or tap the Skip button, the card will remain in the set and will be displayed later.
17
ECTACO Partner® PW800 User Manual
The number of unlearned cards in a set is recorded for each game. This information is
displayed on the screen. For example, Left: 10 means you have 10 cards unlearned.
When you have finished a set, the Current set is finished message will be shown.
• Tap Start Over to reset the statistics and go to the first question in the current set.
• Tap Select another set to display the List of sets.
• Tap Exit to quit the game.
Dictionary Setup
In this application you can choose a vocabulary database for your studies. The options
are as follows: SAT 200 and My Words. Choosing SAT 200 means that the SAT 200
vocabulary will be used in the following games: Flash Cards, Pockets, Spell It, and
Translation Test. The other option – My Words – allows you to use your personal sets
of words.
• Tap
menu. You will see the Exercises section of the Main Menu.
• Tap the Dictionary Setup icon. The application will open.
• To select the desired set, tap on the radio button next to SAT 200 or My Words.
• To manage your sets, tap Organize.
• Under Reset statistics, tap the SAT 200 or My Words buttons to reset statistics in all
games based on the corresponding vocabularies.
on the toolbar, or press . Then select Exercises in the appeared
Hangman3
ECTACO Partner® PW800 offers you an educational game Hangman that will improve
your spelling skills and enhance your personal vocabulary in an easy and fascinating
way.
• Tap
menu. You will see the Exercises section of the Main Menu.
• Tap the Hangman icon. The game will begin.
• Enter letters from the keyboard, trying to guess the word before the picture is
complete.
• Use
on the toolbar, or press . Then select Exercises in the appeared
to change the difficulty level.
EXTRAS
Media Player
ECTACO Partner® PW800 includes Media Player, a program allowing you to play
music. The program supports .mp3 files and uncompressed .wav files.
3
Available in some models.
18
ECTACO Partner® PW800 User Manual
• Tap on the toolbar, or press . Then select Extras in the appeared menu.
You will see the Extras section of the Main Menu.
• Tap the Media Player icon. The application will open.
• Please use the following on-screen buttons to operate the program:
Previous
Play
Pause
Stop
Next
Volume
Rescan MMC for music files
Exclude
Turn repeat on
Turn repeat off
Turn shuffle on
Turn shuffle off
Move up
Move down
Calculator
ECTACO Partner® PW800 includes a standard calculator with memory features. The
screen has 11-digit display capacity.
• Tap on the toolbar, or press . Then select Extras in the appeared menu.
You will see the Extras section of the Main Menu.
• Tap the Calculator icon. The application will open.
• Use this program as a standard pocket calculator.
Conversion
With the help of ECTACO Partner® PW800 you can perform currency and metric
conversions.
• Tap on the toolbar, or press . Then select Extras in the appeared menu.
You will see the Extras section of the Main Menu.
• Tap the Conversion icon. The application will open.
• Use the
conversion respectively.
Currency Conversion
• Tap to open the currency rates window (by default all values are equal to 1).
• Tap the corresponding line, or highlight it and press .
and buttons on the toolbar to switch to currency and metric
19
ECTACO Partner® PW800 User Manual
• Set the desired currency rates relative to the basic currency (whose rate should equal
1). To open the currencies list, tap
• When you have finished, tap the close button
• In the Conversion screen, select a currency name and enter an amount.
.
to return to the Conversion screen.
• After you have typed a new amount, press
to refresh the display.
Metric Conversion
• Tap and select the desired items from the appeared lists.
• Set the focus to the desired field by tapping it.
• Input the value and then tap Enter. The conversion will be performed.
World Time
Using your ECTACO Partner® PW800, you can view current times in cities around the
globe, along with appropriate map illustrations.
• Tap
You will see the Extras section of the Main Menu.
• Tap the World Time icon. The application will open.
• Tap to the left of the city or country name to open the list of cities or countries
respectively.
on the toolbar, or press . Then select Extras in the appeared menu.
• Select the desired country and city.
20
ECTACO Partner® PW800 User Manual
• On the toolbar, tap or to go to the next or previous city in alphabetical order.
SETUP
Pen Calibration
To restore proper touch screen functionality, or as part of an initialization procedure,
the screen might have to be recalibrated manually.
• Tap on the toolbar, or press . Then select Setup in the appeared menu.
You will see the Setup section of the Main Menu.
• Tap the Pen Calibration icon. The application will open.
• Follow the on-screen directions for calibration by tapping the + symbols within the
boxes.
When the calibration is complete, you will return to the Main Menu.
Settings
For best results and to ensure that you can fully employ all of the diverse features of
your ECTACO Partner
yourself with the options of the Settings application, which will allow you to adjust the
device configuration to better suit your needs.
®
PW800, it is recommended that you thoroughly familiarize
• Tap
You will see the Setup section of the Main Menu.
• Tap the Settings icon. The application will open.
Note: To confirm changes, tap the
on the toolbar, or press . Then select Setup in the appeared menu.
button at the upper right of the screen.
Language
• To switch interface language, just tap on the corresponding check box.
Note: This setting is optional and may be not applicable to some models.
Font Size
ECTACO Partner® PW800 offers you three font sizes.
• Under Font size, tap Small, Medium, or Large. A check mark will indicate your
selection.
Auto-off Time, Speaker Volume, Microphone Sensitivity
• Tap on the Auto-off chart to adjust the auto-off time, which can be set to 1 to 15
minutes. This feature saves battery life by shutting the device down after the specified
period of inactivity.
• Tap on the Volume chart to adjust speaker volume. Press
adjustment while listening to the phrase This is a test.
21
to check the
ECTACO Partner® PW800 User Manual
• Tap on the Microphone chart to decrease or increase microphone sensitivity.
Memory
• Tap the Memory button to instantly check free memory available in your device.
Defaults
• To restore factory defined settings for your ECTACO Partner® PW800, tap the
Defaults button.
Key Tone
• Tap on Key tone to turn it on/off. A check mark indicates that the option is selected.
This feature is designed to produce a short beep every time you press a key on the
device's keyboard.
Slang Lock
Using this feature you can hide slang words or phrases contained in the dictionaries.
Slang lock is on by default.
• Tap on Slang lock to disable/enable it.
Note: When disabling Slang lock, you will be prompted to enter the password:
showslan.
Target language4
• To change the Target language, i.e. the language pair, tap on the toolbar.
Time Zone, Date Format, Time Format
• On the toolbar, tap . The Time and Date screen will open.
• Under Time zone, tap
• Under Date Format and Time Format, tap the desired options.
and then select the desired city from the appeared list.
Local Date and Local Time
To highlight an item, tap on it. Then please tap on the arrows or press , to
set a value.
Color Profiles and Contrast
With the help of this option you can customize the appearance of screen elements.
• On the toolbar, tap
• Tap the arrow
Note: The Custom option allows you to specify color for each of the screen elements
separately.
4
For models with more than one language pair.
. The Color profiles and contrast screen will open.
to see the list of available options and then select the desired one.
22
ECTACO Partner® PW800 User Manual
• Select the desired item from the list.
• Tap on the color sample box and then select the desired color from the appeared
color table.
• To adjust screen contrast, tap on the Contrast chart.
Daily Alarm
• Tap on the (when the alarm is disabled) or (when the alarm is enabled) button
on the toolbar. You will see the Alarm Setup window.
• Set the desired time and specify days of the week.
• To turn the alarm on/off, tap the Alarm check box.
• Tap
at the upper right of the Alarm Setup window.
User Manual
ECTACO Partner® PW800 user manual is compiled in an electronic format and is
stored on the MMC. The content of the manual is only available when the MMC is
installed into the device.
• Tap
You will see the Setup section of the Main Menu.
• Tap the User Manual icon. You will see the table of contents.
• Tap the desired item in the table of contents. Press
keyboard to scroll through the displayed content. Alternatively, tap the scroll arrows in
the upper right and lower right corners of the screen.
On the toolbar, tap:
on the toolbar, or press . Then select Setup in the appeared menu.
, on the device's
to switch between versions of the manual (if applicable);
to go back to the last chapter you have viewed, if available;
to go forward to the last chapter you have viewed, if available.
About
The About screen shows general information on ECTACO Partner® PW800.
23
ECTACO Partner® PW800 User Manual
• Tap on the toolbar, or press . Then select Setup in the appeared menu.
You will see the Setup section of the Main Menu.
• Tap the About icon.
24
Loading...
