Ectaco ESC400T User Manual

Partner® ESC400T User's Manual

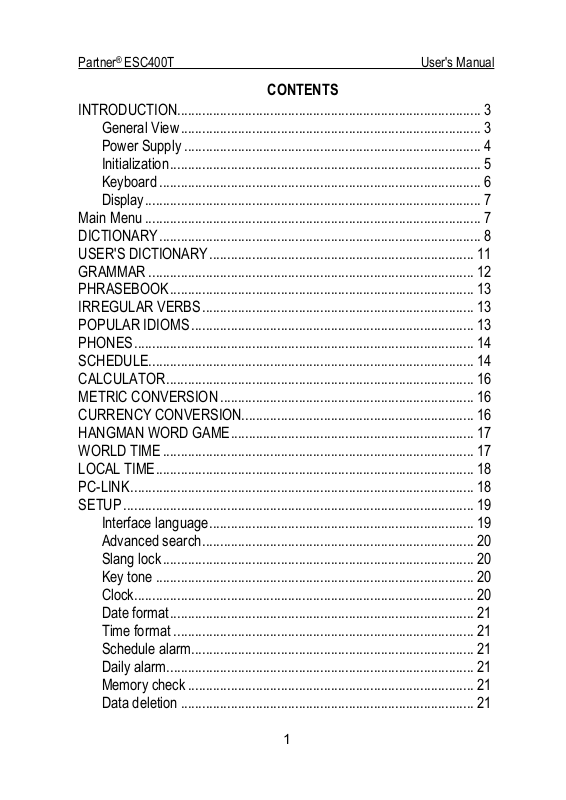

CONTENTS
INTRODUCTION..................................................................................... 3
General View.................................................................................... 3
Power Supply ................................................................................... 4
Initialization....................................................................................... 5
Keyboard .......................................................................................... 6
Display.............................................................................................. 7
USER'S DICTIONARY.......................................................................... 11
GRAMMAR ........................................................................................... 12
PHRASEBOOK..................................................................................... 13
IRREGULAR VERBS............................................................................ 13
POPULAR IDIOMS............................................................................... 13
PHONES............................................................................................... 14
SCHEDULE........................................................................................... 14
CALCULATOR...................................................................................... 16
METRIC CONVERSION....................................................................... 16
CURRENCY CONVERSION................................................................. 16
HANGMAN WORD GAME.................................................................... 17
WORLD TIME....................................................................................... 17
LOCAL TIME......................................................................................... 18
PC-LINK................................................................................................ 18
SETUP.................................................................................................. 19
Interface language.......................................................................... 19
Advanced search............................................................................ 20
Slang lock....................................................................................... 20
Key tone ......................................................................................... 20
Clock............................................................................................... 20
Date format..................................................................................... 21
Time format .................................................................................... 21
Schedule alarm............................................................................... 21
Daily alarm...................................................................................... 21
Memory check ................................................................................ 21
Data deletion .................................................................................. 21
1
Partner® ESC400T User's Manual
Set password ..................................................................................21
Security mode.................................................................................22
Set contrast.....................................................................................22
Speech options ...............................................................................23
Set sleep time .................................................................................23
2
Partner® ESC400T User's Manual
INTRODUCTION
Congratulations on purchasing the Partner® ESC400T! This product is the result of the combined efforts of Ectaco’s linguists, engineers, and programmers, and represents the last generation of the highest-performance integrated educational tools available.
®
The Partner
Main vocabulary (English
450,000 words, including medical, technical, legal, business terms, as well as slang, idioms, and general expressions
Bosnian lexis included Electronic English Grammar book A selection of the most popular American idioms English irregular verbs 12-topic English/Serbian phrasebook Advanced English speech synthesis
ESC400T features:
Ù
Serbian bidirectional dictionary) of approx.
Recording function for new words Instant reverse translation
Award-winning Vector Ultima128K English/Serbian personal organizer for scheduling and telephone
numbers, equipped with search function
Metric and currency converters Local and World time High-speed data exchange with a PC Bilingual interface Data protection system Slang lock External power jack for AC operation 9 As continuous efforts are made by the manufacturer to ensure the best
quality and performance of the Partner device you have purchased may slightly differ from their description in this manual.
bilingual spell-checking system
®
products, some characteristics of the
General View
The general view and external features of the Partner® ESC400T are shown below.
3
Partner® ESC400T User's Manual
Power Supply
The ESC400T is powered by two AAA (LR03) batteries. When the batteries become weak, a warning message will be displayed. In order to prevent excessively discharging the batteries and undergoing a resulting loss of data in RAM, the Say function will be disabled if battery power is low. To restore full functionality of the device and to avoid risk of losing user data, replace the complete set of batteries as soon as possible. Do not mix old and new batteries. 9 If you plug in the AC adapter, full functionality of the device will be restored
during 1 minute.
4
Partner® ESC400T User's Manual
9 It is recommended to use an external power supply while using the speech
and PC-Link functions.
How to replace the batteries
y Ensure the power is off. Press ON/OFF to turn the device off.
9 Never try to remove batteries from the device when the power is on. This can
seriously damage the device. If you experience difficulty turning the device off, press the RESET button on the right-hand side of the keyboard (over the O button) and reset the system.
y Remove the battery compartment cover by sliding it away from the device. y Remove the used batteries and replace them with new ones.
9 When replacing the batteries, you have 2 minutes to place new ones in the
device without risk of losing any data stored in RAM. Do not exceed the 2­minute limit! Neither the manufacturer nor the dealer may be held
responsible for loss of user data.
y Make sure to place the batteries according to the polarity marks (+ -) inside
the compartment.
y Replace the battery compartment cover by sliding it toward the device. Make
sure the cover sits in place properly.
9 The ESC400T is equipped with a jack for external power supply. 9 Use of an inappropriate external power supply may cause failure of the
device and may void the warranty. The AC/DC adapter should provide 6V and min 300mA DC.
9 Communication with a PC consumes a considerable amount of energy.
Always try to use an external power supply during these operations.
Initialization
The initialization routine is started
▫ when ESC400T is turned on for the first time; ▫ when you remove the batteries (e.g. during replacement); ▫ after the system has been reset with the RESET button.
9 The RESET button is located on the right-hand side of the keyboard (over
the O button). It can be accessed with any thin object like a paper clip. Never use a needle or pin for this purpose since it can damage the device.
y If you see Initialize system?(y/n), press the N button to abort initialization and
customization.
y Then you will see the Delete user's data? message. Press the N button to
save your data.
5
Partner® ESC400T User's Manual The System initialized! message indicates that system initialization has been
completed and the factory defined default settings have been restored.
Keyboard
The standard American QWERTY keyboard is combined with the standard Serbian (Latin) layout. To enter the additional letters marked on the buttons, press ALT+ the desired
1
button. To enter such letters in caps, press SHIFT+ALT+ the desired button. 9 Unlike PC keyboards, there is no need to keep a key (such as SHIFT) down
The available set of national characters is dependent on which language input mode is selected. Language modes can be toggled by pressing the Ù button. ENG or SRB is displayed in the upper right corner respectively.
Function shortcut keys
while pressing another one. It is enough to press it only once and release.
ON/OFF Turn the device On or Off RESET Re-initialize system SPELLER (SHIFT+ uor t)
Launch spell-checker
Other shortcut keys open sections corresponding to the marks over the buttons (press SHIFT+ shortcut key; for example, SHIFT+DICT).
Control and edit keys
Í, Î Move cursor / highlight / switch main menu Ð, Ï Highlight / scroll lines / switch main menu / change
values. Use Ï to switch between the Insert and Overwrite modes.
u, t
Scroll pages
ENTER Execute
Enter space
ESC Close active window / cancel / return to the previous
page ALT Enter additional letters marked on the buttons SHIFT Type in uppercase
ÍBS Delete character to the left of the cursor Ù
Switch translation direction
1
Key1+Key2 here and further on signifies the combination of keys to use – first
press and release Key1, then press and release Key2.
6
Partner® ESC400T User's Manual
SHIFT+Ï Open additional symbols SHIFT+Ð Open record to edit SHIFT+ ÍBS Delete record
SHIFT+ A, P Specify AM or PM (when the 12-hour format is set)
Pronounce English headword Pronounce English translation
2
Display
Partner® ESC400T features a high-resolution screen (160x64 pixels). The indicator line is at the top of the display and shows the following indicators:
SHIFT key pressed Current Record opened in the edit mode Insert mode selected Batteries low Device locked Daily Alarm on Vertical scrolling or paging enabled (more text available) Horizontal scrolling enabled
Main Menu
The ESC400T MAIN MENU consists of 16 functional icons, which visually organize access to the dictionary's sections.
y To display the MAIN MENU, turn the device on, or close a current section. y Move between icons by using Ð,Ï or Í,Î. y To open a section, whose icon is highlighted, press ENTER.
The icons shown in the MAIN MENU represent the following sections:
Dictionary
User’s Dictionary
Grammar
Phrasebook
Calculator
Metric Conversion
Currency Conversion
Hangman Word Game
2
Press u, t to move between the three lines of symbols. Press the
corresponding number button to enter the desired symbol.
7
