Ectaco EP-X5 User Manual

Page 1

Partner® X5 User's Manual

CONTENTS

INTRODUCTION -------------------------------------------------------------------------3

General View ----------------------------------------------------------------------------5 Power Supply----------------------------------------------------------------------------5 Initialization-------------------------------------------------------------------------------7 Keyboard ---------------------------------------------------------------------------------8 Display ---------------------------------------------------------------------------------- 10

DICTIONARY------------------------------------------------------------------------------ 18

MAIN DICTIONARY ------------------------------------------------------------------- 18 DICTIONARY OF THE ENGLISH LANGUAGE -------------------------------- 19 HOW TO USE THE DICTIONARIES---------------------------------------------- 19

Advanced Word Recognition ------------------------------------------------------ 19 Voice Input ----------------------------------------------------------------------------- 20 Parts of Speech and Gender Labels -------------------------------------------- 20 Viewing Entries ----------------------------------------------------------------------- 21 Spell-checker Vector Ultima----------------------------------------------------- 23 Instant Reverse Translation and Instant Explanation ----------------------- 24 Pronunciation of Words and Sentences---------------------------------------- 26

SUPPLEMENTAL DICTIONARIES ------------------------------------------------ 27

German-Polish Dictionary ---------------------------------------------------------- 27 User’s Dictionary --------------------------------------------------------------------- 27

Learner’s Cards ----------------------------------------------------------------------- 31 TEXT TRANSLATION----------------------------------------------------------------- 33 VOICE PHRASEBOOK --------------------------------------------------------------- 34 ACCENT CORRECTION------------------------------------------------------------- 37 REFERENCE---------------------------------------------------------------------------- 39

Irregular Verbs ------------------------------------------------------------------------ 39

Popular Idioms ------------------------------------------------------------------------ 40 TOEFL AND GRAMMAR ------------------------------------------------------------- 41

TOEFL----------------------------------------------------------------------------------- 42

Grammar-------------------------------------------------------------------------------- 45

ORGANIZER ------------------------------------------------------------------------------ 47

PHONE DIRECTORY ----------------------------------------------------------------- 47 MEMO ------------------------------------------------------------------------------------- 50 SCHEDULER---------------------------------------------------------------------------- 52 CALENDAR ------------------------------------------------------------------------------ 57 DRAWING BOARD -------------------------------------------------------------------- 58 VOICE MEMO--------------------------------------------------------------------------- 60 PC COMMUNICATION --------------------------------------------------------------- 62

Page 2

Partner® X5 User's Manual

CALCULATIONS------------------------------------------------------------------------- 64

CALCULATOR -------------------------------------------------------------------------- 64 LOAN CALCULATOR ----------------------------------------------------------------- 65 ACCOUNT MANAGEMENT --------------------------------------------------------- 67 CURRENCY CONVERSION -------------------------------------------------------- 70 METRIC CONVERSION-------------------------------------------------------------- 72 SIZE EQUIVALENTS------------------------------------------------------------------ 73

REFERENCE ------------------------------------------------------------------------------ 73

LOCAL AND WORLD TIME --------------------------------------------------------- 73

Local Time------------------------------------------------------------------------------ 74

World Time ----------------------------------------------------------------------------- 77 TRAVEL GUIDE ------------------------------------------------------------------------ 78 TELEPHONE CODES----------------------------------------------------------------- 79 GAME CENTER ------------------------------------------------------------------------ 80 ENGLISH NAMES---------------------------------------------------------------------- 84 PHONE WIZARD ----------------------------------------------------------------------- 85 CROSSWORD SOLVER ------------------------------------------------------------- 85 U.S.A. INTERVIEW -------------------------------------------------------------------- 86

SETUP--------------------------------------------------------------------------------------- 87

INTERFACE LANGUAGE------------------------------------------------------------ 87 SYSTEM SETUP ----------------------------------------------------------------------- 88

Key Tone ------------------------------------------------------------------------------- 88

First Screen ---------------------------------------------------------------------------- 88

Auto Shutoff Period ------------------------------------------------------------------ 89

Touch Screen Calibration ---------------------------------------------------------- 89

Adult Lock ------------------------------------------------------------------------------ 90

Speech Level -------------------------------------------------------------------------- 90

Audio Settings------------------------------------------------------------------------- 91

Schedule Alarm ----------------------------------------------------------------------- 91

Date Format---------------------------------------------------------------------------- 92

Time Format --------------------------------------------------------------------------- 92

PC-Link Baud Rate ------------------------------------------------------------------ 92

Battery Check ------------------------------------------------------------------------- 92 SECURITY ------------------------------------------------------------------------------- 93 MEMORY CHECK --------------------------------------------------------------------- 95 DATA DELETION ---------------------------------------------------------------------- 96 BRIEF OF FUNCTION ---------------------------------------------------------------- 96 ABOUT ------------------------------------------------------------------------------------ 97

Page 3

Partner® X5 User's Manual

INTRODUCTION

Congratulations on purchasing the English-Polish Translator and Organizer Partner efforts of Ectaco’s staff of linguists, engineers, and programmers. You are now the owner of the most advanced electronic device ever produced for foreign language studies.

The Partner

 Main dictionary (English-Polish bidirectional dictionary) of over

1,000,000 words, including idioms, medical, technical, legal, and business terms, as well as slang and general expressions

 Dictionary of the English Language  German-Polish bidirectional dictionary  Comprehensive TOEFL guide with sample tests and instant

evaluation

 English Grammar electronic textbook with topic search  US citizenship exam preparation guide  Most popular American idioms  English irregular verbs

X5 features:

X5. This product is the result of the combined

 Advanced English speech reproduction  Fully automated text translation  New word recording function for dictionary expansion  Instant Reverse Translation  Advanced word recognition system

 The MorphoFinder  The Voice Input function  Personal word lists for easy learning  Interactive phonetic practice with speech correction

 Award winning Vector Ultima  Over 1,110 useful phrases in the English-Polish-German Voice

Phrasebook with English and Polish speech recognition

 2 MB English/Polish organizer, equipped with search function  Comprehensive reference section featuring Travel Guide,

English Names List, Local and World time with map illustration etc.



function



bilingual spell-checking system

 Game center featuring 4 fascinating games

Page 4

Partner® X5 User's Manual

 Crossword solver with educational functions  Arithmetic and Scientific Calculators  Account Management  Digital Voice Recorder  Currency and Metric converters  High-speed data exchange and synchronization with PC  Two-language Interface  Alarm and Audio Scheduler Reminder  Talking Clock  Calendar  Adult Lock  Data protection system  External power jack for non-battery operation  Headphone jack

The latest speech technology employed by the Partner

X5 allows you to listen to a clear, life-like pronunciation of English words and phrases.

Unlike other portable electronic dictionaries, this model features a break-through combination of two parallel input devices − a welldesigned 72-button keyboard and a high-resolution touch-sensitive

display, which makes it functionally analogous to a mouse-equipped computer.

♦ Note: As continuous efforts are made by the manufacturer to

ensure a better quality and performance of the Partner

products, some characteristics or the design of the actual device you purchased may slightly differ from their description in this manual.

The Partner Enjoy your Partner

X5 gives you freedom of speech and peace of mind.

X5 and make it your personal companion.

Page 5

Partner® X5 User's Manual

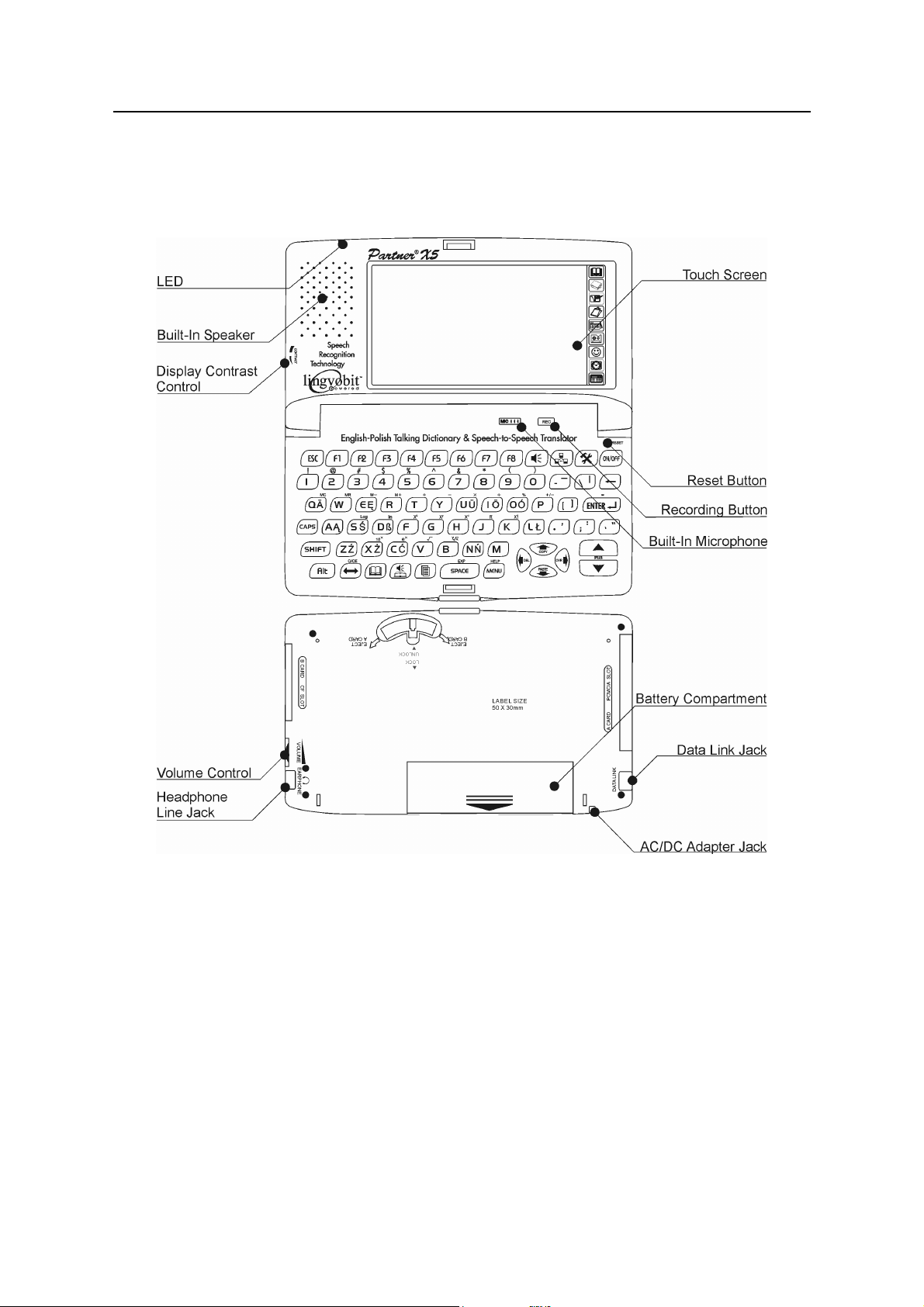

General View

The general view and external appliances of the Partner® X5 are shown below.

Power Supply

The Partner® X5 is powered by four AAA (LR03) batteries or by a special rechargeable pack. When the batteries or accumulators become weak, a warning message will be displayed. In order to prevent an excessive discharge of the batteries or accumulators and a resulting loss of data in RAM, the voice recording, talking function, and communication channel will be disabled at this time.

Page 6

Partner® X5 User's Manual

♦ Note: Electronic communication consumes considerable amount

of energy. Try to always use an external power supply while connected with a PC.

To restore full functionality of the device and to avoid the risk of losing user data, replace the complete set of batteries or recharge the accumulators as soon as possible.

How to recharge the accumulators

♦ Make sure the accumulators are inserted in the battery

compartment.

♦ Note: Only special accumulators – rechargeable pack

used with your Partner

X5.

♦ Connect an AC/DC adaptor to your device.

♦ Note: The Partner

X5 is equipped with a jack for external power

supply.

may be

♦ Note: Use of an inappropriate external power supply may

cause failure of the device and void the warranty. The AC/DC

adapter should provide 9V and min 300mA DC current.

The red LED shows that the accumulators are recharging and the green one shows that the accumulators are charged. The recharge LED will illuminate when the adaptor is connected.

• Note: Accumulators (if inserted in the device) are recharged

every time you connect the adaptor to your device.

How to replace the batteries

• Press the key to turn the device off.

• Note: Never try to remove the batteries from the device when

the power is on. This can seriously damage the device. If you experience difficulty turning the device off,

button on the right-hand side of the keyboard (above the button) and reinstall the system.

press the RESET

Please communicate with an Ectaco office to get more information about

this special rechargeable pack purchase.

Contact your dealer to order the compatible AC/DC adapter or call +1 (800)

710-7920 within the continental US or +48 (22) 844-16-64 in Poland.

Page 7

Partner® X5 User's Manual

• Remove the battery compartment cover by sliding it away from

the device.

• Remove the used batteries and replace them with new ones.

♦ Note: Do not mix old and new batteries.

• Make sure to place the batteries according to the polarity

markings (+ -) inside the compartment.

• Put back the battery compartment cover by sliding it toward the

device. Make sure the cover sits in place properly.

• Turn the device on to make sure it works correctly.

♦ Note: You have 2 minutes to replace the batteries without risk of

losing the data stored in RAM. Do not exceed the 2-minute limit! Neither the manufacturer nor the dealer may be held

responsible for the loss of user data.

Initialization

The initialization routine is started

• when the Partner

X5 is turned on for the first time

• when you remove the batteries (e.g. when replacing them)

for longer than 2 minutes

• after the system has been reset with the RESET button.

♦ Note: The RESET button is located on the right-hand side of the

keyboard (over the object like a paper clip. Never use a needle or a pin since it can damage the device.

button). It can be accessed with any thin

• If you see the Initialize system? message, press or touch

to abort initialization and customization.

• If you confirm the prompt, the factory defined settings will be

restored, but you can still prevent your data deletion by canceling

the ensuing prompt Delete all user’s data? Press

or to preserve your data.

The System is initialized! message signals that a system initialization has been accomplished, freeing memory and restoring the factory defined settings.

or touch

Page 8

Partner® X5 User's Manual

Also, the user may be prompted to conduct the touch-screen calibration, which configures the proper spacing and alignment of the touch-sensitive screen elements. Please refer to page 89 for the procedure description.

After a completed system initialization, or when using the device for the first time, the interface language will be reset to English. Users who prefer to see menus and messages in Polish are referred to page 87 for instructions.

Keyboard

The American standard QWERTY keyboard combined with the Polish and German layouts allows you to enter any word in just seconds.

Each set of national characters is linked to its language input mode.

Language modes can be toggled by pressing the

English-Polish bidirectional dictionary and German-Polish bidirectional dictionary, however, the input mode selection is made

automatically to comply with the current source language, and the

key is used for changing the translation direction.

The function and control keys are described below.

Function shortcut keys

Turn the device On or Off

RESET Re-initialize system

key. In the

Show Main Menu/Switch tab

Open Main Dictionary

Key1+Key2 here and further on signifies the combination of keys to use -

first press and release Key1, then press and release Key2.

Page 9

Partner® X5 User's Manual

+u, t

Open Voice Phrasebook

Open Text Translation

Start PC Communication

Open Setup

Launch Spell-Checker

Use speech function

Control and editing keys

Í, Î Move cursor or highlight Ð, Ï Move cursor or highlight/Scroll lines

u, t

Page by screen/Switch Main Menu tab

Execute

Enter space/Check or uncheck boxes

Close active window/Cancel

Enter symbols from the two-letter keys

Type in uppercase/Enter additional

symbols

Clear input

Caps Lock On or Off

Copy selection or the entire text to

+Ï

+Ð

+Í

clipboard

Insert clipboard contents

Delete character to the left of cursor

Delete character to the right of cursor

Only English words and phrases can be pronounced.

Use ALT to enter the lowercase Polish or German letters. To obtain the

uppercase images of the letters on two-letter keys, press SHIFT or CAPS LOCK the keyboard first (SHIFT+ALT or CAPS+ALT).

Marked over the keys.

Page 10

Partner® X5 User's Manual

+Î

…

Toggle Insert/Overwrite

Activate toolbar buttons

Switch language or translation direction

Computational symbols and operations are available with the Calculator options.

Display

The Partner® X5 features a large-size touch screen that provides a responsive and efficient windows-driven graphical interface for the device’s numerous functions and applications.

Touch-screen elements

By touching a screen item of a certain type – a push button or prehighlighted text – you perform an action associated with it.

The keyboard equivalent of touching the highlighted item is moving the highlight bar to it with the arrow keys (Í,Î,Ð,Ï) and pressing

Both the touch screen and the keyboard procedures of activating an option or a command are referred to as selecting in this manual.

Stylus

Touching is preferably done with the supplied pointing device called

the stylus, which, when not in use, can be conveniently kept in a special slot at the base of the device’s case lid.

The stylus is especially useful for operations that cannot be performed from the keyboard, for example, highlighting an arbitrary

Commands and options associated with currently displayed Toolbar buttons

are also accessible from the keyboard by pressing the F1-F8 keys with the corresponding number, counting buttons from top to bottom.

Page 11

Partner® X5 User's Manual

text fragment in the Organizer sections (to delete or to copy it) or highlighting a multi-word translation in a dictionary entry (to make a reverse translation or get an explanation).

♦ Note: If, for some reason, using the stylus does not provide the

desired effect, use (Í,Î,Ð,Ï) to access the Touch Screen Calibration procedure (see page 89).

, and the arrow keys

MAIN MENU

The MAIN MENU appears as a row of tabs on the top of the screen when the device is turned on (unless the Resume Screen setup option has been selected, see page 88) or an application is closed,

or the The MAIN MENU is divided into five submenus, each of which

includes a number of related sections.

key is pressed.

Sections may also include subsections and various lower level options.

The five parts of the MAIN MENU are:

DICTIONARY

ORGANIZER

CALCULATIONS

REFERENCE

SETUP

Opening a Submenu

The easiest way to open a specific submenu when the MAIN MENU is displayed is by touching its corresponding tab at the top of the screen.

Page 12

Partner® X5 User's Manual

Alternatively, the submenus can be chosen by pressing the key or one of the paging t,u keys on the keyboard.

Opening a Section

To open a section in the Partner® X5, display the appropriate part of the MAIN MENU and do one of the following:

• touch the section name

• move the highlight bar to the section name and press

• press the numeric key corresponding to the section number.

Sidebar

Sidebar ▼

Nine sections of the Partner shortcut buttons on the Sidebar to the right of the screen:

Main Dictionary

English Dictionary

Phone Directory

Scheduler

Calendar

X5 have permanent touch-sensitive

Voice Memo

Game Center

Local Time (Pop-Up Window and Talking Clock)

Calculator

Touchpad

The touchpad is a set of virtual keys displayed on the screen that simulates the conventional physical keyboard or part of it. The combination touchpad shown below is the most widely used throughout the Partner

X5 applications.

Page 13

Partner® X5 User's Manual

The basic touchpad layout contains the letters of the respective alphabet and a set of symbols. The control key images have the following meaning:

Touch key Meaning Keyboard equivalent

Touching the keyboard button screen or pressing F8 on the keyboard hides the touchpad, thus enlarging the input visible area. To re-display the touchpad, touch

or press F8 again.

Backspace

Enter

Shift

Caps Lock

Change language

in the lower-right corner of the

Windows

Every application, pop-up menu, or dialog box used in the Partner® X5 appears in its own window.

A window is displayed as a framed screen area with two main elements: the Title Bar and the Close Button.

The Title Bar may show the name of the currently active section or a

message title. Any window can be closed either by pressing on the physical keyboard or by touching the Close Button upper-right corner of the window.

in the

Page 14

Partner® X5 User's Manual

Also present in a window might be the Vertical or Horizontal Scroll Bars. The Scroll Box shows the position of the displayed portion relative to the rest of the relevant information.

On a Scroll Bar:

• touch a Scroll Arrow or to advance or go back one line

• touch and drag the Scroll Box to browse

• touch the Scroll Bar below or above the Scroll Box to jump to

that portion of text.

Pop-Up and Pull-Down Menus

A pop-up menu is an overlapping window that requests the user’s selection of one of the displayed options.

• Touch a line with the stylus or move the highlight bar to a line

with the arrow keys and press

Aside from pop-up menus, non-window pull-down menus may be used. The hidden pull-down menu.

button on the screen indicates the presence of a

• Touch the arrow button to pull down a menu.

Page 15

Partner® X5 User's Manual

• To select an option, touch its name or highlight it and press

• To hide a menu without making a selection, press or touch

the screen outside the menu area.

Dialog Box

A simple example of a dialog box is a prompt, which contains a Yes/No question pending the user’s confirmation or cancellation.

Ways you can respond to a prompt:

Touch

A Setup prompt expects the user to specify data items directly in the dialog box. This can imply either checking boxes or setting values.

Meaning

Yes

No N

Cancel

Keyboard equivalent

, Y

Page 16

Partner® X5 User's Manual

Checking boxes

• To check an empty box touch it or move the dotted frame

to the desired item with the arrow keys and press

the keyboard. A checked box appears solid:

• Touch or press to apply the changes and close

the window.

Setting Values

• To change a value in the highlighted box, touch the , buttons

or press the Ï,Ð keys.

• To change the active box, touch it or use the Í,Î keys.

• Touch or press to save settings and close the

window.

Message Box

A message just requests the acknowledgement of information,

therefore, touching message boxes do not display this button at all).

is the same as closing the window (some

Page 17

Partner® X5 User's Manual

The Partner

X5 does not allow the moving or switching of active windows. Thus, you will have to close an overlapping window in order to proceed.

Toolbar

A Toolbar is a set of vertically arranged push buttons appearing to the right of the pertaining window.

The most frequently used Toolbar buttons are:

Page Up Save

Page Down Edit

Scroll Up Delete

Scroll Down Search

OK (Apply) Settings

New Say

Explain Spell-Checker

Translate Font size

As an on-board help to the user, a short Toolbar button description (Tool tip) appears when a button is being touched.

Commands and options associated with currently displayed Toolbar buttons are also accessible from the keyboard by pressing the F1F8 keys with the corresponding number, counting the buttons from top to bottom.

Page 18

Partner® X5 User's Manual

DICTIONARY

The most important part of the Partner® X5 is the DICTIONARY section – it encompasses eight language-related sections.

• Select the tab from the MAIN MENU to open the

DICTIONARY section.

MAIN DICTIONARY

The Partner® X5 contains the most advanced English-Polish and Polish-English electronic dictionaries available on the market. This Manual usually refers to those as the English-Polish Dictionary, or simply the Main Dictionary.

General Dictionary Function

Select English-Polish Dictionary from the DICTIONARY section,

•

or touch keyboard.

During the initialization of the English-Polish Dictionary you may see the

considerable number of entries. Since both dictionaries are interlinked, the more words the User’s Dictionary contains, the more time it takes to initialize the Main Dictionary. Please wait while the loading completes.

♦ Note: Please refer to the How to use Dictionaries (see page 19).

icon. This usually means that User’s Dictionary contains a

on the Sidebar, or press the key on the

Page 19

Partner® X5 User's Manual

DICTIONARY OF THE ENGLISH

LANGUAGE

The Partner® X5 includes the advanced English explanatory electronic dictionary.

General Dictionary Function

Select English Dictionary from the DICTIONARY section.

•

♦ Note: Please refer to the How to use Dictionaries section (see

page 19).

HOW TO USE THE DICTIONARIES

Advanced Word Recognition

•

To translate or explain a word, start entering it from the keyboard or the touchpad.

While you are typing, headwords closest in spelling to the portion you entered so far are displayed in the Advanced Search Area under the input line.

Page 20

Partner® X5 User's Manual

• If the desired word had appeared before you finished typing,

select it (touch the corresponding line or make sure it is

highlighted and press explanation(s).

) to see its translation(s) or

• Scroll or page through the Advanced Search Area to manually

find the word in question.

• To enlarge the visible Search Area, hide the touchpad by

touching

Voice Input

The Voice Input is a new exclusive function which enables voice input of English words.

• To translate or explain an English word, touch and spell the

desired word.

The word will be recorded, automatically recognized, and the list of headwords (and first translations if in the English-Polish Dictionary) closest in spelling will appear.

• Touch the desired word or highlight it and press to see

its translation(s) or explanation(s).

Parts of Speech and Gender Labels

The translations or explanations of a headword are listed in alphabetical order by part of speech.

A – adjective NPR – proper noun

ABBR – abbreviation NUM – numeral

ADV – adverb PART- particle

ART – article PHR – phrase

AUX – auxiliary PREF – prefix

CONJ – conjunction PREP – preposition

ID – idiom PRON – pronoun

INTRJ – interjection SUFF – suffix

N – noun V – verb

Page 21

Partner® X5 User's Manual

Polish and German nouns are marked with gender and number labels.

F – feminine MN – masculine or neuter

FN – feminine or neuter MPL – masculine plural

FPL – feminine plural N – neuter

M – masculine NPL – neuter plural

MF – masculine or feminine PL – plural

MFPL – masculine or

feminine plural

Viewing Entries

Suppose you want to translate the English verb CASE into Polish.

• Enter CASE in the input line.

♦ Note: The Dictionary search is not case-sensitive, so you can

type in any case you want.

♦ Note: It is possible to retrieve a translation or explanation for

word forms entered in the input line. The source word entry for the desired word will be displayed. For example, if you enter "rains" you will get "rain" as there is no translation or explanation for "rains" because it is a form of "rain." The MorphoFinder™ function helps you find source words for English past participles, gerunds, plural forms and for Polish forms of various parts of speech.

• To select CASE and see its translations, touch the corresponding

line in the Advanced search area, or make sure the line is

highlighted (use Ð if necessary) and press

Page 22

Partner® X5 User's Manual

♦ Note: Similarly, you can get explanations of the words in the

Dictionary of the English language.

• Use the scroll bar or the Ð key to scroll the screen down to see

more translations of the word CASE as a noun. You will also see translations of the word CASE as a verb.

• Touch to reduce the screen font size and see more

translations or explanations of the given headword on the screen without scrolling.

♦ Note: There are three font sizes in the Dictionaries. Touch

twice to restore the initial font size.

• Use the t, u keys or the , buttons to switch between

adjacent entries.

♦ Note: Your User’s Dictionary headwords, if coinciding in spelling,

will be displayed in advanced search area before those of the Main Dictionary.

Page 23

Partner® X5 User's Manual

• To translate or explain another word in the same dictionary,

press begin a new search.

or touch to return to the selection screen and

• To change the direction of translation, make a reverse translation

or press

touch

♦ Note: The English-Polish and the German-Polish dictionaries are

chosen by default after the system initialization.

or press .

or touch to return to the selection screen, then

• To record a displayed entry in your personal Learner’s Cards,

select the

button and specify the set name.

Spell-checker Vector Ultima

The multilingual spell-checker Vector Ultima is one of the most advanced on the market. When you are unsure of the spelling of a word, the Vector Ultima allows you to enter the word as you hear it and choose a spelling version from a list of suggestions.

• Type the word DOOR as you hear it: DOR.

• Touch or press +either of the t, u keys. A list of

suggested variants appears on the screen.

Page 24

Partner® X5 User's Manual

• Select the word DOOR to see its translations.

♦ Note: If the spell-checker is unable to suggest alternative words,

the No variants message is shown.

Instant Reverse Translation and Instant Explanation

For your convenience, the Partner® X5 provides an Instant Reverse Translation and Instant Explanation for all words and expressions in the Dictionaries.

• For example, display the entry for the adjective INSTANT.

• To highlight a word among the explanations or translations

• touch it with the stylus, or

• move the highlight bar to it with the Î key. For example:

♦ Note: You can also highlight an expression. Expressions

constituting a complete translation variant can be highlighted as a whole. To highlight a whole expression between commas, touch its first word with the stylus and drag the stylus along the expression until the last word is highlighted.

♦ Note: Don’t highlight across translation boundaries or

punctuation marks.

• Touch or , respectively to obtain an explanation or

reverse translation of the highlighted word or expression.

Page 25

Partner® X5 User's Manual

♦ Note: To get an explanation of the headword of a displayed

entry, just touch

♦ Note: If there are entries in both Main and User’s Dictionaries,

the entry in the latter dictionary is displayed first.

• Touch or press the u key to page down to the Dictionary’s

entry.

♦ Note: If the translation for the selected expression is not found,

select the main word in it, touch touch

entry. For example:

♦ Note: It is possible to retrieve a reverse translation or explanation

or press the u key to page down to the appropriate

, and when in the Dictionary

for word forms highlighted within the translation or explanation of the entry. The source word entry for the highlighted word will be displayed. For example, if you highlight "distributed" you will get "distribute" as there is no translation or explanation for "distributed" because it is a form of "distribute." The MorphoFinder™ function helps you find source words for English past participles, gerunds, plural forms and for Polish forms of various parts of speech. If the message "Not found!" is displayed, try to find the word in the dictionary by typing the desired word in its basic form.

You can make up to 4 reverse translations and explanations in succession (without closing windows). The message Last translation is displayed if the limit is reached.

• To close the Reverse Translation or Instant Explanation windows

in the reverse order, touch

or press .

Page 26

Partner® X5 User's Manual

Pronunciation of Words and Sentences

One of the most exciting features of the Partner® X5 is the TTS (Text-To-Speech) technology which allows the pronunciation of English words and phrases.

• Display an entry, for example:

• To listen to the pronunciation of the headword in English-Polish

or English Dictionary, touch

or press the key.

• To listen to the pronunciation of explanation in English

Dictionary, select all or any of the words and touch

the

key.

or press

• To listen to the pronunciation of all translations in Polish-English

dictionary, touch to any selected English words or phrases.

TTS is able to generate a pronunciation of any English text, not

or press the key. You also can listen

limited to dictionary entries. Simply type in a word or phrase on the selection screen of the corresponding Dictionary and touch

press the ♦ Note: In the Speech Level option of the System Setup menu you

may adjust speech volume, frequency and speed, shaping your

key to listen to its pronunciation.

Page 27

Partner® X5 User's Manual

own pronunciation style. In addition, volume can be conveniently changed “on the fly” using the external switch.

SUPPLEMENTAL DICTIONARIES

German-Polish Dictionary

The Partner® X5 contains a bidirectional German-Polish electronic dictionary.

General Dictionary Function

• Select German-Polish Dictionary from the Supplemental

Dictionaries.

♦ Note: All functions and keys in the German-Polish dictionary

work the same way as they do in the Main Dictionary. Please refer to the How to use Dictionaries section to read about

Advanced Word Recognition, Viewing Entries, Spell-Checker



Vector Ultima Explanation.

, Instant Reverse Translation and Instant

User’s Dictionary

The Partner® X5 allows you to create your own vocabulary, which automatically links to the Main Dictionary.

• Select User’s Dictionary from the Supplemental Dictionaries.

Page 28

Partner® X5 User's Manual

• Select one of the user’s dictionaries.

Creating a Record

The record consists of a word or expression, its translation, and its part of speech.

• When in a record list or in the viewing mode, touch on the

Toolbar, to open a new record template.

• Type in an English word or expression. For example:

• Touch or press u or to go to the translation page.

Enter a Polish translation.

• Touch or press to save your record. If you want,

also specify a part of speech by selecting appropriate abbreviation from the list. The record will be saved and you will be returned to the record list.

When in the record list or in the viewing mode, use

• Ð, Ï to move the highlight bar

• , to page up and down

and choose an

• to open a new record template

• to make a contents search

• to open the highlighted record for editing

• to delete the highlighted record

Page 29

Partner® X5 User's Manual

• to listen to the English part of the record's contents.

♦ Note: The User’s Dictionary entries are fully reversible. Any

translation of a Polish-English User’s Dictionary entry automatically becomes a headword in the English-Polish User’s Dictionary, and vice versa. This also means that by deleting one of them you will automatically delete the other.

Finding a Record

There are three ways to find a record:

Select From the List

• Open a User’s Dictionary. A list of existing headwords will be

displayed, for example:

• To select an entry, touch it with the stylus or move the highlight

bar to it and press

The selected record opens in the viewing mode.

Contents Search

• When in the record list or in the viewing mode, select the

button.

• Type in any Polish or English word (or a part of a word) that is

contained in the record(s) you are looking for.

Page 30

Partner® X5 User's Manual

• Touch or press to display the search results, if

any.

• Open the desired entry.

Access through the Main Dictionary

The User’s Dictionary entries are also accessible from the Main Dictionary. These are marked with a special icon.

• Open the Main Dictionary.

♦ Note: The more words the User’s Dictionary contains, the more

time it takes to initialize the Main Dictionary, since both dictionaries are interlinked. During the initialization process you

will see the

icon.

• Select the translation direction compatible with the headword

language you want to use for search.

• Start entering a headword.

♦ Note: Your User’s Dictionary headwords, if coinciding in spelling,

will be displayed in Advanced Search Area before those of the Main Dictionary.

• Press to display the entry in the Main Dictionary

format.

Page 31

Partner® X5 User's Manual

♦ Note: You can save your User’s Dictionary entry in a Learner’s

Card from this box.

Editing a Record

• When in the record list or in the viewing mode, select to

open the record in the editing mode, and make the desired modifications.

• Touch to save the changes.

Deleting a Record

• When in the record list or in the viewing mode, select .

• Confirm your intention to delete the record.

♦ Note: If you previously saved this entry in the Learner’s Cards

(this procedure is carried out via the Main Dictionary), you will lose it in the Learner’s Cards, too.

Downloading Additional Dictionaries

You can download additional dictionaries from a personal computer to the User’s Dictionary. Please refer to page 62 of this Manual and visit Ectaco’s Web site at www.ectaco.com for more information.

Learner’s Cards

The Learner’s Cards section provides you with a convenient personalized storage for selected Dictionaries’ entries that can help you memorize foreign words and their meanings more effectively.

An entry is saved in the appropriate Learner’s Set when you select

in a dictionary and specify one of the available sets.

Page 32

Partner® X5 User's Manual

• Select Learner’s Cards from the Supplemental Dictionaries. The

list of the available Learner's Sets will be displayed.

By default three sets are available - Important Words, My Words, and Useful Phrases. You can use up to twenty Learner's Sets including the initial ones.

When in the menu, use:

• Ð, Ï to move the highlight bar

• to open the highlighted set

• to create a new set

• to change the name of the highlighted set

• to delete the highlighted set

• to search a headword in the highlighted set.

• To open a list, touch the corresponding line or move the highlight

bar to it and press sorted list will be displayed.

. The first entry of the alphabetically

Page 33

Partner® X5 User's Manual

Use:

• Í,Î to highlight any word in the translation or explanation

of a given headword

• to get an explanation of the English headword or of the

highlighted English word or expression

• to translate the headword or the highlighted word into

another language

• to search a headword in the current set

• to show/hide translations or explanations of the selected

word

• to delete the displayed record

• , or u,tto move to the next or previous record,

respectively

• or to listen to the English part of the displayed

record.

TEXT TRANSLATION

Your Partner® X5 features a highly efficient text-translating program.

• Select Text Translation from the DICTIONARY section.

• To select the direction of translation, touch

• Input a text for translation.

♦ Note: Text for translation cannot contain more than 1,000

characters.

• Touch or press to automatically translate the text.

Page 34

Partner® X5 User's Manual

• Select the active box (indicated by a dotted frame) by touching it

or by pressing the Ð, Ï keys.

• To obtain an Instant Reverse Translation of any word in the

active box, highlight it and touch want to translate from. Close the Main Dictionary window to return to Text Translation.

. Select a language you

• Touch to get an explanation of the highlighted English word.

Close the English Dictionary window to return to Text Translation.

• Press +Ï to copy all text from the active box.

• To listen to a pronunciation of an English text on the screen,

touch

or press the key.

• Touch or close the translation window to return to the input

screen. You may edit the old text or press the screen and enter a new one.

+ to clear

VOICE PHRASEBOOK

This feature of the Partner® X5 substitutes for a Polish or English interpreter in standard situations such as registering at a hotel, shopping, visiting bank etc. You simply choose the appropriate phrase from the book or say it in English or Polish and the Partner X5 will pronounce it for you in English, Polish or German.

For easy reference the phrases are arranged by topics:

Page 35

Partner® X5 User's Manual

Everyday Conversation Restaurant Traveling Shopping Local transport Bank Driving Health Hotel Housekeeper

• Select Voice Phrasebook from the DICTIONARY section. You

will see a list of topics displayed in the English or Polish language depending on the Interface Language setting. For example:

• Press to set Source language.

• To open a topic:

• highlight it with Ð,Ï and press , or

• touch or press the REC key.

• Say the name of the topic. The highlighting will be moved to

the one selected for a second and then the topic will be opened.

• Touch to set the Source language and to set the Target

language.

• To find a phrase, touch or press the REC key and say the

desired phrase. It will be recorded, automatically recognized, and highlighted. The translation will be pronounced (if this option is enabled).

Page 36

Partner® X5 User's Manual

If the highlighting does not move to another position or a wrong phrase is displayed, this means that the phrase was either not recognized, recognized unsuccessfully or there is not such a phrase in this topic.

For successful recognition it is necessary to take into account the following recommendations:

1. Ensure there is silence at the time of use.

2. Choose the optimum distance from the built-in microphone within a range of 3 – 6 inches (8 – 15 cm), in view of your usual loudness of pronunciation.

3. Try to say phrases distinctly and plainly yet not in clipped syllables.

4. Avoid carelessness in pronunciation (smacking of lips, loudly inhaling or exhaling, mumbling, interruptions, repetitions, etc.).

5. Try to adjust the microphone level according to loudness of your voice. Touch the

and change the value using number buttons.

Use:

button. Highlight the Mic volume checkbox

• Ð, Ï to move the highlight bar

• u, t to page up and down

• or the REC key to make a voice input

• to learn more about correct pronunciation and recording

a phrase

• or to listen to the pronunciation of the selected

phrase

• to hear the pronunciation of the translation

• to set or cancel the Pronounce translation, Hint, Auto

playback options (to check or uncheck option touch the

desired one with stylus or press the

key)

• to set internal speaker ON or OFF and to adjust the

microphone level.

♦ Note: If you hear no sound, make sure the internal speaker is

ON (it can be turned off by the program).

Page 37

Partner® X5 User's Manual

ACCENT CORRECTION

The Accent Correction is an excellent tool that helps you improve your English articulation skills.

The section contains over 1,100 commonly useful phrases. For easy reference they are divided into conversational topics:

Everyday conversation Restaurant Traveling Shopping Local transport Bank Driving Health Hotel Housekeeper

Phonetic exercises make the basis for improving your pronunciation, thus making it closer to the sample pronunciation of an Americanspeaking person. Sample phrases are recorded by the American speaker, processed and stored in the memory of your Partner

The phrases you pronounce are entered via the built-in microphone, processed, and then compared to the sample. In the comparison stage, a unique speech recognition technology is used to determine which phrase was spoken. On the basis of this comparison the degree of the closeness of your pronunciation to the model is assessed.

X5.

• Select Accent Correction from the DICTIONARY section.

• Choose a topic.

Page 38

Partner® X5 User's Manual

• Touch or the REC key to make a voice input.

First you will listen to a phrase recorded by the American speaker (if this function is enabled).

• Position yourself near the built-in microphone at a distance of 3 –

6 inches (8 – 15 cm) and say the phrase.

The phrase you said will be recorded, automatically recognized and compared to the model pronunciation. The results of the comparison are given as Excellent, Good, Poor, Wrong or Please try again. The Please try again result means that it is necessary to repeat the phrase louder or to lower extraneous noises.

♦ Note: The quality of voice recognition strongly depends on the

level of external noise. Try to ensure silence in the room where you practice pronunciation.

• If you want to listen to a model pronunciation of a phrase before

you make a voice input, touch to the phrase option is selected.

and make sure the First listen

• If you want to listen to the phrase you said before the result

appeared, touch

the

Use:

key.

• Ð, Ï to move the highlight bar

• u, t to move between pages within a section

• or , to listen to the pronunciation of the highlighted

sentence

and check the Auto playback option with

• to set the internal speaker ON or OFF and to increase

the level of amplification of the microphone

• to learn more about correct pronunciation and recording

a phrase.

Page 39

Partner® X5 User's Manual

For successful practice, it is necessary to take into account the following recommendations:

1. Ensure silence at the time of use.

2. Choose the optimum distance from the built-in microphone within a range of 3 – 6 inches (8 – 15 cm), in view of your habitual loudness of pronunciation.

3. Do not say extraneous words or phrases into the microphone.

4. Try to say phrases distinctly and plainly yet not in clipped syllables.

5. Avoid carelessness in pronunciation (smacking of lips, loudly inhaling or exhaling, mumbling, interruptions, repetitions, etc.).

REFERENCE

The Reference is a convenient on-hand translation aid when dealing with lexical, grammatical, and idiomatic aspects of the English language.

• Select Reference from the DICTIONARY section.

Irregular Verbs

All commonly used English irregular verbs are stored in alphabetical order in the Partner’s Irregular Verbs.

• Select Irregular Verbs from the Reference section.

• Find the verb you need by typing or by scrolling the list.

Page 40

Partner® X5 User's Manual

• To see the verb's basic forms and its translations, touch the

corresponding line in the list, or make sure the line is highlighted (press Ð if necessary) and touch

or press .

• Use:

• , or u, t to move between verbs

• to obtain an Instant Reverse Translation of the

highlighted English or Polish word or expression

• to get an explanation of the highlighted English word

• to save an entry into a Learner's Card

• or to listen to the pronunciation of an English verb

and its basic forms.

Popular Idioms

Over 200 widely used American idioms and their Polish equivalents or translations are included in the Partner’s Popular Idioms directory. The idioms are listed in alphabetical order.

• Select Popular Idioms from the Reference section.

• Search the idioms by typing or by scrolling the list.

• To display an idiom, touch the corresponding line in the list, or

make sure the line is highlighted (press Ð if necessary) and

touch

or press .

Page 41

Partner® X5 User's Manual

• Use:

• , or u, t to move between idioms

• to obtain an Instant Reverse Translation of the

highlighted English or Polish word or expression

• to get explanation of the highlighted English word

• to save an entry into a Learner's Card

• or to listen to the pronunciation of an English

idiom.

TOEFL AND GRAMMAR

The Partner® X5 contains a practical preparation guide for the Test of English as a Foreign Language (TOEFL), which is required of

non-native English speakers as part of the admission procedure to an American college. This section offers you a unique opportunity to practice the computerized test version, as it is likely to be presented to you at a real examination.

Another useful function of the Partner for non-English Speakers.

• Select TOEFL & Grammar from the DICTIONARY section.

X5 is the English Grammar

Page 42

Partner® X5 User's Manual

TOEFL

•

Select TOEFL from the TOEFL & Grammar Menu to access the

TOEFL submenu.

Tutorial

The Tutorial provides you with general information about the requirements, structure, and duration of a TOEFL test. The Tutorial text is available in English.

• Select Tutorial.

• To read the Tutorial, use:

• , or Ð,Ï for scrolling by line

• u, t for paging.

After you become acquainted with the TOEFL basics set forth in the Tutorial, you might feel prepared to practice answering some

questions. For your convenience, sample questions are arranged in two sequences, represented by Sample Tests and Sample

Exercises.

Sample Tests and Sample Exercises

• Select the Sample Tests option from the TOEFL menu to open

its submenu, which includes four test options.

Page 43

Partner® X5 User's Manual

Each test contains Multiple Choice questions pertaining to all three parts of the TOEFL test in this order: Listening Comprehension, Structure and Grammar, Reading Comprehension.

• Select the Sample Exercises option to open its submenu, which

includes three options corresponding to the parts of TOEFL.

The Sample Exercises option allows you to practice each of the three parts of the TOEFL test separately. The main parts are further subdivided into two or three topics comprised of questions of the same type. For example, the topics of Structure and Grammar are Sentence Completion and Error Identification:

• By selecting the auxiliary TOEFL Help option you can obtain

detailed directions for the types of exercises included in the current menu.

Regardless of the practice form you have chosen, each sample question is structured as follows:

• Question text (not displayed in the Listening Comprehension

section

• Four answer versions lettered A, B, C, D, immediately

following the question text

• Answer selection bar is at the bottom of the screen.

)

The questions in the Listening Comprehension section, instead, are spoken

aloud for you while only answers are displayed.

Page 44

Partner® X5 User's Manual

Use:

• , or Ð,Ï to scroll the text

• Í,Î to highlight words

• A, B, C, D buttons to select the right answer

• to make a reverse translation of the highlighted word

• to get an explanation of the highlighted English word

• , or u,tto go to the next or previous question

• and to listen to the pronunciation of an English text

on the screen

• to return to the menu.

Pop-Up Menu

• Touch to display the pop-up menu.

♦ Note: The Say hidden text and Show hidden text options only

work with questions from the Listening Comprehension part, and are disabled elsewhere.

• Select Say hidden text to hear a Listening Comprehension

question text again.

• Select Show hidden text to display a Listening Comprehension

question text.

• Select Show right answer to see the correct answer.

♦ Note: Use Say hidden text, Show hidden text and Show right

answer options only to check your answers, since this kind of help will not be available during the real test.

• To jump to a specific question, select Go to and specify a

question number.

Page 45

Partner® X5 User's Manual

Selecting an Answer and Viewing the Score

• Select an answer by touching the corresponding letter on the

bottom bar.

• To go to the next question, use or u. In Sample Exercises

an instant message will appear momentarily telling you whether your answer was right or wrong.

• When you return to the TOEFL menu, a message box is shown:

Total shows the total number of questions in the test or the section of Sample Exercises. Answers indicate how many questions were correctly answered during the concluded session. The third line shows your score, which is based on the formula used for the real TOEFL tests.

Grammar

Select Grammar from the TOEFL & Grammar menu.

•

The Grammar section is structured by way of hierarchically numbered three-level menus that include options referring to traditional grammatical topics. A topic's text is displayed when a third level menu option is selected.

• You can reach a menu’s third level in either of the following

ways:

Page 46

Partner® X5 User's Manual

• navigating the levels consecutively by selecting one of the

options (touch

or press to return to a previous level)

• by touching to display a list of all third level options.

• To display a text, select a third level option.

Use:

• Ð, Ï to scroll the text

• Í,Î to highlight words

• , or u,tto display the beginning of the next or

previous topic of the current menu

• to make a reverse translation of the highlighted word

• to get an explanation of the highlighted English word

• to return to the menu.

Page 47

Partner® X5 User's Manual

ORGANIZER

The ORGANIZER section contains a number of versatile applications to help you classify, record and manage various personal or business information.

All Personal Organizer records can be protected with a password.

• Select the tab from the MAIN MENU to open the

ORGANIZER section.

PHONE DIRECTORY

In this section you can store names, telephone and fax numbers, postal and e-mail addresses in the English and Polish languages, as well as search, change, and delete records.

• Select Phones Directory from the ORGANIZER section. You will

see a list of existing telephone records sorted by Name.

Creating a Record

• Touch to open a new record template. Start filling out the

first page - Name.

♦ Note: It is necessary to have the Name page completed to save

the record.

Page 48

Partner® X5 User's Manual

There is a Page Icon in the upper left-hand corner. A Tool tip with the page name appears when a page is opened or the Page Icon is touched.

A Phones Directory record includes the following pages:

Use:

Name

Company Name

Position

Company Telephone Number

Home Telephone Number

Fax Number

Mobile/Pager Number

E-mail Address

Web-address

Address

Note

• , or t,u to open the next or previous page

• to choose a specific page from the pop-up menu

• to save a record.

♦ Note: Do not forget to enter a Company name for each person (if

applicable), which will facilitate your future searches.

Finding a Record

There are three ways to search for records:

Select From List

• Open the alphabetical list of records represented by Names, for

example:

• To see your entries sorted by Companies, touch .

Page 49

Partner® X5 User's Manual

• View the list and select an entry to open it in the viewing mode.

In the viewing mode, use:

• to open the displayed record for editing

• to delete the displayed record

• , or Ð,Ï to scroll the pages of the displayed record

by two

• , or u,t to go to the next or previous alphabetical

record, respectively.

Contents Search

• Touch to display the record search screen.

• Specify any adjacent alphabetic or numeric string that might be

found in a record or records. For example, to find all Ectaco

records, type Ect and touch

or press .

• Select an entry to open the associated record in the viewing

mode.

Page 50

Partner® X5 User's Manual

♦ Note: You can add a business description in the Note field when

creating or editing a record to allow for more effective classified search results in the future.

Quick Lookup

• Open an alphabetical list of records represented by Names or by

Companies (use

to switch between those).

• Press one or more alphanumeric key(s) on the keyboard to jump

to an entry that starts with the corresponding character(s):

• To cancel the lookup or delete extra characters in the lookup

box, press the

♦ Note: Quick Lookup is only used for searching within

alphabetical lists of records sorted by Names or by Companies.

key.

• To open the selection, press or touch the highlighted

area with the stylus.

♦ Note: Keep in mind that working with more than 500 records will

seriously slow down the data processing speed. The indicates that the corresponding data-handling procedure has not been completed.

icon

MEMO

The Memo section of your Partner® X5 provides you with a handy storage place for all kinds of memoranda, notes, and messages which you can record in English and Polish, edit, search or delete.

• Select Memo from the ORGANIZER section. A Memo record list

is displayed.

Page 51

Partner® X5 User's Manual

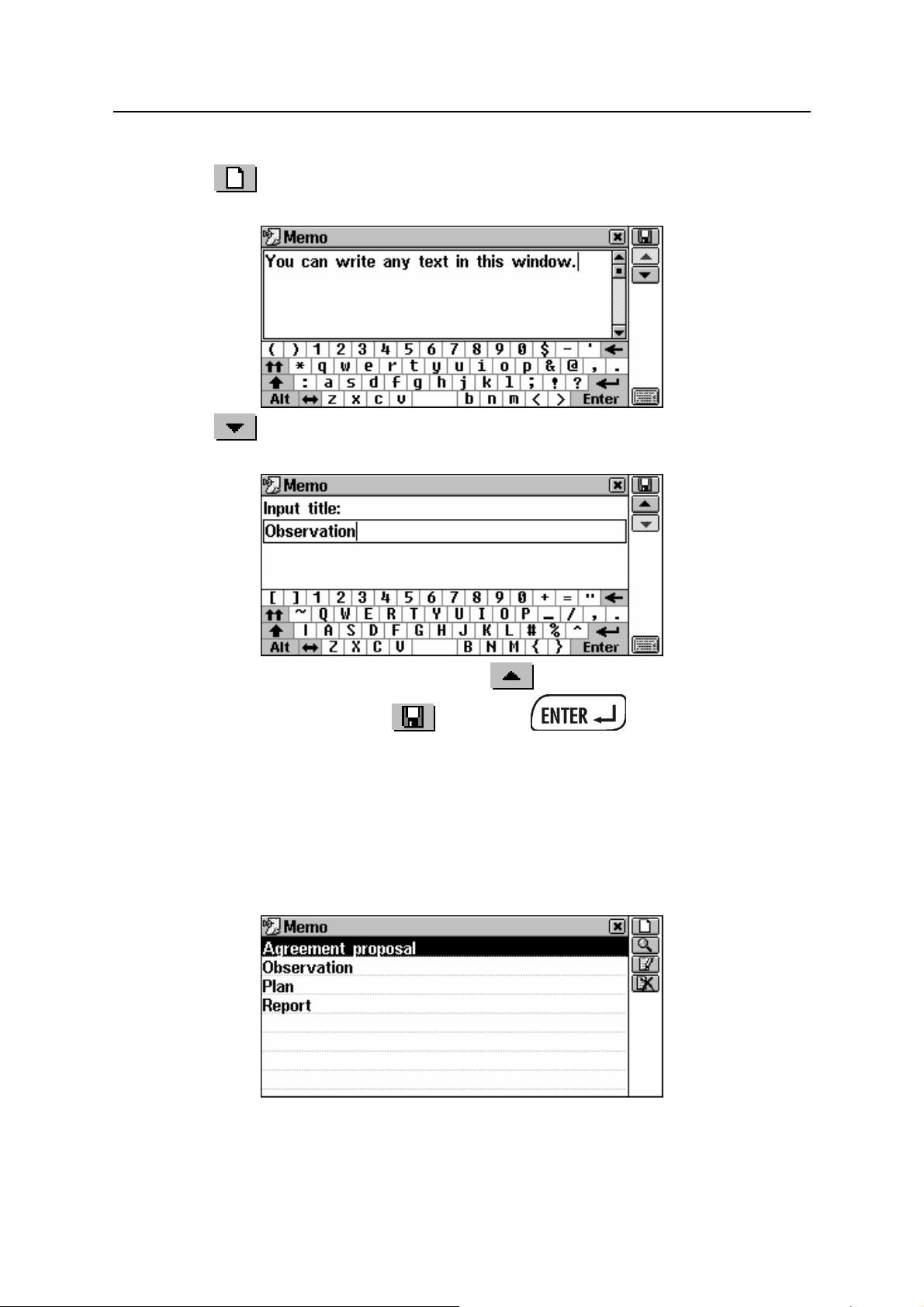

Creating a Record

• Touch to open a new record template. Enter your memo

text.

• Touch or press u to open the Title Input page. Type a title

for your memo which will appear in the Memo list.

• To return to the main page, touch or press t.

• To save a record, touch or press .

♦ Note: The record text cannot exceed 32 KB.

Finding a Record

There are two ways to search for records:

Select From List

• Open an alphabetical list of records represented by Memo Titles.

When in the record list, use

• Ð,Ï to move the highlight bar

Page 52

Partner® X5 User's Manual

• to open the highlighted record for editing

• to delete the highlighted record

• To select an entry touch it or move the highlight bar to it and

press

The selected record opens in the viewing mode.

In the viewing mode, use:

• to reduce / enlarge the font size in the view window

• to open the displayed record for editing

• to delete the displayed record

• , or t,u to go to the alphabetically next or previous

record, respectively (the current record title is shown in the screen header).

Search Text

• When in the Memo list or in the viewing mode, touch to

display a record search screen.

• Specify any adjacent string that might be found in a record or

records, and touch Search result list.

or press to see results in a

• Select an entry to open the associated record in the viewing

mode.

SCHEDULER

You may effectively manage your time by using the Scheduler section of your Partner Polish, as well as edit, search and delete them.

• Select Scheduler from the ORGANIZER section to display a list

X5. You may enter records in English or

of Scheduler entries specified for the current date (default).

Page 53

Partner® X5 User's Manual

• Use to switch between viewing all and current date records.

Creating a Record

• Touch to open a new record template.

♦ Note: A new Scheduler record can also be opened from

Calendar.

The first page of a Scheduler record includes information on Event, Date, Time, audible Reminder and Recurrence settings, which can be changed via setup dialog boxes.

Event

• To choose between Task, Call, Meeting or Anniversary Date,

touch the caption or the icon on the left.

♦ Note: The Task heading defaults to a new record. Date

The current date is the default setting in a new record.

• To display the Date setup dialog box touch the date value or the

date icon.

• To set the desired Day, Month and Year of an event, touch ,

or press number buttons. Use Í, Î to move between fields.

Time The current time is the default setting in a new record.

• To display the Time setup dialog box touch the time value, or

Page 54

Partner® X5 User's Manual

the time icon.

• To set the desired Hour and Minute, touch , or press the

number buttons. Use Í, Î to move between fields.

Reminder Reminder specifies the time period until the Time when a reminder

alarm will be issued.

• To display the Reminder setup box touch the Reminder value

(the none setting defaults for a new record), or the Reminder icon.

• Choose one of the available options.

Recurrence

If you need your Reminder to operate on a recurrent basis you should select one of the daily, weekly, monthly, or yearly recurrence intervals. None is the default setting for a new record.

• Touch the Recurrence icon or its value and choose one of the

options in the setup box.

Page 55

Partner® X5 User's Manual

♦ Note: With a Scheduler record made at the turn of the month and

a Monthly recurrence interval set, the Reminder alarm will be issued on the last day of the month if the month in question has fewer days than the one in which the setting was initiated.

♦ Note: The recurrence interval setting does not mean a record will

be duplicated in the Scheduler and Calendar. For example, if you created a record dated Dec-01, 2002 and set recurrence interval daily, this record will not appear in Dec-02, Dec-03 etc. lists. Instead, the Reminder will sound at the set time and the initial record of Dec-01, 2002 will be displayed.

♦ Note: If one-time and recurrent events coincide with each other

on the same date and at the same time, then Reminder will only display the one-time event since it has higher priority.

* * *

• Touch or press u to open the next page.

• Type in the Description contents. To return to the previous page,

touch

or press t.

• To save a record, touch .

Finding a Record

There are three ways to search for records.

Select From List

• Open the record list for the current date, ordered by Time.

• When in the record list, use:

• Ð, Ï to move the highlight bar

• to open the highlighted record for editing

• to delete the highlighted record

• , or t,u to go to the next or previous date list.

Page 56

Partner® X5 User's Manual

• To select an entry, touch it or move the highlight bar to it and

press

The selected record opens in the viewing mode.

• In the viewing mode, use , or t,uto go to the next or

previous chronological record, respectively.

Contents Search

• Select to display a record search screen.

• Specify any adjacent string that might be found in the contents

page of a Scheduler record or records, and touch

or press

to see results in a Search result list.

• Select an entry to open the associated record in the viewing

mode.

Search through Calendar

• Select Calendar from the ORGANIZER section.

• To open the Scheduler list referring to the desired date, highlight

a date for which a Scheduler record exists (these dates will

appear framed) and press

Schedule Alarm and Reminder

The Schedule Alarm can be turned on or off in the System Setup section. This setting affects the entire Scheduler section: if turned on, which is the default setting, the Schedule Alarm sounds on the Date and at the Time of any Scheduler record, producing an audible beep.

The Reminder time is adjusted separately for every individual

record.

Page 57

Partner® X5 User's Manual

• Press any key or touch the screen to interrupt a Schedule Alarm

or a Reminder beep (otherwise, the beep will continue for 30 seconds). The corresponding Scheduler record will be displayed in the viewing mode.

You can change the record - for example, set the Reminder for a later time. Closing Scheduler will bring you back to where you were before the alarm went off.

CALENDAR

This section provides you with a convenient Calendar for 1900-

2099. It also allows you to make new records or select existing Scheduler records.

• Select Calendar from the ORGANIZER section to open it on the

current month with the current date highlighted.

• To page by month, use , or , at the month name on

the screen.

• To highlight a date, touch it or move the highlight bar with the

Í,Î keys.

• Touch to jump to a specific date via the dialog box.

Dates of existing Scheduler records appear framed. The current date, icons showing event types and the number of events planned for this date in the Scheduler section are displayed in the right part of the screen.

• Select a framed date (touch it twice or highlight it and press

) to open the Scheduler list referring to that date.

Page 58

Partner® X5 User's Manual

DRAWING BOARD

You can create simple drawings and outline images in the Drawing Board of your Partner

X5.

• Select Drawing Board from the ORGANIZER section.

Creating a Drawing

• Touch to open a new drawing template.

• Start creating a free-hand drawing with the stylus.

The default settings are: Thin line, Free draw.

• To draw using a Thick line, touch . The button changes to

. Touch this new icon to restore the Thin line.

• To draw a Straight line, touch . Touch to return to using

Free draw.

• To use the stylus as an eraser, touch . Touch or to

resume drawing.

• To copy or cut a rectangular drawing fragment, touch (Copy)

(Cut), respectively.

• Touch the drawing board next to the fragment you wish to copy

and drag the stylus so that the fragment is included within a frame.

• Take the stylus off the screen.

Page 59

Partner® X5 User's Manual

A framed drawing fragment is copied to the clipboard. The frame (and its content, if the cut option was used) disappears.

• To paste the clipboard contents into the drawing, touch

(Paste).

• Touch the drawing board to display a frame with the clipboard

content, and then position it properly by dragging it by the upperleft corner.

• Take the stylus off the screen.

A drawing fragment previously copied or cut to the clipboard will be pasted into the drawing. The frame will disappear.

• When finished and ready to save, touch and specify a

record name.

• Touch or press to save the record.

Finding a Drawing

There are two ways to search for saved drawings:

Select From List

• Open the list of existing record names.

Use:

• Ð, Ï to move the highlight bar

• to open a new record template

• to open the highlighted record for editing

• to delete the highlighted record.

• To select an entry, touch or move the highlight bar to it and press

Find a record name

• When in the record name list or in the viewing mode, select

to display a search screen.

• Specify any adjacent string that might be a part of a record

name, and touch Search result list.

or press to see results in a

• Select an entry to open the associated drawing in the viewing

mode.

Page 60

Partner® X5 User's Manual

• In the viewing mode, use , or u,tto go to the next or

previous alphabetical drawing record name, respectively.

VOICE MEMO

Your Partner® X5 can be readily used as an effective and easy-tohandle voice-recording device. It can save up to 8 minutes of voice memos.

See General View, page 5, for the location of the recording button and the microphone.

• Select Voice Memo from the ORGANIZER section. A list of

existing records arranged in chronological order appears.

Creating and Playing Back a Record

There are two ways to create and store a voice record.

From Voice Memo Section

• Touch or press the REC key to start recording.

• Press any key or touch the screen to stop recording.

• Enter a filename for your Voice Memo up to 8 characters in

length.

• Touch or press to return to the Memo list. If no

filename was specified, the record will be given the default NoName.

Page 61

Partner® X5 User's Manual

Quick Recording

• In any section except Voice Memo, Voice Phrasebook and

Accent Correction Recording… message will appear on the screen.

, press and hold the REC key. The

• Release the key to stop recording. The record will be given the

default name NoName, which you can change in the Voice

Memo section.

Finding and Playing Back a Record

• Open a list of existing records arranged in chronological order.

There are three ways to search for records:

• Scroll the list vertically to view more records.

• Press one or more alphanumeric key(s) on the keyboard to

jump to an entry that starts with the corresponding character(s). To abort the lookup or to delete extra

characters in the lookup box, press

Please refer to the corresponding chapters of Manual to learn how to use

the REC key in those sections.

Page 62

Partner® X5 User's Manual

• Touch to start listening to all Memos in the list from top

to bottom. You may interrupt the playback of a particular record, or all records, at any time.

• To play back the highlighted record only, touch its name or

highlight its with Ð, Ï and touch

Use:

• to delete the highlighted record

• to delete all records in the list

• to change a filename

• to set internal speaker ON or OFF and to adjust the

microphone level.

PC COMMUNICATION

Using the Partner’s PC-Link cable (available separately as part of Communication Pack) and the PC-Link software (included in the

package on a CD-ROM) you may exchange data between your Partner keep a backup copy of the Telephones, Scheduler, Memo, and User’s Dictionary data on your PC.

X5 and a personal computer. This feature will allow you to

Software

• Insert the supplied CD into the CD-ROM drive of a PC. If the

installation program did not start automatically, run the Install.exe file from the CD root catalog.

• Choose to install PC-Link.

♦ Note: Make sure you selected an appropriate COM port and set

the same baud rate.

Page 63

Partner® X5 User's Manual

• When the program is installed, start it from the Start menu,

Programs/Ectaco. In the right lower corner of the System Tray,

the

♦ Note: The latest version of the PC-Link program and additional

dictionaries can be downloaded from Ectaco's Web site www.ectaco.com

icon will appear.

Data Transfer

• Connect the PC-Link cable to the Data Link jack located on the

right-hand edge of the device.

• Select PC Communication from the ORGANIZER section, or

press

on the keyboard.

• Choose a data transfer mode (PC Synchronization, Upload or

Download).

• To Upload, also specify section(s) to send. To select section(s)

touch it with the stylus, or press Ð, Ï to select the desired

section(s) with a dotted frame and press uncheck the section.

to check or

• Double right-click your mouse on the PC-Link icon in the right

lower corner of the System Tray. In the PC-Link program, select a complementing data transfer mode. To Upload, also choose the section(s) to send.

Page 64

Partner® X5 User's Manual

• Start data transfer first on the receiving device, then on the

sending one.

You may enter, edit, or delete data within your Partner’s PC-Link program.

♦ Note: Time span between data transfer startup on the PC and in

the device must not exceed 30 sec. Otherwise, the Time out! message will be displayed.

♦ Note: The PC Synchronization option presents an alternative to

having to conduct time-consuming full data backups of Phone Directory, Memo and Schedule, overwriting previous versions on the receiving device. It makes sure both the Partner have the latest updated version of records. Only changes are transferred.

♦ Note: Note that in Download mode your newly transferred data

will replace all the information you had saved in the corresponding section of your Partner

♦ Note: Always back up your important data! Neither the

manufacturer nor the dealers assume any responsibility for lost or corrupted data.

♦ Note: Data Transfer consumes a considerable amount of energy.

Using an external power supply is strongly advised.

X5.

and PC

CALCULATIONS

The sections listed in the CALCULATIONS section will satisfy a broad range of your everyday computing and money management needs.

• Select the tab from the MAIN MENU to open the

CALCULATIONS section.

CALCULATOR

• Select Calculator from the CALCULATIONS section or touch the

button on the Sidebar.

Page 65

Partner® X5 User's Manual

Entering numbers and operations from the displayed touchpad or

from the keyboard (there is no need to press application as an ordinary pocket calculator.

), use this

LOAN CALCULATOR

This useful feature of your Partner® X5 enables you to compute monthly payments and amounts of principal and interest paid or payable to date on your loans and mortgages.

• Select Loan Calculator from the CALCULATIONS section. A list

of saved loan calculations will be displayed.

Creating a Record

• Touch to start a new calculation.

• Enter a record name and touch or press .

• Specify the inception Year, inception Month, and the amount of

the Mortgage (or loan).

• To switch the active box, touch it or press for the next

box. Touch

or press + to clear the active box.

• To go to the next page, use , or when in the

Mortgage box.

Page 66

Partner® X5 User's Manual

• Enter the Annual Percentage Rate and the Period of loan or

mortgage in years.

• With all values specified and the last box highlighted, press

to save the calculation and display the loan information

screen.

The info screen summarizes the data you entered and includes the amounts of monthly payment and total payable interest.

When in the info screen, use:

• Ð,Ï to scroll the text

• to start a new calculation

• to change the current calculation

• to inquire for a specific date

• to delete the current calculation

• , or u,tto go to the next or previous saved

calculation.

Finding a Record

• Open the Loan Calculator to display a list of saved loan

calculations by the alphabetical order of their respective record names.

• Touch an entry or move the highlight bar to it and press

, to display the info screen on a loan.

Page 67

Partner® X5 User's Manual

Loan Inquiry

• On a loan's info screen or in the record list (the desired loan

record name must be highlighted), touch dialog box.

to display a date

• Enter the number of years and months in the loan term and touch

or press to see the loan's details for the specified date. The information on the interest, principal, and the total amount paid to date, as well as on the loan amount left, appears on the screen:

Use:

• to change the current loan data

• to display the loan information for another date

• , (if enabled) to see the details of other loans on the

same date.

♦ Note: This function enables you to compare the conditions of

different loans as they are projected into the future.

ACCOUNT MANAGEMENT

The Account Management section of your Partner® X5 allows you to keep track of your bank accounts and transactions.

• Select Account Management from the CALCULATIONS section.

Creating a Record

• Touch to open a new record template.

• Specify an Account name (touch or press Ð to pull down a

menu of sample names).

Page 68

Partner® X5 User's Manual

• Touch or press u to open the Account No. page.

• Type in an account number and touch or press u to open

the Balance page.

• To return to the previous page, touch or press t.

• Enter an account balance and touch to save the record.

Finding a Record

• Open Account Management to display a list of accounts.

• View the list and open the desired entry in the viewing mode

(touch the entry or select it with Ð,Ï and press

An account record in the viewing mode includes information on aggregate deposits and withdrawals, and on the adjusted new balance.

♦ Note: If the account details are changed, a new balance is

calculated, and the Deposit and Withdrawal values are reset.

Use:

• to open a new record template

• to open the displayed account for editing

• to record a Deposit or Withdrawal for the current account

• to delete the displayed record

• , or t,u to go to the next or previous alphabetical

record, respectively.

Page 69

Partner® X5 User's Manual

Managing Transactions

Posting a Transaction

• Highlight in the list or open for viewing the account record you

want to post a transaction to.

• Touch and select Deposit or Withdrawal from a pop-up

menu.

The current date and time are default for a new transaction record.

• If you want to change the date or time, touch the corresponding

line to display a setup dialog box, and change the values.

• Type in an amount and touch or press .

• Enter a transaction description.

• Touch or press to save the transaction as part of

an account record and display the Balance screen.

Viewing Transactions

• Display an account record in the viewing mode, or highlight its

line in the list.

• Touch to open an itemized list of deposits and withdrawals

with the most recent transaction shown on top. Withdrawals appear as negative values, Deposits – as positive ones.

Page 70

Partner® X5 User's Manual

CURRENCY CONVERSION

The Currency Conversion function built into your Partner® X5 allows you to instantly calculate cross courses in 19 pre-installed currencies and 3 user-defined currencies.

• Select Currency Conversion from the CALCULATIONS section.

The Calculation window will be opened.

Checking and Setting Rates

• When in the Calculation window, touch , to open the

Currency rates window (by default all values equal 1).

Use:

• Ð,Ï to highlight lines

• to specify / change a user currency name (marked ???

at the bottom of list)

• to switch to the Calculation.

Page 71

Partner® X5 User's Manual

• To set the desired currency rate, touch the corresponding line or

highlight it and touch will appear:

or press . A Set rate screen

• Specify an exchange rate relative to the basic currency (whose

rate should equal 1) and touch the rate.

or press to save

• Touch or press + to clear an incorrect input.

• To move to the next or previous currency in the list and to set

exchange rates for other currencies, use

, or t,u.

• Close the window to return to Calculation.

Conversion

• Open the Calculation window.

Use:

• Ð,Ï to change the active input box

• , Î to pull out a currency selection menu for the active box

• to change the exchange rate for the currency in the

active box

• to switch to the Currency rates.

Page 72

Partner® X5 User's Manual

• Select a currency name and enter an amount in either box, in

any order. Touch input.

or press + to clear an incorrect

• After you have typed a new amount in one of the boxes, press

to refresh the display. (When a currency name is

changed, the display is refreshed automatically.)

METRIC CONVERSION

With your Partner® X5 you may easily convert measurements from the British-American system into the metric system commonly used in Europe, and vice versa, as well as within each system.

• Select Metric Conversion from the CALCULATIONS section.

Use:

• Ð,Ï to change the active input box

• to pull out a measure name or unit selection menu.

• Select a measure name from the upper menu and enter an

amount in either input box, in any order.

• After you have typed a new amount in one of the boxes, press

to refresh the display. (When a measurement unit is

changed, the display is refreshed automatically.)

Page 73

Partner® X5 User's Manual

• Touch or press + to clear the wrong input.

SIZE EQUIVALENTS

When you travel or shop internationally, refer to this subsection to learn about the correlation between the clothes and shoe size systems used in different parts of the world.

• Open Size Equivalents. The Men’s Shirts option will be opened.

• To switch into Men’s Shoes, Women’s Blouses, or Women’s

Shoes, touch the corresponding button on the Toolbar.

• Scroll right to see more sizes.

REFERENCE

The REFERENCE section is your information and entertainment center.

• Select the tab from the MAIN MENU to open the

REFERENCE section.

LOCAL AND WORLD TIME

The Local & World Time section of your Partner® X5, besides serving as a local and worldwide time and date reference, is also used to adjust system settings for the current date, time, local time zone, daily alarm, DST, and time announcement.

♦ Note: To check the current date and time on the fly, touch the

button on the Sidebar to display a Time pop-up window and

listen to the time announcement (if the Talking Clock is enabled).

Page 74

Partner® X5 User's Manual

• Select Local & World Time from the REFERENCE section.

Local Time

Select Local time from the Time menu.

•

The Local Time screen shows: the name of the city and country representing the local time zone and a map of the corresponding continent, the current date and day of the week, and the current time.

• Touch or press to listen to the time announcement (if

the Talking Clock is enabled).

Local City

Default: New York, USA You may specify a city name for your local time zone in one of three

ways:

• directly from a city list

• through a country name – the alphabetically first city listed for

this country will appear

• typing a new city name – its time zone settings will be based

on the currently displayed city.

Page 75

Partner® X5 User's Manual

Set City

• To display a city selection screen, touch the city name on the

screen or the menu.

button and select Set City from a pop-up

• Find the city name you need by typing it in and/or scrolling the

list, and select it.

Set Country

• To display a country selection screen touch the city name on the

screen or the menu.

button and select Set Country from the pop-up

• Find the country name you need by typing it in and/or scrolling

the list, and then selecting it. The first city listed alphabetically for this country will be used for the setting.

Define City and Country

• From the available list (see Set City above) select any city

located in your time zone.

• Touch to display a user-defined city setup screen.

• Type a new city and country (City,Country) and its time zone will

be automatically set to coincide with that of the pre-selected city.

♦ Note: Use a comma to delimit the city and country names.

• Touch or press .

Date

Default: 01-01-2002 in the mm-dd-yy format (may be changed to ddmm-yy in System Setup, see page 92).

• Touch the date value to display the Date setup dialog box.

• Touch , or press the number keys to set the day, month, and

year.

• Use Í,Î to select active field.

• Touch or press .

Time

Default: midnight 12:00.

Page 76

Partner® X5 User's Manual

• Touch the time value to display the Time setup dialog box.

• Touch , or press the number keys to set the hours and

minutes.

• Use Í,Î to select active field.

• Touch or press .

Daylight Saving Time (DST)

Default: Off.

• Touch to turn DST on. The button will appear indented.

Touch it again to turn DST off.

Or,

• Touch .

• Check the Day-saving time box to turn DST on. Uncheck the box

to turn it off.

• Touch or press to apply the change.

Turning DST on or off sets the time one hour forward or back, respectively.

♦ Note: DST ON or OFF sets for each city separately.

Daily Alarm

Set Alarm Time

Default: midnight 12:00.

• Touch to display the Set Alarm dialog box.

• Set the hours and minutes for the alarm time.

• Use Í,Î to select active field.

• Touch or press to apply the setting.

Turn Alarm On/Off

Default: Off.

• Touch to turn the Daily Alarm on. The button will appear

indented. Touch it again to turn the Daily Alarm off.

Or,

• Touch .

Page 77

Partner® X5 User's Manual

• Check the Alarm box to turn the Daily Alarm on. Uncheck the box

to turn it off.

• Touch or press to apply the change.

If turned on, the Daily Alarm produces an audible intermittent signal at the set time. Press any key or touch the screen to interrupt the Daily Alarm beep (otherwise, the beep will continue for 30 seconds). A Time pop-up window will appear, and the current time will be announced (if Talking Clock is turned on).

♦ Note: In case the Daily Alarm and Scheduler Reminder are set

for the same moment of time, the latter will have the priority of operation.

Talking Clock

Default: On.

• Touch to display the Time setup dialog box.

• Uncheck the Speech box to turn the Talking Clock off. Check the

box to turn it back on.

• Touch or press to apply the change.

With the Talking Clock turned on, you will hear the announcement of the displayed time, when you

• touch or press in the Local Time or the World Time

screen, or

• touch on the Sidebar or interrupt a Daily Alarm beep to

display a Time pop-up window.

World Time

Using your Partner’s World Time subsection, you may view the international zone times in cities around the globe, along with appropriate map illustrations.

• Select the World time option in the Time menu.

Page 78

Partner® X5 User's Manual

The World Time screen shows: city and country names (default: Warsaw, Poland) and a map of the respective continent, the date and day of the week, and the time in the time zone of the displayed city.

• Touch or press to listen to the time announcement in

the displayed city (if the Talking Clock is enabled).

• To see information for another city:

• next in the alphabetic list – touch or press u

• previous in the alphabetic list – touch or press t

• specific or user-defined – refer to the Local City part of the

Local Time chapter (see page 74) for instructions.

The DST and Talking Clock settings can be changed in the World Time as well as on the Local Time screen, and affect both subsections. Refer to the related parts of the Local Time chapter for directions.

♦ Note: The time zones (GMT offset) for more than 4000 cities can

also be looked up in the Telephone codes section.

TRAVEL GUIDE

The Partner® X5’s Travel Guide will help you find out a few important facts about any country you plan to visit – capital, weather conditions, spoken languages, currency, etc.

• Select Travel Guide from the REFERENCE section.

For some regions only limited information is available.

Page 79

Partner® X5 User's Manual

• To switch between English and Polish, touch .

• To display the information for a country, start entering its name

on the country search screen and/or scroll the list.

• Touch the corresponding line in the list, or make sure the line is

highlighted (press Ð if necessary) and press

Use:

or .

• Ð,Ï or the scroll bar if needed to see more text

• to return to the country search screen

• , or t,u to display info for other countries in

alphabetical order.

TELEPHONE CODES

The Telephone codes section allows you to get telephone codes for more than 4000 cities all over the world.

• Select Telephone codes from the REFERENCE section.

For some cities only limited information is available.

Page 80

Partner® X5 User's Manual

• To switch between English and Polish, touch .

• To display the information for a city, start entering its name

and/or scroll the list.

• Touch the corresponding line in the list or make sure the line is

highlighted (press Ð if necessary) and press

Use:

• Ð,Ï or the scroll bar if you need to see more text

• to return to the city search screen

• , or t,u to display info for other cities in

alphabetical order.

GAME CENTER

or touch

Your Partner® X5 features four fascinating games.

• Select Game Center from the REFERENCE section, or touch

on the Sidebar.

Page 81

Partner® X5 User's Manual

Mastermind

•

Select Mastermind from the Game Center menu.

By entering digits, try to guess a 4-digit number.

• Enter a number and press . The result of the try will

appear in the table at left.

sign means that one of the entered digits is present in the

A hidden number, but it is not in its proper position. A that one of the correctly guessed digits is in its proper position.

sign indicates

• Try to find the right answer using a minimum number of tries. If

you succeed or use up all 12 tries, a corresponding message will be shown.

• Use:

• to start a new game

• to change the difficulty level: on the Low level, the digits

in a number must be unique, on the High level they may be repeated

• to see the correct answer

• to see a list of the best scores.

Tile5

Select Tile5 from the Game Center menu.

•

Page 82

Partner® X5 User's Manual

• Choose a Single (play against the Computer) or a Two players

(play against a partner) game.

• Enter your name(s) and touch or press .

Players take turns putting black and white chips on the intersection points of the game grid. Each player tries to build up an uninterrupted vertical, horizontal, or diagonal row of five chips of his color, simultaneously preventing his opponent from doing the same.

• To make your move, touch an intersection point, or move the

cursor to it with the Í,Î,Ð,Ï keys and press

Use:

• to start a new game

• to change the difficulty level (in Single game only)

• to take back the last move

• to display a hint

• to see a list of the best scores (in Single game only).

Brick Game

•

Select Brick game from the Game Center menu.

• Select a difficulty level (0 –15) with , or Ð, Ï or from a

pop-up menu available by touching initial combination of bricks.

. This will change the

Page 83

Partner® X5 User's Manual

♦ Note: You can only set the difficulty level before starting a game.

• Press or close the pop-up menu to start.

• Use Î, Í (shift), Ï (rotate), and Ð (drop) to reposition the

falling blocks, trying to eliminate empty spaces below them. Once a row is filled with bricks it will disappear from the screen, earning you points.

The next two blocks to fall are shown on the left-hand side.

• You can change the speed of the falling bricks with the t,u

keys or by moving the scroll box at lower left with the stylus.

After you make 16 rows disappear, the game advances to the next level. When the game ends, you will be prompted to enter your name.

Use:

• to start a new game

• to see a list of the best scores.

Hangman

The Partner® X5 features the learning game Hangman, which improves your spelling skills and enhances your personal vocabulary.

• Select Hangman from the Game Center menu.

• Touch and choose the language for the game (English or

Polish) in the pop-up window.

• Enter letters from the touchpad or keyboard, trying to guess the

word before the picture on the left is complete.

Page 84

Partner® X5 User's Manual

The used letters are highlighted on the touchpad. Correctly guessed letters appear in place of question marks in their actual positions in the word. The number shows the remaining number of tries.

After the game ends, a translation of the hidden word is shown.

• Close the Main Dictionary window to return to the game.

Use:

• to start a new game

• to change the difficulty level

• to display the answer

• to listen to the pronunciation of the hidden English word

(counts as one try).

ENGLISH NAMES

This indispensable guide to the spelling and pronunciation of English names will spare you confusion in many social situations.

• Select English Names.

• To open a list of male or female names, touch the corresponding

button on the Toolbar.

• To find a desired name, press an alphabetical key on the

keyboard to jump to the first entry that starts with that character and scroll the list.

• Highlight a name and touch or press the key to listen

to its pronunciation.

Page 85

Partner® X5 User's Manual

PHONE WIZARD

The Phone Wizard helps you to easily learn a phone number by finding a word corresponding to this number. This way of dialing is used with phones which use an alphanumeric keyboard.

• Select Phone Wizard from the REFERENCE section.

• Input the phone number and touch or press to

display the possible word matches.

CROSSWORD SOLVER

The Crossword Solver is intended not only to help you quickly solve an English- or Polish-language crossword, but it is also another of the useful self-tuition aids provided with your Partner and enjoy!

• Select Crossword Solver from the REFERENCE section.

• Set up the desired Number of letters (cannot exceed 25) and

Language.

• Input a word using question mark(s) as substitute(s) for unknown

characters.

X5. Study

• Touch or press to display a list of the words

containing the indicated characters.

Page 86

Partner® X5 User's Manual

Use:

• to get an explanation of the selected English word

• to get an instant translation of the selected word

• and to listen to the pronunciation of an English

word.

U.S.A. INTERVIEW

This is the ultimate talking preparation guide to the U.S. citizenship exam. Another feature of this section is the ability to translate or get an explanation of any English word, thus helping a student grasp the broader meaning of the critical words contained in questions and answers.

• Select U.S.A. Interview from the Reference section to display the

first question of the first chapter.

• Touch or press Ð to pull down the Chapters menu.

• Select a chapter to open its first question.

• To see the answer to a displayed question, touch . Close the

answer window to return to the question.

♦ Note: No answers are available for some questions; for example,

the names of current government officials.

• To see the Polish version of a question, touch .

Page 87

Partner® X5 User's Manual

Use:

• , or t, u to move between the questions in the

current chapter

• to obtain an Instant Reverse Translation of the

highlighted word

• to get an explanation of the highlighted English word

• or to listen to the pronunciation of an English

question or answer text.

SETUP

Personalize your Partner personal records with the options of the SETUP section.

X5 and ensure good upkeep of your

• Select the tab from the MAIN MENU to open the SETUP

section.

INTERFACE LANGUAGE

The default interface language of the Partner® X5 is English.

• Select Interface Language from the SETUP section.

• To select the desired language, touch it with the stylus or use the

Ð,Ï keys and press

All messages will now appear in this language. You may always switch back.

♦ Note: Some reference data is only available in English.

Page 88

Partner® X5 User's Manual

SYSTEM SETUP

For best results, and to ensure that you can fully employ all of the Partner’s diverse features, it is recommended that you thoroughly familiarize yourself with the options of the System Setup section, which will allow you to adjust the device configuration to better suit your needs.

• Select System Setup from the SETUP section.

Key Tone

This feature is designed to produce a short beep every time you press a key on the Partner's keyboard. The key tone is enabled by system default.

• Select Key Tone from the System Setup menu to display a setup

prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

• To save the setting and return to the System Setup menu, touch

or press .

First Screen

Use this section to specify what will appear on the screen when you turn on your Partner was displayed the last time the power was turned off (Resume

X5: the MAIN MENU (default) or whatever

screen option).

• Select First Screen from the System Setup menu to display a

setup prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

Page 89

Partner® X5 User's Manual

• Touch or press to save the setting and return to

the System Setup menu.

Auto Shutoff Period

The automatic turnoff has a preset delay of 3 minutes. This feature saves battery life and prevents accidental display damage by shutting the device down after the specified period of inactivity. The adjustable range is from 1 to 15 minutes.

• Select Auto Shutoff from the System Setup menu to display a

setup prompt.

• Touch , or press Í, Î to adjust the Auto Shutoff period in 2

minute increments, or touch the chart bar to change it instantly.

• Touch or press to save the setting and return to

the System Setup menu.

Touch Screen Calibration

To restore proper touch screen functionality, or as part of an initialization procedure, the screen might have to be recalibrated manually.

♦ Note: If, for some reason, the touch-sensitive control fails, use

the Calibration setup screen.

, , and arrow keys to access the Touch Screen

• Select Touch Screen Calibration from the System Setup menu to

display a setup window showing a target image in the upper lefthand corner.

• Touch the target center with the stylus. Repeat the process with

three more targets, which will appear one after another.

Page 90

Partner® X5 User's Manual

• If the calibration was successful, a confirmation message will be

shown and the setup window will close. If the Mismatch! message appears, you will have to repeat the procedure.

Adult Lock

In this subsection you can hide slang words or phrases contained in the dictionaries. For example, you may forbid your children access to slang using this feature. Adult Lock is ON by default.

• Select Adult Lock from the System Setup menu to display a

setup prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

• If the OFF option was chosen, enter the showslan password and

press

Speech Level

Shape your own pronunciation by adjusting the speed, frequency, and volume of the built-in speech synthesizer.

• Select Speech Level from the System Setup menu to display a

setup window.

• Touch , or press the Í, Î keys to adjust the Rate,

Frequency, or Volume of speech, or touch any chart bar for an

instant change. Use the Ð,Ï keys to select an active bar.

• Touch or press to check the adjustment while listening

to the phrase This is a test.

• Touch or press to save the settings and return to

the System Setup menu.

Page 91

Partner® X5 User's Manual

Audio Settings

This option enables you to switch the internal speakers on or off and change the microphone input level.

• Select Audio Settings from the System Setup menu to display a

setup window.

• Touch the box next to the desired option to highlight it.

• Check or uncheck the Internal speaker on option to turn the

speaker ON or OFF, respectively.

♦ Note: If you hear no sound, make sure the internal speaker is

ON (it can be turned off by the program).

• To adjust the microphone level to account for the loudness of

your voice, change the value using the number buttons.

• Touch or press to save the settings and return to

the System Setup menu.

Scheduler Alarm

The Scheduler Alarm setting applies to all the records of the Scheduler section: if turned on, which is the default, the Scheduler Alarm goes off at the Date and at the Time of any Scheduler record,

producing an audible beep.

• Select Scheduler Alarm from the System Setup menu to display

a setup prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

• Touch or press to save the setting and return to

the System Setup menu.

Page 92

Partner® X5 User's Manual

Date Format

The default American Month-Day-Year date format can be changed to Day-Month-Year. The Week starts on Sunday option allows you to choose the Calendar format.

• Select Date Format from the System Setup menu to display a

setup prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

• Touch or press to save the setting and return to

the System Setup menu.

Time Format

The default American 12-hour time format can be changed to the 24-hour (Military) format.

• Select Time Format from the System Setup menu to display a

setup prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

• Touch or press to save the setting and return to

the System Setup menu.

PC-Link Baud Rate

You can specify the data transfer baud rate between your Partner® X5 and a personal computer (see page 62).

• Select PC-Link Baud rate from the System Setup menu to

display a setup prompt.

• To highlight the box next to the desired option, touch it or press

an arrow key.

• Touch or press to save the setting and return to

the System Setup menu.

Battery Check

You can check the current condition of the batteries being used in the device at any time.

Page 93

Partner® X5 User's Manual

• Select Battery Check from the System Setup menu to display the

condition of the batteries.

♦ Note: The DC power ON message will be displayed if you are

using an external power supply.

SECURITY

A password can be set up in the system to make it possible for you to protect your personal records and lock up the PC communication function.

With no password set (default) all the functions of the Partner are freely accessible. After a password has been set, the following sections may be locked (manually or automatically) against unauthorized access:

Supplemental Dictionaries Phone Directory Memo Scheduler Calendar Drawing Board

Voice Memo PC Communication Loan Calculator Account Management Data Deletion

• To gain access to any of these sections in the locked mode, a

valid password must be provided.

• Select the Security option from the SETUP section.

Set Password

• Select Set password from the Security menu.

• Specify a password up to 8 symbols in length. Touch or

press

. Retype the password for confirmation.

Page 94

Partner® X5 User's Manual

• Touch or press to save the password. The

message New password set will appear. Close the message box to return to the Security menu.

Setting or changing a password automatically activates the lock-up mode.

♦ Note: Always remember your password. If you forget it, you will

have to reset the system, which may cause irrevocable loss of user data.

Security On

If a password is set, the data access is locked:

• Automatically – after a password has been set or changed.

• Automatically – when the device is turned off, if this is the

setting selected in Options in the Security menu.

• Manually – select Lock device in the Security menu.

If Lock device is selected while no password has been set, the message Password not set will be shown.

Security Off

The Security mode may be suspended by entering a valid password at the prompt, when:

• The Unlock device option in the Security menu is selected.

• Any of the protected sections is opened.

• Touch or press to turn the Security mode off,

which will be confirmed by the Device unlocked message.

If you make a mistake, the Invalid password message will appear.

Change or Remove Password

• Select Change password from the Security menu.

Page 95

Partner® X5 User's Manual

• Enter the old password. Touch or press .

• Enter a new password and retype it for confirmation. Touch

or press

♦ Note: To delete a password and turn Security off, leave both

password input fields blank and touch The Password cleared. The Device unlocked message will confirm the removal of the password.

or press .

Options

• Select Options from the Security menu.

• Select one of the automatic Security modes:

• Auto lock – to automatically activate data security when the

device is turned off (either manually or automatically)

• Don't lock – to keep the current setting unchanged on turn-

off.

♦ Note: If you are concerned with data security, it is recommended

to keep the default setting Auto lock.

♦ Note: With the Auto lock and Resume screen settings (see page

88), if one of the lockable sections is open when the device is shut down, you will have to specify a valid password to re-enter this section.

MEMORY CHECK

Instantly check on the free memory status with this SETUP option. If the memory is too low, the next chapter offers a radical solution.

• Select Memory Check from the SETUP section to see a Free

memory chart bar and a corresponding percentage figure.

Page 96

Partner® X5 User's Manual

DATA DELETION

At some point you might decide it is time to free up the memory resources. You can do this in a much faster way than deleting records one by one. The Data Deletion section gives you this opportunity.

• Select Data Deletion from the SETUP section.

All sections can be emptied separately or all together (the last option All Organizer’s Records).

• Select a section from the Data Deletion menu and confirm a pop-

up prompt.

BRIEF OF FUNCTION

A short description of every Partner’s section can be quickly looked up here.

• Select Brief of Function from the SETUP section.

• Choose the Introduction, or a chapter and a section name to

display a relevant description, for example:

Page 97

Partner® X5 User's Manual

ABOUT

Here you can look up your Partner® X5 serial number, which you may need to have on hand when seeking technical assistance from the manufacturer.

• Select About from the SETUP section.
