ECS Wi-Bridge User Manual
Wi-Bridge User Manual
Ver. 1.0
Wi-Bridge User Manual
INDEX
INDEX
BBrriieeff IInnttrroodduuccttiioonn .................................................................................................................................................................................................................................... 11
Product SPEC………………………………………………………………………………………………………………………………..2
SSeettuupp GGuuiiddee ...................................................................................................................................................................................................................................................... 3
3
Device Installation ............................................................................................................................. 3
Client Controller Applications Installation ........................................................................................ 4
WWii--BBrriiddggee DDeevviiccee UUsseerr GGuuiiddee .................................................................................................................................................................................................... 5
5
Wi-Bridge Home Screen .................................................................................................................... 5
Wi-Bridge Configure on LCD Monitor/TV……………….…………………………………………………………………7

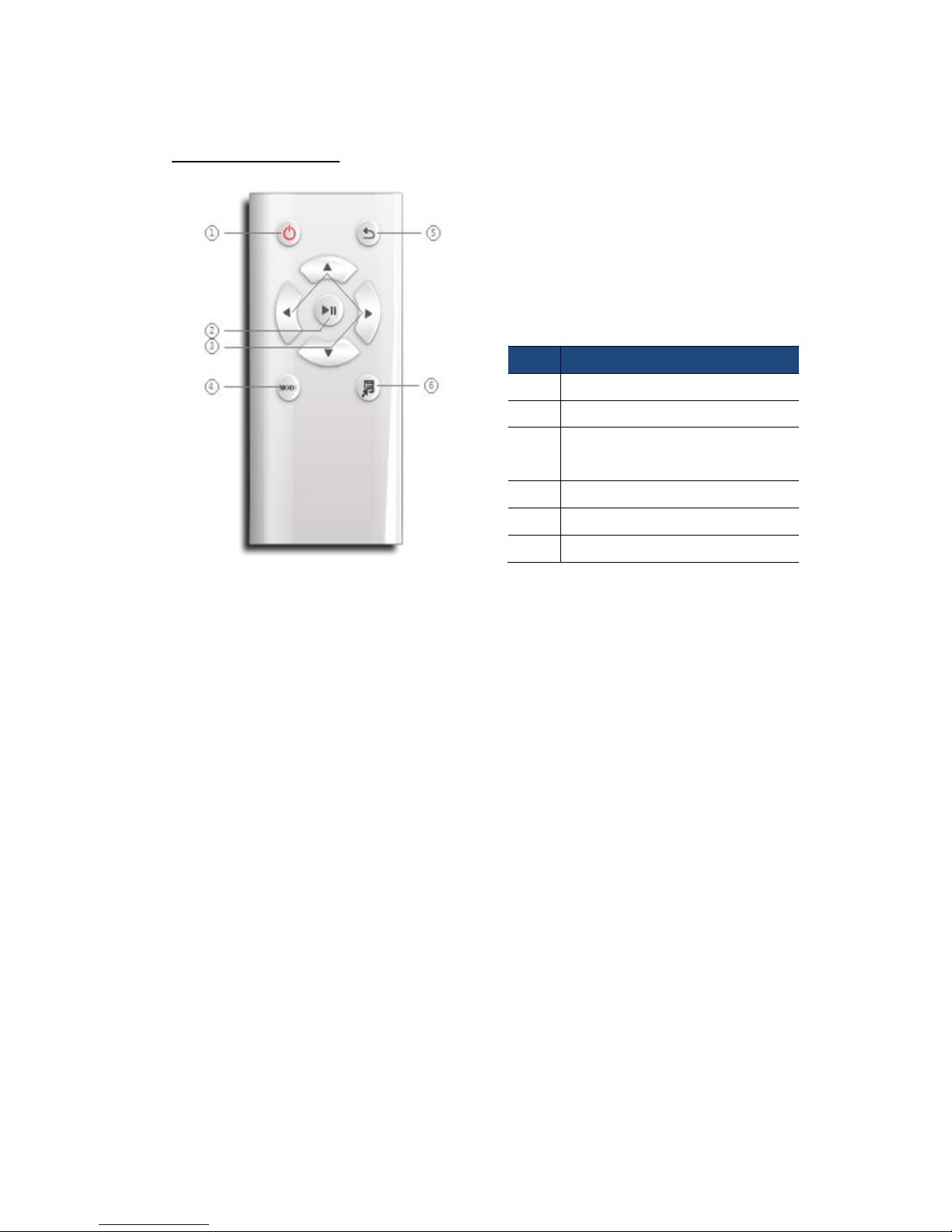

IrDA Remote Controller ................................................................................................................... 10
Wireless Network Configuration ..................................................................................................... 11
Device Name Modification .............................................................................................................. 12
Language Setting ............................................................................................................................ .12
WWiinnddoowwss CCoonnttrrooll AApppplliiccaattiioonn ((FFoorr PPCC// NNBB)) ...................................................................................................................................................... 113
3
WWii--BBrriiddggee AAnnddrrooiidd CCoonnttrrooll AApppplliiccaattiioonn ((FFoorr AAnnddrrooiidd OOSS)) .............................................................................................................. 119
9
WWii--BBrriiddggee iiOOSS CCoonnttrrooll AApppplliiccaattiioonn ((FFoorr iiOOSS)) .................................................................................................................................................... 224
4
FFrreeqquueennttllyy AAsskkeedd QQuueessttiioonnss .................................................................................................................................................................................................. 330
0
Wi-Bridge User Manual
Brief Introduction
Page
1
BBrriieeff IInnttrroodduuccttiioonn
Thank you for choosing Wi-Bridge. The Wi-Bridge connects your PC, NB or smart
device such as iPhone, iPad, Android phone and Android Pad to your HDTV or big
screen monitor wirelessly in full HD up to 1080p video resolution to your digital life.
Enjoy the comfortable space with big screen and big sound instead of crowding
around a small screen of PC or cell-phone to enjoy, share and relax the music, photos,
and videos, surf the net in ultimate full HDTV on the couch at home. Besides, you can
show the presentation to the whole conference room wirelessly to save time of plug,
unplug and transfer the cable. With the smart, portable and small design, you can
use remote controller or wireless mouse to control playback smartly and easily and
carry it with you everywhere and saving space.
Wireless Network Connection
AP Mode (Default mode)
The Wi-Bridge device acts as a wireless access point. It allows you connect your windows
computer or smart device to LCD TV directly. This setup constructs a temporary wireless
network for a non-wireless environment.
Note: Please make sure your wifi workable before you connect to the Wi-Bridge
LAN Mode
The Wi-Bridge device allows you to use same wireless network connect your windows
computer or smart device to LCD TV. This setup provides capability for remote operation and
internet connection. However, this setup is vulnerable to any interference in the WiFi signal.
Note: Please connect to AP mode first and switch to Lan mode base on compatible with Windows
Control Application)
Wi-Bridge User Manual
Remote Controller
Page 2
PPrroodduucctt SSPPEECC
Model Name
Wi-Bridge
Type
Wireless Adaptor for your devices
Output Connectors
1 x HDMI v1.3 port
1 x USB v2.0 port for keyboard/ mouse/ pen drive
Video Support
Full HD 1080P Resolution
Storage
NAND Flash: 256MB
Memory
DDRII: 256MB
WIFI SPEC & Range
WIFI 802.11 b/g/n; 10M ~ 30M
(The transmission speed may vary according to the environment)
PC/NB Compatibility
Windows 7, Windows XP
Smart Device
Compatibility
IOS: Supports iOS 4.0 or later, Android: Supports Android 2.2 or later
Supported
Languages
English, Simplified Chinese, Traditional Chinese
System Requirement
OS
Windows 7 32/ 64 bit (Recommended), Windows XP 32 bit with
SP2/SP3
CPU
Dual Core 2.0 GHz or better (Excluding Atom processor);
2nd Generation Intel® Core™ Processors ( Intel® 6 Series - Sandy
Bridge platform) is recommended
Memory
1 GB RAM is recommended
HDD
50 MB, 100 MB for running the program
Monitor / TV
1080P Resolution (1920 x 1080 is recommended)
WiFi
802.11n
Accessories
Power Adapter x 1 (Input AC 100 ~ 240V, Output power 5V/2A)
HDMI cable x 1
Remote Controller x 1
Installation CD x 1 - Include Manual, Driver
Product Dimensions
& Weight
77mm x 103mm x 27mm; 0.5 Kg
Wireless Network
Connection Mode
Wireless AP of Multi-media Service (AP Mode)
Wireless LAN of Multi-media Service (LAN Mode)
Mode Support
Support Streaming Mode
Support Mirror Mode - Text & Video Mode
Wi-Bridge User Manual
Remote Controller
Page 3
SSeettuupp GGuuiiddee
Wi-Bridge Setup Guide includes two parts:
1. Device Installation
2. Application Installation.
Device Installation
Step 1. Connect the HDMI output on the Wi-Bridge device to the LCD TV.
Step 2. Plug in the Wi-Bridge device power adapter to the outlet.
Step 3. Press the Power button on the Wi-Bridge device to turn it on.
Wi-Bridge will be powered on. The Boot Screen & Home Screen as below will be
shown on the LCD TV screen when the system is ready.
Boot Screen
Home Screen – AP Mode
Wi-Bridge User Manual
Remote Controller
Page 4
The default setting will be “AP mode” when use Wi-Bridge for the first time. If you
want to make the Wi-Bridge device connect to the wireless network, you can use the
Remote Controller to configure the wireless network or use wireless mouse on
Wi-Bridge to set the configure on LCD TV directly. For more detailed information,
please refer to the “Wireless Network Configuration” (page 11) section.
You are able to connect to the device with the Notebook, PC, smart phone or tablet
after you install the application. For more detailed information, please refer to the
“Windows Control Application”(page 12), “Android Control Application” (page 19)
or “iOS Control Application” sections (page23)
Applications Installation
PC/ NB Application installation under windows system
Step 1. Double click setup application from Wi-Bridge CD.
Step 2. Click the [I Agree] button for license agreement to continue
Step 3. Click the [NEXT] button or the [INSTALL] button to complete the installation.
Additional components will be installed automatically.
Android Application Installation under Android system (Tablet or Smart phone)
Step 1. Access the Android Market and search “Wi-Bridge” application.
Step 2. Select the “Wi-Bridge” application and install it
iOS Control Application Installation under iOS system (Tablet or Smart phone)
Step 1. Access the Apple AppStore and search “Wi-Bridge” application.
Step 2. Select the “Wi-Bridge” application and install it.
Wi-Bridge User Manual
Remote Controller
Page 5
WWii--BBrriiddggee DDeevviiccee UUsseerr GGuuiiddee
Wi-Bridge Home Screen
After the Wi-Bridge Device has started, the Home Screen will be displayed on your TV.
It shows the current network connection mode and the client device connection
status.
If Wi-Bridge runs in LAN mode and is waiting for the client device to connect, the
Home Screen will be shown as below.
If Wi-Bridge runs in LAN mode and a PC client device is connected, the Home Screen
will be shown as below.
Note: Please connect to AP mode first and switch to Lan mode base on compatible with Windows
Control Application)
Wi-Bridge User Manual
Remote Controller
Page 6
If Wi-Bridge runs in AP mode and is waiting for client device to connect, the Home
Screen will be shown as below.
Wi-Bridge User Manual
Remote Controller
Page 7
Wi-Bridge Configure on LCD Monitor/ TV
You can do some setting the “Configure & Setting Icon” on the Monitor/ TV directly
from wireless mouse for controlling. Because the default mode is “AP mode”, you
can set it on the Monitor/ TV easily. The screen will be shown as below.
Wi-Bridge User Manual
Remote Controller
Page 8
Connect Setting
You can switch the mode from “Connect Setting”.
Please select your wifi hotspot under AP mode and switch it to Lan mode.
If the wireless network is protected with a password, the password Input screen will
be shown. The wireless network information will be shown on the Home Screen;
otherwise, the original connection will be kept and shown on the Home Screen.
Please wait with patient after you selected the wifi hotspot.
Note1: The device name should be in the English alphabets and/or underscores. And its length must
be less than 12 characters long.
Note2: You can select the wifi hotspot under your device connected to Wi-Bridge.
Note3: Please wait with patient when you change to Lan mode or AP mode cause it need some time
to scan the environment.
