INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
Vent-Free Gas Fireplaces
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
WARNING: If the information in these instructions are not followed exactly, a fire or explosion
may result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other flamma-
ble vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
UNVENTED
GAS FIREPLACE
MODELS
(A)VFD26F(M,P)2(0,1,2,3)(N,W,C)-1
(A)VFD26F(M,P)3(0,1,2,3)(N,W,C)-1
(A)VFD26FP3(0,1,2,3)L10-1
EFFECTIVE DATE
APRIL 2007
Installer: Leave this manual with the appli-
ance.
Consumer: Retain this manual for future refer-
ence.
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to page 9.
WARNING: If not installed, operated and maintained in accordance with the manufacturer's instructions, this product could expose you to substances in fuel or from fuel combustion which can
cause death or serious illness.
WATER VAPOR: A BY-PRODUCT OF
UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion.
An unvented room heater produces approximately one (1) ounce (30ml) of water for every 1,000
BTU's (.3KW's) of gas input per hour. Refer to
page 8.
Page 123466-0-0407
TABLE OF CONTENTS
SECTION PAGE
IMPORTANT SAFETY INFORMATION .....................................................................................
SAFETY INFORMATION FOR USERS OF LP-GAS .................................................................
INTRODUCTION .......................................................................................................................... 5
BUILT-IN FIREPLACE INSTALLATION ....................................................................................
FIREPLACE DIMENSIONS ......................................................................................................... 7
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS ..................................
SPECIFICATIONS .........................................................................................................................
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR ..........................
GAS SUPPLY ............................................................................................................................... 11
CLEARANCES ............................................................................................................................ 12
COMBUSTIBLE MATERIAL .....................................................................................................
INSTALLATION OF FIREPLACE AND MANTEL .............................................................
LOG PLACEMENT ..................................................................................................................... 15
PLACEMENT OF GLOWING EMBERS (ROCK WOOL) .......................................................
OPERATION INSTRUCTIONS/FLAME APPEARANCE ........................................................
9-10
12
13-14
16
16
3
4
6
8
8
(A)VFD26FP3L10 LIGHTING INSTRUCTIONS ...................................................................... 17
(A)VFD26F(M,P)3 LIGHTING INSTRUCTIONS ..................................................................... 18
(A)VFD26F(M,P)2 LIGHTING INSTRUCTIONS ..................................................................... 19
PILOT FLAME CHARACTERISTICS ..................................................................................
MAIN BURNER AND THERMOSTAT OPERATION ..............................................................

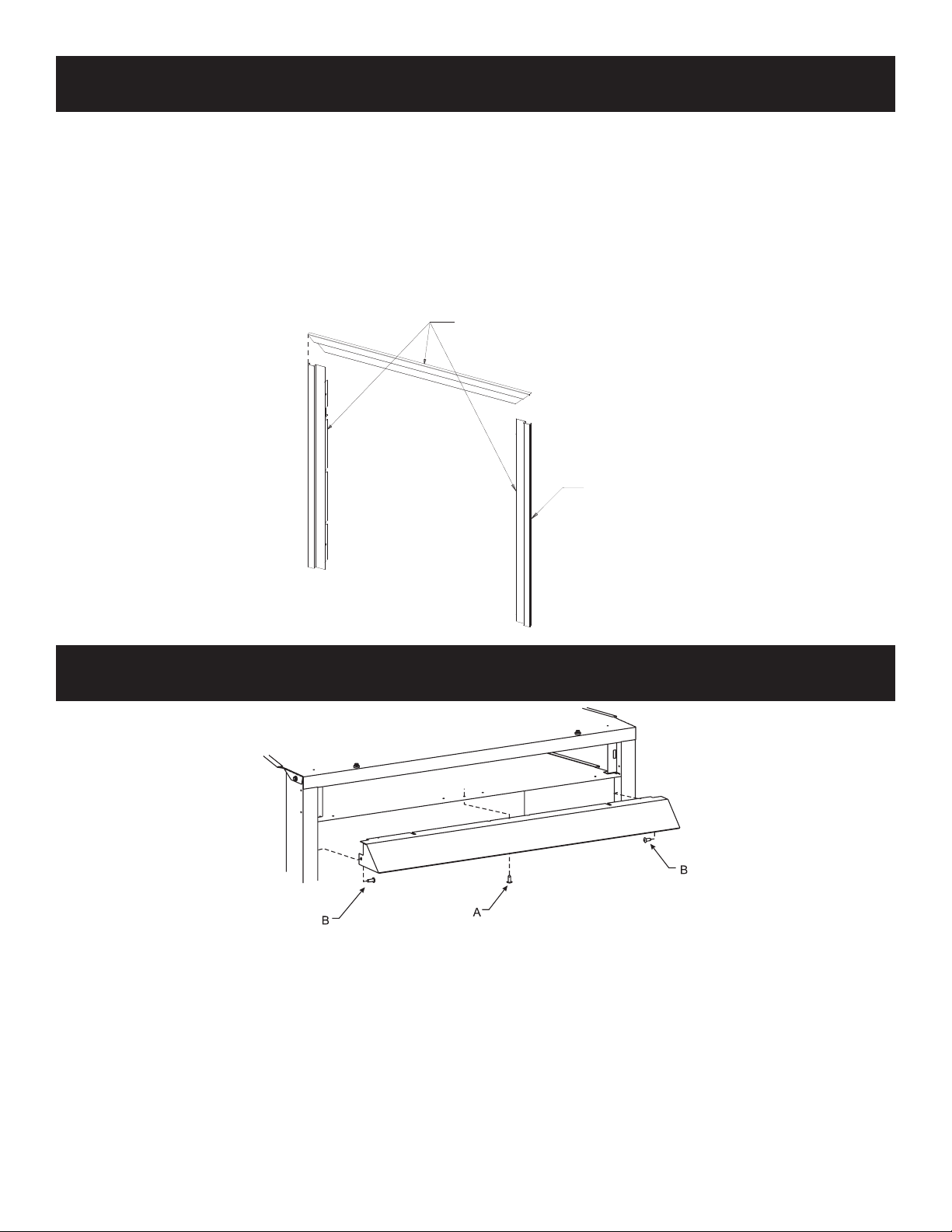

OUTER TRIM INSTRUCTIONS ................................................................................................
HOOD INSTRUCTIONS ............................................................................................................. 22
(A)VFD26F3 WIRING ................................................................................................................

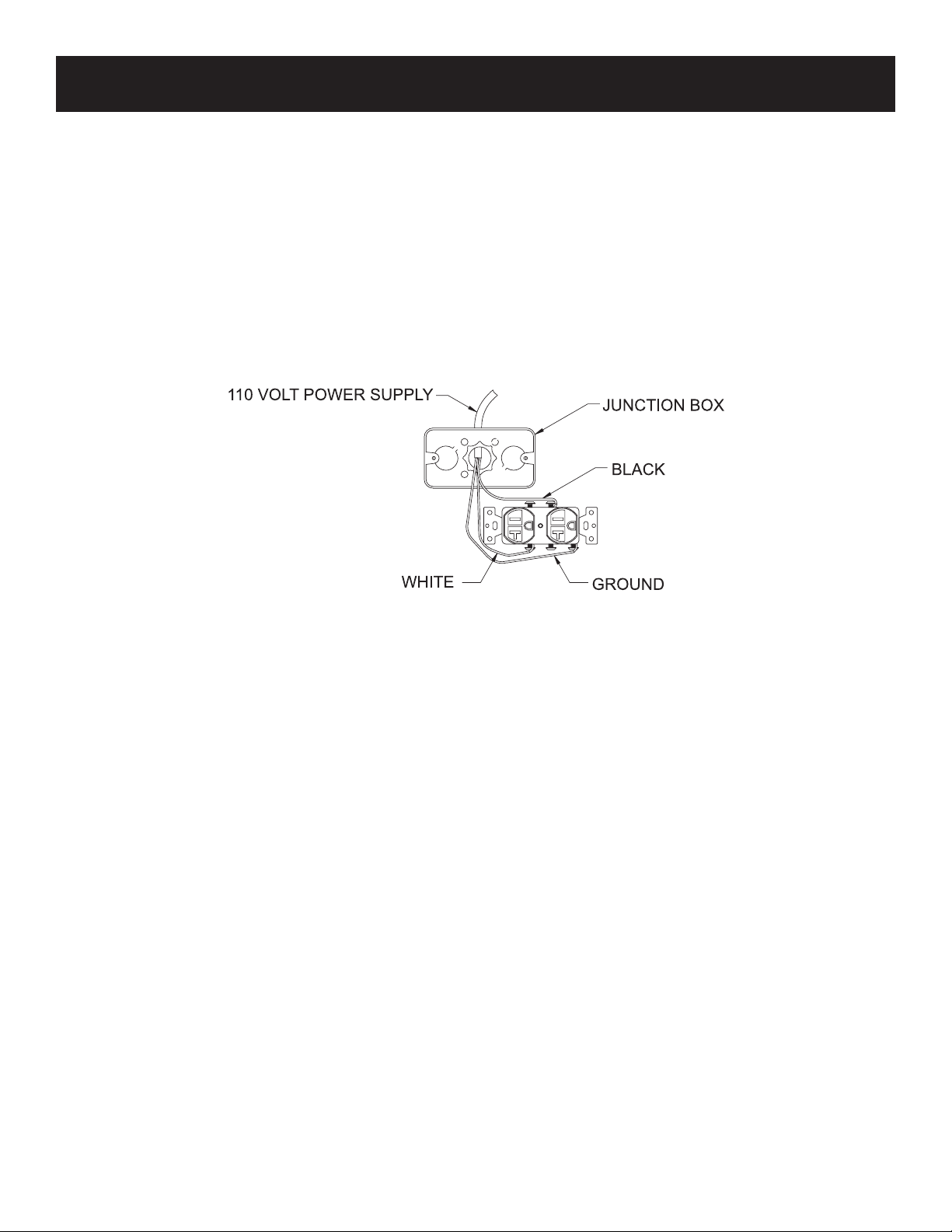

JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS ..............................................
TROUBLESHOOTING ............................................................................................................... 25
PARTS LIST .................................................................................................................................
PARTS VIEW ...............................................................................................................................
FBBX BLOWER KIT EXTENSION INSTALLATION INSTRUCTIONS ..........................
FBB4 OPTIONAL VARIABLE SPEED BLOWER ....................................................................
FPP26E OPTIONAL BRICK LINER KIT INSTALLATION INSTRUCTIONS .......................
20-21
21
22
23
24
26
27
28-29
29
30
HOW TO ORDER REPAIR PARTS ............................................................................................
SERVICE NOTES ........................................................................................................................
Page 2 23466-0-0407
31
31
IMPORTANT SAFETY INFORMATION
THIS IS A HEATING APPLIANCE
• An unvented room heater having an input rating of
more than 6,000 Btu per hour shall not be installed in a
bathroom.
• An unvented room heater having an input rating of
more than 10,000 Btu per hour shall not be installed in
a bedroom or bathroom.
• Due to high temperatures, the appliance should be located
out of traffic and away from furniture and draperies.
• Children and adults should be alerted to the hazard of
high surface temperature and should stay away to avoid
burns or clothing ignition.
• Young children should be carefully supervised when they
are in the same room with the appliance.
• Do not place clothing or other flammable material on or
near the appliance.
• Installation and repair should be done by a QUALIFIED
SERVICE PERSON. This appliance should be inspected
before use and at least annually by a professional service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the appliance be kept
clean.
• DO NOT use this fireplace if any part has been under
water. Immediately call a qualified service technician
to inspect the fireplace and to replace any part of the
control system and any gas control which has been under
water.
• You must operate fireplace with fireplace screen closed in
place. Do not close glass doors while operating heater.
• Do not place trash, logs or other articles on the log set
during operation.
• During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, films or bonding agents. These bonding agents are
not harmful but may produce annoying smoke and
smells as they are burned off during initial operation of
the appliance. This is a normal temporary occurrence.
A window should be opened during the initial bake out
period.
• Correct installation of the ceramic fiber logs, proper
location of the fireplace and annual cleaning are necessary
to avoid potential problems with sooting. Sooting, resulting
from improper installation or operation, can settle on
surfaces outside the fireplace. See instructions for proper
installation.
• WARNING: Do not allow fans to blow directly into
the fireplace. Avoid any drafts that alter burner flame
patterns.
• WARNING: Do not use a blower insert, heat exchanger
insert or other accessory not approved for use with this
heater.
• WARNING! This fireplace needs fresh air for ventilation
to operate properly. This fireplace has an ODS (oxygen
depletion sensor) which will shut off the fireplace if
adequate fresh air is not available.
• Keep appliance area clear and free from combustible
materials, gasoline and other flammable vapors and
liquids.
WARNING
When used without adequate combustion and ventilation air,
heater may give off CARBON MONOXIDE, an odorless,
poisonous gas.
Do not install heater until all necessary provisions are
made for combustion and ventilation air. Consult the written instructions provided with the heater for information
concerning combustion and ventilation air. In the absence
of instructions, refer to the National Fuel Gas Code, ANSI
Z223.1, Section 5.3 or applicable local codes.
This heater is equipped with a PILOT LIGHT SAFETY
SYSTEM designed to turn off the heater if not enough fresh
air is available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY
SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner and
control compartment clean.
CARBON MONOXIDE POISONING MAY LEAD TO
DEATH.
Early signs of carbon monoxide poisoning resemble the flu,
with headache, dizziness and/or nausea. If you have these signs,
heater may not be working properly. Get fresh air at once!
Have heater serviced.
Some people — pregnant women, persons with heart or lung
disease, anemia, those under the influence of alcohol , those at
high altitudes — are more affected by carbon monoxide than
others.
The pilot light safety system senses the depletion of oxygen at its
location. If this heater is installed in a structure having a high
vertical dimension, the possibility exists that the oxygen supply
at the higher levels will be less than that at the heater. In this type
of application, a fan to circulate the structure air will minimize
this effect. The use of this fan will also improve the comfort level
in the structure. When a fan is used to circulate air, it should be
located so that the air flow is not directed at the burner.
Page 323466-0-0407
SAFETY INFORMATION FOR USERS OF LP-GAS
Propane (LP-Gas) is a flammable gas which can cause fires
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
firefighters declare them to be safe.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can filter the odorant. Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
by point with the members of your household. Someday
when there may not be a minute to lose, everyone's safety
will depend on knowing exactly what to do. If, after read
ing the following information, you feel you still need more
information, please contact your gas supplier.
• Use your neighbor's phone and call a trained LP-Gas service
person and the fire department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That
will take some of the odorant out of the gas, reducing its odor
intensity.
LP-Gas may stratify in a closed area, and the odor intensity
could vary at different levels. Since it is heavier than air, there
may be more odor at lower levels. Always be sensitive to the
slightest gas odor. If you detect any odor, treat it as a serious
leak. Immediately go into action as instructed earlier.
-
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it
to find out what the propane odor smells like. If you suspect
that your LP-Gas has a weak or abnormal odor, call your
LP-Gas Dealer.
• If you are not qualified, do not light pilot lights, perform
service, or make adjustments to appliances on the LP-Gas
system. If you are qualified, consciously think about the
odor of LP-Gas prior to and while lighting pilot lights or
performing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks or
cylinders are placed in service. Odor fade can occur in new
tanks, or reinstalled old tanks, if they are filled and allowed
Page 4 23466-0-0407
to set too long before refilling. Cylinders and tanks which
have been out of service for a time may develop internal rust
which will cause odor fade. If such conditions are suspected
to exist, a periodic sniff test of the gas is advisable. If you
have any question about the gas odor, call your
dealer. A periodic sniff test of the LP-gas is a good safety
measure under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete "gas out," (the container is un
der no vapor pressure), turn the tank valve off immediately.
If the container valve is left on, the container may draw in
some air through openings such as pilot light orifices. If this
occurs, some new internal rusting could occur. If the valve is
left open, then treat the container as a new tank. Always be
sure your container is under vapor pressure by turning it off
at the container before it goes completely empty or having
it refilled before it is completely empty.
LP-gas
-
INTRODUCTION
Instructions to Installer
1. Install er mu st le ave in structi on ma nual w ith o wner after
installation.
2. Installer must have owner fill out and mail warranty card supplied
with unvented room heater.
3. Installer should show owner how to start and operate unvented
room heater.
Always consult your local Building Department regarding regu
lations, codes or ordinances which apply to the installation of an
unvented room heater.
This appliance may be installed in an aftermarket* manufactured
(mobile) home, where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating
value. Contact the manufacturer or your gas company before
changing spud/orifice size.
WARNING: ANY CHANGE TO THIS HEATER OR ITS
CONTROLS CAN BE DANGEROUS.
Improper installation or use of the heater can cause seri
ous injury or death from fire, burns, explosion or carbon
monoxide poisoning.
Operation
This unvented fireplace requires no outside venting. This unvented
fireplace is designed for vent-free operation with flue damper
closed. State and local codes in some areas prohibit the use of
unvented fireplace.
(A)VFD26F(M,P)3, Millivolt controls
The valve regulator controls the burner pressure which should be
checked at the pressure test point. Turn captured screw counter
clockwise 2 or 3 turns and then place tubing to pressure gauge over
test point (Use test point “A” closest to control knob). After taking
pressure reading, be sure and turn captured screw clockwise firmly
to re-seal. Do not over torque. Check for gas leaks.
Millivolt System, (A)VFD26F(M,P)3
When you ignite the pilot, the thermocouple produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas
control knob and the pilot will stay ON. Allow your pilot flame to
operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to build-up to
a sufficient level allowing the gas control to operate properly.
WARNING: This appliance is equipped for (natural gas or propane)
gas. Field conversion is not permitted.
General Information
This series is design certified in accordance with American National
Standard Z21.11.2 by the Canadian Standards Association as an
Unvented Room Heater and should be installed according to these
-
instructions.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and com
pany making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
-
Attention: During initial use of ceramic log you will detect an
odor as the ceramic log is cured. Also, during the curing process
the ceramic log will burn with a yellow flame.
Notice: During initial firing of this unit, its paint will bake out, and
smoke will occur. To prevent triggering of smoke alarms, ventilate
the room in which the unit is installed.
Installation on Rugs and Tile
If this appliance is installed directly on carpeting, tile or other
combustible material other than wood flooring the appliance shall
be installed on a metal or wood panel extending the full width and
depth of the appliance.
The base referred to above does not mean the fire-proof base as
used on wood stoves. The protection is for rugs that are extremely
thick and light colored tile.
Solid-fuels shall not be burned in a masonry or UL 127 factory-
built fireplace in which an unvented room heater is installed.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equip
ment or accessories and repair and servicing of equipment shall
be performed only by a qualified agency. The term "qualified
agency" means any individual, firm, corporation or company which
either in person or through a representative is engaged in and is
responsible for (a) the installation or replacement of gas piping or
(b) the connection, installation, repair or servicing of equipment,
who is experienced in such work, familiar with all precautions re
quired and has complied with all the requirements of the authority
having jurisdiction.
State of Massachusetts: The installation must be made by a
licensed plumber or gas fitter in the Commonwealth of Mas
sachusetts.
Sellers of unvented propane or natural gas-fired supplemental
room heaters shall provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts, unvented propane and natural
gas-fired space heaters shall be prohibited in bedrooms and
bathrooms.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1.*
*Available from the American National Standards Institute, Inc. 1430 Broadway,
New York, N.Y. 10018.
High Altitudes
For altitudes/elevations above 2,000 feet (610m), ratings should be
reduced at the rate of 4 percent for each 1,000 feet (305m) above
sea level. Contact the manufacturer or your gas company before
changing spud/orifice size.
WARNING: Failure to keep the primary air opening(s)
of the burner(s) clean may result in sooting and property
damage.
-
-
-
-
Page 523466-0-0407
BUILT-IN FIREPLACE INSTALLATION
Built-In Fireplace Installation
Built-in installation of this fireplace involves installing the fire-
place into a framed-in enclosure. This makes the front of the fire-
place flush with a wall. If installing a mantel above the fireplace,
you must follow the clearances shown in Figure 9. Follow the
instructions below to install the fireplace in this manner.
Frame in rough opening. Use dimensions show in Figure 1 for a
conventional rough opening. Use dimensions shown in Figure 2
for corner rough opening. Be sure to provide gas line for fireplace
and electrical power for optional blower assembly.
1. Attach two (2) nailing flanges to firebox sides with two (2) 10
x 1/2" screws for each nailing flange.
2. Gas line connections must be made at this time. When fac
ing the appliance, the gas supply will enter on the right-hand
side. See "Gas Supply" page 11.
3. Insert fireplace into enclosure.
4. Attach nailing flanges to framing with a screw or nail.
5. Finished wall surface will be flush to the leading edge of fire-
place top and sides.
6. Installation of built-in fireplace is completed.
-
Figure 2
Page 6 23466-0-0407
FIREPLACE DIMENSIONS
GAS LINE
OPENING
JUNCTION BOX
ASSEMBL
Y
GAS LINE
OPENING
J
I
K
B
C
G
A
D
E
(A)VFD26 Series Dimensions
Index Letter Dimension
A
B
C
D
E
G
I
J
K
Figure 4
30 1/4"
768mm
30"
762mm
13 1/8"
333mm
18 1/8"
460mm
26"
660mm
25"
635mm
36 1/4"
921mm
36 1/4"
921mm
51 1/4"
1302mm
Page 723466-0-0407
SPECIFICATIONS
Model
Input Maximum 20,000 20,000 10,000
Minimum 14,000 14,000 N/A
Fireplace Dimensions
Height 30 1/4" 30 1/4" 30 1/4"
Depth 13 1/8" 13 1/8" 13 1/8"
Front Width 30" 30" 30"
Rear Width 25" 25" 25"
Gas Inlet 3/8" 3/8" 3/8"
Accessories
FBBX Blower Extension Kit (MUST order FBB4)
FBB4 Automatic Blower (MUST order FBBX)
VPS26HP Bottom Trim Kit
VF2H26HP Hammered Pewter Hood Kit
VPF26HP Hammered Pewter Trim Kit
FPP26E Brick Liner
VPL26HP Hammered Pewter Slat Louver
Accessories for (A)VFD26F(M,P)3 Only
FRBC Battery Operated Remote Control
FRBTC Battery Operated Remote Control w/Thermostat
FREC Electric Remote Control
FWS-1 Wall Switch
TMV Wall Thermostat, Millivolt - Reed Switch
TRW Wireless Remote Wall Thermostat
(A)VFD26F(M,P)3 (A)VFD26F(M,P)2 (A)VFD26FP30L10
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion. An unvented room
heater produces approximately one (1) ounce (30ml) of water for
every 1,000 BTU's (.3KW's) of gas input per hour. .
Unvented room heaters are recommended as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
Page 8 23466-0-0407
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
2. If high humidity is experienced, a dehumidifier may be used to
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat
source.
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
This heater shall not be installed in a confined space or unusually
tight const ruction unle ss pr ovisions are pro vided for adequa te
combustion and ventilation air.
The National Fuel Gas Code defines a confined space as a space
whose volume is less than 50 cubic feet per 1,000 Btu per hour
3
(4.8m
per kw) of the aggre gate input rating of all appl iances
installed in that space and an unconfined space as a space whose
volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3
per kw) of the aggregate input rating of all appliances installed in
that space. Rooms communicating directly with the space in which
the appliances are installed, through openings not furnished with
doors, are considered a part of the unconfined space.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh
air.
Unusually tight construction is defined as construction
where:
a. Walls and ceilings exposed to the outside atmosphere have
a continuous water vapor retarder with a rating of one perm
or less with openings gasketed or sealed, and
b. Weatherstripping has been added on openable windows and
doors, and
c. Caulking or sealants are applied to areas such as joints
around window and door frames, between sole plates and
floors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines, and at
other openings.
If your home meets all of the three criteria above, you must provide
additional fresh air. See “Ventilation Air From Outdoors,”
page 10.
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined
space.
Space: Includes the room in which you will install heater plus any
adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = cu. ft. (volume of
space)
Example: Space size 16 ft. (length) x 10 ft. (width) x 8 ft. (ceiling
height) = 1,280 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills
or openings, add the volume of these rooms to the total volume
of the space.
2. Divide the space volume by 50 cubic feet to determine the
maximum BTU/Hr the space can support.
(volume of space) ÷ 50 cu. ft. = (maximum
BTU/Hr the space can support)
Example: 1,280 cu. ft. (volume of space) ÷ 50 cu. ft. = 25.6 or
25,600 (maximum BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free heater
Gas water heater BTU/Hr
Gas furnace BTU/Hr
Vented gas heater BTU/Hr
Gas fireplace logs BTU/Hr
Other gas appliances* + BTU/Hr
Total = BTU/Hr
Example: Vented gas heater 20,000 BTU/Hr
Vent-free heater + 18,000 BTU/Hr
Total = 38,000 BTU/Hr
*Do not include direct-vent gas appliances. Direct vent draws
combustion air from the outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the
actual amount of BTU/Hr used.
BTU/Hr (maximum the space can support)
BTU/Hr (actual amount of BTU/Hr used)
Example:
25,600 BTU/Hr (maximum the space can support)
38,000 BTU/Hr (actual amount of BTU/Hr used)
Warning: If the area in which the heater may be operated is smaller
than that defined as an unconfined space or if the building is of
unusually tight construction, provide adequate combustion and
ventilation air by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1, Section 5.3 or applicable local codes.
The space in the above example is a confined space because the
actual BTU/Hr used is more than the maximum BTU/HR the space
can support. You must provide additional fresh air. Your options
are as follows:
A. Rework worksheet, adding the space of an adjoining room. If
the extra space provides an unconfined space, remove door to
adjoining room or add ventilation grills between rooms. See
Ventilation Air From Inside Building.
B. Vent room directly to the outdoors. See Ventilation Air From
Outdoors.
C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes
room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the
space can support, the space is an unconfined space. You will need
no additional fresh air ventilation.
WARNING: You must provide additional ventilation air
in a confined space.
BTU/Hr
Page 923466-0-0407
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling
and one within 12" of the floor on the wall connecting the two
spaces (see options 1 and 2, Figure 5). You can also remove door
into adjoining room (see option 3, Figure 5). Each ventilation grill
or opening shall have a minimum free area of one square inch per
1,000 BTU/HR of the total input rating of the gas equipment in
the confined space.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must
provide two permanent openings: one within 12" of the ceiling
and one with 12" of the floor. Connect these items directly to the
outdoors or spaces open to the outdoors. These spaces include
attics and crawl spaces. In most cases for direct communication
with the outdoors or direct communication through a vertical duct
a free area opening of one square inch per 4,000 BTU/HR of heater
input rating for each grill. If a horizontal duct is used, a grill free
area or duct opening shall have a free area opening of one square
inch per 2,000 BTU/HR for each grill. Follow the National Fuel
Code NFPA 54/ANSI Z223.1, Section 5.3 Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air
into attic if attic has a thermostat-controlled power vent. Heated
air entering the attic will activate the power vent.
Figure 5
WARNING: Rework worksheet, adding the space of the
adjoining unconfined space. The combined spaces must have
enough fresh air to supply all appliances in both spaces.
Figure 6
Page 10 23466-0-0407
GAS SUPPLY
Check all local codes for requirements, especially for the size and
type of gas supply line required.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Nat. L.P. Nat. L.P.
0-10 feet
0-3 meters
10-40 feet
4-12 meters
40-100 feet
13-30 meters
100-150 feet
31-46 meters
1/2”
12.7mm
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
3/8”
9.5mm
1/2”
12.7mm
1/2”
12.7mm
1/2”
12.7mm
Tubing, Type L
Outside Diameter
1/2”
12.7mm
5/8”
15.9mm
3/4”
19mm
7/8”
22.2mm
3/8”
9.5mm
1/2”
12.7mm
1/2”
12.7mm
3/4”
19mm
Note: Never use plastic pipe. Check to confirm whether your local
codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of
the unit. Where none exists, or where its size or location is not
adequate, contact your local authorized installer for installation
or relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liquefied petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed flame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip line be installed near
the gas inlet. This should consist of a vertical length of pipe tee
connected into the gas line that is capped on the bottom in which
condensation and foreign particles may collect.
The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal Tub-
ing and Fittings
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a flex-
ible appliance connector cannot exceed three feet in length.
Pressure Testing of the Gas Supply System
1. To check the inlet pressure to the gas valve, a 1/8" (3mm) N.P.T.
plugged tapping, accessible for test gauge connection, must
be placed immediately upstream of the gas supply connection
to the appliance.
2. Th e ap plianc e and its ind ividual shu toff v alve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1/2 psig (3.5 kPa).
3. The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Figure 7
Attention! If one of the above procedures results in pressures in
excess of 1/2 psig (14" w.c.) (3.5 kPa) on the appliance gas valve,
it will result in a hazardous condition.
Checking Manifold Pressure
(A)VFD26F(M,P)3 Natural gas will have a manifold pressure of
approximately 3.5" w.c. (.871kPa) for maximum input or 1.7" w.c.
(.423kPa) for minimum input at the pressure regulator outlet with
the inlet pressure to the pressure regulator from a minimum of 5.0"
w.c. (1.120kPa) for the purpose of input adjustment to a maximum
of 10.5" w.c. (2.614kPa).
(A)VFD26F(M,P)2 Natural gas will have a manifold pressure of
approximately 6.0" w.c. (1.49kPa) at the pressure regulator outlet
with the inlet pressure to the pressure regulator from a minimum
of 7.0" w.c. (1.74kPa) for the purpose of input adjustment to a
maximum of 10.5" w.c. (2.615kPa).
(A)VFD26F(M,P)3 Propane gas will have a manifold pressure
ap p r ox i ma t e ly 10 . 0 "w. c . ( 2. 4 9k P a ) f or ma x im u m in pu t
or 6.3" w.c. ( 1.5 68k Pa) for mini mum inpu t at t he press ure
regulator outlet with the inlet pressure to the pressure regulator
fro m a mi nim um of 11.0"w.c . ( 2.7 39k Pa) f or the pur pos e
of inp ut adjust ment to a maximum of 13.0"w.c. (3.2 37kPa).
(A)VFD26F(M,P)2 Propane gas will have a manifold pressure
approximately 10.0"w.c. (2.49kPa) at the pressure regulator outlet
with the inlet pressure to the pressure regulator from a minimum
of 11.0"w.c. (2.739kPa) for the purpose of input adjustment to a
maximum of 13.0"w.c. (3.237kPa).
Page 1123466-0-0407
Minimum Wall and Ceiling Clearances
36”
(91.44
cm)
2” (5.08 cm)
Page 12 23466-0-0407
1. Remove fireplace from carton.
2. Remove mantel top and front base from mantel assembly.
3. Remove screw attached to fireplace top and through
"L Bracket" attached to back of breast board.
6. Place back base and fireplace in desired location.
7. Connect gas line and electrical wiring at this time in accor
-
dance with local codes.
8. Place mantel assembly around fireplace and center. Replace
the screw removed in step 3 to secure fireplace to mantel
assembly.
4. Remove mantel assembly from fireplace.
5. Remove shrink wrap and logs from fireplace.
Page 1323466-0-0407
9. Attach mantel assembly to studs in the wall through the
"back brace" using two (2) 3" drywall screws provided.
11. Place mantel top onto mantel assembly.
10. Slide front base under front of mantel assembly.
12. Install outer frame. See Page 22.
13. Install fiber logs per the Log Placement Instructions. See
Page 15.
14. Install hood. See Page 22.
Page 14 23466-0-0407
LOG PLACEMENT
1
4
5
3
2
1. Place front logs (#1 and #2) between front grate flange and
main burner. Align notches on front logs with locator tabs in
base.
2. Place middle log (#3) between front and rear loop of burner.
Note: Do not place log on top of pilot assembly.
3. Place rear log (#4) on rear log shelf. Bottom flange of log must
be placed between the log shelf and burner tube.
4. This step is optional for (A)VFD26FP3L10 log sets. Place
front twig (#5) onto (#1) log and flat area on (#3) log. The
bottom of the front twig is to be placed behind the grate tang
that is second from the left.
Attention: Do not use Figures 12 and 13 to order logs. Refer to
Page 26, Parts list and Page 27, Parts View to order logs.
Refer to Figure 12 for the following warning.
Warning: Failure to position the parts in accordance with
this diagram or failure to use only parts specifically approved
with this heater may result in property damage or personal
injury.
Figure 12
Figure 13
Page 1523466-0-0407
PLACEMENT OF GLOWING EMBERS (ROCK WOOL)
Provided with the log set is a small bag of glowing embers (rock
wool) to be placed between logs on the flat metal surface of the
burner.
Placement of the embers (rock wool) is very individual and light
coverage of the areas indicated will provide your best effects. We
recommend separation of the rock wool by hand and make your
coverage as light and fluffy as possible.
Place just enough embers (rock wool) on the burner to obtain the
glow and a gold yellow flame.
Do not place rock wool over large ports in rear portion of burner.
A thin layer of rock woo l sho uld b e pla ced u nder o pen s pace
between the front and middle logs.
Ro c k w o ol s ho ul d not b e pl ac e d in t he a re a o f t h e pi lo t
assembly.
Replacement of loose material (glowing embers) must be purchased
from Empire Comfort Systems, Inc. Application of excess loose
material (glowing embers) may adversely affect performance of
the heater.
WARNING: All previously applied loose material must be removed
prior to reapplication.
Refer to Parts List, Page 26 to order loose material (rock wool).
Replacement Loose Material
(glowing embers)
Rock Wool 15998
Platinum Bright Embers PE-20-1
Note: A single layer of embers is to be used when applying Platinum
Bright Embers (alone or in combination with production embers)
to the burner.
Part Number
Figure 14
OPERATION INSTRUCTIONS/FLAME APPEARANCE
Flames from the pilot (rear right back side of the burner) as well
as the main flame should b e visually checked as the log set is
installed.
In normal operation at full rate after 10 to 15 minutes, the flame
appearance should be sets of yellow flames.
NOTE: All flames will be random by design, flame height will
go up and down.
Glowing embers (rock wool) can cover the burner in between the
front and middle logs, but very little is necessary to cover this
area. Excess ember material causes the yellow flame to become
orange and stringy. Apply just enough to obtain slow glow and a
gold, yellow flame.
Avoid any drafts that alter burner flame patterns. Do not allow fans
to blow directly into fireplace. Do not place a blower inside the
burner area of the firebox. Ceiling fans may create drafts that alter
flame patterns. Sooting and improper burning will result.
Du r in g m an u fa ct u ri n g, f a br i ca ti n g an d s hi p pi n g, v a ri o us
components of this appliance are treated with certain oils, films or
bonding agents. These chemicals are not harmful, but may produce
annoying smoke and smells as they are burned off during the initial
operation of the appliance, possibly causing headaches or eye or
lung irritation. This is a normal and temporary occurrence.
The initial break-in operation should last 2-3 hours with the burner
at the highest setting. Provide maximum ventilation by opening
windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in will be slight and will disappear w ith
continued use.
Page 16 23466-0-0407
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
1. STOP! Read the safety information above on this page.
2. Set REMOTE/OFF/ON switch to "OFF".
3. Turn off all electric power to the
appliance (if applicable).
4. Open bottom louver assembly (if
applicable).
5. P us h i n g as co ntr ol kn ob sl ig ht ly an d t urn cl oc kw is e
to "OFF".
NOTE: Knob cannot be turned from "PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wai t te n ( 10 ) mi nu te s to cl ea r
out any gas. Then smell for gas,
incl udin g n ear t he flo or. I f you
smell gas, STOP! Follow "B" in
the safe ty i nformat ion above . I f
you do not smell gas, go to the next
step.
7. Find pilot - Follow metal tube from
gas control . The pilo t is loca ted
next to the burner, near the right side.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualified service tech
nician. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
8. T u r n g a s c o n t r o l k n o b c o u n t e r c l o c k w i s e
to "PILOT".
9. Push in control knob all the way and hold in. Repeatedly push
the Piezo Ignitor Button until the pilot is lit. Continue to hold
the control knob in for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
• If knob does not pop up when released, STOP and IM-
MEDIATELY call a qualified service technician or gas
supplier.
• If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise
11. Close bottom louver assembly (if applicable).
12. Turn on all electric power to the appliance (if applicable).
13. Set REMOTE/OFF/ON switch to desired setting.
to "ON".
-
1. Set REMOTE/OFF/ON switch to "OFF."
2. Turn off all electric power to the appliance if service is to be
performed (if applicable).
3. Open bottom louver assembly (if applicable).
4. Push in gas control knob slightly and turn clockwise
to "OFF". Do not force.
5. Close bottom louver assembly (if applicable).
Page 1723466-0-0407
(A)VFD26F(M,P)3 LIGHTING INSTRUCTIONS
GAS CONTROL KNOB
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING, smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance
• Do not touch any electrical switch; Do not use any
phone in your building
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
1. STOP! Read the safety information above on this page.
2. Set REMOTE/OFF/ON switch to "OFF".
3. Turn off all electric power to the
appliance (if applicable).
4. Open bottom louver assembly (if
applicable).
5. Push in gas control knob slightly
and t urn c loc kwi se
"OFF".
NOTE: Knob cannot be turned from "PILOT"
to "OFF" unless knob is pushed in slightly.
Do not force.
6. Wai t te n ( 10 ) mi nu te s to cl ea r
out any gas. Then smell for gas,
incl udin g n ear t he flo or. I f you
smell gas, STOP! Follow "B" in
the safe ty i nformat ion above . I f
you do not smell gas, go to the next
step.
7. Find pilot - Follow metal tube from
gas control. The pilot is located next to the burner, near the
right side.
to
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don't try to repair it, call a qualified service tech
nician. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
8. T u r n g a s c o n t r o l k n o b c o u n t e r c l o c k w i s e
to "PILOT".
9. Push in control knob all the way and hold in. Repeatedly push
the Piezo Ignitor Button until the pilot is lit. Continue to hold
the control knob in for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
• If knob does not pop up when released, STOP and IM-
MEDIATELY call a qualified service technician or gas
supplier.
• If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise
11. Close bottom louver assembly (if applicable).
12. Turn on all electric power to the appliance (if applicable).
13. Set REMOTE/OFF/ON switch to desired setting.
to "ON".
-
1. Set REMOTE/OFF/ON switch to "OFF."
2. Turn off all electric power to the appliance if service is to be
performed (if applicable).
3. Open bottom louver assembly (if applicable).
Page 18 23466-0-0407
4. Push in gas control knob slightly and turn clockwise
to "OFF". Do not force.
5. Close bottom louver assembly (if applicable).
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
LIGHTING INSTRUCTIONS
1. STOP!
2. Set thermostat (gas control knob) to lowest setting.
3. Turn off all electric power to the appliance (if applica
4. Push in gas control knob slightly and turn clockwise
5. Wait ten (10) minutes to clear out any gas. Then smell
6. Find pilot - Follow metal tube from gas control. The pilot
Read the safety information above.
ble).
to "OFF". Do not force.
for gas, including near the floor. If you smell gas, STOP!
Follow "B" in the safety information above. If you don't
smell gas, go to the next step.
is located next to the burner, near the right side.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it; call a qualified
service technician. Force or attempted repair may
result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
7. Turn gas control knob counterclockwise to
"PILOT."
-
8. Push in gas control knob all the way and hold in. Repeat
edly push the piezo ignitor button until pilot is lit (or use
a match to light pilot). Continue to hold the control knob
in for about one (1) minute after the pilot is lit. Release
knob and it will pop back up. Pilot should remain lit. If
it goes out, repeat steps 4 through 8.
• If knob does not pop up when released, stop and
immediately call your service technician or gas sup
plier.
• If the pilot will not stay lit after several tries, turn
the gas control knob to "OFF" and call your service
technician or gas supplier.
9. Turn gas control knob counterclockwise
(5).
10. Turn on all electric power to appliance (if applicable).
11. Set thermostat (gas control knob) to desired setting from
"HI" (5) to "LO" (1).
-
-
to "HI"
TO TURN OFF GAS TO APPLIANCE
1. Set thermostat (gas control knob) to lowest setting.
2. Turn off all electric power to appliance if service is to be
performed (if applicable).
3. Push in gas control knob slightly and turn clockwise
to "OFF". Do not force.
Page 1923466-0-0407
PILOT FLAME CHARACTERISTICS
Figures 15 and 18 show a correct pilot flame pattern. The correct
flame will be blue and will extend beyond the thermocouple. The
flame will surround the thermocouple just below the tip. A slight
yellow flame may occur where the pilot flame and main burner flame
meet. Figures 16 and 19 show an incorrect pilot flame pattern. The
incorrect pilot flame is not touching the thermocouple. This will
cause the thermocouple to cool. When the thermocouple cools, the
heater will shut down.
(A)VFD26F(M,P)3 PILOT
This will blow out foreign materials such as dust, lint and spider
webs. Tighten nut B also by grasping nut A.
Warning:
Never use needles, wires, or similar cylindrical objects to
clean the pilot to avoid damaging the calibrated ruby that
controls the gas flow.
Figure 17
(A)VFD26F(M,P)2 PILOT
Correct Pilot Flame Pattern
Figure 15
Correct Pilot Flame Pattern
Figure 18
Incorrect Pilot Flame Pattern
Figure 16
If pilot flame pattern is incorrect, as shown in Figure 15
• See Troubleshooting, page 25.
Cleaning and Maintenance/Pilot
Oxygen Depletion Sensor Pilot
When the pilot has a large yellow tip flame, clean the Oxygen
Depletion Sensor as follows:
1. Clean the ODS pilot by loosening nut B from the pilot tubing.
When this procedure is required, grasp nut A with an open end
wrench.
2. Blow air pressure through the holes indicated by the arrows.
Page 20 23466-0-0407
If pilot flame pattern is incorrect, as shown in Figure 19
• See Troubleshooting, page 25.
Incorrect Pilot Flame Pattern
Figure 19
Cleaning and Maintenance/Pilot
Oxygen Depletion Sensor Pilot
When the pilot has a large yellow tip flame, clean the Oxygen
Depletion Sensor as follows:
1. Clean the ODS pilot by loosening nut B from the pilot tubing.
When this procedure is required, grasp nut A with an open end
wrench.
2. Blow air pressure through the holes indicated by the arrows.
This will blow out foreign materials such as dust, lint and spider
webs. Tighten nut B also by grasping nut A.
Warning:
Never use needles, wires, or similar cylindrical objects to
clean the pilot to avoid damaging the calibrated ruby that
controls the gas flow.
MAIN BURNER AND THERMOSTAT OPERATION
Figure 20
The (A)VFD26F(M,P)3 gas control maximum and minimum
inputs are listed below.
OFF is the OFF position.
PILOT is the PILOT position.
(A)VFD26F(M,P)3
Max. 20,000 BTU/HR
Min. 14,000 BTU/HR
(A)VFD26FP3L10
Max. 10,000
Min. N/A
(A)VFD26F(M,P)2 Main Burner Operation
The gas control modulates from a minimum input of 14,000 BTU/
HR ("LO" (1) setting) to a maximum input of 20,000 BTU/HR
("HI" (5) setting).
Cleaning and Maintenance / Main Burner
Warning: Turn off heater and let cool before cleaning.
Caution: You must keep control areas, burner and circulating air
passageways of heater clean. Inspect these areas of heater before
each use. Have heater inspected yearly by a qualified service person.
Heater may need more frequent cleaning due to excessive lint from
carpeting, bedding materials, etc.
Logs
Be careful cleaning and handling logs so as not to damage them.
If logs break or fall apart in handling, spray the broken pieces and
fibers with water, sweep up and discard.
Page 2123466-0-0407
OUTER TRIM INSTRUCTIONS
3-PIECE FRAME KIT
SIDE TRIM
1. Remove upper louver, grasp louver at left and right ends; lift and pull forward.
2. Open bottom louver, then lift to remove.
3. Install the right frame and left frame to the fireplace. Align clearance holes in frame with screw holes in fireplace. At
tach right frame and left frame to fireplace. Use two (2) 8 x 1/2” Phillips screws for each frame.
4. Insert top frame into interior, top of fireplace. Align clearance holes in top frame with screw holes in fireplace. Attach
top frame to fireplace. Use two (2) 8 x 1/2” Phillips screws for top frame.
5. Replace bottom louver.
6. Replace top louver.
-
Figure 21
HOOD INSTRUCTIONS
Figure 22
1. Remove upper louver, grasp louver at left and right ends; lift and pull forward.
2. Remove screen frame assembly.
3. Outer trim must be installed before installing hood.
4. Place the top hood flange on top of the firebox, then install one screw (A) at the center on vent free fireplace through the
firebox top from below.
5. Install one (1) screw (B) at each end of the hood as shown.
6. Replace upper louver.
7. Replace screen frame assembly.
Caution: A hood must be installed prior to operation of appliance.
Page 22 23466-0-0407
(A)VFD26F3 WIRING
REMOTE/OFF/ON SWITCH
A DISTANCE/FERME/OUVERT
INTERRUPTEUR
IF ANY OF THE ORIGINAL WIRE
AS SUPPLIED WITH THIS UNIT
Label all wires prior to disconnection when servic ing controls.
Wiring errors can cause improper and dangerous operation. Verify
proper operation after servicing.
Millivolt thermopile is self powered, gas valve does not require 110
volts. Maximum length of 20 feet of 16 AWG to conductor wires
is to be used with all optional components.
Use t he tw o lea ds (G reen and R ed wi res) to at tach opti ona l
components.
Check 750 Millivolt System Operation
Millivolt system and all individual components may be checked
with a millivolt meter 0-1000 MV range.
Remote Receiver
Use the following steps to place the remote receiver adjacent to
the gas valve.
Attention: The re mot e r ece iv er b ra cke t i s no t u sed in t hi s
installation.
1. The remote receiver can not be placed behind the gas valve
and burner assembly.
2. When facing the appliance, the remote receiver must be placed
to the right of the gas valve and burner assembly.
Note: Do not let remote control receiver come in contact with
burner assembly.
On circulating vent-free firebox, install remote control receiver
behind bottom louver.
Refer to remote control installation and operating instructions for
more details on remote control.
Page 2323466-0-0407
JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS
CAUTION: ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
ALL LOCAL, CITY AND STATE BUILDING CODES. BEFORE MAKING THE ELECTRICAL CONNECTION, MAKE
SURE THAT MAIN POWER SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES OR, IN THE ABSENCE OF LOCAL CODES, WITH THE
NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LATEST EDITION).
A factory installed junction box is located on the lower right side of the fireplace. Wiring must be fed to the junction box and attached
to the receptacle that is provided. Leave approximately 6" of wire in the junction box for connection.
Attach black wire to one side of the receptacle and white wire to opposite side of receptacle. The ground wire should be attached to the
green (ground) screw.
Install the receptacle into the junction box. Attach cover plate.
Junction Box Connections
Figure 24
Page 24 23466-0-0407
TROUBLESHOOTING
SYMPTOMS, POSSIBLE CAUSES AND CORRECTIONS
Turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and repair the heater.
1. When ignitor button is pressed, there is no spark at ODS/
pilot.
a. Ignitor electrode positioned wrong - Replace pilot.
b. Ignitor electrode is broken - Replace pilot.
c. Ignitor electrode not connected to ignitor cable - Reconnect
ignitor cable.
d. Ignitor cable pinched or wet. Keep ignitor cable dry - Free
ignitor cable if pinched by any metal or tubing.
e. Broken ignitor cable - Replace ignitor cable.
f. Bad piezo ignitor - Replace piezo ignitor.
2. Appliance produces unwanted odors.
a. Appliance burning vapors from paint, hair spray, glues, etc.
- Ventilate room. Stop using odor causing products while
heater is running.
b. Gas leak - Locate and correct all leaks.
3. Appliance shuts off during use. (Pilot and main burner are
off.)
a. Not enough fresh air is available for ODS/pilot to operate
- Open window and/or door for ventilation.
b. Low line pressure - Contact local gas company.
c. ODS/pilot is partially clogged - Clean ODS/pilot.
d. Defective thermocouple - Replace pilot.
4. Appliance shuts off during use. (Pilot stays on.)
a. Low line pressure - Check line pressure to the valve.
b. Defective thermopile - Check pilot flame, check wire con
nections, output should be a minimum of 325 millivolts
across. TH/TP and TP terminals with REMOTE/ON/OFF
switch off.
5. Gas odor even when control knob is in OFF position.
a. Gas leak - Locate and correct all leaks.
b. Control valve defective - Replace control valve.
6. When ignitor button is pressed, there is spark at ODS/pilot,
but no ignition.
a. Gas supply turned off or manual shutoff valve closed - Turn
on gas supply or open manual shutoff valve.
b. Control knob not in PILOT position - Turn control knob
to PILOT position.
c. Control knob not pressed in while in PILOT position - Press
in control knob while in PILOT position.
d. Air in gas lines when installed - Continue holding down con
trol knob. Repeat igniting operation until air is removed.
e. ODS/pilot is clogged - Replace ODS/pilot assembly or get
it serviced.
f. Gas regulator setting is not correct - Replace gas regula-
tor.
7. ODS/pilot lights but flame goes out when control knob is
released.
a. Control knob not fully pressed in - Press in control knob
fully.
b. Control knob not pressed in long enough - After ODS/pilot
lights, keep control knob pressed in 30 seconds.
c. Manual Shutoff valve not fully open - Fully open manual
shutoff valve.
d. Thermocouple connection loose at control valve - Hand
tighten until snug, then tighten 1/4 turn more.
e. Pil ot flame not touching thermocouple, which allows
thermocouple to cool, causing pilot flame to go out. This
problem could be caused by either low gas pressure or
dirty or partially clogged ODS/pilot - Contact local gas
company.
f. Thermocouple damaged - Replace thermocouple.
g. Control valve damaged - Replace control valve.
8. Burner does not light after ODS/pilot is lit.
a. Burner orifice clogged - Clean burner or replace main burner
orifice.
b. Burner orifice diameter is too small - Replace burner ori
fice.
c. Inlet gas pressure is too low - Contact qualified service
person.
9. If burning at main burner orifice occurs (a loud, roaring
blow torch noise).
a. You must turn off burner assembly and contact a qualified
service person.
b. Manifold pressure is too low - Contact local gas com
pany.
c. Burner orifice clogged - Clean burner or replace burner
-
10. Logs appear to smoke after initial operation.
11. Heater produces a whistling noise when main burner is
-
12. No gas to pilot.
orifice.
a. Vapors from paint or curing process of logs - Problem will
stop after a few hours of operation. Run the heater with the
damper open if you have one, or open a window for the
first few hours.
Log heater is intended to be smokeless. Turn OFF heater
and call qualified service person.
lit.
a. Turning control knob to HIGH position when main burner
is cold - Turn control knob to LOW position and let warm
up for a minute.
b. Air in gas line - Operate burner until air is removed from
line. Have gas line checked by local gas company.
c. Dirty or partially clogged burner orifice - Clean burner or
replace burner orifice.
a. LP-regulator shut down due to inlet pressure too high -
Verify LP tank regulator is installed and set at 11" to 13"
w.c. Replace regulator on heater.
-
-
If the gas quality is bad, your pilot may not stay lit, the burners may produce soot and the heater may backfire when lit. If the
gas quality is bad or pressure is low, contact your local gas supplier immediately.
Page 2523466-0-0407
PARTS LIST
ATTENTION: When ordering parts, it is very important that
INDEX PART
NUMBER NUMBER DESCRIPTION
COMMON PART NUMBERS
1 10554 NAILING FLANGE
2 17162 JUNCTION BOX ASSEMBLY
3 23461 TRIM - TOP
4 23462 TRIM – LEFT
5 23463 TRIM – RIGHT
6 23464 LOUVER ASSEMBLY – UPPER
7 23465 LOUVER ASSEMBLY – LOWER
8 23460 HOOD
9 23470 SCREEN FRAME ASSEMBLY
13 17235 BRACKET, LOG LOCATOR
15 R7624 AIR SHUTTER
17 R7572 JAMB NUT
18 P212 FITTING, ORIFICE
20 R2423 CONNECTOR, MALE
22 23473 BURNER BASE PLATE ASSEMBLY
26 23450 VALVE BRACKET
29 R2708 IGNITOR, PIEZO
31 R7587 REAR LOG
32 R7586 MIDDLE LOG
33 R7585 FRONT LEFT LOG
34 R7554 FRONT RIGHT LOG
35 R7588 Y-TWIG
N/S R5668 IGNITOR WIRE
N/S 15998 ROCK WOOL
part number and description of part coincide.
INDEX PART
NUMBER NUMBER DESCRIPTION
(A)VFD26F(M,P)2LN PART NUMBERS
10 R5171 PILOT ASSEMBLY
11 23106 PILOT BRACKET
12 23449 PILOT SHIELD
14 R9022 BURNER TUBE
16 P265 ORIFICE
19 23475 TUBING ASSEMBLY
21 23477 VALVE
23 23476 TUBING ASSEMBLY
27 P239 NIPPLE, 3/8 NPT X 1 ½
28 R2479 REGULATOR
(A)VFD26F(M,P)2LP PART NUMBERS
10 R5170 PILOT ASSEMBLY
11 21590 PILOT BRACKET
14 R9022 BURNER TUBE
16 P182 ORIFICE
19 23475 TUBING ASSEMBLY
21 23478 VALVE
23 23476 TUBING ASSEMBLY
27 P239 NIPPLE, 3/8 NPT X 1 ½
28 R2480 REGULATOR
(A)VFD26F(M,P)3LN PART NUMBERS
10 R3624 PILOT ASSEMBLY
11 23106 PILOT BRACKET
12 23449 PILOT SHIELD
14 R9022 BURNER TUBE
16 P288 ORIFICE
19 23493 TUBING ASSEMBLY
21 R3626 VALVE
23 23492 TUBING ASSEMBLY
24 R7063 REGULATOR, NAT PILOT
25 23491 TUBING ASSEMBLY
30 R3436 SWITCH, REMOTE/OFF/ON
N/S R3435 WIRE ASSEMBLY
(A)VFD26F(M,P)3LP PART NUMBERS
10 R3623 PILOT ASSEMBLY
11 21590 PILOT BRACKET
14 R9022 BURNER TUBE
16 P182 ORIFICE
19 23493 TUBING ASSEMBLY
21 R3625 VALVE
23 23496 TUBING ASSEMBLY
30 R3436 SWITCH, REMOTE/OFF/ON
N/S R3435 WIRE ASSEMBLY
(A)VFD26FP3L10N PART NUMBERS
10 R3624 PILOT ASSEMBLY
11 23106 PILOT BRACKET
12 23449 PILOT SHIELD
14 R9276 BURNER TUBE
16 P214 ORIFICE
19 23493 TUBING ASSEMBLY
21 R9368 VALVE
23 23492 TUBING ASSEMBLY
24 R7063 REGULATOR, NAT PILOT
25 23491 TUBING ASSEMBLY
30 R3436 SWITCH, REMOTE/OFF/ON
N/S R3435 WIRE ASSEMBLY
(A)VFD26FP3L10P PART NUMBERS
10 R3623 PILOT ASSEMBLY
11 21590 PILOT BRACKET
14 R9276 BURNER TUBE
16 P193 ORIFICE
19 23493 TUBING ASSEMBLY
21 R9369 VALVE
23 23496 TUBING ASSEMBLY
30 R3436 SWITCH, REMOTE/OFF/ON
N/S R3435 WIRE ASSEMBLY
Page 26 23466-0-0407
Empire Comfort Systems, Inc. Nine Eighteen Freeburg Ave. Belleville, Illinois 62220-2623
PARTS VIEW
Page 2723466-0-0407
FBBX BLOWER KIT EXTENSION INSTALLATION INSTRUCTIONS
For Unvented Gas Fireplace Model (A)VFD26F(M,P)2, (A)VFD26F(M,P)3
Disregard FBB4 Blower Installation Instructions. Follow the in-
stallation instructions with your FBBX blower extension kit or the
(A)VFD26 Instruction Manual.
Attention: If installed, do not damage gas inlet supply line when
blower assembly is inserted into fireplace. Removal of the gas
inlet supply line will be necessary.
1. Remove blower parts from the FBB4 kit and the parts from
the FBBX kit.
2. Remove fan control from wire harness in the FBB4 kit.
3. Attach the fan control to the fan control bracket using the 2-
8x1/4” screws provided.
4. If installed, turn OFF gas supply to fireplace.
5. If applicable, turn OFF electric supply to fireplace.
6. Lower bottom louver on fireplace.
7. Remove upper louver.
8. Remove screen frame assembly
9. If applicable, remove logs from burner assembly.
10. Remove burner assembly from firebox (3 screws).
See Figure 26.
11. Position blower assembly behind gas valve, align notch on
back of blower assembly with center screw on fireplace back
and push blower assembly against fireplace back. The bower
wheel must be centered with the back wall of the fireplace.
Place blower assembly against the back wall. The magnets
on the back and bottom of blower assembly will sufficiently
hold blower assembly in place.
12. Position speed control to the right of gas valve. Attach speed
control to bottom of fireplace. The magnets on the bottom
of speed control will sufficiently hold the speed control in
place.
13. Attach fan control bracket to upper right side of firebox with
one #10 x 1/2 hex screw provided. See Figure 25.
14. Attach wire harness from the FBBX kit to the terminals on
the fan control.
15. Route the wire harness along the right side of the firebox.
16. Connect the wire harness from the fan control to the wire har-
ness from the speed control.
17. Insert power cord plug into junction box.
18. Replace burner assembly in firebox with the three (3) screws
removed in Step 10.
19. If applicable, replace logs onto burner assembly.
20. Replace screen frame assembly.
21. Install upper louver. Close bottom louver on fireplace.
Note: This blower is equipped with a heat activated fan control
switch. Fan will operate when the fireplace warms up,
and will turn off when the fireplace cools down.
22. Installation of FBB4 and FBBX option variable speed blower
assembly is completed.
Blower Motor
The blower motor does not have oiling holes. Do not attempt to
oil the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic
cleaning. If the air output decreases or the noise level increases,
it indicates a dirty blower wheel. Remove fan and clean blower
wheels.
Warning: Unplugging of blower accessory will not stop the
heater from cycling. To turn off gas to the heater (millivolt
model): push in gas control knob slightly and turn clockwise
to OFF.” Do not force.
Page 28 23466-0-0407
1
2
110 VOLT AC
JUNCTION BOX
WHITE
SPEED
CONTROL
FA
N
SWITCH
GROUND
BLACK
FA
N
WHITE
BLACK
SWITCH
BRACKET
FBBX BLOWER KIT EXTENSION INSTALLATION INSTRUCTIONS (cont.)
1 11508 SWITCH BRACKET
2 R-9377 HARNESS
N/S R-1131 SCREWS
N/S R-2737 #10 X 1/2 SCREWS
FBBX Blower Kit
FBBX Wiring Diagram
FBB4 OPTIONAL VARIABLE SPEED BLOWER
1 FBB4 BLOWER ASSEMBLY
COMPLETE
2 R7649 FAN CONTROL
3 R4192 SPEED CONTROL KNOB
4 R4186 SPEED CONTROL
Page 2923466-0-0407
FPP26E OPTIONAL BRICK LINER KIT INSTALLATION INSTRUCTIONS
1. Remove screen from fireplace.
2. Remove branch log and rear log from burner assembly.
3. Insert back panel into firebox.
4. Insert one (1) side panel into firebox.
5. Align clearance hole on brick panel bracket with screw hole in the left or right interior top of firebox. Use two (2) 10 x 1/2" screws
to attach brick panel bracket to interior, top of firebox.
6. Repeat steps 4 and 5 to install second side panel.
7. Replace rear log and branch log onto burner assembly.
8. Replace screen onto fireplace.
9. Installation of optional brick liner is complete.
Page 30 23466-0-0407
HOW TO ORDER REPAIR PARTS
Parts can be ordered only through your service person or dealer. For best results, the service person or dealer should order parts through
the distributor. Parts can be shipped directly to the service person/dealer.
All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number from the name plate on your
equipment. Then determine the Part Number (not the Index Number) and the Description of each part from the following appropriate
illustration and list. Be sure to give all this information.
Fireplace Number Part Description
Fireplace Serial Number Part Number
Type of Gas (Propane or Natural)
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, fires and all causes beyond our control.
Empire Comfort Systems, Inc. Nine Eighteen Freeburg Ave. Belleville, Illinois 62222-2623
SERVICE NOTES
Page 3123466-0-0407
Page 32 23466-0-0407
Loading...
