ECS K7S5A2 K7S5A2 User Manual

K7S5A2 V1.0

Preface

Copyright

This publication, including all photographs, illustrations and software,
is protected under international copyright laws, with all rights re­served. Neither this manual, nor any of the material contained herein,
may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice.
The manufacturer makes no representations or warranties with re­spect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose.
The manufacturer reserves the right to revise this publication and to
make changes from time to time in the content hereof without obliga­tion of the manufacturer to notify any person of such revision or
changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Mi­crosoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered
trademarks of Intel Corporation.

Other product names used in this manual are the properties of their
respective owners and are acknowledged.

i

K7S5A2 V1.0

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment gen­erates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

− Reorient or relocate the receiving antenna.

− Increase the separation between the equipment and the

receiver.

− Connect the equipment onto an outlet on a circuit different
from that to which the receiver is connected.

− Consult the dealer or an experienced radio/TV technician
for help.

Shielded interconnect cables and a shielded AC power cable must
be employed with this equipment to ens ure compliance with the per­tinent RF emission limits governing this device. Changes or
modifications not expressly approved by the system's manufacturer
could void the user's authority to operate the equipment.

ii

K7S5A2 V1.0

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is sub­ject to the following conditions:

− This device may not cause harmful interference, and

− This device must accept any interference received, includ-

ing interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Cana­dian Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences
du Réglement sur le matériel brouilieur du Canada.

iii

K7S5A2 V1.0

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard

Chapter 2

Installing the Mainboard

Chapter 3

Using BIOS

Chapter 4

Using the Mainboard Software

Appendix A

Setting Jumpers

Describes features of the main­board, and provides a shipping
checklist.

Go to ⇒ page 1

Describes installation of main­board components.

Go to ⇒ page 8

Provides information on using
the BIOS Setup Utility.

Go to ⇒ page 33

Describes the mainboard soft­ware.

Go to ⇒ page 64

Provides a reference to the
jumpers on the mainboard.

Go to ⇒ page 73

iv

K7S5A2 V1.0

T

T

AABBLLEE OOFF

Preface i

C

C

OONNTTEENNTTS

S

CHAPTER 1 1

Introducing the Mainboard 1

Introduction ...............................................................................1

Checklist ...................................................................................2

Standard Items ................................................................................................2

Features ...................................................................................3

Mainboard Components.............................................................5

Choosing a Computer Case.......................................................7

CHAPTER 2 8

Installing the Mainboard 8

Safety Precautions.....................................................................8

Quick Guide ..............................................................................9

Checking Jumper Settings........................................................ 10

Setting Jumpers ............................................................................................10

Checking Jumper Settings..........................................................................11

Jumper Settings............................................................................................12

Installing the Mainboard in a Case............................................ 14

Connecting Case Components ................................................. 15

The Panel Connector ................................................................................... 16

Installing Hardware .................................................................. 17

Installing the Processor...............................................................................17

Install Memory Modules.............................................................................20

Installing a Hard Disk Drive/CD -ROM ................................................... 22

Installing a Floppy Diskette Drive............................................................25

Installing Add-on Cards..............................................................................26

Connecting Optional Devices ....................................................................28

Connecting I/O Devices............................................................ 31

External Connector Color Coding.............................................................32

CHAPTER 3 33

Using BIOS 33

About the Setup Utility.............................................................. 33

The Standard Configuration.......................................................................34

Entering the Setup Utility...........................................................................35

Updating the BIOS.......................................................................................36

Using BIOS ............................................................................. 37

v

K7S5A2 V1.0

Standard CMOS Features ...........................................................................37

Advanced BIOS Setup Option...................................................................40

Advanced Chipset Features Option...........................................................44

Integrated Peripherals Option ....................................................................47

Power Management Setup Option.............................................................52

PNP/PCI Configuration Option.................................................................57

Frequency/Voltage Control.........................................................................60

Load Fail -Safe Defaults Option.................................................................61

Load Optimized Defaults Option..............................................................61

Set Password Option....................................................................................62

Save & Exit Setup Option...........................................................................63

Exit Without Saving.....................................................................................63

CHAPTER 4 64

Using the Mainboard Software 64

About the Software CD -ROM....................................................64

Auto-installing under Windows 98 ............................................. 65

Running Setup..............................................................................................66

Folders for this Mainboard........................................................ 68

Utility Folder.................................................................................................68

K7S5A2 Folder.............................................................................................68

Utility Folder Installation Notes.................................................. 69

Mainboard (K7S5A2) Installation Notes ..................................... 71

APPENDIX A 73

Setting Jumpers 73

Jumper Settings............................................................................................73

The Panel Connector ................................................................................... 75

vi

Introducing the Mainboard

IInnttrroodduuccttiioonn

Congratulations on purchasing the K7S5A2 mainboard. The
K7S5A2 mainboard is an ATX mainboard that uses a 4-layer
printed circuit board and measures 244 mm x 304 mm. The
mainboard features a Socket 462 that accommodates AMD
Athlon/Duron processors supporting frontside bus (FSB)
speeds up to 133 MHz.

The K7S5A2 incorporates the SiS735 Northbridge and Sout h­bridge chipsets which combine support for the new high­bandwidth Double Data Rate (DDR) 266 SDRAM, and the AC
97 audio codec.

Note: SDRAM provides 800 MBps or 1 GBps data trans-

fer depending on whether the bus is 100 MHz or
133 MHz. Double Data Rate SDRAM (DDR
SDRAM) doubles the rate to 1.6 GBps or 2.1 GBps
by transferring data on both the rising and falling
edges of the clock. DDR SDRAM uses additional
power and ground lines and requires 184-pin DIMM
modules rather than the 168-pin DIMMs used by
SDRAM.

CChhaapptteerr 11

K7S5A2 V1.0

CChheecckklliisstt

Compare the mainboard’s package contents with the following
checklists:

Standard Items

• One mainboard

• One diskette drive ribbon cable and bracket

• One IDE drive ribbon cable and bracket

• One auto-install software support CD

• This user’s manual

2

K7S5A2 V1.0

FFeeaattuurreess

Processor

Chipset

Memory

VGA

The K7S5A2 mainboard uses an AMD 462-pin
Socket A that has the following features:

• Supports 100/133 MHz frontside bus (FSB)

• Accommodates AMD Athlon/Duron processors

The SiS735 Northbridge and Southbridge chipsets
are based on an innovative and scalable architec­ture with proven reliability and performance. A few
of the chipset’s advanced features are:

• A low 2.5-volt DDR266 SDRAM power con­sumption which makes it an excellent solution
for notebooks and desktops with a small foot­print

• Support for a 4xAGP interface providing vivid
3D graphics and video performance

• An ATA 100 interface on the chipset, which
helps boost system performance by providing
a high-speed connection to ATA 100 Hard
Disk Drives, delivering maximum sustained
data transfer rates of 100 MB/sec

• Built-in multithreaded I/O link used to enhance
performance, providing enough I/O bandwidth
for throughput up to 1.2 GB/s

Additional key features include support for six
USB ports, an AC 97 link for audio and modem,
hardware monitoring, and ACPI/OnNow power
management.

The mainboard supports both DDR SDRAM and
SDR SDRAM. It accommodates two unbuffered

2.5V 184 pin slots and two unbuffered 3.3V 168

pin slots. Each slot can support up to 512 MB with
a total maximum capacity of 1.0 GB.

The K7S5A2 includes a 4xAGP slot that provides
four times the bandwidth of the original AGP
specification. AGP technology provides a direct
connection between the graphics sub-system and
the processor so that the graphics do not have to
compete for processor time with other devices on
the PCI bus.

3

K7S5A2 V1.0

AC 97 Audio
Codec

Expansion
Options

Integrated I/O

BIOS
Firmware

The AC 97 Audio codec is compliant with the AC
97 2.1 specification, and supports 18-bit ADC
(Analog Digital Converter) and DAC (Digital Ana­log Converter) resolution as well as 18-bit stereo
full-duplex codec with independent and variable
sampling rates. Further features include support
for four analog line-level stereo inputs.

The mainboard comes with the following expan­sion options:

• Five 32-bit PCI slots

• An 4xAGP slot

• A Communications Network Riser (CNR) slot

(AC97 interface only)

• Two IDE channels and a floppy disk drive in­terface

The K7S5A2 supports Ultra DMA bus mastering
with transfer rates of 33/66/100 MB/sec.

The mainboard has a full set of I/O ports and con­nectors:

• Two PS/2 ports for mouse and keyboard

• Two serial ports

• One parallel port

• One MIDI/game port

• Two USB ports

• Audio jacks for microphone, line-in and line-

out

This mainboard uses Award BIOS that enables
users to configure many system features including
the following:

• Power management

• Wake-up alarms

• CPU parameters

• CPU and memory timing

The firmware can also be used to set parameters
for different processor clock speeds.

4

K7S5A2 V1.0

CPUFAN1

MMaaiinnbbooaarrdd CCoommppoonneennttss

DDR2

DDR1

AGP1

IDE2

IDE1

BT1

BT1

WOL1 WOM1

WOL1

WOM1

CD1

USB2

CPU SOCKET

JP2

JP2

1

ATX1

ATX1

J2

J2

1

CD 1

CD 2

CD2

PCI1

AGP1

PCI1

PCI2

PCI2

PCI3

PCI3

PCI4

PCI4

1

USB2

PCI5

PCI5

CNR1

CNR1

JP1

1

DDR1 DDR2

CPUFAN1

IDE1

JP1

IDE2

FDD1

SDR1

SDR1

SDR2

LED1

LED1

JP4

1
1

JP3

PWRFAN2

PWRFAN2

FDD1

SDR2

JP4
JP3

PWRFAN1

1

SPKR1

1

PAN EL1

USB3

1

IR1

1

PWRFAN1

SPKR1

PANEL1

USB3

IR1

5

K7S5A2 V1.0

Table of Mainboard Components

Label Component

AGP1 Accelerated Graphics Port
ATX1 Power connector
BT1 Three volt realtime clock battery
CD1 Primary CD-in connector
CD2 Secondary CD-in connector
CNR1 Communications Networking Riser slot

CPU SOCKET Socket A for AMD Athlon/Duron CPUs
CPUFAN1 Cooling fan for CPU
DDR1~DDR2 Two 168 pin DDR SDRAM
FDD1 Floppy disk drive connector
IDE 1 Primary IDE channel
IDE 2 Secondary IDE channel
IR1 Infrared cable header
J2 Front Audio Connector
JP1 Clear CMOS jumper
JP2 Keyboard and USB power on jumper
JP3 BIOS protection jumper
JP4 ROM type selection jumper
LED11 Memory module LED
PANEL1

PCI1 ~ PCI5 Five 32-bit add-on card slots
PWRFAN1 Case fan connector 1
PWRFAN2 Case fan connector 2
SDR1~SDR2 Two 184 pin SDR SDRAM
SPKR1 Speaker connector
USB2 Front panel USB headers
USB3 Front panel USB headers
WOL1 Wake On LAN wakeup connector
WOM1 Wake On Modem wakeup connector

Connector for case front panel switches
and LED indicators

1

The red indicator LED1 turns on if your system is still pow­ered, at which time memory modules cannot be installed or
uninstalled.

6

K7S5A2 V1.0

CChhoooossiinngg aa CCoommppuutteerr CCaassee

There are many types of computer cases on the market. The
mainboard complies with the specifications for the ATX sys­tem case. Some features on the mainboard are implemented
by cabling connectors on the mainboard to indicators and
switches on the system case. Ensure that your case supports
all the features required. The mainboard can support one or
two floppy diskette drives and four enhanced IDE drives. En­sure that your case has sufficient power and space for all the
drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel.
Make sure that the I/O template in the case matches the I/O
ports installed on the rear edge of the mainboard.

This mainboard has an ATX form factor of 244 x 304 mm.
Choose a case that accommodates this form factor.

This concludes Chapter 1. Chapter 2 explains how to install
the mainboard.

7

Installing the Mainboard

SSaaffeettyy PPrreeccaauuttiioonnss

Follow these safety precautions when installing the mainboard:

• Wear a grounding strip attached to a grounded device
to avoid damage from static electricity.

• Discharge static electricity by touching the metal case
of a safely grounded object before working on the
mainboard.

• Leave components in the static-proof bags they came
in.

• Hold all circuit boards by the edges. Do not bend cir­cuit boards.

CChhaapptteerr 22

K7S5A2 V1.0

QQuuiicckk GGuuiiddee

This Quick Guide suggests the steps you can take to build
your system with the mainboards.

The following table describes installing specific components:

Locating Mainboard Components Go to page 5
Installing Jumpers Go to page 10
Installing the Mainboard in a Case Go to page 14
Installing Case Components Go to page 15
Installing the CPU Go to page 17
Installing Memory Go to page 20
Installing an HDD and CD-ROM Drive Go to page 22
Installing an FDD Go to page 25
Installing Add-on Cards Go to page 26
Connecting Options Go to page 28
Connecting Peripheral (I/O) Devices Go to page 31

Note: The appendix provides a quick reference for jumper

settings.

9

K7S5A2 V1.0

CChheecckkiinngg JJuummppeerr SSeettttiinnggss

This section explains how to set jumpers for correct configura­tion of the mainboard.

Setting Jumpers

Use the mainboard jumpers to set system configuration op­tions. Jumpers with more than one pin are numbered. When
setting the jumpers, ensure that the jumper caps are placed
on the correct pins.

This illustration shows a 2-pin
jumper. When the jumper cap is
placed on both pins, the jumper is
SHORT. If you remove the jumper

Short Open

cap, or place the jumper cap on
just one pin, the jumper is OPEN.

This illustration shows a 3-pin
jumper. Pins 1 and 2 are SHORT.

1

2

3

10

K7S5A2 V1.0

JP2

Checking Jumper Settings

In the following illustration, pin 1 is shown.

1

JP2

1

ATX1

J2

1

CD1

CD2

PCI1

AGP1

DDR1 DDR2

C PUFAN1

SDR1

SDR2

LED1

IDE2

PWRFA N1

JP4

1

PCI2

PCI3

PCI4

BT1

1

USB2

PCI5

CNR1

WOL1 WOM1

IDE1

JP1

1

JP4

1
1

PWRFAN2

1

JP3

SPKR1

1

PANEL1

U SB3

1

IR1

1

JP3

1

JP1

FDD1

1

11

K7S5A2 V1.0

Jumper Settings

Jumper Type Description Setting (default)

JP1 3 pin Clear CMOS 1-2: Normal

2-3: Clear

JP2 3 pin KB Power

ON

JP3 3 pin BIOS protec-

tion

JP4 3 pin ROM Type 1-2: 5V

1-2: Enable

2-3: Disable

1-2: Disable

2-3: Enable

2-3: 3V

JP1

1

JP2

1

JP3

1

JP4

1

12

K7S5A2 V1.0

Jumper 1 – Enables you to clear the BIOS:

Jumper 2 – Enable this jumper if you want keyboard or USB

Jumper 3 – Enables you to prevent the BIOS from being up-

Jumper 4 – Selects the voltage of the onboard ROM. This

1. Turn the system off.

2. Short pins 2 and 3 on jumper 7.

3. Return the jumper to the normal setting.

4. Turn the system on. The BIOS is re­turned to the default settings.

activity to awaken the system from power saving
mode.

dated (flashed). Set the jumper to disabled if you
are going to update your BIOS. After updating
the BIOS, return it to the default setting (en­abled). For instructions on updating the BIOS
refer to Chapter 3.

jumper is factory set. DO NOT change this
jumper.

13

K7S5A2 V1.0

2. Secure the screws in the

IInnssttaalllliinngg tthhee MMaaiinnbbooaarrdd iinn aa CCaassee

Refer to the following illustration and instructions for installing
the mainboard in a case:

This illustration shows
an example of a main­board being installed in
a tower-type case:

Note: Do not over-

tighten the
screws as this
can stress the
mai nboard.

Most system cases have
mounting brackets in­stalled in the case,
which correspond to the
holes in the mainboard.
Place the mainboard
over the mounting
brackets and secure the
mainboard into the
mounting brackets with
screws.

mainboard holes that align
with the chassis holes

1. Place the mainboard
over the case fasteners

The mainboard has a set of I/O ports on the rear edge. En­sure that your case has an I/O template that supports the I/O
ports and expansion slots.

14

K7S5A2 V1.0

CPUFAN1

PWRFAN2

CCoonnnneeccttiinngg CCaassee CCoommppoonneennttss

After you have installed the mainboard into a case, you can
begin connecting the mainboard components. Refer to the fol­lowing:

C PU FA N 1

ATX1

JP2

1

A TX 1

J 2

1

C D1

CD 2

PCI1

PCI2

PCI3

PCI4

PCI5

USB2

1

CNR1

AGP1

BT1

WOL1 WOM1

SDR1DDR1 DDR2 SDR2

LED1

IDE2

IDE1

JP4

1
1

JP3

PWRFAN2

JP1

1

FDD1

1. Connect the case power supply connector to ATX1.

2. Connect the CPU cooling fan cable to CPUFAN1.

3. Connect the case cooling fan connector to either
PWRFAN1 or PWRFAN2.

PW R FA N1

1

S PK R 1

1

P AN E L1

U SB 3

1

IR 1

1

PWRFAN1

PANEL1

1

The following page explains how to make panel (PANEL1)
connections.

15

K7S5A2 V1.0

2 1

Reset Switch

10 9

The Panel Connector

The panel connector provides a standard set of switch and
LED connectors usually found on ATX or micro-ATX cases.
Refer to the table below for information:

Device Pins

Empty 10

N/C 9

Power

ON/OFF

Reset

Switch

Green LED

Indicator

HDD LED +1, -3

6, 8

5, 7

+2, -4

Empty
(Pin 10)

Power Switch
(Pins 6, 8)

Green LED
(Pins 2, 4)

N/C
(Pin 9)

(Pins 5, 7)

HDD LED
(Pins 1, 3)

Note: The plus sign (+) indicates a pin which must be con-

nected to a positive voltage.

16

K7S5A2 V1.0

IInnssttaalllliinngg HHaarrddwwaarree

Installing the Processor

Caution: When installing a CPU heatsink and cooling fan
make sure that you DO NOT scratch the mainboard or any
of the surface-mount resistors with the clip of the cooling
fan. If the clip of the cooling fan scrapes across the main­board, you may cause serious damage to both the
mainboard and the processor.

On most mainboards, there are small surface-mount resi s­tors near the processor socket, which may be damaged if
the cooling fan is carelessly installed.

Avoid using cooling fans with sharp edges on the fan casing
and the clips. Also, install the cooling fan in a well-lit work
area so that you can clearly see the mainboard and proces­sor socket.

Before installing the Processor

This mainboard automatically determines the CPU clock fre­quency and system bus frequency for processor. You may be
able to change these automatic settings by changing the set­tings in the system Setup Utility. We strongly recommend that
you do not overclock the mainboard to run processors or other
components faster than their rated speed.

Warning: Overclocking components can adversely affect
the reliability of the system and introduce errors into your
system. Overclocking can permanently damage the main­board by generating excess heat in components that are
run beyond the rated limits.

This mainboard has a Socket 462 processor socket. When
choosing a processor, consider the performance requirements
of the system. Performance is based on the processor design,
the clock speed and system bus frequency of the processor,
and the quantity of internal cache memory and external cache
memory.

17

K7S5A2 V1.0

CPU Installation Procedure

The following illustration shows CPU installation components:

Socket 426

CPU fan

Pin-1 corner

Locking lever

Follow these instructions to install the CPU:

1. Pull the CPU socket locking lever away from the
socket to unhook it and raise the locking lever to the
upright position.

2. Identify the pin A-1 corner on the CPU socket and the
pin A-1 corner on the processor.

3. Match the pin A-1 corners and insert the processor into
the socket. Do not use force.

4. Swing the locking lever down and hook it under the
latch on the edge of the socket.

5. Apply thermal grease to the top of the CPU.

18

K7S5A2 V1.0

CPU fan and
heatsink assembly

6. Lower the CPU fan/heatsink unit onto the CPU and

7. Plug the CPU fan power cable into the CPU cooling

CPU fan connector

Locking lever

Pin-1 corners

CPU socket and then snap the fan/heatsink into place.

fan power supply on the mainboard (CPUFAN1).

19

K7S5A2 V1.0

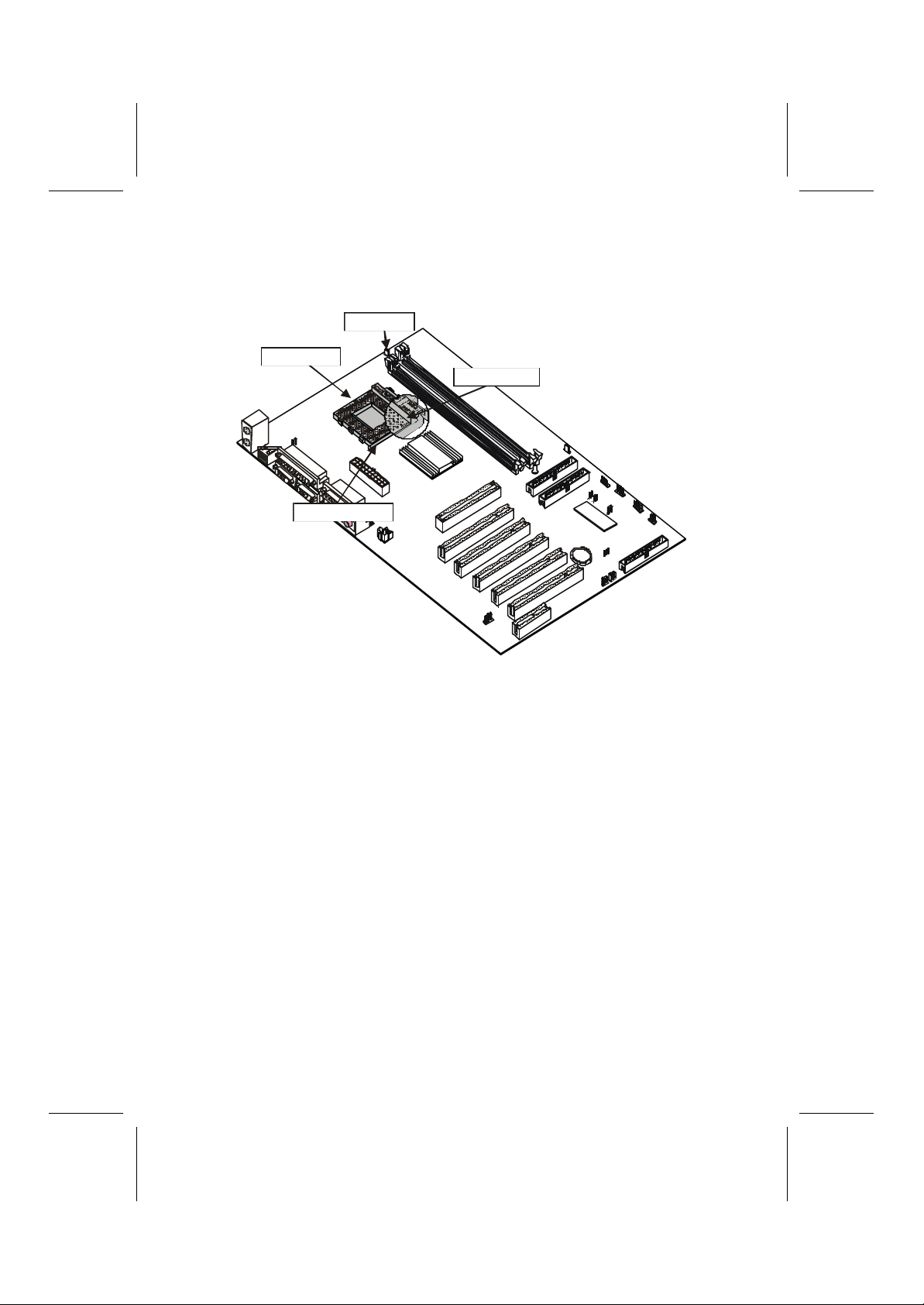

Install Memory Modules

This mainboard accommodates 184-pin 2.5V unbuffered
Double Data Rate (DDR) SDRAM memory modules. The
memory chips must be standard or registered SDRAM (Syn­chronous Dynamic Random Access Memory).

This mainboard is capable of auto detecting the type of mem­ory modules (DDR SDRAM or SDRAM) you have installed
and then automatically adj usting the voltage to the appropriate
level.

Note: This mainboard cannot support two different types

of memory modules simultaneously.

The memory bus can run at 100 MHz or 133 MHz. If your
processor operates over a 100 MHz system bus, you can in­stall PC100 or PC133 memory modules that operate over a
100 MHz or 133 MHz memory bus. If your processor operates
over a 133 MHz system bus, you can only install PC133
memory modules that operate over a 133 MHz memory bus.

Note: SDRAM provides 800 MBps or 1 GBps data trans-

fer depending on whether the bus is 100MHz or
133MHz. Double Data Rate SDRAM (DDR
SDRAM) doubles the rate to 1.6 GBps and 2.1
GBps. DDR SDRAM uses additional power and
ground lines and requires 184-pin DIMM modules
rather than the 168-pin DIMMs used by SDRAM.

20

K7S5A2 V1.0

Installation Procedure

The mainboard accommodates two memory modules. You
must install at least one module in any of the two slots. Each
module can be installed with 32 MB to 512 MB of memory; to­tal memory capacity is 1 GB.

1. Align the memory module with the slot. The DIMM
slots are keyed with notches and the DIMMs are keyed
with cutouts so that they can only be installed correctly.
Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot:

21

K7S5A2 V1.0

Latch

Cutout

Notch

Latch

2. Push the latches on each side of the DIMM slot down.

3. Install the DIMM module into the slot and press it firmly
down so that it seats correctly. The slot latches are
levered upwards and latch on to the edges of the
DIMM when it is installed correctly.

Installing a Hard Disk Drive/CD-ROM

This section describes how to install IDE devices such as a
hard disk drive and a CD-ROM drive.

About IDE Devices

Your mainboard has a primary and secondary IDE channel i n­terface (IDE1 and IDE2). An IDE ribbon cable supporting two
IDE devices is bundled with the mainboard. IDE devices have
jumpers or switches that are used to set the IDE device as
MASTER or SLAVE. Refer to the IDE device user’s manual.

If you want to install more than two IDE devices, get a second
IDE cable and you can add two more devices to the secon­dary IDE channel.

When installing two IDE devices on one cable, ensure that
one device is set to MASTER and the other device is set to
SLAVE. The documentation of your IDE device explains how
to do this.

About UDMA

This mainboard supports UltraDMA 66/100. UDMA is a tec h­nology that accelerates the performance of devices in the IDE

22

K7S5A2 V1.0

Pin 1

channel. Install IDE devices that support UDMA and use IDE
cables that support UDMA for better performance.

Installing a Hard Disk Drive

HDD

B C

Colored
stripe

A

1. Install the hard disk drive into the drive cage in your
ATX system case.

2. Plug the IDE cable into IDE1 (A).

Note: Ribbon cable connectors are usually keyed so that

they can only be installed correctly on the device
connector. If the connector is not keyed, make sure
that you match the pin-1 side of the cable connector
with the pin-1 side of the device connector. Each
connector has the pin-1 side clearly marked. The
pin-1 side of each ribbon cable is always marked
with a colored stripe on the cable.

3. Plug an IDE cable connector into the hard disk drive
IDE connector. It doesn't matter which connector on
the cable you use. Ensure that the pin-1 side of the
cable is matched with the pin-1 side of the connector.
Refer to the previous note (B).

4. Plug a power cable from the case power supply into
the power connector on the hard disk drive (C).

When you first start up your system, the BIOS should auto-

23

K7S5A2 V1.0

CD1

matically detect your hard disk drive. If it doesn’t, enter the
Setup Utility and use the IDE Hard Disk Auto Detect feature to
configure the hard disk drive that you have installed. See
Chapter 3 for more information.

Installing a CD-ROM/DVD Drive

CD-ROM audio
connector

CD-ROM

B

Colored
stripe

A

D

1. Install the CD-ROM/DVD drive into the drive cage in

2. Plug the IDE cable into IDE1. If you have already in-

Note: Ribbon cable connectors are usually keyed so that

they can only be installed correctly on the device
connector. If the connector is not keyed, make sure
that you match the pin-1 side of the cable connector
with the pin-1 side of the device connector. Each
connector has the pin-1 side clearly marked. The
pin-1 side of each ribbon cable is always marked
with a colored stripe on the cable.

CD2

your ATX system case (A).

stalled an HDD, you can use the free connector on its
IDE cable (B).

Pin 1

C

3. Plug an IDE cable connector into the CD-ROM/DVD
drive IDE connector. It doesn't matter which connector
on the cable you use. Ensure that the pin-1 side of the

24

K7S5A2 V1.0

cable is matched with the pin-1 side of the connector.
Refer to the previous note.

4. Use the audio cable provided with the CD-ROM/DVD
drive to connect to the mainboard CD-in connector
CD1 or CD2 (D).

5. Plug a power cable from the case power supply into
the power connector on the CD-ROM/DVD drive (C).

When you first start up your system, the BIOS should auto­matically detect your CD-ROM/DVD drive. If it doesn’t, enter
the Setup Utility and configure the CD-ROM/DVD drive that
you have installed. See Chapter 3 for more information.

Installing a Floppy Diskette Drive

The mainboard has a floppy diskette drive (FDD) interface
ships with a diskette drive ribbon cable that supports one or
two floppy diskette drives. You can install a 5.25-inch drive
and a 3.5-inch drive with various capacities. The floppy disk­ette drive cable has one type of connector for a 5.25-inch
drive and another type of connector for a 3.5-inch drive

FDD

B

Colored
stripe

A

Pin 1

1. Install the FDD into the drive cage in your ATX system
case.

2. Plug the FDD cable into FDD1 (A).

Note: Ribbon cable connectors are usually keyed so that

they can only be installed correctly on the device

25

C

K7S5A2 V1.0

connector. If the connector is not keyed, make sure
that you match the pin-1 side of the cable connector
with the pin-1 side of the device connector. Each
connector has the pin-1 side clearly marked. The
pin-1 side of each ribbon cable is always marked
with a colored stripe on the cable.

3. Plug one of the connectors on the FDD cable into the
FDD connector (B). It doesn't matter which connector
on the cable you use. Ensure that the pin-1 side of the
cable is matched with the pin-1 side of the connector.
Refer to the previous note.

4. Plug a power cable from the case power supply into
the power connector on the FDD (C).

When you first start up your system, go immediately to the
Setup Utility and use the Standard page to configure the
floppy diskette drives that you have installed. See Chapter 3
for more information.

Installing Add-on Cards

This mainboard has five 32-bit PCI (Peripheral Components
Interconnect) expansion slots, one 4xAGP slot, and one
Communications and Networking Riser (CNR) slot.

PCI Slots PCI slots are used to ins tall expansion

cards that have the 32-bit PCI interface.

4xAGP Slot The 4xAGP slot is used to install a graph-

ics adapter that supports the 4xAGP
specification and has a 4xAGP edge con­nector.

CNR Slot This slot is used to insert CNR cards with

Modem and Audio functionality.

Note: Before installing an add-on card, check the docu-

mentation for the card carefully. If the card is not
Plug and Play, you may have to manually configure
the card before installation.

26

K7S5A2 V1.0

AGP slot
PCI slots

CNR slot

J2

1

CD1

CD 2

PCI1

PCI2

PCI3

PCI4

PCI5

USB2

1

CNR1

AGP1

DDR1 DDR2

SDR1

SDR2

LED1

IDE2

IDE1

JP4

1

1

JP3

PWRFAN2

BT1

JP1

1

FDD1

WOL1 WOM1

1. Remove a blanking plate from the system case corre­sponding to the slot you are going to use.

2. Install the edge connector of the add-on card into the
expansion slot. Ensure that the edge connector is cor­rectly seated in the slot.

PWRFAN1

1

SPKR1

1

PANEL1

USB3

1

IR1

1

Add-on card

Edge connector

3. Secure the metal bracket of the card to the system
case with a screw.

Note: For some add-on cards, for example graphics adapters

and network adapters, you have to install drivers and
software before you can begin using the add-on card.

27

K7S5A2 V1.0

WOL1

WOM1

IR1

SPEAKER1

Connecting Optional Devices

Refer to the following for information on connecting the mai n­board’s optional devices:

JP2

1

A TX1

J2

1

J2

CD 1

CD 2

PCI1

AGP1

DDR1 DDR2

CPUFAN1

SDR1

SDR2

LED1

IDE2

1

PWR FAN1

PCI2

1

1

USB2

PCI3

PCI4

BT1

1

PCI5

USB2

CNR1

WOL1 WOM1

IDE1

JP4

1

1

1

PWRFAN2

JP1

1

FDD1

SPKR1

JP3

USB3

1

PANEL1

U SB3

1

IR1

1

1

1

1

J2: Front Audio Connector

This connector is used to attach to Audio equipment embe d­ded into or attached to the case.

Pin Signal Name Pin Signal Name

1
3
5
7
9

AUD_MIC
MIC_BIAS
AUD_F_R
RESERVED
AUD_F_L

2
4
6
8

10

AUD_GND
AUD_VCC
AUD_RET_R
KEY
AUD_RET_L

28

K7S5A2 V1.0

USB2/USB3: Internal USB connectors

The mainboard has two USB ports installed on the rear edge
I/O port array. However, some computer cases have a special
module that mounts USB ports at the front of the case. If you
have this kind of case, use the auxiliary USB connectors
USB2 and USB3 to connect the front-mounted ports to the
mainboard.

Pin Signal Name Pin Signal Name

WOL1/WOM: Wake On LAN/Wake On Modem

If you have installed a LAN card, use the cable provided with
the card to plug into the mainboard WOL1 connector. This en­ables the Wake On LAN (WOL) feature. When your system is
in a power-saving mode, any LAN signal automatically re­sumes the system. You must enable this item using the Power
Management page of the Setup Utility.

1

USBPWR0

3

USB_FP_P0-

5

USB_FP_P0+

7

GND

9

KEY

2

USBPWR1

4

USB_FP_P1-

6

USB_FP_P1+

8

GND

10

USB_FP_OC0

Pin Signal Name

1

5VSB

2

Ground

3

SENSE

If you have installed a modem, use the cable provided with
the modem to plug into the mainboard WOM1 connector. This
enables the Wake On Modem (WOM) feature. When your sys­tem is in a power-saving mode, any modem signal
automatically resumes the system. You must enable this item
using the Power Management page of the Setup Utility. See
Chapter 3 for more information.

29

K7S5A2 V1.0

IR1: Infrared port

The mainboard supports an Infrared (IR) data port. Infrared
ports allow the wireless exchange of information between your
computer and similarly equipped devices such as printers,
laptops, Personal Digital Assistants (PDAs), and other com­puters.

Pin Signal Name Pin Signal Name

SPEAKER1: Internal speaker

Connect the internal speaker connector to this header.

Pin Signal Name

1
3
5

1
2
3
4

N/A
+5V
IRTX/CIRTX

SPKR
NC
Ground
+5V

2
4
6

KEY
GND
IRRX/CIRRX

30

K7S5A2 V1.0

CCoonnnneeccttiinngg II//OO DDeevviicceess

The backplane of the mainboard has a full set of I/O ports:

Parallel port (LPT1)

PS/2

mouse

PS/2

keyboard

USB

ports

Serial port

COM 1

Serial port

COM 2

1. Use the upper PS/2 port to connect a PS/2 pointing
device. Use the lower PS/2 port to connect a PS/2
keyboard.

2. Use the USB ports to connect USB devices.

3. Use LPT1 to connect printers or other parallel commu­nications devices.

4. Use the COM ports to connect serial devices such as
mice or fax/modems. COM1 is identified by the system
as COM1/3. COM2 is identified by the system as
COM2/4.

5. Use the game port to connect a joystick or a MIDI de­vice.

6. Use the three audio ports to connect audio devices.
The left side jack is for a stereo line-out signal. The
middle jack is for a stereo line-in signal. The right side
jack is for a microphone.

Game port

Microphone
Line-in

Line-out

31

K7S5A2 V1.0

External Connector Color Coding

Many connectors now use standard colors as shown in the
table below.

Connector Color

Analog VGA Blue

Audio line-in Light blue

Audio line-out Lime

Digital monitor / flat panel White

IEEE 1394 Grey

Microphone Pink

MIDI/Game Gold

Parallel Burgundy

PS/2 compatible keyboard Purple

PS/2 compatible mouse Green

Serial Teal or Turquoise

Speaker out/subwoofer Orange

Right-to-left speaker Brown

USB Black

Video out Yellow

SCSI, network, telephone,

modem

None

This concludes Chapter 2. Chapter 3 covers the BIOS.

32

AAbboouutt tthhee SSeettuupp UUttiilliittyy

The computer uses the latest Award BIOS with support for
Windows Plug and Play. The CMOS chip on the mainboard
contains the ROM setup instructions for configuring the mai n­board BIOS.

The BIOS (Basic Input and Output System) Setup Utility dis­plays the system's configuration status and provides you with
options to set system parameters. The parameters are stored
in battery-backed-up CMOS RAM that saves this information
even when the power is turned off. When the system is turned
back on, the system is configured with the values found in
CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives, and peripherals

• Video display type and display options

• Password protection from unauthorized use

• Power management features

CChhaapptteerr 33

Using BIOS

The settings made in the Setup Utility affect how the computer
performs. Before using the Setup Utility, ensure that you un­derstand the Setup Utility options. Only change settings
appropriate for the way you use the computer.

This chapter provides explanations for Setup Utility options.

K7S5A2 V1.0

The Standard Configuration

A standard configuration has already been set in the Setup
Utility. However, we recommend that you read this chapter in
case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration

• when a configuration error is detected and you are

prompted to make changes to the Setup Utility

• when trying to resolve IRQ conflicts

• when making changes to the Power Management con-

figuration

• when changing the password or making other changes
to the Security Setup

34

K7S5A2 V1.0

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On
Self Test (POST) routines. POST is a series of built-in diag­nostics performed by the BIOS. After the POST routines are
completed, the following message appears:

Press DEL to enter SETUP

Pressing the delete key accesses the BIOS Setup Utility:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status

Esc : Quit
F10 : Save & Exit Setup

Time, Date, Hard Disk Type . . .

Load Fail-Safe Defaults
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving

BIOS Navigation Keys

The BIOS navigation keys are listed below:

Key Function

Esc Exits the current menu

←↑↓→

+/–

/PU/PD

F10 Saves the current configuration and exits setup

F1

F5 Loads previously saved values to CMOS
F6

F7

Scrolls through the items on a menu
Modifies the selected field's values

Displays a screen that describes all key func­tions

Loads a minimum configuration for trouble­shooting.

Loads an optimum set of values for peak per­formance

Frequency/Voltage Control

↑ ↓ →

← : Select Item

35

K7S5A2 V1.0

Updating the BIOS

You can download and install updated BIOS for this main­board from the manufacturer's web site. New BIOS provides
support for new peripherals, improvements in performance, or
fixes for known bugs. Install new BIOS as follows:

1. If your mainboard has a BIOS protection jumper,
change the setting to allow BIOS flashing. Refer to
Appendix A for jumper settings.

2. If your mainboard has an item called Firmware Write
Protect in Advanced BIOS features, disable it. Firm­ware Write Protect prevents BIOS from being
overwritten.

3. Create a bootable system disk. Refer to Windows
online help for information on creating a bootable sys­tem disk.

4. Download the Flash Utility and new BIOS file from the
manufacturer's Web site. Copy these files to the sys­tem diskette you created in Step 3.

5. Turn off your computer and insert the system diskette in
your computer's diskette drive. You might need to run the
Setup Utility and change the boot priority items on the
Advanced BIOS Features Setup page, to force your
computer to boot from the floppy diskette drive first.

6. At the A:\ prompt, type the Flash Utility program name
and press <Enter>. You see a screen similar to the fol­lowing:

(C) Award Software 1999 All Rights Reserved

For (MAINBOARD NAME) DATE: 10/26/2000
Flash Type
File Name to Program :____________________

Error Message

FLASH MEMORY WRITER V7.33

7. Type the filename of the new BIOS in the “File Name
to Program” text box. Follow the onscreen directions to
update the mainboard BIOS.

8. When the installation is complete, remove the floppy
diskette from the diskette drive and restart your com­puter. If your mainboard has a Flash BIOS jumper,
reset the jumper to protect the newly installed BIOS
from being overwritten.

36

K7S5A2 V1.0

UUssiinngg BBIIOOSS

When you start the Setup Utility, the main menu appears. The
main menu of the Setup Utility displays a list of the options
that are available. A highlight indicates which option is cur­rently selected. Use the cursor arrow keys to move the
highlight to other options. When an option is highlighted, ex e­cute the option by pressing <Enter>.

Some options lead to pop -up dialog boxes that prompt you to
verify that you wish to execute that option. Other options lead
to dialog boxes prompt you for information.

Some options (marked with a triangle ) lead to submenus
that enable you to change the values for the option. Use the
cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis.
Submenu items are denoted by a triangle .

Standard CMOS Features

This option displays a table of items defining basic information
about your system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Standard CMOS Features

Date (mm:dd:yy) Tue, July 11 2000
Time (hh:mm:ss) 12 : 8 : 59

IDE Primary Master
IDE Primary Slave
IDE Secondary Master

IDE Secondary Slave

Drive A [1.44M, 3.5 in.]
Drive B [None]

Floppy 3 Mode Support [Disabled]
Video [EGA/VGA]

Halt On [All Errors]
Base Memory 640K

Extended Memory 31744K
Total Memory 32768K

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level
Chan ge the day, month,

year and century.

37

K7S5A2 V1.0

Date and Time

The Date and Time items show the current date and time on
the computer. If you are running a Windows OS, these items
are automatically updated whenever you make changes to the
Windows Date and Time Properties utility.

IDE Devices (None)

Your computer has two IDE channels (Primary and Secondary)
and each channel can be installed with one or two devices
(Master and Slave). Use these items to configure each device
on the IDE channel.

Press <Enter> to display the IDE submenu:

CMOS Setup Utility – Copyright © 1984 – 2000 Award Software

IDE Primary Master

IDE HDD Auto-Detection [Press Enter ]
IDE Primary Master [Auto]

Access Mode [Auto]

Capacity 0 MB
Cylinder 0

Head 0
Precomp 0
Landing Zone 0

Sector 0

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level
To auto-detect the

HDD’s size, head . . . on
this channel

IDE HDD Auto-Detection

Press <Enter> while this item is highlighted to prompt the
Setup Utility to automatically detect and configure an IDE de­vice on the IDE channel.

Note: If you are setting up a new hard disk drive that sup-

ports LBA mode, more than one line will appear in
the parameter box. Choose the line that lists L BA
for an LBA drive.

IDE Primary Master/Slave & Secondary Master/Slave
(Auto)

Leave this item at Auto to enable the system to automatically de­tect and configure IDE devices on the channel. If it fails to find a
device, change the value to Manual and then manually configure
the drive by entering the characteristics of the drive in the items
described below.

38

K7S5A2 V1.0

Refer to your drive's documentation or look on the drive casing if
you need to obtain this information. If no device is installed,
change the value to None.

Note: Before attempting to configure a hard disk drive,

Access Mode

This item defines ways that can be used to access IDE hard
disks such as LBA (Large Block Addressing). Leave this value
at Auto and the system will automatically decide the fastest
way to access the hard disk drive.

Press <Esc> to return to the Standard CMOS Features page.

Drive A/Drive B (1.44M, 3.5 in./None)

These items define the characteristics of any diskette drive at­tached to the system. You can connect one or two diskette
drives.

ensure that you have the configuration information
supplied by the manufacturer of your hard drive. In­correct settings can result in your system not
recognizing the installed hard disk.

Floppy 3 Mode Support (Disabled)

Floppy 3 mode refers to a 3.5-inch diskette with a capacity of

1.2 MB. Floppy 3 mode is sometimes used in Japan.

Video (EGA/VGA)

This item defines the video mode of the system. This main­board has a built-in VGA graphics system; you must leave this
item at the default value.

Halt On (All Errors)

This item defines the operation of the system POST (Power
On Self Test) routine. You can use this item to select which
types of errors in the POST are sufficient to halt the system.

Base Memory, Extended Memory, and Total Memory

These items are autom atically detected by the system at start
up time. These are display-only fields. You cannot make
changes to these fields.

39

K7S5A2 V1.0

Advanced BIOS Setup Option

This option displays a table of items that define advanced in­formation about your system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Advanced BIOS Features

Anti-Virus Protection [Disabled ]
CPU Internal Cache [Enabled]
External Cache [Enabled]
Processor Number Feature [Enabled]
Quick Power On Self Test [Enabled]
First Boot Device [Floppy]
Second Boot Device [HDD-0]
Third Boot Device [LS120]
Boot Other Device [Enabled]
Swap Floppy Drive [Disabled]
Boot Up Floppy Seek [Enabled]
Boot Up NumLock Status [On]
Gate A20 Option [Fast]
Typematic Rate Setting [Disabled]

x Typematic Rate (Chars/Sec) 6
x Typematic Delay (Msec) 250

Security Option [Setup]
APIC Mode [Enabled]
OS Select For DRAM > 64MB [Non-OS2]

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level
Allows you to choose

the VIRUS warning
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled
and someone attempts
to write data into this
area, BIOS will show a
warning message on

screen and alarm beep

Anti-Virus Protection (Disabled)

When enabled, this item provides protection against viruses
that try to write to the boot sector and partition table of your
hard disk dri ve. You need to disable this item when installing
an operating system. We recommend that you enable anti­virus protection as soon as you have installed an operating
system.

CPU Internal Cache (Enabled)

All processors that can be installed in this mainboard use in­ternal level 1 (L1) cache memory to improve performance.
Leave this item at the default value for better performance.

40

K7S5A2 V1.0

External Cache (Enabled)

Most processors that can be installed in this system use ex­ternal level 2 (L2) cache memory to improve performance.
Leave this item at the default value for better performance.

Processor Number Feature (Enabled)

Some new processors are installed with a unique processor
number. This number may be used for verification in Internet
transactions and e-commerce. If you prefer not to use or dis­tribute the unique processor number, disable this item to
suppress the processor number.

Quick Power On Self Test (Enabled)

Enable this item to shorten the power on testing (POST) and
have your system start up faster. You might like to enable this
item after you are confident that your system hardware is op­erating smoothly.

1st/2nd/3rd Boot Device (Floppy/HDD-0/LS120)

Use these three items to select the priority and order of the
devices that your system searches for an operating system at
start-up time.

Boot Other Device (Enabled)

When enabled, the system searches all other possible loca­tions for an operating system if it fails to find one in the
devices specified under the first, second, and third boot de­vices.

Swap Floppy Drive (Disabled)

If you have two floppy diskette drives in your system, this item
allows you to swap the assigned drive letters so that drive A
becomes drive B, and drive B becomes drive A.

41

K7S5A2 V1.0

Boot Up Floppy Seek (Enabled)

If this item is enabled, it checks the size of the floppy disk
drives at start -up time. You don't need to enable this item un­less you have a legacy diskette drive with 360K capacity.

Boot Up NumLock Status (On)

This item defines if the keyboard Num Lock key is active when
your system is start ed.

Gate A20 Option (Fast)

This item defines how the system handles legacy software
that was written for an earlier generation of processors. Leave
this item at the default value.

Typematic Rate Setting (Disabled)

If this item is enabled, you can use the following two items to
set the typematic rate and the typematic delay settings for
your keyboard.

• Typematic Rate (Chars/Sec): Use this item to define
how many characters per second are generated by a
held-down key.

• Typematic Delay (Msec): Use this item to define how
many milliseconds must elapse before a held-down
key begins generating repeat characters.

Security Option (Setup)

If you have installed password protection, this item defines if
the password is required at system start up, or if it is only re­quired when a user tries to enter the Setup Utility.

APIC Mode (Enabled)

This item allows you to enable APIC (Advanced Programm a­ble Interrupt Controller) functionality. APIC is an Intel chip that
provides symmetric multiprocessing (SMP) for its Pentium
systems.

OS Select For DRAM > 64 MB (Non-OS2)

This item is only required if you have installed more than 64
MB of memory and you are running the OS/2 operating sys­tem. Otherwise, leave this item at the default.

HDD S.M.A.R.T Capability (Disabled)

42

K7S5A2 V1.0

The S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting
Technology) system is a diagnostics technology that monitors
and predicts device performance. S.M.A.R.T. software resides
on both the disk drive and the host computer.

The disk drive software monitors the internal performance of
the motors, media, heads, and electronics of the drive. The
host software monitors the overall reliability status of the drive.
If a device failure is predicted, the host software, through the
Client WORKS S.M.A.R.T applet, warns the user of the im­pending condition and advises appropriate action to protect
the data.

Report No FDD For WIN95 (Yes)

If you are running a system with no floppy drive and using
Windows 95, select Yes for this item to ensure compatibility
with the Windows 95 logo certification. Otherwise, select No.

Video BIOS Shadow (Enabled)

When set to Enabled, the system copies the VGA BIOS into
system DRAM.

Small Logo (EPA) Show (Disabled)

Enables or disables the display of the EPA logo during boot.

43

K7S5A2 V1.0

Advanced Chipset Features Option

This option displays a table of items that define critical timing
parameters of the mainboard. You should leave the items on
this page at their default values unless you are very familiar
with the technical specifications of your system hardware. If
you change the values incorrectly, you may introduce fatal er­rors or recurring instability into your system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Advanced Chipset Features

Advanced DRAM Control 1 [Press Enter]

Advanced DRAM Control 2 [Press Enter]
Memory Hole at 15M -16M [Disabled]
AGP Fast Write control [Enabled]
AGP Data Transfer Rates [Support 4X]
AGP Aperture Size [64MB]
PCI SLOT 5 Support [Enabled]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

44

K7S5A2 V1.0

Advanced DRAM Control 1

Scroll to this item and press <Enter> to view the following
screen:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Advanced DRAM Control 1

Auto configuration [Normal Mode]

CPU/DRAM CLK Synch CTL [AUTO]
DRAM BackGround Cycles [Delay 1T]
LD-Off Dram RD/WR Cycles [Delay 1T]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Auto Configuration (Normal Mode)

This is the DRAM auto configuration option, which can be set
to Safe Mode, Normal Mode, Fast Mode or Ultra Mode.

CPU/DRAM CLK Synch CTL (AUTO)

This option allows you set the CPU/DRAM synchronization.
The valid options are AUTO, Synchronous, and Asynchronous.

DRAM BackGround Cycles (Delay 1T)

This option allows you to set the DRAM background cycles.
The valid options are AUTO, Delay 1T, and Normal.

LD-Off Dram RD/WR cycles (Delay 1T)

This option allows you to set the LD-Off DRAM RD/WR cycles.
Valid values are AUTO, Delay 1T, and Normal.

45

K7S5A2 V1.0

Advanced DRAM control 2

Scroll to this item and press <Enter> to view the following
screen:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Advanced DRAM Control 2

CS[5:0]# Hold Time CTL [+0.5 ns]
DQS/CSB Hold Time CTL [+0.5 ns]
CKE Hold Time CTL [+0.5 ns]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

CS[5:0]# Hold Time CTL (+0.5 ns)

This option allows you to set the CS Hold Time. Valid values
are +.05 ns, +.1.0 ns, +1.5 ns, and +2.0 ns.

DQS/CSB Hold Time CTL (+0.5 ns)

This option allows you to set the DQS/CSB Hold Time. Valid
values are +.05 ns, +.1.0 ns, +1.5 ns, and +2.0 ns.

CKE Hold Time CTL (+0.5 ns)

This option allows you to set the CKE Hold Time. Valid values
are +.05 ns, +.1.0 ns, +1.5 ns, and +2.0 ns.

Memory Hole at 15M-16M (Disabled)

This item is used to reserve memory space for ISA expansion
cards that require it.

AGP Fast Write Control (Enabled)

This item allows you to enable or disable the caching of dis­play data for the video memory of the processor. Enabling can
greatly improve the display speed. If your graphics display
card does not support this feature, you need to disable this
item.

46

K7S5A2 V1.0

AGP Data Transfer Rates (Support 4X)

Determines the data transfer rate of AGP data at either 4X or
2X depending on your Advanced Graphics Card.

AGP Aperture Size (64MB)

This item defines the size of the aperture if you use an AGP
graphics adapter. It refers to a section of the PCI memory ad­dress range used for graphics memory. We recommend that
you leave this item at the default value.

PCI SLOT 5 Support (Enabled)

Enables PCI support for this mainboard.

Integrated Peripherals Option

This option displays a list of items that defines the operation of
peripheral components on the system's input/output ports.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Integrated Peripherals

SIS OnChip IDE Device [Press Enter]

SIS OnChip PCI Device [Press Enter]

Onboard SuperI/O Device [Press Enter]
USB Controller [Enabled]
USB keyboard Support [Disabled]
IDE HDD Block Mode [Enabled]
Init Display First [PCI Slot]
AGP Auto Calibration [Enabled]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

47

K7S5A2 V1.0

SIS OnChip IDE Device

Scroll to this item and press <Enter> to view the following
screen:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

SIS OnChip IDE Device

Internal PCI/IDE [Both]
Primary Master PIO [Auto]
Primary Slave PIO [Auto]
Secondary Master PIO [Auto]
Secondary Slave PIO [Auto]
Primary Master UltraDMA [Auto]
Primary Slave UltraDMA [Auto]
Secondary Master UltraDMA [Auto]
Secondary Slave UltraDMA [Auto]
IDE Burst Mode [Enabled]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Internal PCI/IDE (Both)

Use these items to enable or disable the internal PCI IDE
channels that are integrated on the mainboard.

IDE Primary/Secondary Master/Slave PIO (Auto)

Each IDE channel supports a master device and a slave de­vice. These four items let you assign which kind of PIO
(Programmed Input/Output) is used by IDE devices. Choose
Auto to let the system auto detect which PIO mode is best, or
select a PIO mode from 0-4.

IDE Primary/Secondary Master/Slave UltraDMA (Auto)

Each IDE channel supports a master device and a slave de­vice. This mainboard supports UltraDMA technology, which
provides faster access to IDE devices.

If you install a device that support s UltraDMA, change the ap­propriate item on this list to Auto. You may have to install the
UltraDMA driver supplied with this mainboard in order to use
an UltraDMA device.

IDE Burst Mode (Enabled)

This option, when enabled will instruct the system to send
every write transaction to the write buffer. Burstable transac-

48

K7S5A2 V1.0

tions then burst onto the PCI bus and nonburstable transac­tions do not.

Press <Esc> to return to the Integrated Peripherals screen.

SIS OnChip PCI Device

Scroll to this item and press <Enter> to view the following
screen:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

SIS OnChip PCI Device

SIS-7012/7018 AC97Audio [Enabled]
SIS-7013 S/W Modem [Enabled]
IDE ACCESS INTERFACE [Embedded BUS]
IDE ACCESS INTERFACE [Embedded BUS]
USB1 ACCESS INTERFACE [Embedded BUS]
AC97 ACCESS INTERFACE [Embedded BUS]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

SIS-7012/7018 AC97 AUDIO (Enabled)

Enables and disables the onboard audio chip. Disable this
item if you are going to install a PCI audio add-on card.

SIS-7013 S/W Modem (Auto)

Enables and disables the onboard modem. Disable this item if
you are going to install an external modem.

IDE ACCESS INTERFACE (Embedded BUS)

This item determines whether the IDE access interface is the
PCI bus or the embedded bus.

USB1 ACCESS INTERFACE (Embedded BUS)

This option determines whether the USB1 access interface is
the embedded bus or the PCI bus.

USB0 ACCESS INTERFACE (Embedded BUS)

This option determines whether the USB0 access interface is
the embedded bus or a PCI bus.

49

K7S5A2 V1.0

AC97 ACCESS INTERFACE (Embedded BUS)

This option determines whether the AC97 interface uses an
embedded bus or a PCI bus

Press <Esc> to return to the Integrated Peripherals screen.

Onboard SuperIO Device

Scroll to this item and press <Enter> to view the following
screen:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Onboard SuperIO Device

Onboard FDC Controller [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
UART Mode Select [Normal]
UR2 Duplex Mode [Half]
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [ECP]
ECP Mode Use DMA [3]
Game Port Address [201]
Midi Port Address [330]
Midi Port IRQ [10]

Menu Level

Item Help

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Onboard FDC Controller (Enabled)

This option enables the onboard floppy disk drive controller.

Onboard Serial Port 1 (3F8/IRQ4)

This option is used to assign the I/O address and interrupt re­quest (IRQ) for onboard serial port 1 (COM1).

Onboard Serial Port 2 (2F8/IRQ3)

This option is used to assign the I/O address and interrupt re­quest (IRQ) for onboard serial port 2 (COM2).

UART Mode Select (Normal)

This field is available if the Onboard Serial Port 2 field is set to
any option but Disabled. UART Mode Select enables you to
select the infrared communication protocol-Normal (default),
IrDA, or ASKIR. IrDA is an infrared communication protocol
with a maximum baud rate up to 115.2K bps. ASKIR is
Sharp's infrared communication protocol with a maximum

50

K7S5A2 V1.0

baud rate up to 57.6K bps.

UR2 Duplex Mode (Half)

This field is available when UART 2 Mode is set to either
ASKIR or IrDA. This item enables you to determine the infr a­red (IR) function of the onboard infrared chip. The options are
Full and Half (default).

Full-duplex means that you can transmit and send information
simultaneously. Half-duplex is the transmission of data in both
directions, but only one direction at a time.

Onboard Parallel Port (378/IRQ7)

This option is used to assign the I/O address and interrupt re­quest (IRQ) for the onboard parallel port.

Parallel Port Mode (ECP)

Enables you to set the data transfer protocol for your parallel
port. There are four options: SPP (Standard Parallel Port),
EPP (Enhanced Parallel Port), ECP (Extended Capabilities
Port) and ECP+EPP.

SPP allows data output only. Extended Capabilities Port (ECP)
and Enhanced Parallel Port (EPP) are bi-directional modes, al­lowing both data input and output. ECP and EPP modes are only
supported with EPP and ECP aware peripherals.

ECP Mode Use DMA (3)

When the onboard parallel port is set to ECP mode, the paral­lel port can use DMA 3 or DMA 1.

Game Port Address (201)

This item sets the I/O address for the game port.

Midi Port Address (330)

This item sets the I/O address for the Midi function.

Midi Port IRQ (10)

This item sets the interrupt request for the Midi function.
Press <Esc> to return to the Integrated Peripherals screen.

USB Controller (Enabled)

Enable this item if you plan to use the Universal Serial Bus

51

K7S5A2 V1.0

ports on this mainboard.

USB Keyboard Support (Disabled)

Enable this item if you plan to use a keyboard connected
through the USB port in a legacy operating system (such as
DOS) that does not support Plug and Play.

IDE HDD Block Mode (Enabled)

Enable this field if your IDE hard drive supports block mode.
Block mode enables BIOS to automatically detect the optimal
number of block read and writes per sector that the drive can
support. It also improves the speed of access to IDE devices.

Init Display First (PCI Slot)

Use this item to specify whether your graphics adapter is in­stalled in one of the PCI slots or is integrated on the
mainboard.

AGP Auto Calibration (Enabled)

This item allows you to enable or disable the AGP buffer
strength auto calibration through the chipset.

Power Management Setup Option

This option displays items that let you control the system
power management. Modern operating systems take care of
much of the power management. This mainboard supports
ACPI (Advanced Configuration and Power Interface). The sys­tem has various power saving modes including powering
down the hard disk, turning off the video, suspending to RAM,
and a software power down that allows the system to be
automatically resumed by certain events.

Power Management Timeouts

The power -saving modes can be controlled by timeouts. If the
system is inactive for a time, the timeouts begin counting. If
the inactivity continues so that the timeout period elapses, the
system enters a power-saving mode. If any item in the list of
Reload Global Timer Events is Enabled, then any activity on
that item will reset the timeout counters to zero.

52

K7S5A2 V1.0

Wake Up Calls

If the system is suspended, or has been powered down by
software, it can be resumed by a wake up call that is gene r­ated by incoming traffic to a modem, a LAN card, a PCI card,
or a fixed alarm on the system realtime clock,

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Power Management Setup

ACPI function [Enabled ]
ACPI Suspend Type [S1(POS)]
Video Off Option [Suspend --> Off]
Video Off Method [DPMS Supported]
Switch Function [Break/Wake]
MODEM Use IRQ [3]
Hot Key Function as [Power Off]
HDD Off After [Disable]
Power Button Override [Instant-Off]
Power State Resume Control [Always Off]

PM Wake Up Events [Press Enter]

↑ ↓ → ←

Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: MoveEnter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General

Item Help

Menu Level

ACPI Function (Enabled)

This mainboard supports ACPI (Advanced Configuration and
Power management Interface). Use this item to enable or dis­able the ACPI feature.

Note: ACPI is a power management specification that

makes hardware status information available to the
operating system. ACPI enables a PC to turn its pe­ripherals on and off for improved power
management. It also allows the PC to be turned on
and off by external devices, so that mouse or
keyboard activity wakes up the computer.

ACPI Suspend Type (S1 (POS))

Use this item to define how your system suspends. In the de­fault, S1(POS), the suspend mode is equivalent to a soft ware
power down. If you select S3 (STR), the suspend mode is a
suspend to RAM - the system shuts down with the exception
of a refresh current to the system memory.

Video Off Option (Suspend --> Off)

53

K7S5A2 V1.0

This option defines if the video is powered down when the
system is put into suspend mode.

Video Off Method (DPMS Support)

This item defines how the video is powered down to save
power. This item is set to DPMS (Display Power Management
Software) by default.

Switch Function (Break/Wake)

This option enables you to specify the function of the power
button:

• Disabled: The power button functions as a normal power

• Break/Wake : The power button functions as a suspend

MODEM Use IRQ (3)

If you want an incoming call on a modem to automatically re­sume the system from a power-saving mode, use this item to
specify the interrupt request line (IRQ) that is used by the m o­dem. You might have to connect the fax/modem to the
mainboard Wake On Modem connector for this feature to work.

button.

button. When the button is depressed, the system enters
a suspended state until the button is again depressed to
return the system to normal operating status.

Hot Key Function As (Power Off)

This option allows you to set the Hot Key functionality to one
of the following states: Disable (turn off Hot Key functionality),
Power Off, Suspend.

HDD Off After (Disable)

The IDE hard drive will spin down if it is not accessed within a
specified length of time. Options are from 1 Min to 15 Min and
Disable.

Power Button Override (Instant-Off)

Under ACPI (Advanced Configuration and Power manage­ment Interface) you can create a software power down. In a
software power down, the system can be resumed by Wake
Up Alarms. This item lets you install a software power down
that is controlled by the normal power button on your system.
If the item is set to Instant -Off, then the power button causes a

54

K7S5A2 V1.0

software power down. If the item is set to Delay 4 Sec. then
you have to hold the power button down for four seconds to
cause a software power down.

Power State Resume Control (Always Off)

This sets the power state after a shutdown due to an unex­pected interrupt of AC power.

55

K7S5A2 V1.0

PM Wake Up Events

Scroll to this item and press <Enter> to view the following
screen:

CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software

PM Wake Up Events

IRQ [3-7, 9-15], NMI [Enabled]
IRQ 8 Break suspend [Disabled]
Ring Power Up Control [Enabled]
PCIPME Power Up Control [Enabled]
KB Power ON Password [Enter]
Power Up by Alarm [Disabled]

x Month Alarm NA

x Date (of Month) 0
x Time (hh:mm:ss) 0 0 0

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level

This item opens a submenu that enables you to set events
that will resume the system from a power saving mode.

IRQ [3-7, 9-15], NMI (Enabled)

This option determines whether any activity for IRQ 3-7/9-15
will cause the system to wake from a power saving mode.

IRQ 8 Break Suspend

Determines whether the system will monitor IRQ 8 activity and
wake the system from a power saving mode when IRQ 8 is
activated.

Ring Power Up Control (Disabled)

Use this item to enable LAN or modem activity to wakeup the
system from a power saving mode.

PCIPME Power Up Control (Enabled)

Use this item to enable PCI activity to wakeup the system
from a power saving mode.

KB Power ON Password (Enter)

Allows you to set the KB Power ON password.

56

K7S5A2 V1.0

Power Up by Alarm (Disabled)

When set to Enabled, the following three fields become avail­able: Month Alarm, Day of Month Alarm, and Time Alarm
Upon arrival of the alarm time, it will instruct the system to
wake up. When set to 0 (zero) for the day of the month, the
alarm will power on your system every day at the specified
time.

PNP/PCI Configuration Option

This option displays a table of items that configures how PnP
(Plug and Play) and PCI expansion cards operate in your sys­tem. Both the ISA and PCI buses on the Mainboard use
system IRQs (Interrupt ReQuests) and DMAs (Direct Memory
Access). You must set up the IRQ and DMA assignments cor­rectly through the PnP/PCI Configurations Setup utility;
otherwise, the mainboard will not work properly. Selecting
PnP/PCI Configurations on the main program screen displays
this menu:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

PnP/PCI Configurations

Reset Configuration Data [Disabled]
Resources Controlled by [Auto(ESCD)]

x IRQ Resources Press Enter

PCI/VGA Palette Snoop [Disabled]
INT Pin 1 Assignment [Auto]
INT Pin 2 Assignment [Auto]
INT Pin 3 Assignment [Auto]
INT Pin 4 Assignment [Auto]

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level
Default is Disabled.

Select Enabled to reset
Extended System Con­figuration Data (ESCD)
when you exit Setup if you
have installed a new add­on and the system reco n­figuration has caused
such a serious conflict

that the OS cannot boot

Reset Configuration Data (Disabled)

If you enable this item and restart the system, any Plug and
Play configuration data stored in the BIOS setup is cleared
from memory. New updated data is created.

Resources Controlled By (Auto(ESCD))

You should leave this item at the default Auto(ESCD). Under
this setting, the system dynamically allocates resources to

57

K7S5A2 V1.0

Plug and Play devices as they are required.
If you cannot get a legacy ISA (Industry Standard Architecture)

expansion card to work properly, you might be able to solve
the problem by changing this item to Manual, and then ope n­ing up the IRQ Resources and Memory Resources submenus.

In the IRQ Resources submenu, if you change any of the IRQ
assignations to Legacy ISA, then that Interrupt Request Line
is reserved for a legacy ISA expansion card. Press <Esc> to
close the IRQ Resources submenu.

In the Memory Resources submenu, use the first item Re­served Memory Base to set the start address of the memory
you want to reserve for the ISA expansion card. Use the sec­ond item Reserved Memory Length to set the amount of
reserved memory. Press <Esc> to close the Memory Re­sources submenu.

PCI/VGA Palette Snoop (Disabled)

This item is designed to overcome some problems that can be
caused by some non-standard VGA cards. This board in­cludes a built-in VGA system that does not require palette
snooping so you must leave this item disabled.

INT Pin 1-4 Assignment (Auto)

Identifies the interrupt request (IRQ) line assigned to a device
connected to the PCI interface of your system.

58

K7S5A2 V1.0

PCI Health Status Option

On mainboards that support hardware monitoring, this item
lets you monitor the parameters for critical voltages, critical
temperatures, and fan speeds. You cannot make any changes
to these fields. They are display only:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

PC Health Status

Shutdown Temperature [Disabled ]

CPU Core Voltage
Vcc 2.5V
Vcc 3.3V
Vcc 5.0V
+12V
StandBy 3.3V
StandBy 5.0V
Voltage Battery
System Temperature
CPU Temperature
CPU FAN speed
PWR Fan1 Speed
PWR Fan2 Speed

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: MoveEnter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level

Shutdown Temperature

Enables you to set the maximum temperature the system can
reach before powering down.

System Component Characteristics

These fields provide you with information about the systems
current operating status. You cannot make changes to these
fields.

59

K7S5A2 V1.0

Frequency/Voltage Control

This item enables you to set the clock speed and system bus
for your system. The clock speed and system bus are deter­mined by the kind of processor you have installed in your
system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Frequency/Voltage Control

Auto Detect DIMM/PCI Clk [Enabled ]
Spread Spectrum Modulated [Enabled]
CPU Host/PCI Clock [Default]
CPU Vcore Voltage [Default]

↑ ↓ → ←

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

Item Help

Menu Level

Auto Detect DIMM/PCI Clk (Enabled)

When this item is enabled, BIOS will disable the clock signal
of free DIMM and PCI slots.

Spread Spectrum (Enabled)

If you enable spread spectrum, it can significantly reduce the
EMI (Electro-Magnetic Interference) generated by the system.

CPU Host Clock (CPU/PCI) (Default)

Use the CPU Host Clock to set the frontside bus frequency for
the installed processor or processors (usually 133 MHz, 100
MHz or 66 MHz).

CPU Vcore Voltage (Default)

Use this item to set the CPU Vcore without using the CPU in­ternal value.

Note: Modifying the CPU Vcore Voltage may cause the

system to become unstable. Use caution and proceed
at your own risk.

60

K7S5A2 V1.0

Load Fail-Safe Defaults Option

This option opens a dialog box that lets you install fail-safe de­faults for all appropriate items in the Setup Utility:

Press <Y> and then <Enter> to install the defaults. Press <N>
and then <Enter> to not install the defaults. The fail -safe de­faults place no great demands on the system and are
generally stable. If your system is not functioning correctly, try
installing the fail-safe defaults as a first step in getting your
system working properly again. If you only want to install fail­safe defaults for a specific option, select and display that op­tion, and then press <F6>.

Load Optimized Defaults Option

This option opens a dialog box that lets you install optimized
defaults for all appropriate items in the Setup Utility. Press
<Y> and then <Enter> to install the defaults. Press <N> and
then <Enter> to not install the defaults. The optimized defaults
place demands on the system that may be greater than the
performance level of the components, such as the CPU and
the memory. You can cause fatal errors or instability if you in­stall the optimized defaults when your hardware does not
support them. If you only want to install setup defaults for a
specific option, select and display that option, and then press
<F7>.

61

K7S5A2 V1.0

Set Password Option

This item can be used to install a password. To install a pas s­word, follow these steps:

1. Highlight the item Set Password on the main menu
and press <Enter>.

2. The password dialog box appears.

Enter Password:

3. If you are installing a new password, type in the pas s­word. You cannot use more than eight characters or
numbers. The Set Password item differentiates be­tween upper case and lower characters. Press
<Enter> after you have typed in the password. If you
are deleting a password that is already installed just
press <Enter> when the password dialog box appears.
You see a message that indicates that the password
has been disabled.

PASSWORD DISABLED !!!
Press any key to continue . . .

4. Press any key. You are prompted to confirm the pas s­word:

Confirm Password:

5. Type the password again and press <Enter>, or just
press <Enter> if you are deleting a password that is al­ready installed.

6. If you typed the password correctly, the password will
be installed.

62

K7S5A2 V1.0

Save & Exit Setup Option

Highlight this item and press <Enter> to save the changes that
you have made in the Setup Utility and exit the Setup Utility.
When the Save and Exit dialog box appears, press <Y> to
save and exit, or press <N> to return to the main menu:

Exit Without Saving

Highlight this item and press <Enter> to discard any changes
that you have made in the Setup Utility and exit the Setup Util­ity. When the Exit Without Saving dialog box appears, press
<Y> to discard changes and exit, or press <N> to return to the
main menu.

Note: If you have made settings that you do not want to

save, use the "Exit Without Saving" item and press
Y to discard any changes you have made.

This concludes Chapter 3. Refer to the next chapter for info r­mation on the software supplied with the mainboard.

63

Using the Mainboard Software

AAbboouutt tthhee SSooffttwwaarree CCDD--RROOMM

The support software CD-ROM that is included in the main­board package contains all the drivers and utility programs
needed to properly run the bundled products. Below you can
find a brief description of each software program, and the lo­cation for your mainboard version. More information on some
programs is available in a README file, located in the same
directory as the software.

Note: Never try to install software from a folder that is not

specified for use with your mainboard.

Before installing any software, always inspect the folder for
files named README.TXT, INSTALL.TXT, or something simi­lar. These files may contain important information that is not
included in this manual

CChhaapptteerr 44

K7S5A2 V1.0

AAuuttoo--iinnssttaalllliinngg uunnddeerr WWiinnddoowwss 9988

The Auto-install CD-ROM makes it easy for you to install the
drivers and software for your mainboard.

Note: If the Auto-install CD-ROM does not work on your

system, you can still install drivers through the file
manager for your OS (for example, Windows E x­plorer). Refer to Utility Folder Installation Notes
later in this chapter.

The support software CD-ROM disc loads automatically under
Windows 98. When you insert the CD-ROM disc in the CD­ROM drive, the autorun feature will automatically bring up the
install screen. The screen has three buttons on it, Setup,
Browse CD and Exit.

Note: If the opening screen doesn't appear, double-click

the file "setup.exe" in the root directory.

Setup

Click the Setup button to run the software installation pr ogram.
Select from the menu which software you want to install.

65

K7S5A2 V1.0

Browse CD

The Browse CD button is the standard Windows command
that allows you to open Windows Explorer and show the con­tents of the support CD.

Before installing the software from Windows Explorer, look for
a file named README.TXT, INSTALL.TXT or something simi­lar. This file may contain important information to help you
install the software correctly.

Some software is installed in separate folders for different op­erating systems, such as DOS, WIN NT, or WIN98/95. Always
go to the correct folder for the kind of OS you are using.

To install the software, execute a file named SETUP.EXE or
INSTALL.EXE by double-clicking the file and then following
the instructions on the screen.

Exit

The Exit button closes the Auto Setup window.

Running Setup

Follow these instructions to install device drivers and software
for the mainboard:

1. Click Setup. The installation program begins:

Mainboard ID

66

K7S5A2 V1.0

Note: The following screens are examples only. The

screens and driver lists will be different according to
the mainboard you are installing.

The mainboard identification is located in the upper
left-hand corner.

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install.
The default options are recommended.

4. Click Next run the Installation Wizard. An item installa-
tion screen appears:

5. Follow the instructions on the screen to install the
items.

Drivers and software are automatically installed in sequence.
Follow the onscreen instructions, confirm commands and al­low the computer to restart a few times to complete the
installation.

67

K7S5A2 V1.0

FFoollddeerrss ffoorr tthhiiss MMaaiinnbbooaarrdd

For this board, you can install software from the following
folders:

Utility Folder

Some of the software in you support CD may not be listed
here, please always refer to the readme.txt for further inform a­tion.

AWDFLASH

AMIFlash
CD Ghost

MEDIARING

TALK

Recovery Ge n-

ius

SUPER VOICE Fax/modem software

K7S5A2 Folder

Software to erase and install new revi­sions of the system BIOS (CMOS)

Simulates up to twenty-three 200X CD­ROM drives

Telephony software

Data recovery software (30 day trial ver­sion)

Use the soft ware in the following sub-folders:

AUDIO

LAN

VGA

This folder contains a short README
file giving directions to alternate folders
for installing the audio software.

This folder contains a short README
file giving directions to alternate folders
for installing the LAN software.

This folder contains a short README
file giving directions to alternate folders
for installing the VGA software.

68

K7S5A2 V1.0

UUttiilliittyy FFoollddeerr IInnssttaallllaattiioonn NNootteess

Award Flash Memory Utility

This utility lets you erase the system BIOS stored on a Flash
Memory chip on the mainboard, and lets you copy an updated
version of the BIOS to the chip. Proceed with caution when
using this program. If you erase the current BIOS and fail to
write a new BIOS, or write a new BIOS that is incorrect, your
system will malfunction. Refer to Chapter 3, Using BIOS for
more information.

For this mainboard, use AWD8XX.EXE to flash the BIOS
(where 8XX is the version number). You can use any version,
but we suggest you use the latest version. To use the utility,
you must be in real-mode DOS (not the DOS box that is avail­able in Windows 98/95/NT). If you are using WINDOWS 98/95,
shut down your computer and select the option Restart in
DOS in the shutdown dialog box. If you are running Windows
NT, shut down your computer and boot from a DOS diskette
temporarily in order to run the flash memory utility.

CD Ghost

The CD Ghost software enables you to create a virtual cabinet
of CD-ROM drives on your system to help you categorize and
organize your CD collection. A user-friendly interface assists
you in quickly creating images of both CDs and DVDs on your
system. To install the software, run SETUP.EXE from the fol­lowing directory:

\UTILITY\CDGHOST \ENG\CDGHOST

MediaRing Talk

To install the MediaRing Talk voice modem software for the
built-in modem, go to the directory \UTILITY\MEDIARING
TALK; then run MRTALK -SETUP72.EXE to install the applica­tion software.

69

K7S5A2 V1.0

Recovery Genius

The Recovery Genius software program is an innovative win­dows application system that protects your Hard Disk Drive
from virus intrusion, accidental deletions and from system cor­ruption. To install the Recovery Genius software program run
SETUP.EXE from the following directory:

\UTILITY\RECOVERY GENIUS \ENG\RECOVERYGENIUS

Super Voice

To install the Super Voice voice, fax, data communication ap­plication for use with the built-in fax/modem, go the directory
\UTILITY\SUPERVOICE; then run PICSHELL.EXE to install
the application software.

70

K7S5A2 V1.0

MMaaiinnbbooaarrdd ((KK77SS55AA22)) IInnssttaallllaattiioonn NNootteess

Most of the sub-folders in this folder are empty, with a short
README file giving directions to alternate folders for the ap­propriate software.

Audio Software

The audio drivers for the K7S5A2 are in the \SiS\635CODEC
folder. Drivers are supplied for Windows
2000/ME/98SE/95/NT.

Installation for Windows 2000/ME/98SE/95

To install the audio drivers, run SETUP.EXE from the following
directory:

\SiS\635CODEC

Installation for Windows NT4.0

1. Click Start.

2. Click Settings and then click Control Panel.

3. Double-click the Multimedia icon.

4. Select the Devices tab.

5. Click Add.

6. Select the item "Unlisted or Updated Driver" in the List of
Drivers in the list box and then specify the path to the PCI
audio NT drivers:

\SiS\635CODEC\WINNT4

7. Select “Avance AC’97 Audio Driver” and click OK.

8. Choose the proper I/O or click OK for the default setting.
Setup installs the drivers and software.

71

K7S5A2 V1.0

LAN Software

The enhanced IDE drivers for the K7S5A2 are in the
\SiS\LANSIS900 folder. Drivers are supplied for Windows
2000/98/95/ME/NT4.0.

Installation for Windows 2000/98/95/NT4.0

To install the IDE drivers, run SETUP.EXE from the following
directory:

\SiS\LANSiS900\

VGA Software

The enhanced VGA drivers for the K7S5A2 are in the
\SiS\VXD folder. Drivers are supplied for Windows
2000/98/ME.

Installation for Windows ME/98

To install the IDE drivers, run SETUP.EXE from the following
directory:

\SiS\VXD\WIN9X

Installation for Windows 2000

To install the IDE drivers, run SETUP.EXE from the following
directory:

\SiS\VXD\WIN2000

This concludes Chapter 4.

72

AAppppeennddiixx AA

Setting Jumpers

Jumper Settings

Jumper Type Description Setting (default)

JP1 3 pin Clear CMOS 1-2: Normal

2-3: Clear

JP2 3 pin KB Power

ON

JP3 3 pin BIOS protec-

tion

JP4 3 pin ROM Type 1-2: 5V

1-2: Enable

2-3: Disable

1-2: Disable

2-3: Enable

2-3: 3V

JP1

1

JP2

1

JP3

1

JP4

1

K7S5A2 V1.0

Jumper 1 – Enables you to clear the BIOS:

Jumper 2 – Enable this jumper if you want keyboard or USB

Jumper 3 – Enables you to prevent the BIOS from being up-

Jumper 4 – Selects the voltage of the onboard ROM. This

1. Turn the system off.

2. Short pins 2 and 3 on jumper 7.

3. Return the jumper to the normal setting.

4. Turn the system on. The BIOS is returned to
the default settings.

activity to awaken the system from power saving
mode.

dated (flashed). Set the jumper to disabled if you
are going to update your BIOS. After updating
the BIOS, return it to the default setting (en­abled). For instructions on updating the BIOS
refer to Chapter 3.

jumper is factory set. DO NOT change this
jumper.

74

K7S5A2 V1.0

2 1

Reset Switch

10 9

The Panel Connector

The panel connector provides a standard set of switch and
LED connectors usually found on ATX or micro-ATX cases.
Refer to the table below for information:

Device Pins

Empty 10

N/C 9

Power

ON/OFF

Reset

Switch

Green LED

Indicator

HDD LED +1, -3

6, 8

5, 7

+2, -4

Empty
(Pin 10)

Power Switch
(Pins 6, 8)

Green LED
(Pins 2, 4)

N/C
(Pin 9)

(Pins 5, 7)

HDD LED
(Pins 1, 3)

Note: The plus sign (+) indicates a pin which must be con-

nected to a positive voltage.

75
